USER MANUAL

Baryonic 24

SLB-244-41

Please read the instructions carefully before use

!

SAFETY INSTRUCTIONS

Please read the instructions carefully as they include important
information about the installation, operation and maintenance.

• Please keep this user’s guide for future consultation. If you sell the unit to another

user, be sure that they also receive this instruction booklet.

• All fixtures leave the manufacturer intact. Please note that any damages incurred
by the user is not covered by the guarantee.

• Unpack and check carefully that there is no transportation damage before using the

unit.

• The unit is for indoor use only. Use only in a dry location.

• Use a safety bond when attaching the fixture to a lighting rig. Handle by the

hanging bracket when fixing.

• The unit must be installed in a location with adequate ventilation at least 50 cm

from adjacent surfaces.

• Make sure that no ventilation slot is blocked, otherwise the unit will overheat.

• Before operating, ensure that the voltage and frequency of the power supply match

the power requirements of the unit.

• Make sure all equipment is properly earthed.

• Do not operate the unit if the ambient temperature is higher than 40°C.

• Do not hardwire to any mains dimmer.

• On the first start, there may be some normal operational start-up smell.

• Make sure that there is no flammable material close to the unit while operating, as

it is a fire hazard.

• Examine power wires carefully and replace immediately if there is any damage.

• Never run on for a long time lest shortening lifespan. Avoid any inflammable liquids,

water or metal objects entering the unit. In case it happens, cut off the mains power
immediately.

• Do not operate in a dirty or dusty environment. Clean fixtures regularly.

• Do not allow children unsupervised to operate the fixture.

• Do not touch any wire during operation as there might be a hazard of electric

shock.

• Avoid placing power wires next to other cables.

• Disconnect the mains power before replacing or servicing the fuses.

• Replace fuse only with the same type.

• In the event of a serious operating problem, stop using the unit immediately.

• Never turn on and off the unit time after time.

• The housing, the lenses, or the ultraviolet filter must be replaced if they are visibly

damaged.

• Do not open the unit as there is no user serviceable part inside.

• Never try to repair the unit by yourself. Repairs carried out by unskilled people can

lead to damage or malfunction. Please contact the nearest authorized technical
assistance centre.

• Disconnect the mains power if the fixture is not used for a long time.

• Use the original packaging to transport regarding any warranty issue.

• Do not look directly at the LED light beam while the fixture is on.

• Do not connect more than 7 units to the same power source.

INSTALLATION

The feet should be mounted on each sides of the unit. Always ensure that the unit is
firmly fixed to avoid vibration and slipping while operating. Always ensure that the
structure to which you are attaching the unit is secure and able to support 10 times
the unit’s weight. Also, always use a safety cable that can hold 12 times the unit’s
weight when installing the fixture.

The equipment must be fixed in an appropriate place by professionals. Keep it out of
the reach of unqualified people.

TECHNICAL SPECIFICATIONS

Architectural colour bar with 24x4w 4in1 RGBW LED

- LED: 24x4W 4in1 RGBW

- LED beam angle: 35°

- Functions: colour chaser, strobe and colour mix

- Protocol: DMX 512. 6, 9, 16, 30 or 58 channels

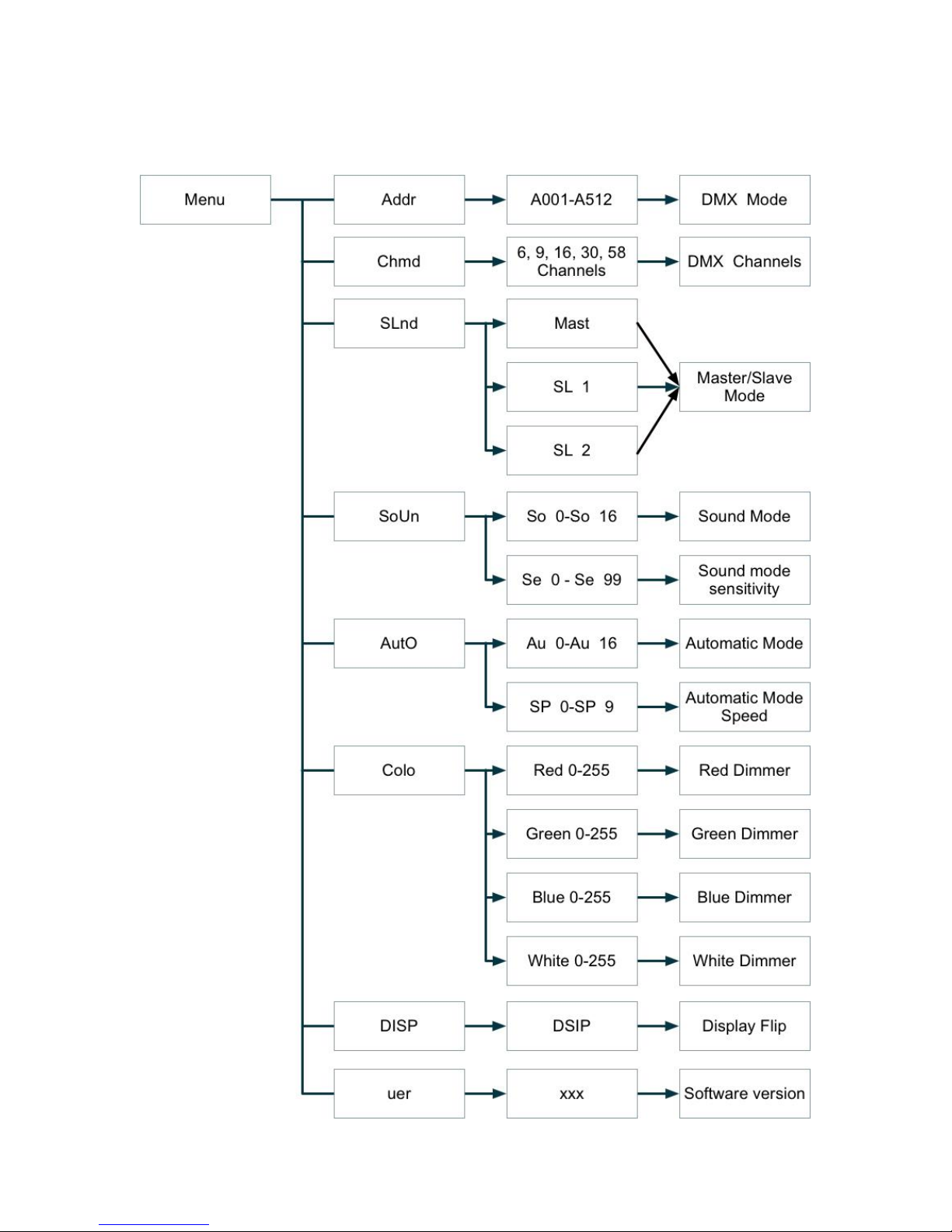

- Control modes: DMX 512, master/slave, sound activation, automatic,
remote control

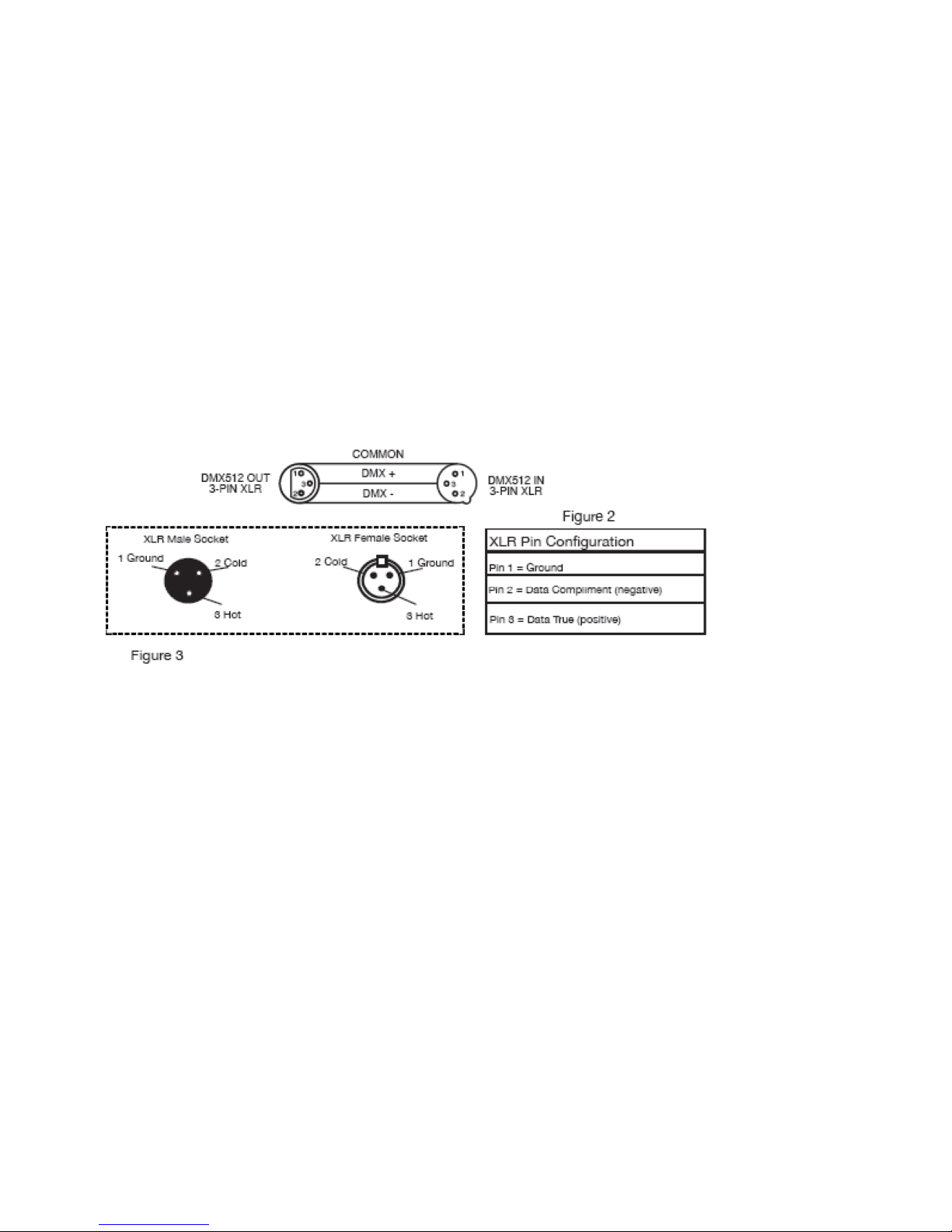

- Connectivity: 3-pin XLR cable and IEC

- 4-Digits on rear panel

- Power consumption: 100W

- Weight: 4kg (8.8lb)

- Dimensions: 110 x 10 x 10 cm (4.3“ x 0.4“ x 0.4“)

- Included: Mounting feet
