Please read the instructions carefully before use
USER MANUAL
EcoPar186
SLI-ECOPAR186
SAFETY INSTRUCTIONS
Please read the instructions carefully as they include important
information about the installation, operation and maintenance.
• Please keep this user’s guide for future consultation. If you sell the unit to another
user, be sure that they also receive this instruction booklet.
• All fixtures leave the manufacturer intact. Please note that any damages incurred
by the user is not covered by the guarantee.
• Unpack and check carefully that there is no transportation damage before using
the unit.
• The unit is for indoor use only. Use only in a dry location.
• Use a safety bond when attaching the fixture to a lighting rig. Handle by the
hanging bracket when fixing.
• The unit must be installed in a location with adequate ventilation at least 50 cm
from adjacent surfaces.
• Make sure that no ventilation slot is blocked, otherwise the unit will overheat.
• Before operating, ensure that the voltage and frequency of the power supply
match the power requirements of the unit.
• Make sure all equipment is properly earthed.
• Do not operate the unit if the ambient temperature is higher than 40°C.
• Do not hardwire to any mains dimmer.
• On the first run there may be some normal operational start-up smell.
• Make sure that there is no flammable material close to the unit while operating, as
it is a fire hazard.
• Look over power wires carefully and replace immediately if there is any damage.
• Never run on for a long time lest shortening lifespan. Avoid any inflammable
liquids, water or metal objects entering the unit. In case it happens, cut off the
mains power immediately.
• Do not operate in a dirty or dusty environment. Clean fixtures regularly.
!
• Do not allow children unsupervised to operate the fixture.
• Do not touch any wire during operation as there might be a hazard of electric
shock.
• Avoid placing power wires next to other cables.
• Disconnect the mains power before replacing or servicing the fusewires
or the lamp.
• Replace fuse only with the same type.
• In the event of a serious operating problem, stop using the unit immediately.
• Never turn on and off the unit time after time.
• The housing, the lenses, or the ultraviolet filter must be replaced if they are visibly
damaged.
• Do not open the unit as there is no user serviceable part inside.
• Never try to repair the unit by yourself. Repairs carried out by unskilled people can
lead to damage or malfunction. Please contact the nearest authorized technical
assistance centre.
• Disconnect the mains power if the fixture is not used for a long time.
• Use the original packaging to transport regarding any warranty issue.
• Do not look directly at the LED light beam while the fixture is on.
• Do not connect more than 7 units to the same power source.
INSTALLATION
The unit should be mounted via its screw holes on the bracket. Always ensure that
the unit is firmly fixed to avoid vibration and slipping while operating. Always ensure
that the structure to which you are attaching the unit is secure and able to support
10 times the unit’s weight. Also always use a safety cable that can hold 12 times the
unit’s weight when installing the fixture.
TECHNICAL SPECIFICATIONS
- LED: 186 x 0.1 watt
- Illuminance: 1200 lux at 3 metres (9.8’)
- Beam angle: 25°
- Protocol: DMX-512, 4 or 8 channels
- Functions: Dimmer (0-100 %), strobe, auto, sound control, master/slave
- Display: 4-digit
- Housing: ABS
- Fixation: 2 brackets (to hang or lay the spotlight)
- Input and output: 3-pin DMX and IEC
- Cooling: Low-noise fan
- Use: Indoor
- Power consumption: 15 watts
- Dimensions: 24 x 23.5 x 8 cm (9.4 x 9.3 x 3.1»)
- Weight: 1 kg (2.2 lb)
- Included: Remote control
BACK PANEL
1. Function display
2. Menu buttons
3. DMX output
4. DMX input
5. IEC input
6. IEC output
7. Microphone
7
4
3
2
1
24 cm
23.5 cm
5
6
SETTING THE FIXTURE
MENU
Addr 1
DMX mode
512
ChMd 4Ch
Channel selection mode
8Ch
SLMd MASt
Master and slave mode
SL 1
SL 2
SL 3
SL 4
ShMd CoLo Co
1-7
Performance mode
Stro 0
255
FAde SP 1
SP 8
Soun yeS
Auto yeS
Led on
Switching on or off the display
oFF
dISP dISP
Reversing the display
d5IP
bALA RED 125
White balance
255
Blue 125
255
Gree 125
255
MANU RED 0
Manual mode
255
BLUE 0
255
GREE 0
255
Unbe 0
255
teSt
Test mode
Fhr5
Hours of operation
RF YeS
Remote control
no
teMP
Current temperature
DMX Mode
With the menu button, select the DMX mode (Addr) and press the enter key to
confirm. Then use the up and down buttons to choose the desired DMX channel
(1 – 512) and press the enter key to confirm. Press the menu button to return to the
main menu.
Channel selection mode
With the menu button, select the channel selection mode (ChMd) and press the
enter key to confirm. Then use the up and down buttons to choose the desired
mode, that is 4 channels (4Ch) or channels (8Ch), and press the enter key to
confirm. Press the menu button to return to the main menu.

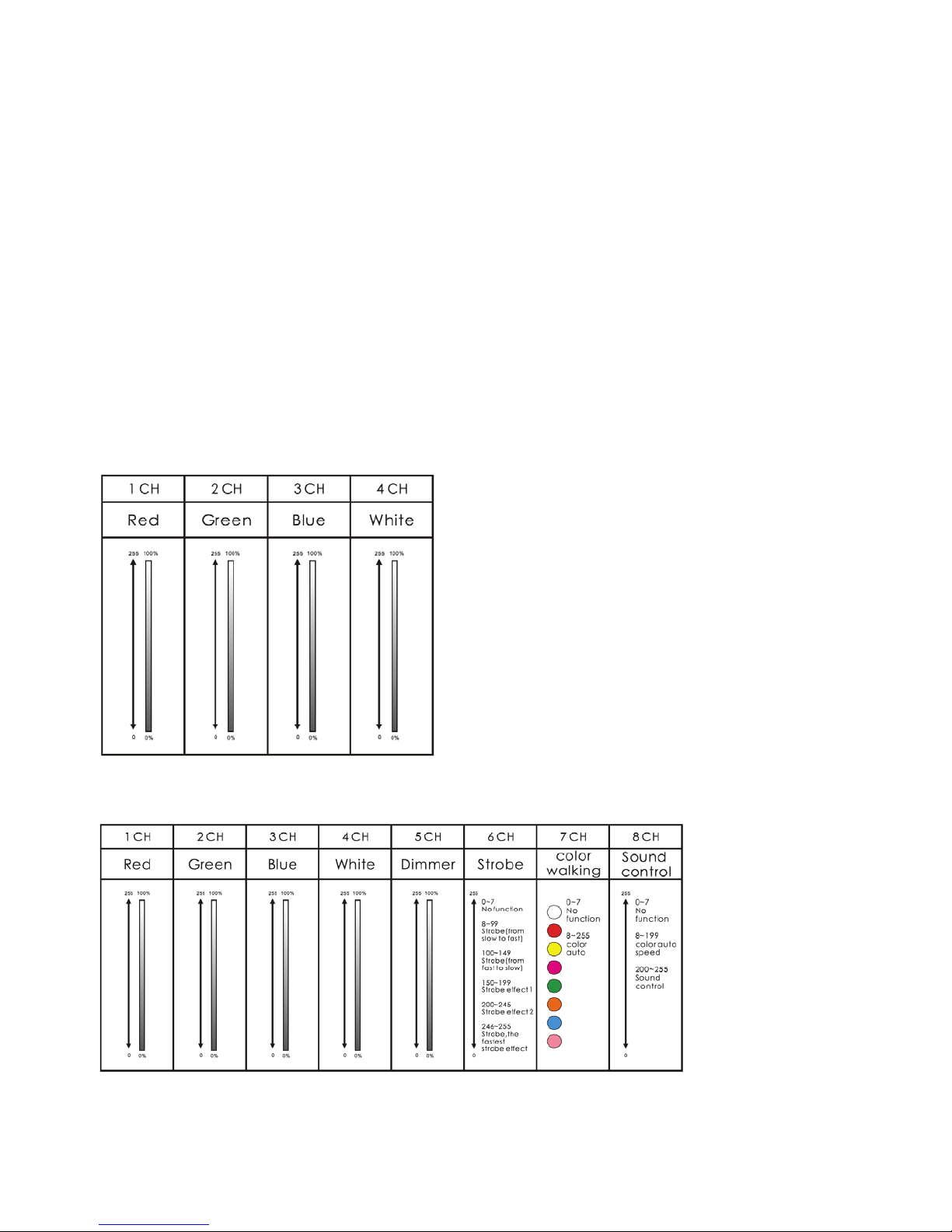

4 CH CHANNEL MODE
8 CH CHANNEL MODE
Master and slave mode
With the menu button, select the master and slave mode (SLMd) and press the
enter key to confirm. Then use the up and down buttons to choose the desired
option, that is master (MASt), slave 1 (SL1), slave 2 (SL2), slave 3 (SL3) or slave
4 (SL4), and press the enter key to confirm. Press the menu button to return to the
main menu.
Performance mode
With the menu button, select the performance mode (ShMd) and press the enter key
to confirm. Then use the up and down buttons to choose the desired option, that
is colour (CoLo), fade (Fade), sound (Soun) or automatic (Auto), and press the enter
key to confirm. Then use the up and down buttons to select the desired value and
press the menu button to return to the main menu.
In the colour mode, you can select a value between 1 (Co 1) and 15 (Co 15). Each
value corresponds to a specific colour. Press the enter key to confirm.
In the strobe mode, which is accessible through the colour mode, you can select a
value between 0 and 255. Each value corresponds to a specific speed. Press the
enter key to confirm.
In the fade mode, you can select a value between 1 (SP 1) and 8 (SP 8). Each value
corresponds to a specific speed. Press the enter key to confirm.
In the sound mode, you can decide to activate (yes) or deactivate (no) the sound
control. When the sound mode is on, the spotlight reacts to sound. When the sound
mode is off, the spotlight does not react to sound. Press the enter key to confirm
your choice and press the menu button to return to the main menu.
In the auto mode, you can choose to play a preset show in an endless loop. Press
the enter key to start the auto mode. The auto mode will stop when you return to
the main menu.
Switching on or off the display
With the menu button, select the switching on or off the display mode (Led) and
press the enter key to confirm. Then use the up and down buttons to choose to
switch on the display (on) or to switch it off (off), and press the enter key to confirm.
The back led display will automatically be switched off after a few minutes (off) or will
remain on as long as the spotlight is used (on). Press the menu button to return to
the main menu.
Reversing the display
With the menu button, select the reversing the display mode (dISP) and press the
enter key to confirm. Then use the up and down buttons to choose the display
mode, that is dISP (up) or d5IP (down), and press the enter key to confirm. Press the
menu button to return to the main menu.
White balance
With the menu button, select the white balance mode (bALA) and press the enter
key to confirm. Then use the up and down buttons to select the desired colour,
that is red (red), blue (bLue) or green (Gree), and press the enter key to confirm.
Then use the up and down buttons to select a value between 125 and 255 and
therefore determine the colour temperature. Press the enter key to confirm.
Press the menu button to return to the main menu.
Manual mode
With the menu button, select the manual mode (MAnu) and press the enter key to
confirm. Then use the up and down buttons to select the desired colour, that is red
(red), blue (bLue), green (Gree) or amber (Unbe) and press the enter key to confirm.
Then use the up and down buttons to select the desired colour (between 0 and
255). The chosen colour is automatically displayed. Press the menu button to return
to the main menu.
Test mode
With the menu button, select the test mode (teSt) and press the enter key to
confirm. The machine automatically starts to diffuse colours. Press the menu button
to return to the main menu.
Hours of operation
With the menu button, select the hours of operation mode (Fhr5) and press the enter
key to confirm. The number of hours that the device has been working is displayed.
Press the menu button to return to the main menu.
Remote control
With the menu button, select the remote control mode (rF) and press the enter key
to confirm. Then use the up and down buttons to choose to activate the remote
control mode (yes) or to deactivate it (no). Press the enter key to confirm. Press the
menu button to return to the main menu.
Current temperature
With the menu button, select the current temperature mode (teMP) and press the
enter key to confirm. The temperature of the device is displayed in degrees Celsius.
Press the menu button to return to the main menu.

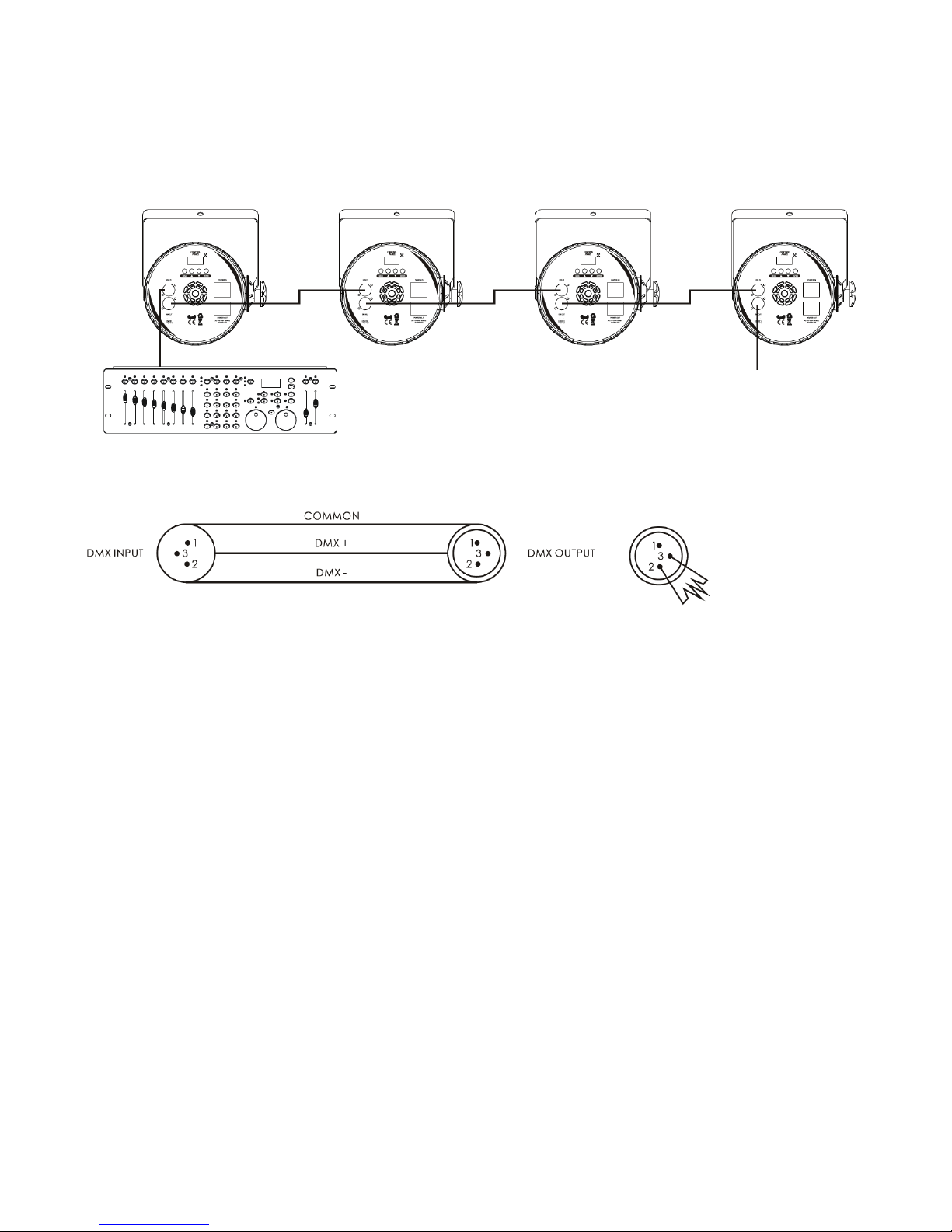

DMX512 CONNECTIONS
The DMX512 is widely used in intelligent lighting control, with a maximum of 512
channels.
Warning
To avoid signal transmission problems and interferences when using fixtures
in chain, use a Stagg N-series professional 3-pin DMX terminator
(resistance: 120 ohms; pin2: DMX-; pin3:DMX+).
FIXTURE CLEANING
An internal cleaning must be carried out periodically to optimize the light output.
The cleaning frequency depends on the environment in which the fixture operates:
a damp, smoky or particularly dirty surrounding can cause greater accumulation
of dirt on the fixture’s optics. Clean the fixture with a soft cloth and normal glass
cleaning fluid. Always dry the parts carefully. Clean the internal optics at least every
30 days. Clean the external optics at least every 20 days.
INFRARED REMOTE CONTROL
Functions
1. ‘’ON’’: Turn on the fixture.
2. ‘’OFF’’: Turn off the fixture.
3. ‘’+’’ and ‘’-‘’: Adjust various parameters of the fixture.
4. ‘’R’’: Red colour setting.
5. ‘’G’’: Green colour setting.
6. ‘’B’’: Blue colour setting.
7. ‘’W’’: White colour setting.
8. ‘’A’’: Not applicable.
9. ‘’UV’’: Not applicable.
10. ‘’Sound’’: Sound function selection.
11. ‘’Auto’’: Auto function selection.
12. ‘’Strobe’’: Strobe function selection.
13. ‘’Color’’: Colour function selection.
14. ‘’X’’: Not applicable.
15. ‘’Y’’: Not applicable.
