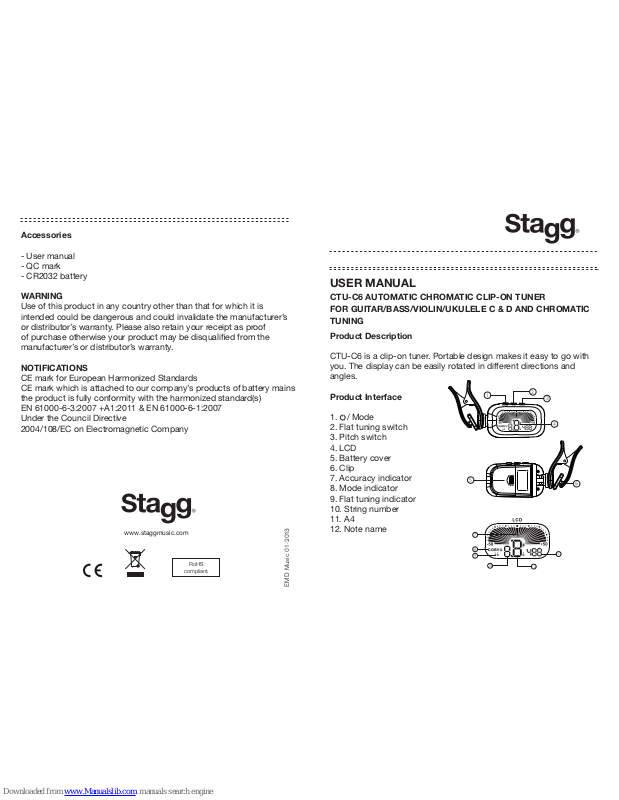

Stagg CTU-C6 User Manual

CTU-C6 AUTOMATIC CHROMATIC CLIP-ON TUNER
FOR GUITAR/BASS/VIOLIN/UKULELE C & D AND CHROMATIC
TUNING

USER MANUAL

Product Description

CTU-C6 is a clip-on tuner. Portable design makes it easy to go with
you. The display can be easily rotated in different directions and
angles.

Product Interface

1. / Mode

2. Flat tuning switch

3. Pitch switch

4. LCD

5. Battery cover

6. Clip

7. Accuracy indicator

8. Mode indicator

9. Flat tuning indicator

10. String number

11. A4

12. Note name

Accessories

- User manual

- QC mark

- CR2032 battery

WARNING

Use of this product in any country other than that for which it is
intended could be dangerous and could invalidate the manufacturer’s
or distributor’s warranty. Please also retain your receipt as proof
of purchase otherwise your product may be disqualied from the
manufacturer’s or distributor’s warranty.

NOTIFICATIONS

CE mark for European Harmonized Standards
CE mark which is attached to our company’s products of battery mains
the product is fully conformity with the harmonized standard(s)
EN 61000-6-3:2007 +A1:2011 & EN 61000-6-1:2007
Under the Council Directive
2004/108/EC on Electromagnetic Company

EMD Music 01-2013

1

2

3

4

5

6

11

8

9

7

12

10

RoHS

compliant

www.staggmusic.com

Features

- Auto Power Off Function: The device will turn off automatically if there
is no signal present or operation in 5 minutes.

- Note Detection: Chromatic, Guitar, Bass, Violin, Ukulele C, Ukulele D.

- Setting saved upon powering off.

Operation

1. Press 1 for 2 seconds to turn on/off CTU-C6. The CTU-C6 will turn

on to the last setting. The default tuning mode is Chromatic when
rst powering on this tuner.

2. Press 3 briey to set A4: 430~450Hz.

3. Press 1 briey to set mode: Chromatic → Guitar → Bass → Violin →

Ukulele C → Ukulele D → Chromatic.

4. Press 2 briey to set at: N/A → b → bb

5. Play a single note on your instrument. The display will show the

name of the note and string number closest to the pitch detected by
the CLIP. Tune your instrument until the LCD shows the correct string
and note name.

6. Play a single note on your instrument, if the LCD is in orange and

the accuracy indicator crosses the central line to the right , that
means the note is sharp; if the accuracy indicator remains in the
left part of the central line, that means the note is at. Tune your
instrument until the indicator stays in center and the LCD turns in
green.

7. Note Detection:

a) Chromatic:C,C#,D,Eb,E,

F,F#,G,G#,A,Bb,B

b) Guitar: 6E,5A,4D,3G,2B,1E

c) Bass: LB,4E,3A,2D,1G,HC

d) Violin: 4G,3D,2A,1E

e) Ukulele C: 4G,3C,2E,1A

f ) Ukulele D: 4A,3D,2F#,1B

Installing the battery

When the battery charge is low, the LCD
will become dim. Please replace the battery
as soon as possible.

Pay attention to polarity when replacing battery!
Remove the battery if the product will not be used for a long period!

Specifications

- Tuning scale: Chromatic, Guitar, Bass, Violin, Ukulele C, Ukulele D

- Tuning range: A0~C8

- Tuning mode: PIEZO

- A4: 430Hz~450Hz

- Precision: ±1 cent

- Power: 3V(CR2032 lithium battery)

- Power consumption: Tuning mode: <12mA / Power off: <1Ua

a. d.

b. e.

c. f.

+
