Stagg BLAXX Operating Instructions Manual

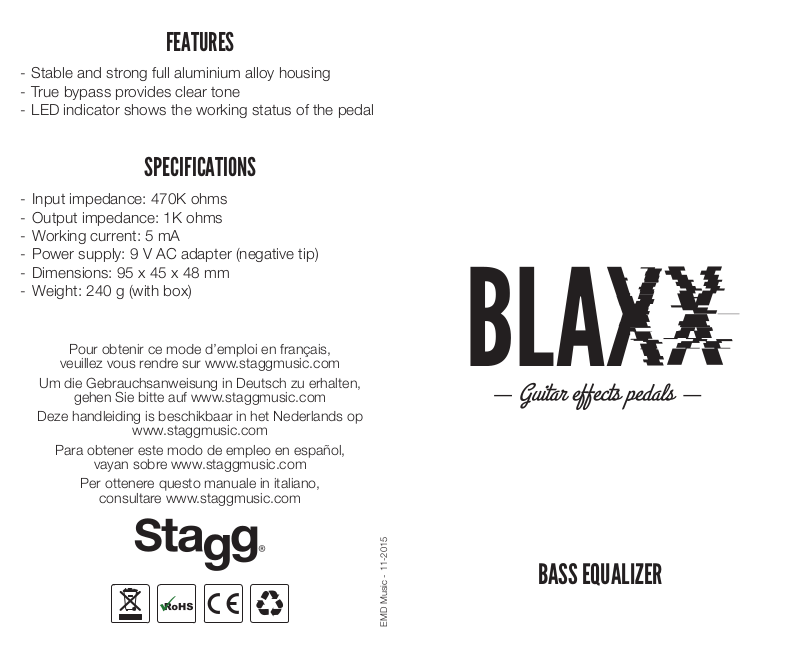

FEATURES

- Stable and strong full aluminium alloy housing

- True bypass provides clear tone

- LED indicator shows the working status of the pedal

SPECIFICATIONS

- Input impedance: 470K ohms

- Output impedance: 1K ohms

- Working current: 5 mA

- Power supply: 9 V AC adapter (negative tip)

- Dimensions: 95 x 45 x 48 mm

- Weight: 240 g (with box)

Pour obtenir ce mode d’emploi en français,

veuillez vous rendre sur www.staggmusic.com

Um die Gebrauchsanweisung in Deutsch zu erhalten,

gehen Sie bitte auf www.staggmusic.com

Deze handleiding is beschikbaar in het Nederlands op

Para obtener este modo de empleo en español,

www.staggmusic.com

vayan sobre www.staggmusic.com

Per ottenere questo manuale in italiano,

consultare www.staggmusic.com

BASS EQUALIZER

EMD Music - 11-2015

Thank you for purchasing our Bass Equalizer Pedal.

Before operating this product, please

read the enclosed operating instructions.

OPERATING INSTRUCTIONS

6

3

+

2

-

5

+

4

-

1

1. TRUE BYPASS FOOTSWITCH

Push down the footswitch to switch between effect
and bypass status.

2. EQUALIZER CONTROL

Each of 5 the bands (62.5 Hz to 4 KHz) allows
boosting and cutting +/- 18 dB.

3. LEVEL – LED INDICATOR

Controls the sound volume effect – Indicates the
working status of the pedal (the light is green when
the pedal is on and red when the pedal is off).

4. INPUT

Connect the INPUT of the effect pedal to your guitar
or another effect unit with the 6.3 mm audio plug.

5. OUTPUT

Connect the OUTPUT of the effect pedal to your
guitar amplifier or another effect unit with the 6.3 mm
audio plug.

6. AC ADAPTER JACK

DC 9 V regulated AC adapter (negative tip).

Use only the specified AC adapter and connect it to an

!

AC outlet of the correct voltage. Do not use any other
AC adapter since this may cause malfunction.
