Page 1
GUITAR AMPLIFIER

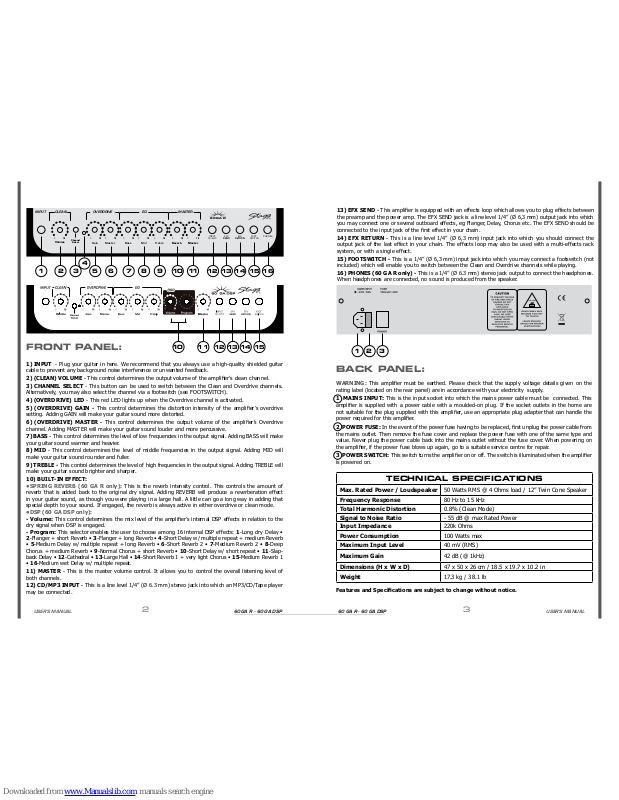

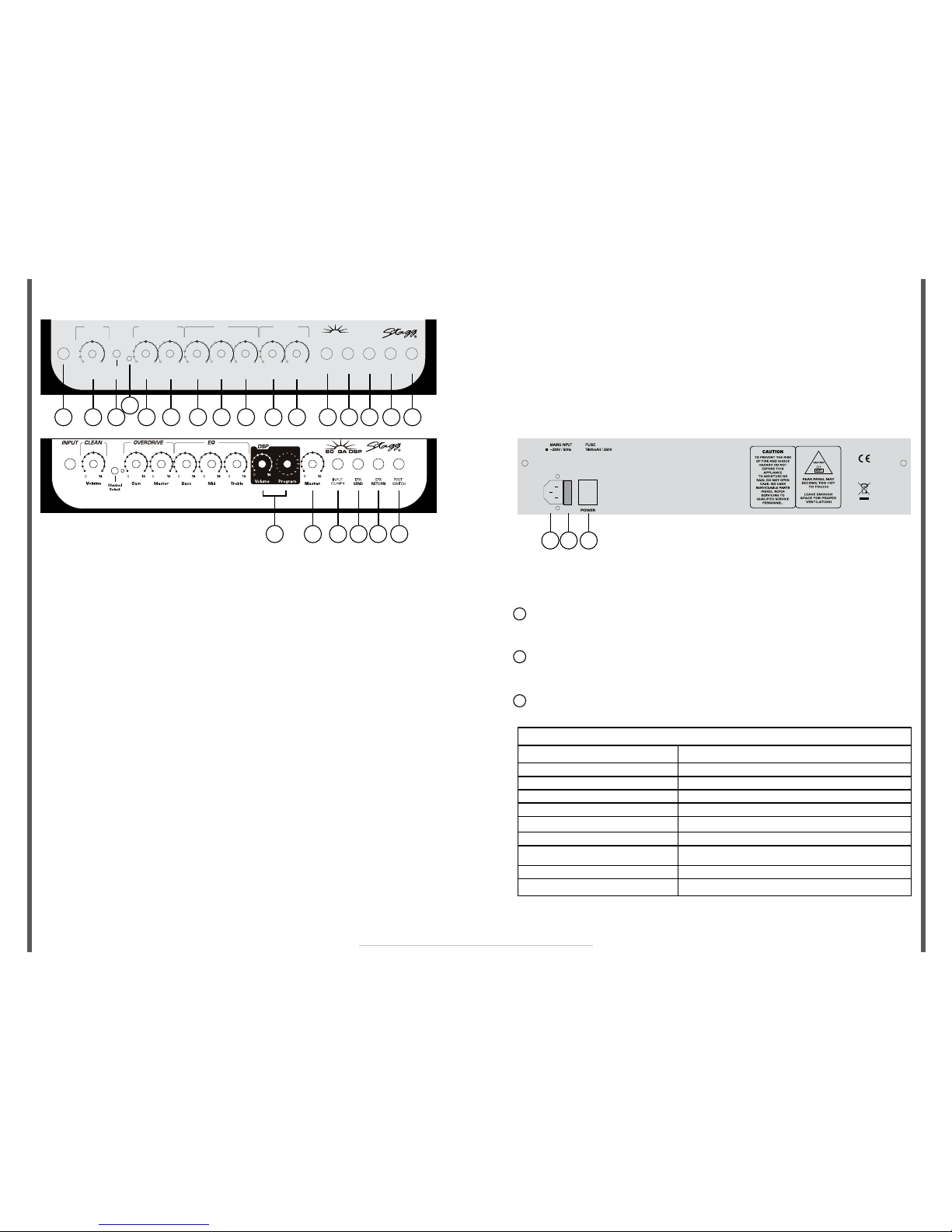

FRONT PANEL:
1) INPUT - Plug your guitar in here. We recommend that you always use a high-quality shielded guitar
cable to prevent any background noise interference or unwanted feedback.
2) (CLEAN) VOLUME - This control determines the output volume of the amplier’s clean channel.
3) CHANNEL SELECT - This button can be used to switch between the Clean and Overdrive channels.
Alternatively, you may also select the channel via a footswitch (see FOOTSWITCH).
4) (OVERDRIVE) LED - This red LED lights up when the Overdrive channel is activated.
5) (OVERDRIVE) GAIN - This control determines the distortion intensity of the amplier’s overdrive
setting. Adding GAIN will make your guitar sound more distorted.
6) (OVERDRIVE) MASTER - This control determines the output volume of the amplier’s Overdrive
channel. Adding MASTER will make your guitar sound louder and more percussive.
7) BASS - This control determines the level of low frequencies in the output signal. Adding BASS will make
your guitar sound warmer and heavier.
8) MID - This control determines the level of middle frequencies in the output signal. Adding MID will
make your guitar sound rounder and fuller.
9) TREBLE - This control determines the level of high frequencies in the output signal. Adding TREBLE will
make your guitar sound brighter and sharper.
10) BUILT-IN EFFECT:
•SPRING REVERB (60 GA R only): This is the reverb intensity control. This controls the amount of
reverb that is added back to the original dry signal. Adding REVERB will produce a reverberation effect
in your guitar sound, as though you were playing in a large hall. A little can go a long way in adding that
special depth to your sound. If engaged, the reverb is always active in either overdrive or clean mode.
•DSP (60 GA DSP only):
- Volume: This control determines the mix level of the amplier’s internal DSP effects in relation to the
dry signal when DSP is engaged.
- Program: This selector enables the user to choose among 16 internal DSP effects: 1-Long dry Delay •
2-Flanger + short Reverb • 3-Flanger + long Reverb • 4-Short Delay w/ multiple repeat + medium Reverb
• 5-Medium Delay w/ multiple repeat + long Reverb • 6-Short Reverb 2 • 7-Medium Reverb 2 • 8-Deep
Chorus + medium Reverb • 9-Normal Chorus + short Reverb • 10-Short Delay w/ short repeat • 11-Slap-
back Delay • 12-Cathedral • 13-Large Hall • 14-Short Reverb 1 + very light Chorus • 15-Medium Reverb 1
• 16-Medium wet Delay w/ multiple repeat.
11) MASTER - This is the master volume control. It allows you to control the overall listening level of
both channels.
12) CD/MP3 INPUT - This is a line level 1/4” (Ø 6.3 mm) stereo jack into which an MP3/CD/Tape player
may be connected.
BACK PANEL:
WARNING: This amplier must be earthed. Please check that the supply voltage details given on the
rating label (located on the rear panel) are in accordance with your electricity supply.
1 MAINS INPUT: This is the input socket into which the mains power cable must be connected. This
amplier is supplied with a power cable with a moulded-on plug. If the socket outlets in the home are
not suitable for the plug supplied with this amplier, use an appropriate plug adapter that can handle the
power required for this amplier.
2 POWER FUSE: In the event of the power fuse having to be replaced, rst unplug the power cable from
the mains outlet. Then remove the fuse cover and replace the power fuse with one of the same type and
value. Never plug the power cable back into the mains outlet without the fuse cover. When powering on
the amplier, if the power fuse blows up again, go to a suitable service centre for repair.
3 POWER SWITCH: This switch turns the amplier on or off. The switch is illuminated when the amplier
is powered on.
TECHNICAL SPECIFICATIONS
Max. Rated Power / Loudspeaker 50 Watts RMS @ 4 Ohms load / 12” Twin Cone Speaker
Frequency Response 80 Hz to 15 kHz
Total Harmonic Distortion 0.8% (Clean Mode)
Signal to Noise Ratio - 55 dB @ max Rated Power
Input Impedance
220k Ohms
Power Consumption
100 Watts max
Maximum Input Level
40 mV (RMS)
Maximum Gain
42 dB (@ 1kHz)
Dimensions (H x W x D) 47 x 50 x 26 cm / 18.5 x 19.7 x 10.2 in
Weight
17.3 kg / 38.1 lb
Features and Specications are subject to change without notice.
13) EFX SEND - This amplier is equipped with an effects loop which allows you to plug effects between
the preamp and the power amp. The EFX SEND jack is a line level 1/4” (Ø 6,3 mm) output jack into which
you may connect one or several outboard effects, eg Flanger, Delay, Chorus etc. The EFX SEND should be
connected to the input jack of the rst effect in your chain.
14) EFX RETURN - This is a line level 1/4” (Ø 6,3 mm) input jack into which you should connect the
output jack of the last effect in your chain. The effects loop may also be used with a mul ti-effects rack
system, or with a single effect.
15) FOOTSWITCH - This is a 1/4” (Ø 6,3 mm) input jack into which you may connect a footswitch (not
included) which will enable you to switch between the Clean and Overdrive channels while playing.
16) PHONES (60 GA R only) - This is a 1/4” (Ø 6.3 mm) stereo jack output to connect the headphones.
When headphones are connected, no sound is produced from the speaker.
2 3
USER’S MANUALUSER’S MANUAL 60 GA R - 60 GA DSP 60 GA R - 60 GA DSP
1 2 3
60 GA R
OVERDRIVECLEAN
Channel
Select
EQ MASTER
Gain Master Bass Mid Treble Reverb
INPUT
CD/MP3
EFX
SEND
EFX
RETURN
FOOT
SWITCH
PHONES
Master
0 100 10 0 10 0 10 0 10 0 10 0 10 0 10
Volume
INPUT
1 2 5 6 7 8 11109
12
13 14 15 16
3
10
12
13 14 15
11
4
Page 2
RoHS
compliant
4
USER’S MANUAL
60 GA R - 60 GA DSP
INSTRUCTIONS FOR USE:
Plug the mains lead into a suitable power socket and connect your instrument to the input socket of the
amplier with a suitable guitar lead (this lead is not supplied with the amplier, but is normally supplied
with the electric guitar). Finally, press the Power Switch to the ON position, the power switch will light up
and your amplier is ready for use.
IMPORTANT SAFETY INSTRUCTIONS:
READ AND KEEP THESE INSTRUCTIONS HEED ALL WARNING.
• If, after you have followed the instructions outlined above, your amplier fails to function, please contact
your dealer. Under no circumstances should the amplier be opened. Leave all servicing to qualied
personnel.
• Electrical appliances must never be used in conditions of high humidity or heat.
To prevent any risk of re or electric shock, never spill or splash liquids on the amplier.
Should this happen, unplug the power cable from the mains outlet immediately.
• We would like to draw your intention to the instructions printed on the notice attached to the back of
the amplier.
• Exposure to extremely high noise levels may cause permanent hearing damage (especially when using
headphones). Please use this amplier responsibly for you and your neighbourhood.
MARKING & CONFORMITY:
1. The CE mark on this product means it conforms to the EMC Directive (89/69/EEC), CE marking Directive
(93/68/EEC) and Low Voltage Directive (72/23/EEC).
2. The «Crossed-out Wheeled Bin» is to draw your attention to the WEEE (Waste Electric & Electronic
Equipment) Directive (2002/96/EC). It means this apparatus must be collected separately for recycling.
3. «RoHS compliant» means this device conforms to the Directive (2002/95EC) on the restriction of the use
of certain hazardous substances in electrical and electronic equipments, such as: Mercury, Lead, Cadmium,
Hexavalent Chromium, Polybrominated Buphenyl (PBB) and Polybrominated Diphenyl Esthers (PBDE).
DISTRIBUTOR/DEALER
EMD Music 01-2008-UK
USER’S MANUAL
GUITAR AMPLIFIER
w/ SPRING REvERB - 60 GA R
w/ DIGITAL SIGNAL PROCESSOR - 60 GA DSP
