Stagg 60 AA R User Manual

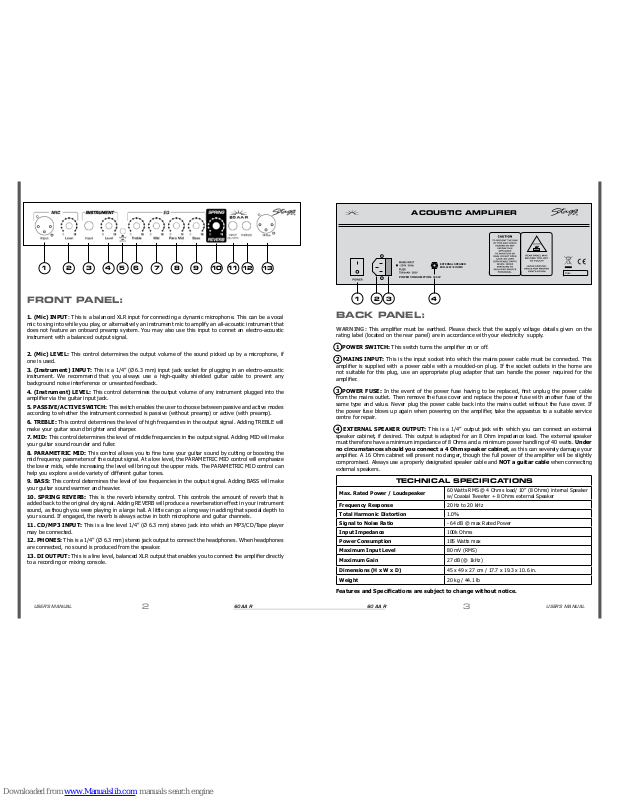

FRONT PANEL:
1. (Mic) INPUT: This is a balanced XLR input for connecting a dynamic microphone. This can be a vocal
mic to sing into while you play, or alternatively an instrument mic to amplify an all-acoustic instrument that
does not feature an onboard preamp system. You may also use this input to connet an electro-acoustic
instrument with a balanced output signal.
2. (Mic) LEVEL: This control determines the output volume of the sound picked up by a microphone, if
one is used.
3. (Instrument) INPUT: This is a 1/4” (Ø 6.3 mm) input jack socket for plugging in an electro-acoustic
instrument. We recommend that you always use a high-quality shielded guitar cable to prevent any
background noise interference or unwanted feedback.
4. (Instrument) LEVEL: This control determines the output volume of any instrument plugged into the
amplier via the guitar input jack.
5. PASSIVE/ACTIVE SWITCH: This switch enables the user to choose between passive and active modes
according to whether the instrument connected is passive (without preamp) or active (with preamp).
6. TREBLE: This control determines the level of high frequencies in the output signal. Adding TREBLE will
make your guitar sound brighter and sharper.
7. MID: This control determines the level of middle frequencies in the output signal. Adding MID will make
your guitar sound rounder and fuller.
8. PARAMETRIC MID: This control allows you to ne tune your gui tar sound by cutting or boosting the
mid frequency parameters of the output signal. At a low level, the PARAMETRIC MID control will emphasize
the lower mids, while increasing the level will bring out the upper mids. The PARAMETRIC MID control can
help you explore a wide variety of different guitar tones.
9. BASS: This control determines the level of low frequencies in the output signal. Adding BASS will make
your guitar sound warmer and heavier.
10. SPRING REVERB: This is the reverb intensity control. This controls the amount of reverb that is
added back to the original dry signal. Adding REVERB will produce a reverberation effect in your instrument
sound, as though you were playing in a large hall. A little can go a long way in adding that special depth to
your sound. If engaged, the reverb is always active in both microphone and guitar channels.
11. CD/MP3 INPUT: This is a line level 1/4” (Ø 6.3 mm) stereo jack into which an MP3/CD/Tape player
may be connected.
12. PHONES: This is a 1/4” (Ø 6.3 mm) stereo jack output to connect the headphones. When headphones
are connected, no sound is produced from the speaker.
13. DI OUTPUT: This is a line level, balanced XLR output that enables you to connect the amplier directly
to a recording or mixing console.
BACK PANEL:
WARNING: This amplier must be earthed. Please check that the supply voltage details given on the
rating label (located on the rear panel) are in accordance with your electricity supply.
1 POWER SWITCH: This switch turns the amplier on or off.
2 MAINS INPUT: This is the input socket into which the mains power cable must be connected. This
amplier is supplied with a power cable with a moulded-on plug. If the socket outlets in the home are
not suitable for this plug, use an appropriate plug adapter that can handle the power required for the
amplier.
3 POWER FUSE: In the event of the power fuse having to be replaced, rst unplug the power cable
from the mains outlet. Then remove the fuse cover and replace the power fuse with another fuse of the
same type and value. Never plug the power cable back into the mains outlet without the fuse cover. If
the power fuse blows up again when powering on the amplier, take the apparatus to a suitable service
centre for repair.
4 EXTERNAL SPEAKER OUTPUT: This is a 1/4” output jack with which you can connect an external
speaker cabinet, i f desired. This output is adapted for an 8 Ohm impedance load. The external speaker
must therefore have a minimum impedance of 8 Ohms and a minimum power handling of 40 watts. Under
no circumstances should you connect a 4 Ohm speaker cabinet, as this can severely damage your
amplier. A 16 Ohm cabinet will present no danger, though the full power of the amplier will be slightly
compromised. Always use a properly designated speaker cable and NOT a guitar cable when connecting
external speakers.
TECHNICAL SPECIFICATIONS
Max. Rated Power / Loudspeaker
60 Watts RMS @ 4 Ohms load/ 10” (8 Ohms) internal Speaker
w/ Coaxial Tweeter + 8 Ohms external Speaker
Frequency Response 20 Hz to 20 kHz
Total Harmonic Distortion 1.0%
Signal to Noise Ratio - 64 dB @ max Rated Power
Input Impedance
100k Ohms
Power Consumption
185 Watts max
Maximum Input Level
80 mV (RMS)
Maximum Gain
27 dB (@ 1kHz)
Dimensions (H x W x D)
45 x 49 x 27 cm / 17.7 x 19.3 x 10.6 in.
Weight
20 kg / 44.1 lb
Features and Specications are subject to change without notice.
2 3
USER’S MANUALUSER’S MANUAL 60 AA R 60 AA R
ACOUSTIC AMPLIFIER
Date:
POWER CONSUMPTION: 185W
EXTERNAL SPEAKER
MIN. 40W / 8 OHMS
21
2 3 4 5 6 7 8 119
12
13
101
3 4
RoHS
compliant
4
USER’S MANUAL
60 AA R
INSTRUCTIONS FOR USE:
Plug the mains lead into a suitable power socket and connect your instrument to the input socket of the
amplier with a suitable guitar lead (this lead is not supplied with the amplier, but is normally supplied
with the guitar). You may also plug a microphone into the XLR input provided. If connecting a microphone,
please ensure that the volume level is set low before turning on the amplier, as feedback can otherwise
result, possibly causing damage to the speaker. Finally, press the Power Switch to the ON position, the
power LED will glow and your amplier is ready for use.
IMPORTANT SAFETY INSTRUCTIONS:
READ AND KEEP THESE INSTRUCTIONS HEED ALL WARNING.
• If, after you have followed the instructions outlined above, your amplier fails to function, please contact
your dealer. Under no circumstances should the amplier be opened. Leave all servicing to qualied
personnel.
• Electrical appliances must never be used in conditions of high humidity or heat.
To prevent any risk of re or electric shock, never spill or splash liquids on the amplier.
Should this happen, unplug the power cable from the mains outlet immediately.
• We would like to draw your intention to the instructions printed on the notice attached to the back of
the amplier.
• Exposure to extremely high noise levels may cause permanent hearing damage (especially when using
headphones). Please use this amplier responsibly for you and your neighbourhood.
MARKING & CONFORMITY:
1. The CE mark on this product means it conforms to the EMC Directive (89/69/EEC), CE marking Directive
(93/68/EEC) and Low Voltage Directive (72/23/EEC).
2. The «Crossed-out Wheeled Bin» is to draw your attention to the WEEE (Waste Electric & Electronic
Equipment) Directive (2002/96/EC). It means this apparatus must be collected separately for recycling.
3. «RoHS compliant» means this device conforms to the Directive (2002/95EC) on the restriction of the use
of certain hazardous substances in electrical and electronic equipments, such as: Mercury, Lead, Cadmium,
Hexavalent Chromium, Polybrominated Buphenyl (PBB) and Polybrominated Diphenyl Esthers (PBDE).
DISTRIBUTOR / DEALER
USER’S MANUAL
EMD Music 01-2008-UK
ACOUSTIC GUITAR AMPLIFIER
w/ SPRING REvERB - 60 AA R
