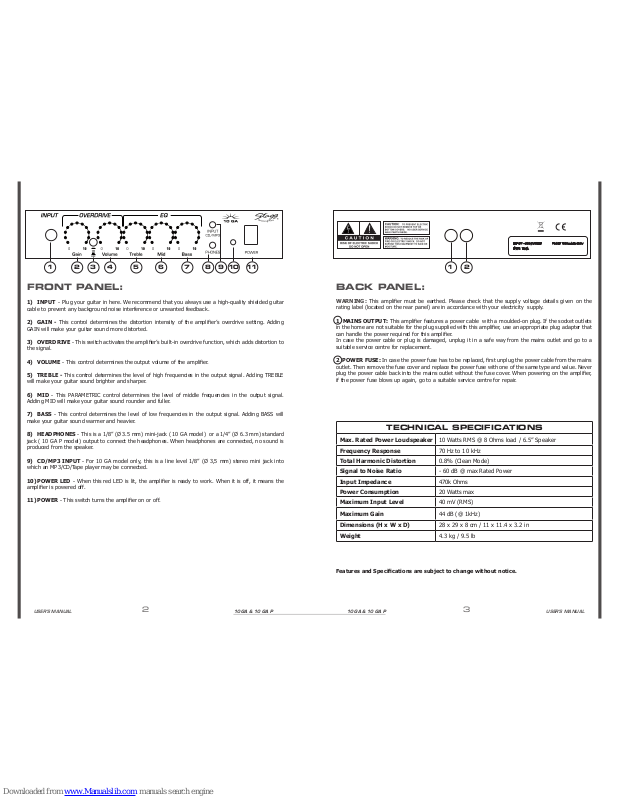

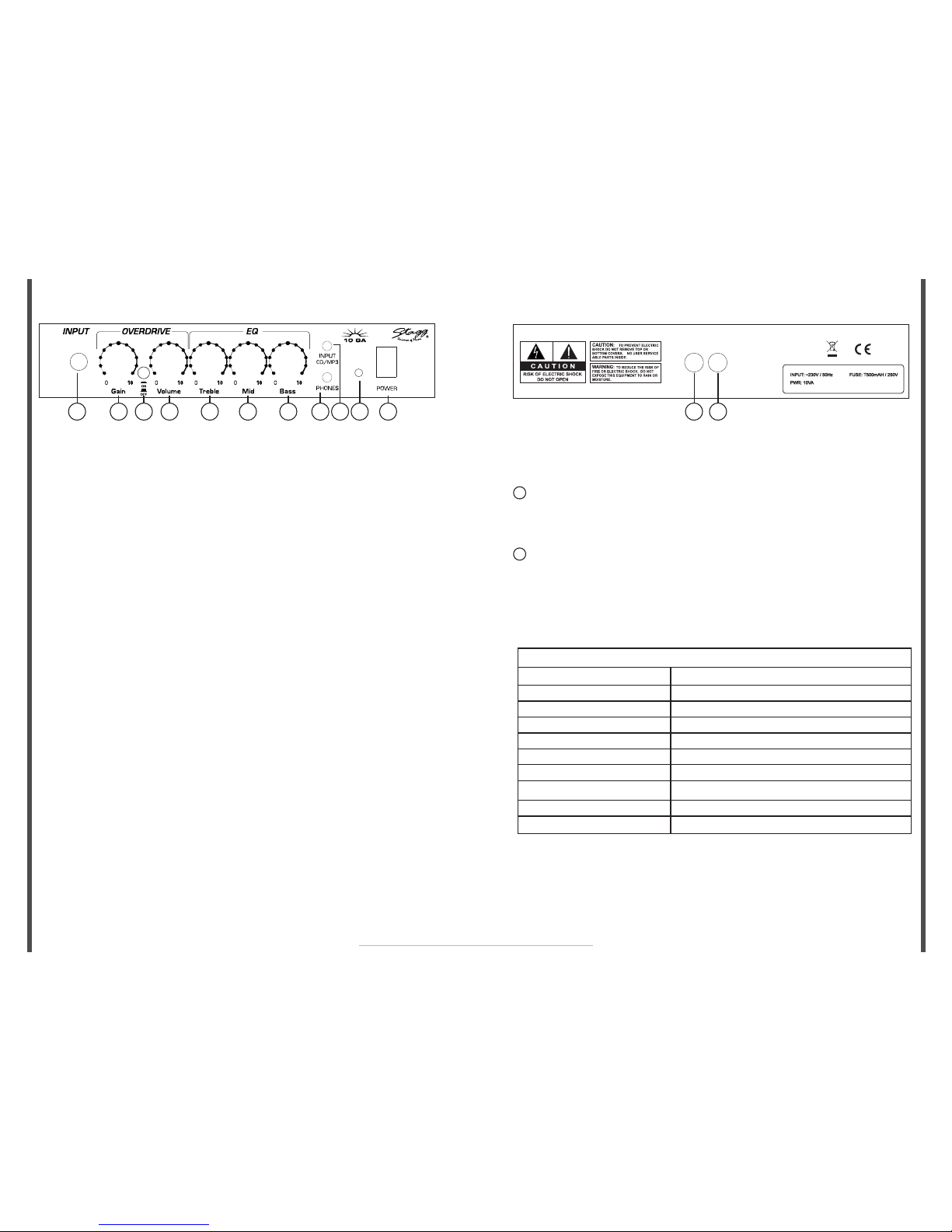

FRONT PANEL:
1) INPUT - Plug your guitar in here. We recommend that you always use a high-quality shielded guitar
cable to prevent any background noise interference or unwanted feedback.
2) GAIN - This control determines the distortion intensity of the amplier’s overdrive setting. Adding
GAIN will make your guitar sound more distorted.
3) OVERDRIVE - This switch activates the amplier ’s built-in overdrive function, which adds distortion to
the signal.
4) VOLUME - This control determines the output volume of the amplier.
5) TREBLE - This control determines the level of high frequencies in the output signal. Adding TREBLE
will make your guitar sound brighter and sharper.
6) MID - This PARAMETRIC control determines the level of middle frequencies in the output signal.
Adding MID will make your guitar sound rounder and fuller.
7) BASS - This control determines the level of low frequencies in the output signal. Adding BASS will
make your guitar sound warmer and heavier.
8) HEADPHONES - This is a 1/8” (Ø 3.5 mm) mini-jack ( 10 GA model) or a 1/4” (Ø 6.3 mm) standard
jack ( 10 GA P model) output to connect the headphones. When headphones are connected, no sound is
produced from the speaker.
9) CD/MP3 INPUT - For 10 GA model only, this is a line level 1/8” (Ø 3,5 mm) stereo mini jack into
which an MP3/CD/Tape player may be connected.
10) POWER LED - When this red LED is lit, the amplier is ready to work. When it is off, it means the
amplier is powered off.
11) POWER - This switch turns the amplier on or off.
BACK PANEL:
WARNING: This amplier must be earthed. Please check that the supply voltage details given on the
rating label (located on the rear panel) are in accordance with your electricity supply.
1 MAINS OUTPUT: This amplier features a power cable with a moulded-on plug. If the socket outlets
in the home are not suitable for the plug supplied with this amplier, use an appropriate plug adapter that
can handle the power required for this amplier.
In case the power cable or plug is damaged, unplug it in a safe way from the mains outlet and go to a
suitable service centre for replacement.
2 POWER FUSE: In case the power fuse has to be replaced, rst unplug the power cable from the mains
outlet. Then remove the fuse cover and replace the power fuse with one of the same type and value. Never
plug the power cable back into the mains outlet without the fuse cover. When powering on the amplier,
if the power fuse blows up again, go to a suitable service centre for repair.
TECHNICAL SPECIFICATIONS
Max. Rated Power Loudspeaker 10 Watts RMS @ 8 Ohms load / 6.5” Speaker
Frequency Response
70 Hz to 10 kHz
Total Harmonic Distortion
0.8% (Clean Mode)
Signal to Noise Ratio
- 60 dB @ max Rated Power
Input Impedance
470k Ohms
Power Consumption
20 Watts max
Maximum Input Level
40 mV (RMS)
Maximum Gain
44 dB (@ 1kHz)
Dimensions (H x W x D) 28 x 29 x 8 cm / 11 x 11.4 x 3.2 in
Weight 4.3 kg / 9.5 lb
Features and Specications are subject to change without notice.
2 3
USER’S MANUALUSER’S MANUAL 10 GA & 10 GA P 10 GA & 10 GA P
1 2
1 2 3 4 5 6 7 8 11109
RoHS
compliant
4
USER’S MANUAL
10 GA & 10 GA P
INSTRUCTIONS FOR USE:
Plug the mains lead into a suitable power socket and connect your instrument to the input socket of the
amplier with a suitable guitar lead (this lead is not supplied with the amplier, but is normally supplied
with the electric guitar). Finally, press the Power Switch to the ON position, the power LED will glow and
your amplier is ready for use.
IMPORTANT SAFETY INSTRUCTIONS:
READ AND KEEP THESE INSTRUCTIONS HEED ALL WARNING.
• If, after you have followed the instructions outlined above, your Amplier fails to function, please contact
your local distributor. Under no circumstances remove the rear panel of the Amplier whilst it is connected
to the mains supply.
• Electrical appliances must never be used where there is a danger of water splashing onto the unit.
• Your attention is drawn to the instructions printed on the rear panel of the amplier.
• Exposure to extremely high noise levels may cause a permanent hearing loss. Individuals vary considerably
to noise induced hearing loss but nearly everyone will lose some hearing if exposed to sufciently intense
noise for a prolonged time.
MARKING & CONFORMITY:
1. The CE mark on this product means it conforms to the EMC Directive (89/69/EEC), CE marking Directive
(93/68/EEC) and Low Voltage Directive (72/23/EEC).
2. The «Crossed-out Wheeled Bin» is to drawn your attention on the WEEE (Waste Electric & Electronic
Equipment) Directive (2002/96/EC). It means this apparatus must be collected separately for recycling.
3. «RoHS compliant» means this device conforms to the Directive (2002/95EC) on the restriction of the use
of certain hazardous substances in electrical and electronic equipments, such as: Mercury, Lead, Cadmium,
Hexavalent Chromium, Polybrominated Buphenyl (PBB) and Polybrominated Diphenyl Esthers (PBDE).
USER’S MANUAL
10 GA & 10 GA P
GUITAR AMPLIFIER
