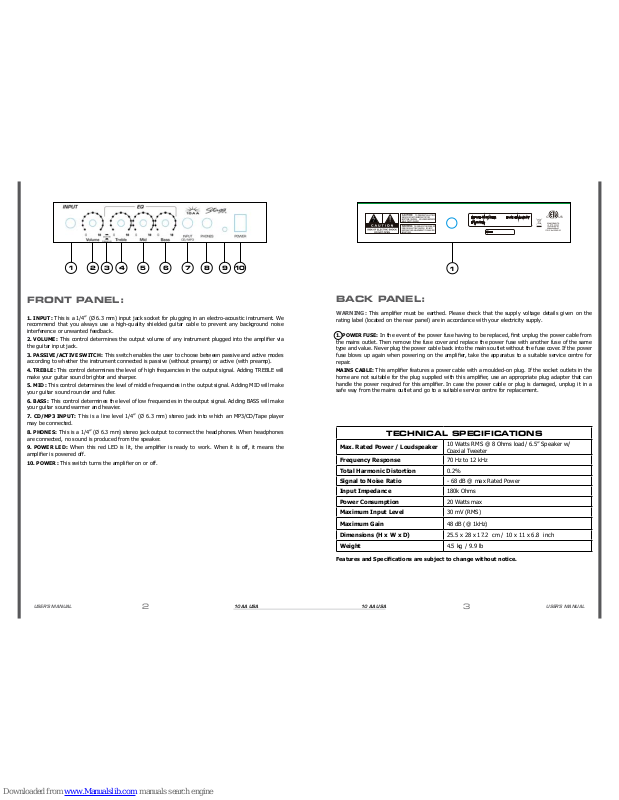

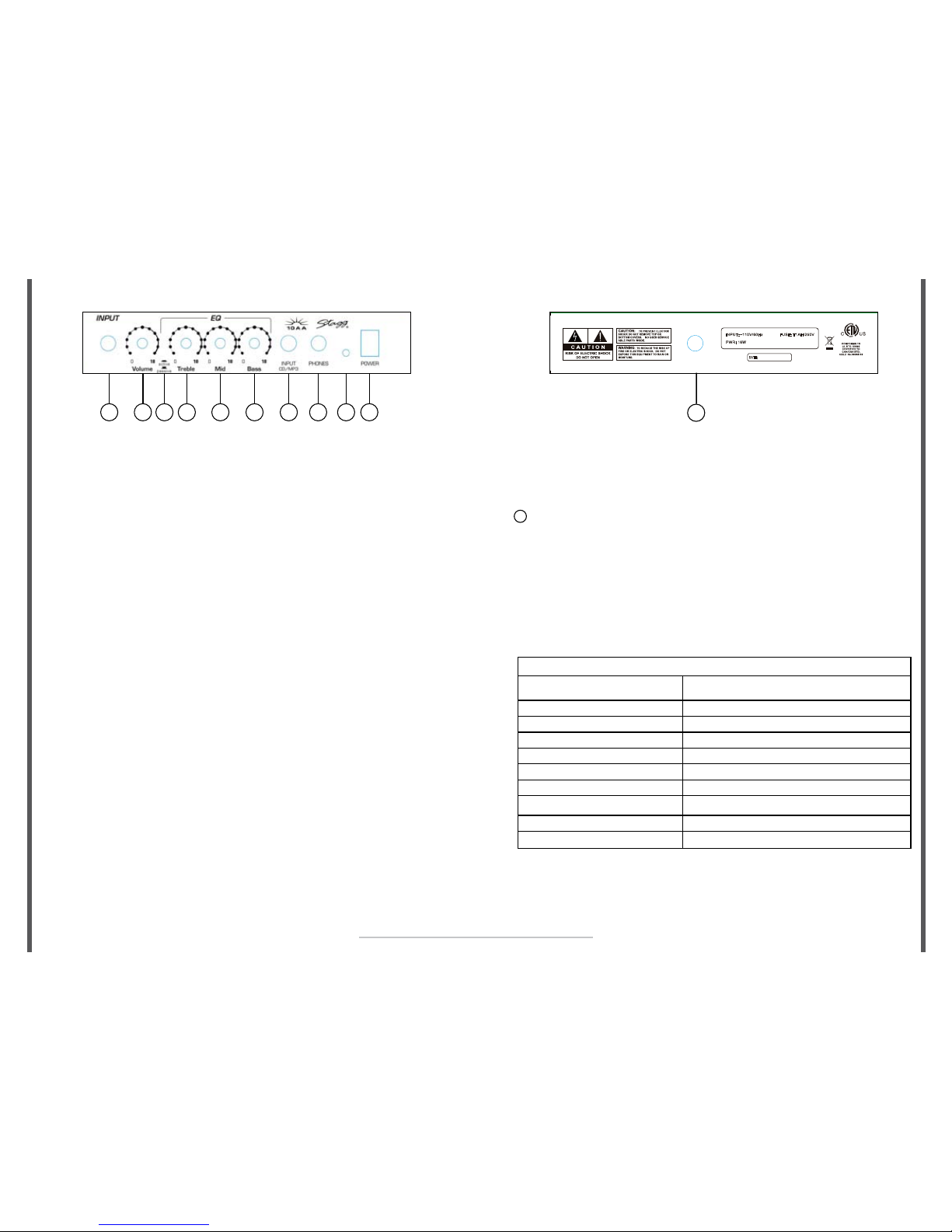

FRONT PANEL :
1. INPUT : This is a 1/4” (Ø 6.3 mm) input jack socket for plugging in an electro-acoustic instrument. We
recommend that you always use a high-quality shielded guitar cable to prevent any background noise
interference or unwanted feedback.
2. VOLUME : This control determines the output volume of any instrument plugged into the amplier via
the guitar input jack.
3. PASSIVE/ACTIVE SWITCH : This switch enables the user to choose between passive and active modes
according to whether the instrument connected is passive (without preamp) or active (with preamp).
4. TREBLE : This control determines the level of high frequencies in the output signal. Adding TREBLE will
make your guitar sound brighter and sharper.
5. MID : This control determines the level of middle frequencies in the output signal. Adding MID will make
your guitar sound rounder and fuller.
6. BASS : This control determines the level of low frequencies in the output signal. Adding BASS will make
your guitar sound warmer and heavier.
7. CD/MP3 INPUT : This is a line level 1/4” (Ø 6.3 mm) stereo jack into which an MP3/CD/Tape player
may be connected.
8. PHONES : This is a 1/4” (Ø 6.3 mm) stereo jack output to connect the headphones. When headphones
are connected, no sound is produced from the speaker.
9. POWER LED : When this red LED is lit, the amplier is ready to work. When it is off, it means the
amplier is powered off.
10. POWER : This switch turns the amplier on or off.
BACK PANEL:
WARNING: This amplier must be earthed. Please check that the supply voltage details given on the
rating label (located on the rear panel) are in accordance with your electricity supply.
1. POWER FUSE: In the event of the power fuse having to be replaced, rst unplug the power cable from
the mains outlet. Then remove the fuse cover and replace the power fuse with another fuse of the same
type and value. Never plug the power cable back into the mains outlet without the fuse cover. If the power
fuse blows up again when powering on the amplier, take the apparatus to a suitable service centre for
repair.
MAINS CABLE: This amplier features a power cable with a moulded-on plug. If the socket outlets in the
home are not suitable for the plug supplied with this amplier, use an appropriate plug adapter that can
handle the power required for this amplier. In case the power cable or plug is damaged, unplug it in a
safe way from the mains outlet and go to a suitable service centre for replacement.
TECHNICAL SPECIFICATIONS
Max. Rated Power / Loudspeaker
10 Watts RMS @ 8 Ohms load/ 6.5” Speaker w/
Coaxial Tweeter
Frequency Response 70 Hz to 12 kHz
Total Harmonic Distortion 0.2%
Signal to Noise Ratio - 68 dB @ max Rated Power
Input Impedance
180k Ohms
Power Consumption
20 Watts max
Maximum Input Level
30 mV (RMS)
Maximum Gain
48 dB (@ 1kHz)
Dimensions (H x W x D)
25.5 x 28 x 17.2 cm / 10 x 11 x 6.8 inch
Weight
4.5 kg / 9.9 lb
Features and Specications are subject to change without notice.
2 3
USER’S MANUALUSER’S MANUAL
active
passive
DATE:
INPUT: ~110V/60Hz
PWR: 16W
FUSE: T1AH/250V
1
1 2 3 4 5 6 7 8 9 10
10 AA USA 10 AA USA
Page 2
4
USER’S MANUAL
10 AA USA
USER’S MANUAL
RoHS
compliant
INSTRUCTIONS FOR USE:
Plug the mains lead into a suitable power socket and connect your instrument to the input socket of the
amplier with a suitable guitar lead (this lead is not supplied with the amplier, but is normally supplied
with the electric guitar). Finally, press the Power Switch to the ON position, the power LED will glow and
your amplier is ready for use.
IMPORTANT SAFETY INSTRUCTIONS:
1• Read all instructions carefully
2• Keep this instruction manual for future reference
3• Please follow all instructions and heed all precautions as stated
4• Do not use this apparatus on or near water
5• Always use a polarized, grounded plug as supplied. A grounded plug has two blades and a third grounding
prong. The wide blade, or third prong, is provided for your safety. Do not compromise the integrity of its safety
purpose by altering or modify this plug in any way. If the provided plug does not t into your mains outlet,
consult a qualied electrician for replacement of the obsolete outlet.
6• Protect the power cable from being walked on, particularly at the mains socket or at the point of connection
to the apparatus.
7• Only use attachments or accessories that are specied by the manufacturer.
8• Always unplug the device when leaving it unused for an extended period of time, or in the event of a
thunderstorm.
9• Refer all servicing to qualied service personnel. Servicing is required when the apparatus has been damaged
in any way, particularly the plug or power cable, liquids spilled or foreign objects dropped into the apparatus, or
if the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
10• The apparatus should be connected to a mains socket outlet with a protective earthing connection.
11• The mains plug is used to connect or disconnect the device. By maintaining the apparatus connected to the
mains, it shall remain readily operational.
MARKING & CONFORMITY:
1. The «C (ETL) US» mark on this product means it conforms to the safety and performance standards
(UL 60065 and CSA C22.2 n°60065:03) accepted throughout the United States and Canada.
2. The «Crossed-out Wheeled B in» is to drawn your attention on the WEEE (Waste Electric & Electronic
Equipment) Directive (2002/96/EC). It means this apparatus should be collected separately for recycling.
3. «RoHS compliant» means this device conforms to the Directive (2002/95EC) on the restriction of the use
of certain hazardous substances in electrical and electronic equipments, such as: Mercury, Lead, Cadmium,
Hexavalent Chromium, Polybrominated Buphenyl (PBB) and Polybrominated Diphenyl Esthers (PBDE).
DISTRIBUTOR/DEALER
ACOUSTIC GUITAR AMPLIFIER
10 AA USA
EMD Music 01-2008-USA
