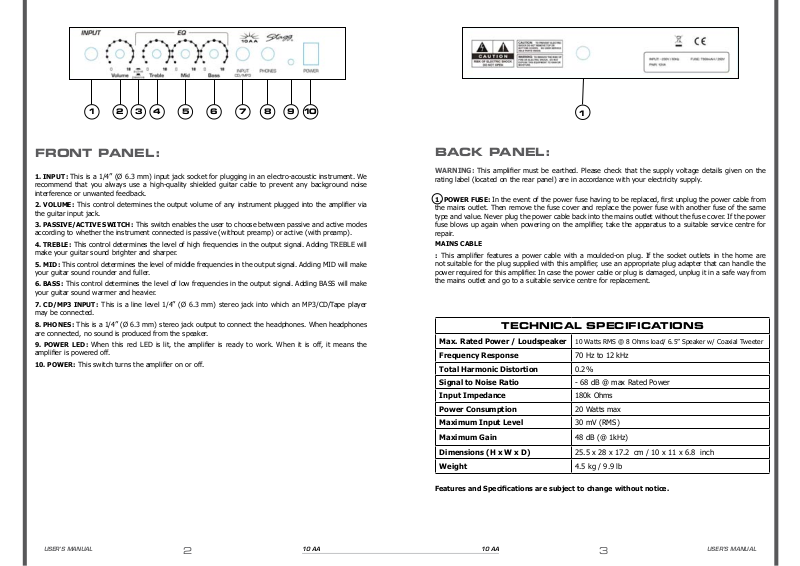

FRONT PANEL :
1. INPUT : This is a 1/4” (Ø 6.3 mm) input jack socket for plugging in an electro-acoustic instrument. We
recommend that you always use a high-quality shielded guitar cable to prevent any background noise
interference or unwanted feedback.
2. VOLUME : This control determines the output volume of any instrument plugged into the amplier via
the guitar input jack.
3. PASSIVE/ACTIVE SWITCH : This switch enables the user to choose between passive and active modes
according to whether the instrument connected is passive (without preamp) or active (with preamp).
4. TREBLE : This control determines the level of high frequencies in the output signal. Adding TREBLE will
make your guitar sound brighter and sharper.
5. MID : This control determines the level of middle frequencies in the output signal. Adding MID will make
your guitar sound rounder and fuller.
6. BASS : This control determines the level of low frequencies in the output signal. Adding BASS will make
your guitar sound warmer and heavier.
7. CD/MP3 INPUT : This is a line level 1/4” (Ø 6.3 mm) stereo jack into which an MP3/CD/Tape player
may be connected.
8. PHONES : This is a 1/4” (Ø 6.3 mm) stereo jack output to connect the headphones. When headphones
are connected, no sound is produced from the speaker.
9. POWER LED : When this red LED is lit, the amplier is ready to work. When it is off, it means the
amplier is powered off.
10. POWER : This switch turns the amplier on or off.
BACK PANEL:
WARNING: This amplier must be earthed. Please check that the supply voltage details given on the
rating label (located on the rear panel) are in accordance with your electricity supply.
1. POWER FUSE: In the event of the power fuse having to be replaced, rst unplug the power cable from
the mains outlet. Then remove the fuse cover and replace the power fuse with another fuse of the same
type and value. Never plug the power cable back into the mains outlet without the fuse cover. If the power
fuse blows up again when powering on the amplier, take the apparatus to a suitable service centre for
repair.
MAINS CABLE
This amplier features a power cable with a moulded-on plug. If the socket outlets in the home are
:
not suitable for the plug supplied with this amplier, use an appropriate plug adapter that can handle the
power required for this amplier. In case the power cable or plug is damaged, unplug it in a safe way from
the mains outlet and go to a suitable service centre for replacement.
TECHNICAL SPECIFICATIONS
Max. Rated Power / Loudspeaker
Frequency Response 70 Hz to 12 kHz
Total Harmonic Distortion 0.2%
Signal to Noise Ratio - 68 dB @ max Rated Power
Input Impedance
Power Consumption
Maximum Input Level
Maximum Gain
Dimensions (H x W x D)
Weight
10 Watts RMS @ 8 Ohms load/ 6.5” Speaker w/ Coaxial Tweeter
180k Ohms
20 Watts max
30 mV (RMS)
48 dB (@ 1kHz)
25.5 x 28 x 17.2 cm / 10 x 11 x 6.8 inch
4.5 kg / 9.9 lb
Features and Specications are subject to change without notice.
2 3
10 AA 10 AA
USER’S MANUALUSER’S MANUAL
INSTRUCTIONS FOR USE:
Plug the mains lead into a suitable power socket and connect your instrument to the input socket of the
amplier with a suitable guitar lead (this lead is not supplied with the amplier, but is normally supplied
with the guitar). Finally, press the Power Switch to the ON position, the power LED will glow and your
amplier is ready for use.
IMPORTANT SAFETY INSTRUCTIONS:
READ AND KEEP THESE INSTRUCTIONS HEED ALL WARNING.
• If, after you have followed the instructions outlined above, your amplier fails to function, please contact
your dealer. Under no circumstances should the amplier be opened. Leave all servicing to qualied
personnel.
• Electrical appliances must never be used in conditions of high humidity or heat.
To prevent any risk of re or electric shock, never spill or splash liquids on the amplier.
Should this happen, unplug the power cable from the mains outlet immediately.
• We would like to draw your intention to the instructions printed on the notice attached to the back of
the amplier.
• Exposure to extremely high noise levels may cause permanent hearing damage (especially when using
headphones). Please use this amplier responsibly for you and your neighbourhood.
MARKING & CONFORMITY:
1. The CE mark on this product means it conforms to the EMC Directive (89/69/EEC), CE marking Directive
(93/68/EEC) and Low Voltage Directive (72/23/EEC).
2. The «Crossed-out Wheeled Bin» is to draw your attention to the WEEE (Waste Electric & Electronic
Equipment) Directive (2002/96/EC). It means this apparatus must be collected separately for recycling.
3. «RoHS compliant» means this device conforms to the Directive (2002/95EC) on the restriction of the use
of certain hazardous substances in electrical and electronic equipments, such as: Mercury, Lead, Cadmium,
Hexavalent Chromium, Polybrominated Buphenyl (PBB) and Polybrominated Diphenyl Esthers (PBDE).
