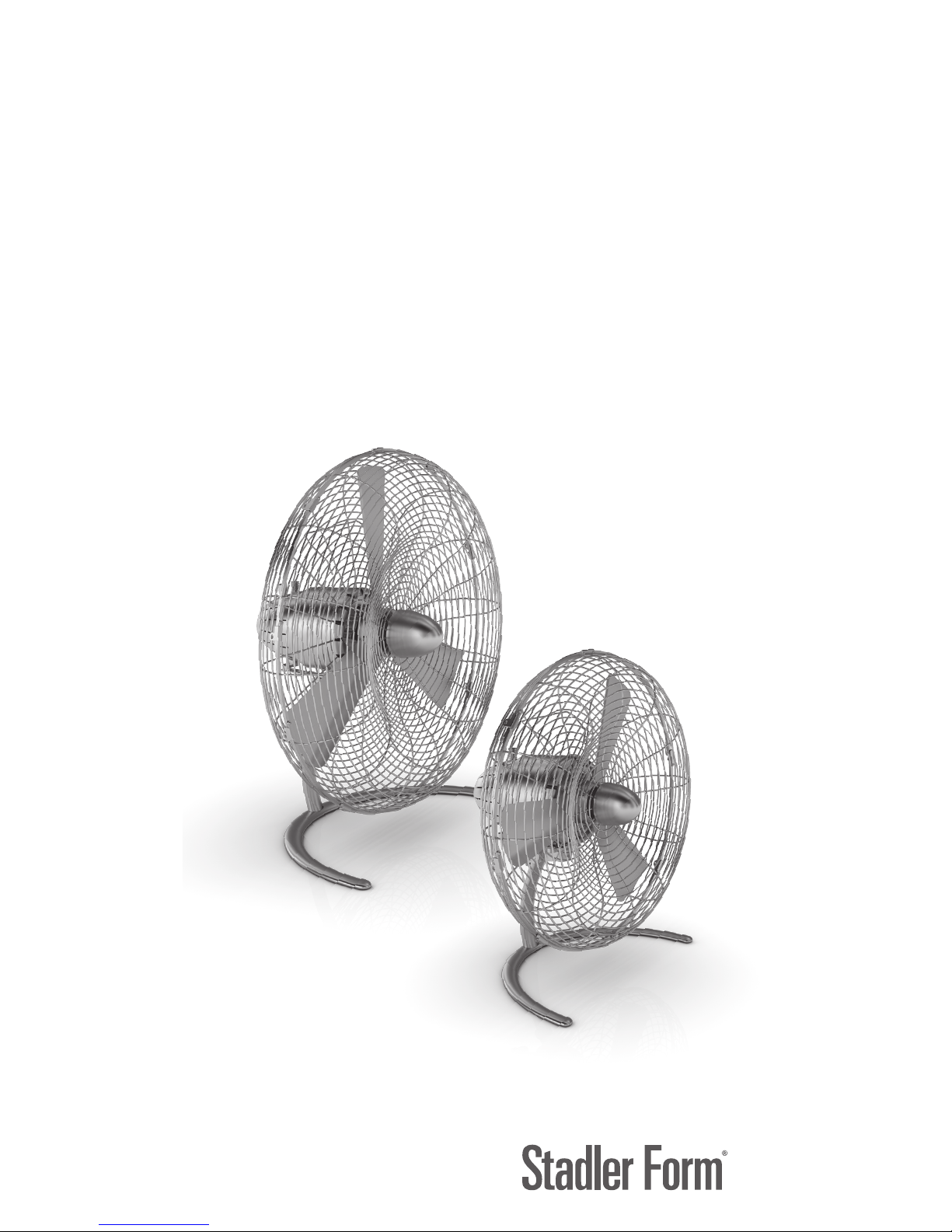

Stadler Form Charly floor C-050A, Charly little C-040A, Charly Operating Instructions Manual
Charly oor / little
Operating instructions
Mode d‘emploi
Manual de instrucciones
READ AND SAVE THESE INSTRUCTIONS
LISEZ ET CONSERVEZ CES INSTRUCTIONS
LEA Y GUARDE ESTAS INSTRUCCIONES
1
A
Ñ
O
D
E
G
A
R
A
N
T
Í
A
•
1
Y
E
A
R
W
A
R
R
A
N
T
Y
•
1
A
N
D
E
G
A
R
A
N
T
I
E
•
1
6
7
9
13
11
10
14
Charly oor / little
2
1
5
8
17
4
12
15
3
16
Download instruction manual:
www.stadlerformusa.com/manuals
Congratulations! You have just purchased the exceptional CHARLY fan. He
will give you great pleasure and improve the indoor air for you.
As with all domestic electrical appliances, particular care is needed with
this model also, in order to avoid injury, fire damage or damage to the appliance. Please study these operating instructions carefully before using the
appliance for the first time and follow the safety advice on the appliance
itself.
Description of the appliance
The appliance consists of the following main components:
1. Connector
2. Foot
3. Fixing screw for foot and connector
4. Motor housing
5. Fixing screw for motor housing and foot
6. Securing nut for grille
7. Protection grille rear
8. Handle
9. Fan blades
10. Fixing screw for fan blades and motor housing
11. Protection grille front
12. Positioning clip
13. Fixing clips (8 pieces Charly floor, 7 pieces Charly little)
14. Securing screw
15. Controller for switching on/off and setting the three fan speeds (off,
high, medium, low)
16. Oscillating knob on/off
17. Power cord
Important safety instructions
Please read through the operating instructions carefully before you use the
appliance for the first time and keep them safely for later reference; if necessary pass them on to the next owner.
• Stadler Form refuses all liability for loss or damage which arises as a
result of failure to follow these operating instructions.
• The appliance is only to be used in the home for the purposes described in
these instructions. Unauthorised use and technical modifications to the
appliance can lead to danger to life and health.
• This appliance can be used by children aged from 8 years and above and
persons with reduced physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the
hazards involved. Children shall not play with the appliance. Cleaning and
user maintenance shall not be made by children without supervision.
• Never leave any parts of the packing within the reach of children.
• Check the condition of the appliance after removing it from the pack-
aging. Ensure that all component parts of the appliance are within the
packaging and have not been damaged (see description of the appliance).
• Assemble the appliance in accordance with the instructions for Assembly. Follow the instructions for assembly exactly and ensure that all
screws are firmly tightened so as to avoid damage and hazards.
English
• This appliance has a polarized plug (one blade is wider than the other). To
reduce the risk of electric shock, this plug is intended to fit in a polarized
outlet only one way. If the plug does not fit fully in the outlet, reverse the
plug. If it still does not fit, contact a qualified electrician. DO NOT attempt
to defeat this safety feature.
• WARNING: To Reduce The Risk Of Fire Or Electric Shock, Do Not Use This
Fan With Any Solid-State Speed Control Device.
• Never insert objects into the grille of the fan. Do not cover the appliance
during operation.
• Always disconnect the power cord from the socket before removing the
protection grille.
• Only connect the cable to alternating current. Observe the voltage information given on the appliance.
• Do not use damaged extension cords.
• Do not run the power cord over sharp edges and make sure that it does
not get trapped.
• Do not pull the plug from the socket with wet hands or by holding on to
the power cord.
• Do not use the appliance in immediate vicinity of a bath tub, a shower or
a swimming pool (observe a minimum distance of 10 ft / 3 m). Place the
appliance such that a person in the bath tub cannot touch the appliance.
• Do not place the appliance near a heat source. Do not subject the power
cord to direct heat (such as a heated hotplate, open flames, hot iron sole
plates or heaters for example). Protect power cords from oil.
• See to it that the appliance is properly positioned to ensure a high stability during its operation and make sure that no one can trip over the power
cord.
• The appliance is not splash-proof.
• For indoor use only.
• Do not store the appliance outdoors.
• Store the appliance in a dry place inaccessible to children (pack the ap-
pliance).
• If the supply cord is damaged, it must be replaced by the manufacturer, or
its service agent, or a qualified person in order to avoid a hazard.
• Prior to any maintenance, cleaning and after each use, switch off the appliance and unplug the mains cable from the socket.
• Repairs to electrical appliances must only be carried out by a qualified
electrical technician.
• This product employs overload protection (fuse). A blown fuse indicates
an overload or short-circuit situation. If the fuse blows, unplug the product from the outlet. Replace the fuse as per the user servicing instructions
(follow product marking for proper fuse rating) and check the product.
If the replacement fuse blows, a shortcircuit may be present and the
product should be discarded or returned to an authorized service facility
for examination and/or repair.
Assembly (see page 2 and 3)
Attention: The protection grille must be properly closed prior to switch-
ing on the appliance so as to avoid any damage or hazards. Ensure that
all screws and securing nuts are firmly tightened. Only connect the power
cable to the socket once assembly has been completed.
A. Remove fixing screw (3) on underside of connector (1). Insert connector
(1) into foot (2) and secure with fixing screw for foot and connector (3).
B. Undo fixing screw (5) on connector (1). Locate motor housing (4) on con-
nector (1) and secure with fixing screw for motor housing and foot (5).
C. Remove securing nut for grille (6) from motor housing (4) and locate pro-
tection grille rear (7) on motor housing (4). When locating, ensure that
the handle (8) on protection grille rear (7) is on the top. Now screw securing nut for grille (6) back on to motor housing (4) so as to fix protection
grille rear (7) in position.
D. Attach fan blades (9) to motor housing (4) and secure in position with
fixing screw for fan blades and motor housing (10) (loosely attached to
fan blade). Tighten screw to secure fan blades (9).
E. Locate protection grille front (11) on protection grille rear (7). In doing
so, take care to ensure that positioning clip (12) on protection grille front
is fitted on protection grille rear as shown in illustration on page 2-3.
Close the two grilles by fastening the 8 fixing clips (13) (or 7 in the case
of Charly little). Ensure that all fixing clips (13) are fastened.
F. Secure the two grilles (7 and 11) with securing screw (14).
Setting-Up/Operation
1. Place Charly at the desired position on a flat surface. Connect the mains
cable (17) to a suitable plug socket.
2. Switch on the Charly fan at the controller (15) and set the desired speed
(Positions 1-3, from gentle breeze to powerful circulation).
3. Push the oscillating knob (16) down to switch on the oscillation and pull
the oscillating knob up to switch off the oscillation.
4. The direction of airflow can be set in 4 positions. By carefully moving
the motor housing (4) up and down, the direction can be adjusted (clicking noise).
Cleaning
Prior to any maintenance, cleaning and after each use, switch off the appliance and unplug the mains cable (17) from the socket.
Attention: Never submerge the appliance in water (danger of short-circuit).
• For external cleaning, rub with a damp cloth and then dry thoroughly.
• To clean the fan blades, remove securing screw (14), undo all fixing clips
(13) and carefully lift off protection grille front (11). Now you can wipe the
fan blades (9) with a damp cloth and dry well afterwards. After cleaning,
replace protection grille front (11) on appliance (fit top positioning clip:
12), fasten all fixing clips (13) and fasten securing screw (14) tightly.
Repairs
• Repairs to electrical appliances must only be carried out by a qualified
electrical technician. If improper repairs are carried out, the warranty
lapses and all liability is refused.
• Never operate the appliance if the adaptor or plug is damaged, after it has
malfunctioned, if it has been dropped or has been damaged in any other
way (cracks/breaks in the casing).
• Do not push any object into the appliance.
• If the appliance is beyond repair, make it unusable immediately by cutting
through the cable and hand it in at the collection point provided for the
purpose.
User Servicing Instructions
A. Grasp plug and remove from the receptacle or other outlet device. Do
not unplug by pulling on cord.
B. Slide open fuse access cover on top of attachment plug towards blades.
C. Remove fuse carefully.
D. Risk of fire. Replace fuse only with 5 Amp, 125 Volt fuse.
E. Slide closed the fuse access cover on top of attachment plug.
Attention: Risk of fire. Do not replace attachment plug. Contains a safety
device (fuse) that should not be removed. Discard product if the attachment
plug is damaged.
Disposal
• Do not dispose of electrical appliances in the domestic waste. Please use
the communal collection points.
• Ask your local authority if you do not know where the communal collection points are located.
• If electrical appliances are disposed of thoughtlessly, exposure to the elements may cause hazardous substances to find their way into the groundwater and from there into the food chain, or to poison the flora and fauna
for many years to come.
Specifications
Article number Charly floor C-050A
Charly little C-040A
Rated voltage 120 V / 60 Hz
Rated power Charly floor 36 - 56 W
Charly little 25 - 33 W
Dimensions Charly floor 17.1 x 19.1 x 11 inch / 450 x 485 x 280 mm
Charly little 13.9 x 15.6 x 10 inch / 352 x 395 x 255 mm
(width x height x depth)
Weight Charly floor 10 lbs / 4.5 kg, Charly little 7.2 lbs / 3.5 kg
Sound level Charly floor < 56 dB(A), Charly little < 52 dB(A)
Complies with
regulations cETLus
All rights for any technical modifications are reserved
