VNI8200XP
Octal high-side smart power solid state relay with serial/parallel selectable interface on chip
Features
Type |
V |
(1) |
R |
(1) |
I |
(1) |
V |
CC |
|
|
demag |
|
DS(on) |
|
out |
|
|
VNI8200XP |
VCC-45 V |
|
0.11 Ω |
0.7 A |
45 V |
1. Per channel
■Output current: 0.7 A per channel
■Serial/parallel selectable interface
■Short-circuit protection
■8-bit and 16-bit SPI Interface for IC command and control diagnostic
■Channel overtemperature detection and protection
■Thermal independence of separate channels
■Drives all type of loads (resistive, capacitive, inductive load)
■Loss of GND protection
■Power Good diagnostic
■Undervoltage shutdown with hysteresis
■Overvoltage protection (VCC clamping)
■Very low supply current
■Common fault open drain output
■IC warning temperature detection
■Channels output enable
■100 mA high efficiency step-down switching regulator with integrated boot diode
■Adjustable regulator output
■Switching regulator disable
■5 V and 3.3 V compatible I/Os
■Channel outputs status LED driving 4 x 2 multiplexed array
Datasheet − preliminary data
PowerSSO-36
Applications
■Programmable logic control
■Industrial PC peripheral input/output
■Numerical control machines
Table 1. |
Device summary |
|
||
Part number |
Package |
Packing |
||
|
|
|
||
VNI8200XP |
PowerSSO-36 |
Tube |
||
|
|
|
||
VNI8200XPTR |
Tape and reel |
|||
|
||||
|
|
|
|
■Fast demagnetization of inductive loads
■ESD protection
■Designed to meet IEC 61131-2, IEC61000-4-4, and IEC61000-4-5
June 2012 |
Doc ID 15234 Rev 4 |
1/34 |
This is preliminary information on a new product now in development or undergoing evaluation. Details are subject to |
www.st.com |
change without notice. |
|
Contents |
VNI8200XP |
|
|
Contents
1 |
Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
4 |
|
2 |
Block diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
5 |
|
3 |
Pin connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
6 |
|
4 |
Maximum ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
8 |
|
|
4.1 |
Thermal data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
9 |
5 |
Electrical characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
9 |
5.1 Power section . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 5.2 SPI characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 5.3 Switching . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 5.4 Logic inputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 5.5 Protection and diagnostic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 5.6 Step-down switching regulator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 5.7 LED driving array . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
6 |
Functional pin description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
14 |
|||||||
|
6.1 |
SPI/parallel selection mode (SEL2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
14 |
||||||
|
6.2 |
Serial data in (SDI) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
14 |
||||||
|
6.3 |
Serial data out (SDO) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
14 |
||||||
|
6.4 |
Serial data clock (CLK) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
15 |
||||||
|
6.5 |
Slave select |
|
|
|
|
|
|
15 |
|
(SS) |
||||||||
|
6.6 |
8/16-bit selection (SEL1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
15 |
||||||
|
6.7 |

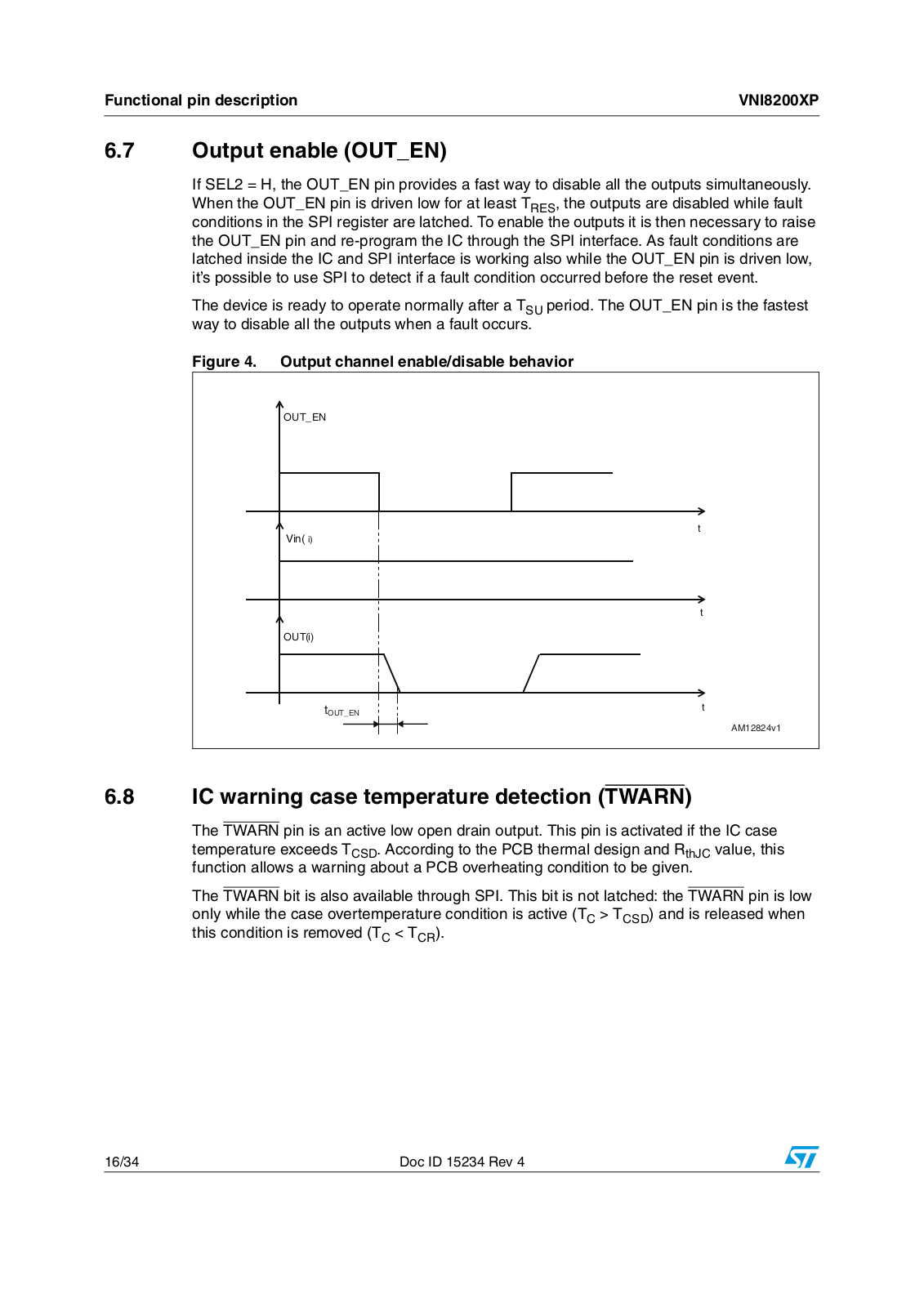

Output enable (OUT_EN) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
16 |
||||||
|
6.8 |
IC warning case temperature detection |
|
|
16 |
||||
|
(TWARN) |
||||||||
|
6.9 |
Fault indication |
|
|
17 |
||||
|
(FAULT) |
||||||||
|
6.10 |
Power Good (PG) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
17 |
||||||
|
6.11 |
Programmable watchdog counter reset (WD) . . . . . . . . . . . . . . . . . . . . . |
18 |
7 |
SPI operation (SEL2 = H) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
19 |
|
7.1 8-bit SPI mode (SEL1 = L) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
19 |
2/34 |
Doc ID 15234 Rev 4 |
VNI8200XP |
|
Contents |
|
7.2 16-bit SPI mode (SEL1 = H) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
. . . . . 19 |
8 |

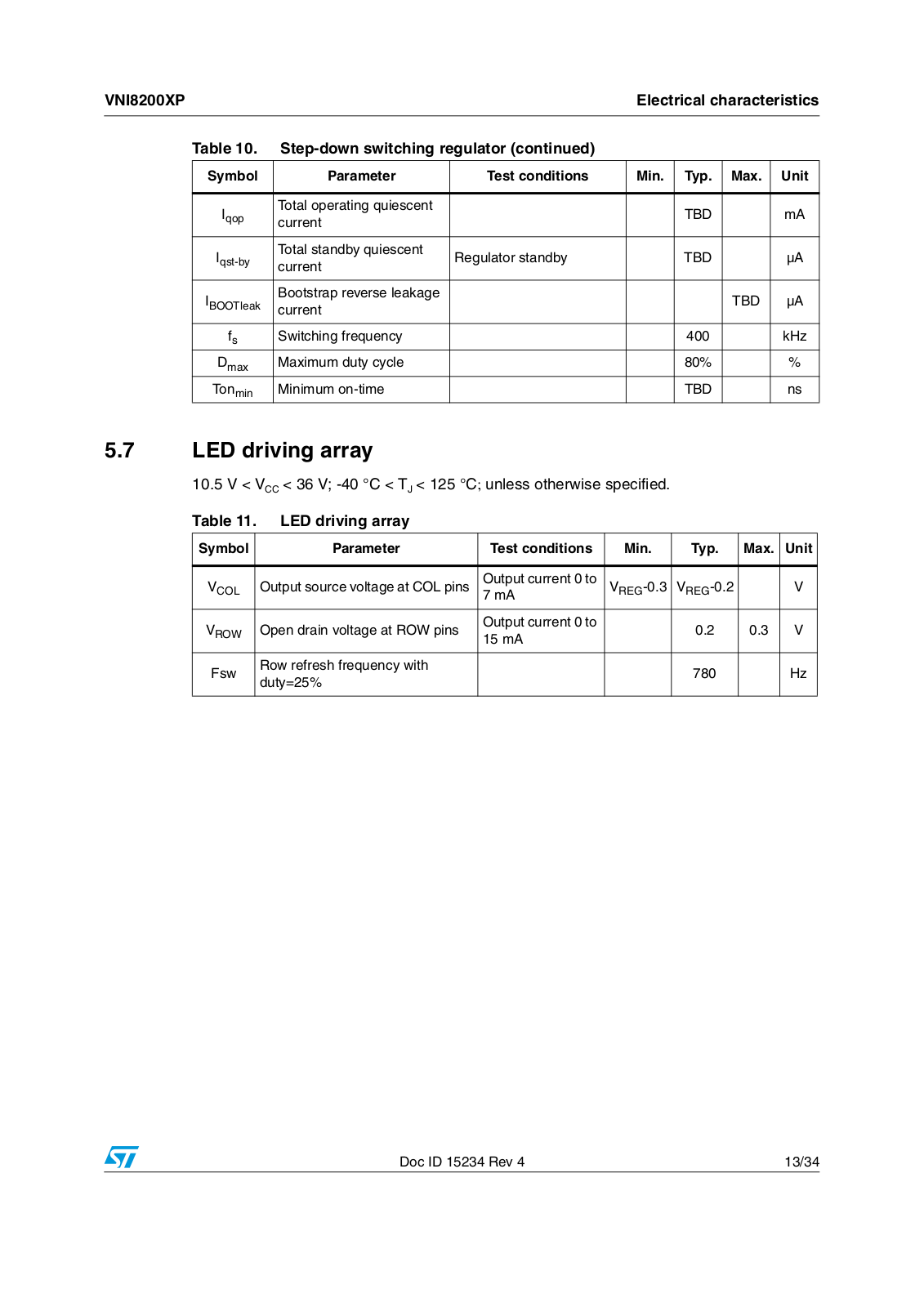

LED driving array . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
. . . . 21 |
9 |
Step-down switching regulator . . . . . . . . . . . . . . . . . . . . . . . . . . . |
. . . . 22 |
10 |

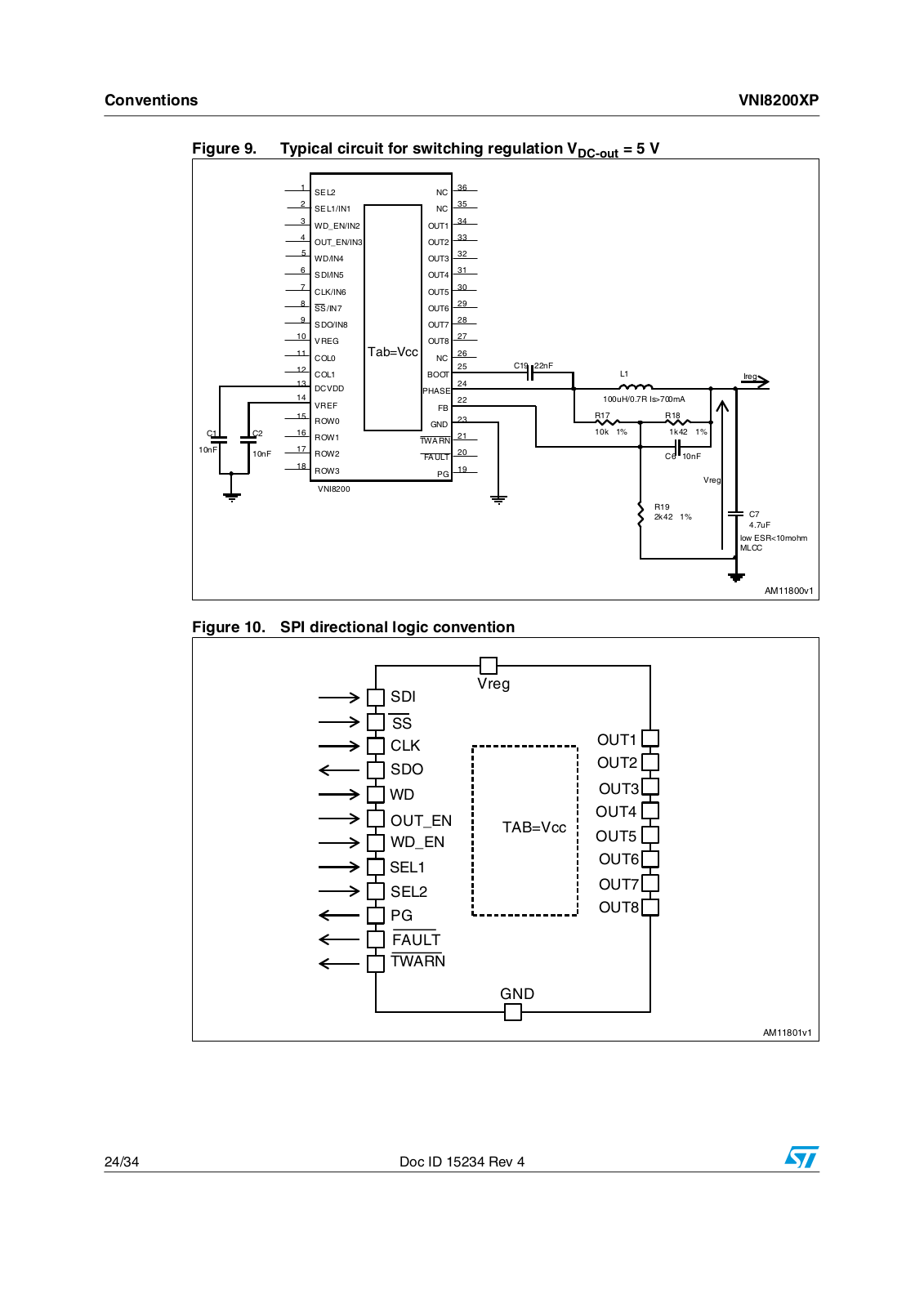

Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
. . . . 23 |
11 |

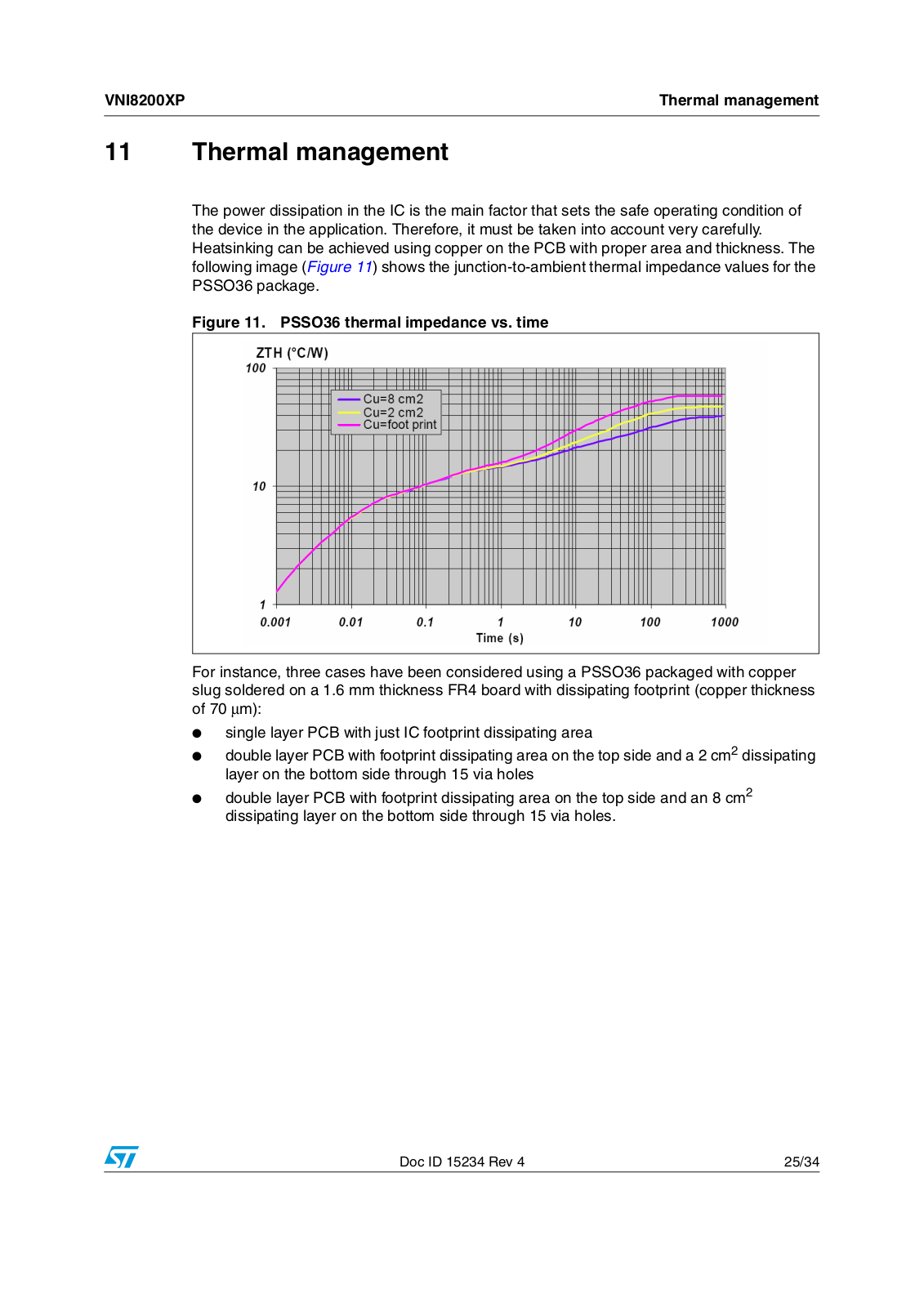

Thermal management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
. . . . 25 |
|
11.1 Thermal behavior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
. . . . 26 |
12 |
Interface timing diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
. . . . 27 |
13 |
Switching parameters test conditions . . . . . . . . . . . . . . . . . . . . . |
. . . . 27 |
14 |

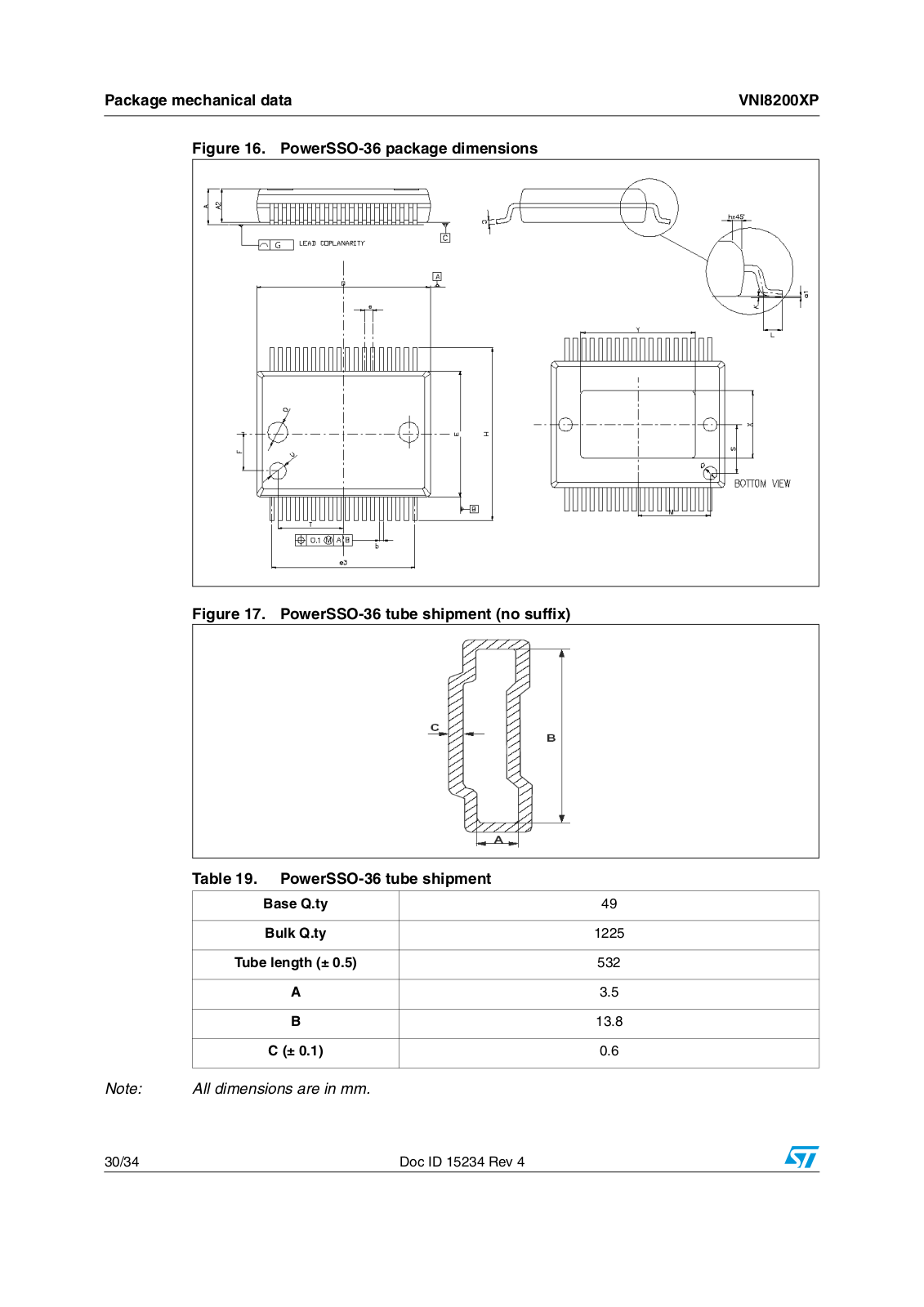

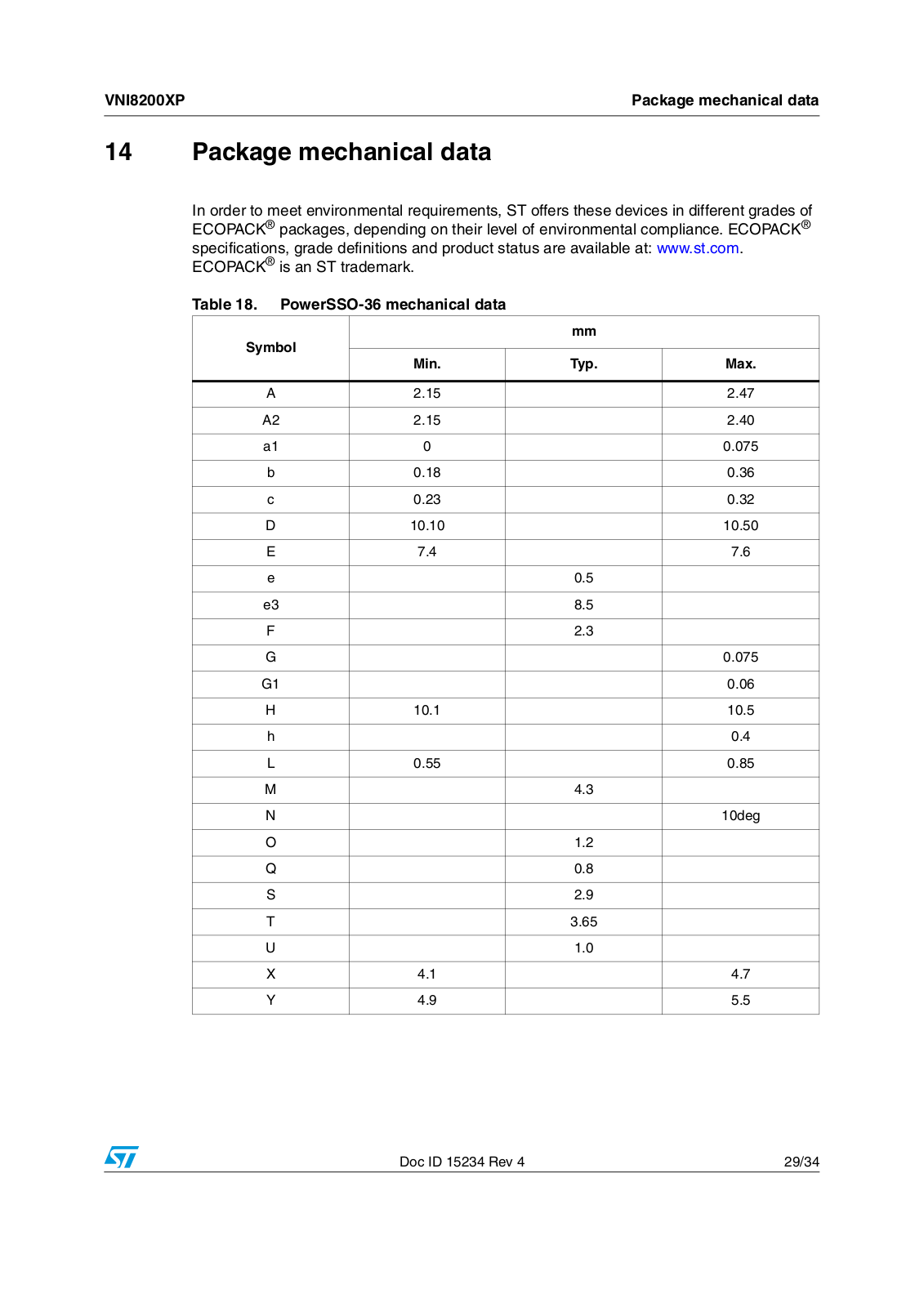

Package mechanical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
. . . . 29 |
15 |
Revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
. . . . 33 |
Doc ID 15234 Rev 4 |
3/34 |
Description |
VNI8200XP |
|
|
The VNI8200XP is a monolithic 8-channel driver featuring a very low supply current, with integrated SPI interface and high efficiency 100 mA micropower step-down switching regulator peak current control loop mode. The IC, realized in STMicroelectronics™ VIPower™ technology, is intended for driving any kind of load with one side connected to ground.
Active channel current limitation combined with thermal shutdown, independent for each channel, and automatic restart, protect the device against overload.
Additional embedded functions are: loss of GND protection that automatically turns off the device outputs in case of ground disconnection, undervoltage shutdown with hysteresis, Power Good diagnostic for valid supply voltage range recognition, output enable function for immediate power outputs ON/OFF, and programmable watchdog function for microcontroller safe operation; case overtemperature protection to control the IC case temperature.
The device embeds a four-wire SPI serial peripheral with selectable 8 or 16-bit operations; through a select pin the device can also operate with a parallel interface.
Both the 8-bit and 16-bit SPI operations are compatible with daisy chain connection.
The SPI interface allows command of the output driver by enabling or disabling each channel featuring, in 16-bit format, a parity check control for communication robustness. It also allows the monitoring of the status of the IC signaling Power Good, overtemperature condition for each channel, IC pre-warning temperature detection.
Built-in thermal shutdown protects the chip from overtemperature and short-circuit. In overload condition, the channel turns OFF and ON again automatically after the IC temperature decreases below a threshold fixed by a temperature hysteresis so that junction temperature is controlled. If this condition makes case temperature reaching case temperature limit, TCSD, overloaded channels are turned OFF and restart, nonsimultaneously, when case and junction temperature decrease below their own reset threshold. If the case of thermal reset, the channels loaded are not switched on until the junction temperature reset event. Non-overloaded channels continue to operate normally. Case temperature above TCSD is reported through the TWARN open drain pin.
An internal circuit provides a not latched common FAULT indicator reporting if one of the following events occurs: channel OVT (overtemperature), parity check fail. The Power Good diagnostic warns the controller that the supply voltage is below a fixed threshold.
The watchdog function is used to detect the occurrence of a software fault of the host controller. The watchdog circuitry generates an internal reset on expiry of the internal watchdog timer. The watchdog timer reset can be achieved by applying a negative pulse on the WD pin. The watchdog function can be disabled by the WD_EN dedicated pin. This pin also allows the programming of a wide range of watchdog timings.
An internal LED matrix driver circuitry (4 rows, 2 columns) allows the detection of the status of the single outputs. An integrated step-down voltage regulator provides supply voltage to the internal LED matrix driver and logic output buffers and can be used to supply the external optocouplers if the application requires isolation. The regulator is protected against short-circuit or overload conditions by means of pulse-by-pulse current limit with a peak current control loop.
4/34 |
Doc ID 15234 Rev 4 |
VNI8200XP |
Block diagram |
|
|
Figure 1. |
Block diagram |
|
|
|
|
|
|
|
|
|
|
0(!3% "//4 |
$#6$$ |
62%& |
|
0' |
6## |
|
|
|
&" |
$# $# |
|
|
|
5NDERVOLTAGEAND |
6CCC |
|
|
|
#ONVERTER |
|
|
|
0OWER 'OOD |
#LAMP |
|
||
3%, ). |
|
|
|
|
|
|
|
|
|
7$?%. ). |
|
|
|
|
|
|
|
|
|
/54?%. ). |
|
|
|
|
|
|
|
|
|
7$ ). |
|
|
|
|
|
#LAMP 0OWER |
|
|
|
3$) ). |
30) |
|
|
,OGIC |
|
|
|
||
#,+ ). |
|
|
|
|
|
/54 |
|||
|
|
|
|
|
#URRENT ,IMITER |
|
|||
|
33 ). |
|
|
|
|
|
|
|
/54 |
3$/ ). |
|
|
|
|
|
*UNCTION 4EMP |
|
/54 |
|
|
3%, |
|
|
|
|
|
$ETECTION |
|
/54 |
|
|
|
|
|
|
|
|
||
|
62%' |
|
|
|
|
|
|
|
/54 |
|
|
|
|
|
|
#ASE 4EMP |
0ULL DOWN |
/54 |
|
|
|
|
|
|
|
|
|||
|
2/7 |
|
|
|
|
|
$ETECTION |
RESISTOR |
/54 |
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
||
|
2/7 |
,%$ |
|
|
|
|
|
|
/54 |
|
2/7 |
$RIVNG |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
2/7 |
|
|
|
|
|
|
|
|
|
|
#/,#/, |
|
|
&!5,4 |
'.$ |
47!2. |
|
|
|
|
|
|
|
|
|
|
|
!-V |
Doc ID 15234 Rev 4 |
5/34 |
Pin connection |
VNI8200XP |
|
|
|
|
|
|
3%, |
|
.# |
|
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|||||||
|
|
|
3%, ). |
|
.# |
|
|
|
|
|
|
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|||||||
|
|
|
7$?%. ). |
|
/54 |
|
|
|
|
|
|
|||||||
|
|
|
|
|
|
|
|
|
|
|
||||||||
|
|
|
|
|
|
|
|
|
|
|
||||||||
|
|
|
|
/54?%. ). |
|
/54 |
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||
|
|
|
|
|
7$ ). |
|
/54 |
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||
|
|
|
3$) ). |
|
/54 |
|
|
|
|
|
|
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|||||||
|
|
|
#,+ ). |
|
/54 |
|
|
|
|
|
|
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|||||||
|
|
|
|
|
|
|
|
/54 |
|
|
|
|
|
|
||||
|
|
|
33 ). |
4!" 6CC |
|
|
|
|
|
|
||||||||
|
|
|
|
|
|
|
|
|
|
|
||||||||
|
|
|
3$/ ). |
|
/54 |
|
|
|
|
|
|
|||||||
|
|
|
|
|
|
|
|
|
|
|
||||||||
|
|
|
62%' |
|
/54 |
|
|
|
|
|
|
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|||||||
|
|
|
#/, |
|
.# |
|
|
|
|
|
|
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|||||||
|
|
|
#/, |
|
"//4 |
|
|
|
|
|
|
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|||||||
|
|
|
$#6$$ |
|
0(!3% |
|
|
|
|
|
|
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|||||||
|
|
|
62%& |
|
'.$ |
|
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||
|
|
|
2/7 |
|
&" |
|
|
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||
|
|
|
2/7 |
|
|
|
|
|
|
|
|
|
|
|||||
|
|
|
|
47!2. |
|
|
|
|
|
|
||||||||
|
|
|
|
|
|
|
|
|
|
|||||||||
|
|
|
|
|
|
|
|
|
|
|
||||||||
|
|
|
2/7 |
|
|
|
|
|
|
|
|
|
|
|||||
|
|
|
|
&!5,4 |
|
|
|
|
|
|
||||||||
|
|
|
|
|
|
|
|
|
|
|||||||||
|
|
|
|
|
|
|
|
|
|
|
||||||||
|
|
|
2/7 |
|
0' |
|
|
|
|
|
|
|||||||
|
|
|
|
|
|
|
|
|
|
". W |
||||||||
|
|
|
|
|
|
|
||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Table 2. |
|
|
Pin description |
|
||
Pin |
|
|
Name |
Type |
Description |
|
|
|
|
|
|
|
|
1 |
|
|
SEL2 |
Logic input |
SPI/parallel selection mode |
|
|
|
|
|
|
||
2 |
|
SEL1/IN1 |
Logic input |
8/16-bit SPI selection mode/channel 1 input |
||
|
|
|
|
|||
3 |
WD_EN/ IN2 |
Logic/analog input |
Watchdog enable_setting/channel 2 input |
|||
|
|
|
|
|||
4 |
OUT_EN /IN3 |
Logic input |
Output enable/channel 3 input |
|||
|
|
|
|
|
|
|
5 |
|
WD/IN4 |
Logic input |
Watchdog input. The internal watchdog counter is |
||
|
cleared on the falling edges/channel 4 input. |
|||||
|
|
|
|
|
|
|
|
|
|
|
|
||
6 |
|
SDI/IN5 |
Logic input |
Serial data input/channel 5 input |
||
|
|
|
|
|
||
7 |
|
CLK/IN6 |
Logic input |
Serial clock/channel 6 input |
||
|
|
|
|
|
|
|
8 |
|
|
|
|
Logic input |
Slave select/channel 7 input |
|
|
SS/IN7 |
||||
|
|
|
|
|
||
9 |
|
SDO/IN8 |
Logic input/output |
Serial data output/channel 8 input |
||
|
|
|
|
|
|
|
10 |
|
|
VREG |
Power supply |
SPI/inputs/LED supply voltage |
|
|
|
|
|
|
|
|
11 |
|
|
COL0 |
Open source output |
LED source output |
|
|
|
|
|
|
|
|
12 |
|
|
COL1 |
Open source output |
LED source output |
|
|
|
|
|
|
|
|
13 |
|
DCVDD |
Analog output |
Internally generated DC-DC low voltage supply. (To be |
||
|
connected to external 10 nF capacitor). |
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
14 |
|
|
VREF |
Analog output |
Internally generated DC-DC voltage reference. (To be |
|
|
|
connected to external 10 nF capacitor). |
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
6/34 |
Doc ID 15234 Rev 4 |
VNI8200XP |
|
|
|
|
|
Pin connection |
||
|
|
|
|
|
|
|
|
|
|
Table 2. |
|
Pin description (continued) |
|||||
|
|
|
|
|
|
|
|
|
|
Pin |
|
|
Name |
|
Type |
Description |
|
|
|
|
|
|
|
|
||
|
15 |
|
ROW0 |
|
Open drain output |
Status channel 1-2 |
||
|
|
|
|
|
|
|
||
|
16 |
|
ROW1 |
|
Open drain output |
Status channel 3-4 |
||
|
|
|
|
|
|
|
||
|
17 |
|
ROW2 |
|
Open drain output |
Status channel 5-6 |
||
|
|
|
|
|
|
|
||
|
18 |
|
ROW3 |
|
Open drain output |
Status channel 7-8 |
||
|
|
|
|
|
|
|
|
|
|
19 |
|
|
PG |
|
Open drain output |
Power Good diagnostic - active low |
|
|
|
|
|
|
|
|
|
|
|
20 |
|
|
|
|
|
Open drain output |
Fault indication - active low |
FAULT |
||||||||
|
|
|
|
|
|
|
||
|
21 |
|
|
|
|
|
Open drain output |
IC case warning temperature detection - active low |
TWARN |
||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Step-down feedback input. Connecting the output |
|
22 |
|
|
FB |
|
Analog input |
voltage directly to this pin results in an output voltage |
|
|
|
|
|
of 3.3 V. An external resistor divider is required for |
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
higher output voltages. |
|
|
|
|
|
|
|
|
|
|
23 |
|
|
GND |
|
|
Ground |
|
|
|
|
|
|
|
|
||
|
24 |
|
PHASE |
|
Power output |
Step-down output |
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Step-down bootstrap voltage. Used to provide a drive |
|
25 |
|
|
BOOT |
|
Power output |
voltage, higher than the supply voltage, to power the |
|
|
|
|
|
|
|
|
|
switch of the step-down regulator. |
|
|
|
|
|
|
|
|
|
|
26 |
|
|
NC |
|
|
Not connected |
|
|
|
|
|
|
|
|
|
|
|
27 |
|
|
OUT8 |
|
Power output |
Channel 8 power output |
|
|
|
|
|
|
|
|
|
|
|
28 |
|
|
OUT7 |
|
Power output |
Channel 7 power output |
|
|
|
|
|
|
|
|
|
|
|
29 |
|
|
OUT6 |
|
Power output |
Channel 6 power output |
|
|
|
|
|
|
|
|
|
|
|
30 |
|
|
OUT5 |
|
Power output |
Channel 5 power output |
|
|
|
|
|
|
|
|
|
|
|
31 |
|
|
OUT4 |
|
Power output |
Channel 4 power output |
|
|
|
|
|
|
|
|
|
|
|
32 |
|
|
OUT3 |
|
Power output |
Channel 3 power output |
|
|
|
|
|
|
|
|
|
|
|
33 |
|
|
OUT2 |
|
Power output |
Channel 2 power output |
|
|
|
|
|
|
|
|
|
|
|
34 |
|
|
OUT1 |
|
Power output |
Channel 1 power output |
|
|
|
|
|
|
|
|
|
|
|
35 |
|
|
NC |
|
|
Not connected |
|
|
|
|
|
|
|
|
|
|
|
36 |
|
|
NC |
|
|
Not connected |
|
|
|
|
|
|
|
|
|
|
|
TAB |
|
|
TAB |
|
Power supply |
Exposed tab internally connected to VCC |
|
|
|
|
|
|
|
|
|
|
Doc ID 15234 Rev 4 |
7/34 |
Maximum ratings |
VNI8200XP |
|
|
Table 3. |
Absolute maximum ratings |
|
|
||||||||||
Symbol |
|
|
Parameter |
Value |
Unit |
||||||||
|
|
|
|
||||||||||
VCC |
Power supply voltage |
45 |
V |
||||||||||
-VCC |
Reverse supply voltage |
-0.3 |
V |
||||||||||
VREG |
Logic supply voltage |
-0.3 to +6 |
V |
||||||||||
VFAULT |
|
|
|
|
|
|
|
|
|
|
|
||
VTWARN |
Voltage range at pins |
TWARN, |
|
|
FAULT, |
|
PG |
-0.3 to +6 |
V |
||||
VPG |
|
|
|
|
|
|
|
|
|
|
|
||
VBOOT |
Bootstrap peak voltage VPHASE = Vcc |
VCC+6 |
V |
||||||||||
VROW |
Voltage range at ROW pins |
-0.3 to +6 |
V |
||||||||||
VCOL |
Voltage range at COL pins |
-0.3 to +6 |
V |
||||||||||
Vdig |
Voltage level range at logic input pins |
-0.3 to +6 |
V |
||||||||||
I |
|
Output current (continuous) |
Internally limited (1) |
A |
|||||||||
OUT |
|
|
|
|
|
|
|
|
|
|
|
||
|
IR |
Reverse output current (per channel) |
-5 |
A |
|||||||||
IGND |
DC ground reverse current |
-250 |
mA |
||||||||||
IREG |
VREG input current |
-1/10 |
mA |
||||||||||
IFAULT |
|
|
|
|
|
|
|
|
|
|
|
||
ITWARN, |
Current range at pins |
TWARN, |
|
FAULT, |
PG |
-1 to +10 |
mA |
||||||
IPG |
|
|
|
|
|
|
|
|
|
|
|
||
IIN |
Input current range |
-1 to +10 |
mA |
||||||||||
IROW |
Current range at ROW pins (ROW in ON state) |
+20 |
mA |
||||||||||
|
|
|
|
|
|
|
|
|
|
|
|||
Current range at ROW pins (ROW in OFF state) |
-1 to +10 |
mA |
|||||||||||
|
|
||||||||||||
|
|
|
|
|
|||||||||
ICOL |
Current range at COL pins (COL in ON state) |
-10 |
mA |
||||||||||
|
|
|
|
|
|
|
|
|
|
|
|||
Current range at COL pins (COL in OFF state) |
-1 to +10 |
mA |
|||||||||||
|
|
||||||||||||
|
|
|
|
||||||||||
VESD |
Electrostatic discharge (R = 1.5 kΩ; C = 100 pF) |
2000 |
V |
||||||||||
EAS |
Single pulse avalanche energy per channel not |
300 |
mJ |
||||||||||
simultaneously |
|||||||||||||
P |
TOT |
Power dissipation at T = 25 °C |
Internally limited(1) |
W |
|||||||||
|
|
|
c |
|
|
||||||||
TJ |
Junction operating temperature |
Internally limited |
° C |
||||||||||
TSTG |
Storage temperature |
-55 to 150 |
° C |
1.Protection functions are intended to avoid IC damage in fault conditions and are not intended for continuous operation. Continuous and repetitive operation of protection functions may reduce the IC lifetime.
8/34 |
Doc ID 15234 Rev 4 |
VNI8200XP |
Electrical characteristics |
|
|
4.1Thermal data
Table 4. |
Thermal data |
|
|
|
Symbol |
Parameter |
|
Value |
Unit |
|
|
|
|
|
R |
Thermal resistance junction-case (1) |
Max. |
2 |
°C/W |
th(JC) |
|
|
|
|
R |
Thermal resistance junction-ambient (2) |
Max. |
52 |
°C/W |
th(JA) |
|
|
|
|
1.Per channel.
2.When mounted using minimum recommended pad size on FR-4 board (for details refer to Section 11).
5.1Power section
10.5 V < VCC < 36 V; -40 °C < TJ < 125 °C; unless otherwise specified.
Table 5. |
Power section |
|
|
|
|
|
||
Symbol |
Parameter |
Test conditions |
Min. |
Typ. |
Max. |
Unit |
||
|
|
|
|
|
|
|
|
|
|
Vcc |
Supply voltage |
|
10.5 |
|
36 |
V |
|
VccClamp |
Clamp on Vcc |
|
45 |
50 |
52 |
V |
||
RDS(ON) |
On state resistance |
IOUT = 0.5 A at TJ = 25 °C |
|
0.11 |
|
Ω |
||
IOUT = 0.5 A |
|
|
0.2 |
|||||
|
|
|
|
|
|
|
||
|
|
|
|
All channels in OFF state, DC- |
|
|
|
|
|
|
|
|
DC in OFF state, VREG=5 V, |
|
1 |
|
mA |
|
IS |
Vcc supply current |
SPI OFF(1) |
|
|
|
|
|
|
All channels in ON state, DC- |
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
DC in ON state VREG=5 V, SPI |
|
TBD |
TBD |
mA |
|
|
|
|
ON (2) |
|
|
|
|
|
|
|
|
DC-DC OFF VREG= 5 V SPI |
|
TBD |
|
mA |
|
IDS |
VREG supply current |
OFF WD_EN=0 |
|
|
|
|
|
|
|
|
|
|
|
|||
DC-DC ON VREG=5 V SPI ON |
|
TBD |
|
mA |
||||
|
|
|
|
|
|
|||
|
|
|
|
WD_EN=VREG |
|
|
|
|
ILGND |
Output current at |
All pins at 24 V except VOUT = |
|
|
0.5 |
mA |
||
GND disconnection |
0 V |
|
|
|||||
VOUT(OFF) |
OFF state output |
VIN = 0 V, IOUT = 0 A |
|
|
3 |
V |
||
voltage |
|
|
||||||
IOUT(OFF) |
OFF state output |
VIN = VOUT = 0 V |
0 |
|
5 |
µA |
||
current |
|
|||||||
|
FCP |
Charge pump |
Channel in ON state (3) |
|
1.45 |
|
MHz |
|
|
frequency |
|
|
|||||
|
|
|
|
|
|
|
|
|
1.SS signal high, NO communication.
2.SS signal low, communication ON.
3.To cover EN55022 class A and class B normatives.
Doc ID 15234 Rev 4 |
9/34 |
Electrical characteristics |
VNI8200XP |
|
|
5.2SPI characteristics
10.5 V < VCC < 36 V; 2.7 V < VREG < 5 V; -40 <Tj <125; unless otherwise specified.
Table 6. |
SPI characteristics |
|
|
|
|
|
||||||
Symbol |
|
|
Parameter |
Test conditions |
Min. |
Typ. |
Max. |
Unit |
||||
|
|
|
|
|
|
|
|
|||||
fCLK |
|
SPI clock frequency |
|
|
- |
5 |
MHz |
|||||
tr(CLK), |
|
SPI clock rise/fall time |
|
|
- |
20 |
ns |
|||||
tf(CLK) |
|
|
|
|
|
|
|
|
||||
tsu |
|
|
|
|
|
setup time |
|
120 |
- |
|
ns |
|
(SS) |
SS |
|
|
|||||||||
th |
|
|
|
|
|
hold time |
|
120 |
- |
|
ns |
|
(SS) |
SS |
|
|
|||||||||
tw(CLK) |
|
CLK high time |
|
80 |
- |
|
ns |
|||||
tsu(SDI) |
|
Data input setup time |
|
100 |
- |
|
ns |
|||||
th(SDI) |
|
Data input hold time |
|
100 |
- |
|
ns |
|||||
ta(SDO) |
|
Data output access time |
|
|
- |
100 |
ns |
|||||
tdis(SDO) |
|
Data output disable time |
|
|
- |
200 |
ns |
|||||
tv(SDO) |
|
Data output valid time |
|
|
- |
100 |
ns |
|||||
th(SDO) |
|
Data output hold time |
|
0 |
- |
|
ns |
|||||
VSDO |
|
Voltage on serial data output |
ISDO = 15 mA |
VREG-0.8 |
- |
|
V |
|||||
|
ISDO = -4 mA |
|
- |
0.8 |
V |
|||||||
|
|
|
|
|
|
|
|
|
5.3Switching
VCC = 24 V; -40 °C < TJ < 125 °C. |
|
|
|
|
||
Table 7. |
Switching |
|
|
|
|
|
|
|
|
|
|
|
|
Symbol |
Parameter |
Test condition |
Min. |
Typ. |
Max. |
Unit |
|
|
|
|
|
|
|
td(ON) |
Turn-ON delay time |
IOUT = 0.5 A, resistive load, |
- |
5 |
- |
µs |
input rise time < 0.1 µs |
||||||
tr |
Rise time |
IOUT = 0.5 A, resistive load, |
- |
5 |
- |
µs |
input rise time < 0.1 µs |
||||||
td(OFF) |
Turn-OFF delay time |
IOUT = 0.5 A, resistive load, |
- |
10 |
- |
µs |
input rise time < 0.1 µs |
||||||
tf |
Fall time |
IOUT = 0.5 A, resistive load, |
- |
5 |
- |
µs |
input rise time < 0.1 µs |
||||||
dV/dt(ON) |
Turn-ON voltage slope |
IOUT = 0.5 A, resistive load, |
- |
3 |
- |
V/µs |
input rise time < 0.1 µs |
||||||
|
|
|
|
|
|
|
dV/dt(off) |
Turn-OFF voltage |
IOUT = 0.5 A, resistive load, |
- |
4 |
- |
V/µs |
slope |
input rise time < 0.1 µs |
|||||
|
|
|
|
|
|
|
10/34 |
Doc ID 15234 Rev 4 |
VNI8200XP |
Electrical characteristics |
|
|
5.4Logic inputs
10.5 V < VCC < 36 V; -40 °C < TJ < 125 °C; unless otherwise specified.
Table 8. |
Logic inputs |
|
|
|
|
|
Symbol |
Parameter |
Test conditions |
Min. |
Typ. |
Max. |
Unit |
|
|
|
|
|
|
|
VIL |
Input low level voltage |
|
|
|
0.8 |
V |
VIH |
Input high level voltage |
|
2.20 |
|
|
V |
VI(HYST) |
Input hysteresis |
|
|
0.15 |
|
V |
voltage |
|
|
|
|||
IIN |
Input current |
VIN = 5 V |
8 |
|
|
A |
5.5Protection and diagnostic
10.5 V < VCC < 36 V; -40 °C < TJ < 125 °C; unless otherwise specified.
Table 9. |
Protection and diagnostic |
|
|
|
|
|
|
|
|
|
|
|||||||
Symbol |
|
Parameter |
|
|
Test conditions |
Min. |
Typ. |
Max. |
Unit |
|||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
VPGH1 |
|
Power Good diagnostic |
|
|
|
|
|
16.6 |
|
17.5 |
|
18.4 |
|
|||||
|
ON threshold |
|
|
|
|
|
|
|
|
|||||||||
VPGH2 |
|
Power Good diagnostic |
|
|
|
|
|
15.6 |
|
16.5 |
|
17.4 |
V |
|||||
|
OFF threshold |
|
|
|
|
|
|
|
||||||||||
VPGHYS |
|
Power Good diagnostic |
|
|
|
|
|
|
|
1 |
|
|
|
|
||||
|
hysteresis |
|
|
|
|
|
|
|
|
|
|
|
||||||
|
|
|
Undervoltage ON |
|
|
|
|
|
|
|
9.5 |
|
10.5 |
V |
||||
|
|
|
protection |
|
|
|
|
|
|
|
|
|||||||
VUSD |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
Undervoltage OFF |
|
|
|
|
|
|
|
9 |
|
|
|
V |
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||
|
|
|
protection |
|
|
|
|
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
VUSDHYS |
|
Undervoltage |
|
|
|
|
|
0.4 |
|
0.5 |
|
|
|
V |
||||
|
hysteresis |
|
|
|
|
|
|
|
|
|
||||||||
V |
demag |
|
Output voltage at turn- |
I |
OUT |
= 0.5 A; L |
LOAD |
≥ 1 mH |
V -52 |
V |
CC |
-50 |
V |
CC |
-45 |
V |
||
|
|
OFF |
|
|
|
CC |
|
|
|
|
|
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
pin low-state |
ITWARN = 3 mA (active |
|
|
|
|
|
|
|
|
||||
VTWARN |
|
TWARN |
|
|
|
|
|
0.6 |
V |
|||||||||
|
output voltage |
condition) |
|
|
|
|
|
|
|
|||||||||
|
|
|
|
pin low-state |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
VFAULT |
|
FAULT |
IFAULT = 3 mA (fault condition) |
|
|
|
|
|
0.6 |
V |
||||||||
|
output voltage |
|
|
|
|
|
||||||||||||
VPG |
|
PG pin low-state output |
IPG = 3 mA (active condition) |
|
|
|
|
|
0.7 |
V |
||||||||
|
voltage |
VREG=3.3 V VCC=0 |
|
|
|
|
|
|
||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|||||||
IPEAK |
|
Maximum DC output |
|
|
|
|
|
|
|
1.4 |
|
|
|
A |
||||
|
current |
|
|
|
|
|
|
|
|
|
|
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
ILIM |
|
Short-circuit current |
RLOAD = 0 |
|
|
0.7 |
|
1.1 |
|
1.7 |
A |
||||||
|
|
limitation per channel |
|
|
|
|
||||||||||||
Hyst |
|
ILIM tracking limits |
RLOAD = 0 |
|
|
|
|
0.3 |
|
|
|
A |
Doc ID 15234 Rev 4 |
11/34 |
