ST TDR020V1 User Manual
STEVAL-TDR020V1
Portable UHF 2-way radio demonstration board based on the PD84006L-E
Features
■ |
Excellent thermal stability |
|
|
|
■ |
Frequency: 740 - 950 MHz |
|
|
|
■ Supply voltage: 7.2 V |
|
|
||
■ Output power: 4 W |
|
|
||
■ Power gain: 12.3 ±0.3 dB |
|
|
||
■ |
Efficiency: 50 % - 57 % |
|
|
|
■ |
Load mismatch 20:1 |
|
|
|
■ |
BeO free amplifier |
|
|
|
|
|
|
Mechanical specification: |
|
Description |
|
L = 60 mm, W = 30 mm |
||
|
|
|||
The STEVAL-TDR020V1 demonstration board is |
Table 1. |
Device summary |
||
a portable UHF 2-way radio designed as a |
||||
|
|
|||
|
Order code |
|||
platform for evaluating the performance of the |
|
|||
PD84008L-E LDMOS RF power transistor. |
|
|
||
|
STEVAL-TDR020V1 |
|||
|
|
|
||
|
|
|
|
|
October 2010 |
Doc ID 18108 Rev 1 |
1/11 |
www.st.com
Contents |
STEVAL-TDR020V1 |
|
|
Contents
1 |
Electrical characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
. 3 |
2 |
Impedance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
4 |
3 |

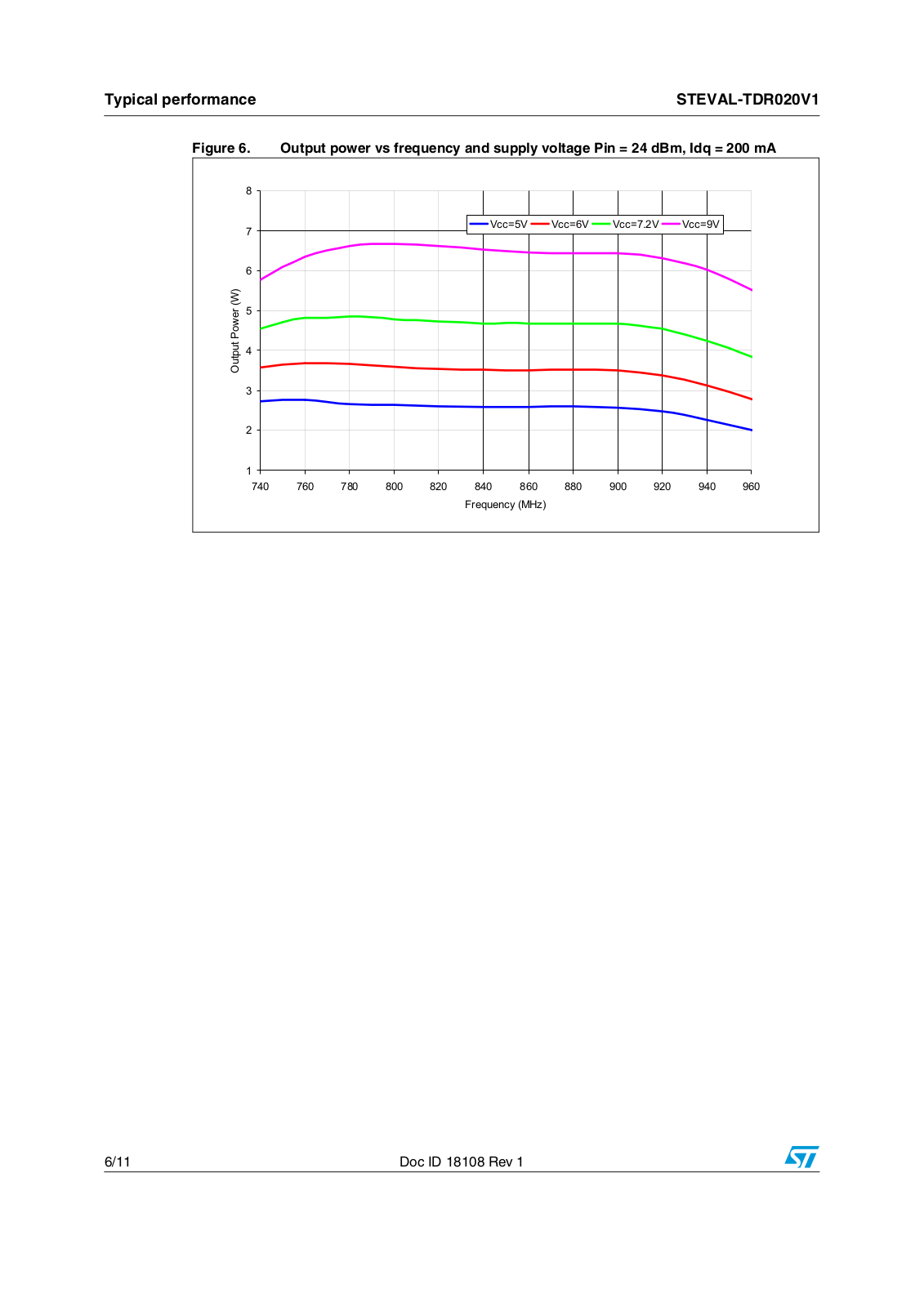

Typical performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
5 |
4 |
Test circuit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
7 |
5 |
Circuit photo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
9 |
6 |
Revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
10 |
2/11 |
Doc ID 18108 Rev 1 |
STEVAL-TDR020V1 |
Electrical characteristics |
|
|
1 Electrical characteristics
T = +25 oC, V |
DD |
= 7.2 V, I |
dq |
= 200 mA |
|
|
|
|
|
|
A |
|
|
|
|
|
|
|
|
||
Table 2. |
Electrical specification |
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|||
Symbol |
|
|
Test conditions |
Min |
Typ |
Max |
Unit |
|||
|
|
|
|
|
|
|
|
|||
Freq |
Frequency range |
|
740 |
|
|
950 |
MHz |
|||
|
|
|
|
|
|
|
|
|
|
|
POUT |
|
|
|
|
|
|
|
4 |
|
W |
Gain |
@ PIN = 24 dBm |
|
|
12.3 |
±0.3 |
|
dB |
|||
ND |
@ PIN = 24 dBm |
|
|
50 - 57 |
|
% |
||||
H2 |
2ND Harmonic @ P = 24 dBm |
|
-48 |
/ -65 |
|
dBc |
||||
|
|
|
|
|
IN |
|
|
|
|
|
H3 |
3RD Harmonic @ PIN = 24 dBm |
|
-64 |
/ -70 |
|
dBc |
||||
VSWR |
Load mismatch all phases @ POUT = 4 W |
|
20:1 |
|
|
|||||
Doc ID 18108 Rev 1 |
3/11 |
Impedance |
STEVAL-TDR020V1 |
|
|
2 Impedance
Figure 1. Impedance graphic
D
ZDL
ZIN
ZGS
G
S
Table 3. |
Impedance data |
|
|
|
F(MHz) |
ZGS |
ZDL |
|
740 |
2,52 + j1,42 |
3,06 + j0,41 |
|
|
|
|
|
750 |
2,52 + j1,56 |
3,09 + j0,51 |
|
|
|
|
|
760 |
2,51 + j1,73 |
3,12 + j0,64 |
|
|
|
|
|
770 |
2,46 + j1,84 |
3,13 + j0,72 |
|
|
|
|
|
780 |
2,47 + j1,96 |
3,13 + j0,81 |
|
|
|
|
|
790 |
2,48 + j2,07 |
3,13 + j0,87 |
|
|
|
|
|
800 |
2,45 + j2,22 |
3,14 + j0,96 |
|
|
|
|
|
810 |
2,44 + j2,27 |
3,08 + j1,02 |
|
|
|
|
|
820 |
2,45 + 2,43 |
3,05 + j1,04 |
|
|
|
|
|
830 |
2,41 + j2,57 |
3,04 + j1,11 |
|
|
|
|
|
840 |
2,40 + j2,67 |
2,98 + j1,14 |
|
|
|
|
|
850 |
2,41 + j2,80 |
2,99 + j1,24 |
|
|
|
|
|
860 |
2,38 + j2,92 |
2,91 + j1,29 |
|
|
|
|
|
870 |
2,37 + j3,06 |
2,88 + j1,38 |
|
|
|
|
|
880 |
2,36 + j3,20 |
2,81 + j1,40 |
|
|
|
|
|
890 |
2,37 + j3,25 |
2,70 + j1,47 |
|
|
|
|
|
900 |
2,31 + j3,36 |
2,56 + j1,53 |
|
|
|
|
|
910 |
2,25 + j3,49 |
2,50 + j1,62 |
|
|
|
|
|
920 |
2,16 + j3,57 |
2,31 + j1,72 |
|
|
|
|
|
930 |
2,16 + j3,66 |
2,21 + j1,82 |
|
|
|
|
|
940 |
2,11 + j3,78 |
2,11 + j1,96 |
|
|
|
|
|
950 |
2,06 + j3,86 |
1,98 + j2,07 |
|
|
|
|
4/11 |
Doc ID 18108 Rev 1 |
