ST STM8S103K3, STM8S103F3, STM8S103F2 User Manual

Download

STM8S103K3 STM8S103F3 STM8S103F2

LQFP32 7x7

UFQFPN32 5x5

TSSOP20

SO20W 300 mils

SDIP32 400 mils

Access line, 16 MHz STM8S 8-bit MCU, up to 8 Kbytes Flash, data

EEPROM,10-bit ADC, 3 timers, UART, SPI, I²C

Interrupt management

Nested interrupt controller with 32 interrupts

•

Up to 27 external interrupts on 6 vectors

•

Timers

Advanced control timer: 16-bit, 4 CAPCOM

•

channels, 3 complementary outputs, dead-time insertion and flexible synchronization

16-bit general purpose timer, with 3 CAPCOM

•

channels (IC, OC or PWM)

8-bit basic timer with 8-bit prescaler

Features

Core

16 MHz advanced STM8 core with Harvard

•

architecture and 3-stage pipeline

Extended instruction set

•

Memories

Program memory: 8 Kbytes Flash; data retention

•

20 years at 55 °C after 10 kcycles

Data memory: 640 bytes true data EEPROM;

•

endurance 300 kcycles

RAM: 1 Kbytes

•

Auto wake-up timer

•

Window watchdog and independent watchdog

•

timers

Communications interfaces

UART with clock output for synchronous

•

operation, Smartcard, IrDA, LIN master mode

SPI interface up to 8 Mbit/s

•

I2C interface up to 400 Kbit/s

•

Analog to digital converter (ADC)

10-bit, ±1 LSB ADC with up to 5 multiplexed

•

channels, scan mode and analog watchdog

Clock, reset and supply management

2.95 to 5.5 V operating voltage

•

Flexible clock control, 4 master clock sources:

•

Low power crystal resonator oscillator

External clock input

Internal, user-trimmable 16 MHz RC

Internal low power 128 kHz RC

Clock security system with clock monitor

•

Power management:

•

Low power modes (wait, active-halt, halt)

Switch-off peripheral clocks individually

Permanently active, low consumption power-on

•

and power-down reset

June 2012

I/Os

Up to 28 I/Os on a 32-pin package including 21

•

high sink outputs

Highly robust I/O design, immune against current

•

injection

Development support

Embedded single wire interface module (SWIM)

•

for fast on-chip programming and non intrusive debugging

Unique ID

96-bit unique key for each device

•

DocID15441 Rev 9

1/117

www.st.com

STM8S103K3 STM8S103F3 STM8S103F2Contents

1 Introduction ..............................................................................................................8

2 Description ...............................................................................................................9

3 Block diagram ........................................................................................................10

4 Product overview ...................................................................................................11

4.1 Central processing unit STM8 .....................................................................................11

4.2 Single wire interface module (SWIM) and debug module (DM) ..................................11

4.3 Interrupt controller .......................................................................................................12

4.4 Flash program and data EEPROM memory ................................................................12

4.5 Clock controller ............................................................................................................13

4.6 Power management ....................................................................................................14

4.7 Watchdog timers ..........................................................................................................14

4.8 Auto wakeup counter ...................................................................................................15

4.9 Beeper ........................................................................................................................15

4.10 TIM1 - 16-bit advanced control timer .........................................................................15

4.11 TIM2 - 16-bit general purpose timer ..........................................................................16

4.12 TIM4 - 8-bit basic timer ..............................................................................................16

4.13 Analog-to-digital converter (ADC1) ............................................................................16

4.14 Communication interfaces .........................................................................................17

4.14.1 UART1 ...............................................................................................17

4.14.2 SPI .....................................................................................................18

4.14.3 I²C ......................................................................................................18

5 Pinout and pin description ...................................................................................19

5.1 STM8S103Kx UFQFPN32/LQFP32/SDIP32 pinout and pin description .....................20

5.2 STM8S103Fx TSSOP20/SO20/UFQFPN20 pinout and pin description .....................24

5.2.1 STM8S103Fx TSSOP20/SO20 pinout .................................................24

5.2.2 STM8S103Fx UFQFPN20 pinout ........................................................25

5.2.3 STM8S103Fx TSSOP20/SO20/UFQFPN20 pin description ................25

5.3 Alternate function remapping .......................................................................................27

6 Memory and register map .....................................................................................28

6.1 Memory map ................................................................................................................28

6.2 Register map ...............................................................................................................29

6.2.1 I/O port hardware register map ............................................................29

6.2.2 General hardware register map ..........................................................30

6.2.3 CPU/SWIM/debug module/interrupt controller registers .....................40

7 Interrupt vector mapping ......................................................................................42

8 Option bytes ...........................................................................................................44

8.1 Alternate function remapping bits ................................................................................46

DocID15441 Rev 92/117

ContentsSTM8S103K3 STM8S103F3 STM8S103F2

9 Unique ID ................................................................................................................49

10 Electrical characteristics ....................................................................................50

10.1 Parameter conditions .................................................................................................50

10.1.1 Minimum and maximum values .........................................................50

10.1.2 Typical values .....................................................................................50

10.1.3 Typical curves ....................................................................................50

10.1.4 Loading capacitor ...............................................................................50

10.1.5 Pin input voltage .................................................................................51

10.2 Absolute maximum ratings ........................................................................................51

10.3 Operating conditions ..................................................................................................53

10.3.1 VCAP external capacitor ....................................................................54

10.3.2 Supply current characteristics ............................................................55

10.3.3 External clock sources and timing characteristics .............................65

10.3.4 Internal clock sources and timing characteristics ...............................67

10.3.5 Memory characteristics ......................................................................70

10.3.6 I/O port pin characteristics .................................................................71

10.3.7 Reset pin characteristics ....................................................................79

10.3.8 SPI serial peripheral interface ............................................................82

10.3.9 I2C interface characteristics ...............................................................85

10.3.10 10-bit ADC characteristics ................................................................86

10.3.11 EMC characteristics .........................................................................90

11 Package information ............................................................................................94

11.1 32-pin LQFP package mechanical data .....................................................................94

11.2 32-lead UFQFPN package mechanical data .............................................................96

11.3 20-lead UFQFPN package mechanical data .............................................................97

11.4 SDIP32 package mechanical data .............................................................................98

11.5 20-pin TSSOP package mechanical data ................................................................100

11.6 20-pin SO package mechanical data .......................................................................101

11.7 UFQFPN recommended footprint ............................................................................102

12 Thermal characteristics ....................................................................................104

12.1 Reference document ...............................................................................................105

12.2 Selecting the product temperature range ................................................................105

13 Ordering information .........................................................................................106

13.1 STM8S103 FASTROM microcontroller option list ...................................................106

14 STM8 development tools ..................................................................................111

14.1 Emulation and in-circuit debugging tools .................................................................111

14.2 Software tools ..........................................................................................................111

14.2.1 STM8 toolset ....................................................................................112

14.2.2 C and assembly toolchains ..............................................................112

14.3 Programming tools ..................................................................................................112

15 Revision history .................................................................................................113

3/117DocID15441 Rev 9

STM8S103K3 STM8S103F3 STM8S103F2List of tables

List of tables

Table 1. STM8S103xx access line features .............................................................................................9

Table 2. Peripheral clock gating bit assignments in CLK_PCKENR1/2 registers ..................................14

Table 3. TIM timer features ....................................................................................................................16

Table 4. Legend/abbreviations for pinout tables ...................................................................................19

Table 5. UFQFPN32/LQFP32/SDIP32 pin description ...........................................................................21

Table 6. STM8S103Fx pin description ...................................................................................................25

Table 7. I/O port hardware register map ................................................................................................29

Table 8. General hardware register map ...............................................................................................30

Table 9. CPU/SWIM/debug module/interrupt controller registers .........................................................40

Table 10. Interrupt mapping ...................................................................................................................42

Table 11. Option bytes .........................................................................................................................113

Table 12. Option byte description ...........................................................................................................44

Table 13. STM8S103K alternate function remapping bits for 32-pin devices ........................................46

Table 14. STM8S103F alternate function remapping bits for 20-pin devices ........................................47

Table 15. Unique ID registers (96 bits) .................................................................................................113

Table 16. Voltage characteristics ...........................................................................................................51

Table 17. Current characteristics ...........................................................................................................52

Table 18. Thermal characteristics ..........................................................................................................52

Table 19. General operating conditions .................................................................................................53

Table 20. Operating conditions at power-up/power-down ......................................................................54

Table 21. Total current consumption with code execution in run mode at VDD= 5 V .............................55

Table 22. Total current consumption with code execution in run mode at VDD= 3.3 V ..........................56

Table 23. Total current consumption in wait mode at VDD= 5 V ............................................................57

Table 24. Total current consumption in wait mode at VDD= 3.3 V .........................................................57

Table 25. Total current consumption in active halt mode at VDD= 5 V ..................................................58

Table 26. Total current consumption in active halt mode at VDD= 3.3 V ...............................................59

Table 27. Total current consumption in halt mode at VDD= 5 V .............................................................60

Table 28. Total current consumption in halt mode at VDD= 3.3 V ..........................................................60

Table 29. Wakeup times .........................................................................................................................60

Table 30. Total current consumption and timing in forced reset state ....................................................61

Table 31. Peripheral current consumption .............................................................................................62

Table 32. HSE user external clock characteristics .................................................................................65

Table 33. HSE oscillator characteristics .................................................................................................66

Table 34. HSI oscillator characteristics ..................................................................................................67

Table 35. LSI oscillator characteristics ...................................................................................................69

Table 36. RAM and hardware registers ..................................................................................................70

Table 37. Flash program memory/data EEPROM memory ....................................................................70

Table 38. I/O static characteristics .........................................................................................................71

Table 39. Output driving current (standard ports) ..................................................................................73

Table 40. Output driving current (true open drain ports) ........................................................................74

Table 41. Output driving current (high sink ports) ..................................................................................74

Table 42. NRST pin characteristics ........................................................................................................79

Table 43. SPI characteristics ..................................................................................................................82

Table 44. I2C characteristics ..................................................................................................................85

Table 45. ADC characteristics ................................................................................................................87

Table 46. ADC accuracy with R Table 47. ADC accuracy with R

< 10 kΩ , VDD= 5 V .........................................................................87

AIN

< 10 kΩ R

AIN

, VDD= 3.3 V ..............................................................88

AIN

DocID15441 Rev 94/117

List of tablesSTM8S103K3 STM8S103F3 STM8S103F2

Table 48. EMS data ................................................................................................................................91

Table 49. EMI data .................................................................................................................................91

Table 50. ESD absolute maximum ratings .............................................................................................92

Table 51. Electrical sensitivities .............................................................................................................93

Table 52. 32-pin low profile quad flat package mechanical data ............................................................94

Table 53. 32-lead, ultra thin, fine pitch quad flat no-lead package mechanical data .............................96

Table 54. 20-lead, ultra thin, fine pitch quad flat no-lead package (3 x 3) package mechanical data ....98

Table 55. 32-lead shrink plastic DIP (400 ml) package mechanical data ..............................................98

Table 56. 20-pin, 4.40 mm body, 0.65 mm pitch mechanical data .......................................................101

Table 57. 20-lead, plastic small outline (300 mils) mechanical data ....................................................101

Table 58. Thermal characteristics ........................................................................................................104

Table 59. Document revision history ....................................................................................................113

5/117DocID15441 Rev 9

STM8S103K3 STM8S103F3 STM8S103F2List of figures

List of figures

Figure 1. Block diagram .........................................................................................................................10

Figure 2. Flash memory organization ....................................................................................................13

Figure 3. STM8S103Kx UFQFPN32/LQFP32 pinout .............................................................................20

Figure 4. STM8S103Kx SDIP32 pinout .................................................................................................21

Figure 5. STM8S103Fx TSSOP20/SO20 pinout ....................................................................................24

Figure 6. STM8S103Fx UFQFPN20-pin pinout .....................................................................................25

Figure 7. Memory map ...........................................................................................................................28

Figure 8. Pin loading conditions .............................................................................................................50

Figure 9. Pin input voltage .....................................................................................................................51

Figure 10. f

CPUmax

Figure 11. External capacitor C Figure 12. Typ I Figure 13. Typ I Figure 14. Typ I Figure 15. Typ I Figure 16. Typ I Figure 17. Typ I

Figure 18. HSE external clocksource .....................................................................................................66

Figure 19. HSE oscillator circuit diagram ...............................................................................................67

Figure 20. Typical HSI frequency variation vs VDD@ 4 temperatures ..................................................69

Figure 21. Typical LSI frequency variation vs VDD@ 4 temperatures ...................................................69

Figure 22. Typical VILand VIHvs VDD@ 4 temperatures ......................................................................72

Figure 23. Typical pull-up resistance vs VDD@ 4 temperatures ............................................................73

Figure 24. Typical pull-up current vs VDD@ 4 temperatures .................................................................73

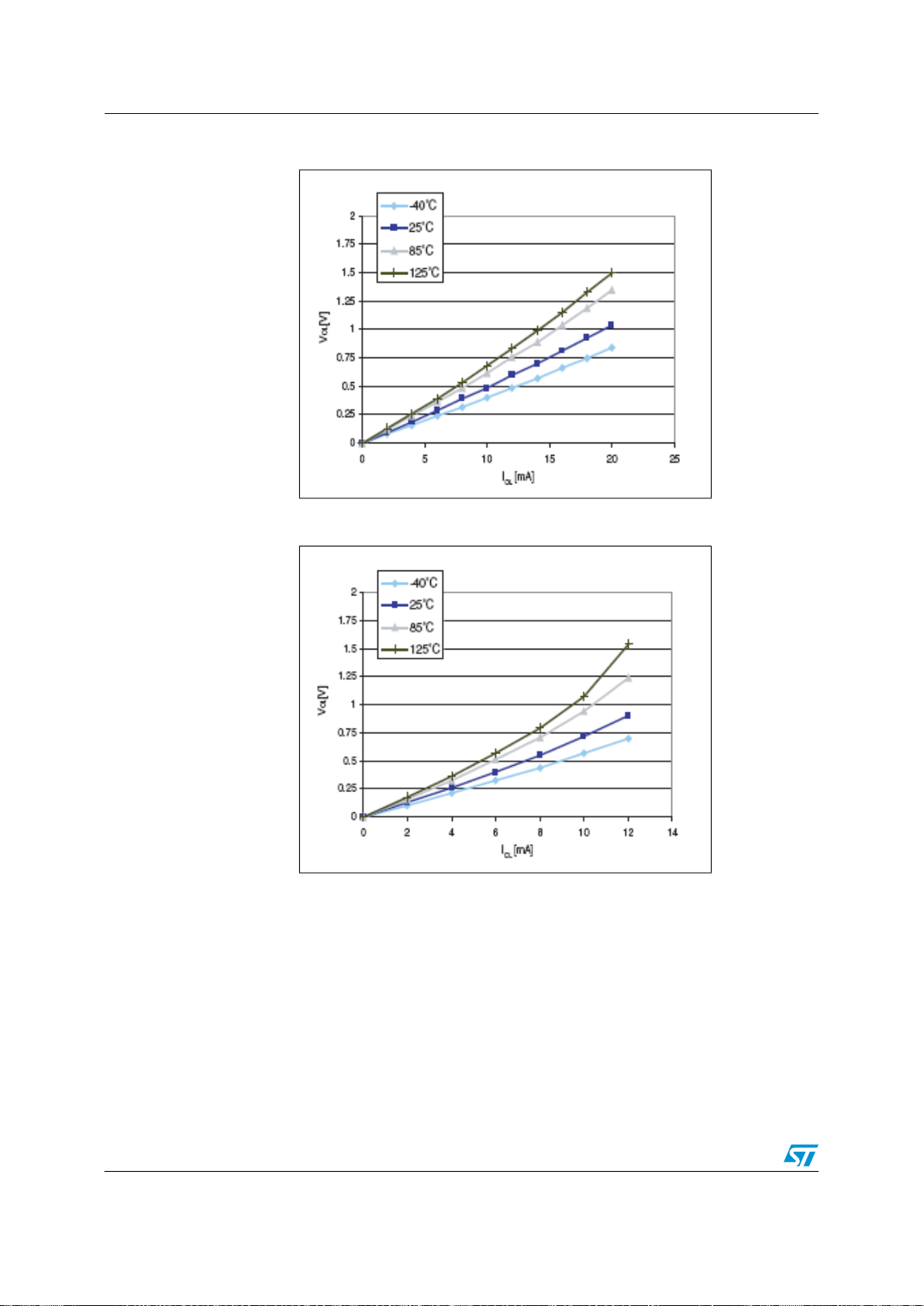

Figure 25. Typ. VOL@ VDD= 5 V (standard ports) ................................................................................75

Figure 26. Typ. VOL@ VDD= 3.3 V (standard ports) .............................................................................75

Figure 27. Typ. VOL@ VDD= 5 V (true open drain ports) ......................................................................76

Figure 28. Typ. VOL@ VDD= 3.3 V (true open drain ports) ...................................................................76

Figure 29. Typ. VOL@ VDD= 5 V (high sink ports) ................................................................................77

Figure 30. Typ. VOL@ VDD= 3.3 V (high sink ports) .............................................................................77

Figure 31. Typ. VDD- VOH@ VDD= 5 V (standard ports) .......................................................................78

Figure 32. Typ. VDD- VOH@ VDD= 3.3 V (standard ports) ...................................................................78

Figure 33. Typ. VDD- VOH@ VDD= 5 V (high sink ports) .......................................................................79

Figure 34. Typ. VDD- VOH@ VDD= 3.3 V (high sink ports) ....................................................................79

Figure 35. Typical NRST VILand VIHvs VDD@ 4 temperatures ...........................................................80

Figure 36. Typical NRST pull-up resistance vs VDD@ 4 temperatures .................................................81

Figure 37. Typical NRST pull-up current vs VDD@ 4 temperatures ......................................................81

Figure 38. Recommended reset pin protection ......................................................................................82

Figure 39. SPI timing diagram - slave mode and CPHA = 0 ..................................................................84

Figure 40. SPI timing diagram - slave mode and CPHA = 1 ..................................................................84

Figure 41. SPI timing diagram - master mode

Figure 42. Typical application with I2C bus and timing diagram ............................................................89

Figure 43. ADC accuracy characteristics ...............................................................................................89

Figure 44. Typical application with ADC ................................................................................................90

Figure 45. 32-pin low profile quad flat package (7 x 7) ..........................................................................94

Figure 46. 32-lead, ultra thin, fine pitch quad flat no-lead package (5 x 5) ............................................96

Figure 47. 20-lead, ultra thin, fine pitch quad flat no-lead package outline (3 x 3) ................................97

versus V

DD(RUN)

DD(WFI)

..............................................................................................................54

.......................................................................................................55

EXT

vs. VDDHSE user external clock, f vs. f vs. VDDHSI RC osc, f

HSE user external clock, VDD= 5 V ....................................................63

CPU

= 16 MHz .................................................................64

CPU

vs. VDDHSE user external clock, f vs. f vs. VDDHSI RC osc, f

HSE user external clock, VDD= 5 V .....................................................65

CPU

= 16 MHz .................................................................65

CPU

(1)

...................................................................................85

= 16 MHz .............................................63

CPU

= 16 MHz ..............................................64

CPU

DocID15441 Rev 96/117

List of figuresSTM8S103K3 STM8S103F3 STM8S103F2

Figure 48. 32-lead shrink plastic DIP (400 ml) package ........................................................................98

Figure 49. 20-pin, 4.40 mm body, 0.65 mm pitch .................................................................................101

Figure 50. 20-lead, plastic small outline (300 mils) package ...............................................................101

Figure 51. Recommended footprint for on-board emulation ................................................................102

Figure 52. Recommended footprint without on-board emulation .........................................................103

Figure 53. STM8S103x access line ordering information scheme ......................................................106

7/117DocID15441 Rev 9

STM8S103K3 STM8S103F3 STM8S103F2Introduction

Introduction1

This datasheet contains the description of the device features, pinout, electrical characteristics, mechanical data and ordering information.

For complete information on the STM8S microcontroller memory, registers and peripherals,

•

please refer to the STM8S microcontroller family reference manual (RM0016).

For information on programming, erasing and protection of the internal Flash memory

•

please refer to the STM8S Flash programming manual (PM0051).

For information on the debug and SWIM (single wire interface module) refer to the STM8

•

SWIM communication protocol and debug module user manual (UM0470).

For information on the STM8 core, please refer to the STM8 CPU programming manual

•

(PM0044).

DocID15441 Rev 98/117

DescriptionSTM8S103K3 STM8S103F3 STM8S103F2

Description2

The STM8S103x access line 8-bit microcontrollers offer 8 Kbytes Flash program memory, plus integrated true data EEPROM. The STM8S microcontroller family reference manual (RM0016) refers to devices in this family as low-density. They provide the following benefits: performance, robustness, and reduced system cost.

Device performance and robustness are ensured by advanced core and peripherals made in a state-of-the art technology, a 16 MHz clock frequency, robust I/Os, independent watchdogs with separate clock source, and a clock security system.

The system cost is reduced thanks to an integrated true data EEPROM for up to 300 kwrite/erase cycles and a high system integration level with internal clock oscillators, watchdog and brown-out reset.

Full documentation is offered as well as a wide choice of development tools.

Table 1: STM8S103xx access line features

STM8S103F2STM8S103F3STM8S103K3Device

202032Pin count

161628Maximum number of GPIOs (I/Os)

161627Ext. interrupt pins

Low density Flash program memory (bytes)

Data EEPROM (bytes)

Peripheral set

(1)

No read-while-write (RWW) capability

777Timer CAPCOM channels

223Timer complementary outputs

554A/D converter channels

121221High sink I/Os

4K8K8K

640

(1)

640

(1)

640

(1)

1K1K1KRAM (bytes)

Multipurpose timer (TIM1), SPI, I2C, UART window WDG,independent WDG, ADC, PWM timer (TIM2), 8-bit timer (TIM4)

9/117DocID15441 Rev 9

XTAL 1-16 MHz

RC int. 16MHz

RC int. 128kHz

STM8 core

Debug/SWIM

SPI

UART1

16-bit general purpose

AWU timer

Reset block

Reset

POR

BOR

Clock controller

Detector

Clock to peripherals and core

8 Mbit/s

LIN master

Address and databus

Window WDG

8 Kbytes

640 bytes

1 Kbyte

ADC1

4 CAPCOM

Reset

400 Kbit/s

Single wire

debug interf.

SPI emul.

channels +3

program

Flash

16-bit advanced

control timer (TIM1)

8-bit basic timer

data EEPROM

RAM

Up to

Beeper

1/2/4 kHz

beep

Independent WDG

(TIM4)

3 CAPCOM channels

Up to

complementary outputs

timer (TIM2)

Up to 5

channels

I2C

STM8S103K3 STM8S103F3 STM8S103F2Block diagram

Block diagram3

Figure 1: Block diagram

DocID15441 Rev 910/117

Product overviewSTM8S103K3 STM8S103F3 STM8S103F2

Product overview4

The following section intends to give an overview of the basic features of the device functional modules and peripherals.

For more detailed information please refer to the corresponding family reference manual (RM0016).

Central processing unit STM84.1

The 8-bit STM8 core is designed for code efficiency and performance.

It contains 6 internal registers which are directly addressable in each execution context, 20 addressing modes including indexed indirect and relative addressing and 80 instructions.

Architecture and registers

Harvard architecture

•

3-stage pipeline

•

32-bit wide program memory bus - single cycle fetching for most instructions

•

X and Y 16-bit index registers - enabling indexed addressing modes with or without offset

•

and read-modify-write type data manipulations

8-bit accumulator

•

24-bit program counter - 16-Mbyte linear memory space

•

16-bit stack pointer - access to a 64 K-level stack

•

8-bit condition code register - 7 condition flags for the result of the last instruction

•

Addressing

20 addressing modes

•

Indexed indirect addressing mode for look-up tables located anywhere in the address

•

space

Stack pointer relative addressing mode for local variables and parameter passing

•

Instruction set

80 instructions with 2-byte average instruction size

•

Standard data movement and logic/arithmetic functions

•

8-bit by 8-bit multiplication

•

16-bit by 8-bit and 16-bit by 16-bit division

•

Bit manipulation

•

Data transfer between stack and accumulator (push/pop) with direct stack access

•

Data transfer using the X and Y registers or direct memory-to-memory transfers

•

Single wire interface module (SWIM) and debug module (DM)4.2

The single wire interface module and debug module permits non-intrusive, real-time in-circuit debugging and fast memory programming.

11/117DocID15441 Rev 9

STM8S103K3 STM8S103F3 STM8S103F2Product overview

SWIM

Single wire interface module for direct access to the debug module and memory programming. The interface can be activated in all device operation modes. The maximum data transmission speed is 145 bytes/ms.

Debug module

The non-intrusive debugging module features a performance close to a full-featured emulator. Beside memory and peripherals, also CPU operation can be monitored in real-time by means of shadow registers.

R/W to RAM and peripheral registers in real-time

•

R/W access to all resources by stalling the CPU

•

Breakpoints on all program-memory instructions (software breakpoints)

•

Two advanced breakpoints, 23 predefined configurations

•

Interrupt controller4.3

Nested interrupts with three software priority levels

•

32 interrupt vectors with hardware priority

•

Up to 27 external interrupts on 6 vectors including TLI

•

Trap and reset interrupts

•

Flash program and data EEPROM memory4.4

8 Kbytes of Flash program single voltage Flash memory

•

640 bytes true data EEPROM

•

User option byte area

•

Write protection (WP)

Write protection of Flash program memory and data EEPROM is provided to avoid unintentional overwriting of memory that could result from a user software malfunction.

There are two levels of write protection. The first level is known as MASS (memory access security system). MASS is always enabled and protects the main Flash program memory, data EEPROM and option bytes.

To perform in-application programming (IAP), this write protection can be removed by writing a MASS key sequence in a control register. This allows the application to write to data EEPROM, modify the contents of main program memory or the device option bytes.

A second level of write protection, can be enabled to further protect a specific area of memory known as UBC (user boot code). Refer to the figure below.

The size of the UBC is programmable through the UBC option byte, in increments of 1 page (64-byte block) by programming the UBC option byte in ICP mode.

This divides the program memory into two areas:

Main program memory: Up to 8 Kbytes minus UBC

•

User-specific boot code (UBC): Configurable up to 8 Kbytes

•

The UBC area remains write-protected during in-application programming. This means that the MASS keys do not unlock the UBC area. It protects the memory used to store the boot

DocID15441 Rev 912/117

UBC area

Program memory area

Data memory area ( 640 bytes)

Remains write protected during IAP

Data EEPROM memory

Write access possible for IAP

Option bytes

Programmable bytes(1 page)

up to 8 Kbytes (in 1 page steps)

area from 64

Low density Flash program memory (8 Kbytes)

Product overviewSTM8S103K3 STM8S103F3 STM8S103F2

program, specific code libraries, reset and interrupt vectors, the reset routine and usually the IAP and communication routines.

Figure 2: Flash memory organization

Read-out protection (ROP)

The read-out protection blocks reading and writing the Flash program memory and data EEPROM memory in ICP mode (and debug mode). Once the read-out protection is activated, any attempt to toggle its status triggers a global erase of the program and data memory. Even if no protection can be considered as totally unbreakable, the feature provides a very high level of protection for a general purpose microcontroller.

Clock controller4.5

The clock controller distributes the system clock (f to the core and the peripherals. It also manages clock gating for low power modes and ensures clock robustness.

Features

Clock prescaler: To get the best compromise between speed and current consumption

•

the clock frequency to the CPU and peripherals can be adjusted by a programmable prescaler.

Safe clock switching: Clock sources can be changed safely on the fly in run mode

•

through a configuration register. The clock signal is not switched until the new clock source is ready. The design guarantees glitch-free switching.

Clock management: To reduce power consumption, the clock controller can stop the

•

clock to the core, individual peripherals or memory.

Master clock sources: Four different clock sources can be used to drive the master

•

clock:

1-16 MHz high-speed external crystal (HSE)

MASTER

) coming from different oscillators

13/117DocID15441 Rev 9

Bit

STM8S103K3 STM8S103F3 STM8S103F2Product overview

Up to 16 MHz high-speed user-external clock (HSE user-ext)

16 MHz high-speed internal RC oscillator (HSI)

128 kHz low-speed internal RC (LSI)

Startup clock: After reset, the microcontroller restarts by default with an internal 2 MHz

•

clock (HSI/8). The prescaler ratio and clock source can be changed by the application program as soon as the code execution starts.

Clock security system (CSS): This feature can be enabled by software. If an HSE clock

•

failure occurs, the internal RC (16 MHz/8) is automatically selected by the CSS and an interrupt can optionally be generated.

Configurable main clock output (CCO): This outputs an external clock for use by the

•

application.

Table 2: Peripheral clock gating bit assignments in CLK_PCKENR1/2 registers

Peripheral clock

ADCPCKEN23ReservedPCKEN27UART1PCKEN13TIM1PCKEN17

AWUPCKEN22ReservedPCKEN26ReservedPCKEN12ReservedPCKEN16

ReservedPCKEN21ReservedPCKEN25SPIPCKEN11TIM2PCKEN15

clock

BitPeripheral

clock

BitPeripheral

clock

BitPeripheral

ReservedPCKEN20ReservedPCKEN24I2CPCKEN10TIM4PCKEN14

Power management4.6

For efficent power management, the application can be put in one of four different low-power modes. You can configure each mode to obtain the best compromise between lowest power consumption, fastest start-up time and available wakeup sources.

Wait mode: In this mode, the CPU is stopped, but peripherals are kept running. The

•

wakeup is performed by an internal or external interrupt or reset.

Active halt mode with regulator on: In this mode, the CPU and peripheral clocks are

•

stopped. An internal wakeup is generated at programmable intervals by the auto wake up unit (AWU). The main voltage regulator is kept powered on, so current consumption is higher than in active halt mode with regulator off, but the wakeup time is faster. Wakeup is triggered by the internal AWU interrupt, external interrupt or reset.

Active halt mode with regulator off: This mode is the same as active halt with regulator

•

on, except that the main voltage regulator is powered off, so the wake up time is slower.

Halt mode: In this mode the microcontroller uses the least power. The CPU and peripheral

•

clocks are stopped, the main voltage regulator is powered off. Wakeup is triggered by external event or reset.

Watchdog timers4.7

The watchdog system is based on two independent timers providing maximum security to the applications.

DocID15441 Rev 914/117

Product overviewSTM8S103K3 STM8S103F3 STM8S103F2

Activation of the watchdog timers is controlled by option bytes or by software. Once activated, the watchdogs cannot be disabled by the user program without performing a reset.

Window watchdog timer

The window watchdog is used to detect the occurrence of a software fault, usually generated by external interferences or by unexpected logical conditions, which cause the application program to abandon its normal sequence.

The window function can be used to trim the watchdog behavior to match the application perfectly.

The application software must refresh the counter before time-out and during a limited time window.

A reset is generated in two situations:

1. Timeout: At 16 MHz CPU clock the time-out period can be adjusted between 75 µs up to 64 ms.

2. Refresh out of window: The downcounter is refreshed before its value is lower than the one stored in the window register.

Independent watchdog timer

The independent watchdog peripheral can be used to resolve processor malfunctions due to hardware or software failures.

It is clocked by the 128 kHZ LSI internal RC clock source, and thus stays active even in case of a CPU clock failure

The IWDG time base spans from 60 µs to 1 s.

Auto wakeup counter4.8

Used for auto wakeup from active halt mode

•

Clock source: Internal 128 kHz internal low frequency RC oscillator or external clock

•

LSI clock can be internally connected to TIM1 input capture channel 1 for calibration

•

Beeper4.9

The beeper function outputs a signal on the BEEP pin for sound generation. The signal is in the range of 1, 2 or 4 kHz.

The beeper output port is only available through the alternate function remap option bit AFR7.

TIM1 - 16-bit advanced control timer4.10

This is a high-end timer designed for a wide range of control applications. With its complementary outputs, dead-time control and center-aligned PWM capability, the field of applications is extended to motor control, lighting and half-bridge driver

16-bit up, down and up/down autoreload counter with 16-bit prescaler

•

Four independent capture/compare channels (CAPCOM) configurable as input capture,

•

output compare, PWM generation (edge and center aligned mode) and single pulse mode output

Synchronization module to control the timer with external signals

•

15/117DocID15441 Rev 9

STM8S103K3 STM8S103F3 STM8S103F2Product overview

Break input to force the timer outputs into a defined state

•

Three complementary outputs with adjustable dead time

•

Encoder mode

•

Interrupt sources: 3 x input capture/output compare, 1 x overflow/update, 1 x break

•

TIM2 - 16-bit general purpose timer4.11

16-bit autoreload (AR) up-counter

•

15-bit prescaler adjustable to fixed power of 2 ratios 1…32768

•

3 individually configurable capture/compare channels

•

PWM mode

•

Interrupt sources: 3 x input capture/output compare, 1 x overflow/update

•

TIM4 - 8-bit basic timer4.12

8-bit autoreload, adjustable prescaler ratio to any power of 2 from 1 to 128

•

Clock source: CPU clock

•

Interrupt source: 1 x overflow/update

•

Timer

Table 3: TIM timer features

Counter size (bits)

16TIM1

16TIM2

8TIM4

Prescaler

Any integer from 1 to 65536

Any power of 2 from 1 to 32768

Any power of 2 from 1 to 128

Counting mode

CAPCOM channels

Complem. outputs

Ext. trigger

Yes34Up/down

No03Up

No00Up

Timer synchronization/ chaining

Analog-to-digital converter (ADC1)4.13

The STM8S103xx family products contain a 10-bit successive approximation A/D converter (ADC1) with up to 5 external multiplexed input channels and the following main features:

Input voltage range: 0 to V

•

Conversion time: 14 clock cycles

•

Single and continuous and buffered continuous conversion modes

•

Buffer size (n x 10 bits) where n = number of input channels

•

Scan mode for single and continuous conversion of a sequence of channels

•

DocID15441 Rev 916/117

Product overviewSTM8S103K3 STM8S103F3 STM8S103F2

Analog watchdog capability with programmable upper and lower thresholds

•

Analog watchdog interrupt

•

External trigger input

•

Trigger from TIM1 TRGO

•

End of conversion (EOC) interrupt

•

Communication interfaces4.14

The following communication interfaces are implemented:

UART1: Full feature UART, synchronous mode, SPI master mode, Smartcard mode, IrDA

•

mode, single wire mode, LIN2.1 master capability

SPI : Full and half-duplex, 8 Mbit/s

•

I²C: Up to 400 Kbit/s

•

UART14.14.1

Main features

One Mbit/s full duplex SCI

•

SPI emulation

•

High precision baud rate generator

•

Smartcard emulation

•

IrDA SIR encoder decoder

•

LIN master mode

•

Single wire half duplex mode

•

Asynchronous communication (UART mode)

Full duplex communication - NRZ standard format (mark/space)

•

Programmable transmit and receive baud rates up to 1 Mbit/s (f

•

following any standard baud rate regardless of the input frequency

Separate enable bits for transmitter and receiver

•

Two receiver wakeup modes:

•

Address bit (MSB)

Idle line (interrupt)

Transmission error detection with interrupt generation

•

Parity control

•

Synchronous communication

Full duplex synchronous transfers

•

SPI master operation

•

8-bit data communication

•

Maximum speed: 1 Mbit/s at 16 MHz (f

•

CPU

/16)

/16) and capable of

CPU

17/117DocID15441 Rev 9

STM8S103K3 STM8S103F3 STM8S103F2Product overview

LIN master mode

Emission: Generates 13-bit synch break frame

•

Reception: Detects 11-bit break frame

•

SPI4.14.2

Maximum speed: 8 Mbit/s (f

•

Full duplex synchronous transfers

•

Simplex synchronous transfers on two lines with a possible bidirectional data line

•

Master or slave operation - selectable by hardware or software

•

CRC calculation

•

1 byte Tx and Rx buffer

•

Slave/master selection input pin

•

I²C4.14.3

I²C master features:

•

Clock generation

Start and stop generation

MASTER

/2) both for master and slave

I²C slave features:

•

Programmable I2C address detection

Stop bit detection

Generation and detection of 7-bit/10-bit addressing and general call

•

Supports different communication speeds:

•

Standard speed (up to 100 kHz)

Fast speed (up to 400 kHz)

DocID15441 Rev 918/117

Pinout and pin descriptionSTM8S103K3 STM8S103F3 STM8S103F2

Pinout and pin description5

Table 4: Legend/abbreviations for pinout tables

I= Input, O = Output, S = Power supplyType

Output speed

configuration

Reset state

InputLevel

O1 = Slow (up to 2 MHz)

O2 = Fast (up to 10 MHz)

O3 = Fast/slow programmability with slow as default state after reset

O4 = Fast/slow programmability with fast as default state after reset

Output

Bold X (pin state after internal reset release).

Unless otherwise specified, the pin state is the same during the reset phase and after the internal reset release.

CM = CMOS

HS = High sinkOutput

float = floating, wpu = weak pull-upInputPort and control

T = True open drain, OD = Open drain, PP = Push pull

19/117DocID15441 Rev 9

I2C_SCL/(T) PB4

TIM1_ETR/AIN3/(HS) PB3

TIM1_CH3N/ AIN2/(HS) PB2

TIM1_CH2N/ AIN1/(HS) PB1

TIM1_CH1N/AIN0/(HS) PB0

PB7

PB6

I2C_SDA/ (T) PB5

32 31 30 29 28 27 26 25

24 23 22 21 20 19 18 17

9 10 11 12 13 14 15

1 2 3 4 5 6 7 8

VCAP

VDD

[SPI_NSS] TIM2_CH3/(HS) PA3

PF4

NRST

OSCIN/PA1

OSCOUT/PA2

VSS

PC3 (HS)/TIM1_CH3 PC2 (HS)/TIM1_CH2 PC1 (HS)/TIM1_CH1/UART1_CK PE5 (HS)/SPI_NSS

PC7 (HS)/SPI_MISO PC6 (HS)/SPI_MOSI PC5 (HS)/SPI_SCK PC4 (HS)/TIM1_CH4/CLK_CCO

PD3 (HS)/TIM2_CH2/ADC_ETR

PD2 (HS) [TIM2_CH3]

PD1 (HS)/SWIM

PD0 (HS)/ TIM1_BKIN [CLK_CCO]

PD7 (HS)/TLI [TIM1_CH4]

PD6 (HS)/UART1_RX

PD5 (HS)/UART1_TX

PD4 (HS)/BEEP/TIM2_CH1

STM8S103K3 STM8S103F3 STM8S103F2Pinout and pin description

5.1

STM8S103Kx UFQFPN32/LQFP32/SDIP32 pinout and pin description

Figure 3: STM8S103Kx UFQFPN32/LQFP32 pinout

1. (HS) high sink capability.

2. (T) True open drain (P-buffer and protection diode to VDDnot implemented).

3. [ ] alternate function remapping option (if the same alternate function is shown twice, it

indicates an exclusive choice not a duplication of the function).

DocID15441 Rev 920/117

1 2 3 4 5 6 7

9 10 11 12 13 14 15 16

32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17

[TIM2_CH2] ADC_ETR/(HS) PD3

BEEP/TIM2_CH1/(HS) PD4

UART1_TX(/HS)PD5 UART1_RX/(HS)PD6

[TIM1_CH4] TLI/(HS) PD7

OSCIN/PA1

OSCOUT/PA2

VSS

VCAP

VDD

[SPI_NSS] TIM2_CH3/(HS) PA3

PB6

PB3 (HS)/TIM1_ETR/AIN3

PB2 (HS)/TIM1_CH3N/AIN2

PB1 (HS)/TIM1_CH2N/AIN1

PB0 (HS)/TIM1_CH1N/AIN0

PE5/SPI_NSS

PC1 (HS)/TIM1_CH1/UART1_CK

PC2( HS)/TIM1_CH2

PC3 (HS)/TIM1_CH3

PC4( HS)/TIM1_CH4/CLK_CCO

PC5 (HS)/SPI_SCK

PC6 (HS)/SPI_MOSI

PC7 (HS)/SPI_MISO

PD0 (HS)/TIM1_BKIN [CLK_CCO]

PD1 (HS)/SWIM

PD2 (HS) [TIM2_CH3]

PB7

I2C_SDA/(T) PB5

NRST

PF4

PB4 (T)/I2C_SCL

Pinout and pin descriptionSTM8S103K3 STM8S103F3 STM8S103F2

Figure 4: STM8S103Kx SDIP32 pinout

1. (HS) high sink capability.

2. (T) True open drain (P-buffer and protection diode to VDDnot implemented).

3. [ ] alternate function remapping option (if the same alternate function is shown twice, it

indicates an exclusive choice not a duplication of the function).

LQFP/

SDIP

UFQFP

611

712

name

OSCIN

OSCOUT

TIM2_CH3 [SPI_NSS]

Table 5: UFQFPN32/LQFP32/SDIP32 pin description

(2)

Type

wpufloating

Ext. interrupt

OutputInput

High sink

(1)

PPODSpeed

Main function (after reset)

ResetXI/ONRST16

Digital groundSV

1.8 V regulator capacitorSVCAP510

Digital power supplySV

Default alternate function

Resonator/ crystal inPort A1XXO1XXXI/OPA1/

Resonator/ crystal outPort A2XXO1XXXI/OPA2/

Timer 2 channel 3Port A3XXO3HSXXXI/OPA3/

Alternate function after remap [option bit]

SPI master/ slave select [AFR1]

21/117DocID15441 Rev 9

STM8S103K3 STM8S103F3 STM8S103F2Pinout and pin description

SDIP

LQFP/

UFQFP

1116

1217

1318

1419

1520

name

I2C_SDA

I2C_SCL

TIM1_ETR

TIM1_CH3N

TIM1_CH2N

Type

wpufloating

Ext. interrupt

OutputInput

High sink

(1)

Main function (after

PPODSpeed

reset)

Port F4XXO1XXI/OPF4813

Port B7XXO1XXXI/OPB7914

Port B6XXO1XXXI/OPB61015

(3)

O1XXI/OPB5/

(3)

O1XXI/OPB4/

Port B3XXO3HSXXXI/OPB3/AIN3/

Port B2XXO3HSXXXI/OPB2/AIN2/

Port B1XXO3HSXXXI/OPB1/AIN1/

Default alternate function

I2C dataPort B5

I2C clockPort B4

Analog input 3/ Timer 1 external trigger

Analog input 2/ Timer 1 - inverted channel 3

Analog input 1/ Timer 1 - inverted channel 2

Alternate function after remap [option bit]

1621

TIM1_CH1N

1722

SPI_NSS

1823

TIM1_CH1/ UART1_CK

1924

TIM1_CH2

2025

TIM1_CH3

2126

TIM1_CH4/ CLK_CCO

2227

SPI_SCK

2328

SPI_MOSI

Port B0XXO3HSXXXI/OPB0/AIN0/

Port E5XXO3HSXXXI/OPE5/

Port C1XXO3HSXXXI/OPC1/

Port C4XXO3HSXXXI/OPC4/

Port C6XXO3HSXXXI/OPC6/

Analog input 0/ Timer 1 - inverted channel 1

SPI master/slave select

Timer 1 - channel 1 UART1 clock

Timer 1 - channel 2Port C2XXO3HSXXXI/OPC2/

Timer 1 - channel 3Port C3XXO3HSXXXI/OPC3/

Timer 1 - channel 4 /configurable clock output

SPI clockPortC5XXO3HSXXXI/OPC5/

SPI master out/slave in

DocID15441 Rev 922/117

Pinout and pin descriptionSTM8S103K3 STM8S103F3 STM8S103F2

SDIP

LQFP/

UFQFP

2429

2530

2631

2732

281

292

name

SPI_MISO

TIM1_BKIN [CLK_CCO]

SWIM

(4)

[TIM2_CH3]

TIM2_CH2/ ADC_ETR

TIM2_CH1

Type

wpufloating

Ext. interrupt

OutputInput

High sink

(1)

PPODSpeed

Main function (after reset)

Port C7XXO3HSXXXI/OPC7/

Port D2XXO3HSXXXI/OPD2

Port D3XXO3HSXXXI/OPD3/

Port D4XXO3HSXXXI/OPD4/BEEP/

Default alternate function

SPI master in/ slave out

Timer 1 - break inputPort D0XXO3HSXXXI/OPD0/

SWIM data interfacePort D1XXO4HSXXXI/OPD1/

Timer 2 - channel 2/ADC external trigger

Timer 2 - channel 1/BEEP output

Alternate function after remap [option bit]

Configurable clock output [AFR5]

Timer 2 channel 3[AFR1]

303

314

325

(1)

I/O pins used simultaneously for high current source/sink must be uniformly spaced around the package. In addition, the total driven current must respect the absolute maximum ratings (see Electrical characteristics). (2)

When the MCU is in Halt/Active-halt mode, PA1 is automatically configured in input weak pull-up and cannot be used for waking up the device. In this mode, the output state of PA1 is not driven. It is recommended to use PA1 only in input mode if Halt/Active-halt is used in the application. (3)

In the open-drain output column, "T" defines a true open-drain I/O (P-buffer, weak pull-up, and protection diode to VDDare not implemented). (4)

The PD1 pin is in input pull-up during the reset phase and after internal reset release.

UART1_TX

UART1_RX

[TIM1_CH4]

UART1 data transmitPort D5XXO3HSXXXI/OPD5/

UART1 data receivePort D6XXO3HSXXXI/OPD6/

Top level interruptPort D7XXO3HSXXXI/OPD7/ TLI

Timer 1 channel 4 [AFR6]

23/117DocID15441 Rev 9

20 19 18 17 16 15 14 13

1 2 3 4 5 6 7 8

UART1_CK/TIM2_CH1/BEEP/(HS)PD4

NRST

VCAP

OSCOUT/PA2

PD3 (HS)/AIN4/TIM2_CH2/ADC_ETR

PD1 (HS)/SWIM

PB4 (T)/I2C_SCL [ADC_ETR]

PC3 (HS)/TIM1_CH3 [TLI] [TIM1_CH1N]

PC4 (HS)/TIM1_CH4/CLK_CCO/AIN2 [TIM1_CH2N]

PC5 (HS)/SPI_SCK [TIM2_CH1]

12 11

9 10

[SPI_NSS] TIM2_CH3/(HS) PA3

PD2 (HS)/AIN3 [TIM2_CH3]

OSCIN/PA1

PB5 (T)/I2C_SDA [TIM1_BKIN]

UART1_TX/AIN5/(HS) PD5 UART1_RX/AIN6/(HS) PD6

PC6 (HS)/SPI_MOSI [TIM1_CH1]

PC7 (HS)/SPI_MISO [TIM1_CH2]

STM8S103K3 STM8S103F3 STM8S103F2Pinout and pin description

5.2

STM8S103Fx TSSOP20/SO20/UFQFPN20 pinout and pin description

STM8S103Fx TSSOP20/SO20 pinout5.2.1

Figure 5: STM8S103Fx TSSOP20/SO20 pinout

1. HS high sink capability.

2. (T) True open drain (P-buffer and protection diode to VDDnot implemented).

3. [ ] alternate function remapping option (If the same alternate function is shown twice, it

indicates an exclusive choice not a duplication of the function).

DocID15441 Rev 924/117

6 7 8

16171819

VCAP

VSS

OSCOUT/PA2

OSCIN/PA1

[SPI_NSS] TIM2_CH3/(HS) PA3

NRST

PD4 (HS)/BEEP / TIM2_CH1/UART1_CK

PD5 (HS)/AIN5/UART1_TX

PD3 (HS)/AIN4/TIM2_CH2/ADC_ETR

PD2 (HS)/AIN3 [TIM2_CH3]

PC4 (HS)/TIM1_CH4/CLK_CCO/AIN2 [TIM1_CH2N]

PC5 (HS)/SPI_SCK [TIM2_CH1]

PC6 (HS)/SPI_MOSI [TIM1_CH1]

PC7 (HS)/SPI_MISO [TIM1_CH2]

PD1(HS)/SWIM

[TIM1_BKIN] I2C_SDA/(T) PB5

[TIM1_CH1N] [TLI] TIM1_CH3/(HS) PC3

PD6 (HS)/AIN6/UART1_RX

[ADC_ETR] I2C_SCL/(T) PB4

Pinout and pin descriptionSTM8S103K3 STM8S103F3 STM8S103F2

STM8S103Fx UFQFPN20 pinout5.2.2

Figure 6: STM8S103Fx UFQFPN20-pin pinout

Pin no.

1. HS high sink capability.

2. (T) True open drain (P-buffer and protection diode to VDDnot implemented).

3. [ ] alternate function remapping option (if the same alternate function is shown twice, it

indicates an exclusive choice not a duplication of the function).

STM8S103Fx TSSOP20/SO20/UFQFPN20 pin description5.2.3

Table 6: STM8S103Fx pin description

181

192

TIM2_ CH1/ UART1 _CK

UART1 _TX

TypePin name

Ext.

wpufloatingUFQFPN20TSSOP/SO20

interr.

OutputInput

High sink

(1)

Main function (after

PPODSpeed

reset)

Port D4XXO3HSXXXI/OPD4/ BEEP/

Port D5XXO3HSXXXI/OPD5/ AIN5/

Default alternate function

Timer 2 channel 1/BEEP output/ UART1 clock

Analog input 5/ UART1 data transmit

Alternate function after remap [option bit]

25/117DocID15441 Rev 9

STM8S103K3 STM8S103F3 STM8S103F2Pinout and pin description

Pin no.

OutputInput

TypePin name

203

710

811

1013

1114

1215

1316

1417

1619

1720

UART1 _RX

PA1/ OSCIN

[SPI_ NSS]

[TIM1_ BKIN]

[TLI] [TIM1_ CH1N]

TIM1_ CH4/AIN2/[TIM1_ CH2N]

[TIM2_ CH1]

[TIM1_ CH1]

[TIM1_ CH2]

CH3]

CH2/ ADC_ ETR

(2)

wpufloatingUFQFPN20TSSOP/SO20

Ext. interr.

High sink

(1)

O1XXI/OPB5/ I2C_ SDA

(3)

O1XXI/OPB4/ I2C_ SCL912

(3)

Main function (after

PPODSpeed

reset)

Port D6XXO3HSXXXI/OPD6/ AIN6/

ResetXI/ONRST14

Port A1XXO1XXXI/O

Port A2XXO1XXXI/OPA2/ OSCOUT36

Digital groundSV

1.8 V regulator capacitorSVCAP58

Digital power supplySV

Port A3XXO3HSXXXI/OPA3/ TIM2_ CH3

Port C3XXO3HSXXXI/OPC3/ TIM1_CH3

Port C4XXO3HSXXXI/OPC4/ CLK_CCO/

Port C6XXO3HSXXXI/OPC6/ SPI_MOSI

Port C7XXO3HSXXXI/OPC7/ SPI_MISO

Port D1XXO4HSXXXI/OPD1/ SWIM1518

Port D3XXO3HSXXXI/OPD3/ AIN4/ TIM2_

Default alternate function

Analog input 6/ UART1 data receive

Resonator/ crystal in

Resonator/ crystal out

Timer 2 channel 3

I2C dataPort B5T

I2C clockPort B4T

Timer 1 channel 3

Configurable clock output/Timer 1

- channel 4/Analog input 2

SPI clockPort C5XXO3HSXXXI/OPC5/ SPI_SCK

SPI master out/slave in

SPI master in/ slave out

SWIM data interface

Analog input 3Port D2XXO3HSXXXI/OPD2/AIN3/[TIM2_

Analog input 4/ Timer 2 channel 2/ADC external trigger

Alternate function after remap [option bit]

SPI master/ slave select [AFR1]

Timer 1 - break input [AFR4]

ADC external trigger [AFR4]

Top level interrupt [AFR3] Timer 1 inverted channel 1 [AFR7]

Timer 1 - inverted channel 2 [AFR7]

Timer 2 - channel 1 [AFR0]

Timer 1 - channel 1 [AFR0]

Timer 1 - channel 2 [AFR0]

Timer 2 - channel 3 [AFR1]

(1)

I/O pins used simultaneously for high current source/sink must be uniformly spaced around the package. In addition, the total driven current must respect the absolute maximum ratings. (2)

When the MCU is in halt/active-halt mode, PA1 is automatically configured in input weak pull-up and cannot be used for waking up the device. In this mode, the output state of PA1 is not driven. It is recommended to use PA1 only in input mode if halt/active-halt is used in the application. (3)

In the open-drain output column, "T" defines a true open-drain I/O (P-buffer, weak pull-up, and protection diode to VDDare not implemented).

DocID15441 Rev 926/117

Pinout and pin descriptionSTM8S103K3 STM8S103F3 STM8S103F2

Alternate function remapping5.3

As shown in the rightmost column of the pin description table, some alternate functions can be remapped at different I/O ports by programming one of eight AFR (alternate function remap) option bits. When the remapping option is active, the default alternate function is no longer available.

To use an alternate function, the corresponding peripheral must be enabled in the peripheral registers.

Alternate function remapping does not effect GPIO capabilities of the I/O ports (see the GPIO section of the family reference manual, RM0016).

27/117DocID15441 Rev 9

0x00 9FFF

Flash program memory

(8 Kbytes)

0x00 0000

RAM

0x00 03FF

(1 Kbyte)

513 bytes stack

0x00 4000 0x00 427F

640 bytes data EEPROM

Reserved

0x00 4280

0x00 A000

0x02 7FFF

0x00 47FF

0x00 8000

32 interrupt vectors

0x00 807F

GPIO and periph. reg.

0x00 5000

0x00 57FF

0x00 5800

0x00 7FFF

0x00 480B

0x00 4FFF

0x00 7EFF

CPU/SWIM/debug/ITC

registers

0x00 7F00

Reserved

Option bytes

0x00 480A

0x00 4800

0x00 0800

0x00 3FFF

0x00 8080

Reserved

Unique ID

0x00 4864 0x00 4865 0x00 4870 0x00 4871

STM8S103K3 STM8S103F3 STM8S103F2Memory and register map

Memory and register map6

Memory map6.1

Figure 7: Memory map

DocID15441 Rev 928/117

Memory and register mapSTM8S103K3 STM8S103F3 STM8S103F2

Register map6.2

I/O port hardware register map6.2.1

Table 7: I/O port hardware register map

0x00 5000

0x00 5005

0x00 500A

Port A

Port B

Port C

Reset status

0x00Port A data output latch registerPA_ODR

(1)

Port A input pin value registerPA_IDR0x00 5001

0xXX

0x00Port A data direction registerPA_DDR0x00 5002

0x00Port A control register 1PA_CR10x00 5003

0x00Port A control register 2PA_CR20x00 5004

0x00Port B data output latch registerPB_ODR

(1)

Port B input pin value registerPB_IDR0x00 5006

0xXX

0x00Port B data direction registerPB_DDR0x00 5007

0x00Port B control register 1PB_CR10x00 5008

0x00Port B control register 2PB_CR20x00 5009

0x00Port C data output latch registerPC_ODR

(1)

Port C input pin value registerPB_IDR0x00 500B

0xXX

0x00Port C data direction registerPC_DDR0x00 500C

0x00 500F

0x00 5014

Port D

Port E

0x00Port C control register 1PC_CR10x00 500D

0x00Port C control register 2PC_CR20x00 500E

0x00Port D data output latch registerPD_ODR

(1)

Port D input pin value registerPD_IDR0x00 5010

0xXX

0x00Port D data direction registerPD_DDR0x00 5011

0x02Port D control register 1PD_CR10x00 5012

0x00Port D control register 2PD_CR20x00 5013

0x00Port E data output latch registerPE_ODR

(1)

Port E input pin value registerPE_IDR0x00 5015

0xXX

0x00Port E data direction registerPE_DDR0x00 5016

0x00Port E control register 1PE_CR10x00 5017

29/117DocID15441 Rev 9

STM8S103K3 STM8S103F3 STM8S103F2Memory and register map

0x00 5019

Port F

(1)

Depends on the external circuitry.

General hardware register map6.2.2

Port F input pin value registerPF_IDR0x00 501A

Table 8: General hardware register map

Reset status

0x00Port E control register 2PE_CR2Port E0x00 5018

0x00Port F data output latch registerPF_ODR

0xXX

0x00Port F data direction registerPF_DDR0x00 501B

0x00Port F control register 1PF_CR10x00 501C

0x00Port F control register 2PF_CR20x00 501D

Reset status

(1)

0x00 5059

0x00 5061

Reserved area (60 bytes)0x00 501E to

Flash0x00 505A

0x00Flash control register 1FLASH_CR1

0x00Flash control register 2FLASH_CR20x00 505B

FLASH_NCR20x00 505C

0xFFFlash complementary control register

0x00Flash protection registerFLASH _FPR0x00 505D

FLASH _NFPR0x00 505E

0xFFFlash complementary protection

FLASH _IAPSR0x00 505F

0x00Flash in-application programming

status register

Reserved area (2 bytes)0x00 5060 to

DocID15441 Rev 930/117

Memory and register mapSTM8S103K3 STM8S103F3 STM8S103F2

0x00 509F

0x00 50B2

Reset status

FLASH _PUKRFlash0x00 5062

0x00Flash program memory unprotection

Reserved area (1 byte)0x00 5063

0x00Data EEPROM unprotection registerFLASH _DUKRFlash0x00 5064

Reserved area (59 bytes)0x00 5065 to

0x00External interrupt control register 1EXTI_CR1ITC0x00 50A0

0x00External interrupt control register 2EXTI_CR20x00 50A1

Reserved area (17 bytes)0x00 50A2 to

(1)

Reset status registerRST_SRRST0x00 50B3

0xXX

0x00 50BF

Reserved area (12 bytes)0x00 50B4 to

0x01Internal clock control registerCLK_ICKRCLK0x00 50C0

0x00External clock control registerCLK_ECKR0x00 50C1

Reserved area (1 byte)0x00 50C2

0xE1Clock master status registerCLK_CMSRC0x00 50C3

0xE1Clock master switch registerCLK_SWR0x00 50C4

0xXXClock switch control registerCLK_SWCR0x00 50C5

0x18Clock divider registerCLK_CKDIVR0x00 50C6

0xFFPeripheral clock gating register 1CLK_PCKENR10x00 50C7

0x00Clock security system registerCLK_CSSR0x00 50C8

31/117DocID15441 Rev 9

STM8S103K3 STM8S103F3 STM8S103F2Memory and register map

0x00 50D0

50DF

Reset status

0x00Configurable clock control registerCLK_CCOR0x00 50C9

0xFFPeripheral clock gating register 2CLK_PCKENR20x00 50CA

CLK_HSITRIMR0x00 50CC

0x00HSI clock calibration trimming

SWIM clock control registerCLK_SWIMCCR0x00 50CD

0bXXXX XXX0

ReservLK ed area (3 bytes)0x00 50CE to

0x7FWWDG control registerWWDG_CRWWDG0x00 50D1

0x7FWWDR window registerWWDG_WR0x00 50D2

Reserved area (13 bytes)0x00 50D3 to 00

0x00 50EF

(2)

IWDG key registerIWDG_KRIWDG0x00 50E0

0xXX

0x00IWDG prescaler registerIWDG_PR0x00 50E1

0xFFIWDG reload registerIWDG_RLR0x00 50E2

Reserved area (13 bytes)0x00 50E3 to

0x00AWU control/status register 1AWU_CSR1AWU0x00 50F0

AWU_APR0x00 50F1

0x3FAWU asynchronous prescaler buffer

0x00AWU timebase selection registerAWU_TBR0x00 50F2

0x1FBEEP control/status registerBEEP_CSRBEEP0x00 50F3

DocID15441 Rev 932/117

Memory and register mapSTM8S103K3 STM8S103F3 STM8S103F2

0x00 50FF

Reset status

Reserved area (12 bytes)0x00 50F4 to

0x00SPI control register 1SPI_CR1SPI0x00 5200

0x00SPI control register 2SPI_CR20x00 5201

0x00SPI interrupt control registerSPI_ICR0x00 5202

0x02SPI status registerSPI_SR0x00 5203

0x00SPI data registerSPI_DR0x00 5204

0x07SPI CRC polynomial registerSPI_CRCPR0x00 5205

0xFFSPI Rx CRC registerSPI_RXCRCR0x00 5206

0x00 520F

0xFFSPI Tx CRC registerSPI_TXCRCR0x00 5207

Reserved area (8 bytes)0x00 5208 to

0x00I2C control register 1I2C_CR1I2C0x00 5210

0x00I2C control register 2I2C_CR20x00 5211

0x00I2C frequency registerI2C_FREQR0x00 5212

0x00I2C Own address register lowI2C_OARL0x00 5213

0x00I2C Own address register highI2C_OARH0x00 5214

Reserved0x00 5215

0x00I2C data registerI2C_DR0x00 5216

0x00I2C status register 1I2C_SR10x00 5217

33/117DocID15441 Rev 9

STM8S103K3 STM8S103F3 STM8S103F2Memory and register map

0x00 522F

Reset status

0x00I2C status register 2I2C_SR20x00 5218

0x0XI2C status register 3I2C_SR30x00 5219

0x00I2C interrupt control registerI2C_ITR0x00 521A

0x00I2C Clock control register lowI2C_CCRL0x00 521B

0x00I2C Clock control register highI2C_CCRH0x00 521C

0x02I2C TRISE registerI2C_TRISER0x00 521D

0x00I2C packet error checking registerI2C_PECR0x00 521E

Reserved area (17 bytes)0x00 521F to

0xC0UART1 status registerUART1_SRUART10x00 5230

0xXXUART1 data registerUART1_DR0x00 5231

0x00UART1 baud rate register 1UART1_BRR10x00 5232

0x00UART1 baud rate register 2UART1_BRR20x00 5233

0x00UART1 control register 1UART1_CR10x00 5234

0x00UART1 control register 2UART1_CR20x00 5235

0x00UART1 control register 3UART1_CR30x00 5236

0x00UART1 control register 4UART1_CR40x00 5237

0x00UART1 control register 5UART1_CR50x00 5238

0x00UART1 guard time registerUART1_GTR0x00 5239

0x00UART1 prescaler registerUART1_PSCR0x00 523A

DocID15441 Rev 934/117

Memory and register mapSTM8S103K3 STM8S103F3 STM8S103F2

0x00 523F

Reset status

Reserved area (21 bytes)0x00 523B to

0x00TIM1 control register 1TIM1_CR1TIM10x00 5250

0x00TIM1 control register 2TIM1_CR20x00 5251

0x00TIM1 slave mode control registerTIM1_SMCR0x00 5252

0x00TIM1 external trigger registerTIM1_ETR0x00 5253

0x00TIM1 interrupt enable registerTIM1_IER0x00 5254

0x00TIM1 status register 1TIM1_SR10x00 5255

0x00TIM1 status register 2TIM1_SR20x00 5256

0x00TIM1 event generation registerTIM1_EGR0x00 5257

TIM1_CCMR10x00 5258

0x00TIM1 capture/compare mode register

TIM1_CCMR20x00 5259

0x00TIM1 capture/compare mode register

TIM1_CCMR30x00 525A

0x00TIM1 capture/compare mode register

TIM1_CCMR40x00 525B

0x00TIM1 capture/compare mode register

TIM1_CCER10x00 525C

0x00TIM1 capture/compare enable

TIM1_CCER20x00 525D

0x00TIM1 capture/compare enable

0x00TIM1 counter highTIM1_CNTRH0x00 525E

35/117DocID15441 Rev 9

STM8S103K3 STM8S103F3 STM8S103F2Memory and register map

Reset status

0x00TIM1 counter lowTIM1_CNTRL0x00 525F

0x00TIM1 prescaler register highTIM1_PSCRH0x00 5260

0x00TIM1 prescaler register lowTIM1_PSCRL0x00 5261

0xFFTIM1 auto-reload register highTIM1_ARRH0x00 5262

0xFFTIM1 auto-reload register lowTIM1_ARRL0x00 5263

0x00TIM1 repetition counter registerTIM1_RCR0x00 5264

0x00TIM1 capture/compare register 1 highTIM1_CCR1H0x00 5265

0x00TIM1 capture/compare register 1 lowTIM1_CCR1L0x00 5266

0x00TIM1 capture/compare register 2 highTIM1_CCR2H0x00 5267

0x00 52FF

0x00TIM1 capture/compare register 2 lowTIM1_CCR2L0x00 5268

0x00TIM1 capture/compare register 3 highTIM1_CCR3H0x00 5269

0x00TIM1 capture/compare register 3 lowTIM1_CCR3L0x00 526A

0x00TIM1 capture/compare register 4 highTIM1_CCR4H0x00 526B

0x00TIM1 capture/compare register 4 lowTIM1_CCR4L0x00 526C

0x00TIM1 break registerTIM1_BKR0x00 526D

0x00TIM1 dead-time registerTIM1_DTR0x00 526E

0x00TIM1 output idle state registerTIM1_OISR0x00 526F

Reserved area (147 bytes)0x00 5270 to

0x00TIM2 control register 1TIM2_CR1TIM20x00 5300

DocID15441 Rev 936/117

Memory and register mapSTM8S103K3 STM8S103F3 STM8S103F2

Reset status

Reserved0x00 5301

Reserved0x00 5302

0x00TIM2 Interrupt enable registerTIM2_IER0x00 5303

0x00TIM2 status register 1TIM2_SR10x00 5304

0x00TIM2 status register 2TIM2_SR20x00 5305

0x00TIM2 event generation registerTIM2_EGR0x00 5306

TIM2_CCMR10x00 5307

0x00TIM2 capture/compare mode register

TIM2_CCMR20x00 5308

0x00TIM2 capture/compare mode register

TIM2_CCMR30x00 5309

0x00TIM2 capture/compare mode register

TIM2_CCER10x00 530A

0x00TIM2 capture/compare enable

TIM2_CCER20x00 530B

0x00TIM2 capture/compare enable

0x00TIM2 counter highTIM2_CNTRH0x00 530C

0x00TIM2 counter lowTIM2_CNTRL0x00 530D

0x00TIM2 prescaler registerTIM2_PSCR0x00 530E

0xFFTIM2 auto-reload register highTIM2_ARRH0x00 530F

0xFFTIM2 auto-reload register lowTIM2_ARRL0x00 5310

0x00TIM2 capture/compare register 1 highTIM2_CCR1H0x00 5311

37/117DocID15441 Rev 9

STM8S103K3 STM8S103F3 STM8S103F2Memory and register map

0x00 533F

Reset status

0x00TIM2 capture/compare register 1 lowTIM2_CCR1L0x00 5312

0x00TIM2 capture/compare reg. 2 highTIM2_CCR2H0x00 5313

0x00TIM2 capture/compare register 2 lowTIM2_CCR2L0x00 5314

0x00TIM2 capture/compare register 3 highTIM2_CCR3H0x00 5315

0x00TIM2 capture/compare register 3 lowTIM2_CCR3L0x00 5316

Reserved area (43 bytes)0x00 5317 to

0x00TIM4 control register 1TIM4_CR1TIM40x00 5340

Reserved0x00 5341

0x00 53DF

0x00 53F3

Reserved0x00 5342

0x00TIM4 interrupt enable registerTIM4_IER0x00 5343

0x00TIM4 status registerTIM4_SR0x00 5344

0x00TIM4 event generation registerTIM4_EGR0x00 5345

0x00TIM4 counterTIM4_CNTR0x00 5346

0x00TIM4 prescaler registerTIM4_PSCR0x00 5347

0xFFTIM4 auto-reload registerTIM4_ARR0x00 5348

Reserved area (153 bytes)0x00 5349 to

0x00ADC data buffer registersADC _DBxRADC10x00 53E0 to

0x00 53FF

Reserved area (12 bytes)0x00 53F4 to

DocID15441 Rev 938/117

Memory and register mapSTM8S103K3 STM8S103F3 STM8S103F2

Reset status

0x00ADC control/status registerADC _CSRADC10x00 5400

0x00ADC configuration register 1ADC_CR10x00 5401

0x00ADC configuration register 2ADC_CR20x00 5402

0x00ADC configuration register 3ADC_CR30x00 5403

0xXXADC data register highADC_DRH0x00 5404

0xXXADC data register lowADC_DRL0x00 5405

ADC_TDRH0x00 5406

0x00ADC Schmitt trigger disable register

high

ADC_TDRL0x00 5407

0x00ADC Schmitt trigger disable register

low

0x03ADC high threshold register highADC_HTRH0x00 5408

0xFFADC high threshold register lowADC_HTRL0x00 5409

0x00ADC low threshold register highADC_LTRH0x00 540A

0x00ADC low threshold register lowADC_LTRL0x00 540B

ADC_AWSRH0x00 540C

0x00ADC analog watchdog status register

high

ADC_AWSRL0x00 540D

0x00ADC analog watchdog status register

low

ADC _AWCRH0x00 540E

0x00ADC analog watchdog control

ADC_AWCRL0x00 540F

0x00ADC analog watchdog control

39/117DocID15441 Rev 9

STM8S103K3 STM8S103F3 STM8S103F2Memory and register map

Reserved area (1008 bytes)0x00 5410 to

0x00 57FF

(1)

Depends on the previous reset source.

(2)

Write only register.

CPU/SWIM/debug module/interrupt controller registers6.2.3

Table 9: CPU/SWIM/debug module/interrupt controller registers

0x00 7F00

Reset status

Reset statusRegister nameRegister labelBlockAddress

0x00AccumulatorA

0x00Program counter extendedPCE0x00 7F01

0x00Program counter highPCH0x00 7F02

0x00Program counter lowPCL0x00 7F03

0x00 7F0B to 0x00 7F5F

0x00 7F70

CPU

ITC

(1)

0x00X index register highXH0x00 7F04

0x00X index register lowXL0x00 7F05

0x00Y index register highYH0x00 7F06

0x00Y index register lowYL0x00 7F07

0x03Stack pointer highSPH0x00 7F08

0xFFStack pointer lowSPL0x00 7F09

0x28Condition code registerCCR0x00 7F0A

Reserved area (85 bytes)

0x00Global configuration registerCFG_GCRCPU0x00 7F60

0xFFInterrupt software priority register 1ITC_SPR1

0xFFInterrupt software priority register 2ITC_SPR20x00 7F71

0xFFInterrupt software priority register 3ITC_SPR30x00 7F72

0xFFInterrupt software priority register 4ITC_SPR40x00 7F73

0xFFInterrupt software priority register 5ITC_SPR50x00 7F74

DocID15441 Rev 940/117

Memory and register mapSTM8S103K3 STM8S103F3 STM8S103F2

Reset statusRegister nameRegister labelBlockAddress

0xFFInterrupt software priority register 6ITC_SPR60x00 7F75

0xFFInterrupt software priority register 7ITC_SPR70x00 7F76

0xFFInterrupt software priority register 8ITC_SPR80x00 7F77

0x00 7F78 to 0x00 7F79

0x00 7F81 to 0x00 7F8F

0x00 7F90

DM_BK1RE

DM_BK2RE0x00 7F93

DM_CSR10x00 7F98

Reserved area (2 bytes)

0x00SWIM control status registerSWIM_CSRSWIM0x00 7F80

Reserved area (15 bytes)

0xFFDM breakpoint 1 register extended

byte

0xFFDM breakpoint 1 register high byteDM_BK1RH0x00 7F91

0xFFDM breakpoint 1 register low byteDM_BK1RL0x00 7F92

0xFFDM breakpoint 2 register extended

byte

0xFFDM breakpoint 2 register high byteDM_BK2RH0x00 7F94

0xFFDM breakpoint 2 register low byteDM_BK2RL0x00 7F95

0x00DM debug module control register 1DM_CR10x00 7F96

0x00DM debug module control register 2DM_CR20x00 7F97

0x10DM debug module control/status

0x00 7F9F

(1)

Accessible by debug module only

DM_CSR20x00 7F99

0x00DM debug module control/status

0xFFDM enable function registerDM_ENFCTR0x00 7F9A

Reserved area (5 bytes)0x00 7F9B to

41/117DocID15441 Rev 9

STM8S103K3 STM8S103F3 STM8S103F2Interrupt vector mapping

Interrupt vector mapping7

Table 10: Interrupt mapping

IRQ no.

block

DescriptionSource

Port A external interruptsEXTI03

Wakeup from halt mode

(1)

Yes

active-halt mode

(1)

Vector addressWakeup from

0x00 8000YesYesResetRESET

0x00 8004--Software interruptTRAP

0x00 8008--External top level interruptTLI0

0x00 800CYes-Auto wake up from haltAWU1

0x00 8010--Clock controllerCLK2

0x00 8014Yes

0x00 8018YesYesPort B external interruptsEXTI14

0x00 801CYesYesPort C external interruptsEXTI25

0x00 8020YesYesPort D external interruptsEXTI36

0x00 8024YesYesPort E external interruptsEXTI47

0x00 8028--Reserved8

0x00 802C--Reserved9

0x00 8030YesYesEnd of transferSPI10

TIM1

ADC1

0x00 8034--TIM1 update/ overflow/ underflow/

trigger/ break

0x00 8038--TIM1 capture/ compareTIM112

0x00 803C--TIM2 update/ overflowTIM213

0x00 8040--TIM2 capture/ compareTIM214

0x00 8044--Reserved15

0x00 8048--Reserved16

0x00 804C--Tx completeUART117

0x00 8050--Receive register DATA FULLUART118

0x00 8054YesYesI2C interruptI2C19

0x00 8058--Reserved20

0x00 805C--Reserved21

0x00 8060--ADC1 end of conversion/ analog

watchdog interrupt

DocID15441 Rev 942/117

Interrupt vector mappingSTM8S103K3 STM8S103F3 STM8S103F2

IRQ

block

no.

(1)

Except PA1

DescriptionSource

Wakeup from halt mode

active-halt mode

Vector addressWakeup from

0x00 8064--TIM4 update/ overflowTIM423

0x00 8068--EOP/WR_PG_DISFlash24

Reserved

0x00 806C to 0x00 807C

43/117DocID15441 Rev 9

STM8S103K3 STM8S103F3 STM8S103F2Option bytes

Option bytes8

Option bytes contain configurations for device hardware features as well as the memory protection of the device. They are stored in a dedicated block of the memory. Except for the ROP (read-out protection) byte, each option byte has to be stored twice, in a regular form (OPTx) and a complemented one (NOPTx) for redundancy.

Option bytes can be modified in ICP mode (via SWIM) by accessing the EEPROM address shown in the table below.

Option bytes can also be modified ‘on the fly’ by the application in IAP mode, except the ROP option that can only be modified in ICP mode (via SWIM).

Refer to the STM8S Flash programming manual (PM0051) and STM8 SWIM communication protocol and debug module user manual (UM0470) for information on SWIM programming procedures.

Table 11: Option bytes

Addr.

0x4800

0x4801

0x4803

0x4805h

0x4807

0x4809

Option name

protection (ROP)

code(UBC)

function remapping (AFR)

option

startup

byte no.

Option bitsOption

01234567

AFR6AFR7OPT2Alternate

ReservedOPT3Miscell.

ReservedNOPT30x4806

ReservedNOPT40x4808

TRIM

NHSI TRIM

LSI_ ENHSI

NLSI_ EN

EXT CLKReservedOPT4Clock

NEXT CLK

IWDG _HW

NIWDG _HW

SEL

WUSEL

WWDG _HW

NWWDG _HW

NPRSC1NCKA

_HALT

G_HALT

SC0

Factory default setting

0x00ROP [7:0]OPT0Read-out

0x00UBC [7:0]OPT1User boot

0xFFNUBC [7:0]NOPT10x4802

0x00AFR0AFR1AFR2AFR3AFR4AFR5

0xFFNAFR0NAFR1NAFR2NAFR3NAFR4NAFR5NAFR6NAFR7NOPT20x4804

0x00WWDG

0xFFNWW

0x00PRS C0PRS C1CKAWU

0xFFNPR

0x00HSECNT [7:0]OPT5HSE clock

0xFFNHSECNT [7:0]NOPT50x480A

OPT0

Table 12: Option byte description

DescriptionOption byte no.

ROP[7:0] Memory readout protection (ROP)

0xAA: Enable readout protection (write access via SWIM protocol)

DocID15441 Rev 944/117

Option bytesSTM8S103K3 STM8S103F3 STM8S103F2

DescriptionOption byte no.

Note: Refer to the family reference manual (RM0016) section on Flash/EEPROM memory readout protection for details.

OPT1

OPT2

OPT3

UBC[7:0] User boot code area

0x00: no UBC, no write-protection

0x01: Page 0 defined as UBC, memory write-protected

0x02: Pages 0 to 1 defined as UBC, memory write-protected.

Page 0 and 1 contain the interrupt vectors.

...

0x7F: Pages 0 to 126 defined as UBC, memory write-protected

Other values: Pages 0 to 127 defined as UBC, memory write-protected

Note: Refer to the family reference manual (RM0016) section on Flash write protection for more details.

AFR[7:0]

Refer to following section for alternate function remapping decriptions of bits [7:2] and [1:0] respectively.

HSITRIM:High speed internal clock trimming register size

0: 3-bit trimming supported in CLK_HSITRIMR register

1: 4-bit trimming supported in CLK_HSITRIMR register

LSI_EN:Low speed internal clock enable

0: LSI clock is not available as CPU clock source

1: LSI clock is available as CPU clock source

IWDG_HW: Independent watchdog

0: IWDG Independent watchdog activated by software

1: IWDG Independent watchdog activated by hardware

WWDG_HW: Window watchdog activation

0: WWDG window watchdog activated by software

1: WWDG window watchdog activated by hardware

WWDG_HALT: Window watchdog reset on halt

45/117DocID15441 Rev 9

STM8S103K3 STM8S103F3 STM8S103F2Option bytes

DescriptionOption byte no.

0: No reset generated on halt if WWDG active

1: Reset generated on halt if WWDG active

OPT4

OPT5

EXTCLK: External clock selection

0: External crystal connected to OSCIN/OSCOUT

1: External clock signal on OSCIN

CKAWUSEL:Auto wake-up unit/clock

0: LSI clock source selected for AWU

1: HSE clock with prescaler selected as clock source for for AWU

PRSC[1:0] AWU clock prescaler

0x: 16 MHz to 128 kHz prescaler

10: 8 MHz to 128 kHz prescaler

11: 4 MHz to 128 kHz prescaler

HSECNT[7:0]:HSE crystal oscillator stabilization time

0x00: 2048 HSE cycles

0xB4: 128 HSE cycles

0xD2: 8 HSE cycles

0xE1: 0.5 HSE cycles

Alternate function remapping bits8.1

Table 13: STM8S103K alternate function remapping bits for 32-pin devices

Option byte no.

OPT2

Description

AFR7 Alternate function remapping option 7

Reserved.

AFR6 Alternate function remapping option 6

0: AFR6 remapping option inactive: Default alternate function

1: Port D7 alternate function = TIM1_CH4.

AFR5 Alternate function remapping option 5

0: AFR5 remapping option inactive: Default alternate function

(1)

DocID15441 Rev 946/117

(2)

Option bytesSTM8S103K3 STM8S103F3 STM8S103F2

Option byte no.

Description

(1)

1: Port D0 alternate function = CLK_CCO.

AFR[4:2] Alternate function remapping options 4:2

Reserved.

AFR1 Alternate function remapping option 1

0: AFR1 remapping option inactive: Default alternate functions

1: Port A3 alternate function = SPI_NSS; port D2 alternate function = TIM2_CH3.

AFR0 Alternate function remapping option 0

Reserved.

(1)

Do not use more than one remapping option in the same port. It is forbidden to enable

both AFR1 and AFR0.

(2)

Refer to pinout description.

Table 14: STM8S103F alternate function remapping bits for 20-pin devices

DescriptionOption byte no.

(2)

OPT2

AFR7 Alternate function remapping option 7

0: AFR7 remapping option inactive: Default alternate functions

(1)

1: Port C3 alternate function = TIM1_CH1N; port C4 alternate function = TIM1_CH2N.

AFR6 Alternate function remapping option 6

Reserved.

AFR5 Alternate function remapping option 5

Reserved.

AFR4 Alternate function remapping option 4

0: AFR4 remapping option inactive: Default alternate functions

(1)

1: Port B4 alternate function = ADC_ETR; port B5 alternate function = TIM1_BKIN.

AFR3 Alternate function remapping option 3

0: AFR3 remapping option inactive: Default alternate function

(1)

1: Port C3 alternate function = TLI.

AFR2 Alternate function remapping option 2

47/117DocID15441 Rev 9

STM8S103K3 STM8S103F3 STM8S103F2Option bytes

DescriptionOption byte no.

Reserved

AFR1 Alternate function remapping option 1

(2)

0: AFR1 remapping option inactive: Default alternate functions

(1)

1: Port A3 alternate function = SPI_NSS; port D2 alternate function = TIM2_CH3.

AFR0 Alternate function remapping option 0

0: AFR0 remapping option inactive: Default alternate functions

(1)

1: Port C5 alternate function = TIM2_CH1; port C6 alternate function = TIM1_CH1; port C7 alternate function = TIM1_CH2.

(1)

Refer to pinout description.

(2)

Do not use more than one remapping option in the same port. It is forbidden to enable

both AFR1 and AFR0.

(2)

DocID15441 Rev 948/117

Unique IDSTM8S103K3 STM8S103F3 STM8S103F2

Unique ID9

The devices feature a 96-bit unique device identifier which provides a reference number that is unique for any device and in any context. The 96 bits of the identifier can never be altered by the user.

The unique device identifier can be read in single bytes and may then be concatenated using a custom algorithm.

The unique device identifier is ideally suited:

For use as serial numbers

•

For use as security keys to increase the code security in the program memory while using

•

and combining this unique ID with software cryptograhic primitives and protocols before programming the internal memory.

To activate secure boot processes

•

Table 15: Unique ID registers (96 bits)

Address

0x4865

0x4867

0x486A

description

X co-ordinate

on the wafer

Y co-ordinate

on the wafer

Lot number

Unique ID bitsContent

01234567

U_ID[7:0]

U_ID[15:8]0x4866

U_ID[23:16]

U_ID[31:24]0x4868

U_ID[39:32]Wafer number0x4869

U_ID[47:40]

U_ID[55:48]0x486B

U_ID[63:56]0x486C

U_ID[71:64]0x486D

U_ID[79:72]0x486E

U_ID[87:80]0x486F

U_ID[95:88]0x4870

49/117DocID15441 Rev 9

STM8 PIN

50 pF

STM8S103K3 STM8S103F3 STM8S103F2Electrical characteristics

Electrical characteristics10

Parameter conditions10.1

Unless otherwise specified, all voltages are referred to VSS.

Minimum and maximum values10.1.1

Unless otherwise specified the minimum and maximum values are guaranteed in the worst conditions of ambient temperature, supply voltage and frequencies by tests in production on 100 % of the devices with an ambient temperature at TA= 25 °C and TA= T the selected temperature range).

Data based on characterization results, design simulation and/or technology characteristics are indicated in the table footnotes and are not tested in production. Based on characterization, the minimum and maximum values refer to sample tests and represent the mean value plus or minus three times the standard deviation (mean ± 3 Σ).

Typical values10.1.2

Unless otherwise specified, typical data are based on TA= 25 °C, VDD= 5 V. They are given only as design guidelines and are not tested.

Amax

(given by

Typical ADC accuracy values are determined by characterization of a batch of samples from a standard diffusion lot over the full temperature range, where 95% of the devices have an error less than or equal to the value indicated (mean ± 2 Σ).

Typical curves10.1.3

Unless otherwise specified, all typical curves are given only as design guidelines and are not tested.

Loading capacitor10.1.4

The loading conditions used for pin parameter measurement are shown in the following figure.

Figure 8: Pin loading conditions

DocID15441 Rev 950/117

STM8 PIN

Electrical characteristicsSTM8S103K3 STM8S103F3 STM8S103F2

Pin input voltage10.1.5

The input voltage measurement on a pin of the device is described in the following figure.

Figure 9: Pin input voltage

Absolute maximum ratings10.2

Stresses above those listed as ‘absolute maximum ratings’ may cause permanent damage to the device. This is a stress rating only and functional operation of the device under these conditions is not implied. Exposure to maximum rating conditions for extended periods may affect device reliability.

Table 16: Voltage characteristics

UnitMaxMinRatingsSymbol

DDx

SSx

ESD

- V

- VDD|

- VSS|

Supply voltage

Input voltage on true open drain pins

Input voltage on any other pin

Variations between different power pins

Variations between all the different ground pins

Electrostatic discharge voltage

(1)

(2)

VDD+ 0.3VSS- 0.3

See "Absolute maximum ratings

6.5-0.3

6.5VSS- 0.3

50-

(electrical sensitivity)"

(1)

All power (VDD) and ground (VSS) pins must always be connected to the external power supply

(2)

cannot be respected, the injection current must be limited externally to the I

must never be exceeded. This is implicitly insured if VINmaximum is respected. If VINmaximum

INJ(PIN)

value. A positive injection is induced by VIN>VDDwhile a negative injection is induced by VIN<VSS. For true open-drain pads, there is no positive injection current, and the corresponding VINmaximum must always be respected

51/117DocID15441 Rev 9

STM8S103K3 STM8S103F3 STM8S103F2Electrical characteristics

Table 17: Current characteristics

Unit

VDD

VSS

RatingsSymbol

Total current into VDDpower lines (source)

Total current out of VSSground lines (sink)

(2)

Output current sunk by any I/O and control pin

Max

Output current source by any I/Os and control pin

INJ(PIN)

(3) (4)

Injected current on NRST pin

Injected current on OSCIN pin

Injected current on any other pin

ΣI

INJ(PIN)

(1)

Data based on characterization results, not tested in production.

(2)

All power (VDD) and ground (VSS) pins must always be connected to the external supply.

(3)

Total injected current (sum of all I/O and control pins)

must never be exceeded. This is implicitly insured if VINmaximum is respected. If VINmaximum

INJ(PIN)

cannot be respected, the injection current must be limited externally to the I

(5)

INJ(PIN)

value. A positive

(1)

100

- 20

± 4

± 20

injection is induced by VIN>VDDwhile a negative injection is induced by VIN<VSS. For true open-drain pads, there is no positive injection current, and the corresponding VINmaximum must always be respected

(4)

ADC accuracy vs. negative injection current: Injecting negative current on any of the analog input pins should be avoided as this significantly reduces the accuracy of the conversion being performed on another analog input. It is recommended to add a Schottky diode (pin to ground) to standard analog pins which may potentially inject negative current. Any positive injection current within the limits specified for I

INJ(PIN)

(5)

and ΣI

INJ(PIN)

in the I/O port pin characteristics section does not affect the ADC accuracy.

When several inputs are submitted to a current injection, the maximum ΣI

INJ(PIN)

is the absolute sum of the positive and negative injected currents (instantaneous values). These results are based on characterization with ΣI

INJ(PIN)

maximum current injection on four I/O port pins of the device.

STG

Table 18: Thermal characteristics

UnitValueRatingsSymbol

-65 to +150Storage temperature rangeT °C

150Maximum junction temperatureT

DocID15441 Rev 952/117

Electrical characteristicsSTM8S103K3 STM8S103F3 STM8S103F2

Operating conditions10.3

Table 19: General operating conditions

UnitMaxMinConditionsParameterSymbol

CPU

VCAP

(3)

(1)

: capacitance of

EXT

external capacitor

ESR of external

capacitor

ESL of external

capacitor

Power dissipation at TA= 85 °C

for suffix 6

at 1 MHz

MHz160Internal CPU clock frequencyf

V5.52.95Standard operating voltageV

nF3300470

(2)

Ω0.3-

nH15-

238-TSSOP20

220-SO20W

220-UFQFPN20

330-LQFP32

526-UFQFPN32

330-SDIP32

59-TSSOP20

55-SO20W

Power dissipation at TA= 125 °C

for suffix 3

55-UFQFPN20

83-LQFP32

132-UFQFPN32

83-SDIP32

version

Junction temperature range

Maximum power dissipationAmbient temperature for 6 suffix

85-40

Maximum power dissipationAmbient temperature for 3 suffix

125-40

°C

105-406 suffix version

130-403 suffix version

53/117DocID15441 Rev 9

8 4

2.95

4.0

5.0

5.5

CPU

(MHz)

Functionality guaranteed

@TA-40 to 125 °C

Supply voltage

Functionality not guaranteed in this area

STM8S103K3 STM8S103F3 STM8S103F2Electrical characteristics

(1)

Care should be taken when selecting the capacitor, due to its tolerance, as well as the parameter dependency on temperature, DC bias and frequency in addition to other factors. The parameter maximum value must be respected for the full application range.

(2)

This frequency of 1 MHz as a condition for VCAP parameters is given by design of internal regulator.

(3)

To calculate P

value for T

Dmax(TA

given in the previous table and the value for ΘJAgiven in Thermal characteristics.

Jmax

), use the formula P

Dmax

=(T

- TA)/ΘJA(see Thermal characteristics ) with the

Jmax

VDD

Figure 10: f

CPUmax

versus V

Table 20: Operating conditions at power-up/power-down

(1)

UnitMaxTypMinConditionsParameterSymbol

∞-2VDDrise time rate

μs/V

∞-2VDDfall time rate

TEMP

IT+

IT-

HYS(BOR)

(1)

Reset is always generated after a t

minimum ooperating voltage (VDDmin) when the t

VCAP external capacitor10.3.1

Stabilization for the main regulator is achieved connecting an external capacitor C V

CAP

pin. C

is specified in the Operating conditions section. Care should be taken to limit

EXT

the series inductance to less than 15 nH.

2.852.72.6Power-on reset thresholdV

2.82.652.5Brown-out reset thresholdV

delay. The application must ensure that VDDis still above the

TEMP

DocID15441 Rev 954/117

delay has elapsed.

TEMP

EXT

ms1.7-- -VDDrisingReset release delayt

mV-70-Brown-out reset hysteresisV

to the

ESR

Leak

ESL

Electrical characteristicsSTM8S103K3 STM8S103F3 STM8S103F2

Figure 11: External capacitor C

EXT

1. ESR is the equivalent series resistance and ESL is the equivalent inductance.

Supply current characteristics10.3.2

The current consumption is measured as described in Pin input voltage.

Total current consumption in run mode10.3.2.1

The MCU is placed under the following conditions:

All I/O pins in input mode with a static value at VDDor VSS(no load)

•

All peripherals are disabled (clock stopped by peripheral clock gating registers) except if

•

explicitly mentioned.

DD(RUN)

Subject to general operating conditions for VDDand TA.

Table 21: Total current consumption with code execution in run mode at VDD= 5 V

TypConditionsParameterSymbol

Max

(1)

-2.3HSE crystal osc. (16 MHz)

= f

CPU

16 MHz

MASTER

2.352HSE user ext. clock (16 MHz)

21.7HSI RC osc. (16 MHz)

Supply current

in run mode,

code executed

from RAM

Supply current

in run mode,

code executed

from Flash

= f

CPU

MASTER

125 kHz

= f

CPU

MASTER

15.625 kHz

= f

CPU

MASTER

128 kHz

= f

CPU

MASTER

16 MHz

/128 =

4.5HSE crystal osc. (16 MHz)

-0.86HSE user ext. clock (16 MHz)f

0.870.7HSI RC osc. (16 MHz)

0.580.46HSI RC osc. (16 MHz/8)

0.550.41LSI RC osc. (128 kHz)

4.754.3HSE user ext. clock (16 MHz)

4.53.7HSI RC osc. (16 MHz)

Unit

55/117DocID15441 Rev 9

CPU

= f

MASTER

2 MHz

DD(RUN)

Supply current

in run mode,

code executed

from Flash

= f

CPU

125 kHz

= f

CPU

MASTER

/128 =

15.625 kHz

CPU

= f

MASTER

128 kHz

(1)

Data based on characterization results, not tested in production.

(2)

Default clock configuration measured with all peripherals off.

STM8S103K3 STM8S103F3 STM8S103F2Electrical characteristics

(1)

Unit

(2)

TypConditionsParameterSymbol

Max

1.050.84HSI RC osc. (16 MHz/8)

0.90.72HSI RC osc. (16 MHz)

0.580.46HSI RC osc. (16 MHz/8)

0.570.42LSI RC osc. (128 kHz)

Table 22: Total current consumption with code execution in run mode at VDD= 3.3 V

TypConditionsParameterSymbol

CPU

= f

MASTER

16 MHz

Supply current

in run mode,

= f

CPU

MASTER

128 = 125 kHz

code executed

from RAM

CPU

= f

MASTER

128 = 15.625 kHz

DD(RUN)

CPU

= f

MASTER

128 kHz

Supply current

= f

CPU

16 MHz

MASTER

in run mode,

code executed

from Flash

CPU

= f

MASTER

(2)

2 MHz

Max

2.32HSE user ext. clock (16 MHz)

0.870.7HSI RC osc. (16 MHz)

0.580.46HSI RC osc. (16 MHz/8)

0.550.41LSI RC osc. (128 kHz)

4.73.9HSE user ext. clock (16 MHz)

4.53.7HSI RC osc. (16 MHz)

1.050.84HSI RC osc. (16 MHz/8)

Unit

(1)

-1.8HSE crystal osc. (16 MHz)

21.5HSI RC osc. (16 MHz)

-0.81HSE user ext. clock (16 MHz)f

-4HSE crystal osc. (16 MHz)

CPU

= f

MASTER

DocID15441 Rev 956/117

0.90.72HSI RC osc. (16 MHz)f

Electrical characteristicsSTM8S103K3 STM8S103F3 STM8S103F2

128 = 125 kHz

= f

CPU

MASTER

128 = 15.625 kHz

= f

CPU

MASTER

HSI RC osc. (16 MHz/8)

128 kHz

(1)

Data based on characterization results, not tested in production.

(2)

Default clock configuration measured with all peripherals off.

Total current consumption in wait mode10.3.2.2

Table 23: Total current consumption in wait mode at VDD= 5 V

= f

CPU

16 MHz

MASTER

TypConditionsParameterSymbol

Max

(1)

Unit

0.580.46

0.570.42LSI RC osc. (128 kHz)

TypConditionsParameterSymbol

Max

(1)

Unit

-1.6HSE crystal osc. (16 MHz)

1.31.1HSE user ext. clock (16 MHz)

1.10.89HSI RC osc. (16 MHz)

DD(WFI)

Supply

current in

= f

CPU

125 kHz

MASTER

/128 =

wait mode

CPU

= f

MASTER

/128 =

15.625 kHz

CPU

= f

MASTER

128 kHz

(1)

Data based on characterization results, not tested in production.

(2)

Default clock configuration measured with all peripherals off.

Table 24: Total current consumption in wait mode at VDD= 3.3 V

HSE crystal osc.

(16 MHz)

DD(WFI)

Supply current

in wait mode

= f

CPU

16 MHz

MASTER

(2)

0.880.7HSI RC osc. (16 MHz) mA

0.570.45HSI RC osc. (16 MHz/8)

0.540.4LSI RC osc. (128 kHz)

TypConditionsParameterSymbol

Max

(1)

Unit

mA-1.1

57/117DocID15441 Rev 9

STM8S103K3 STM8S103F3 STM8S103F2Electrical characteristics

HSE user ext. clock

(16 MHz)

HSI RC osc.

(16 MHz)

CPU

= f

MASTER

/ 128 =

125 kHz

CPU

= f

MASTER

/ 128 =

15.625 kHz

CPU

= f

MASTER

128 kHz

(1)

Data based on characterization results, not tested in production.

(2)

Default clock configuration measured with all peripherals off.

HSI RC osc.

(16 MHz)

HSI RC osc.

(16 MHz/8)

LSI RC osc.

(128 kHz)

(2)

TypConditionsParameterSymbol

Max

(1)

Unit

1.31.1

1.10.89

0.880.7

0.570.45

0.540.4

DD(AH)

Total current consumption in active halt mode10.3.2.3

Table 25: Total current consumption in active halt mode at VDD= 5 V

Conditions

ParameterSymbol

Supply current in active halt mode

Main voltage regulator

(2)

(MVR)

(3)

Clock sourceFlash mode

HSE crystal osc.

Operating modeOn

(16 MHz)

LSI RC osc.

Operating modeOn

(128 kHz)

HSE crystal osc.

Power-down modeOn

(16 MHz)

LSI RC osc.

Power-down modeOn

(128 kHz)

Typ

Max at 85 °C

(1)

Max at 125 °C

(1)

--1030

300260200

--970

230200150

Unit

μA

DocID15441 Rev 958/117

Electrical characteristicsSTM8S103K3 STM8S103F3 STM8S103F2

Conditions

Main

ParameterSymbol

voltage regulator

(2)

(MVR)

(3)

Clock sourceFlash mode

Supply current

DD(AH)

in active halt

Operating mode

mode

Off

Supply current

DD(AH)

in active halt

Power-down mode

mode

(1)

Data based on characterization results, not tested in production

(2)

Configured by the REGAH bit in the CLK_ICKR register.

(3)

Configured by the AHALT bit in the FLASH_CR1 register.

Table 26: Total current consumption in active halt mode at VDD= 3.3 V

Conditions

Main

ParameterSymbol

voltage regulator

(2)

(MVR)

(3)

Clock sourceFlash mode

LSI RC osc.

(128 kHz)

LSI RC osc.

(128 kHz)

Typ

Max at 85 °C

(1)

Max at 85 °C

(1)

Max at 125 °C

(1)

1108566

402010

Max at 125 °C

(1)

Unit

HSE crystal osc. (16 MHz)Operating modeOn

DD(AH)

Supply current

in active halt

mode

LSI RC osc.

DD(AH)

Supply current

Operating mode

(128 kHz)

in active halt

DD(AH)

mode

HSE crystal osc. (16 MHz)

Power-down

mode

DD(AH)

Supply current

DD(AH)

in active halt

mode

Off

DD(AH)

(1)

Data based on characterization results, not tested in production

(2)

Configured by the REGAH bit in the CLK_ICKR register.

(3)

Configured by the AHALT bit in the FLASH_CR1 register.

Operating mode

Power-down

mode

LSI RC osc.

(128 kHz)

μA--550

290260200

--970

μA

230200150

1058066LSI RC osc.

351810

59/117DocID15441 Rev 9

STM8S103K3 STM8S103F3 STM8S103F2Electrical characteristics

Total current consumption in halt mode10.3.2.4

Table 27: Total current consumption in halt mode at VDD= 5 V

Flash in operating mode, HSI clock after wakeup

DD(H)

Supply current in halt mode

Flash in power-down mode, HSI clock after wakeup

(1)

Data based on characterization results, not tested in production

Table 28: Total current consumption in halt mode at VDD= 3.3 V

Flash in operating mode, HSI clock after wakeup

DD(H)

Supply current in halt mode

Flash in power-down mode, HSI clock after wakeup

(1)

Data based on characterization results, not tested in production

(1)

Max at 125 °C

(1)

Unit

TypConditionsParameterSymbol

Max at 85 °C

1057563

μA

55206.0

(1)

Max at 125 °C

(1)

Unit

TypConditionsParameterSymbol

Max at 85 °C

1007560

μA

30174.5

WU(WFI)

WU(AH)

Low power mode wakeup times10.3.2.5

Wakeup time from

wait mode to run

(3)

Wakeup time active

halt mode to run

(3)

mode

Wakeup time active

halt mode to run

(3)

mode

Table 29: Wakeup times

CPU

= f

MASTER

= 16 MHzmode

MVR voltage

Flash in operating

regulator

(4)

MVR voltage

regulator

(4)

mode

Flash in

power-down

DocID15441 Rev 960/117

(5)

HSI

(after

wakeup)

HSI

(after

wakeup)mode

(1)

TypConditionsParameterSymbol

Max

See

-0 to 16 MHz note

Unit

(2)

0.56f

(6)

μs

-3

Electrical characteristicsSTM8S103K3 STM8S103F3 STM8S103F2

(1)

TypConditionsParameterSymbol

Max

Unit

Wakeup time active

MVR voltage

Flash in operating

halt mode to run

(3)

mode

Wakeup time active

halt mode to run

(3)

mode

regulator

(4)

off

MVR voltage

regulator

(4)

off

mode

Flash in

power-down

Wakeup time from

WU(H)

(1)

Data guaranteed by design, not tested in production.

(2)

WU(WFI)

(3)

Measured from interrupt event to interrupt vector fetch.

(4)

Configured by the REGAH bit in the CLK_ICKR register.

(5)

Configured by the AHALT bit in the FLASH_CR1 register.

(6)

Plus 1 LSI clock depending on synchronization.

halt mode to run

(3)

mode

= 2 x 1/f

master

+ 6 x 1/f

CPU.

(5)

HSI

(after

wakeup)

HSI

(after

wakeup)mode

(6)

-48

-50

-52Flash in operating mode

-54Flash in power-down mode

Total current consumption and timing in forced reset state10.3.2.6

Table 30: Total current consumption and timing in forced reset state

DD(R)

(2)

state

RESETBL

Reset pin release to

vector fetch

(1)

Data guaranteed by design, not tested in production.

(2)

Characterized with all I/Os tied to VSS.

Current consumption of on-chip peripherals10.3.2.7

Subject to general operating conditions for VDDand TA.

TypConditionsParameterSymbol

Max

(1)

Unit

-400VDD= 5 VSupply current in reset μA

-300VDD= 3.3 V

μs150-

61/117DocID15441 Rev 9

STM8S103K3 STM8S103F3 STM8S103F2Electrical characteristics

HSI internal RC/f

CPU

= f

MASTER

= 16 MHz, VDD= 5 V

Table 31: Peripheral current consumption

UnitTyp.ParameterSymbol

DD(TIM1)

DD(TIM2)

DD(TIM4)

DD(UART1)

DD(SPI)

DD(I2C)

DD(ADC1)

(1)

Data based on a differential IDDmeasurement between reset configuration and timer counter running

TIM1 supply current

TIM2 supply current

TIM4 timer supply current

UART1 supply current

SPI supply current

I2C supply current

ADC1 supply current when converting

(1)

(2)

(3)

210

130

120

1000

μA

at 16 MHz. No IC/OC programmed (no I/O pads toggling). Not tested in production.

(2)

Data based on a differential IDDmeasurement between the on-chip peripheral when kept under reset and not clocked and the on-chip peripheral when clocked and not kept under reset. No I/O pads toggling. Not tested in production.

(3)

Data based on a differential IDDmeasurement between reset configuration and continuous A/D

conversions. Not tested in production.

Current consumption curves10.3.2.8

The following figures show typical current consumption measured with code executing in RAM.

DocID15441 Rev 962/117

Electrical characteristicsSTM8S103K3 STM8S103F3 STM8S103F2

Figure 12: Typ I

Figure 13: Typ I

DD(RUN)

vs. VDDHSE user external clock, f

vs. f

HSE user external clock, VDD= 5 V

CPU

= 16 MHz

63/117DocID15441 Rev 9

STM8S103K3 STM8S103F3 STM8S103F2Electrical characteristics

Figure 14: Typ I

Figure 15: Typ I

DD(WFI)

DD(RUN)

vs. VDDHSI RC osc, f

CPU

vs. VDDHSE user external clock, f

= 16 MHz

CPU

DocID15441 Rev 964/117

Electrical characteristicsSTM8S103K3 STM8S103F3 STM8S103F2

Figure 16: Typ I

Figure 17: Typ I

DD(WFI)

vs. f

HSE user external clock, VDD= 5 V

CPU

vs. VDDHSI RC osc, f

CPU

= 16 MHz

HSE_ext

HSEH

HSEL

LEAK_HSE

External clock sources and timing characteristics10.3.3

HSE user external clock

Subject to general operating conditions for VDDand TA.

Table 32: HSE user external clock characteristics

User external clock source frequency

(1)

OSCIN input pin high level voltage

(1)

OSCIN input pin low level voltage

OSCIN input leakage currentI

VSS< VIN< V

UnitMaxMinConditionsParameterSymbol

MHz160

VDD+ 0.3 V0.7 x V

0.3 x V

μA+1-1

65/117DocID15441 Rev 9

(1)

HSEH

HSEL

External clock source

OSCIN

HSE

STM8

Data based on characterization results, not tested in production.

Figure 18: HSE external clocksource

HSE crystal/ceramic resonator oscillator

The HSE clock can be supplied with a 1 to 16 MHz crystal/ceramic resonator oscillator. All the information given in this paragraph is based on characterization results with specified typical external components. In the application, the resonator and the load capacitors have to be placed as close as possible to the oscillator pins in order to minimize output distortion and start-up stabilization time. Refer to the crystal resonator manufacturer for more details (frequency, package, accuracy...).

STM8S103K3 STM8S103F3 STM8S103F2Electrical characteristics

HSE

(1)

DD(HSE)

SU(HSE)

External high speed

oscillator frequency

Feedback resistorR

Recommended load

capacitance

HSE oscillator power

consumption

Oscillator

transconductance

(4)

Table 33: HSE oscillator characteristics

(2)

C = 20 pF,

= 16 MHz

OSC

C = 10 pF,

=16 MHz

OSC

VDDis stabilizedStartup timet

6 (startup)

1.6 (stabilized)

6 (startup)

1.2 (stabilized)

UnitMaxTypMinConditionsParameterSymbol

MHz161

kΩ220

pF20

(3)

mA/V5

ms1

DocID15441 Rev 966/117

OSCOUT

OSCIN

HSE

to core

STM8

Resonator

Consumption

control

Resonator

Electrical characteristicsSTM8S103K3 STM8S103F3 STM8S103F2

(1)

C is approximately equivalent to 2 x crystal Cload.

(2)

The oscillator selection can be optimized in terms of supply current using a high quality resonator with small Rmvalue. Refer to crystal manufacturer for more details

(3)

Data based on characterization results, not tested in production.

(4)

SU(HSE)

is the start-up time measured from the moment it is enabled (by software) to a stabilized 16 MHz oscillation is reached. This value is measured for a standard crystal resonator and it can vary significantly with the crystal manufacturer.

Figure 19: HSE oscillator circuit diagram

HSE oscillator critical gmequation

mcrit

= (2 × Π × f

)2× Rm(2Co + C)

HSE

Rm: Notional resistance (see crystal specification)

Lm: Notional inductance (see crystal specification)

Cm: Notional capacitance (see crystal specification)

Co: Shunt capacitance (see crystal specification)

CL1= CL2= C: Grounded external capacitance

gm>> g

mcrit

Internal clock sources and timing characteristics10.3.4

Subject to general operating conditions for VDDand TA.

High speed internal RC oscillator (HSI)

Table 34: HSI oscillator characteristics

UnitMaxTypMinConditionsParameterSymbol

HSI

Frequencyf

MHz-16-

67/117DocID15441 Rev 9

STM8S103K3 STM8S103F3 STM8S103F2Electrical characteristics

UnitMaxTypMinConditionsParameterSymbol

ACC

su(HSI)

DD(HSI)

HSI

Accuracy of HSI

oscillator

Accuracy of HSI

oscillator (factory

calibrated)

HSI oscillator

wakeup time

including

calibration

HSI oscillator

power

consumption

User-trimmed with

CLK_HSITRIMR register for

given VDDand T

conditions

VDD= 5 V, TA= 25°C

(1)

(2)

VDD= 5 V, 25 °C ≤

TA≤ 85 °C

2.95 ≤ VDD≤ 5.5 V,-40 °C

≤ TA≤ 125 °C

-3.0

(2)

(3)

1.0

1.0--1.0 %

2.0--2.0

(2)

170-

3.0

1.0

250

(3)

(2)

μs

μA

(1)

Refer to application note.

(2)

Data based on characterization results, not tested in production.

(3)

Guaranteed by design, not tested in production.

DocID15441 Rev 968/117

Figure 20: Typical HSI frequency variation vs VDD@ 4 temperatures

Low speed internal RC oscillator (LSI)

Subject to general operating conditions for VDDand TA.

Electrical characteristicsSTM8S103K3 STM8S103F3 STM8S103F2

LSI

su(LSI)

DD(LSI)

Table 35: LSI oscillator characteristics

Frequencyf

LSI oscillator wake-up timet

LSI oscillator power consumptionI

Figure 21: Typical LSI frequency variation vs VDD@ 4 temperatures

UnitMaxTypMinParameterSymbol

kHz150128110

μs7--

μA-5-

69/117DocID15441 Rev 9

Memory characteristics10.3.5

RAM and hardware registers

Table 36: RAM and hardware registers

STM8S103K3 STM8S103F3 STM8S103F2Electrical characteristics

UnitMinConditionsParameterSymbol

(1)

Minimum supply voltage without losing data stored in RAM (in halt mode or under reset)

Data retention mode

(1)

Halt mode (or reset)

IT-max

(2)

or in hardware registers (only in halt mode). Guaranteed by design, not tested in production.

(2)

Refer to the Operating conditions section for the value of V

IT-max

Flash program memory/data EEPROM memory

Table 37: Flash program memory/data EEPROM memory

ConditionsParameterSymbol

Operating voltage

(all modes, execution/

CPU

≤ 16 MHz

Min

(1)

UnitMaxTyp

V5.5-2.95

write/erase)

prog

Standard programming time

(including erase) for

byte/word/block (1 byte/

6.66-

4 bytes/64 bytes)

Fast programming time for

1 block (64 bytes)

3.333-

erase

RET

Erase time for 1 block

(64 bytes)

Erase/write cycles

(2)

(program memory)

Erase/write cycles

(data memory)

(2)

Data retention (program

and data memory) after 10k

erase/write cycles at

TA= +55 °C

DocID15441 Rev 970/117

TA= +85 °C

TA= +125 °C

= 55°C

RET

100 000

300 000

3.333-

cycles

-1 M

years--20

Electrical characteristicsSTM8S103K3 STM8S103F3 STM8S103F2

ConditionsParameterSymbol

Min

(1)

UnitMaxTyp

Data retention (data

memory) after 300k

erase/write cycles at

RET

= 85°C

--1

TA= +125 °C

Supply current (Flash

programming or erasing

mA-2-

for 1 to 128 bytes)

(1)

Data based on characterization results, not tested in production.

(2)

The physical granularity of the memory is 4 bytes, so cycling is performed on 4 bytes

even when a write/erase operation addresses a single byte.

I/O port pin characteristics10.3.6

General characteristics

Subject to general operating conditions for VDDand TAunless otherwise specified. All unused pins must be kept at a fixed voltage: using the output mode of the I/O for example or an external pull-up or pull-down resistor.

hys

tR, t

Table 38: I/O static characteristics

UnitMaxTypMinConditionsParameterSymbol

Input low level voltage

VDD= 5 V

--0.3

0.3 x

Input high level voltage

Hysteresis

Pull-up resistor

Rise and fall time

(10 % - 90 %)

(1)

VDD= 5 V, VIN= V

Fast I/Os

Load = 50 pF

0.7 x V

Standard and high sink I/Os

VDD+

0.3

mV-700-

kΩ805530

(3)

125

(3)

Load = 50 pF

(3)

Fast I/Os

71/117DocID15441 Rev 9

Load = 20 pF

STM8S103K3 STM8S103F3 STM8S103F2Electrical characteristics

UnitMaxTypMinConditionsParameterSymbol

Standard and high sink I/Os

(3)

Load = 20 pF

lkg

lkg ana

lkg(inj)

Digital input leakage current

Analog input leakage current

Leakage current in adjacent I/O

(1)

Hysteresis voltage between Schmitt trigger switching levels. Based on characterization results, not

VSS≤ VIN≤V

VSS≤ VIN≤ V

Injection current ±4 mA

±1

±250

±1

(2)

tested in production.

(2)

Data based on characterisation results, not tested in production.

(3)

Data guaranteed by design.

Figure 22: Typical VILand VIHvs VDD@ 4 temperatures

μA

DocID15441 Rev 972/117

Electrical characteristicsSTM8S103K3 STM8S103F3 STM8S103F2

Figure 23: Typical pull-up resistance vs VDD@ 4 temperatures

Figure 24: Typical pull-up current vs VDD@ 4 temperatures

Table 39: Output driving current (standard ports)

UnitMaxMinConditionsParameterSymbol

Output low level with 8 pins sunk

Output low level with 4 pins sunk

Output high level with 8 pins sourced

IIO= 10 mA,

VDD= 5 V

IIO= 4 mA,

VDD= 3.3 V

IIO= 10 mA,

VDD= 5 V

2.0-

(1)

1.0

-2.8

73/117DocID15441 Rev 9

STM8S103K3 STM8S103F3 STM8S103F2Electrical characteristics

UnitMaxMinConditionsParameterSymbol

Output high level with 4 pins sourced

IIO= 4 mA,

VDD= 3.3 V

(1)

Data based on characterization results, not tested in production

Table 40: Output driving current (true open drain ports)

(1)

Data based on characterization results, not tested in production

Output low level with 2 pins sunk

IIO= 10 mA, VDD= 5 V

IIO= 10 mA, VDD= 3.3 V

IIO= 20 mA, VDD= 5 V

Table 41: Output driving current (high sink ports)

Output low level with 8 pins sunk

IIO= 10 mA,

VDD= 5 V

2.1

(1)

1 .0

1.5

2.0

(1)

UnitMaxConditionsParameterSymbol

UnitMaxMinConditionsParameterSymbol

V0.8-

Output low level with 4 pins sunk

IIO= 10 mA,

VDD= 3.3 V

Output low level with 4 pins sunk

IIO= 20 mA,

VDD= 5 V

Output high level with 8 pins sourced

IIO= 10 mA,

VDD= 5 V

Output high level with 4 pins sourced

IIO= 10 mA,

VDD= 3.3 V

IIO= 20 mA,

VDD= 5 V

(1)

Data based on characterization results, not tested in production

2.1

3.3

(1)

1.0

(1)

1.5

(1)

-4.0

DocID15441 Rev 974/117

Electrical characteristicsSTM8S103K3 STM8S103F3 STM8S103F2

Figure 25: Typ. VOL@ VDD= 5 V (standard ports)

Figure 26: Typ. VOL@ VDD= 3.3 V (standard ports)

75/117DocID15441 Rev 9

STM8S103K3 STM8S103F3 STM8S103F2Electrical characteristics

Figure 27: Typ. VOL@ VDD= 5 V (true open drain ports)

Figure 28: Typ. VOL@ VDD= 3.3 V (true open drain ports)

DocID15441 Rev 976/117

Electrical characteristicsSTM8S103K3 STM8S103F3 STM8S103F2

Figure 29: Typ. VOL@ VDD= 5 V (high sink ports)

Figure 30: Typ. VOL@ VDD= 3.3 V (high sink ports)

77/117DocID15441 Rev 9

STM8S103K3 STM8S103F3 STM8S103F2Electrical characteristics

Figure 31: Typ. VDD- VOH@ VDD= 5 V (standard ports)

Figure 32: Typ. VDD- VOH@ VDD= 3.3 V (standard ports)

DocID15441 Rev 978/117

Electrical characteristicsSTM8S103K3 STM8S103F3 STM8S103F2

Figure 33: Typ. VDD- VOH@ VDD= 5 V (high sink ports)

Figure 34: Typ. VDD- VOH@ VDD= 3.3 V (high sink ports)

IL(NRST)

Reset pin characteristics10.3.7

Subject to general operating conditions for VDDand TAunless otherwise specified.

Table 42: NRST pin characteristics

NRST input low

level voltage

(1)

--0.3

UnitMaxTypMinConditionsParameterSymbol

V0.3 x V

79/117DocID15441 Rev 9

IH(NRST)

OL(NRST)

PU(NRST)

I FP(NRST)

IN FP(NRST)

NRST input high

level voltage

(1)

NRST output low

level voltage

(1)

NRST pull-up

resistor

(2)

NRST input filtered

(3)

pulse

NRST input not

filtered pulse

(3)

IOL=2 mA

STM8S103K3 STM8S103F3 STM8S103F2Electrical characteristics

UnitMaxTypMinConditionsParameterSymbol

VDD+ 0.3-0.7 x V

0.5--

kΩ805530

75--

--500

OP(NRST)

(1)

Data based on characterization results, not tested in production.

(2)

The RPUpull-up equivalent resistor is based on a resistive transistor

(3)

Data guaranteed by design, not tested in production.

NRST output

(3)

pulse

Figure 35: Typical NRST VILand VIHvs VDD@ 4 temperatures

μs--

DocID15441 Rev 980/117

Electrical characteristicsSTM8S103K3 STM8S103F3 STM8S103F2

Figure 36: Typical NRST pull-up resistance vs VDD@ 4 temperatures

Figure 37: Typical NRST pull-up current vs VDD@ 4 temperatures

The reset network shown in the following figure protects the device against parasitic resets. The user must ensure that the level on the NRST pin can go below V

IL(NRST)

max. (see Table

38: I/O static characteristics ), otherwise the reset is not taken into account internally.

For power consumption sensitive applications, the external reset capacitor value can be reduced to limit the charge/discharge current. If NRST signal is used to reset external circuitry, attention must be taken to the charge/discharge time of the external capacitor to fulfill the external devices reset timing conditions. Minimum recommended capacity is 100 nF.

81/117DocID15441 Rev 9

External

reset

circuit

(optional)

0.1 μF

NRST

VDD

RPU

Filter

Internal reset

STM8

STM8S103K3 STM8S103F3 STM8S103F2Electrical characteristics

Figure 38: Recommended reset pin protection

SPI serial peripheral interface10.3.8

Unless otherwise specified, the parameters given in the following table are derived from tests performed under ambient temperature, f t

MASTER

= 1/f

MASTER

Refer to I/O port characteristics for more details on the input/output alternate function characteristics (NSS, SCK, MOSI, MISO).

frequency and VDDsupply voltage conditions.

SCK

c(SCK)

SCK

c(SCK)

r(SCK)

f(SCK)

su(NSS)

h(NSS)

w(SCKH)

w(SCKL)

su(MI)

su(SI)

h(MI)

h(SI)

(3)

ParameterSymbol

frequency

1/ t

SCK

c(SCK)

fall time

time

Table 43: SPI characteristics

Conditions

(1)

Master modeSPI clock

SPI clock frequencyf

Capacitive load: C = 30 pFSPI clock rise and

Slave modeNSS setup timet

Master modeSCK high and low

4 x

MASTER

SCK

2 - 15

UnitMaxMin

MHz80

(2)

MHz7

25-

-70Slave modeNSS hold timet

SCK

2 +15

-5Master modeData input setup

-5Slave mode

-7Master modeData input hold

-10Slave mode

DocID15441 Rev 982/117

Electrical characteristicsSTM8S103K3 STM8S103F3 STM8S103F2

UnitMaxMin

-25

(2)

-27

-11

a(SO)

dis(SO)

(3) (4)

(3) (5)

ParameterSymbol

access time

Conditions

Slave modeData output

(1)

3 x

MASTER

disable time

v(SO)

(3)

Data output valid

time

v(MO)

(3)

Data output valid

time

h(SO)

(3)

Data output hold

time

h(MO)

(3)

Data output hold

time

(1)

Parameters are given by selecting 10 MHz I/O output frequency.

(2)

Data characterization in progress.

(3)

Values based on design simulation and/or characterization results, and not tested in

Slave mode

(after enable edge)

Master mode

(after enable edge)

Slave mode

(after enable edge)

Master mode

(after enable edge)

30-

(2)

production.

(4)

Min time is for the minimum time to drive the output and the max time is for the maximum

time to validate the data.

(5)

Min time is for the minimum time to invalidate the output and the max time is for the

maximum time to put the data in Hi-Z.

83/117DocID15441 Rev 9

ai14134

SCK Input

CPHA=0

MOSI

INPUT

MISO

OUT PUT

CPHA=0

MSB O UT

MSB IN

BIT6 OUT

LSB IN

LSB OUT

CPOL=0

CPOL=1

BIT1 IN

NSSinput

SU(NSS)

c(SCK)

h(NSS)

a(SO)

w(SCKH)

w(SCKL)

v(SO)

h(SO)

r(SCK)

f(SCK)

dis(SO)

su(SI)

h(SI)

ai14135

SCK Input

CPHA=1

MOSI

INPUT

MISO

OUT PUT

CPHA=1

MSB O UT

MSB IN

BIT6 OUT

LSB IN

LSB OUT

CPOL=0

CPOL=1

BIT1 IN

SU(NSS)

c(SCK)

h(NSS)

a(SO)

w(SCKH)

w(SCKL)

v(SO)

h(SO)

r(SCK)

f(SCK)

dis(SO)

su(SI)

h(SI)

NSS input

STM8S103K3 STM8S103F3 STM8S103F2Electrical characteristics

Figure 39: SPI timing diagram - slave mode and CPHA = 0

Figure 40: SPI timing diagram - slave mode and CPHA = 1

1. Measurement points are made at CMOS levels: 0.3 VDD and 0.7 VDD.

DocID15441 Rev 984/117

ai14136b

SCK intput

CPHA=0

MOSI

OUTUT

MISO

INPUT

CPHA=0

MSBIN

MSB OUT

BIT6 IN

LSB OUT

LSB IN

CPOL=0

CPOL=1

BIT1 OUT

NSSinput

c(SCK)

w(SCKH)

w(SCKL)

r(SCK)

f(SCK)

h(MI)

High

SCK output

CPHA=1

CPOL=0

CPOL=1

su(MI)

v(MO)

h(MO)

Electrical characteristicsSTM8S103K3 STM8S103F3 STM8S103F2

Figure 41: SPI timing diagram - master mode

(1)

w(SCLL)

w(SCLH)

su(SDA)

h(SDA)

r(SDA)

r(SCL)

f(SDA)

f(SCL)

h(STA)

su(STA)

1. Measurement points are made at CMOS levels: 0.3 VDD and 0.7 VDD.

I2C interface characteristics10.3.9

Table 44: I2C characteristics

ParameterSymbol

SDA data hold timet

Standard mode I2C

(2)

Min

(3)

Max

(2)

-0

Fast mode I2C

(2)

Min

Max

-1.3-4.7SCL clock low timet

-0.6-4.0SCL clock high timet

-100-250SDA setup timet

(4)

900

300-1000-SDA and SCL rise time

300-300-SDA and SCL fall time

-0.6-4.0START condition hold timet

-0.6-4.7Repeated START condition setup timet

(2)

(3)

(1)

Unit

μs

85/117DocID15441 Rev 9

f(SDA)

r(SDA)

su(SDA)th(SDA)

f(SCL)

r(SCL)

w(SCLL)

w(SCLH)

h(STA)

su(STO)

su(STA)tw(STO:STA)

SDA

SCL

4.7kΩ SDA

SCL

100Ω

4.7kΩ

I2C bus

START

STOP

REPEATED

START

STM8S

ai17490

STM8S103K3 STM8S103F3 STM8S103F2Electrical characteristics

Unit

(1)

(2)

-0.6-4.0STOP condition setup timet

su(STO)

w(STO:STA)

ParameterSymbol

STOP to START condition time

Standard mode I2C

(2)

Min

Max

Fast mode I2C

Min

(2)

Max

(bus free)

(1)

MASTER

(2)

Data based on standard I2C protocol requirement, not tested in production

(3)

The maximum hold time of the start condition has only to be met if the interface does not stretch the

, must be at least 8 MHz to achieve max fast I2C speed (400kHz)

low time

(4)

The device must internally provide a hold time of at least 300 ns for the SDA signal in order to bridge

the undefined region of the falling edge of SCL

Figure 42: Typical application with I2C bus and timing diagram

μs-1.3-4.7

pF400-400Capacitive load for each bus lineC

1. Measurement points are made at CMOS levels: 0.3 x VDD and 0.7 x VDD.

10-bit ADC characteristics10.3.10

Subject to general operating conditions for VDD, f

DocID15441 Rev 986/117

MASTER

, and TAunless otherwise specified.

ADC

Table 45: ADC characteristics

Electrical characteristicsSTM8S103K3 STM8S103F3 STM8S103F2

UnitMaxTypMinConditionsParameterSymbol

1VDD=2.95 to 5.5 VADC clock frequencyf

MHz

1VDD=4.5 to 5.5 V

Conversion voltage range

AIN

Internal sample and hold

ADC

capacitor

(1)

ADC

= 4 MHzMinimum sampling timet

0.75

μs

μs3.5f

STAB

CONV

= 6 MHz

ADC

Wake-up time from standbyt

= 4 MHzMinimum total conversion time

ADC

0.5

(including sampling time, 10-bit resolution)

ADC

(1)

During the sample time the input capacitance C

= 6 MHz

AIN

(3 pF max) can be charged/discharged

1/f

μs2.33f

ADC

by the external source. The internal resistance of the analog source must allow the capacitance to reach its final voltage level within tS.After the end of the sample time tS, changes of the analog input voltage have no effect on the conversion result. Values for the sample clock tSdepend on programming.

|ET|

|EO|

Table 46: ADC accuracy with R

(2)

< 10 kΩ , VDD= 5 V

AIN

= 2 MHzTotal unadjusted error

ADC

= 4 MHz

ADC

= 6 MHz

ADC

= 2 MHzOffset error

ADC

(1)

TypConditionsParameterSymbol

UnitMax

3.51.6f

42.2f

LSB

4.52.4f

2.51.1f

87/117DocID15441 Rev 9

STM8S103K3 STM8S103F3 STM8S103F2Electrical characteristics

(1)

TypConditionsParameterSymbol

UnitMax

|EG|

|ED|

|EL|

(2)

ADC

= 4 MHz

= 6 MHz

= 2 MHzGain error

= 4 MHz

= 6 MHz

= 2 MHzDifferential linearity error

= 4 MHz

= 6 MHz

= 2 MHzIntegral linearity error

= 4 MHz

31.5f

31.8f

31.5f

32.1f

42.2f

1.50.7f

1.50.6f

20.8f

= 6 MHz

ADC

(1)

Data based on characterization results, not tested in production.

(2)

ADC accuracy vs. negative injection current: Injecting negative current on any of the

20.8f

analog input pins should be avoided as this significantly reduces the accuracy of the conversion being performed on another analog input. It is recommended to add a Schottky diode (pin to ground) to standard analog pins which may potentially inject negative current. Any positive injection current within the limits specified for I

INJ(PIN)

and ΣI

INJ(PIN)

in the I/O

port pin characteristics section does not affect the ADC accuracy.

|ET|

|EO|

Table 47: ADC accuracy with R

(2)

ADC

< 10 kΩ R

AIN

= 2 MHzTotal unadjusted error

= 4 MHz

= 2 MHzOffset error

, VDD= 3.3 V

AIN

TypConditionsParameterSymbol

(1)

UnitMax

3.51.6f

41.9f

LSB

2.51f

DocID15441 Rev 988/117

Electrical characteristicsSTM8S103K3 STM8S103F3 STM8S103F2

(1)

TypConditionsParameterSymbol

UnitMax

= 4 MHz

ADC

|EG|

|ED|

|EL|

(1)

Data based on characterization results, not tested in production.

(2)

ADC accuracy vs. negative injection current: Injecting negative current on any of the

(2)

ADC

= 2 MHzGain error

= 4 MHz

= 2 MHzDifferential linearity error

= 4 MHz

= 2 MHzIntegral linearity error

= 4 MHz

2.51.5f

31.3f

32f

10.7f

1.50.7f

1.50.6f

20.8f

INJ(PIN)

and ΣI

INJ(PIN)

in I/O port

pin characteristics does not affect the ADC accuracy.

Figure 43: ADC accuracy characteristics

1. Example of an actual transfer curve.

2. The ideal transfer curve

89/117DocID15441 Rev 9

STM8

10-bit A/D

conversion

AIN

AINx

0.6 V

± 1 µA

ADC

STM8S103K3 STM8S103F3 STM8S103F2Electrical characteristics

3. End point correlation line

ET= Total unadjusted error: maximum deviation between the actual and the ideal transfer curves.

EO= Offset error: deviation between the first actual transition and the first ideal one.

EG= Gain error: deviation between the last ideal transition and the last actual one.

ED= Differential linearity error: maximum deviation between actual steps and the ideal one.

EL= Integral linearity error: maximum deviation between any actual transition and the end point correlation line.

Figure 44: Typical application with ADC

EMC characteristics10.3.11

Susceptibility tests are performed on a sample basis during product characterization.

Functional EMS (electromagnetic susceptibility)10.3.11.1

While executing a simple application (toggling 2 LEDs through I/O ports), the product is stressed by two electromagnetic events until a failure occurs (indicated by the LEDs).

FESD: Functional electrostatic discharge (positive and negative) is applied on all pins of

•

the device until a functional disturbance occurs. This test conforms with the IEC 61000-4-2 standard.

FTB: A burst of fast transient voltage (positive and negative) is applied to VDDand V

•

through a 100 pF capacitor, until a functional disturbance occurs. This test conforms with the IEC 61000-4-4 standard.

A device reset allows normal operations to be resumed. The test results are given in the table below based on the EMS levels and classes defined in application note AN1709 (EMC design guide for STMicrocontrollers).

Designing hardened software to avoid noise problems10.3.11.2

EMC characterization and optimization are performed at component level with a typical application environment and simplified MCU software. It should be noted that good EMC performance is highly dependent on the user application and the software in particular.

Therefore it is recommended that the user applies EMC software optimization and prequalification tests in relation with the EMC level requested for his application.

DocID15441 Rev 990/117

Electrical characteristicsSTM8S103K3 STM8S103F3 STM8S103F2

Prequalification trials

Most of the common failures (unexpected reset and program counter corruption) can be recovered by applying a low state on the NRST pin or the oscillator pins for 1 second.

To complete these trials, ESD stress can be applied directly on the device, over the range of specification values. When unexpected behavior is detected, the software can be hardened to prevent unrecoverable errors occurring. See application note AN1015 (Software techniques for improving microcontroller EMC performance).

Table 48: EMS data

ConditionsParameterSymbol

Level/ class

FESD

Voltage limits to be applied on any I/O pin to induce a functional

VDD= 3.3 V, TA= 25 °C, f

MASTER

= 16 MHz

(HSI clock), conforming to IEC 61000-4-2

2/B

(1)

disturbance

EFTB

Fast transient voltage burst limits to be applied through 100 pF on V

and VSSpins to induce a

VDD= 3.3 V, TA= 25 °C ,f

MASTER

= 16 MHz

(HSI clock),conforming to IEC 61000-4-4

4/A

(1)

functional disturbance

(1)

Data obtained with HSI clock configuration, after applying HW recommendations described

in AN2860 (EMC guidelines for STM8S microcontrollers).

Electromagnetic interference (EMI)10.3.11.3

Based on a simple application running on the product (toggling 2 LEDs through the I/O ports), the product is monitored in terms of emission. This emission test is in line with the norm SAE IEC 61967-2 which specifies the board and the loading of each pin.

Table 49: EMI data

Conditions

Max f

ParameterSymbol

General conditions

Monitored frequency band

HSE/fCPU

16 MHz/

8 MHz

Peak level

EMI

VDD= 5 V

TA= 25 °C

LQFP32 package

0.1 MHz to

30 MHz

30 MHz to

(1)

Unit

16 MHz/

16 MHz

dBμV

91/117DocID15441 Rev 9

Conditions

STM8S103K3 STM8S103F3 STM8S103F2Electrical characteristics

Max f

ParameterSymbol

General conditions

Monitored frequency band

HSE/fCPU

16 MHz/

8 MHz

Conforming to

130 MHz

(1)

Unit

16 MHz/

16 MHz

SAE IEC 61967-2

130 MHz to

1 GHz

SAE EMI level

(1)

Data based on characterisation results, not tested in production.

SAE EMI level

2.52.5

Absolute maximum ratings (electrical sensitivity)10.3.11.4

Based on three different tests (ESD, DLU and LU) using specific measurement methods, the product is stressed to determine its performance in terms of electrical sensitivity. For more details, refer to the application note AN1181.

Electrostatic discharge (ESD)10.3.11.5

Electrostatic discharges (a positive then a negative pulse separated by 1 second) are applied to the pins of each sample according to each pin combination. The sample size depends on the number of supply pins in the device (3 parts*(n+1) supply pin). One model can be simulated: Human body model. This test conforms to the JESD22-A114A/A115A standard. For more details, refer to the application note AN1181.

Table 50: ESD absolute maximum ratings

(1)

UnitMaximum

ESD(HBM)

ESD(CDM)

(Human body model)

ClassConditionsRatingsSymbol

value

TA= 25°C, conforming toElectrostatic discharge

JESD22-A114voltage

4000A

TALQFP32 package =Electrostatic discharge

25°C, conforming tovoltage

1000IV

SD22-C101(Charge device model)

DocID15441 Rev 992/117

Electrical characteristicsSTM8S103K3 STM8S103F3 STM8S103F2

(1)

Data based on characterization results, not tested in production

Static latch-up10.3.11.6

Two complementary static tests are required on 10 parts to assess the latch-up performance:

A supply overvoltage (applied to each power supply pin)

•

A current injection (applied to each input, output and configurable I/O pin) are performed

•

on each sample.

This test conforms to the EIA/JESD 78 IC latch-up standard. For more details, refer to the application note AN1181.

Table 51: Electrical sensitivities

ConditionsParameterSymbol

Static latch-up classLU

(1)

Class description: A Class is an STMicroelectronics internal specification. All its limits are higher than the JEDEC specifications, that means when a device belongs to class A it exceeds the JEDEC standard. B class strictly covers all the JEDEC criteria (international standard).

Class

ATA= 25 °C

ATA= 85 °C

ATA= 125 °C

(1)

93/117DocID15441 Rev 9

5V_ME

A1 K

ccc

D D1 D3

E1 E

Pin 1 identification

STM8S103K3 STM8S103F3 STM8S103F2Package information

Package information11

In order to meet environmental requirements, ST offers these devices in different grades of ECOPACK®packages, depending on their level of environmental compliance. ECOPACK specifications, grade definitions and product status are available at: www.st.com. ECOPACK is an ST trademark.

32-pin LQFP package mechanical data11.1

Figure 45: 32-pin low profile quad flat package (7 x 7)

Table 52: 32-pin low profile quad flat package mechanical data

mmDim.

inches

(1)

MaxTypMinMaxTypMin

0.06301.600A

0.00590.00200.1500.050A1

0.05710.05510.05311.4501.4001.350A2

0.01770.01460.01180.4500.3700.300b

0.00790.00350.2000.090c

0.36220.35430.34659.2009.0008.800D

0.28350.27560.26777.2007.0006.800D1

DocID15441 Rev 994/117

Package informationSTM8S103K3 STM8S103F3 STM8S103F2

mmDim.

inches

(1)

0.22055.600D3

0.22055.600E3

0.03150.800e

0.03941.000L1

(1)

Values in inches are converted from mm and rounded to 4 decimal digits

MaxTypMinMaxTypMin

0.36220.35430.34659.2009.0008.800E

0.28350.27560.26777.2007.0006.800E1

0.02950.02360.01770.7500.6000.450L

7.0°3.5°0.0°7.0°3.5°0.0°k

0.00390.100ccc

95/117DocID15441 Rev 9

AOB8_ME

STM8S103K3 STM8S103F3 STM8S103F2Package information

32-lead UFQFPN package mechanical data11.2

Figure 46: 32-lead, ultra thin, fine pitch quad flat no-lead package (5 x 5)

1. Drawing is not to scale.

2. All leads/pads should also be soldered to the PCB to improve the lead/pad solder joint

life.

3. There is an exposed die pad on the underside of the UFQFPN package. It is recommended to connect and solder this backside pad to PCB ground.

4. Dimensions are in millimeters.

Table 53: 32-lead, ultra thin, fine pitch quad flat no-lead package mechanical data

mmDim.

inches

(1)

MaxTypMinMaxTypMin

0.02360.02170.01970.6000.5500.500A

0.00200.00080.0500.0200A1

0.00790.200A3

DocID15441 Rev 996/117

103_A0A5_ME

1620

ddd

TOP VIEW

SIDE VIEW

BOTTOMVIEW

Pin 1

Package informationSTM8S103K3 STM8S103F3 STM8S103F2

mmDim.

(1)

Values in inches are converted from mm and rounded to 4 decimal digits.

inches

(1)

20-lead UFQFPN package mechanical data11.3

MaxTypMinMaxTypMin

0.01180.00980.00710.3000.2500.180b

0.20280.19690.19095.1505.0004.850D

0.14570.12603.7003.4503.200D2

0.20280.19690.19095.1505.0004.850E

0.14570.13580.12603.7003.4503.200E2

0.01970.500e

0.01970.01570.01180.5000.4000.300L

0.00310.080ddd

Figure 47: 20-lead, ultra thin, fine pitch quad flat no-lead package outline (3 x 3)

97/117DocID15441 Rev 9

STM8S103K3 STM8S103F3 STM8S103F2Package information

1. Drawing is not to scale.

Table 54: 20-lead, ultra thin, fine pitch quad flat no-lead package (3 x 3) package

mechanical data

mmDim.

inches

(1)

MaxTypMinMaxTypMin

0.11813.000D

0.11813.000E

0.02360.02170.01970.6000.5500.500A

0.00200.00080.00000.0500.0200.000A1

0.00600.152A3

0.01970.500e

0.02360.02170.01970.6000.5500.500L1

0.01570.01380.01180.4000.3500.300L2

0.00590.150L3

0.00790.200L4

0.00200.050ddd

(1)

Values in inches are converted from mm and rounded to 4 decimal digits.

SDIP32 package mechanical data11.4

Figure 48: 32-lead shrink plastic DIP (400 ml) package

Table 55: 32-lead shrink plastic DIP (400 ml) package mechanical data

mmDim.

inches

(1)

0.01180.00980.00710.3000.2500.180b

MaxTypMinMaxTypMin

0.20000.14800.14005.0803.7593.556A

0.02000.508A1

DocID15441 Rev 998/117

Package informationSTM8S103K3 STM8S103F3 STM8S103F2

mmDim.

inches

(1)

MaxTypMinMaxTypMin

0.18000.14000.12004.5723.5563.048A2

0.02300.01800.01400.5840.4570.356B

0.05500.04000.03001.3971.0160.762B1

0.01400.01000.00790.3560.2540.203C

1.12011.10001.079928.45027.94027.430D

0.43500.40980.390011.05010.4109.906E

0.37000.35000.30009.3988.8907.620E1

0.07001.778e

(1)

Values in inches are converted from mm and rounded to 4 decimal digits

0.400010.160eA

0.500012.700eB

0.15000.12000.10003.8103.0482.540L

99/117DocID15441 Rev 9

YA_ME

EE1

aaa

STM8S103K3 STM8S103F3 STM8S103F2Package information

20-pin TSSOP package mechanical data11.5

Figure 49: 20-pin, 4.40 mm body, 0.65 mm pitch

Table 56: 20-pin, 4.40 mm body, 0.65 mm pitch mechanical data

mmDim.

inches

(1)

MaxTypMinMaxTypMin

0.04721.200A

0.00590.00200.1500.050A1

0.04130.03940.03151.0501.0000.800A2

0.01180.00750.3000.190b

0.00790.00350.2000.090c

0.25980.25590.25206.6006.5006.400D

0.25980.25200.24416.6006.4006.200E

0.17720.17320.16934.5004.4004.300E1

0.02560.650e

0.02950.02360.01770.7500.6000.450L

0.03941.000L1

DocID15441 Rev 9100/117

ST STM8S103K3, STM8S103F3, STM8S103F2 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Contents

STM8S103K3 STM8S103F3 STM8S103F2Introduction

DescriptionSTM8S103K3 STM8S103F3 STM8S103F2

STM8S103K3 STM8S103F3 STM8S103F2Block diagram

Product overviewSTM8S103K3 STM8S103F3 STM8S103F2

Central processing unit STM84.1

Single wire interface module (SWIM) and debug module (DM)4.2

Interrupt controller4.3

Flash program and data EEPROM memory4.4

Clock controller4.5

Power management4.6

Watchdog timers4.7

Auto wakeup counter4.8

Beeper4.9

TIM1 - 16-bit advanced control timer4.10

TIM2 - 16-bit general purpose timer4.11

TIM4 - 8-bit basic timer4.12

Analog-to-digital converter (ADC1)4.13

Communication interfaces4.14

UART14.14.1

Pinout and pin descriptionSTM8S103K3 STM8S103F3 STM8S103F2

STM8S103Kx UFQFPN32/LQFP32/SDIP32 pinout and pin description

STM8S103Fx TSSOP20/SO20/UFQFPN20 pinout and pin description

STM8S103Fx TSSOP20/SO20 pinout5.2.1

STM8S103Fx UFQFPN20 pinout5.2.2

STM8S103Fx TSSOP20/SO20/UFQFPN20 pin description5.2.3

Alternate function remapping5.3

STM8S103K3 STM8S103F3 STM8S103F2Memory and register map

Memory map6.1

Register map6.2

I/O port hardware register map6.2.1

General hardware register map6.2.2

CPU/SWIM/debug module/interrupt controller registers6.2.3

STM8S103K3 STM8S103F3 STM8S103F2Interrupt vector mapping

STM8S103K3 STM8S103F3 STM8S103F2Option bytes

Alternate function remapping bits8.1

Unique IDSTM8S103K3 STM8S103F3 STM8S103F2

STM8S103K3 STM8S103F3 STM8S103F2Electrical characteristics

Parameter conditions10.1

Minimum and maximum values10.1.1

Typical values10.1.2

Typical curves10.1.3

Loading capacitor10.1.4

Pin input voltage10.1.5

Absolute maximum ratings10.2

Operating conditions10.3

VCAP external capacitor10.3.1

Supply current characteristics10.3.2

Total current consumption in run mode10.3.2.1

Total current consumption in wait mode10.3.2.2

Total current consumption in active halt mode10.3.2.3

Total current consumption in halt mode10.3.2.4

Low power mode wakeup times10.3.2.5

Total current consumption and timing in forced reset state10.3.2.6

Current consumption of on-chip peripherals10.3.2.7

Current consumption curves10.3.2.8

External clock sources and timing characteristics10.3.3

Internal clock sources and timing characteristics10.3.4

Memory characteristics10.3.5

I/O port pin characteristics10.3.6

Reset pin characteristics10.3.7

SPI serial peripheral interface10.3.8

I2C interface characteristics10.3.9

10-bit ADC characteristics10.3.10

EMC characteristics10.3.11

Functional EMS (electromagnetic susceptibility)10.3.11.1

Designing hardened software to avoid noise problems10.3.11.2

Electromagnetic interference (EMI)10.3.11.3

Absolute maximum ratings (electrical sensitivity)10.3.11.4

Electrostatic discharge (ESD)10.3.11.5

Static latch-up10.3.11.6

STM8S103K3 STM8S103F3 STM8S103F2Package information

32-pin LQFP package mechanical data11.1

32-lead UFQFPN package mechanical data11.2

20-lead UFQFPN package mechanical data11.3

SDIP32 package mechanical data11.4
