ST STM8S005K6, STM8S005C6 User Manual

Download

Value line, 16 MHz STM8S 8-bit MCU, 32 Kbytes Flash, data

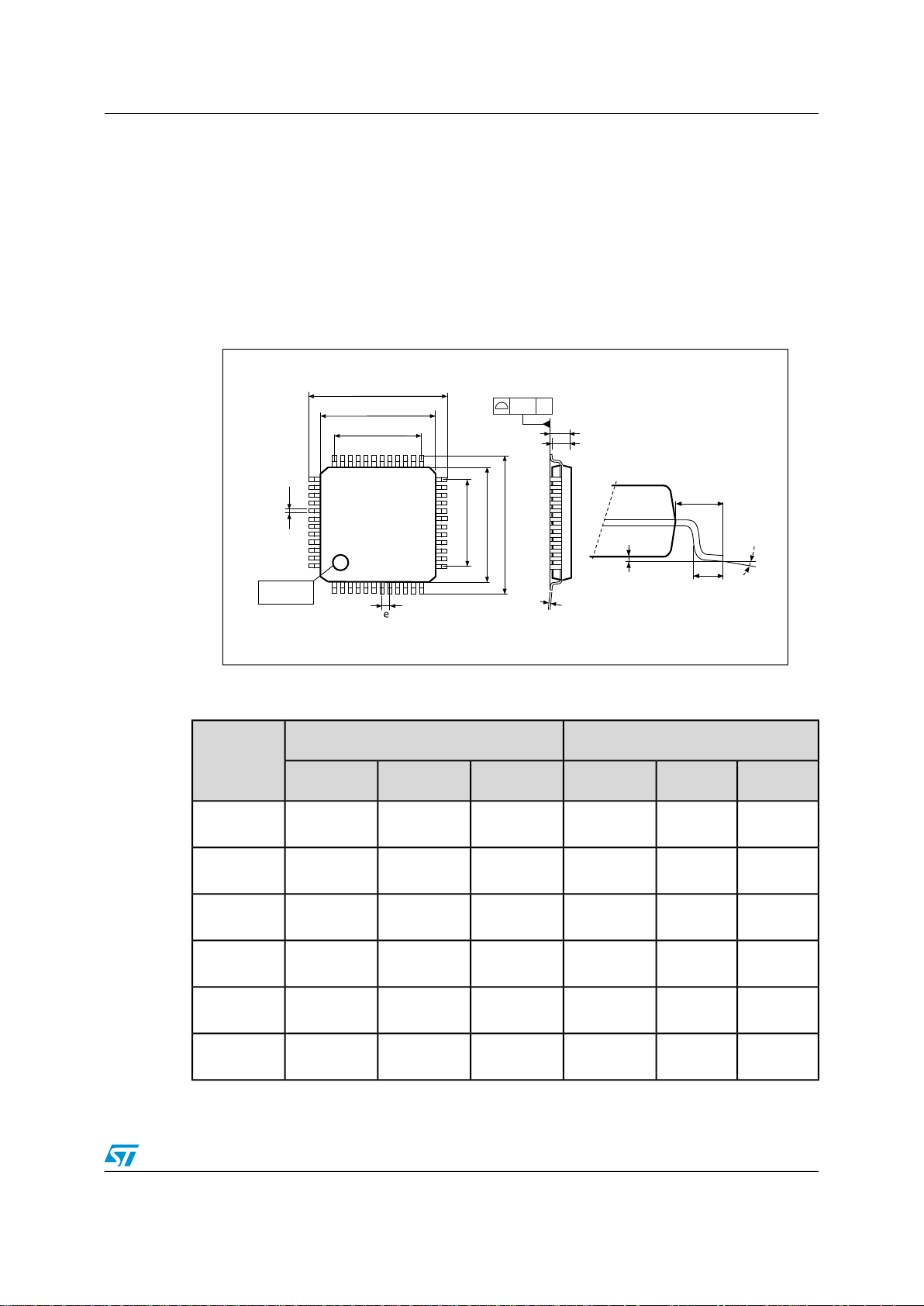

LQFP48 7x7

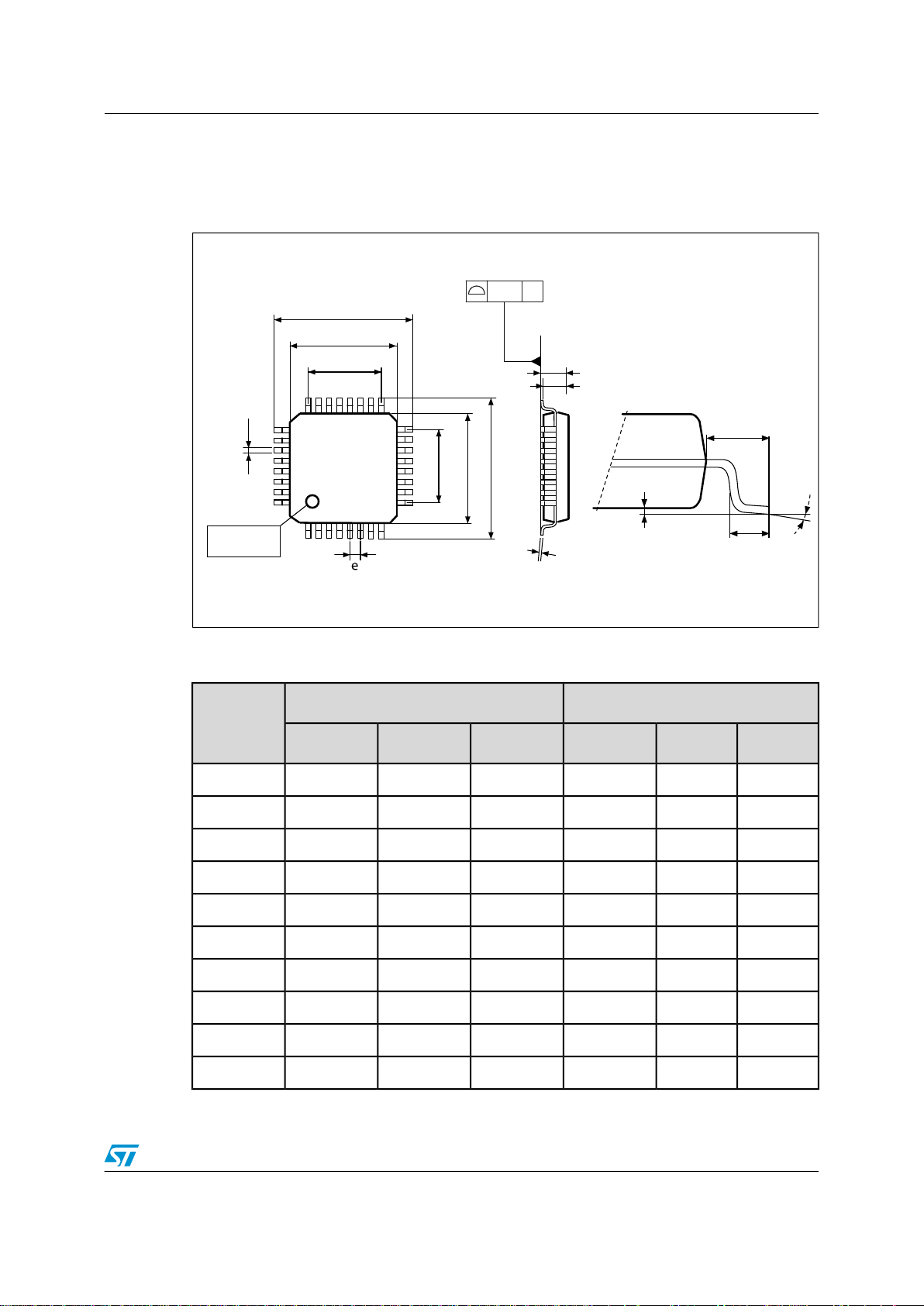

LQFP32 7x7

EEPROM,10-bit ADC, timers, UART, SPI, I²C

Features

Core

16 MHz advanced STM8 core with Harvard

•

architecture and 3-stage pipeline

Extended instruction set

•

Memories

Medium-density Flash/EEPROM:

•

Program memory: 32 Kbytes of Flash

memory; data retention 20 years at 55°C after 100 cycles

Data memory: 128 bytes of true data

EEPROM; endurance up to 100 k write/erase cycles

STM8S005K6 STM8S005C6

Permanently active, low consumption power-on

•

and power-down reset

Interrupt management

Nested interrupt controller with 32 interrupts

•

Up to 37 external interrupts on 6 vectors

•

Timers

2x 16-bit general purpose timers, with 2+3

•

CAPCOM channels (IC, OC or PWM)

Advanced control timer: 16-bit, 4 CAPCOM

•

channels, 3 complementary outputs, dead-time insertion and flexible synchronization

8-bit basic timer with 8-bit prescaler

•

Auto wake-up timer

•

Window and independent watchdog timers

•

Communications interfaces

UART with clock output for synchronous

•

operation, Smartcard, IrDA, LIN

SPI interface up to 8 Mbit/s

•

I2C interface up to 400 Kbit/s

•

Analog-to-digital converter (ADC)

10-bit, ±1 LSB ADC with up to 10 multiplexed

•

channels, scan mode and analog watchdog

RAM: 2 Kbytes

•

Clock, reset and supply management

2.95 V to 5.5 V operating voltage

•

Flexible clock control, 4 master clock sources:

•

Low power crystal resonator oscillator

External clock input

Internal, user-trimmable 16 MHz RC

Internal low power 128 kHz RC

Clock security system with clock monitor

•

Power management:

•

Low power modes (wait, active-halt, halt)

Switch-off peripheral clocks individually

June 2012

I/Os

Up to 38 I/Os on a 48-pin package including 16

•

high sink outputs

Highly robust I/O design, immune against current

•

injection

Development support

Embedded single wire interface module (SWIM)

•

for fast on-chip programming and non intrusive debugging

DocID022186 Rev 3

1/103

www.st.com
