± 15 kV ESD protected 5 V RS-232 transceiver
Features
■ ESD protection for RS-232 I/O pins:
■ ± 15 kV human body model
■ Guaranteed 230 kbps date rate
■ Guaranteed slew rate range 3 to 30 V/ms
■ Operate from a single 5 V power supply
Description
The ST202E/ST232E are a 2 driver 2 receiver
devices designed for RS-232 and V.28
communications in harsh environments. Each
transmitter output and receiver input is protected
against ± 15 kV electrostatic discharge (ESD)
shocks. The drivers meet all EIA/TIA-232E and
CCITT V.28 specifications at data rates up to 230
kbps, when loaded in accordance with the
EIA/TIA-232E specification. The ST202E/232E
use a single 5 V supply voltage.
ST202EB - ST202EC
ST232EB - ST232EC
SOP
TSSOP
SOP Large
The ST232E operates with four 1 µF capacitors,
while the ST202E operates with four 0.1 µF
capacitors, further reducing cost and board
space.
Table 1. Device summary
Order codes
ST202ECDR ST232ECDR 0 to 70 °C SO-16 (tape & reel) 2500 parts per reel
ST202EBDR ST232EBDR -40 to 85 °C SO-16 (tape & reel) 2500 parts per reel
ST232ECWR 0 to 70 °C SO-16 large (tape & reel) 1000 parts per reel
ST202EBWR -40 to 85 °C SO-16 large (tape & reel) 1000 parts per reel
ST202ECTR ST232ECTR 0 to 70 °C TSSOP16 (tape & reel) 2500 parts per reel
ST202EBTR ST232EBTR -40 to 85 °C TSSOP16 (tape & reel) 2500 parts per reel
Temperature
range
Packages Packaging
February 2008 Rev 16 1/18
www.st.com
18
ST202EB - ST202EC - ST232EB - ST232EC
Contents
1 Pin configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
2 Maximum ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
3 Electrical characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
4 Typical application . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
5 Typical performance characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
6 Package mechanical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
7 Revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
2/18
ST202EB - ST202EC - ST232EB - ST232EC Pin configuration
1 Pin configuration
Figure 1. Pin connections (top view)
Table 2. Pin description
Pin n° Symbol Note
1C
2 V+ Doubled voltage terminal
3C
4C
5C
6 V- Inverted voltage terminal
7T2
8R2
9R2
10 T2
11 T1
12 R1
13 R1
14 T1
15 GND Ground
16 V
+ Positive terminal for the first charge pump capacitor
1
- Negative terminal for the first charge pump capacitor
1
+ Positive terminal for the second charge pump capacitor
2
- Negative terminal for the second charge pump capacitor
2
OUT
OUT
OUT
OUT
CC
Second transmitter output voltage
Second receiver input voltage
IN
Second receiver output voltage
Second transmitter input voltage
IN
First transmitter input voltage
IN
First receiver output voltage
First receiver input voltage
IN
First transmitter output voltage
Supply voltage
3/18
Maximum ratings ST202EB - ST202EC - ST232EB - ST232EC
2 Maximum ratings
Table 3. Absolute maximum ratings
Symbol Parameter Value Unit
V
CC
V+ Extra positive voltage (V
Supply voltage -0.3 to 6 V
-0.3) to 14 V
CC
V- Extra negative voltage -14 to 0.3 V
T
R
T
OUT
R
OUT
T
SCTOUT
T
STG
IN
IN
Transmitter input voltage range -0.3 to (V+ + 0.3) V
Receiver input voltage range ± 30 V
Transmitter output voltage range (V- - 0.3) to (V+ + 0.3) V
Receiver output voltage range -0.3 to (VCC + 0.3) V
Short circuit duration on T
OUT
infinite
Storage temperature range -65 to 150 °C
Note: Absolute maximum ratings are those values beyond which damage to the device may occur.
Functional operation under these condition is not implied.
4/18
ST202EB - ST202EC - ST232EB - ST232EC Electrical characteristics
3 Electrical characteristics
Table 4. ESD performance: transmitter outputs, receiver inputs
Symbol Parameter Test condition Min. Typ. Max. Unit
ESD ESD protection voltage Human Body Model ± 15 kV
ESD ESD protection voltage IEC 1000-4-2 (Contact Discharge) ± 6kV
ESD ESD protection voltage IEC 1000-4-2 (Air Discharge) ± 8kV
Note: All test versus GND.
Table 5. Electrical characteristics
(C
- C4 = 0.1 µF for ST202E, C1 - C4 = 0.1 µF for ST232E, VCC = 5 V ± 10 %,
1
= -40 to 125 °C, unless otherwise specified. Typical values are referred to TA = 25 °C).
T
A
Symbol Parameter Test condition Min. Typ. Max. Unit
I
SUPPLY
VCC power supply current No Load, TA = 25°C 5 10 mA
Table 6. Transmitter electrical characteristics
(C
- C4 = 0.1 µF, VCC = 5 V ± 10 %, TA = -40 to 85 °C, unless otherwise specified. Typical
1
values are referred to T
Symbol Parameter Test condition Min. Typ. Max. Unit
V
R
TOUT
I
TIL
V
V
TIH
SR
D
TOUT
I
SC
t
DT
Output voltage swing
Input leakage current ± 10 µA
Input logic threshold low 0.8 V
TIL
Input logic threshold high 2 V
Transition slew rate
T
Data rate
R
Transmitter output resistance VCC = V+ = V- = 0V V
Transmitter output short circuit
current
Transmitter propagation delay
= 25 °C).
A
All Transmitter outputs are loaded
with 3 kΩ to GND
= 25°C, VCC = 5 V RL = 3 to 7
T
A
KΩ, CL = 50 to 1000 pF
R
= 3 to 7 kΩ, CL = 50 to 1000 pF
L
one transmitter switching
= 3 to 7 kΩ, CL = 50 to 2500 pF
R
L
All transmitter loaded
± 5 ± 9V
(1)
3630V/µs
230 400 kbits/s
= ± 2 V 300 Ω
OUT
±10 ±60 mA
2µA
1. Measured from 3 V to -3 V or from -3 V to 3 V
2. One transmitter output is loaded with R
= 3 kΩ to 7 kΩ, CL = 50 to 1000 pF
L
5/18
Electrical characteristics ST202EB - ST202EC - ST232EB - ST232EC
Table 7. Receiver electrical characteristics
(C
- C4 = 0.1 µF, VCC = 5 V ± 10 %, TA = -40 to 85 °C, unless otherwise specified. Typical
1
values are referred to T
Symbol Parameter Test condition Min. Typ. Max. Unit
= 25 °C).
A
V
R
V
V
V
RIHYS
V
V
t
RIN
RIN
RIL
RIH
ROL
ROH
DR
Receiver input voltage
operating range
-30 30 V
RS-232 input resistance TA = 25°C, VCC = 5 V 3 5 7 kΩ
RS-232 input logic threshold
low
RS-232 input logic threshold
high
T
= 25°C, VCC = 5 V 0.8 1.2 V
A
= 25°C, VCC = 5 V 1.7 2.4 V
T
A
RS-232 input hysteresis VCC = 5 V 0.2 0.5 1 V
TTL/CMOS output voltage low I
TTL/CMOS output voltage high I
= 3.2 mA 0.4 V
OUT
= -1 mA 3.5 VCC-0.4 V
OUT
Receiver propagation delay CL = 150 pF 0.5 10 µs
6/18
ST202EB - ST202EC - ST232EB - ST232EC Typical application
4 Typical application
Figure 2. Application circuit
(1) (2)
capacitors can even be 1µF ones
1. C
1-4
can be common or biased capacitors
2. C
1-4
Table 8. Capacitance value (µF)
Devices C2 C3 C4 C5 C5
ST202E 0.1 0.1 0.1 0.1 0.1
ST232E11111
7/18
Typical performance characteristics ST202EB - ST202EC - ST232EB - ST232EC
5 Typical performance characteristics
(Unless otherwise specified TJ = 25 °C)
Figure 3. Supply current vs temperature Figure 4. Data rate vs temperature
Figure 5. Receiver propagation delay Figure 6. Driver propagation delay
Figure 7. High level output voltage swing vs
8/18
temperature
Figure 8. Low level output voltage swing vs
temperature
ST202EB - ST202EC - ST232EB - ST232EC Typical performance characteristics
Figure 9. High level transmitter output short
circuit current vs temperature
Figure 10. Low level transmitter output short
circuit current vs temperature
Figure 11. High level receiver output short
circuit current vs temperature
Figure 12. Low level receiver output short
circuit current vs temperature
9/18
Package mechanical data ST202EB - ST202EC - ST232EB - ST232EC
6 Package mechanical data
In order to meet environmental requirements, ST offers these devices in ECOPACK
packages. These packages have a lead-free second level interconnect. The category of
second Level Interconnect is marked on the package and on the inner box label, in
compliance with JEDEC Standard JESD97. The maximum ratings related to soldering
conditions are also marked on the inner box label. ECOPACK is an ST trademark.
ECOPACK specifications are available at: www.st.com.
®
10/18
ST202EB - ST202EC - ST232EB - ST232EC Package mechanical data

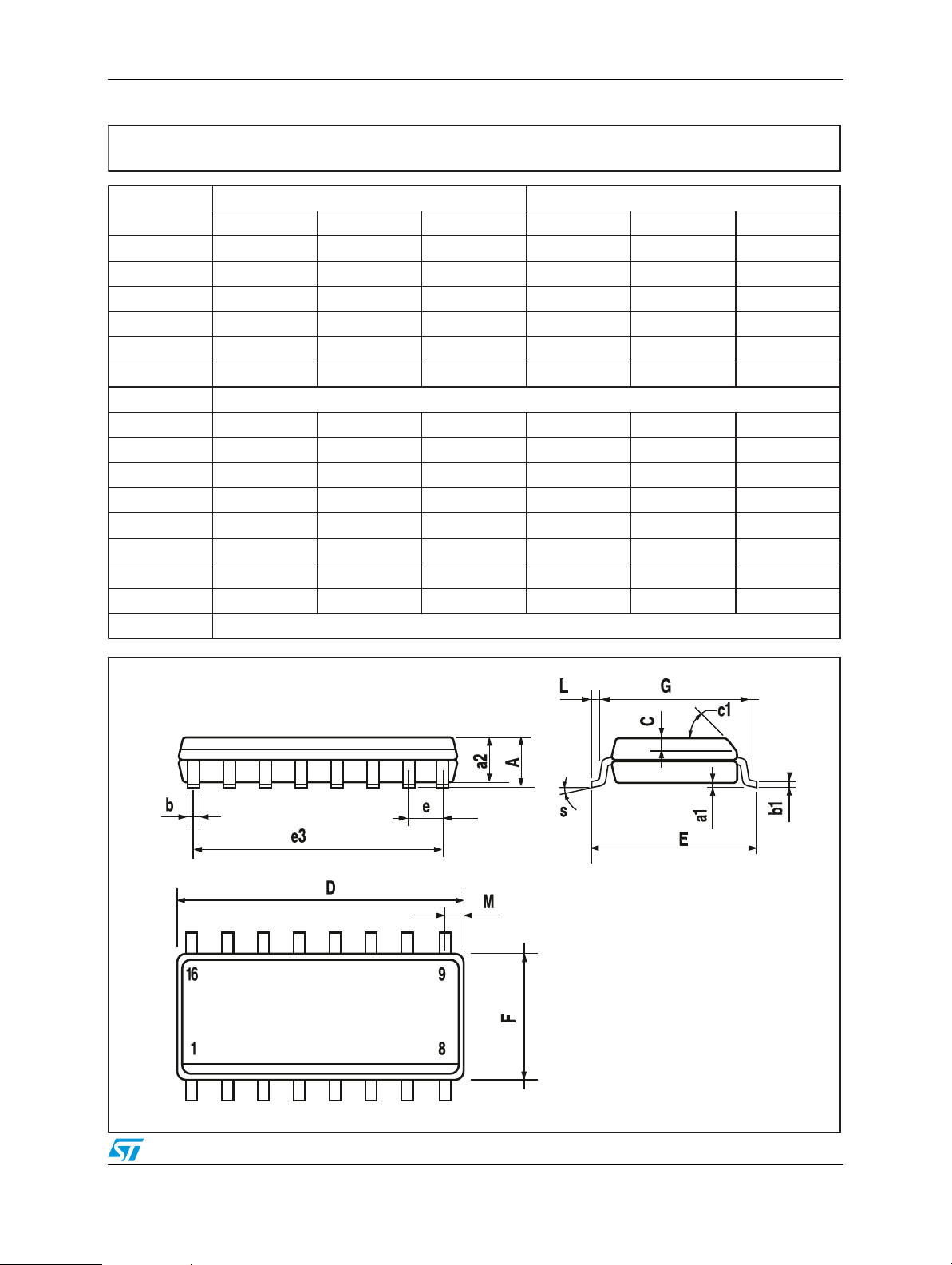

SO-16 mechanical data
Dim.
A 1.75 0.068
a1 0.1 0.25 0.004 0.010
a2 1.64 0.063
b 0.35 0.46 0.013 0.018
b1 0.19 0.25 0.007 0.010
C 0.5 0.019
c1 45° (typ.)
D 9.8 10 0.3850.393
E5.8 6.2 0.228 0.244
e 1.27 0.050
e38.89 0.350
F 3.8 4.0 0.149 0.157
G 4.6 5.3 0.181 0.208
L 0.5 1.27 0.019 0.050
M 0.62 0.024
S8° (max.)
Min. Typ. Max. Min. Typ. Max.
mm. inch.
0016020D
11/18
Package mechanical data ST202EB - ST202EC - ST232EB - ST232EC

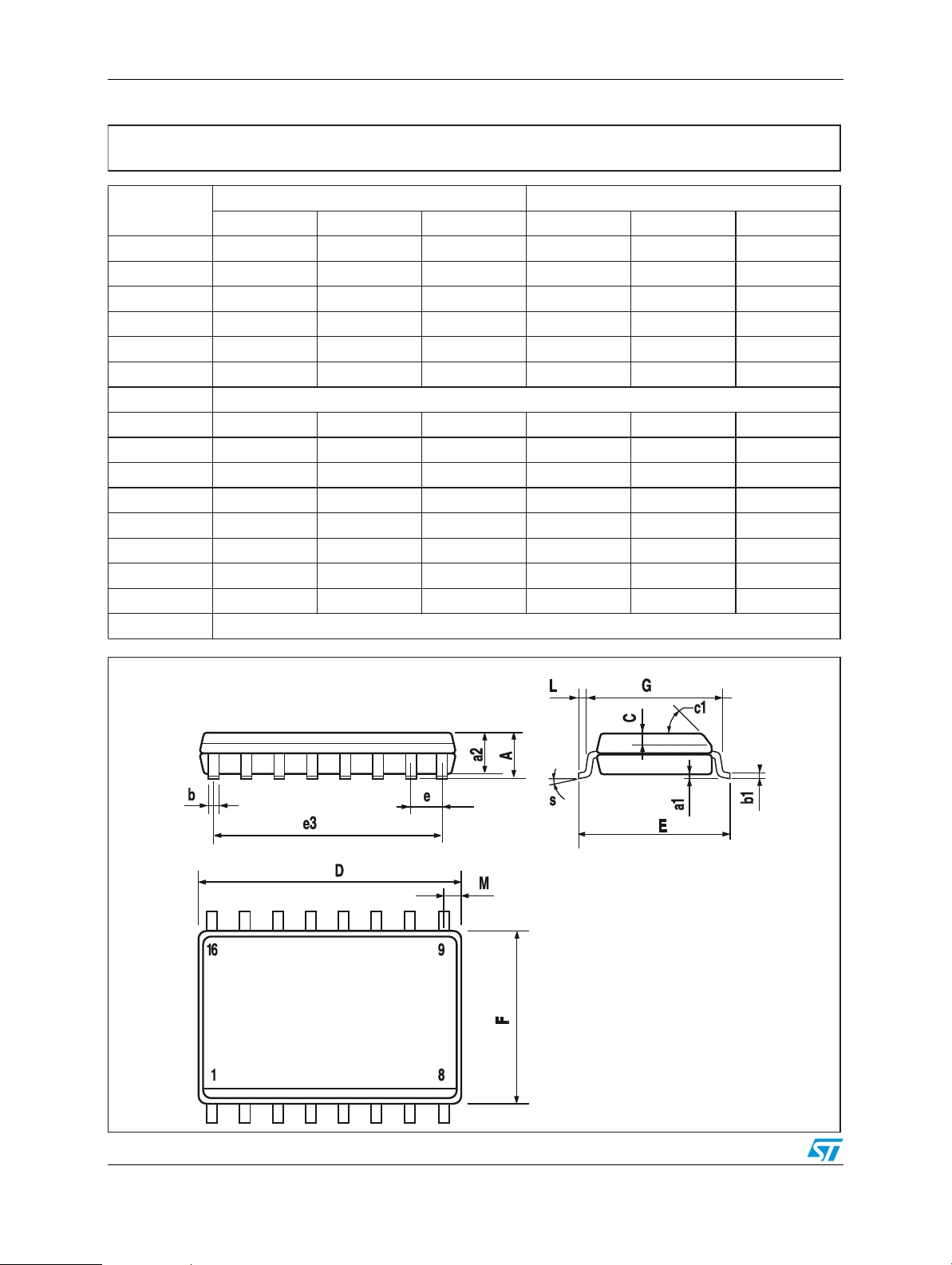

SO-16L mechanical data
Dim.
A 2.65 0.104
a1 0.1 0.2 0.004 0.008
a2 2.45 0.096
b 0.350.49 0.014 0.019
b1 0.23 0.32 0.009 0.012
C 0.5 0.020
c1 45° (typ.)
D 10.1 10.5 0.397 0.413
E 10.0 10.65 0.393 0.419
e 1.27 0.050
e38.89 0.350
F 7.4 7.6 0.2910.300
G
L 0.5 1.27 0.020 0.050
M 0.75 0.029
S8° (max.)
Min. Typ. Max. Min. Typ. Max.
mm. inch.
12/18
PO13I
ST202EB - ST202EC - ST232EB - ST232EC Package mechanical data
TSSOP16 mechanical data
mm. inch.
Dim.
Min. Typ. Max. Min. Typ. Max.
A 1.2 0.047
A1 0.05 0.15 0.002 0.004 0.006
A2 0.8 1 1.05 0.031 0.039 0.041
b 0.19 0.30 0.007 0.012
c0.09 0.20 0.004 0.0079
D4.9 5 5.1 0.193 0.197 0.201
E 6.2 6.4 6.6 0.244 0.252 0.260
E1 4.3 4.4 4.48 0.169 0.173 0.176
e 0.65 BSC 0.0256 BSC
K0° 8°0° 8°
L 0.45 0.60 0.75 0.018 0.024 0.030
A2
A
A1
b
e
c
K
L
E
D
E1
PIN 1 IDENTIFICATION
1
0080338D
13/18
Package mechanical data ST202EB - ST202EC - ST232EB - ST232EC
Tape & reel SO-16 mechanical data
mm. inch.
Dim.
Min. Typ. Max. Min. Typ. Max.
A 330 12.992
C 12.8 13.2 0.504 0.519
D 20.2 0.795
N60 2.362
T 22.4 0.882
Ao 6.45 6.65 0.254 0.262
Bo 10.3 10.5 0.406 0.414
Ko 2.1 2.3 0.082 0.090
Po 3.9 4.1 0.153 0.161
P7.98.1 0.311 0.319
14/18
ST202EB - ST202EC - ST232EB - ST232EC Package mechanical data
Tape & reel SO-16L mechanical data
mm. inch.
Dim.
Min. Typ. Max. Min. Typ. Max.
A 330 12.992
C 12.8 13.2 0.504 0.519
D 20.2 0.795
N60 2.362
T 22.4 0.882
Ao 10.8 11.0 0.425 0.433
Bo 10.7 10.9 0.421 0.429
Ko 2.93.1 0.114 0.122
Po 3.9 4.1 0.153 0.161
P 11.9 12.1 0.468 0.476
15/18
Package mechanical data ST202EB - ST202EC - ST232EB - ST232EC
Tape & reel TSSOP16 mechanical data
mm. inch.
Dim.
Min. Typ. Max. Min. Typ. Max.
A 330 12.992
C 12.8 13.2 0.504 0.519
D 20.2 0.795
N60 2.362
T 22.4 0.882
Ao 6.7 6.9 0.264 0.272
Bo 5.3 5.5 0.209 0.217
Ko 1.6 1.8 0.063 0.071
Po 3.9 4.1 0.153 0.161
P7.98.1 0.311 0.319
16/18
ST202EB - ST202EC - ST232EB - ST232EC Revision history
7 Revision history
Table 9. Document revision history
Date Revision Changes
21-Feb-2006 12 Change value of I
14-Mar-2006 13 Order codes has been updated and new template.
27-Aug-2007 14 Added Ta b le 1 in cover page.
13-Nov-2007 15 Modified: Ta bl e 1 .
08-feb-2008 16 Modified: Table 1 on page 1.
on transmitter characteristics, ±1µA ==> ±10µA.
TIL
17/18
ST202EB - ST202EC - ST232EB - ST232EC
Please Read Carefully:
Information in this document is provided solely in connection with ST products. STMicroelectronics NV and its subsidiaries (“ST”) reserve the
right to make changes, corrections, modifications or improvements, to this document, and the products and services described herein at any
time, without notice.
All ST products are sold pursuant to ST’s terms and conditions of sale.
Purchasers are solely responsible for the choice, selection and use of the ST products and services described herein, and ST assumes no
liability whatsoever relating to the choice, selection or use of the ST products and services described herein.
No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted under this document. If any part of this
document refers to any third party products or services it shall not be deemed a license grant by ST for the use of such third party products
or services, or any intellectual property contained therein or considered as a warranty covering the use in any manner whatsoever of such
third party products or services or any intellectual property contained therein.
UNLESS OTHERWISE SET FORTH IN ST’S TERMS AND CONDITIONS OF SALE ST DISCLAIMS ANY EXPRESS OR IMPLIED
WARRANTY WITH RESPECT TO THE USE AND/OR SALE OF ST PRODUCTS INCLUDING WITHOUT LIMITATION IMPLIED
WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE (AND THEIR EQUIVALENTS UNDER THE LAWS
OF ANY JURISDICTION), OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT.
UNLESS EXPRESSLY APPROVED IN WRITING BY AN AUTHORIZED ST REPRESENTATIVE, ST PRODUCTS ARE NOT
RECOMMENDED, AUTHORIZED OR WARRANTED FOR USE IN MILITARY, AIR CRAFT, SPACE, LIFE SAVING, OR LIFE SUSTAINING
APPLICATIONS, NOR IN PRODUCTS OR SYSTEMS WHERE FAILURE OR MALFUNCTION MAY RESULT IN PERSONAL INJURY,
DEATH, OR SEVERE PROPERTY OR ENVIRONMENTAL DAMAGE. ST PRODUCTS WHICH ARE NOT SPECIFIED AS "AUTOMOTIVE
GRADE" MAY ONLY BE USED IN AUTOMOTIVE APPLICATIONS AT USER’S OWN RISK.
Resale of ST products with provisions different from the statements and/or technical features set forth in this document shall immediately void
any warranty granted by ST for the ST product or service described herein and shall not create or extend in any manner whatsoever, any
liability of ST.
ST and the ST logo are trademarks or registered trademarks of ST in various countries.
Information in this document supersedes and replaces all information previously supplied.
The ST logo is a registered trademark of STMicroelectronics. All other names are the property of their respective owners.
© 2008 STMicroelectronics - All rights reserved
STMicroelectronics group of companies
Australia - Belgium - Brazil - Canada - China - Czech Republic - Finland - France - Germany - Hong Kong - India - Israel - Italy - Japan -
Malaysia - Malta - Morocco - Singapore - Spain - Sweden - Switzerland - United Kingdom - United States of America
www.st.com
18/18
Loading...
