ST ST10F273E User Manual

Download

16-bit MCU with 512 Kbyte Flash memory and 36 Kbyte RAM

Feature summary

■ High performance 16-bit CPU with DSP

functions – 31.25ns instruction cycle time at 64 MHz

max CPU clock

– Multiply/accumulate unit (MAC) 16 x 16-bit

multiplication, 40-bit accumulator – Enhanced boolean bit manipulations – Single-cycle context switching support

■ Memory organization

– 512 Kbyte on-chip Flash memory single

voltage with erase/program controller (full

performance, 32-bit fetch) – 100K erasing/programming cycles. – Up to 16 Mbyte linear address space for

code and data (5 Mbytes with CAN or I – 2 Kbyte on-chip internal RAM (IRAM) – 34 Kbyte on-chip extension RAM (XRAM) – Programmable external bus configuration &

characteristics for different address ranges – 5 programmable chip-select signals – Hold-acknowledge bus arbitration support

■ Interrupt

– 8-channel peripheral event controller for

single cycle interrupt driven data transfer – 16-priority-level interrupt system with 56

sources, sampling rate down to 15.6ns

■ Timers

– 2 multifunctional general purpose timer

units with 5 timers

■ Two 16-channel capture / compare units

■ 4-channel PWM unit + 4-channel XPWM

ST10F273E

PQFP144 (28 x 28 x 3.4mm)

(Plastic Quad Flat Package)

■ A/D Converter

– 24-channel 10-bit –3µs Minimum conversion time

■ Serial channels

– 2 synch. / asynch. serial channels – 2 high-speed synchronous channels

–I

C standard interface

■ 2 CAN 2.0B interfaces operating on 1 or 2 CAN

busses (64 or 2x32 messages, C-CAN version)

■ Fail-safe protection

– Programmable watchdog timer – Oscillator watchdog

■ On-chip bootstrap loader

■ Clock generation

– On-chip PLL and 4 to 12 MHz oscillator – Direct or prescaled clock input

■ Real time clock and 32 kHz on-chip oscillator

■ Up to 111 general purpose I/O lines

– Individually programmable as input, output

or special function

– Programmable threshold (hysteresis)

■ Idle, power down and stand-by modes

■ Single voltage supply: 5 V ±10%.

TQFP144 (20 x 20 x 1.4mm)

(Thin Quad Flat Package)

Order codes

Part number Package Packing

F273-CEG-P

PQFP144

F273-CEG-P-TR Tape & Reel F273-CEG-T

TQFP144

F273-CEG-T-TR Tape & Reel

May 2006 Rev 1 1/179

Tray

Temperature

range(°C)

-40 to +125 1 to 64

-40 to +125

-40 to +105

CPU frequency

range (MHz)

1 to 40 1 to 48

www.st.com

Contents ST10F273E

Contents

1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

2 Pin data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

3 Functional description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

4 Memory organization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

5 Internal Flash memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

5.1 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

5.2 Functional description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

5.2.1 Structure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

5.2.2 Modules structure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

5.2.3 Low power mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

5.3 Write operati on . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

5.4 Registers description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

5.4.1 Flash control register 0 low . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

5.4.2 Flash control register 0 high . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

5.4.3 Flash control register 1 low . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

5.4.4 Flash control register 1 high . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

5.4.5 Flash data register 0 low . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

5.4.6 Flash data register 0 high . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

5.4.7 Flash data register 1 low . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

5.4.8 Flash data register 1 high . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

5.4.9 Flash address register low . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

5.4.10 Flash address register high . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

5.4.11 Flash error register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

5.5 Protection strategy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

5.5.1 Protection registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

5.5.2 Flash non volatile write protection I register low . . . . . . . . . . . . . . . . . . 37

5.5.3 Flash non volatile write protection I register high . . . . . . . . . . . . . . . . . . 37

5.5.4 Flash non volatile access protection register 0 . . . . . . . . . . . . . . . . . . . 37

5.5.5 Flash non volatile access protection register 1 low . . . . . . . . . . . . . . . . 38

5.5.6 Flash non volatile access protection register 1 high . . . . . . . . . . . . . . . 38

2/179

ST10F273E Contents

5.5.7 Access protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

5.5.8 Write protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

5.5.9 Temporary unprotection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

5.6 Write operati on examples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

5.7 Write operation summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

6 Bootstrap loader . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

6.1 Selection among use r-code, standard or selective bootstrap . . . . . . . . . . 44

6.2 Standard bootstrap loader . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

6.3 Alternate and selective boot mode (ABM & SBM) . . . . . . . . . . . . . . . . . . 45

6.3.1 Activation of the ABM and SBM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

6.3.2 User mode signature integrity check . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

6.3.3 Selective boot mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

7 Central processing unit (CPU) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

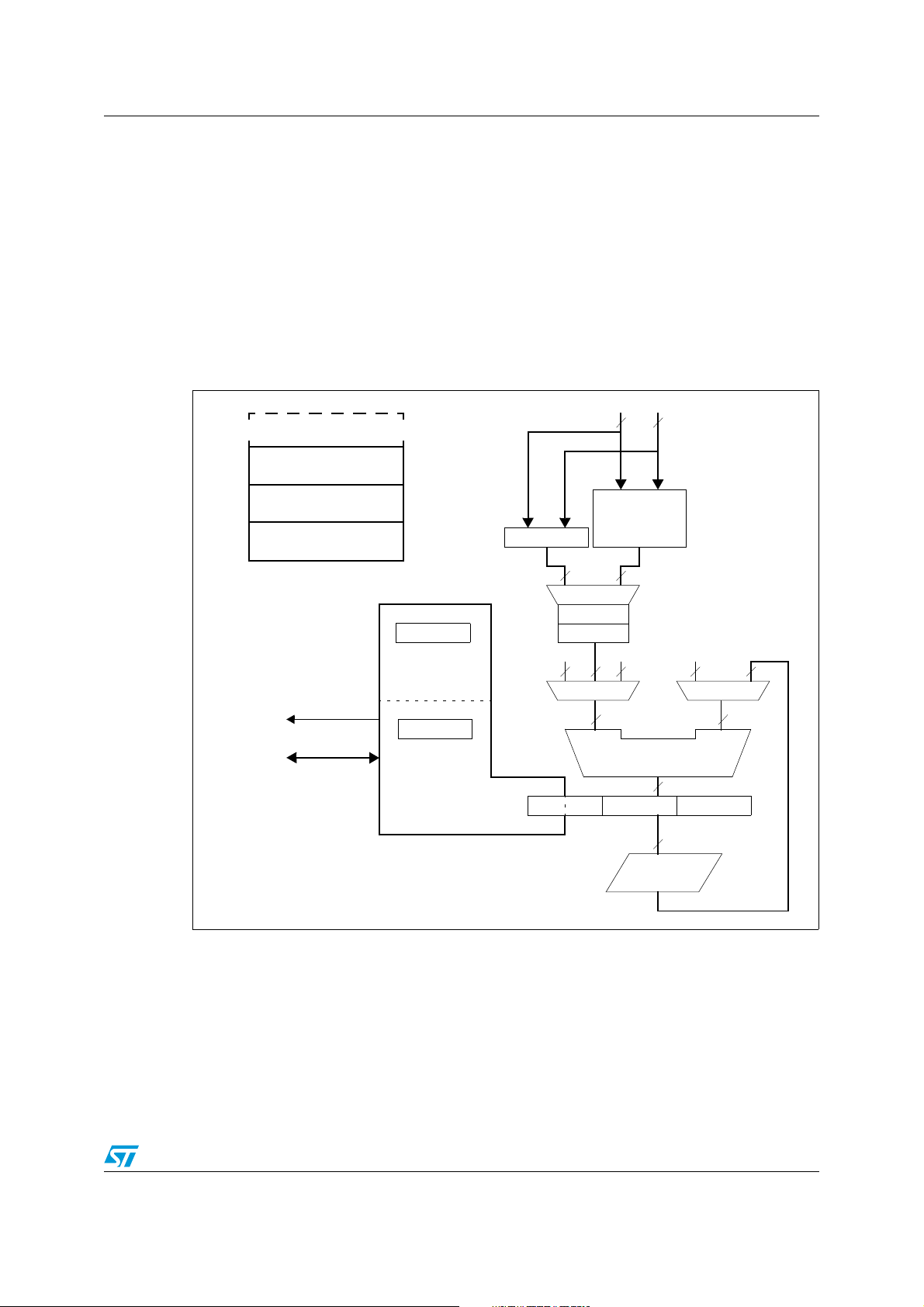

7.1 Multiplier-accumulator unit (MAC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

7.2 Instruction set summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

7.3 MAC coprocessor specific instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

8 External bus controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

9 Interrupt system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

9.1 X-Peripheral interrupt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

9.2 Exception and error traps list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

10 Capture / compare (CAPCOM) units . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

11 General purpose timer unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

11.1 GPT1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

11.2 GPT2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

12 PWM modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

13 Parallel ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

13.1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

13.2 I/O’s special features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

3/179

Contents ST10F273E

13.2.1 Open drain mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

13.2.2 Input threshold control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

13.3 Alternate port functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

14 A/D converter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

15 Serial channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

15.1 Asynchronous / synchronous serial interfaces . . . . . . . . . . . . . . . . . . . . . 69

15.2 ASCx in asynchronous mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

15.3 ASCx in synchronous mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

15.4 High speed synchronous serial interfaces . . . . . . . . . . . . . . . . . . . . . . . . 71

16 I2C interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

17 CAN modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

17.1 Confi guration support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

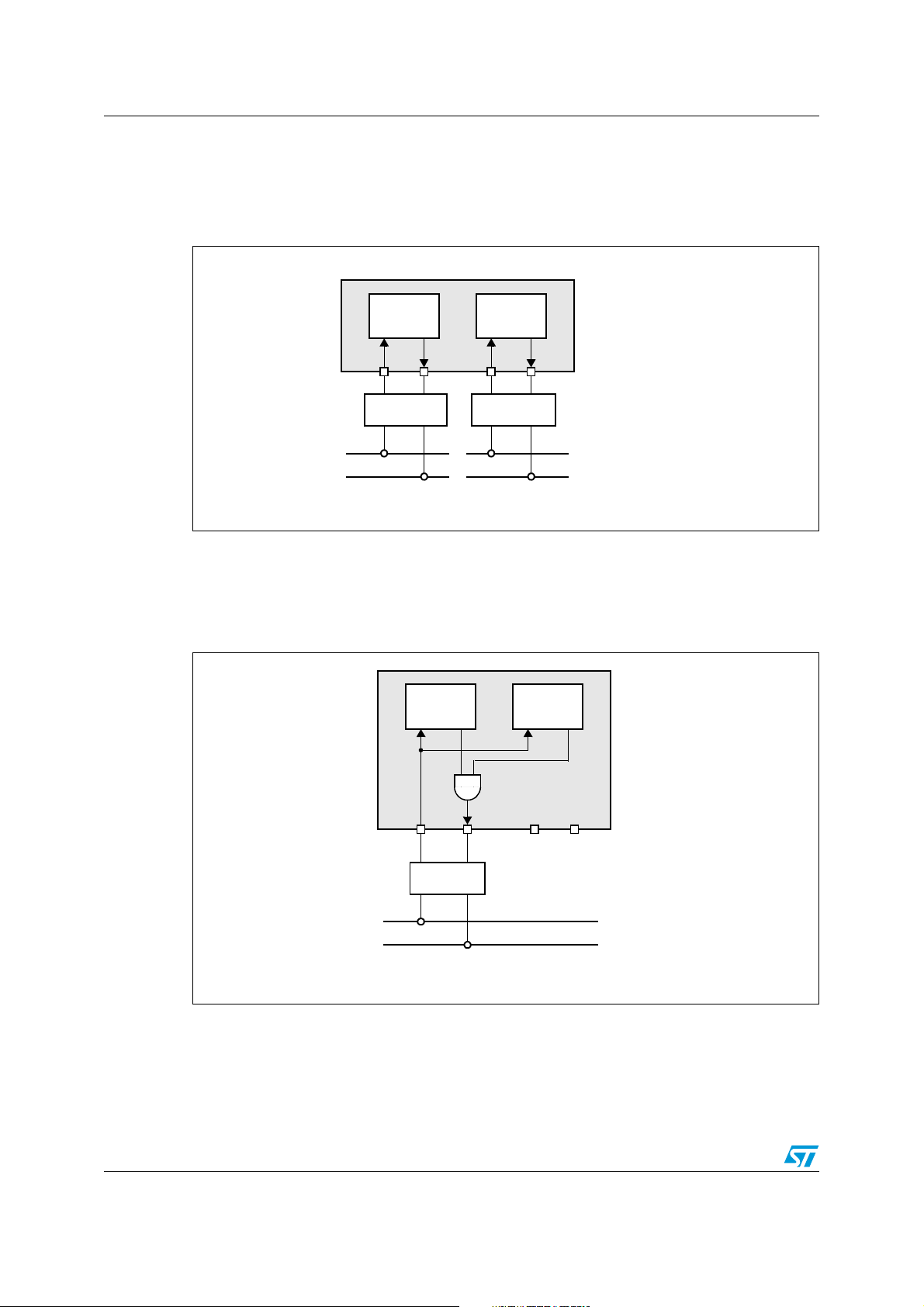

17.2 CAN bu s configurations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

18 Real time clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

19 Watchdog timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

20 System reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

20.1 Input filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

20.2 Asynchr onous reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

20.3 Synchr onous reset (warm reset) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85

20.4 Software reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91

20.5 Watchdog timer reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92

20.6 Bidi rectional reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93

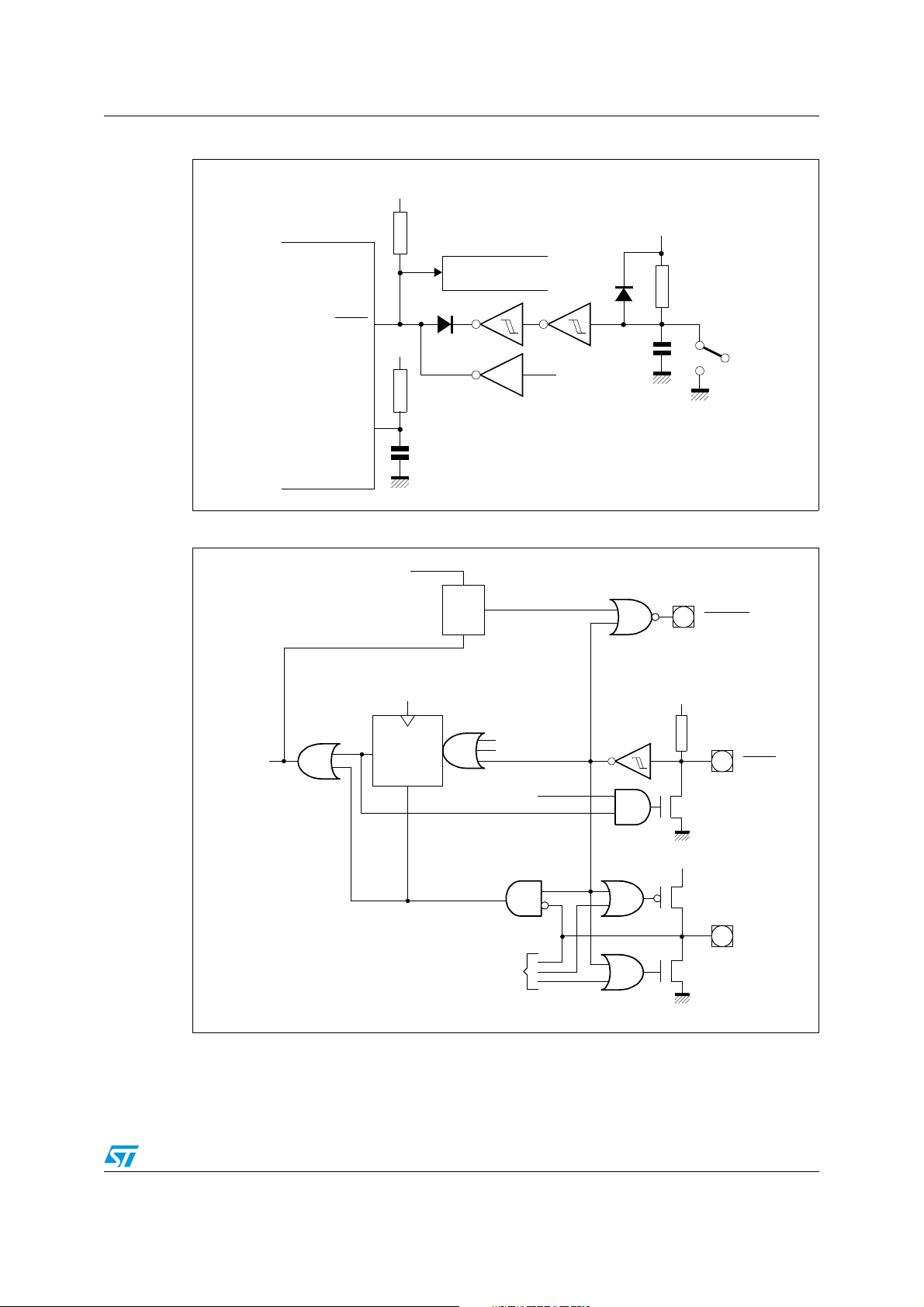

20.7 Reset circuitry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97

20.8 Reset application examples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100

20.9 Reset summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102

21 Power reduction modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105

21.1 Idle mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105

21.2 Power down mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105

4/179

ST10F273E Contents

21.2.1 Protected power down mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106

21.2.2 Interruptible power down mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106

21.3 Stand-by mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106

21.3.1 Entering stand-by mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107

21.3.2 Exiting stand-by mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108

21.3.3 Real time clock and stand-by mode . . . . . . . . . . . . . . . . . . . . . . . . . . . 108

21.3.4 Power reduction modes summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109

22 Programmable output clock divider . . . . . . . . . . . . . . . . . . . . . . . . . . 110

23 Register set . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111

23.1 Special function registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111

23.2 X-registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118

23.3 Flash registers ordered by name . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123

23.4 Identification registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123

24 Electrical characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126

24.1 Absolute maximum ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126

24.2 Recommended operating conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . 127

24.3 Power considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127

24.4 Parameter interpretation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128

24.5 DC characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129

24.6 Flash characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133

24.7 A/D converter characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134

24.7.1 Conversion timing control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135

24.7.2 A/D conversion accuracy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137

24.7.3 Total unadjusted error . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137

24.7.4 Analog reference pins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138

24.8 AC characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144

24.8.1 Test waveforms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144

24.8.2 Definition of internal timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145

24.8.3 Clock generation modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146

24.8.4 Prescaler operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146

24.8.5 Direct drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147

24.8.6 Oscillator watchdog (OWD) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147

24.8.7 Phase locked loop (PLL) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148

5/179

Contents ST10F273E

24.8.8 Voltage controlled oscillator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148

24.8.9 PLL jitter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149

24.8.10 PLL lock / unlock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151

24.8.11 Main oscillator specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 152

24.8.12 32 kHz oscillator specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153

24.8.13 External clock drive XTAL1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154

24.8.14 Memory cycle variables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155

24.8.15 External memory bus timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155

24.8.16 Multiplexed bus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 156

24.8.17 Demultiplexed bus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 162

24.8.18 CLKOUT and READY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168

24.8.19 External bus arbitration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170

24.8.20 High-speed synchronous serial interface (SSC) timing . . . . . . . . . . . . 172

25 Package information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 176

26 Revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 178

6/179

ST10F273E List of tables

List of tables

Table 1. Pin description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Table 2. Summary of IFlash address range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Table 3. Address space of the Flash module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Table 4. Flash modules sectorization (read operations). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Table 5. Flash modules sectorization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Table 6. Control register interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Table 7. Flash control register 0 low. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Table 8. Flash control register 0 high . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Table 9. Flash control register 1 low. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Table 10. Flash control register 1 high . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Table 11. Banks (BxS) and sectors (BxFy) status bits meaning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Table 12. Flash data register 0 low. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Table 13. Flash data register 0 high . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Table 14. Flash data register 1 low. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Table 15. Flash data register 1 high . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Table 16. Flash address register low . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Table 17. Flash address register high . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Table 18. Flash error register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Table 19. Flash non volatile write protection register low. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Table 20. Flash non volatile protection register high . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Table 21. Flash non volatile access protection register 0. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Table 22. Flash non volatile access protection register 1 low . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Table 23. Flash non volatile access protection register 1 high. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Table 24. Summary of access protection level. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Table 25. Flash write operations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Table 26. ST10F273E boot mode selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Table 27. Standard instruction set summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Table 28. MAC instruction set summary. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Table 29. Interrupt sources. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Table 30. X-Interrupt detailed mapping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Table 31. Trap priorities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Table 32. Compare modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

Table 33. CAPCOM timer input frequencies, resolutions and periods at 40 MHz . . . . . . . . . . . . . . . 58

Table 34. CAPCOM timer input frequencies, resolutions and periods at 64 MHz . . . . . . . . . . . . . . . 58

Table 35. GPT1 timer input frequencies, resolutions and periods at 40 MHz. . . . . . . . . . . . . . . . . . . 59

Table 36. GPT1 timer input frequencies, resolutions and periods at 64 MHz. . . . . . . . . . . . . . . . . . . 60

Table 37. GPT2 timer input frequencies, resolutions and periods at 40 MHz. . . . . . . . . . . . . . . . . . . 61

Table 38. GPT2 timer input frequencies, resolutions and periods at 64 MHz. . . . . . . . . . . . . . . . . . . 61

Table 39. PWM unit frequencies and resolutions at 40 MHz CPU clock . . . . . . . . . . . . . . . . . . . . . . 63

Table 40. PWM unit frequencies and resolutions at 64 MHz CPU clock . . . . . . . . . . . . . . . . . . . . . . 63

Table 41. ASC asynchronous baud rates by reload value and deviation errors (fCPU = 40 MHz) . . 69 Table 42. ASC asynchronous baud rates by reload value and deviation errors (fCPU = 64 MHz) . . 70 Table 43. ASC synchronous baud rates by reload value and deviation errors (fCPU = 40 MHz) . . . 70 Table 44. ASC synchronous baud rates by reload value and deviation errors (fCPU = 64 MHz) . . . 71

Table 45. Synchronous baud rate and reload values (fCPU = 40 MHz). . . . . . . . . . . . . . . . . . . . . . . 72

Table 46. Synchronous baud rate and reload values (fCPU = 64 MHz). . . . . . . . . . . . . . . . . . . . . . . 72

Table 47. WDTREL reload value (fCPU = 40 MHz) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

Table 48. WDTREL reload value (fCPU = 64 MHz) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

7/179

List of tables ST10F273E

Table 49. Reset event definition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

Table 50. Reset event. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102

Table 51. PORT0 latched configuration for the different reset events . . . . . . . . . . . . . . . . . . . . . . . 103

Table 52. Power reduction modes summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109

Table 53. List of special function registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111

Table 54. List of XBus registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118

Table 55. List of flash registers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123

Table 56. IDMANUF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124

Table 57. IDCHIP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124

Table 58. IDMEM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124

Table 59. IDPROG . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125

Table 60. Absolute maximum ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126

Table 61. Recommended operating conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127

Table 62. Thermal characteristics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128

Table 63. Product classification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128

Table 64. DC characteristics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129

Table 65. Flash characteristics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133

Table 66. Flash data retention characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134

Table 67. A/D converter characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134

Table 68. A/D converter programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136

Table 69. On-chip clock generator selections. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146

Table 70. Internal PLL divider mechanism . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148

Table 71. PLL characteristics [V

= 5V ± 10%, VSS = 0V, TA = –40°C to +125°C] . . . . . . . . . . . . 151

Table 72. Main oscillator characteristics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 152

Table 73. Main oscillator negative resistance (module) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 152

Table 74. 32 kHz oscillator characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153

Table 75. Minimum values of negative resistance (module) for 32 kHz oscillator . . . . . . . . . . . . . . 153

Table 76. External clock drive XTAL1 timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154

Table 77. Multiplexed bus timings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 156

Table 78. Demultiplexed bus timings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 162

Table 79. CLKOUT and READY

timings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168

Table 80. External bus arbitration timings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170

Table 81. SSC master mode timings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 172

Table 82. SSC slave mode timings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174

Table 83. Document revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 178

8/179

ST10F273E List of figures

List of figures

Figure 1. ST10F273E Logic symbol. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Figure 2. Pin configuration (top view) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Figure 3. Block diagram. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Figure 4. Flash structure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Figure 5. CPU block diagram (MAC unit not included) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Figure 6. MAC unit architecture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Figure 7. X-Interrupt basic structure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

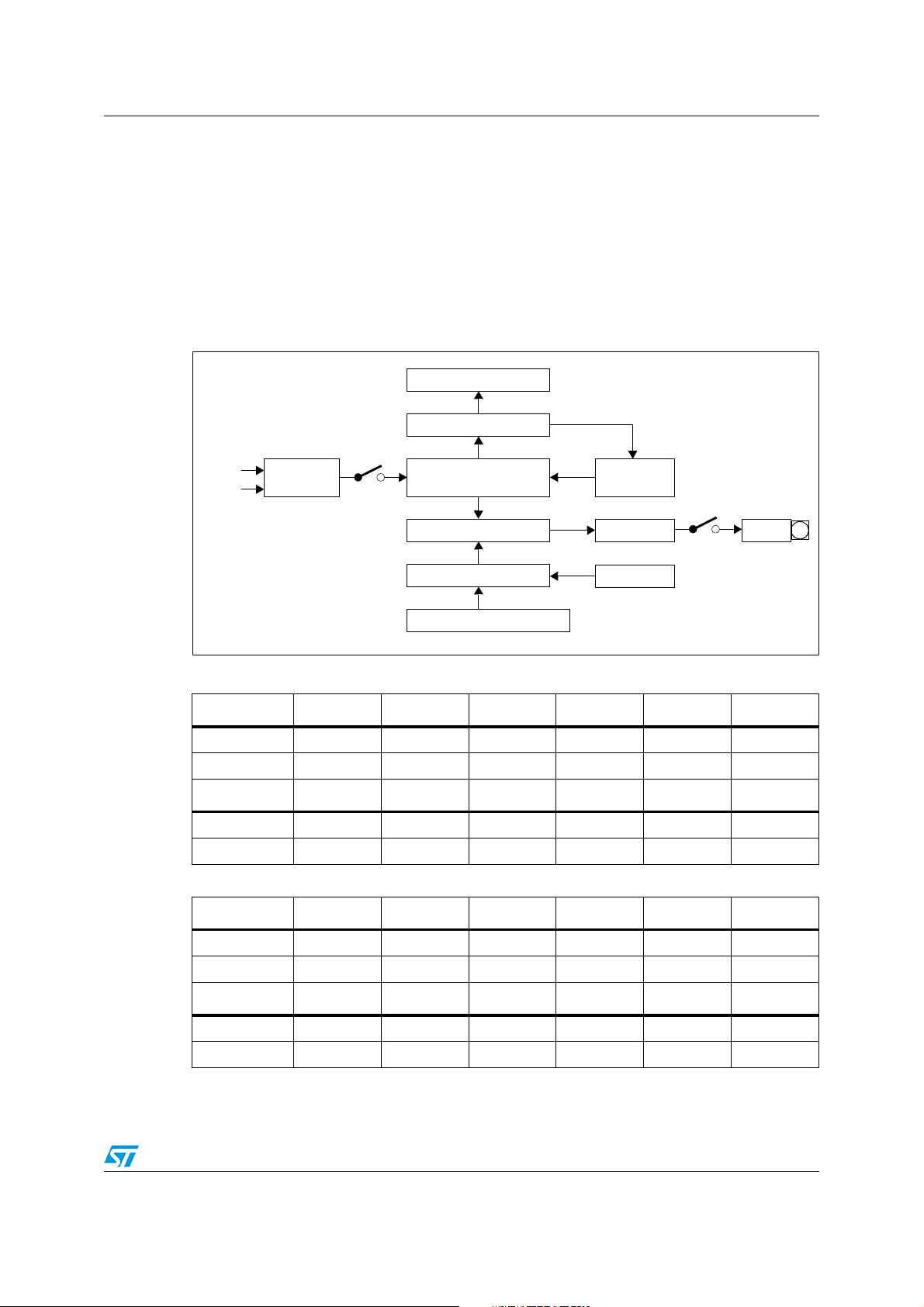

Figure 8. Block diagram of GPT1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Figure 9. Block diagram of GPT2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

Figure 10. Block diagram of PWM module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Figure 11. Connection to single CAN bus via separate CAN transceivers . . . . . . . . . . . . . . . . . . . . . 75

Figure 12. Connection to single CAN bus via common CAN transceivers. . . . . . . . . . . . . . . . . . . . . . 75

Figure 13. Connection to two different CAN buses (e.g. for gateway application). . . . . . . . . . . . . . . . 76

Figure 14. Connection to one CAN bus with internal Parallel mode enabled . . . . . . . . . . . . . . . . . . . 76

Figure 15. Asynchronous power-on RESET (EA = 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

Figure 16. Asynchronous power-on RESET (EA = 0) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

Figure 17. Asynchronous hardware RESET (EA = 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

Figure 18. Asynchronous hardware RESET (EA = 0) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85

Figure 19. Synchronous short / long hardware RESET (EA = 1). . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88

Figure 20. Synchronous short / long hardware RESET (EA = 0). . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89

Figure 21. Synchronous long hardware RESET (EA = 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90

Figure 22. Synchronous long hardware RESET (EA = 0) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91

Figure 23. SW / WDT unidirectional RESET (EA = 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92

Figure 24. SW / WDT unidirectional RESET (EA = 0) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93

Figure 25. SW / WDT bidirectional RESET (EA=1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95

Figure 26. SW / WDT bidirectional RESET (EA = 0) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96

Figure 27. SW / WDT bidirectional RESET (EA=0) followed by a HW RESET . . . . . . . . . . . . . . . . . . 97

Figure 28. Minimum external reset circuitry. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98

Figure 29. System reset circuit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99

Figure 30. Internal (simplified) reset circuitry. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99

Figure 31. Example of software or watchdog bidirectional reset (EA = 1) . . . . . . . . . . . . . . . . . . . . . 100

Figure 32. Example of software or watchdog bidirectional reset (EA = 0) . . . . . . . . . . . . . . . . . . . . . 101

Figure 33. PORT0 bits latched into the different registers after reset . . . . . . . . . . . . . . . . . . . . . . . . 104

Figure 34. External RC circuitry on RPD pin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106

Figure 35. Port2 test mode structure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132

Figure 36. Supply current versus the operating frequency (RUN and IDLE modes) . . . . . . . . . . . . . 132

Figure 37. A/D conversion characteristic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138

Figure 38. A/D converter input pins scheme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139

Figure 39. Charge sharing timing diagram during sampling phase . . . . . . . . . . . . . . . . . . . . . . . . . . 140

Figure 40. Anti-aliasing filter and conversion rate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141

Figure 41. Input/output waveforms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144

Figure 42. Float waveform . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144

Figure 43. Generation mechanisms for the CPU clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145

Figure 44. ST10F273E PLL jitter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151

Figure 45. Crystal oscillator and resonator connection diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . 152

Figure 46. 32 kHz crystal oscillator connection diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153

Figure 47. External clock drive XTAL1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154

Figure 48. External memory cycle: Multiplexed bus, with/without read/write delay, normal ALE. . . . 158

9/179

List of figures ST10F273E

Figure 49. External memory cycle: Multiplexed bus, with/without read/write delay, extended ALE. . 159 Figure 50. External memory cycle: Multiplexed bus, with/without r/w delay, normal ALE, r/w CS. . . 160 Figure 51. External memory cycle: Multiplexed bus, with/without r/w delay, extended ALE, r/w CS. 161

Figure 52. External memory cycle: Demultiplexed bus, with/without r/w delay, normal ALE. . . . . . . 164

Figure 53. Exteral memory cycle: Demultiplexed bus, with/without r/w delay, extended ALE. . . . . . 165

Figure 54. External memory cycle: Demultipl. bus, with/without r/w delay, normal ALE, r/w CS. . . . 166

Figure 55. External memory cycle: Demultiplexed bus, without r/w delay, extended ALE, r/w CS . . 167

Figure 56. CLKOUT and READY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169

Figure 57. External bus arbitration (releasing the bus) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170

Figure 58. External bus arbitration (regaining the bus) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 171

Figure 59. SSC master timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 173

Figure 60. SSC slave timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175

Figure 61. PQFP144 mechanical data and package dimension . . . . . . . . . . . . . . . . . . . . . . . . . . . . 176

Figure 62. TQFP144 mechanical data and package dimension . . . . . . . . . . . . . . . . . . . . . . . . . . . . 177

10/179

ST10F273E Introduction

1 Introduction

The ST10F273E device is a derivative of the STMicroelectronics ST10 family of 16-bit single-chip CMOS microcontrollers.

The ST10F273E combines high CPU performance (up to 32 million instructions per second) with high peripheral functionality and enhanced I/O-capabilities. It also provides on-chip high-speed single voltage Flash memory, on-chip high-speed RAM, and clock generation via PLL.

ST10F273E is processed in 0.18mm CMOS technology. The MCU core and the logic is supplied with a 5 V to 1.8 V on-chip voltage regulator. The part is supplied with a single 5 V supply and I/Os work at 5 V.

The device is upward compatible with the ST10F269 device, with the following set of differences:

Flash control interface is now based on STMicroelectronics third generation of stand-alone Flash memories (M29F400 series), with an embedded Program/Erase Controller. This completely frees up the CPU during programming or erasing the Flash.

Only one supply pin (ex DC1 in ST10F269, renamed into V18) on the QFP144 package is used for decoupling the internally generated 1.8V core logic supply. Do not connect this pin to 5.0 V external supply. Instead, this pin should be connected to a decoupling capacitor (ceramic type, typical value 10nF, maximum value 100nF).

The AC and DC parameters are modified due to a difference in the maximum CPU frequency.

A new V EA

pin assumes a new alternate functionality: it is also used to provide a dedicated power supply (see VSTBY) to maintain biased a portion of the XRAM (16 Kbytes) when the main Power Supply of the device (V off for low power mode, allowing data retention. VSTBY voltage shall be in the range 4.5 to

5.5 volts and a dedicated embedded low power voltage regulator is in charge to provide the

1.8 V for the RAM, the low-voltage section of the 32 kHz oscillator and the Real Time Clock module when not disabled. It is allowed to exceed the upper limit up to 6 V for a very short period of time during the global life of the device and exceed the lower limit down to 4 V when RTC and 32 kHz on-chip oscillator are not used.

A second SSC mapped on the XBUS is added (SSC of ST10F269 becomes here SSC0, while the new one is referred as XSSC or simply SSC1). Note that some restrictions and functional differences due to the XBUS peculiarities are present between the classic SSC and the new XSSC.

A second ASC mapped on the XBUS is added (ASC0 of ST10F269 remains ASC0, while the new one is referred as XASC or simply as ASC1). Note that some restrictions and functional differences due to the XBUS peculiarities are present between the classic ASC and the new XASC.

A second PWM mapped on the XBUS is added (PWM of ST10F269 becomes here PWM0, while the new one is referred as XPWM or simply as PWM1). Note that some restrictions and functional differences due to the XBUS peculiarities are present between the classic PWM and the new XPWM.

pin replaces DC2 of ST10F269.

and consequently the internally generated V18) is turned

An I2C interface on the XBUS is added (see X-I2C or simply I2C interface).

11/179

Introduction ST10F273E

CLKOUT function can output either the CPU clock (like in ST10F269) or a software programmable prescaled value of the CPU clock.

On-chip RAM memory and FLASH size have been increased. PLL multiplication factors have been adapted to new frequency range. A/D Converter is not fully compatible versus ST10F269 (timing and programming model).

Formula for the conversion time is still valid, while the sampling phase programming model is different. Besides, additional 8 channels are available on P1L pins as alternate function: The accuracy reachable with these extra channels is reduced with respect to the standard Port5 channels.

External Memory bus is affected by limitations on maximum speed and maximum capacitance load: ST10F273E is not able to address an external memory at 64 MHz with 0 wait states.

XPERCON register bit mapping modified according to new peripherals implementation (not fully compatible with ST10F269).

Bondout chip for emulation (ST10R201) cannot achieve more than 50MHz at room temperature (so no real time emulation possible at maximum speed).

Input section characteristics are different. The threshold programmability is extended to all port pins (additional XPICON register); it is possible to select standard TTL (with up to 400mV of hysteresis) and standard CMOS (with up to 750mV of hysteresis).

Output transition is not programmable. CAN module is enhanced: ST10F273E implements two C-CAN modules, so the

programming model is slightly different. Besides, the possibility to map in parallel the two CAN modules is added (on P4.5/P4.6).

On-chip main oscillator input frequency range has been reshaped, reducing it from 1 to 25 MHz down to 4 to 8 MHz. This is a low power oscillator amplifier, that allows a power consumption reduction when Real Time Clock is running in Power down mode, using as refere nce t he on-c hi p main osci ll ator clo c k. Wh en th is on-c hip a mpl ifi er is us ed as reference for Real Time Clock module, the Power-down consumption is dominated by the consumption of the oscillator amplifier itself.

A second on-chip oscillator amplifier circuit (32 kHz) is implemented for low power modes: it can be used to provide the reference to the Real Time Clock counter (either in Power down or Stand-by mode). Pin XTAL3 and XTAL4 replace a couple of V

DD/VSS

pins of ST10F269.

12/179

ST10F273E Introduction

Figure 1. ST10F273E Logic symbol

VDD VSS

V18

XTAL1 XTAL2 XTAL3 XTAL4

RSTIN

RSTOUT

VAREF

VAGND

/ VSTBY

READY

WR / WRL

Port 5

16-bit

NMI

ALE

ST10F273E

Port 0 16-bit

Port 1 16-bit

Port 2 16-bit

Port 3 15-bit

Port 4 8-bit

Port 6 8-bit

Port 7 8-bit

Port 8 8-bit

RPD

13/179

Pin data ST10F273E

2 Pin data

Figure 2. Pin configuration (top view)

(*)

RSTOUT

RSTIN

VSS

XTAL1

XTAL2

VDD

P1H.7 / A15 / CC27I

P1H.6 / A14 / CC26I

P1H.5 / A13 / CC25I

P1H.4 / A12 / CC24I

P1H.3 / A11

P1H.2 / A10

P1H.1 / A9

P1H.0 / A8

VSS

VDD

P1L.7 / A7 / AN23

P1L.6 / A6 / AN22

P1L.5 / A5 / AN21

P1L.4 / A4 / AN20

P1L.3 / A3 / AN19

P1L.2 / A2 / AN18

P1L.1 / A1 / AN17

P1L.0 / A0 / AN16

P0H.7 / AD15

P0H.6 / AD14

P0H.5 / AD13

P0H.4 / AD12

P0H.3 / AD11

P0H.2 / AD10

P0H.1 / AD9

VSS

P6.0 / CS0 P6.1 / CS1 P6.2 / CS2 P6.3 / CS3

P6.4 / CS4 P6.5 / HOLD / SCLK1 P6.6 / HLDA

/ MTSR1

P6.7 / BREQ / MRST1 P8.0 / XPOUT0 / CC16IO P8.1 / XPOUT1 / CC17IO P8.2 / XPOUT2 / CC18IO P8.3 / XPOUT3 / CC19IO

P8.4 / CC20IO P8.5 / CC21IO

P8.6 / RxD1 / CC22IO

P8.7 / TxD1 / CC23IO

VDD

VSS P7.0 / POUT0 P7.1 / POUT1 P7.2 / POUT2 P7.3 / POUT3

P7.4 / CC28IO P7.5 / CC29IO P7.6 / CC30IO P7.7 / CC31IO

P5.0 / AN0 P5.1 / AN1 P5.2 / AN2 P5.3 / AN3 P5.4 / AN4 P5.5 / AN5 P5.6 / AN6 P5.7 / AN7 P5.8 / AN8 P5.9 / AN9

XTAL4

XTAL3

NMI

144

143

142

141

140

139

138

137

136

135

134

133

132

131

130

129

128

127

126

125

124

123

122

121

120

119

118

117

116

P2.11 / CC11IO / EX3IN

P2.12 / CC12IO / EX4IN

P2.13 / CC13IO / EX5IN

P2.14 / CC14IO / EX6IN

115

P3.0 / T0IN

P3.1 / T6OUT

P2.15 / CC15IO / EX7IN / T7IN

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36

3738394041424344454647484950515253545556575859606162636465666768697071

VAREF

VAGND

P5.10 / AN10 / T6EUD

VSS

P5.12 / AN12 / T6IN

P5.13 / AN13 / T5IN

P5.11 / AN11 / T5EUD

P5.14 / AN14 / T4EUD

P5.15 / AN15 / T2EUD

VDD

P2.0 / CC0IO

P2.1 / CC1IO

ST10F273E

P2.2 / CC2IO

P2.3 / CC3IO

P2.4 / CC4IO

P2.5 / CC5IO

P2.6 / CC6IO

P2.7 / CC7IO

VSS

V18

P2.8 / CC8IO / EX0IN

P2.9 / CC9IO / EX1IN

P2.10 / CC10IO / EX2IN

114

P3.2 / CAPIN

113

P3.3 / T3OUT

112

P3.4 / T3EUD

VDD

111

110

109 108

P0H.0 / AD8

107

P0L.7 / AD7

106

P0L.6 / AD6

105

P0L.5 / AD5

104

P0L.4 / AD4

103

P0L.3 / AD3

102

P0L.2 / AD2

101

P0L.1 / AD1

100

P0L.0 / AD0

/ VSTBY

EA ALE

READY

WR/WRL

VSS

VDD

P4.7 / A23 / CAN2_TxD / SDA

P4.6 / A22 / CAN1_TxD / CAN2_TxD

P4.5 / A21 / CAN1_RxD / CAN2_RxD

P4.4 / A20 / CAN2_RxD / SCL

P4.3 / A19

P4.2 / A18

P4.1 / A17

P4.0 / A16

RPD

VSS

VDD

P3.15 / CLKOUT

P3.13 / SCLK0

P3.12 / BHE

P3.11 / RxD0

P3.10 / TxD0

P3.9 / MTSR0

P3.8 / MRST0

P3.7 / T2IN

P3.6 / T3IN

73 72

VSS

VDD

P3.5 / T4IN

/ WRH

14/179

ST10F273E Pin data

Table 1. Pin description

Symbol Pin Type Function

8-bit bidirectional I /O port, bit-wise prog ra mmab le f or input or o utput via d irection bit. Programming an I/O pin as input forces the corresponding output driver to

1 - 8 I/O

high impedance state. Port 6 outputs can be configured as push-pull or open drain drivers. The input threshold of Port 6 is selectable (TTL or CMOS). The following Port 6 pins have alternate functions:

1OP6.0CS0

Chip select 0 output

... ... ... ... ...

P6.0 - P6.7

5OP6.4CS4

IP6.5HOLD

Chip select 4 output External master hold request input

I/O SCLK1 SSC1: master clock output / slave clock input

O P6.6 HLDA

Hold acknowledge output

I/O MTSR1 SSC1: master-transmitter / slave-receiver O/I

OP6.7 BREQ

Bus request output

I/O MRST1 SSC1: master-receiver / slave-transmitter I/O

8-bit bidirectional I /O port, bit-wise prog ra mmab le f or input or o utput via d irection bit. Programming an I/O pin as input forces the corresponding output driver to

9-16 I/O

high impedance state. Port 8 outputs can be configured as push-pull or open drain drivers. The input threshold of Port 8 is selectable (TTL or CMOS). The following Port 8 pins have alternate functions:

I/O P8.0 CC16IO CAPCOM2: CC16 capture input / compare output

O XPWM0 PWM1: channel 0 output

P8.0 - P8.7

... ... ... ... ...

I/O P8.3 CC19IO CAPCOM2: CC19 capture input / compare output

O XPWM0 PWM1: channel 3 output 13 I/O P8.4 CC20IO CAPCOM2: CC20 capture input / compare output 14 I/O P8.5 CC21IO CAPCOM2: CC21 capture input / compare output

I/O P8.6 CC22IO CAPCOM2: CC22 capture input / compare output

I/O RxD1 ASC1: Data input (Asynchronous) or I/O (Synchronous) I/O P8.7 CC23IO CAPCOM2: CC23 capture input / compare output

O TxD1 ASC1: Clock / Data output (Asynchronous/Synchronous)

15/179

Pin data ST10F273E

Table 1. Pin description (continued)

Symbol Pin Type Function

8-bit bidirectional I /O port, bit-wise prog ra mmab le f or input or o utput via d irection bit. Programming an I/O pin as input forces the corresponding output driver to

P7.0 - P7.7

19-26 I/O

19 O P7.0 POUT0 PWM0: channel 0 output

... ... ... ... ...

22 O P7.3 POUT3 PWM0: channel 3 output 23 I/O P7.4 CC28IO CAPCOM2: CC28 capture input / compare output

... ... ... ... ...

26 I/O P7.7 CC31IO CAPCOM2: CC31 capture input / compare output

27-36 39-44

high impedance state. Port 7 outputs can be configured as push-pull or open drain drivers. The input threshold of Port 7 is selectable (TTL or CMOS). The following Port 7 pins have alternate functions:

16-bit input-only port with Schmitt-Trigger characteristics. The pins of Port 5 can be the analog input channels (up to 16) f or the A/D co nv erter , where P5.x equa ls

ANx (Analog input channel x), or they are timer inputs. The input threshold of

Port 5 is selectable (TTL or CMOS). The following Port 5 pins have alternate functions:

P5.0 - P5.9

P5.10 - P5.15

P2.0 - P2.7

P2.8 - P2.15

39 I P5.10 T6EUD GPT2: timer T6 external up/down control input 40 I P5.11 T5EUD GPT2: timer T5 external up/down control input 41 I P5.12 T6IN GPT2: timer T6 count input 42 I P5.13 T5IN GPT2: timer T5 count input 43 I P5.14 T4EUD GPT1: timer T4 external up/down control input 44 I P5.15 T2EUD GPT1: timer T2 external up/down control input

16-bit bidirectional I/O port, bit-wise programmable for input or output via

47-54 57-64

47 I/O P2.0 CC0IO CAPCOM: CC0 capture input/compare output

... ... ... ... ...

54 I/O P2.7 CC7IO CAPCOM: CC7 capture input/compare output 57 I/O P2.8 CC8IO CAPCOM: CC8 capture input/compare output

... ... ... ... ...

64 I/O P2.15 CC1 5IO CAPCOM: CC15 capture input/compare output

direction bit. Programming an I/O pin as input forces the corresponding output

I/O

driver to high imped anc e st ate. Port 2 outputs can be configured as pu sh -pul l or open drain drivers. The input threshold of Port 2 is selectable (TTL or CMOS). The following Port 2 pins have alternate functions:

I EX0IN Fast external interrupt 0 input

I EX7IN Fast external interrupt 7 input I T7IN CAPCOM2: timer T7 count input

16/179

ST10F273E Pin data

Table 1. Pin description (continued)

Symbol Pin Type Function

15-bit (P3.14 is missing ) bidirectional I/O port, bit-wise progra mmable for input or 65-70, 73-80,

65 I P3.0 T0IN CAPCOM1: timer T0 coun t input 66 O P3.1 T6OUT GPT2: timer T6 toggle latch output 67 I P3.2 CAPIN GPT2: register CAPREL capture input 68 O P3.3 T3OUT GPT1: timer T3 toggle latch output 69 I P3.4 T3EUD GPT1: timer T3 external up/down c ontrol input

I/O

output via direction bit. Programming an I/O pin as input fo rces the

I/O

corresponding output driver to high impedance state. Port 3 outputs can be

I/O

configured as push-pull or open drain drivers. The input threshold of Port 3 is

selectable (TTL or CMOS). The following Port 3 pins have alternate functions:

P3.0 - P3.5

P3.6 - P3.13,

P3.15

70 I P3.5 T4IN GPT1; timer T4 input for count/gate/reload/capture 73 I P3.6 T3IN GPT1: timer T3 count/gate input 74 I P3.7 T2IN GPT1: timer T2 input for count/gate/reload / capture 75 I/O P3.8 MRST0 SSC0: master-receiver/slave-transmitter I/O 76 I/O P3.9 MTSR0 SSC0: master-transmitter/slave-receiver O/I 77 O P3.10 TxD0 ASC0: clock / data output (asynchronous/synchronous) 78 I/O P3.11 RxD0 ASC0: data input (asynchronous) or I/O (synchronous) 79 O P3.12 BHE

WRH

80 I/O P3.13 SCLK0 SSC0: master clock output / slave clock input

81 O P3.15 CLKOUT

External memory high byte enable si gna l External memory high byte write strobe

System clock output (programmable divider on CPU clock)

17/179

Pin data ST10F273E

Table 1. Pin description (continued)

Symbol Pin Type Function

Port 4 is an 8-bit bidirectional I/O port. It is bit-wise programmable for input or

output via direction bit. Programming an I/O pin as input fo rces the

corresponding output driver to high impedance state. The input threshold is

85-92 I/O

85 O P4.0 A16 Segment address line 86 O P4.1 A17 Segment address line 87 O P4.2 A18 Segment address line 88 O P4.3 A19 Segment address line 89 O P4.4 A20 Segment address line

selectable (TTL or CMOS). Port 4.4, 4.5, 4.6 and 4.7 outputs can be configured

as push-pull or open drain drivers.

In case of an external bus configuration, Port 4 can be used to output the

segment address lines:

P4.0 –P4.7

90 O P4.5 A21 Segment address line

91 O P4.6 A22 Segment address line

92 O P4.7 A23 Most significant segment address line

/WRL 96 O

READY/

READY

95 O

97 I

I CAN2_RxD CAN2: receive data input

I/O SCL

I2C Interface: serial clock

I CAN1_RxD CAN1: receive data input I CAN2_RxD CAN2: receive data input

O CAN1_TxD CAN1: transmi t data outp ut O CAN2_TxD CAN2: transmi t data outp ut

O CAN2_TxD CAN2: transmi t data outp ut

I/O SDA

External memory read strobe. RD

I2C Interface: serial data

is activated for every external instruction or

data read access.

External memory write strobe. In WR

external data write access. In WRL

-mode this pin is activated for every

mode this pin is activated for low byte data write accesses on a 16-bit bus, and for every data write access on an 8-bit bus. See WRCFG in the SYSCON register for mode selection.

Ready input. The active level is programmable. When the ready function is enabled, the selected inactive level at this pin, during an external memory access, will force the insertion of waitstate cycles until the pin returns to the selected active level.

ALE 98 O

Address latch enable output. In case of use of external addressing or of multiplexed mode, this signal is the latch command of the address lines.

18/179

ST10F273E Pin data

Table 1. Pin description (continued)

Symbol Pin Type Function

External access enable pin. A low level applied to this pin during and after Reset forces the ST10F273E to

start the program from the external memory space. A high level forces ST10F273E to start in the internal memory space. This pin is also used (when

turned

EA / V

STBY

P0L.0 -P0L.7,

P0H.0

P0H.1 - P0H.7

99 I

100-107,

108,

111-117

Stand-by mode is entere d, th at i s ST1 0F2 73E u nde r res et a nd m ai n V off) to bias the 32 kHz oscillator amplifier circuit and to provide a reference voltage for the low-power embedded voltage regulator which generates the internal 1.8V supply for the RTC module (when not disabled) and to retain data inside the Stand-by portion of the XRAM (16Kbyte). It can range fro m 4. 5 to 5.5V (6V fo r a re duc ed amount of time during t he device life, 4.0V when RTC and 32 kHz on-chip oscillator amplifier are turned off). In running mode, this pin can be tied low during reset without affecting 32 kHz oscillator, RTC and XRAM activities, since the presence of a stable V guarantees the proper biasing of all those modules.

Two 8-bit bidirectional I/O ports P0L and P0H, bit-wise progr ammab le f or input or output via direction bit. Programming an I/O pin as input fo rces the corresponding output driver to high impedance state. The input threshold of Port 0 is selectable (TTL or CMOS). In case of an external bus configuration, PORT0 serves as the address (A) and as the address / data (AD) b us in multipl e xe d b us modes and as the data (D) bu s in demultiplexed bus modes.

Demultiplexed bus modes Data path width 8-bit 16-bi

I/O

P0L.0 – P0L.7: D0 – D7 D0 - D7 P0H.0 – P0H.7: I/O D8 - D15

P1L.0 - P1L.7

P1H.0 - P1H.7

Multiplexed bus modes Data path width 8-bit 16-bi

P0L.0 – P0L.7: AD0 – AD7 AD0 - AD7 P0H.0 – P0H.7:

A8 – A15 AD8 - AD15

Two 8-bit bidirectional I/O ports P1L and P1H, bit-wise progr ammab le f or input or output via direction bit. Programming an I/O pin as input fo rces the corresponding output driver to high impedance state. PORT1 is used as the 16bit address bus (A) in demultiplexed bus modes: if at least BUSCONx is

118-125 128-135

configured such the demultiplexed mode is selected, the pis of PORT1 are not available for general purpose I/O function. The input threshold of Port 1 is

I/O

selectable (TTL or CMOS). The pins of P1L also serve as the additional (up to 8) analog input channels for

the A/D converter, where P1L.x equals ANy (Analog input channel y, where y = x + 16). This additional function have higher priority on demultiplexed bus function. The following PORT1 pins have alternate functions:

132 I P1H.4 CC24IO CAPCOM2: CC24 capture input 133 I P1H.5 CC25IO CAPCOM2: CC25 capture input 134 I P1H.6 CC26IO CAPCOM2: CC26 capture input 135 I P1H.7 CC27IO CAPCOM2: CC27 capture input

19/179

Pin data ST10F273E

Table 1. Pin description (continued)

Symbol Pin Type Function

XTAL1 138 I XTAL1 Main oscillator amplifier circuit and/or external clock input. XTAL2 137 O XTAL2 Main oscillator amplifier circuit output.

To clock the device from an external source, drive XTAL1 while leaving XTAL2 unconnected. Minim um an d m axi m um high / low and rise / fall times specified in the AC Characteristics must be observed.

XTAL3 143 I XTAL3 32 kHz oscillator amplifier circuit input XTAL4 144 O XTAL4 32 kHz oscillator amplifier circuit output

When 32 kHz oscillator amplifier is not used, to avoid spurious consumption, XTAL3 shall be tied to groun d whil e XTAL4 shall be left open. Bes ides , bit OF F32 in RTCCON register shall be set. 32 kHz oscillator can only be driven by an external crystal, and not by a different clock source.

Reset Input with CMOS Schmitt-Trigger characteristics. A low le v e l at this pi n f or a specified duration while the oscillator is running resets the ST10F273E. An

RSTIN

RSTOUT

NMI

140 I

141 O

142 I

internal pull-up resistor permits po we r-on reset usi ng only a capa citor co nnected to VSS. In bidirectional reset mode (enabled by setting bit BDRSTEN in SYSCON register), the RSTIN

line is pulled low for the duration of the internal

reset sequence. Internal Reset Indication Output. This pin is driven to a low level during

hardware, so ftwa re or w atch dog tim er reset .

RSTOUT

remains low unti l the EINIT

(end of initialization) instruction is executed. Non-Maskable Interrupt In put. A high to lo w tr ansition at this pin caus es the CPU

to vector to the NMI trap routin e. If bit PWDCFG = ‘0’ in SYSCON register, when the PWRDN (power down) instruction is exe cut ed, the NMI order to force the ST10F273E to go into power down mode. If NMI

pin must be low in

is high and PWDCFG =’0’, when PWRDN is e x ecuted, the part will continue to run in normal mode. If not used, pin NMI

should be pulled high externally.

AREF

AGND

RPD 84 -

37 - A/D converter reference voltage and analog supply 38 - A/D converter reference and analog ground

Timing pin for the return from interruptible power down mode and synchronous / asynchronous reset selection.

17, 46, 72,82,93, 109, 126,

136

Digital supply voltage = + 5V during normal operation, idle and power down

modes. It can be turned off when Stand-by RAM mode is selected.

18,45, 55,71,

83,94,

- Digital ground

110, 127,

139

56 -

1.8V decoupling pin: a decoupling capacitor (typical value of 10nF, max 100nF) must be connected between this pin and nearest VSS pin.

20/179

ST10F273E Functional description

3 Functional description

The architecture of the ST10F273E combines advantages of both RISC and CISC processors and an advanced peripheral subsystem. The block diagram gives an overview of the different on-chip components and the high bandwidth internal bus structure of the ST10F273E.

Figure 3. Block diagram

IFlash

512K

CPU-core and MAC unit

IRAM

32K (16K

XCAN1

XRAM (PEC)

XRAM STBY)

XRTC

XI2C

Port 0

Port 1Port 4

Port 6 Port 5 81615 8 8

16 16

XCAN2

External bus

XPWM

XASC

XSSC

controller

16 16

Interrupt controller

10-bit ADC

ASC0

GPT1 / GPT2

BRG BRG

Port 3 Port 7 Port 8

SSC0

PEC

PWM

CAPCOM2

Watchdog

Oscillator

32 kHz

oscillator

PLL

5V-1.8V

voltage

regulator

CAPCOM1

Port 2

21/179

Memory organization ST10F273E

4 Memory organization

The memory space of the ST10F273E is configured in a unified memory architecture. Code memory, data memory , registers and I/O ports are organized within the same linear address space of 16 Mbytes. The entire memory space can be accessed Byte wise or Word wise. Particular portions of the on-chip memory have additionally been made directly bit addressable.

IFlash: 512 Kbytes of on-chip Flash memory. It is divided in 10 blocks (B0F0...B0F9) of the Bank 0 and two blocks of Bank 1 (B1F0, B1F1): read-while-write operations inside the same Bank are not allowed. When Bootstrap mode is selected, the Test-Flash Block B0TF (8 Kbyte) appears at address 00’0000h: refer to

page 25

for more details on memory mapping in boot mode. The summary of address range

for IFlash is the following:

Table 2. Summary of IFlash address range

Blocks User mode Size

B0TF Not visible 8 K B0F0 00’0000h - 00’1FFFh 8 K

Chapter 5: Internal Flash memory on

B0F1 00’2000h - 00’3FFFh 8 K B0F2 00’4000h - 00’5FFFh 8 K B0F3 00’6000h - 00’7FFFh 8 K B0F4 01’8000h - 01’FFFFh 32K B0F5 02’0000h - 02’FFFFh 64K B0F6 03’0000h - 03’FFFFh 64K B0F7 04’0000h - 04’FFFFh 64K B0F8 05’0000h - 05’FFFFh 64K B0F9 06’0000h - 06’FFFFh 64K B1F0 07’0000h - 07’FFFFh 64K B1F1 08’0000h - 08’FFFFh 64K

IRAM: 2 Kbytes of on-chip internal RAM (dual-port) is provided as a storage for data, system stack, general purpose register banks and code. A register bank is 16 Wordwide (R0 to R15) and / or Bytewide (RL0, RH0, …, RL7, RH7) general purpose registers group.

XRAM: 32 K + 2 Kbytes of on-chip extension RAM (single port XRAM) is provided as a storage for data, user stack and code.

The XRAM is divided into two areas, the first 2 Kbytes named XRAM1 and the second 32 Kbytes named XRAM2, connected to the internal XBUS and are accessed like an external memory in 16-bit demultiplexed bus-mode without wait state or read/write delay (31.25ns access at 64 MHz CPU clock). Byte and Word accesses are allowed.

The XRAM1 address range is 00’E000h - 00’E7FFh if XPEN (bit 2 of SYSCON register), and XRAM1EN (bit 2 of XPERCON register) are set. If XRAM1EN or XPEN is cleared, then any access in the address range 00’E000h - 00’E7FFh will be directed to external memory

22/179

ST10F273E Memory organization

interface, using the BUSCONx register corresponding to address matching ADDRSELx register.

The XRAM2 address range is F’0000h-F’7FFFFh if XPEN (bit 2 of SY SCON register), and XRAM2EN (bit 3 of XPERCON register) are set. If bit XPEN is cleared, then any access in the address range programmed for XRAM2 will be directed to external memory interface, using the BUSCONx register corresponding to address matching ADDRSELx register.

The lower portion of the XRAM2 (address range F’0000h-F’3FFFFh) represents also the Stand-by RAM, which can be maintained biased through EA V

is turned off.

/ VSTBY pin when main supply

As the XRAM appears like external memory, it cannot be used as system stack or as register banks. The XRAM is not provided for single bit storage and therefore is not bit addressable.

SFR/ESFR: 1024 bytes (2 x 512 bytes) of address space is reserved for the special function register areas. SFRs are Wordwide registers which are used to control and to monitor the function of the different on-chip units.

CAN1: Address range 00’EF00h - 00’EFFFh is reserved for the CAN1 Module access. The CAN1 is enabled by setting XPEN bit 2 of the SYSCON register and by setting CAN1EN bit 0 of the XPERCON register. Accesses to the CAN Module use demultiplexed addresses and a 16-bit data bus (only word accesses are possible). Two wait states give an access time of 62.5ns at 64 MHz CPU clock. No tri-state wait states are used.

CAN2: Address range 00’EE00h - 00’EEFFh is reserved for the CAN2 Module access. The CAN2 is enabled by setting XPEN bit 2 of the SYSCON register and by setting CAN2EN bit 1 of the new XPERCON register. Accesses to the CAN Module use demultiplexed addresses and a 16-bit data bus (only word accesses are possible). Two wait states give an access time of 62.5ns at 64 MHz CPU clock. No tri-state wait states are used.

If one or the two CAN modules are used, Port 4 cannot be programmed to output all eight segment address lines. Thus, only four segment address lines can be used, reducing the external memory space to 5 Mbytes (1 Mbyte per CS line).

RTC: Address range 00’ED00h - 00’EDFFh is reserved for the RTC Module access. The RTC is enabled by setting XPEN bit 2 of the SYSCON register and bit 4 of the XPERCON register. Accesses to the RTC Module use demultiplexed addresses and a 16-bit data bus (only word accesses are possible). T w o waitstates give an access time of 62.5ns at 64 MHz CPU clock. No tristate waitstate is used.

PWM1: Address range 00’EC00h - 00’ECFFh is reserved for the PWM1 Module access. The PWM1 is enabled by setting XPEN bit 2 of the SYSCON register and bit 6 of the XPERCON register. Accesses to the PWM1 Module use demultiplexed addresses and a 16bit data bus (only word accesses are possible). Two waitstates give an access time of

62.5ns at 64MHz CPU clock. No tristate waitstate is used. Only word access is allowed. ASC1: Address range 00’E900h - 00’E9FFh is reserved for the ASC1 Module access. The

ASC1 is enabled by setting XPEN bit 2 of the SYSCON register and bit 7 of the XPERCON register. Accesses to the ASC1 Module use demultiplexed addresses and a 16-bit data bus (only word acce sses ar e po ssib l e). Two wa its tate s gi v e an acc es s tim e of 6 2. 5 ns a t 64 MHz CPU clock. No tristate waitstate is used.

SSC1: Address range 00’E800h - 00’E8FFh is reserved for the SSC1 Module access. The SSC1 is enabled by setting XPEN bit 2 of the SYSCON register and bit 8 of the XPERCON register. Accesses to the SSC1 Module use demultiplexed addresses and a 16-bit data bus

23/179

Memory organization ST10F273E

(only word accesses are possible). T w o waitstates give an access time of 62.5ns at 64 MHz CPU clock. No tristate waitstate is used.

I2C: Address range 00’EA00h - 00’EAFFh is reserved for the I2C Module access. The I2C is enabled by setting XPEN bit 2 of the SYSCON register and bit 9 of the XPERCON register. Accesses to the I2C Module use demultiplexed addresses and a 16-bit data bus (only word accesses are possible). T wo w aitstates give an access time of 62.5ns at 64 MHz CPU clock. No tristate waitstate is used.

X-Miscellaneous: Address range 00’EB00h - 00’EBFFh is reserved for the access to a set of XBUS additional features. They are enabled by setting XPEN bit 2 of the SYSCON register and bit 10 of the XPERCON register. Accesses to this additional features use demultiplexed addresses and a 16-bit data bus (only word accesses are possible). Two waitstates give an access time of 62.5ns at 64 MHz CPU clock. No tristate waitstate is used. The following set of features are provided:

● CLKOUT programmable divider

● XBUS interrupt management registers

● ADC multiplexing on P1L register

● Port1L digital disable register for extra ADC channels

● CAN2 multiplexing on P4.5/P4.6

● CAN1-2 main clock prescaler

● Main voltage regulator disable for Power-down mode

● TTL / CMOS threshold selection for Port0, Port1 and Port5.

In order to meet the needs of designs where more memory is required than is provided on chip, up to 16 Mbytes of external memory can be connected to the microcontroller.

Visibility of XBUS peripherals

In order to keep the ST10F273E compatible with the ST10F168 / ST10F269, the XBUS peripherals can be selected to be visible on the external address / data bus. Different bits for X-peripheral enabling in XPERCON register must be set. If these bits are cleared before the global enabling with XPEN bit in SYSCON register, the corresponding address space, port pins and interrupts are not occupied by the peripherals, thus the peripheral is not visible and not available. Refer to

Chapter 23: Register set on page 111

24/179

ST10F273E Internal Flash memory

5 Internal Flash memory

5.1 Overview

The on-chip Flash is composed by one matrix module divided in two banks that can be read and modified indipendently one of the other: one bank can be read while another bank is under modification. Bank 0 is 384 Kbytes wide, Bank 1 is 128 Kbytes wide.

This module is on ST10 Internal bus, so it is called IFlash.

Figure 4. Flash structure

IFlash (Module I)

Bank 1: 128 Kbyte

program memory

Bank 0: 384 Kbyte

program memory

8 Kbyte test-Flash

I-BUS interface

The programming operations of the flash are managed by an embedded Flash Program/Erase Controller (FPEC). The High Voltages needed for Program/Erase operations are internally generated.

The Data bus is 32-bit wide for fetch accesses to IFlash, while it is 16-bit wide for read accesses to IFlash. Read/write accesses to IFlash Control Registers area are 16-bit wide.

5.2 Functional description

Control Section

HV and Ref.

generator

Program/erase

controller

Flash control

registers

X-BUS interface

5.2.1 Structure

Following table shows the Address space reserved to the Flash module.

Table 3. Address space of the Flash module

IFlash sectors 0x00 0000 to 0x08 FFFF 512 Kbytes Registers and Flash internal reserved area 0x0E 0000 to 0x0E FFFF 64 Kbytes

Description Addresses Size

25/179

Internal Flash memory ST10F273E

5.2.2 Modules structure

The IFlash module is composed by 2 banks: (Bank 0) contains 384 Kbytes of Program Memory divided in 10 sectors (B0F0...B0F7), Bank 0 contains also a reserved sector named Test-Flash. Bank 1 contains 128 Kbytes of Program Memory or Parameter divided in two sectors (B1F0, B1F1, 64 Kbytes each). Addresses from 0x0E 0000 to 0x0E FFFF are reserved for the Control Register Interface and other internal service memory space used by the Flash Program/Erase controller.

The following tables show the memory mapping of the Flash when it is accessed in read mode ( or erase mode ( the first four banks are remapped into code segment 1 (same as obtained setting bit ROMS1 in SYSCON register).

Table 4. Flash modules sectorization (read operations)

Table 4: Flash modules sectorization (read operations)

Table 5: Flash modules sectorization

Bank Description Addresses Size ST10 Bus size

Bank 0 Flash 0 (B0F0) 0x0000 0000 - 0x0000 1FFF 8 KB Bank 0 Flash 1 (B0F1) 0x0000 2000 - 0x0000 3FFF 8 KB Bank 0 Flash 2 (B0F2) 0x0000 4000 - 0x0000 5FFF 8 KB Bank 0 Flash 3 (B0F3) 0x0000 6000 - 0x0000 7FFF 8 KB

): Note that with this second mapping,

) and when accessed in write

Bank 0 Flash 4 (B0F4) 0x0001 8000 - 0x0001 FFFF 32 KB Bank 0 Flash 5 (B0F5) 0x0002 0000 - 0x0002 FFFF 64 KB

32-bit (I-BUS)

Bank 0 Flash 6 (B0F6) 0x0003 0000 - 0x0003 FFFF 64 KB Bank 0 Flash 7 (B0F7) 0x0003 0000 - 0x0003 FFFF 64 KB Bank 0 Flash 8 (B0F8) 0x0004 0000 - 0x0004 FFFF 64 KB Bank 0 Flash 9 (B0F9) 0x0005 0000 - 0x0005 FFFF 64 KB Bank 1 Flash 0 (B1F0) 0x0006 0000 - 0x0006 FFFF 64 KB Bank 1 Flash 1 (B1F1) 0x0007 0000 - 0x0007 FFFF 64 KB

26/179

ST10F273E Internal Flash memory

Table 5. Flash modules sectorization

Bank Description Addresses Size ST10 bus size

Bank 0 Test-Flash (B0TF) 0x0000 0000 - 0x0000 1FFF 8 KB

Bank 0 Flash 0 (B0F0) 0x0001 0000 - 0x0001 1FFF 8 KB Bank 0 Flash 1 (B0F1) 0x0001 2000 - 0x0001 3FFF 8 KB Bank 0 Flash 2 (B0F2) 0x0001 4000 - 0x0001 5FFF 8 KB Bank 0 Flash 3 (B0F3) 0x0001 6000 - 0x0001 7FFF 8 KB

1. Write operations or with ROMS1=’1’ or bootstrap mode

Bank 0 Flash 4 (B0F4) 0x0001 8000 - 0x0001 FFFF 32 KB Bank 0 Flash 5 (B0F5) 0x0002 0000 - 0x0002 FFFF 64 KB Bank 0 Flash 6 (B0F6) 0x0003 0000 - 0x0003 FFFF 64 KB Bank 0 Flash 7 (B0F7) 0x0004 0000 - 0x0004 FFFF 64 KB Bank 0 Flash 8 (B0F8) 0x0004 0000 - 0x0004 FFFF 64 KB Bank 0 Flash 9 (B0F9) 0x0005 0000 - 0x0005 FFFF 64 KB Bank 1 Flash 0 (B1F0) 0x0006 0000 - 0x0006 FFFF 64 KB Bank 1 Flash 1 (B1F1) 0x0007 0000 - 0x0007 FFFF 64 KB

(1)

32-bit (I-BUS)

The table above refers to the configuration when bit ROMS1 of SYSCON register is set. When Bootstrap mode is entered:

● Test-Flash is seen and available for code fetches (address 00’0000h)

● User I-Flash is only available for read and write accesses

● Write accesses must be made with addresses starting in segment 1 from 01'0000h,

whatever ROMS1 bit in SYSCON value

● Read accesses are made in segment 0 or in segment 1 depending of ROMS1 value.

In Bootstrap mode, by default ROMS1 = 0, so the first 32 KBytes of IFlash are mapped in segment 0.

Example: In default configuration, to program address 0, user must put the value 01'0000h in the

F ARL and F ARH registers, but to verify the content of the address 0 a read to 00'0000h must be performed.

Table 6

shows the Control Register interface composition: This set of registers can be

addressed by the CPU.

27/179

Internal Flash memory ST10F273E

Table 6. Control register interface

Name Description Addresses Size

FCR1-0 Flash control registers 1-0 0x000E 0000 - 0x000E 0007 8 byte FDR1-0 Flash data registers 1-0 0x000E 0008 - 0x000E 000F 8 byte FAR Flash address registers 0x000E 0010 - 0x000E 0013 4 byte FER Flash error register 0x000E 0014 - 0x000E 0015 2 byte

FNVWPIR

FNVAPR0

FNVAPR1

Flash non volatile protection I register

Flash Non volatile access protection register 0

Flash non volatile access protection register 1

0x000E DFB4 - 0x000E DFB7 4 byte

0x000E DFB8 - 0x000E DFB9 2 byte

0x000E DFBC - 0x000E DFBF 4 byte

(XBUS)

5.2.3 Low power mode

The Flash module is automatically switched off executing PWRDN instruction. The consumption is drastically reduced, but exiting this state can require a long time (t

Recovery time from Power down mode for the Flash modules is anyway shorter than the main oscillator start-up time. To av oid any problem in restarting to fetch code from the Flash, it is important to size properly the external circuit on RPD pin.

Note: PWRDN instruction must not be executed while a Flash program/erase operation is in

progress.

Bus size

16-bit

5.3 Write operation

The Flash module have one single register interface mapped in the memo ry space 0x0E 0000 to 0x0E 0015. All the operations are enabled through four 16-bit control registers: Flash Control Register 1-0 High/Low (FCR1H/L-FCR0H/L). Eight other 16-bit registers are used to store Flash Address and Data for Program operations (FARH/L and FDR1H/LFDR0H/L) and Write Operation Error flags (FERH/L). All registers are accessible with 8 and 16-bit instructions (since operates in 16-bit mode when in read/ write).

Before accessing the Flash registers used for program/erasing operations, bit 5 (XFLASHEN) in XPERCON register shall be set.

The two banks have their own dedicated sense amplifiers, so that one bank can be read while the other is written.

During a Flash write operation, any attempt to read the bank under modification will output invalid data (software trap 009Bh). This means that the Flash bank is not fetchable when a programming operation is active: The write operation commands must be executed from another bank or from the other memory (internal RAM or external memory).

During a Write operation, when bit LOCK of FCR0 is set, it is forbidden to write into the Flash Control Registers.

28/179

ST10F273E Internal Flash memory

Power supply drop

If, during a write operation, the internal low voltage supply drops below a certain internal voltage threshold, any write operation running is suddenly interrupted and the module is reset to Read mode. At following Power-on, the interrupted Flash write operation must be repeated.

5.4 Registers description

5.4.1 Flash control register 0 low

The Flash Control Register 0 Low (FCR0L), together with the Flash Control Register 0 High (FCR0H), is used to enable and to monitor all the write operations on the IFlash. The user has no access in write mode t o the Test-Fla sh (B0 TF) . Besi d es, Test-Flash bloc k is seen by the user in Bootstrap mode only.

FCR0L (0x0E 0000) FCR Reset Value: 0000h

15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

reserved BSY1 BSY0 LOCK res. res. res. res.

RRR

Table 7. Flash control register 0 low

Bit Function

Bank 0:1 Busy (IFlash) These bits indicate that a write operation is running on Bank 0 or Bank 1(IFlash). They are

automatically set when bit WMS is set. Setting Protection operation sets bits BSYx (since

BSY(1:0)

LOCK

protection registers are in this Block). When this bits are set, every read access to the corresponding bank will output invalid data (software trap 009Bh), while every write access to the bank will be ignore d. At the end o f the write oper ation o r during a Prog ram or Er ase Suspe nd these bits are automaticall y res et a nd the bank returns to read mode. Afte r a Prog ram or Erase Resume these bits is automatically set again.

Flash registers access locked When this bit is set, it means that the access to the Flash Control Registers FCR0H/-FCR1H/L,

FDR0H/L-FDR1H/L, FARH/L and FER is locked by the FPEC: any read access to the registers will output invalid data (software trap 009Bh) and any write access will be ineffective. LOCK bit is automatically set when the Flash bit WMS is set. This is the only bit the user can always access to detect the status of the Flash: once it is found low, the rest of FCR0L and all the other Flash registers are accessible by the user as well. Note that FER content can be read when LOCK is low, but its content is updated only when also BSYx bits are reset.

29/179

Internal Flash memory ST10F273E

5.4.2 Flash control register 0 high

The Flash Control Register 0 High (FCR0H) together with the Flash Control Register 0 Low (FCR0L) is used to enable and to monitor all the write operations on the IFlash. The user has no access in write mode t o the Test-Fla sh (B0 TF) . Besi d es, Test-Flash bloc k is seen by the user in Bootstrap mode only.

FCR0H (0x0E 0002) FCR Reset Value: 0000h

15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

WMS SUSP WPG DWPG SER reserved SPR SMOD reserved

RW RW RW RW RW RW RW

Table 8. Flash control register 0 high

Bit Function

SMOD

SPR

SER

DWPG

This must be set before every Write Operation except for writing in the Flash Non Volatile Protection Registers, SMOD is automatically reset at the end of the Write Operation.

Set protection This bit must be set to select the Set Protection operation. The Set Protection operation allows to

program 0s in place of 1s in the Flash Non Volatile Protection Registers. The Flash Address in which to program m ust be written in the FARH/L registers, while the Flas h Data to be prog ram med must be written in the FDR0 H/L bef ore sta rting the ex ecution by set ting bit WMS. A se quence erro r is flagged by bit SEQER of FER if the address written in FARH/L is not in the range 0x0EDFB00x0EDFBF. SPR bit is automatically reset at the end of the Set Protection operation.

Sector erase This bit must be set to select the Sector Erase operation in the Flash modules. The Sector Erase

operation allows to erase all the Flash locations to value 0xFF. From 1 to all the sectors of the same bank (excluded Test-Flash for Bank B0) can be selected to be erased through bits BxFy of FCR1H/L registers before starting the execution by setting bit WMS. It is not necessary to preprogram the sectors to 0x00, because this is done automatically. SER bit is automatically reset at the end of the Sector Erase operation.

Double word program This bit must be set to select the Double Word (64 bit s) Program operation in the Flash module.

The Double Word Program operation allows to program 0s in place of 1s. The Flash Address in which to program (aligned with even words) must be written in the FARH/L registers, while the 2 Flash Data to be prog ram med m us t be written in t he FD R0H/L reg isters (e v e n w ord) and FDR1 H/L registers (odd word) before starting the execution by setting bit WMS. DWPG bit is automatically reset at the end of the Double Word Program operation.

Word progra m This bit must be set to select the Word (32 bits) Program opera tion in th e Flash module. The Word

WPG

30/179

Program opera tion allo ws to p rogram 0s in pl ace of 1s . The Flash Address to be prog ramm ed must be written in the FARH/L registers, while the Flash Data to be programmed must be written in the FDR0H/L registers be fo re starting the e x ecution b y setti ng bit WM S. WP G bit is aut omatical ly reset at the end of the Word Program operation.

ST10F273E Internal Flash memory

Table 8. Flash control register 0 high (continued)

Bit Function

Suspend This bit must be set to suspend the current Program (Word or Double Word) or Sector Erase

operation in order to read data in one of the sectors of the bank under modification or to program data in another bank. The Suspend operation resets the Flash bank to normal read mode

SUSP

(automatically resetting bits BSYx). Whe n in Progr am Suspen d, the Flash mod ule accepts o nly the following operations: Read and Program Resume. When in Erase Suspend the module accepts only the f o llowing operations: Read, Erase Res um e and P r og r am (Word or Double Word ; P rogram operations cannot be suspended during Erase Suspend). To resume a suspended operation, the WMS bit must be set again, together with the selection bit corresponding to the operation to resume (WPG, DWPG, SER).

(1)

Write mode start This bit must be set to start every write operation in the Flash module. At the end of the write

WMS

operation or during a Suspend, this bit is automatically reset. To resume a suspended operation, this bit must be s et aga in. It i s f orbidd en t o set this bit if bit ER R of FER is high (the ope r ation i s not accepted). It is also forbidden to start a new write (program or erase) operation (by setting WMS high) when bit SUSP of FCR0 is high. Resetting this bit by software has no effect.

1. It is forbidden to start a new Write operation with bit SUSP already set.

5.4.3 Flash control register 1 low

The Flash Control Register 1 Low (FCR1L), together with Flash Control Register 1 High (FCR1H), is used to select the sectors to Erase or, during any write operation, to monitor the status of each sector and bank.

FCR1L (0x0E 0004) FCR Reset value: 0000h

1514131211109876543210

reserved B0F9 B0F8 B0F7 B0F6 B0F5 B0F4 B0F3 B0F2 B0F1 B0F0

RS RS RS RS RS RS RS RS RS RS

Table 9. Flash control register 1 low

B0F(9:0)

Bit Function

Bank 0 IFlash sector 9:0 status These bits must be set during a Sector Erase operation to select the sectors to erase in Bank 0.

Besides, during an y er as e ope ra tio n, the se bi ts are autom atically set and give the statu s of the 10 sectors of Bank 0 (B0F9-B0F0). The meaning of B0Fy bit for Sector y of Bank 0 is given by the next

Table 11

Banks (BxS) and Sectors (BxFy) Status bits meaning. These bits are automatically

reset at the end of a Write operation if no errors are detected.

31/179

Internal Flash memory ST10F273E

5.4.4 Flash control register 1 high

The Flash Control Register 1 High (FCR1H), together with Flash Control Register 1 Low (FCR1L), is used to select the sectors to Erase or, during any write operation, to monitor the status of each sector and bank.

FCR1H (0x0E 0006) FCR Reset value: 0000h

15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

reserved B1S B0S reserved B1F1 B1F0

RS RS RS RS

Table 10. Flash control register 1 high

Bit Function

Bank 1 IFlash sector 1:0 status These bits must be set during a Sector Erase operation to select the sectors to erase in Bank 1.

B1F(1:0)

Besides, during any e ra se o perat ion, th ese b its a re a utoma tically se t and giv e the s tatus of the two sectors of Bank 1 (B1F1-B1F0). The meaning of B1Fy bit for Sector y of Bank 0 is given by the next

Table 11

Banks (BxS) and Sectors (BxFy) Status bits meaning. These bits are automatically

reset at the end of a Write operation if no errors are detected. Bank 0 status

B0S

During any erase operation, this bit is automatically modified and gives the status of the Bank 0. The meaning of B0S bit is given in the next meaning. This bit is automatically reset at the end of a erase operation if no errors are detected.

Bank 1 status

B1S

During any erase operation, this bit is automatically modified and gives the status of the Bank 1. The meaning of B1S bit is given in the next meaning. This bit is automatically reset at the end of a erase operation if no errors are detected.

Table 11. Banks (BxS) and sectors (BxFy) status bits meaning

ERR SUSP BxS = 1 meaning BxFy = 1 meaning

1 - Erase error in bank x Erase error in sector y of bank x 0 1 Erase suspended in bank x Erase suspended in sector y of bank x

Table 11

Banks (BxS) a nd Sectors (BxFy) Status bits

0 0 Don’t care Don’t care

32/179

ST10F273E Internal Flash memory

5.4.5 Flash data register 0 low

The Flash Address Registers (F ARH/L) and the Flash Data Registers (FDR1H/L-FDR0H/L) are used during the program operations to store Flash Address in which to program and Data to program.

FDR0L (0x0E 0008) FCR Reset value: FFFFh

1514131211109876543210

DIN15 DIN14 DIN13 DIN12 DIN11 DIN10 DIN9 DIN8 DIN7 DIN6 DIN5 DIN4 DIN3 DIN2 DIN1 DIN0

RW RW RW RW RW RW RW RW RW RW RW RW RW RW RW RW

Table 12. Flash data register 0 low

DIN(15:0)

Bit Function

Data input 15:0

These bits must be written with the Data to program the Flash with the following operations: Word Program (32-bit), Double Word Program (64-bit) and Set Protection.

5.4.6 Flash data register 0 high

FDR0H (0x0E 000A) FCR Reset value: FFFFh

1514131211109876543210

DIN31 DIN30 DIN29 DIN28 DIN27 DIN26 DIN25 DIN24 DIN23 DIN22 DIN21 DIN20 DIN19 DIN18 DIN17 DIN16

RW RW RW RW RW RW RW RW RW RW RW RW RW RW RW RW

Table 13. Flash data register 0 high

Bit Function

Data input 31:16

DIN(31:16)

These bits must be written with the Data to program the Flash with the following operations: Word Program (32-bit), Double Word Program (64-bit) and Set Protection.

33/179

Internal Flash memory ST10F273E

5.4.7 Flash data register 1 low

FDR1L (0x0E 000C) FCR Reset value: FFFFh

1514131211109876543210

DIN15 DIN14 DIN13 DIN12 DIN11 DIN10 DIN9 DIN8 DIN7 DIN6 DIN5 DIN4 DIN3 DIN2 DIN1 DIN0

RW RW RW RW RW RW RW RW RW RW RW RW RW RW RW RW

Table 14. Flash data register 1 low

DIN(15:0)

Bit Function

Data input 15:0 These bits must be written with the Data to program the Flash with the following operations: Word

Program (32-bit), Double Word Program (64-bit) and Set Protection.

5.4.8 Flash data register 1 high

FDR1H (0x0E 000E) FCR Reset val ue: FFFFh

1514131211109876543210

DIN31 DIN30 DIN29 DIN28 DIN27 DIN26 DIN25 DIN24 DIN23 DIN22 DIN21 DIN20 DIN19 DIN18 DIN17 DIN16

RW RW RW RW RW RW RW RW RW RW RW RW RW RW RW RW

Table 15. Flash data register 1 high

Bit Function

Data input 31:16

DIN(

31:16

)

These bits must be written with the Data to program the Flash with the following operations: Word Program (32-bit), Double Word Program (64-bit) and Set Protection.

5.4.9 Flash address register low

FARL (0x0E 0010) FCR Reset value: 0000h

1514131211109876543210

ADD15ADD14ADD13 ADD12 ADD11ADD10 ADD9 ADD8 ADD7 ADD6 ADD5 ADD4 ADD3 ADD2 reserved

RW RW RW RW RW RW RW RW RW RW RW RW RW RW

Table 16. Flash address register low

ADD(15:2)

Bit Function

Address 15:2 These bits must be written with the Address of the Flash location to program in the following

operations: W ord Prog ram (32- bit) and Dou ble W ord Program (64-bit). In Double Wo rd Progr am bit ADD2 must be written to ‘0’.

34/179

ST10F273E Internal Flash memory

5.4.10 Flash address register high

FARH (0x0E 0012) FCR Reset value: 0000h

15141312111098765 43210

reserved ADD20 ADD19 ADD18 ADD17 ADD16

RW RW RW RW RW

Table 17. Flash address register high

ADD(20:16)

Bit Function

Address 20:16 These bits must be written with the Address of the Flash location to program in the following

operations: Word Program and Double Word Program.

5.4.11 Flash error register

Flash Error register, as well as all the other Flash registers, can be properly read only once LOCK bit of register FCR0L is low. Nev ertheless, its content is updated when also BSYx bits are reset as well; for this reason, it is definitively meaningful reading FER register content only when LOCK bit and BSYx bits are cleared.

FER (0xE 0014h) FCR Reset value: 0000h

15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

reserved WPF RESER SEQER reserved 10ER PGER ERER ERR

RC RC RC RC RC RC RC

Table 18. Flash error register

ERR

ERER

PGER

10ER

SEQER

Bit Function

Write error This bit is automatically set when an error occurs during a Flash write operation or when a bad

write operation setup is done. Once the error has been discovered and understood, ERR bit must be software reset.

Erase error This bit is automatically set when an Erase error occurs during a Flash write operation. This error

is due to a real failure of a Flash cell, that can no more be erased. This kind of error is fatal and the sector where it occurred must be discarded. This bit has to be software reset.

Program error This bit is automati cally set wh en a Pro gr am erro r occu rs during a Flash write op erati on. Thi s error

is due to a real failure of a Flash cell, that can no mo re b e p rog r am m ed. The w o rd where this error occurred must be discarded. This bit has to be software reset.

1 over 0 error This bit is automatically set when trying to program at 1 bits previously set at 0 (this does not

happen when programming the Protection bits). This error is not due to a failure of the Flash cell, but only flags that the desired data has not been written. This bit has to be software reset.

Sequence error This bit is automatically set when the control registers (FCR1H/L-FCR0H/L, FARH/L, FDR1H/L-

FDR0H/L) are not correctly filled to execute a valid Write Operation. In this case no Write Operation is executed. This bit has to be software reset.

35/179

Internal Flash memory ST10F273E

Table 18. Flash error register

Bit Function

Resume error

RESER

WPF

This bit is automatically set when a suspended Program or Erase operation is not resumed correctly due to a protocol error. In this case the suspended operation is aborted. This bit has to be software reset.

Write protection flag This bit is automatically set when trying to program or erase in a sector write protected. In case of

multiple Sector Erase, the not protected sectors are erased, while the protected sectors are not erased and bit WPF is set. This bit has to be software reset.

5.5 Protection strategy

The protection bits are stored in Non Volatile Flash cells, that are read once at reset and stored in 5 Volatile registers. Before they are read from the Non Volatile cells, all the available protections are forced active during reset.

The protections can be programmed using the Set Protection operation (see Flash Control Registers paragraph), that can be executed from all the internal or external memories.

Two kind of protections are available: write protections to avoid unwanted writings and access protections to avoid piracy. In next paragraphs all different level of protections are shown, and architecture limitations are highlighted as well.

5.5.1 Protection registers

The 5 Non Volatile Protection Registers are one time programmable for the user. Two register (FNVWPIRL/FNVWPIRH) are used to store the Write Protection fuses for each

sector IFlash module. The other three Registers (FNVAPR0 and FNVAPR1L/H) are used to store the Access Protection fuses.

36/179

ST10F273E Internal Flash memory

5.5.2 Flash non volatile write protection I register low

FNVWPIRL (0x0E DFB4) NVR Delivery value: FFFFh

1514131211109876543210

reserved W0P9 W0P8 W0P7 W0P6 W0P5 W0P4 W0P3 W0P2 W0P1 W0P0

RW RW RW RW RW RW RW RW RW RW

Table 19. Flash non volatile write protection register low

Bit Function

W0P(9:0)

Write protection bank 0 / sectors 9-0 These bits, if programmed at 0, disable any write access to the sectors of Bank 0 (IFlash).

5.5.3 Flash non volatile write protection I register high

FNVWPIRH (0x0E DFB6) NVR Delivery value: FFFFh

1514131211109876543210

reserved W1P1 W1P0

RW RW

Table 20. Flash non volatile protection register high

W1P(1:0)

Bit Function

Write protection bank 1 / sectors 1-0 These bits, if programmed at 0, disable any write access to the sectors of Bank 1 (IFlash).

5.5.4 Flash non volatile access protection register 0

FNVAPR0 (0x0E DFB8) NVR Delivery value: ACFFh

15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

reserved DBGP ACCP

RW RW

Table 21. Flash non volatile access protection register 0

Bit Function

Access protection

ACCP

This bit, if programmed at 0, disables any access (read/write) to data mapped inside IFlash Module address space, unless the current instruction is fetched from IFlash.

Debug protection This bit, if erased at 1, allows to by-pass all the protections using the Debug features through the

DBGP

Test Interface. If progr ammed at 0, on the contrary, all the debug fea tures, th e Test Interface and all the Flash Test Modes are disabled. Even STMicroelectronics will not be able to access the device to run any eventual failure analysis.

37/179

Internal Flash memory ST10F273E

5.5.5 Flash non volatile access protection register 1 low

FNVAPR1L (0x0E DFBC) NVR Delivery value: FFFFh

1514131211109876543210

PDS15 PDS14 PDS13 PDS12 PDS11 PDS10 PDS9 PDS8 PDS7 PDS6 PDS5 PDS4 PDS3 PDS2 PDS1 PDS0

RW RW RW RW RW RW RW RW RW RW RW RW RW RW RW RW

Table 22. Flash non volatile access protection register 1 low

PDS(15:0)

Bit Function

Protections disable 15-0 If bit PDSx is programmed at 0 and bit PENx is erased at 1, the action of bit ACCP is disabled. Bit

PDS0 can be progr am med at 0 only if both bits DBG P and ACCP have already been prog rammed at 0. Bit PDSx can be programmed at 0 only if bit PENx-1 has already been programmed at 0.

5.5.6 Flash non volatile access protection register 1 high

FNVAPR1H (0x0E DFBE) NVR Delivery value: FFFFh

1514131211109876543210

PEN15 PEN14 PEN13 PEN12 PEN11 PEN10 PEN9 PEN8 PEN7 PEN6 PEN5 PEN4 PEN3 PEN2 PEN1 PEN0

RW RW RW RW RW RW RW RW RW RW RW RW RW RW RW RW

Table 23. Flash non volatile access protection register 1 high

PEN15-0

Bit Function

Protections enable 15-0 If bit PENx is programmed at 0 and bit PDSx+1 is erased at 1, the action of bit ACCP is enabled

again. Bit PENx can be programmed at 0 only if bit PDSx has already been programmed at 0.

5.5.7 Access protection

The I-Flash module has one level of access protection (access to data both in Reading and Writing): if bit ACCP of FNVAPR0 is programmed at 0, the I-Flash module becomes access protected: data in the I-Flash module can be read only if the current execution is from the IFlash module itself.

Protection can be permanently disabled by programming bit PDS0 of FNVAPR1H, in order to analyze rejects. Protection can be permanently enabled again by programming bit PEN0 of FNVAPR1L. The action to disable and enable again Access Protections in a permanent way can be executed a maximum of 16 times.

Trying to write into the access protected Flash from internal RAM or external memories will be unsuccessful. Trying to read into the access protected Flash from internal RAM or external memories will output a dummy data (software trap 0x009Bh).

When the Flash module is protected in access, also the data access through PEC of a peripheral is forbidden. To read/write data in PEC mode from/to a protected bank, first it is necessary to temporarily unprotect the Flash module.

In the following table a summary of all levels of possible Access protection is reported: in particular, supposing to enable all possible access protections, when fetching from a

38/179

ST10F273E Internal Flash memory

memory as listed in the first column, what is possible and what is not possible to do (see column headers) is shown in the table.

Table 24. Summary of access protection level

Read IFlash /

jump to IFlash

Fetching from IFlash Yes / Yes Yes / Yes Yes Yes Fetching from IRAM No / Yes Yes / Yes Yes No Fetching from XRAM No / Yes Yes / Yes Yes No Fetching fro m Ext ernal

memory

No / Yes Yes / Yes Yes No

5.5.8 Write protection

The Flash modules have one level of Write Protections: Each sector of each bank can be Software Write Protected by programming at 0 the related bit WyPx in FNVWPIRL/H register.

5.5.9 Temporary unprotection

Bits WyPx of FNVWPIRL/H can be temporary unprotected by executing the Set Protection operation and writing 1 into these bits.

Bit ACCP can be temporary unprotected by executing the Set Protection operation and writing are executed from IFlash.

To restore the write access protection bits it is necessary to reset the microcontroller or to execute a Set Protection operation and write 0 into desidered bits.

Read XRAMS or

Ext Mem / Jump to

XRAM or Ext Mem

Read Flash

registers

Write Flash

registers

It is not necessary to temporary unprotect the access protected IFlash in order to update the code: it is, in fact, sufficient to execute the updating instructions from another Flash bank.

In reality, when a temporary unprotection operation is executed, the corresponding volatile register is written to 1, while the non volatile registers bits previously written to 0 (for a protection set operation), will continue to mantain the 0. For this reason, the user software must be in charge to track the current protection status (for instance using a specific RAM area), it is not possible to deduce it by reading the non volatile register content (a temporary unprotection cannot be detected).

39/179

Internal Flash memory ST10F273E

5.6 Write operation examples

In the following, examples for each kind of Flash write operation are presented.

Note: Moreover, direct addressing is not allowed for write accesses to IFlash control registers.

This means that both address and data for a writing operation must be loaded in one of ST10 GPR register (R0...R15).

Write operation on IBus registers is 16 bit wide.

Example of indirect addressing mode:

MOV RWm, #ADDRESS; /*Load Add in RWm*/ MOV RWn, #DATA; /*Load Data in RWn*/ MOV [RWm], RWn; /*Indirect addressing*/

Word program

Example: 32-bit Word Program of data 0xAAAAAAAA at address 0x025554

FCR0H|= 0x2080; /*Set WPG in FCR0H, SMOD must be set*/ FARL = 0x5554; /*Load Add in FARL*/ FARH = 0x0002; /*Load Add in FARH*/ FDR0L = 0xAAAA; /*Load Data in FDR0L*/ FDR0H = 0xAAAA; /*Load Data in FDR0H*/ FCR0H|= 0x8000; /*Operation start*/

Double word program

Example: Double Word Program (64-bit) of data 0x55AA55AA at address 0x035558 and data 0xAA55AA55 at address 0x03555C.

FCR0H |= 0x1080; /*Set DWPG, SMOD must be set/ FARL = 0x5558; /*Load Add in FARL*/ FARH = 0x0003; /*Load Add in FARH*/ FDR0L = 0x55AA; /*Load Data in FDR0L*/ FDR0H = 0x55AA; /*Load Data in FDR0H*/ FDR1L = 0xAA55; /*Load Data in FDR1L*/ FDR1H = 0xAA55; /*Load Data in FDR1H*/ FCR0H |= 0x8000; /*Operation start*/

Double Word Program is always performed on the Double Word aligned on a even Word: bit ADD2 of FARL is ignored.

Sector erase

Example: Sector Erase of sectors B0F1 and B0F0 of Bank 0.

FCR0H |= 0x0880; /*Set SER in FCR0H, SMOD must be set*/ FCR1L |= 0x0003; /*Set B0F1, B0F0*/ FCR0H |= 0x8000; /*Operation start*/

Suspend and resume

Word Program, Double Word Program, and Sector Erase operations can be suspended in the following way:

FCR0H |= 0x4000; /*Set SUSP in FCR0H*/

40/179

ST10F273E Internal Flash memory

Then the operation can be resumed in the following way:

FCR0H |= 0x0800; /*Set SER in FCR0H*/ FCR0H |= 0x8000; /*Operation resume*/

Before resuming a suspended Erase, FCR1H/FCR1L must be read to check if the Erase is already completed (FCR1H = FCR1L = 0x0000 if Erase is complete). Original setup of Select Operation bits in FCR0H/L must be restored before the operation resume, otherwise the operation is aborted and bit RESER of FER is set.

Erase suspend, program and resume

A Sector Erase operation can be suspended in order to program (Word or Double Word) another sector.

Example: Sector Erase of sector B0F1.

FCR0H |= 0x0880; /*Set SER in FCR0H, SMOD must be set*/ FCR1L |= 0x0002; /*Set B0F1*/ FCR0H |= 0x8000; /*Operation start*/

Example: Sector Erase Suspend.

FCR0H |= 0x4000; /*Set SUSP in FCR0H*/ do /*Loop to wait for LOCK=0 and WMS=0*/ {tmp1 = FCR0L; tmp2 = FCR0H; } while ((tmp1 && 0x0010) || (tmp2 && 0x8000));

Example: Word Program of data 0x5555AAAA at address 0x045554.

FCR0H &= 0xBFFF; /*Rst SUSP in FCR0H*/ FCR0H|= 0x2080;/*Set WPG in FCR0H, SMOD must be set*/ FARL = 0x5554; /*Load Add in FARL*/ FARH = 0x0004; /*Load Add in FARH*/ FDR0L = 0xAAAA; /*Load Data in FDR0L*/ FDR0H = 0x5555; /*Load Data in FDR0H*/ FCR0H |= 0x8000; /*Operation start*/

Once the Program operation is finished, the Erase operation can be resumed in the following way:

FCR0H|= 0x0800;/*Set SER in FCR0H*/ FCR0H|= 0x8000;/*Operation resume*/

Notice that during the Program Operation in Erase suspend, bits SER and SUSP are low. A Word or Double Word Program during Erase Suspend cannot be suspended.

In summary: A Sector Erase can be suspended by setting SUSP bit.

● To perform a Word Program operation during Erase Suspend, firstly bits SUSP and

SER must be reset, then bit WPG and WMS can be set.

● To resume the Sector Erase operation bit SER must be set again.

● In any case it is forbidden to start any write operation with SUSP bit already set.

41/179

Internal Flash memory ST10F273E

Set Protection

Example 1: Enable Write Protection of sectors B0F3-0 of Bank 0.

FCR0H |= 0x0100; /*Set SPR in FCR0H*/ FARL = 0xDFB4; /*Load Add of register FNVWPIR in FARL*/ FARH = 0x000E; /*Load Add of register FNVWPIR in FARH*/ FDR0L = 0xFFF0; /*Load Data in FDR0L*/ FDR0H = 0xFFFF; /*Load Data in FDR0H*/ FCR0H |= 0x8000; /*Operation start*/

Notice that SMOD bit of FCR0H must NOT be set.

Example 2: Enable Access and Debug Protection.

FCR0H |= 0x0100; /*Set SPR in FCR0H*/ FARL = 0xDFB8; /*Load Add of register FNVAPR0 in FARL*/ FARH = 0x000E; /*Load Add of register FNVAPR0 in FARH*/ FDR0L = 0xFFFC; /*Load Data in FDR0L*/ FCR0H |= 0x8000; /*Operation start*/

Notice that SMOD bit of FCR0H must NOT be set. Example 3: Disable in a permanent way Access and Debug Protection.

FCR0H |= 0x0100; /*Set SPR in FCR0H*/ FARL = 0xDFBC; /*Load Add of register FNVAPR1L in FARL*/ FARH = 0x000E; /*Load Add of register FNVAPR1L in FARH*/ FDR0L = 0xFFFE; /*Load Data in FDR0L for clearing PDS0*/ FCR0H |= 0x8000; /*Operation start*/

Notice that SMOD bit of FCR0H must NOT be set. Example 4: Enable again in a permanent way Access and Debug Protection, after having

disabled them.

FCR0H |= 0x0100; /*Set SPR in FCR0H*/ FARL = 0xDFBC; /*Load Add register FNVAPR1H in FARL*/ FARH = 0x000E; /*Load Add register FNVAPR1H in FARH*/ FDR0H = 0xFFFE; /*Load Data in FDR0H for clearing

PEN0*/

FCR0H |= 0x8000; /*Operation start*/

Notice that SMOD bit of FCR0H must NOT be set. Disable and re-enable of Access and Debug Protection in a permanent way (as shown by

examples 3 and 4) can be done for a maximum of 16 times.

42/179

ST10F273E Internal Flash memory

5.7 Write operation summary

In general, each write operation is started through a sequence of 3 steps:

1. The first instruction is used to select the desired operation by setting its corresponding selection bit in the Flash Control Register 0.

2. The second step is the definition of the Address and Data for programming or the sectors or banks to erase, SMOD must be always set except for writing in Flash Non Volatile Protection registers.

3. The last instruction is used to start the write operation, by setting the start bit WMS in the FCR0.

Once selected, but not yet started, one operation can be canceled by resetting the operation selection bit.

A summary of the available Flash Module Write Operations are shown in the following

Table 25

Table 25. Flash write operations

Operation Select bit Address and data Start bit

Word program (32-bit) WPG

Double word program (64-bit) DWPG

Sector erase SER FCR1L/FCR1H WMS Set protection SPR FDR0L/FDR0H WMS Program/Erase suspe nd SUSP None None

FARL/FARH

FDR0L/FDR0H

FARL/FARH FDR0L/FDR0H FDR1L/FDR1H

WMS

43/179

Bootstrap loader ST10F273E

6 Bootstrap loader

ST10F273E implements Boot capabilities in order to:

● Support bootstrap via UART or bootstrap via CAN for the standard bootstrap.

● Support a selective bootstrap loader, to manage the bootstrap sequence in a different

way.

6.1 Selection among user-code, standard or selective bootstrap

The boot modes are triggered with a special combination set on Port0L[5...4]. Those signals, as other configuration signals, are latched on the rising edge of RSTIN

● Decoding of reset configuration (P0L.5 = 1, P0L.4 = 1) will select the normal mode

(also called User mode) and select the user Flash to be mapped from address 00’0000h.

● Decoding of reset configuration (P0L.5 = 1, P0L.4 = 0) will select ST10 standard

bootstrap mode (Test-Flash is active and overlaps user Flash for code fetches from address 00'0000h; user Flash is active and available for read accesses).

● Decoding of reset configuration (P0L.5 = 0, P0L.4 = 1) will activate new verifications to

select which bootstrap software to execute: – if the User mode signature in the User Flash is programmed correctly, then a

software reset sequence is selected and the User code is executed;

– if the User mode signature is not programmed correctly in the user Flash, then the

User key location is read again. Its value will determine which communication channel will be enabled for bootstraping.

Table 26. ST10F273E boot mode selection

pin.

P0.5 P0.4 ST10 decoding

11User mode: user Flash mapped at 00’0000h

00Reserved

Standard bootstrap loader: User Flash mapped from 00’0000h, code fetches redirected to Test-Flash at 00’0000h

Selective boot mode: User Flash mapped from 00’0000h, code fetches redirected to Test-Flash at 00’00 00h (dif f erent s equen ce e xecution in respect of Standard Bootstrap Loader)

6.2 Standard bootstrap loader

After entering the standard BSL mode and the respective initialization, the ST10F273E scans the RxD0 line and the CAN1_RxD line to receive either a valid dominant bit from CAN interface, or a start condition from UART line.

Start condition on UART RxD: ST10F273E starts standard bootstrap loader. This bootstrap loader is identical to other ST10 devices (example: ST10F269, ST10F168).

Valid dominant bit on CAN1 RxD: ST10F273E start bootstrapping via CAN1.

44/179

ST10F273E Bootstrap loader

6.3 Alternate and selective boot mode (ABM & SBM)

6.3.1 Activation of the ABM and SBM

Alternate boot is activated with the combination ‘01’ on Port0L[5..4] at the rising edge of RSTIN

6.3.2 User mode signature integrity check

The behavior of the Selective Boot mode is based on the computing of a signature between the content of 2 memory locations and a comparison with a reference signature. This requires that users who use Selective Boot have reserved and programmed the Flash memory locations.

6.3.3 Selective boot mode

When the user signature is not correct, instead of executing the Standard Bootstrap Loader (triggered by P0L.4 low at reset), additional check is made.

Depending on the value at the User key location, following behavior will occur:

● A jump is performed to the Standard Bootstrap Loader

● Only UART is enabled for bootstraping

● Only CAN1 is enabled for bootstraping

● The device enters an infinite loop.

45/179

Central processing unit (CPU) ST10F273E

7 Central processing unit (CPU)

The CPU includes a 4-stage instruction pipeline, a 16-bit arithmetic and logic unit (ALU) and dedicated SFRs. Additional hardware has been added for a separate multiply and divide unit, a bit-mask generator and a barrel shifter.

Most of the ST10F273E’s instructions can be executed in one instruction cycle which requires 31.25ns at 64 MHz CPU clock. For example, shift and rotate instructions are processed in one instruction cycle independent of the number of bits to be shifted.

Multiple-cycle instructions have been optimized: branches are carried out in 2 cycles, 16 x 16-bit multiplication in 5 cycles and a 32/16-bit division in 10 cycles.

The jump cache reduces the execution time of repeatedly performed jumps in a loop, from 2 cycles to 1 cycle.

The CPU uses a bank of 16 word registers to run the current context. This bank of General Purpose Registers (GPR) is physically stored within the on-chip Internal RAM (IRAM) area. A Context Pointer (CP) register determines the base address of the active register bank to be accessed by the CPU.

The number of register banks is only restricted by the available Internal RAM space. For easy parameter passing, a register bank may overlap others.

A system stack of up to 2048 bytes is provided as a storage for temporary data. The system stack is allocated in the on-chip RAM area, and it is accessed by the CPU via the stack pointer (SP) register.

Two separate SFRs, STKOV and STKUN, are implicitly compared against the stack pointer value upon each stack access for the detection of a stack overflow or underflow.

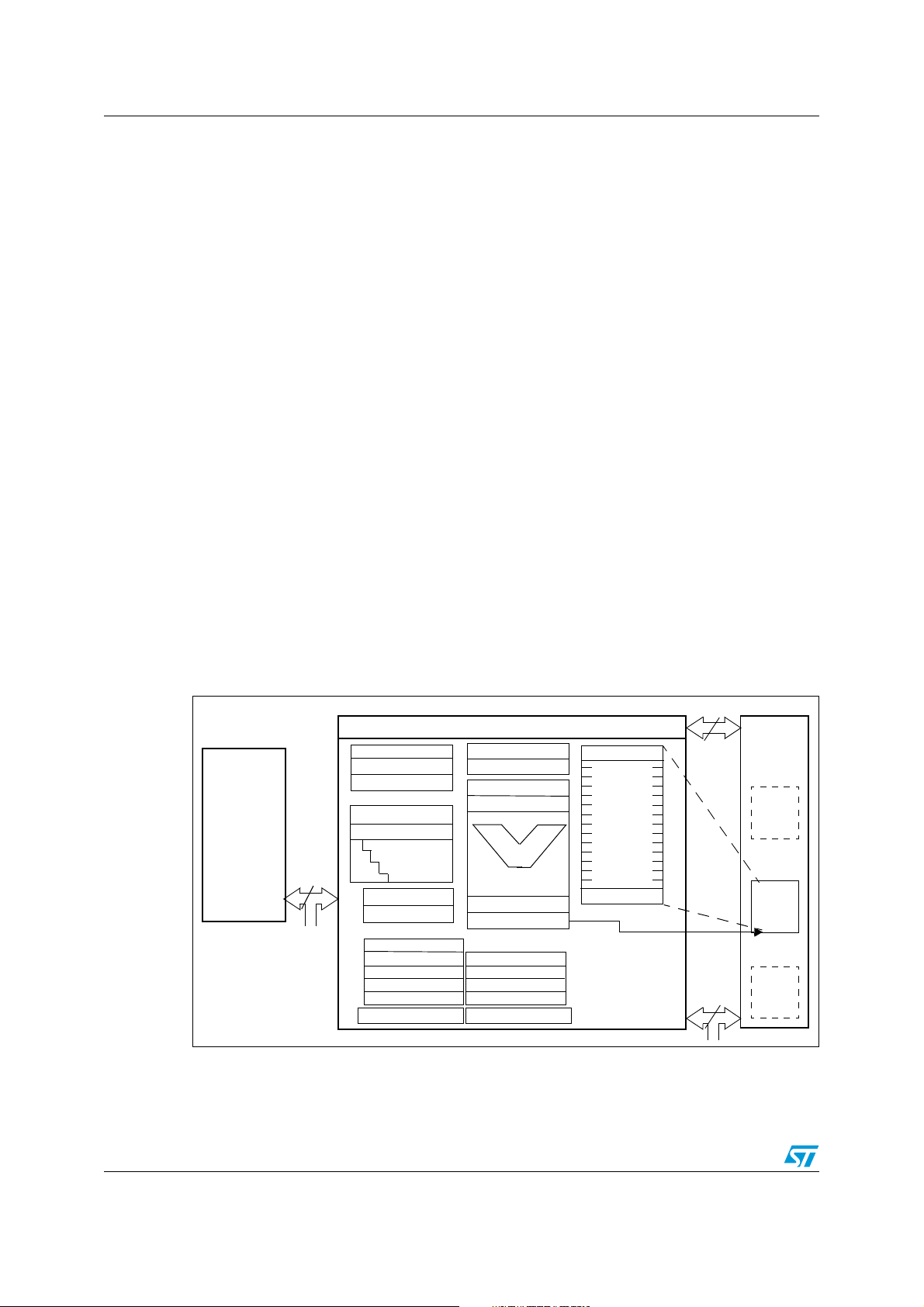

Figure 5. CPU block diagram (MAC unit not included)

512 Kbyte

Flash

memory

STKOV STKUN

Exec. Unit

Instr. Ptr

4-Stage Pipeline

PSW

SYSCON

BUSCON 0 BUSCON 1

BUSCON 2 BUSCON 3 BUSCON 4

Data Pg. Ptrs

CPU

MDH

MDL

Mul./Div.-HW

Bit-Mask Gen.

ALU

16-Bit

Barrel-Shift

ADDRSEL 1 ADDRSEL 2

ADDRSEL 3 ADDRSEL 4

Code Seg. Ptr.

R15

General

Purpose

Registers

2Kbyte Internal

RAM

Bank

46/179

ST10F273E Central processing unit (CPU)

7.1 Multiplier-accumulator unit (MAC)

The MAC coprocessor is a specialized coprocessor added to the ST10 CPU Core in order to improve the performances of the ST10 Family in signal processing algorithms.

The standard ST10 CPU has been modified to include new addressing capabilities which enable the CPU to supply the new coprocessor with up to 2 operands per instruction cycle.

This new coprocessor (so-called MAC) contains a fast multiply-accumulate unit and a repeat unit.

The coprocessor instructions extend the ST10 CPU instruction set with multiply, multiplyaccumulate, 32-bit signed arithmetic operations.

Figure 6. MAC unit architecture

Operand 2Operand 1

GPR Pointers * IDX0 pointer

IDX1 pointer QR0 GPR offset register

QR1 GPR offset register QX0 IDX offset register

QX1 IDX offset register

Concatenation

16 x 16

signed/unsigned

multiplier

Interrupt

controller

ST10 CPU

MRW

Repeat unit

MCW

Control Unit

32 32

Mux

Sign Extend

Scaler

0h 0h08000h

40 40

MSW

Flags MAE

Mux

40-bit signed arithmetic unit

MAH MAL

8-bit left/right

Mux

shifter

47/179

Central processing unit (CPU) ST10F273E

7.2 Instruction set summary

The

Table 27

instruction can be found in the “ST10 Family Programming Manual”.

Table 27. Standard instruction set summary

Mnemonic Description Bytes

ADD(B) Add word (byte) operands 2 / 4 ADDC(B) Add word (byte) operands with Carry 2 / 4 SUB(B) Subtract word (byte) operands 2 / 4 SUBC(B) Subtract word (byte ) oper and s with Carry 2 / 4 MUL(U) (Un)Signed multiply direct GPR by direct GPR (16-16-bit) 2 DIV(U) (Un)Signed divide register MDL by direct GPR (16-/16-bit) 2 DIVL(U) (Un)Signed long divide reg. MD by direct GPR (32-/16-bit) 2 CPL(B) Complement direct word (byte) GPR 2 NEG(B) Negate direct word (byte) GPR 2 AND(B) Bit-wise AND, (word/byte operands) 2 / 4 OR(B) Bit-wise OR, (word/byte operands) 2 / 4

lists the instructions of the ST10F273E. The detailed description of each

XOR(B) Bit-wise XOR, (word/byte operands) 2 / 4 BCLR Clear direct bit 2 BSET Set direct bit 2 BMOV(N) Move (negated) direct bit to direct bit 4 BAND, BOR, BXOR AND/OR/XOR direct bit with direct bit 4 BCMP Compare direct bit to direct bit 4

BFLDH/L

CMP(B) Compare word (byte) operands 2 / 4 CMPD1/2 Compare word data to GPR and decrement GPR by 1/2 2 / 4 CMPI1/2 Compare word data to GPR and increment GPR by 1/2 2 / 4

PRIOR

SHL / SHR Shift left/right direct word GPR 2 ROL / ROR Rotate left/right direct word GPR 2 ASHR Arithmetic (sign bit) shift right direct word GPR 2 MOV(B) Move word (byte) data 2 / 4 MOVBS Move byte operand to word operand with sign extension 2 / 4

Bit-wise modify m asked high/lo w b yte o f bit-addr essab le dire ct word memory with immediate data

Determine number of shift cycles to normalize direct word GPR and store result in direct word GPR

MOVBZ Move by te operand to word operand with zero extension 2 / 4 JMPA, JMPI, JMPR Jump absolute/indirect/relative if condition is met 4 JMPS Jump absolute to a code segme nt 4

48/179

ST10F273E Central processing unit (CPU)

Table 27. Standard instruction set summary (continued)

Mnemonic Description Bytes

J(N)B Jump relative if direct bit is (not) set 4 JBC Jump relative and clear bit if direct bit is set 4 JNBS Jump relative and set bit if direct bit is not set 4 CALLA, CALLI,CALLR Call absolute/indirect/relative subroutine if condition is met 4 CALLS Call absolute subroutine in any code segment 4

PCALL

TRAP Call interrupt service routine via immediate trap number 2 PUSH, POP Push/pop direct word register onto/from system stack 2

Push direct word register onto system stack and call absolute subroutine

SCXT

RET Return from intra-segment subroutine 2 RETS Return from inter-segment subroutine 2

RETP

RETI Return from interrupt service subroutine 2 SRST Software reset 4 IDLE Enter Idle mode 4 PWRDN Enter power down mode (supposes NMI SRVWDT Service watchdog timer 4 DISWDT Disable watchdog timer 4 EINIT Signify end-of-initialization on RSTOUT ATOMIC Begin ATOMIC sequence 2 EXTR Begin EXTended register sequence 2 EXTP(R) Begin EXTended page (and register) sequence 2 / 4 EXTS(R) Begin EXTended segment (and register) sequence 2 / 4 NOP Null operation 2

Push direct word register onto system stack and update register with word operand

Return from intra-segment subroutine and pop direct word register from system stack

-pin being low) 4

-pin 4

49/179

Central processing unit (CPU) ST10F273E

7.3 MAC coprocessor specific instructions

The

Table 28

instruction can be found in the “ST10 Family Programming Manual”. Note that all MAC instructions are encoded on 4 bytes.

Table 28. MAC instruction set summary

CoABS Absolute value of the accumulator CoADD(2) Addition CoASHR(rnd) Accumulator arithmetic shift right & optional round CoCMP Compare accumulator with operands CoLOAD(-,2) Load accumulator with operands CoMAC(R,u,s,-,rnd) (Un)signed/(Un)Signed Multiply-Accumulate & Optional Round

lists the MAC instructions of the ST10F273E. The detailed description of each

Mnemonic Description

CoMACM(R)(u,s,-,rnd)

CoMAX / CoMIN m aximum / minimum of operands and accumulator CoMOV Memory to memory move CoMUL(u,s,-,rnd) (Un)signed/(Un)signed multiply & optional round CoNEG(rnd) Negate accumulator & optional round CoNOP No-operation CoRND Round accumulator CoSHL / CoSHR Accumulator logical shift left / right CoSTORE Store a MAC unit register CoSUB(2,R) Substraction

(Un)Signed/(Un)signed m ultiply-ac cumulat e with p arallel data mov e & optional round

50/179

ST10F273E External bus controller

8 External bus controller

All of the external memory accesses are performed by the on-chip external bus controller. The EBC can be programmed to single chip mode when no external memory is required, or

to one of four different external memory access modes:

● 16- / 18- / 20- / 24-bit addresses and 16-bit data, demultiplexed

● 16- / 18- / 20- / 24-bit addresses and 16-bit data, multiplexed

● 16- / 18- / 20- / 24-bit addresses and 8-bit data, multiplexed

● 16- / 18- / 20- / 24-bit addresses and 8-bit data, demultiplexed

In demultiplexed bus modes addresses are output on PORT1 and data is input / output on PORT0 or P0L, respectively. In the multiplexed bus modes both addresses and data use PORT0 for input / output.

Timing characteristics of the external bus interface (memory cycle time, memory tri-state time, length of ALE and read / write delay) are programmable giving the choice of a wide range of memories and external peripherals.

Up to four independent address windows may be defined (using register pairs ADDRSELx / BUSCONx) to access different resources and bus characteristics.

These address windows are arranged hierarchically where BUSCON4 overrides BUSCON3 and BUSCON2 overrides BUSCON1.

All accesses to locations not covered by these four address windows are controlled by BUSCON0. Up to five external CS

signals (four windows plus default) can be generated in order to save external glue logic. Access to very slow memories is supported by a ‘Ready’ function.

A HOLD

/ HLDA protocol is available for bus arbitration which shares external resources

with other bus masters. The bus arbitration is enabled by setting bit HLDEN in register PSW. After setting HLDEN

once, pins P6.7...P6.5 (BREQ master mode (default after reset) the HLDA slave mode is selected where pin HLDA

, HLDA, HOLD) are automatically controlled by the EBC. In

pin is an output. By setting bit DP6.7 to’1’ the

is switched to input. This directly connects the slave

controller to another master controller without glue logic. For applications which require less external memory space, the address space can be

restricted to 1 Mbyte, 256 Kbytes or to 64 Kbytes. Port 4 outputs all eight address lines if an address space of 16M Bytes is used, otherwise four, two or no address lines.

Chip select timing can be made programmable. By default (after reset), the CSx

lines change half a CPU clock cycle after the rising edge of ALE. With the CSCFG bit set in the SYSCON register the CSx

lines change with the rising edge of ALE.

The active level of the READY pin can be set by bit RDYPOL in the BUSCONx registers. When the READY function is enabled for a specific address window, each bus cycle within the window must be terminated with the active level defined by bit RDYPOL in the associated BUSCON register.

51/179

Interrupt system ST10F273E

9 Interrupt system

The interrupt response time for internal program execution is from 78ns to 187.5ns at 64 MHz CPU clock.

The ST10F273E architecture supports several mechanisms for fast and flexible response to service requests that can be generated from various sources (internal or external) to the microcontroller. Any of these interrupt requests can be serviced by the Interrupt Controller or by the Peripheral Event Controller (PEC).

In contrast to a standard interrupt service where the current program execution is suspended and a branch to the interrupt vector table is performed, just one cycle is ‘stolen’ from the current CPU activity to perform a PEC service. A PEC service implies a single Byte or Word data transfer between any two memory locations with an additional increment of either the PEC source or destination pointer. An individual PEC transfer counter is implicitly decremented for each PEC service except when performing in the continuous transfer mode. When this counter reaches zero, a standard interrupt is performed to the corresponding source related vector location. PEC services are very well suited to perform the transmission or the reception of blocks of data. The ST10F273E has 8 PEC channels, each of them offers such fast interrupt-driven data transfer capabilities.

An interrupt control register which contains an interrupt request flag, an interrupt enable flag and an interrupt priority bit-field is dedicated to each existing interrupt source. Thanks to its related register, each source can be programmed to one of sixteen interrupt priority levels. Once starting to be processed by the CPU, an interrupt service can only be interrupted by a higher prioritized service request. For the standard interrupt processing, each of the possible interrupt sources has a dedicated vector location.

Software interrupts are supported by means of the ‘TRAP’ instruction in combination with an individual trap (interrupt) number.

Fast external interrupt inputs are provided to service external interrupts with high precision requirements. These fast interrupt inputs feature programmable edge detection (rising edge, falling edge or both edges).

Fast external interrupts may also have interrupt sources selected from other peripherals; for example the CANx controller receive signals (CANx_RxD) and I

C serial clock signal can be

used to interrupt the system. Table 29 shows all the available ST10F273E interrupt sources and the corresponding

hardware-related interrupt flags, vectors, vector locations and trap (interrupt) numbers:

Table 29. Interrupt sources

Source of Interrupt or PEC Service Request

CAPCOM register 0 CC0IR CC0IE CC0INT 00’0040h 10h CAPCOM register 1 CC1IR CC1IE CC1INT 00’0044h 11h CAPCOM register 2 CC2IR CC2IE CC2INT 00’0048h 12h CAPCOM register 3 CC3IR CC3IE CC3INT 00’004Ch 13h CAPCOM register 4 CC4IR CC4IE CC4INT 00’0050h 14h CAPCOM register 5 CC5IR CC5IE CC5INT 00’0054h 15h

Request

Flag

Enable

Flag

Interrupt

Vector

Vecto r

Location

Trap

Number

52/179

ST10F273E Interrupt system

Table 29. Interrupt sources (continued)

Source of Interrupt or PEC Service Request

CAPCOM register 6 CC6IR CC6IE CC6INT 00’0058h 16h CAPCOM register 7 CC7IR CC7IE CC7INT 00’005Ch 17h CAPCOM register 8 CC8IR CC8IE CC8INT 00’0060h 18h CAPCOM register 9 CC9IR CC9IE CC9INT 00’0064h 19h CAPCOM register 10 CC10IR CC10IE CC10INT 00’0068h 1Ah CAPCOM register 11 CC11IR CC11IE CC11INT 00’006Ch 1Bh CAPCOM register 12 CC12IR CC12IE CC12INT 00’0070h 1Ch CAPCOM register 13 CC13IR CC13IE CC13INT 00’0074h 1Dh CAPCOM register 14 CC14IR CC14IE CC14INT 00’0078h 1Eh CAPCOM register 15 CC15IR CC15IE CC15INT 00’007Ch 1Fh CAPCOM register 16 CC16IR CC16IE CC16INT 00’00C0h 30h CAPCOM register 17 CC17IR CC17IE CC17INT 00’00C4h 31h CAPCOM register 18 CC18IR CC18IE CC18INT 00’00C8h 32h CAPCOM register 19 CC19IR CC19IE CC19INT 00’00CCh 33h CAPCOM register 20 CC20IR CC20IE CC20INT 00’00D0h 34h CAPCOM register 21 CC21IR CC21IE CC21INT 00’00D4h 35h CAPCOM register 22 CC22IR CC22IE CC22INT 00’00D8h 36h

Request

Flag

Enable

Flag

Interrupt

Vector

Vecto r

Location

Trap

Number

CAPCOM register 23 CC23IR CC23IE CC23INT 00’00DCh 37h CAPCOM register 24 CC24IR CC24IE CC24INT 00’00E0h 38h CAPCOM register 25 CC25IR CC25IE CC25INT 00’00E4h 39h CAPCOM register 26 CC26IR CC26IE CC26INT 00’00E8h 3Ah CAPCOM register 27 CC27IR CC27IE CC27INT 00’00ECh 3Bh CAPCOM register 28 CC28IR CC28IE CC28INT 00’00F0h 3Ch CAPCOM register 29 CC29IR CC29IE CC29INT 00’0110h 44h CAPCOM register 30 CC30IR CC30IE CC30INT 00’0114h 45h CAPCOM register 31 CC31IR CC31IE CC31INT 00’0118h 46h CAPCOM timer 0 T0IR T0IE T0INT 00’0080h 20h CAPCOM timer 1 T1IR T1IE T1INT 00’0084h 21h CAPCOM timer 7 T7IR T7IE T7INT 00’00F4h 3Dh CAPCOM timer 8 T8IR T8IE T8INT 00’00F8h 3Eh GPT1 timer 2 T2IR T2IE T2INT 00’0088h 22h GPT1 timer 3 T3IR T3IE T3INT 00’008Ch 23h GPT1 timer 4 T4IR T4IE T4INT 00’0090h 24h GPT2 timer 5 T5IR T5IE T5INT 00’0094h 25h

53/179

Interrupt system ST10F273E

Table 29. Interrupt sources (continued)

Source of Interrupt or PEC Service Request

GPT2 timer 6 T6IR T6IE T6INT 00’0098h 26h GPT2 CAPREL register CRIR CRIE CRINT 00’009Ch 27h A/D conversion complete ADCIR ADCIE ADCINT 00’00A0h 28h A/D overrun error ADEIR ADEIE ADEINT 00’00A4h 29h ASC0 transmit S0TIR S0TIE S0TINT 00’00A8h 2Ah ASC0 transmit buffer S0TBIR S0TBIE S0TBINT 00’011Ch 47h ASC0 receive S0RIR S0RIE S0RINT 00’00ACh 2Bh ASC0 error S0EIR S0EIE S0EINT 00’00B0h 2 Ch SSC transmit SCTIR SCTIE SCTINT 00’00B4h 2Dh SSC receive SCRIR SCRIE SCRINT 00’00B8h 2Eh SSC error SCEIR SCEIE SCEINT 00’00BCh 2Fh PWM channel 0...3 PWMIR PWMIE PWMINT 00’00FCh 3Fh See

Section 9.1

See

Section 9.1

See

Section 9.1

See

Section 9.1

Request

Flag

XP0IR XP0IE XP0INT 00’0100h 40h XP1IR XP1IE XP1INT 00’0104h 41h XP2IR XP2IE XP2INT 00’0108h 42h XP3IR XP3IE XP3INT 0 0’010Ch 43h

Enable

Flag

Interrupt

Vector

Vecto r

Location

Number

Trap

Hardware traps are exceptions or error conditions that arise during run-time. They cause immediate non-maskable system reaction similar to a standard interrupt service (branching to a dedicated vector table location).

The occurrence of a hardware trap is additionally signified by an individual bit in the trap flag register (TFR). Except when another higher prioritized trap service is in progress, a hardware trap will interrupt any other program execution. Hardware trap services cannot not be interrupted by standard interrupt or by PEC interrupts.

9.1 X-Peripheral interrupt

The limited number of X-Bus interrupt lines of the present ST10 architecture, imposes some constraints on the implementation of the new functionality. In particular, the additional XPeripherals SSC1, ASC1, I and PEC transfer capabilities. For this reason, a multiplexed structure for the interrupt management is proposed. In the next diagram, which shows the basic structure replicated for each of the four X-interrupt available vectors (XP0INT, XP1INT, XP2INT and XP3IN T).

It is based on a set of 16-bit registers XIRxSEL (x=0,1,2,3), divided in two portions each:

● Byte High XIRxSEL[15:8] Interrupt Enable bits

● Byte Low XIRxSEL[7:0] Interrupt Flag bits

C, PWM1 an d RTC ne ed some re sources to i mplement interrupt

Figure 7

, the principle is explained through a simple

54/179

ST10F273E Interrupt system

When different sources submit an interrupt request, the enable bits (Byte High of XIRxSEL register) define a mask which controls which sources will be associated with the unique available vector . If more than one source is enabled to issue the request, the service routine will have to take care to identify the real event to be serviced. This can easily be done by checking the flag bits (Byte Low of XIRxSEL register). Note that the flag bits can also provide information about events which are not currently serviced by the interrupt controller (since masked through the enable bits), allowing an effective software management also in absence of the possibility to serve the related interrupt request: a periodic polling of the flag bits may be implemented inside the user application.

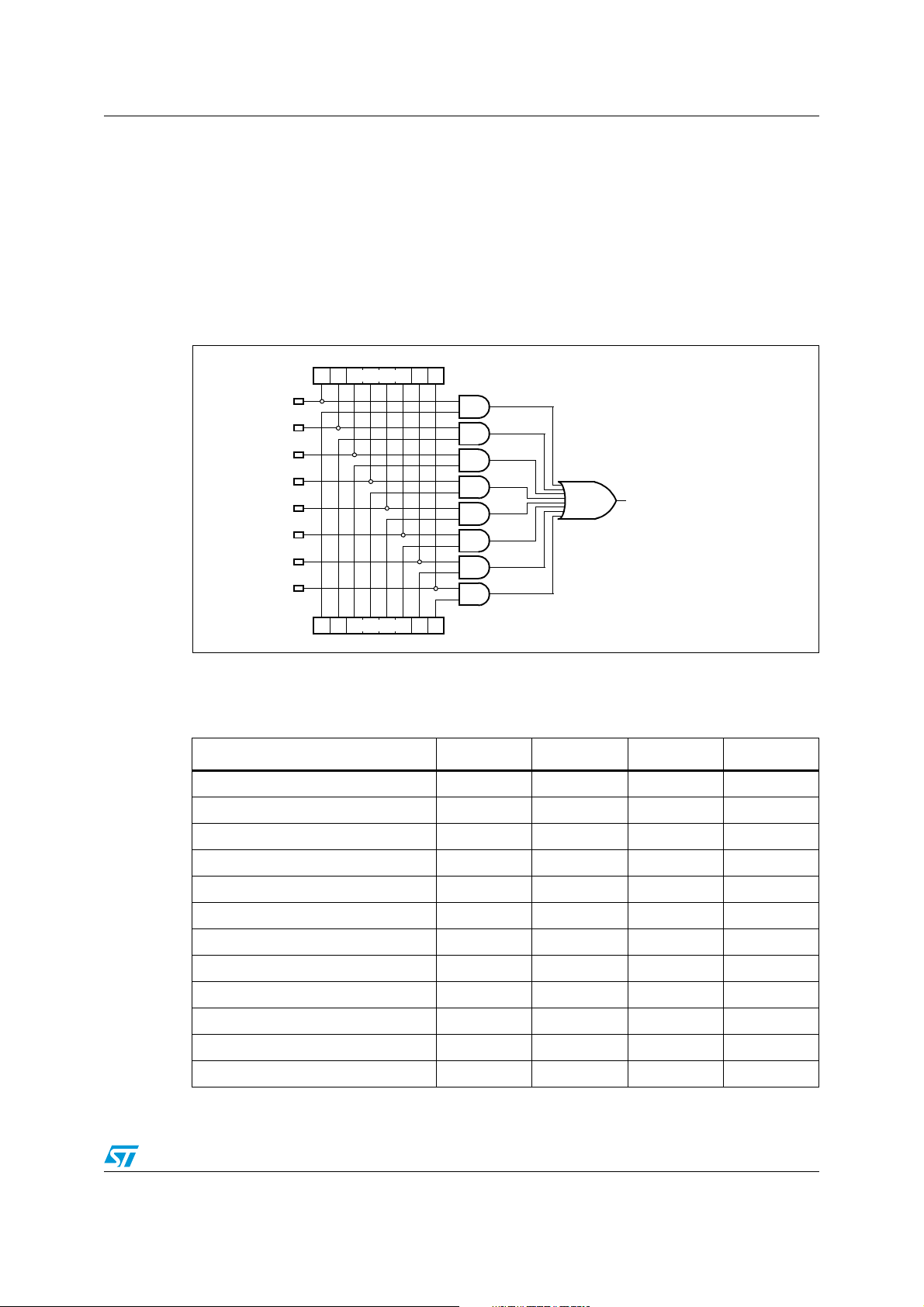

Figure 7. X-Interrupt basic structure

Flag[7:0] IT Source 7

IT Source 6

IT Source 5

IT Source 4

IT Source 3

IT Source 2

XIRxSEL[7:0] (x = 0, 1, 2, 3)

XPxIC.XPxIR (x = 0, 1, 2, 3)

IT Source 1

IT Source 0

The

Table 30

Enable[7:0]

15 8

summarizes the mapping of the different interrupt sources which shares the

XIRxSEL[ 15:8] (x = 0, 1, 2, 3)

four X-interrupt vectors.

Table 30. X-Interrupt detailed mapping

XP0INT XP1INT XP2INT XP3INT

CAN1 interrupt x x CAN2 interrupt x x I2C receive x x x I2C transmit x x x I2C error x SSC1 receive x x x SSC1 transmit x x x SSC1 error x ASC1 receive x x x ASC1 transmit x x x ASC1 transmit buffer x x x ASC1 error x

55/179

Interrupt system ST10F273E

Table 30. X-Interrupt detailed mapping (continued)

XP0INT XP1INT XP2INT XP3INT

PLL unlock / OWD PWM1 channel 3...0

9.2 Exception and error traps list

Table 31

time.

Table 31. Trap priorities

Reset functions: Hardware reset

Software reset Watchdog timer overflow

Class A hardware traps: Non-maskable interrupt

Stack overflow Stack underflow

Class B hardware traps: Undefined opcode

MAC interruption Protected instruction fault Illegal word operand access Illegal instruction access Illegal external bus access

shows all of the possible exceptions or error conditions that can arise during run-

Exception condition Trap flag

NMI STKOF STKUF

UNDOPC

MACTRP

PRTFLT

ILLOPA

ILLINA

ILLBUS

vector

RESET RESET RESET

NMITRAP STOTRAP STUTRAP

BTRAP BTRAP BTRAP BTRAP BTRAP BTRAP

Trap

Vecto r

location

00’0000h 00’0000h 00’0000h

00’0008h 00’0010h 00’0018h

00’0028h 00’0028h 00’0028h 00’0028h 00’0028h 00’0028h

Trap

number

00h 00h 00h

02h 04h 06h

0Ah 0Ah 0Ah 0Ah 0Ah 0Ah

(1)

Trap

priority

III III III

II II II

I I I I I

I Reserved [002Ch - 003Ch] [0Bh - 0Fh] Software traps

TRAP instruction

1. All the class B traps have the same trap number (and vector) and the same lower priority compared to the class A traps and to the resets. Each class A traps has a dedicated trap number (and vector). They are prioritized in the second priority level. The resets have the highest priority level and the same trap number. The PSW.ILVL CPU priority is forced to the highest level (15) when these exceptions are serviced.

56/179

Any

0000h – 01FCh

in steps of 4h

Any

[00h - 7Fh]

Current

CPU

Priority

ST10F273E Capture / compare (CAPCOM) units

10 Capture / compare (CAPCOM) units

The ST10F273E has two 16-channel CAPCOM units which support generation and control of timing sequences on up to 32 channels with a maximum resolution of 125ns at 64 MHz CPU clock.

The CAPCOM units are typically used to handle high speed I/O tasks such as pulse and waveform generation, pulse width modulation (PMW), Digital to Analog (D/A) conversion, software timing, or time recording relative to external events.

Four 16-bit timers (T0/T1, T7/T8) with reload registers provide two independent time bases for the capture/compare register array.

The input clock for the timers is programmable to several prescaled values of the internal system clock, or may be derived from an overflow/underflow of timer T6 in module GPT2.

This provides a wide range of variation for the timer period and resolution and allows precise adjustments to application specific requirements. In addition, external count inputs for CAPCOM timers T0 and T7 allow event scheduling for the capture/compare registers relative to external events.

Each of the two capture/compare register arrays contain 16 dual purpose capture/compare registers, each of which may be individually allocated to either CAPCOM timer T0 or T1 (T7 or T8, respectively), and programmed for capture or compare functions. Each of the 32 registers has one associated port pin which serves as an input pin for triggering the capture function, or as an output pin to indicate the occurrence of a compare event.

When a capture/compare register has been selected for capture mode, the current contents of the allocated timer will be latched (captured) into the capture/compare register in response to an external event at the port pin which is associated with this register. In addition, a specific interrupt request for this capture/compare register is generated.

Either a positive, a negative, or both a positive and a negative external signal transition at the pin can be selected as the triggering event. The contents of all registers which have been selected for one of the five compare modes are continuously compared with the contents of the allocated timers.

When a match occurs between the timer value and the value in a capture / compare register, specific actions will be taken based on the selected compare mode.

The input frequencies f CPU clocks. The timer input frequencies, resolution and periods which result from the selected pre-scaler option in TxI when using a 40 MHz and 64 MHz CPU clock are listed in the

Table 33

The numbers for the timer periods are based on a reload value of 0000h. Note that some numbers may be rounded to 3 significant figures.

and

Table 34

, for the timer input selector Tx, are determined as a function of the

respectively.

57/179

Capture / compare (CAPCOM) units ST10F273E

Table 32. Compare modes

Compare

modes

Mode 0

Mode 1

Mode 2

Mode 3

Double register mode

Table 33. CAPCOM timer input frequencies, resolutions and periods at 40 MHz

Interrupt-only compare mode; several compare interrupts per timer period are possible

Pin toggles on each compare match; several compare events per timer period are possible

Interrupt-only compare mode; only one compare interrupt per timer period is generated

Pin set ‘1’ on match; pin reset ‘0’ on compare time overflow; only one compare event per timer period is generated

Two registers operate on one pin; pin toggles on each compare match; several compare events per timer period are possible.

Function

Timer Input Selection TxI

= 40 MHz

CPU

000b 001b 010b 011b 100b 101b 110b 111b

Pre-scaler for

CPU

Input frequency 5MHz 2.5MHz 1.25MHz 625 kHz

8 16 32 64 128 256 512 1024

312.5 kHz

156.25 kHz

78.125 kHz

39.1 kHz

Resolution 200ns 400ns 0.8µs 1.6µs 3.2µs 6.4µs 12.8µs 25.6µs

Period 13.1ms 26.2ms 52.4ms

Table 34. CAPCOM timer input frequencies, resolutions and periods at 64 MHz

104.8 ms

209.7ms 419.4ms 838.9ms 1.678s

= 64 MHz

CPU

000b 001b 010b 011b 100b 101b 110b 111b

Pre-scaler for

CPU

8 16 32 64 128 256 512 1024

Input frequency 8MHz 4MHz 2MHz 1 kHz 500 kHz 250 kHz 128 kHz 64 kHz Resolution 125ns 250ns 0.5µs 1.0µs 2.0µs 4.0µs 8.0µs 16.0µs Period 8.2ms 16.4ms 32.8ms 65.5ms 131.1ms 262.1ms 524.3ms 1.049s

58/179

Timer Input Selection TxI

ST10F273E General purpose timer unit

11 General purpose timer unit

The GPT unit is a flexible multifunctional timer/counter structure which is used for time related tasks such as event timing and counting, pulse width and duty cycle measurements, pulse generation, or pulse multiplication. The GPT unit contains five 16-bit timers organized into two separate modules GPT1 and GPT2. Each timer in each module may operate independently in several different modes, or may be concatenated with another timer of the same module.

11.1 GPT1

Each of the three timers T2, T3, T4 of the GPT1 module can be configured individually for one of four basic modes of operation: timer, gated timer, counter mode and incremental interface mode.

In timer mode, the input clock for a timer is derived from the CPU clock, divided by a programmable prescaler.

In counter mode, the timer is clocked in reference to external events. Pulse width or duty cycle measurement is supported in gated timer mode where the

operation of a timer is controlled by the ‘gate’ level on an external input pin. For these purposes, each timer has one associated port pin (TxIN) which serves as gate or clock input.

Table 35 and Table 36 list the timer input frequencies, resolution and periods for each prescaler option at 40MHz and 64MHz CPU clock respectively.

In Incremental Interface mode, the GPT1 timers (T2, T3, T4) can be directly connected to the incremental position sensor signals A and B by their respective inputs TxIN and TxEUD.

Direction and count signals are internally derived from these two input signals so that the contents of the respective timer Tx corresponds to the sensor position. The third position sensor signal TOP0 can be connected to an interrupt input.

Timer T3 has output toggle latches (TxOTL) which changes state on each timer over flow / underflow. The state of this latch may be output on port pins (TxOUT) for time out monitoring of external hardware components, or may be used internally to clock timers T2 and T4 for high resolution of long duration measurements.

In addition to their basic operating modes, timers T2 and T4 may be configured as reload or capture registers for timer T3.

Table 35. GPT1 timer input frequencies, resolutions and periods at 40 MHz

CPU

Pre-scaler factor 8 16 32 64 128 256 512 1024 Input frequency 5MHz 2.5MHz 1.25 MHz 625 kHz 312.5 kHz 156.25 kHz 78.125 kHz 39.1 kHz Resolution 200ns 400ns 0.8µs 1.6µs 3.2µs 6.4µs 12.8µs 25.6µs

Timer Input Selection T2I / T3I / T4I

= 40 MHz

000b 001b 010b 011b 100b 101b 110b 111b

Period maximum 13.1ms 26.2ms 52.4ms 104.8 ms 209.7ms 419.4ms 838.9ms 1.678s

59/179

General purpose timer unit ST10F273E

Table 36. GPT1 timer input frequencies, resolutions and periods at 64 MHz

Timer Input Selection T2I / T3I / T4I

= 64 MHz

CPU

000b 001b 010b 011b 100b 101b 110b 111b

Pre-scaler factor

8 16 32 64 128 256 512 1024

Input Freq 8MHz 4MHz 2MHz 1 kHz 500 kHz 250 kHz 128 kHz 64 kHz Resolution 125ns 250ns 0.5µs 1.0µs 2.0µs 4.0µs 8.0µs 16.0µs Period

maximum

8.2ms 16.4ms 32.8ms 65.5ms 131.1ms 262.1ms 524.3ms 1.049s

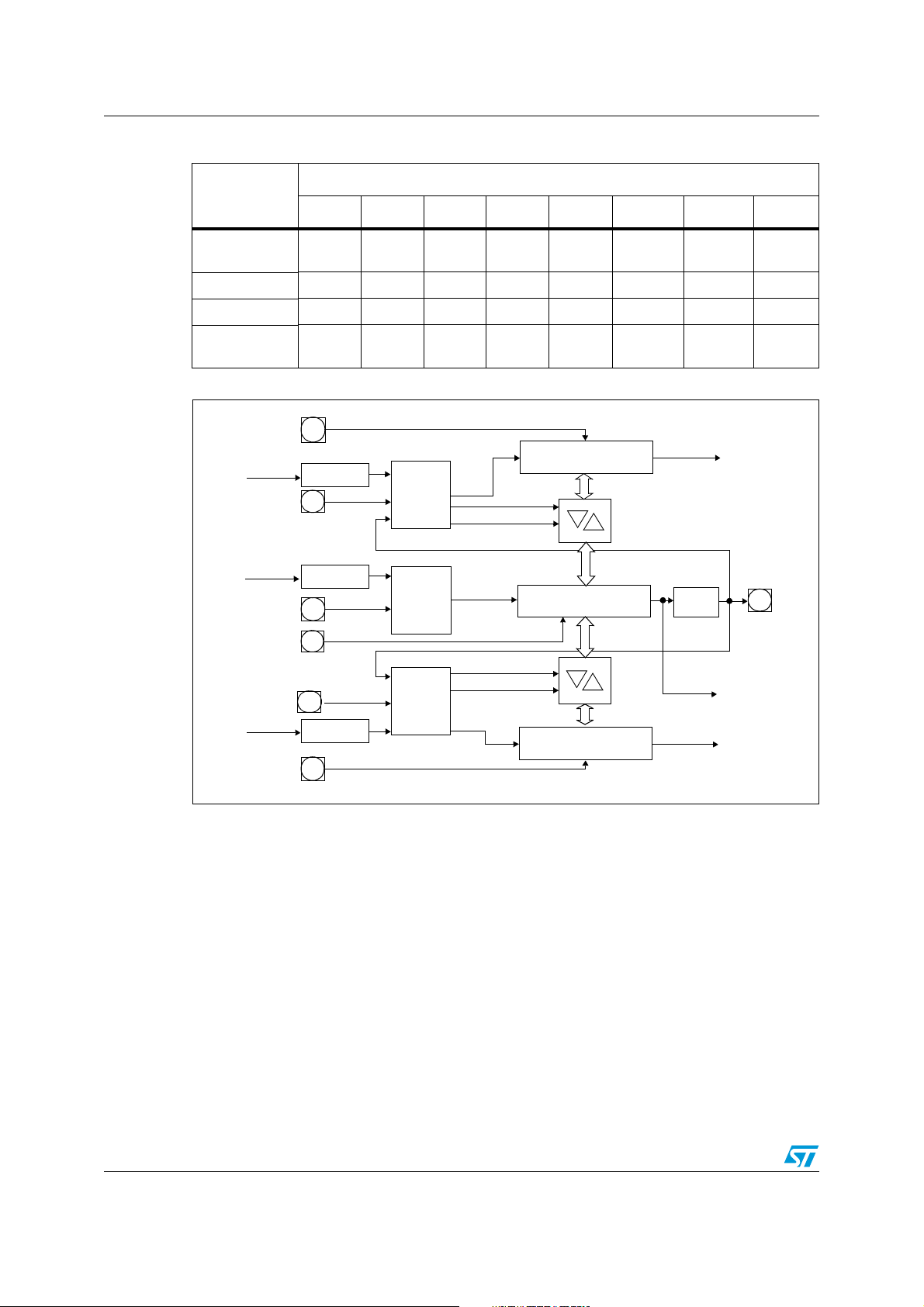

Figure 8. Block diagram of GPT1

T2EUD

CPU clock

T2IN

CPU clock

T3IN

T3EUD

T4IN

CPU clock

T4EUD

2n n=3...10

T2 mode control

T3 mode control

T4 mode control

GPT1 timer T2

Reload Capture

GPT1 timer T3

U/D

Capture

Reload

GPT1 timer T4

U/D

T3OTL

Interrupt request

T3OUT

Interrupt

request

Interrupt request

60/179

ST10F273E General purpose timer unit

11.2 GPT2

The GPT2 module provides precise event control and time measurement. It includes two timers (T5, T6) and a capture/reload register (CAPREL). Both timers can be clocked with an input clock which is derived from the CPU clock via a programmable prescaler or with external signals. The count direction (up/down) for each timer is programmable by software or may additionally be altered dynamically by an external signal on a port pin (TxEUD). Concatenation of the timers is supported via the output toggle latch (T6OTL) of timer T6 which changes its state on each timer overflow/underflow.

The state of this latch may be used to clock timer T5, or it may be output on a port pin (T6OUT). The overflow / underflow of timer T6 can additionally be used to clock the CAPCOM timers T0 or T1, and to cause a reload from the CAPREL register. The CAPREL register may capture the contents of timer T5 based on an external signal transition on the corresponding port pin (CAPIN), and timer T5 may optionally be cleared after the capture procedure. This allows absolute time differences to be measured or pulse multiplication to be performed without software overhead.

The capture trigger (timer T5 to CAPREL) may also be generated upon transitions of GPT1 timer T3 inputs T3IN and/or T3EUD. This is advantageous when T3 operates in Incremental Interface mode.

Table 37

and

Table 38

list the timer input frequencies, resolution and periods for each pre-

scaler option at 40MHz and 64MHz CPU clock respectively.

Table 37. GPT2 timer input frequencies, resolutions and periods at 40 MHz

Timer Input Selection T5I / T6I

= 40MHz

CPU

Pre-scaler factor

Input fre quency 10MHz 5MHz 2.5MHz

Resolution 100ns 200ns 400ns 0.8µs 1.6µs 3.2µs 6.4µs 12.8µs Period

maximum

Table 38. GPT2 timer input frequencies, resolutions and periods at 64 MHz

= 64MHz

CPU

Pre-scaler factor

Input frequency 16MHz 8MHz 4MHz 2MHz 1 kHz 500 kHz 250 kHz 128 kHz Resolution 62.5ns 125ns 250ns 0.5µs 1.0µs 2.0µs 4.0µs 8.0µs

000b 001b 010b 011b 100b 101b 110b 111b

4 8 16 32 64 128 256 512

1.25 MHz

6.55ms 13.1ms 26.2ms 52.4ms 104.8ms 209.7ms 419.4ms 838.9ms

Timer Input Selection T5I / T6I

000b 001b 010b 011b 100b 101b 110b 111b

4 8 16 32 64 128 256 512

625 kHz

312.5 kHz

156.25 kHz

78.125 kHz

Period maximum

4.1ms 8.2ms 16.4ms 32.8ms 65.5ms 131.1ms 262.1ms 524.3ms

61/179

General purpose timer unit ST10F273E

Figure 9. Block diagram of GPT2

T5EUD

CPU clock

T5IN

CAPIN

T6IN

CPU clock

T6EUD

2n n=2...9

T5 mode control

T6 mode control

Clear

Capture

U/D

GPT2 timer T5

GPT2 CAPREL

GPT2 timer T6

U/D

Reload

Toggle FF

T60TL

Interrupt request

T6OUT

to CAPCOM timers

62/179

ST10F273E PWM modules

12 PWM modules

Two pulse width modulation modules are available on ST10F273E: standard PWM0 and XBUS PWM1. They can generate up to four PWM output signals each, using edge-aligned or centre-aligned PWM. In addition, the PWM modules can generate PWM burst signals and single shot outputs. The resolutions. The level of the output signals is selectable and the PWM modules can generate interrupt requests.

Figure 10. Block diagram of PWM module

Table 39

and

Table 40

show the PWM frequencies for different

PPx period register

Comparator

Clock 1 Clock 2

User readable / writeable register

Table 39. PWM unit frequencies and resolutions at 40 MHz CPU clock

Input

control

Run

16-bit up/down counter

PWx pulse width register

PTx

Comparator

Shadow register

Match

Up/down/

clear control

Output control

Write control

Enable

POUTx

Mode 0 Resolution 8-bit 10-bit 12-bit 14-bit 16-bit

CPU Clock/1 25ns 156.25 kHz 39.1 kHz 9.77 kHz 2.44Hz 610Hz

CPU Clock/64 1.6µs 2.44 kHz 610Hz 152.6Hz 38.15Hz 9.54Hz

Mode 1 Resolution 8-bit 10-bit 12-bit 14-bit 16-bit

CPUclock/1 25ns 78.12 kHz 19.53 kHz 4.88 kHz 1.22 kHz 305.2Hz

CPU cloc k/ 6 4 1.6µs 1.22 kHz 305.17Hz 76.29Hz 19.07Hz 4.77Hz

Table 40. PWM unit frequencies and resolutions at 64 MHz CPU clock

Mode 0 Resolution 8-bit 10-bit 12-bit 14-bit 16-bit

CPU clock/1 15.6ns 250 kHz 62.5 kHz 15.63 kHz 3.91Hz 977Hz

CPU cloc k/ 6 4 1.0µs 3.91 kHz 976.6Hz 244.1Hz 61.01Hz 15.26Hz

Mode 1 Resolution 8-bit 10-bit 12-bit 14-bit 16-bit

CPU clock/1 15.6ns 125 kHz 31.25 kHz 7.81 kHz 1.95 kHz 488.3Hz

CPU cloc k/ 6 4 1.0µs 1.95 kHz 488.28Hz 122.07Hz 30.52Hz 7.63Hz

63/179

Parallel ports ST10F273E

13 Parallel ports

13.1 Introduction

The ST10F273E MCU provides up to 111 I/O lines with programmable features. These capabilities bring very flexible adaptation of this MCU to wide range of applications.

ST10F273E has nine groups of I/O lines gathered as follows:

● Port 0 is a two time 8-bit port named P0L (Low as less significant byte) and P0H (high

as most significant byte)

● Port 1 is a two time 8-bit port named P1L and P1H

● Port 2 is a 16-bit port

● Port 3 is a 15-bit port (P3.14 line is not implemented)

● Port 4 is a 8-bit port

● Port 5 is a 16-bit port input only

● Port 6, Port 7 and Port 8 are 8-bit ports

These ports may be used as general purpose bidirectional input or output, software controlled with dedicated registers.

For example, the output drivers of six of the ports (2, 3, 4, 6, 7, 8) can be configured (bitwise) for push-pull or open drain operation using ODPx registers.

The input threshold levels are programmable (TTL/CMOS) for all the ports. The logic level of a pin is clocked into the input latch once per state time, regardless whether the port is configured for input or output. The threshold is selected with PICON and XPICON registers control bits.

A write operation to a port pin configured as an input causes the value to be written into the port output latch, while a read operation returns the latched state of the pin itself. A readmodify-write operation reads the value of the pin, modifies it, and writes it back to the output latch.

Writing to a pin configured as an output (DPx.y=‘1’) causes the output latch and the pin to have the written value, since the output buffer is enabled. Reading this pin returns the value of the output latch. A read-modify-write operation reads the value of the output latch, modifies it, and writes it back to the output latch, thus also modifying the level at the pin.

I/O lines support an alternate function which is detailed in the following description of each port.

64/179

ST10F273E Parallel ports

13.2 I/O’s special features

13.2.1 Open drain mode

Some of the I/O ports of ST10F273E support the open drain capability. This programmable feature may be used with an external pull-up resistor, in order to get an AND wired logical function. This feature is implemented for ports P2, P3, P4, P6, P7 and P8 (see respective sections) and is controlled through the respective Open Drain Control Registers ODPx.

13.2.2 Input threshold control

The standard inputs of the ST10F273E determine the status of input signals according to TTL levels. In order to accept and recognize noisy signals, CMOS input thresholds can be selected instead of the standard TTL thresholds for all the pins. These CMOS thresholds are defined above the TTL thresholds and feature a higher hysteresis to prevent the inputs from toggling while the respective input signal level is near the thresholds.

The Port Input Control registers PICON and XPICON are used to select these thresholds for each Byte of the indicated ports, this means the 8-bit ports P0L, P0H, P1L, P1H, P4, P7 and P8 are controlled by one bit each while ports P2, P3 and P5 are controlled by two bits each.

All options for individual direction and output mode control are available for each pin, independent of the selected input threshold.

13.3 Alternate port functions

Each port line has one associated programmable alternate input or output function.

● PORT0 and PORT1 may be used as address and data lines when accessing external

memory. Besides, PORT1 provides also: – Input capture lines – 8 additional analog input channels to the A/D converter

● Port 2, Port 7 and Port 8 are associated with the capture inputs or compare outputs of

the CAPCOM units and/or with the outputs of the PWM0 module, of the PWM1 module and of the ASC1. Port 2 is also used for fast external interrupt inputs and for timer 7 input.

● Port 3 includes the alternate functions of timers, serial interfaces, the optional bus

control signal BH E

● Port 4 outputs the additional segment address bit A23...A16 in systems where more

than 64 Kbytes of memory are to be access directly. In addition, CAN1, CAN2 and I lines are provided.

● Port 5 is used as analog input channels of the A/D converter or as timer control signals.

● Port 6 provides optional bus arbitration signals (BREQ, HLDA, HOLD) and chip select

signals and the SSC1 lines.

If the alternate output function of a pin is to be used, the direction of this pin must be programmed for output (DPx.y=‘1’), except for some signals that are used directly after reset and are configured automatically. Otherwise the pin remains in the high-impedance state and is not effected by the alternate output function. The respective port latch should hold a ‘1’, because its output is ANDed with the alternate output data (except for PWM output signals).

and the system clock output (CLKOUT).

65/179

Parallel ports ST10F273E

If the alternate input function of a pin is used, the direction of the pin must be programmed for input (DPx.y=‘0’) if an external device is driving the pin. The input direction is the default after reset. If no external device is connected to the pin, however, one can also set the direction for this pin to output. In this case, the pin reflects the state of the port output latch. Thus, the alternate input function reads the value stored in the port output latch. This can be used for testing purposes to allow a software trigger of an alternate input function by writing to the port output latch.

On most of the port lines, the user software is responsible for setting the proper direction when using an alternate input or output function of a pin.

This is done by setting or clearing the direction control bit DPx.y of the pin before enabling the alternate function.

There are port lines, however, where the direction of the port line is switched automatically. For instance, in the multiplexed external bus modes of PORT0, the direction must be

switched several times for an instruction fetch in order to output the addresses and to input the data.

Obviously , this cannot be done through instructions. In these cases, the direction of the port line is switched automatically by hardware if the alternate function of such a pin is enabled.

To determine the appropriate level of the port output latches check how the alternate data output is combined with the respective port latch output.

There is one basic structure for all port lines with only an alternate input function. Port lines with only an alternate output function, however, have different structures due to the way the direction of the pin is switched and depending on whether the pin is accessible by the user software or not in the alternate function mode.

All port lines that are not used for these alternate functions may be used as general purpose I/O lines.

66/179

ST10F273E A/D converter

14 A/D converter

A 10-bit A/D converter with 16+8 multiplexed input channels and a sample and hold circuit is integrated on-chip. An automatic self-calibration adjusts the A/D converter module to process parameter variations at each reset event. The sample time (for loading the capacitors) and the conversion time is programmable and can be adjusted to the external circuitry.

The ST10F273E has 16+8 multiplexed input channels on Port 5 and Port 1. The selection between Port 5 and Port 1 is made via a bit in a XBus register. Refer to the User Manual for a detailed description.

A different accuracy is guaranteed (Total Unadjusted Error) on Port 5 and Port 1 analog channels (with higher restrictions when overload conditions occur); in particular, Port 5 channels are more accurate than the Port 1 ones. Refer to Electrical Characteristic section for details.

The A/D converter input bandwidth is limited by the achievable accuracy: supposing a maximum error of 0.5LSB (2mV) impacting the global TUE (TUE depends also on other causes), in worst case of temperature and process, the maximum frequency for a sine wave analog signal is around 7.5 kHz. Of course, to reduce the effect of the input signal variation on the accuracy down to 0.05LSB, the maximum input frequency of the sine wave shall be reduced to 800 Hz.

If static signal is applied during sampling phase, series resistance shall not be greater than 20kΩ (this taking into account eventual input leakage). It is suggested to not connect any capacitance on analog input pins, in order to reduce the effect of charge partitioning (and consequent voltage drop error) between the external and the internal capacitance: in case an RC filter is necessary the external capacitance must be greater than 10nF to minimize the accuracy impact.

Overrun error detection / protection is controlled by the ADDAT register. Either an interrupt request is generated when the result of a previous conversion has not been read from the result register at the time the next conversion is complete, or the next conversion is suspended until the previous result has been read. For applications which require less than 16+8 analog input channels, the remaining channel inputs can be used as digital input port pins.

The A/D converter of the ST10F273E supports different conversion modes:

● Single channel single conversion: The analog level of the selected channel is

sampled once and converted. The result of the conversion is stored in the ADDAT register.

● Single channel continuous conversion: The analog level of the selected channel is

repeatedly sampled and converted. The result of the conversion is stored in the ADDA T register.

● Auto scan single conversion: The analog level of the selected channels are sampled

once and converted. After each conversion the result is stored in the ADDAT register. The data can be transferred to the RAM by interrupt software management or using the powerful Peripheral Event Controller (PEC) data transfer.

● Auto scan continuous conversion: The analog level of the selected channels are

repeatedly sampled and converted. The result of the conversion is stored in the ADDA T

67/179

A/D converter ST10F273E

● Wait for ADDAT read mode: When using continuous modes, in order to avoid to

overwrite the result of the current conversion by the next one, the ADWR bit of ADCON control register must be activated. Then, until the ADDAT register is read, the new result is stored in a temporary buffer and the conversion is on hold.

● Channel injection mode: When using continuous modes, a selected channel can be

converted in between without changing the current operating mode. The 10-bit data of the conversion are stored in ADRES field of ADDAT2. The current continuous mode remains active after the single conversion is completed.

A full calibration sequence is performed after a reset. This full calibration lasts up to 40.630 CPU clock cycles. During this time, the busy flag ADBSY is set to indicate the operation. It compensates the capacitance mismatch, so the calibration procedure does not need any update during normal operation.

No conversion can be performed during this time: the bit ADBSY shall be polled to verify when the calibration is over, and the module is able to start a convertion.

68/179

ST10F273E Serial channels

15 Serial channels

Serial communication with other microcontrollers, microprocessors, terminals or external peripheral components is provided by up to four serial interfaces: two asynchronous / synchronous serial channels (ASC0 and ASC1) and two high-speed synchronous serial channel (SSC0 and SSC1). Dedicated Baud rate generators set up all standard Baud rates without the requirement of oscillator tuning. For transmission, reception and erroneous reception, separate interrupt vectors are provided for ASC0 and SSC0 serial channel. A more complex mechanism of interrupt sources multiplexing is implemented for ASC1 and SSC1 (XBUS mapped).

15.1 Asynchronous / synchronous serial interfaces

The asynchronous / synchronous serial interfaces (ASC0 and ASC1) provides serial communication between the ST10F273E and other microcontrollers, microprocessors or external peripherals.

15.2 ASCx in asynchronous mode

In asynchronous mode, 8- or 9-bit data transfer, parity generation and the number of stop bits can be selected. Parity framing and overrun error detection is provided to increase the reliability of data transfers. Transmission and reception of data is double-buffered. Fullduplex communication up to 2M Bauds (at 64 MHz of f

Table 41. ASC asynchronous baud rates by reload value and deviation errors (f

Baud Rate (Baud) Deviation Error

1 250 000 0.0% / 0.0% 0000 / 0000 833 333 0.0% / 0.0% 0000 / 0000

112 000 +1.5% / -7.0% 000A / 000B 112 000 +6.3% / -7.0% 0006 / 0007

S0BRS = ‘0’, f

56 000 +1.5% / -3.0% 0015 / 0016 56 000 +6.3% / -0.8% 000D / 000E 38 400 +1.7% / -1.4% 001F / 0020 38 400 +3.3% / -1.4% 0014 / 0015 19 200 +0.2% / -1.4% 0040 / 0041 19 200 +0.9% / -1.4% 002A / 002B

9 600 +0.2% / -0.6% 0081 / 0082 9 600 +0.9% / -0.2% 0055 / 0056 4 800 +0.2% / -0.2% 0103 / 0104 4 800 +0.4% / -0.2% 00AC / 00AD 2 400 +0.2% / 0.0% 0207 / 0208 2 400 +0.1% / -0.2% 015A / 015B 1 200 0.1% / 0.0% 0410 / 0411 1 200 +0.1% / -0.1% 02B5 / 02B6

600 0.0% / 0.0% 0822 / 0823 600 +0.1% / 0.0% 056B / 056C

= 40 MHz S0BRS = ‘1’, f

CPU

Reload Value

(hex)

Baud Rate (Baud) Deviation Error

) is supported in this mode.

CPU

= 40 MHz

CPU

= 40 MHz)

Reload Value

(hex)

300 0.0% / 0.0% 1045 / 1046 300 0.0% / 0.0% 0AD8 / 0AD9 153 0.0% / 0.0% 1FE8 / 1FE9 102 0.0% / 0.0% 1FE8 / 1FE9

69/179

Serial channels ST10F273E

Table 42. ASC asynchronous baud rates by reload value and deviation errors (f

Baud Rate (Baud) Deviation Error

S0BRS = ‘0’, f

= 64 MHz S0BRS = ‘1’, f

CPU

Reload Value

(hex)

Baud Rate (Baud) Deviation Error

= 64 MHz

CPU

= 64 MHz)

CPU

Reload Value

(hex)

2 000 000 0.0% / 0.0% 0000 / 0000 1 333 333 0.0% / 0.0% 0000 / 0000

112 000 +1.5% / -7.0% 0010 / 0011 112 000 +6.3% / -7.0% 000A / 000B

56 000 +1.5% / -3.0% 0022 / 0023 56 000 +6.3% / -0.8% 0016 / 0017 38 400 +1.7% / -1.4% 0033 / 0034 38 400 +3.3% / -1.4% 0021 / 0022 19 200 +0.2% / -1.4% 0067 / 0068 19 200 +0.9% / -1.4% 0044 / 0045

9 600 +0.2% / -0.6% 00CF / 00D0 9 600 +0.9% / -0.2% 0089 / 008A 4 800 +0.2% / -0.2% 019F / 01A0 4 800 +0.4% / -0.2% 0114 / 0115 2 400 +0.2% / 0.0% 0340 / 0341 2 400 +0.1% / -0.2% 022A / 015B 1 200 0.1% / 0.0% 0681 / 0682 1 200 +0.1% / -0.1% 0456 / 0457

600 0.0% / 0.0% 0D04 / 0D05 600 +0.1% / 0.0% 08AD / 08AE 300 0.0% / 0.0% 1A09 / 1A0A 300 0.0% / 0.0% 115B / 115C 245 0.0% / 0.0% 1FE2 / 1FE3 163 0.0% / 0.0% 1FF2 / 1FF3

Note: The deviation errors given in the Table 41 and Table 42 are rounded. To avoid deviation

errors use a Baud rate crystal (providing a multiple of the ASC0 sampling frequency).

15.3 ASCx in synchronous mode

In synchronous mode, data is transmitted or received synchronously to a shift clock which is generated by the ST10F273E. Half-duplex communication up to 8M Baud (at 40 MHz of f

) is possib le in this mode.

CPU

Table 43. ASC synchronous baud rates by reload value and deviation errors (f

Baud rate (Baud) Deviation error

5 000 000 0.0% / 0.0% 0000 / 0000 3 333 333 0.0% / 0.0% 0000 / 0000

112 000 +1.5% / -0.8% 002B / 002C 112 000 +2.6% / -0.8% 001C / 001D

S0BRS = ‘0’, f

= 40 MHz S0BRS = ‘1’, f

CPU

Reload value

(hex)

Baud rate (Baud) Deviation Error

CPU

= 40 MHz

56 000 +0.3% / -0.8% 0058 / 0059 56 000 +0.9% / -0.8% 003A / 003B 38 400 +0.2% / -0.6% 0081 / 0082 38 400 +0.9% / -0.2% 0055 / 0056 19 200 +0.2% / -0.2% 0103 / 0104 19 200 +0.4% / -0.2% 00AC / 00AD

9 600 +0.2% / 0.0% 0207 / 0208 9 600 +0.1% / -0.2% 015A / 015B 4 800 +0.1% / 0.0% 0410 / 0411 4 800 +0.1% / -0.1% 02B5 / 02B6 2 400 0.0% / 0.0% 0822 / 0823 2 400 +0.1% / 0.0% 056B / 056C 1 200 0.0% / 0.0% 1045 / 1046 1 200 0.0% / 0.0% 0AD8 / 0AD9

= 40 MHz)

Reload value

(hex)

70/179

ST10F273E Serial channels

Table 43. ASC synchronous baud rates by reload value and deviation errors (f

S0BRS = ‘0’, f

Baud rate (Baud) Deviation error

900 0.0% / 0.0% 15B2 / 15B3 600 0.0% / 0.0% 15B2 / 15B3 612 0.0% / 0.0% 1FE8 / 1FE9 407 0.0% / 0.0% 1FFD / 1FFE

Table 44. ASC synchronous baud rates by reload value and deviation errors (f

Baud rate (Baud) Deviation error

8 000 000 0.0% / 0.0% 0000 / 0000 5 333 333 0.0% / 0.0% 0000 / 0000

112 000 +0.6% / -0.8% 0046 / 0047 112 000 +1.3% / -0.8% 002E / 002F

S0BRS = ‘0’, f

56 000 +0.6% / -0.1% 008D / 008E 56 000 +0.3% / -0.8% 005E / 005F 38 400 +0.2% / -0.3% 00CF / 00D0 38 400 +0.6% / -0.1% 0089 / 008A 19 200 +0.2% / -0.1% 019F / 01A0 19 200 +0.3% / -0.1% 0114 / 0115

9 600 +0.0% / -0.1% 0340 / 0341 9 600 +0.1% / -0.1% 022A / 022B 4 800 0.0% / 0.0% 0681 / 0682 4 800 0.0% / -0.1% 0456 / 0457

= 40 MHz S0BRS = ‘1’, f

CPU

Reload value

(hex)

= 64 MHz S0BRS = ‘1’, f

CPU

Reload value

(hex)

Baud rate (Baud) Deviation Error

Baud rate (Baud) Deviation error

CPU

= 40 MHz

CPU

= 64 MHz

= 40 MHz)

Reload value

(hex)

= 64 MHz)

Reload value

(hex)

2 400 0.0% / 0.0% 0D04 / 0D05 2 400 0.0% / 0.0% 08AD / 08AE 1 200 0.0% / 0.0% 1A09 / 1A0A 1 200 0.0% / 0.0% 115B / 115C

977 0.0% / 0.0% 1FFB / 1FFC 900 0.0% / 0.0% 1724 / 1725

652 0.0% / 0.0% 1FF2 / 1FF3

Note: The deviation errors given in the Table 43 and Table 44 are rounded. To avoid deviation

errors use a Baud rate crystal (providing a multiple of the ASC0 sampling frequency)

15.4 High speed synchronous serial interfaces

The High-Speed Synchronous Serial Interfaces (SSC0 and SSC1) provides flexible highspeed serial communication between the ST10F273E and other microcontrollers, microprocessors or external peripherals.

The SSCx supports full-duplex and half-duplex synchronous communication. The serial clock signal can be generated by the SSCx itself (master mode) or be received from an external master (slave mode). Data width, shift direction, clock polarity and phase are programmable.

This allows communication with SPI-compatible devices. T ransmission and reception of data is double-buffered. A 16-bit Baud rate generator provides the SSCx with a separate serial clock signal. The serial channel SSCx has its own dedicated 16-bit Baud rate generator with 16-bit reload capability, allowing Baud rate generation independent from the timers.

Table 45

and

Table 46

list some possible Baud rates against the required reload values and the resulting bit times for 40 MHz and 64 MHz CPU clock respectively. The maximum is anyway limited to 8Mbaud.

71/179

Serial channels ST10F273E

Table 45. Synchronous baud rate and reload values (f

Baud rate Bit time Reload value

Reserved --- 0000h Can be used only with f

6.6M Baud 150ns 0002h 5M Baud 200ns 0003h

2.5M Baud 400ns 0007h 1M Baud 1µs 0013h 100K Baud 10µs 00C7h 10K Baud 100µs07CFh 1K Baud 1ms 4E1Fh 306 Baud 3.26ms FF4Eh

Table 46. Synchronous baud rate and reload values (f

Reserved --- 0000h

= 32 MHz (or lower) --- 0001h

CPU

Baud rate Bit time Reload value

= 40 MHz)

CPU

= 64 MHz)

CPU

Can be used only with f Can be used only with f

= 32 MHz (or lower) --- 0001h

CPU

= 48 MHz (or lower) --- 0002h

CPU

8M Baud 125ns 0003h 4M Baud 250ns 0007h 1M Baud 1µs001Fh 100K Baud 10µs013Fh 10K Baud 100µs0C7Fh 1K Baud 1ms 7CFFh 489 Baud 2.04ms FF9Eh

72/179

ST10F273E I2C interface

16 I2C interface

The integrated I2C Bus Module handles the transmission and reception of frames over the

two-line SDA/SCL in accordance with the I

C Bus specification. The I2C Module can operate in slave mode, in master mode or in multi-master mode. It can receive and transmit data using 7-bit or 10-bit addressing. Data can be transferred at speeds up to 400 Kbit/s (both Standard and Fast I

C bus modes are supported).

The module can generate three different types of interrupt:

● Requests related to bus events, like start or stop events, arbitration lost, etc.

● Requests related to data transmission

● Requests related to data reception

These requests are issued to the interrupt controller by three different lines, and identified as Error, Transmit, and Receive interrupt lines.

When the I

C module is enabled by setting bit XI2CEN in XPERCON register, pins P4.4 and P4.7 (where SCL and SDA are respectively mapped as alternate functions) are automatically configured as bidirectional open-drain: the value of the external pull-up resistor depends on the application. P4, DP4 and ODP4 cannot influence the pin configuration.

When the I

C cell is disabled (clearing bit XI2CEN), P4.4 and P4.7 pins are standard I/ O

controlled by P4, DP4 and ODP4. The speed of the I

Fast I

C mode (100 to 400 kHz).

C interface may be selected between Standard mode (0 to 100 kHz) and

73/179

CAN modules ST10F273E

17 CAN modules

The two integrated CAN modules (CAN1 and CAN2) are identical and handle the completely autonomous transmission and reception of CAN frames according to the CAN specification V2.0 part B (active). It is based on the C-CAN specification.

Each on-chip CAN module can receive and transmit standard frames with 11-bit identifiers as well as extended frames with 29-bit identifiers.

Because of duplication of the CAN controllers, the following adjustments are to be considered:

● Same internal register addresses of both CAN controllers, but with base addresses

differing in address bit A8; separate chip select for each CAN module. Refer to

Chapter 4: Memory organization on page 22

● The CAN1 transmit line (CAN1_TxD) is the alternate function of the Port P4.6 pin and

the receive line (CAN1_RxD) is the alternate function of the Port P4.5 pin.

● The CAN2 transmit line (CAN2_TxD) is the alternate function of the Port P4.7 pin and

the receive line (CAN2_RxD) is the alternate function of the Port P4.4 pin.

● Interrupt request lines of the CAN1 and CAN2 modules are connected to the XBUS

interrupt lines together with other X-Peripherals sharing the four vectors.

● The CAN modules must be selected with corresponding CANxEN bit of XPERCON

● The reset default configuration is: CAN1 enabled, CAN2 disabled.

Note: If one or both CAN modules is used, Port 4 cannot be programmed to output all 8 segment

address lines. Thus, only four segment address lines can be used, reducing the external memory space to 5 Mbytes (1 Mbyte per CS

line).

17.1 Configuration support

It is possible that both CAN controllers are working on the same CAN bus, supporting together up to 64 message objects. In this configuration, both receive signals and both transmit signals are linked together when using the same CAN transceiver. This configuration is especially supported by providing open drain outputs for the CAN1_Txd and CAN2_TxD signals. The open drain function is controlled with the ODP4 register for port P4: in this way it is possible to connect together P4.4 with P4.5 (receive lines) and P4.6 with P4.7 (transmit lines configured to be configured as Open-Drain).

The user is also allowed to map internally both CAN modules on the same pins P4.5 and P4.6. In this way, P4.4 and P4.7 may be used either as general purpose I/O lines, or used

for I

C interface. This is possible by setting bit CANPAR of XMISC register. To access this register it is necessary to set bit XMISCEN of XPERCON register and bit XPEN of SYSCON register.

74/179

ST10F273E CAN modules

17.2 CAN bus configurations

Depending on application, CAN bus configuration may be one single bus with a single or multiple interfaces or a multiple bus with a single or multiple interfaces. The ST10F273E is able to support these two cases.

Single CAN bus

The single CAN Bus multiple interfaces configuration may be implemented using two CAN transceivers as shown in

Figure 11. Connection to single CAN bus via separate CAN transceivers

Figure 11

XMISC.CANPAR = 0

CAN_H

CAN_L

CAN1

RX TX

CAN CAN

CAN bus

CAN2

RX TX

P4.4 P4.7P4.5 P4.6

transceivertransceiver

The ST10F273E also supports single CAN Bus multiple (dual) interfaces using the open drain option of the CANx_TxD output as shown in

Figure 12

. Thanks to the OR-Wired Connection, only one transceiver is required. In this case the design of the application must take in account the wire length and the noise environment.

Figure 12. Connection to single CAN bus via common CAN transceivers

XMISC.CANPAR = 0

2.7kW

CAN1

RX TX

+5V

CAN2

RX TX

P4.4 P4.7P4.5 P4.6

CAN_H

CAN_L

CAN

transceiver

CAN bus

75/179

OD = Open Drain Output

CAN modules ST10F273E

Multiple CAN bus

The ST10F273E provides two CAN interfaces to support such kind of bus configuration as shown in

Figure 13. Connection to two different CAN buses (e.g. for gateway application)

Figure 13

XMISC.CANPAR = 0

CAN1

RX TX

CAN CAN

CAN2

RX TX

P4.4 P4.7P4.5 P4.6

transceivertransceiver

CAN_H

CAN_L

CAN bus 1

CAN bus 2

CAN_H

CAN_L

Parallel mode

In addition to previous configurations, a parallel mode is supported. This is shown in

Figure 14

Figure 14. Connection to one CAN bus with internal Parallel mode enabled

XMISC.CANPAR = 1

CAN1

RX TX

CAN

transceiver

CAN2

RX TX

P4.4 P4.7P4.5 P4.6

(Both CAN enabled)

CAN_H

CAN_L

1. P 4.4 and P4.7 when not used as CAN functions can be used as general purpose I/O while they cannot be used as external bus address lines.

76/179

CAN bus

ST10F273E Real time clock

18 Real time clock

The real time clock is an independent timer, in which the clock is derived directly from the clock oscillator on XT AL1 (main oscillator) input or XT AL3 input (32 kHz low-power oscillator) so that it can be kept on running even in idle or power down mode (if enabled to). Registers access is implemented onto the XBUS. This module is designed with the following characteristics:

● Generation of the current time and date for the system

● Cyclic time based interrupt, on Port2 external interrupts every ’RTC basic clock tick’

and after

● 58-bit timer for long term measurement

● Capability to exit the ST10 chip from Power down mode (if PWDCFG of SYSCON set)

after a programmed delay

The real time clock is based on two main blocks of counters. The first block is a prescaler which generates a basic reference clock (for example a 1 second period). This basic reference clock is coming out of a 20-bit DIVIDER. This 20-bit counter is driven by an input clock derived from the on-chip CPU clock, pre-divided by a 1/64 fixed counter. This 20-bit counter is loaded at each basic reference clock period with the value of the 20-bit PRESCALER register. The value of the 20-bit RTCP register determines the period of the basic reference clock.

’RTC basic c lock ticks’ (n is programmable) if enabled

A timed interrupt request (RTCSI) may be sent on each basic reference clock period. The second block of the RTC is a 32-bit counter that may be initialized with the current system time. This counter is driven with the basic reference clock signal. In order to provide an alarm function the contents of the counter is compared with a 32-bit alarm register. The alarm register may be loaded with a reference date. An alarm interrupt request (RTCAI), may be generated when the value of the counter matches the alarm register.

The timed RTCSI and the alarm RTCAI interrupt requests can trigger a fast external interrupt via EXISEL register of port 2 and wake-up the ST10 chip when running power down mode. Using the RTCOFF bit of RTCCON register, the user may switch off the clock oscillator when entering the power down mode.

The last function implemented in the RTC is to switch off the main on-chip oscillator and the 32 kHz on chip oscillator if the ST10 enters the Power down mode, so that the chip can be fully switched off (if RTC is disabled).

At power on, and after Reset phase, if the presence of a 32 kHz oscillation on XTAL3 / XTAL4 pins is detected, then the RTC counter is driven by this low frequency reference clock: when Power down mode is entered, the RTC can either be stopped or left running, and in both the cases the main oscillator is turned off, reducing the power consumption of the device to the minimum required to keep on running the RTC counter and relative reference oscillator. This is valid also if Stand-by mode is entered (switching off the main supply V V

STBY

), since both the RTC and the low power oscillator (32 kHz) are biased by the

. Vice versa, when at power on and after Reset, the 32 kHz is not present, the main oscillator drives the RTC counter, and since it is powered by the main power supply, it cannot be maintained running in Stand-by mode, while in Power down mode the main oscillator is maintained running to provide the reference to the RTC module (if not disabled).

77/179

Watchdog timer ST10F273E

19 Watchdog timer

The watchdog timer is a fail-safe mechanism which prevents the microcontroller from malfunctioning for long periods of time.

The watchdog timer is always enabled after a reset of the chip and can only be disabled in the time interval until the EINIT (end of initialization) instruction has been executed.

Therefore, the chip start-up procedure is always monitored. The software must be designed to service the watchdog timer before it overflows. If, due to hardware or software related failures, the software fails to do so, the watchdog timer overflows and generates an internal hardwar e reset . It pul ls the RSTOUT to be reset.

Each of the different reset sources is indicated in the WDTCON register:

● Watchdog timer reset in case of an overflow

● Software Reset in case of execution of the SRST instruction

● Short, long and power-on reset in case of hardware reset (and depending of reset

pulse duration and RPD pin configuration)

The indicated bits are cleared with the EINIT instruction. The source of the reset can be identified during the ini tia li za tio n phas e.

pin low in order to allow external hardware components

The watchdog timer is 16-bit, clocked with the system clock divided by 2 or 128. The high Byte of the watchdog timer register can be set to a pre-specified reload value (stored in WDTREL).

Each time it is serviced by the application software, the high byte of the watchdog timer is reloaded. For security, rewrite WDTCON each time before the watchdog timer is serviced

The

Table 47

and

Table 48

show the watchdog time range for 40 MHz and 64 MHz CPU

clock respectively.

Table 47. WDTREL reload value (f

Reload value in WDTREL

FFh 12.8µs819.2µs 00h 3.277ms 209.7ms

Table 48. WDTREL reload value (f

Reload value in WDTREL

FFh 8µs512µs 00h 2.048ms 131.1ms

= 40 MHz)

CPU

Prescaler for f

2 (WDTIN = ‘0’) 128 (WDTIN = ‘1’)

= 64 MHz)

CPU

Prescaler for f

2 (WDTIN = ‘0’) 128 (WDTIN = ‘1’)

= 40 MHz

CPU

= 64 MHz

CPU

78/179

ST10F273E System reset

20 System reset

System reset initializes the MCU in a predefined state. There are six ways to activate a reset state. The system start-up configuration is different for each case as shown in

Table 49. Reset event definition

Table 49

Reset Source Flag

Power-on reset PONR Low Power-on Asynchronous hardware reset Synchronous long hardware

reset Synchronous short hardware

reset Watchdog timer reset WDTR Software reset SWR

1. RSTIN pulse should be longer than 500ns (Filter) and than settling time for configuration of Port0.

2. See next

3. The RPD status has no influence unless Bidirectional Reset is activated (bit BDRSTEN in SYSCON): RPD

low inhibits the Bidirectional reset on SW and WDT reset events, that is RSTIN is not activated (refer to Sections

Section 20.1

20.4, 20.5

20.1 Input filter

On RSTIN input pin an on-chip RC filter is implemented. It is sized to filter all the spikes shorter than 50ns. On the other side, a valid pulse shall be longer than 500ns to grant that ST10 recognizes a reset command. In between 50ns and 500ns a pulse can either be filtered or recognized as valid, depending on the operating conditions and process variations.

RPD

Status

Low t

LHWR

SHWR High

for more details on minimum reset pulse duration

and

20.6

High t

(2) (3)

RSTIN

> (1032 + 12)TCL + max(4 TCL, 500ns)

RSTIN

≤ (1032 + 12)TCL + max(4 TCL, 500ns)

RSTIN

WDT overflow SRST instruction execution

Conditions

(1)

> max(4 TCL, 500ns)

For this reason all minimum durations mentioned in this Chapter for the different kind of reset events shall be carefully evaluated taking into account of the above requirements.

In particular, for Short Hardware Reset, where only 4 TCL is specified as minimum input reset pulse duration, the operating frequency is a key factor. Examples:

● For a CPU clock of 64 MHz, 4 TCL is 31.25ns, so it would be filtered. In this case the

minimum becomes the one imposed by the filter (that is 500ns).

● For a CPU clock of 4 MHz, 4 TCL is 500ns. In this case the minimum from the formula

is coherent with the limit imposed by the filter.

79/179

System reset ST10F273E

20.2 Asynchronous reset

An asynchronous reset is triggered when RSTIN pin is pulled low while RPD pin is at low level. Then the ST10F273E is immediately (after the input filter delay) forced in reset default state. It pulls low RSTOUT internal/external bus cycles, it switches buses (data, address and control signals) and I/O pin drivers to high-impedance, it pulls high Port0 pins.

Note: If an asynchronous reset occurs during a read or write phase in internal memories, the

content of the memory itself could be corrupted: to avoid this, synchronous reset usage is strongly recommended.

Power-on reset

The asynchronous reset must be used during the power-on of the device. Depending

on crystal or resonator frequency, the on-chip oscillator needs about 1ms to 10ms to stabilize (Refer to Electrical Characteristics Section), with an already stable V of the ST10F273E does not need a stabilized clock signal to detect an asynchronous reset, so it is suitable for power-on conditions. T o ensure a proper reset sequence, the RSTIN and the RPD pin must be held at low level until the device clock signal is stabilized and the system configuration value on Port0 is settled.

At Power-on it is important to respect some additional constraints introduced by the start-up phase of the different embedded modules.

pin, it cancels pending internal hold states if any, it aborts all

. The logic

In particular the on-chip voltage regulator needs at least 1ms to stabilize the internal 1.8V for the core logic: this time is computed from when the external reference (V

) becomes

stable (inside specification range, that is at least 4.5V). This is a constraint for the application hardware (external voltage regulator): the RSTIN

pin assertion shall be extended

to guarantee the voltage regulator stabilization. A second constraint is imposed by the embedded FLASH. When booting from internal

memory, starting from RSTIN

releasing, it needs a maximum of 1ms for its initialization: before that, the internal reset (RST signal) is not released, so the CPU does not start code execution in internal memory.

Note: This is not true if external memory is used (pin EA held low during reset phase). In this case,

once RSTIN

pin is released, and after few CPU clock (Filter delay plus 3...8 TCL), the internal reset signal RST is released as well, so the code execution can start immediately after. Obviously, an eventual access to the data in internal Flash is forbidden before its initialization phase is completed: an eventual access during starting phase will return FFFFh (just at the beginning), while later 009Bh (an illegal opcode trap can be generated).

At Power-on, the RSTIN pin shall be tied low for a minimum time that includes also the startup time of the main oscillator (t synchronization time (t RSTIN

pin could be released before the main oscillator and PLL are stable to recover some

= 200µs): this means that if the internal FLASH is used, the

PSUP

time in the start-up phase (FLASH initialization only needs stable V

= 1ms for resonator, 10ms for crystal) and PLL

STUP

, but does not need

stable system clock since an internal dedicated oscillator is used).

Warning: It is recommended to provide the external hardware with a

current limitation circuitry. This is necessary to avoid permanent damages of the device during the power-on transient, when the capacitance on V the on-chip voltage regulator functionality 10nF are

80/179

pin is charged. For

ST10F273E System reset

sufficient: anyway, a maximum of 100nF on V18 pin should not generate problems of over-current (higher value is allowed if current is limited by the external hardware). External current limitation is anyway recommended also to avoid risks of damage in case of temporary short between V

and ground: the internal 1.8V drivers are sized to drive

currents of several tens of Ampere, so the current shall be limited by the external hardware. The limit of current is imposed by power dissipation considerations (Refer to Electrical Characteristics Section).

In next Figures

and 16 Asynchronous Power-on timing diagrams are reported, respectively with boot from internal or external memory, highlighting the reset phase extension introduced by the embedded FLASH module when selected.

Note: Never power the device without keeping RSTIN pin grounded: the device could enter in

unpredictable states, risking also permanent damages.

81/179

System reset ST10F273E

Figure 15. Asynchronous power-on RESET (EA = 1)

≤ 1.2 ms

(for resonator oscillation + PLL stabilization)

≤ 10.2 ms

≥ 1 ms

(for crystal oscillation + PLL stabilization)

(for on-chip VREG stabilization)

≤

2 TCL

XTAL1

...

RPD

RSTIN

≥ 50 ns

≤ 500 ns

RSTF (After Filter)

P0[15:13]

P0[12:2]

P0[1:0] not t.

transparent

not transparent

3..4 TCL

not t.

7 TCL

IBUS-CS

(Internal)

≤ 1 ms

FLARST

RST

Latching point of Port0 for

system start-up configuration

82/179

ST10F273E System reset

Figure 16. Asynchronous power-on RESET (EA = 0)

XTAL1

RPD

RSTIN

RSTF (After Filter)

P0[15:13]

P0[12:2]

≥ 1.2 ms ≥ 10.2 ms ≥ 1 ms

(for resonator oscillation + PLL stabilization)

(for crystal oscillation + PLL stabilization)

(for on-chip VREG stabilization)

...

≥ 50 ns

≤ 500 ns

transparent

3..8 TCL

3..4 TCL

not t.

P0[1:0] not t.

not transparent

8 TCL

ALE

RST

Latching point of Port0 for

system start-up configuration

Hardware reset

The asynchronous reset must be used to recover from catastrophic situations of the application. It may be triggered by the hardware of the application. Internal hardware logic and application circuitry are described in Reset circuitry chapter and Figures It occurs when RSTIN

is low and RPD is detected (or becomes) low as well.

28, 29

and 30.

83/179

System reset ST10F273E

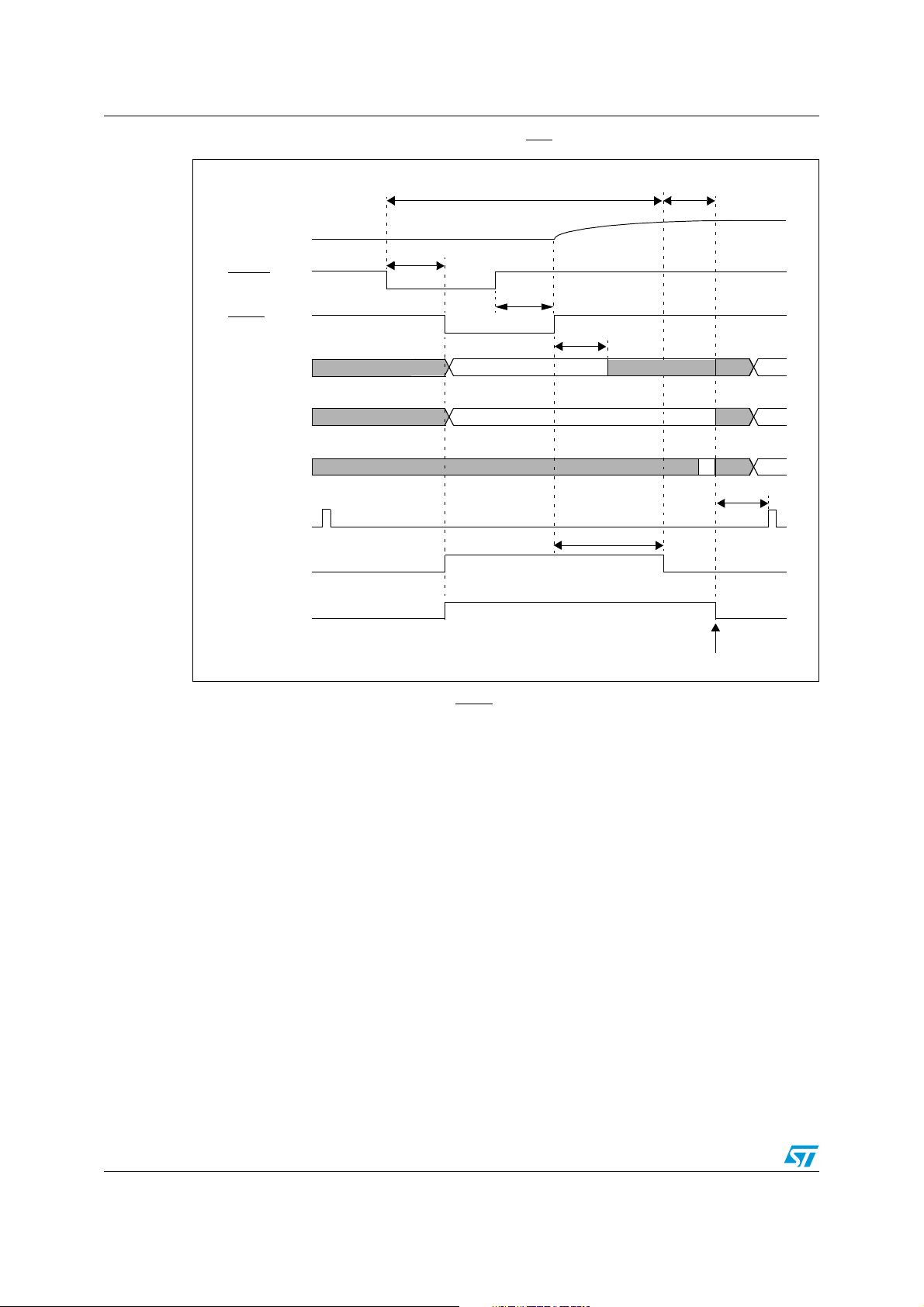

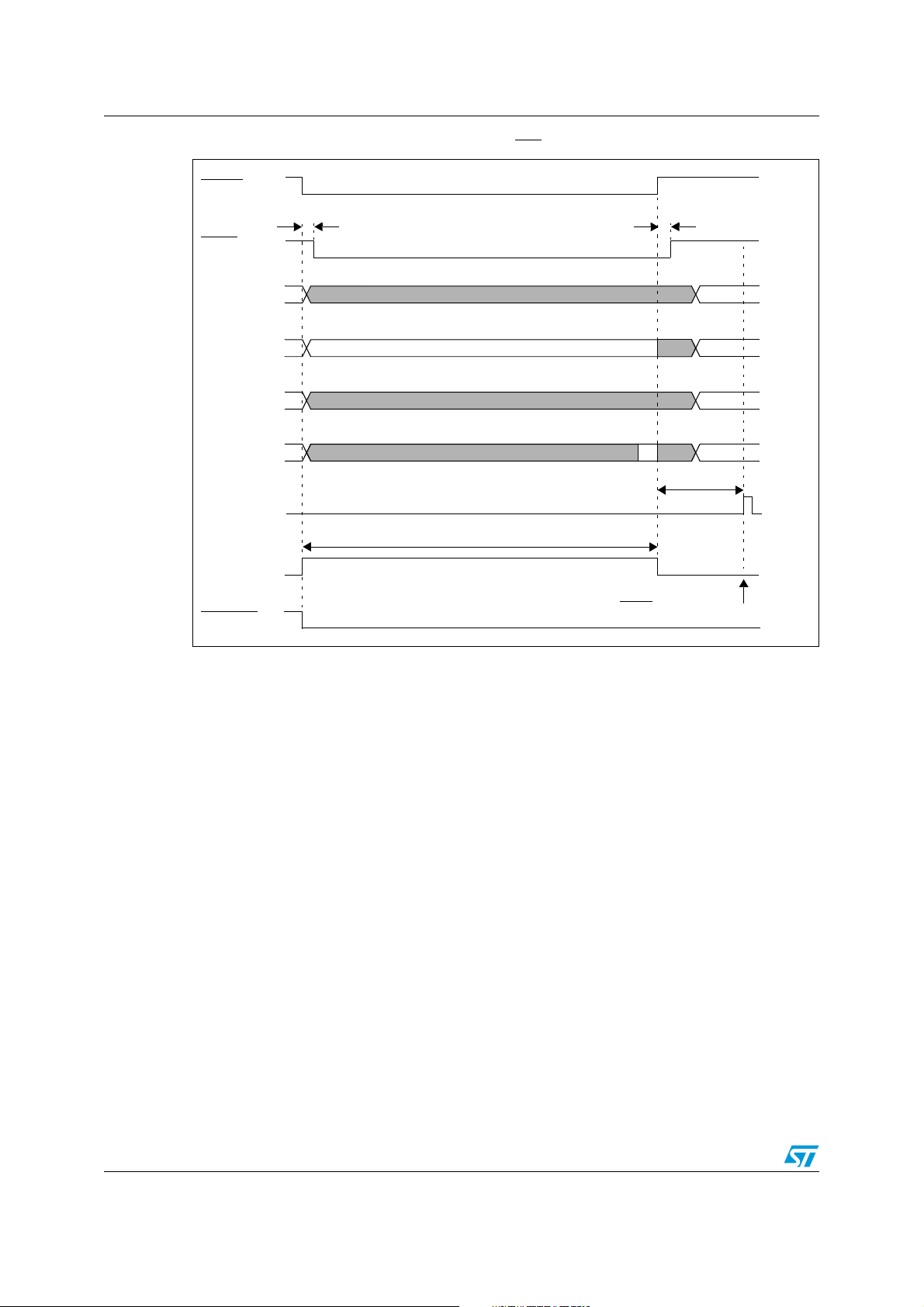

Figure 17. Asynchronous hardware RESET (EA = 1)

≤ 2 TCL

RPD

≥ 50 ns

≤ 500 ns

RSTIN

RSTF (After Filter)

P0[15:13]

P0[12:2]

not transparent

P0[1:0] not t.

≥ 50 ns

≤ 500 ns

3..4 TCL

transparent

not transparent

not t.

7 TCL

IBUS-CS

(internal)

≤ 1 ms

FLARST

RST

Latching point of Port0 for

system start-up configuration

1) Longer than Port0 settling time + PLL synchronization (if needed, that is P0(15:13) changed). Longer than

500ns to take into account of Input Filter on RSTIN

84/179

ST10F273E System reset

Figure 18. Asynchronous hardware RESET (EA = 0)

RPD

RSTIN

≥ 50 ns

≤ 500 ns

≥ 50 ns

≤ 500 ns

3..8 TCL

RSTF (After Filter)

P0[15:13]

P0[12:2]

P0[1:0] not t.

ALE

RST

1) Longer than Port0 settling time + PLL synchronization (if needed, that is P0(15:13) changed). Longer than

500ns to take into account of Input Filter on RSTIN pin

2) 3 to 8 TCL depending on clock source selection.

not transparent

transparent

not transparent

Latching point of P ort0 for

system start-up configuration

3..4 TCL

not t.

8 TCL

Exit from asynchronous reset state

When the FLASH is used, the restarting occurs after the embedded FLASH initialization routine is completed. The system configuration is latched from Port0: ALE, RD driven to their inactive level. The ST10F273E starts program execution from memory location 00'0000h in code segment 0. This starting location will typically point to the general initialization routine. Timing of asynchronous Hardware Reset sequence are summarized in

Figure 17

RSTIN

and

pin is pulled high, the device restarts: as already mentioned, if internal

and WR/WRL pins are

Figure 18

20.3 Synchronous reset (warm reset)

A synchronous reset is triggered when RSTIN pin is pulled low while RPD pin is at high level. In order to properly activate the internal reset logic of the device, the RSTIN be held low, at least, during 4 TCL (2 periods of CPU clock): refer also to details on minimum reset pulse duration. The I/O pins are set to high impedance and RSTOUT 12 TCL (six periods of CPU clock) elapses, during which pending internal hold states are cancelled and the current internal access cycle if any is completed. External bus cycle is aborted. The internal pull-down of RSTIN

pin is driven low. After RSTIN level is detected, a short duration of a maximum of

pin is activated if bit BDRSTEN of SYSCON

85/179

pin must

Section 20.1

for

System reset ST10F273E

Short and long synchronous reset

Once the first maximum 16 TCL are elapsed (4+12TCL), the internal reset sequence starts. It is 1024 TCL cycles long: at the end of it, and after other 8TCL the level of RSTIN sampled (after the filter, see RSTF Reset is flagged (Refer to

Chapter 19

in the drawings): if it is already at high level, only Short

for details on reset flags); if it is recognized still low, the Long reset is flagged as well. The major difference between Long and Short reset is that during the Long reset, also P0(15:13) become transparent, so it is possible to change the clock options.

Warning: In case of a short pulse on RSTIN pin, and when Bidirectional

reset is enabled, the RSTIN

pin is held low by the internal circuitry. At the end of the 1024 TCL cycles, the RTSIN released, but due to the presence of the input analog filter the internal input reset signal (RSTF

in the drawings) is released later (from 50 to 500ns). This delay is in parallel with the additional 8 TCL, at the end of which the internal input reset line (RSTF

) is sampled, to decide if the reset event is Short or

Long. In particular:

pin is

● If 8 TCL > 500ns (F

● If 8 TCL < 500ns (F

< 8 MHz), the reset event is always recognized as Short

CPU

> 8 MHz), the reset event could be recognized either as Short

CPU

or Long, depending on the real filter delay (between 50 and 500ns) and the CPU frequency (RSTF

sampled High means Short reset, RSTF sampled Low means Long reset). Note that in case a Long Reset is recognized, once the 8 TCL are elapsed, the P0(15:13) pins becomes transparent, so the system clock can be re-configured. The port returns not transparent 3-4TCL after the internal RSTF

signal becomes high.

The same behavior just described, occurs also when unidirectional reset is selected and RSTIN

pin is held low till the end of the internal sequence (exactly 1024TCL + max 16 TCL)

and released exactly at that time.

Note: When running with CPU frequency lower than 40 MHz, the minimum valid reset pulse to be

recognized by the CPU (4 TCL) could be longer than the minimum analog filter delay (50ns); so it might happen that a short reset pulse is not filtered by the analog input filter, but on the other hand it is not long enough to trigger a CPU reset (shorter than 4 TCL): this would generate a FLASH reset but not a system reset. In this condition, the FLASH answers always with FFFFh, which leads to an illegal opcode and consequently a trap event is generated.

Exit from synchronous reset state

The reset sequence is extended until RSTIN level becomes high. Besides, it is internally prolonged by the FLASH initialization when EA code execution restarts. The system configuration is latched from Port0, and ALE, RD WR

/WRL pins are driven to their inactive level. The ST10F273E starts program execution from memory location 00'0000h in code segment 0. This starting location will typically point to the general initialization routine. Timing of synchronous reset sequence are summarized in Figures 19 and 20 where a Short Reset event is shown, with particular highlighting on the

=1 (internal memory selected). Then, the

and

86/179

ST10F273E System reset

fact that it can degenerate into Long Reset: the two figures show the behavior when booting from internal or external memory respectively. Figures typical synchronous Long Reset, again when booting from internal or external memory.

and 22 reports the timing of a

Synchronous reset and RPD pin

Whenever the RSTIN pin is pulled low (by external hardware or as a consequence of a Bidirectional reset), the RPD internal weak pull-down is activated. The external capacitance (if any) on RPD pin is slowly discharged through the internal weak pull-down. If the voltage level on RPD pin reaches the input low threshold (around 2.5V), the reset event becomes immediately asynchronous. In case of hardware reset (short or long) the situation goes immediately to the one illustrated in the input threshold: the asynchronous reset is completed coherently. To grant the normal completion of a synchronous reset, the value of the capacitance shall be big enough to maintain the voltage on RPD pin sufficient high along the duration of the internal reset sequence.

For a Software or Watchdog reset events, an active synchronous reset is completed regardless of the RPD status .

It is important to highlight that the signal that makes RPD status transparent under reset is the internal RSTF

(after the noise filter).

Figure 17

. There is no eff e ct i f RPD co mes agai n ab ove

87/179

System reset ST10F273E

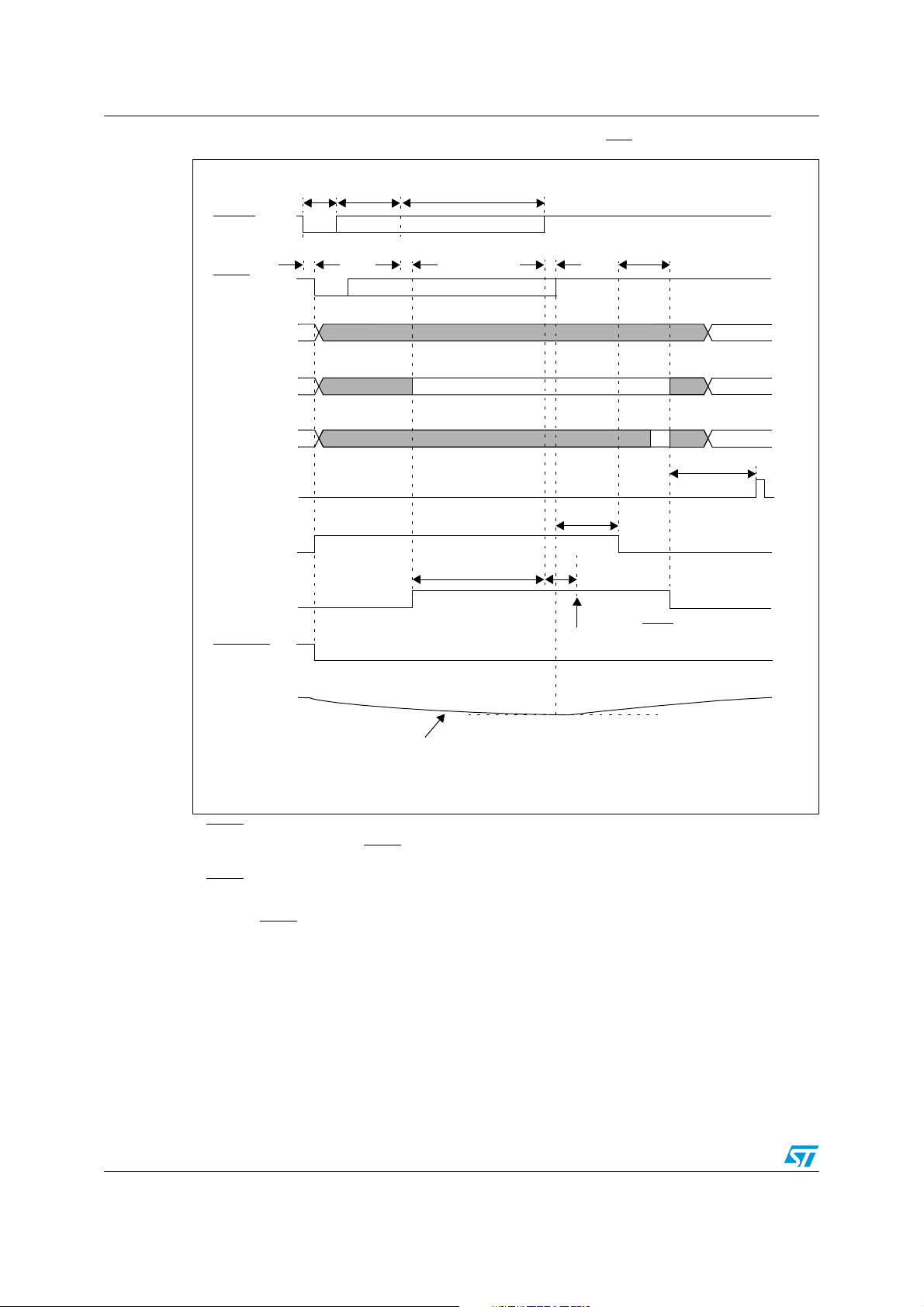

Figure 19. Synchronous short / long hardware RESET (EA = 1)

< 1032 TCL≤4 TCL3)≤12 TCL

RSTIN

≥ 50 ns

≤ 500 ns

≥ 50 ns ≤ 500 ns

RSTF (After Filter)

P0[15:13] not transparent

P0[12:2]

P0[1:0]

not t.

transparent

not transparent

IBUS-CS

(Internal)

FLARST

1024 TCL

RST

RSTOUT

≤

2 TCL

not t.

7 TCL

≤ 1 ms

8 TCL

At this time RSTF is sampled HIGH or LOW so it is SHORT or LONG reset

RPD

> 2.5V Asynchronous Reset not entered

200µA Discharge

1) RSTIN assertion can be released there. Refer also to Section 21.1 for details on minimum pulse duration.

2) If during the reset condition (RSTIN

operation), the asynchronous reset is immediately entered.

3) RSTIN

4) Bit BDRSTEN is cleared after reset.

5) Minimum RSTIN

pin is pulled low if bit BDRSTEN (bit 3 of SYSCON register) was previously set by software.

low pulse duration shall also be longer than 500ns to guarantee the pulse is not masked by

the internal filter (refer to Section 21.1).

low) RPD voltage drops below the threshold voltage (about 2.5V for 5V

RPD

88/179

ST10F273E System reset

Figure 20. Synchronous short / long hardware RESET (EA = 0)

< 1032 TCL≤4 TCL4)≤12 TCL

RSTIN

≥ 50 ns

≤ 500 ns

≥ 50 ns

≤ 500 ns

≥ 50 ns

≤ 500 ns

RSTF (After Filter)

P0[15:13] not transparent

P0[12:2]

P0[1:0]

not t.

transparent

not transparent

ALE

1024 TCL

RST

RSTOUT

RPD

not t.

3..8 TCL3)

8 TCL

At this time RSTF is sampled HIGH or LOW so it is SHORT or LONG reset

8 TCL

200mA Discharge

1) RSTIN assertion can be released there. Refer also to Section 21.1 for details on minimum pulse duration.

2) If during the reset condition (RSTIN

operation), the asynchronous reset is then immediately entered.

3) 3 to 8 TCL depending on clock source selection.

4) RSTIN

5) Minimum RSTIN

pin is pulled low if bit BDRSTEN (bit 3 of SYSCON register) was previously set by software. Bit

BDRSTEN is cleared after reset.

the internal filter (refer to

low pulse duration shall also be longer than 500ns to guarantee the pulse is not masked by

Section 21.1

low), RPD voltage drops below the threshold v oltage (about 2.5V for 5V

2) VRPD > 2.5V Asynchronous Reset not entered

89/179

System reset ST10F273E

Figure 21. Synchronous long hardware RESET (EA = 1)

1024+8 TCL≤4 TCL2)≤12 TCL

RSTIN

≥ 50 ns ≤ 500 ns

≥ 50 ns

≤ 500 ns

≥ 50 ns

≤ 500 ns

≤

2 TCL

RSTF (After Filter)

P0[15:13] not transparent

P0[12:2]

not t.

P0[1:0]

IBUS-CS

(Internal)

FLARST

1024+8 TCL

RST

RSTOUT

RPD

200µA Discharge

transparent

not transparent

At this time RSTF is sampled LOW so it is definitely LONG reset

3..4 TCL

≤ 1 ms

RPD

not entered

not t.

7 TCL

> 2.5V Asynchronous reset

1) If during the reset condition (RSTIN low), RPD voltage drops below the threshold voltage (about 2.5V for 5V

operation), the asynchronous reset is then immediately entered. Even if RPD returns above the threshold, the reset is defnitively taken as asynchronous.

2) Minimu m RST I N

the internal filter (refer to

low pulse duration shall also be longer than 500ns to guarantee the pulse is not masked by

Section 21.1

90/179

ST10F273E System reset

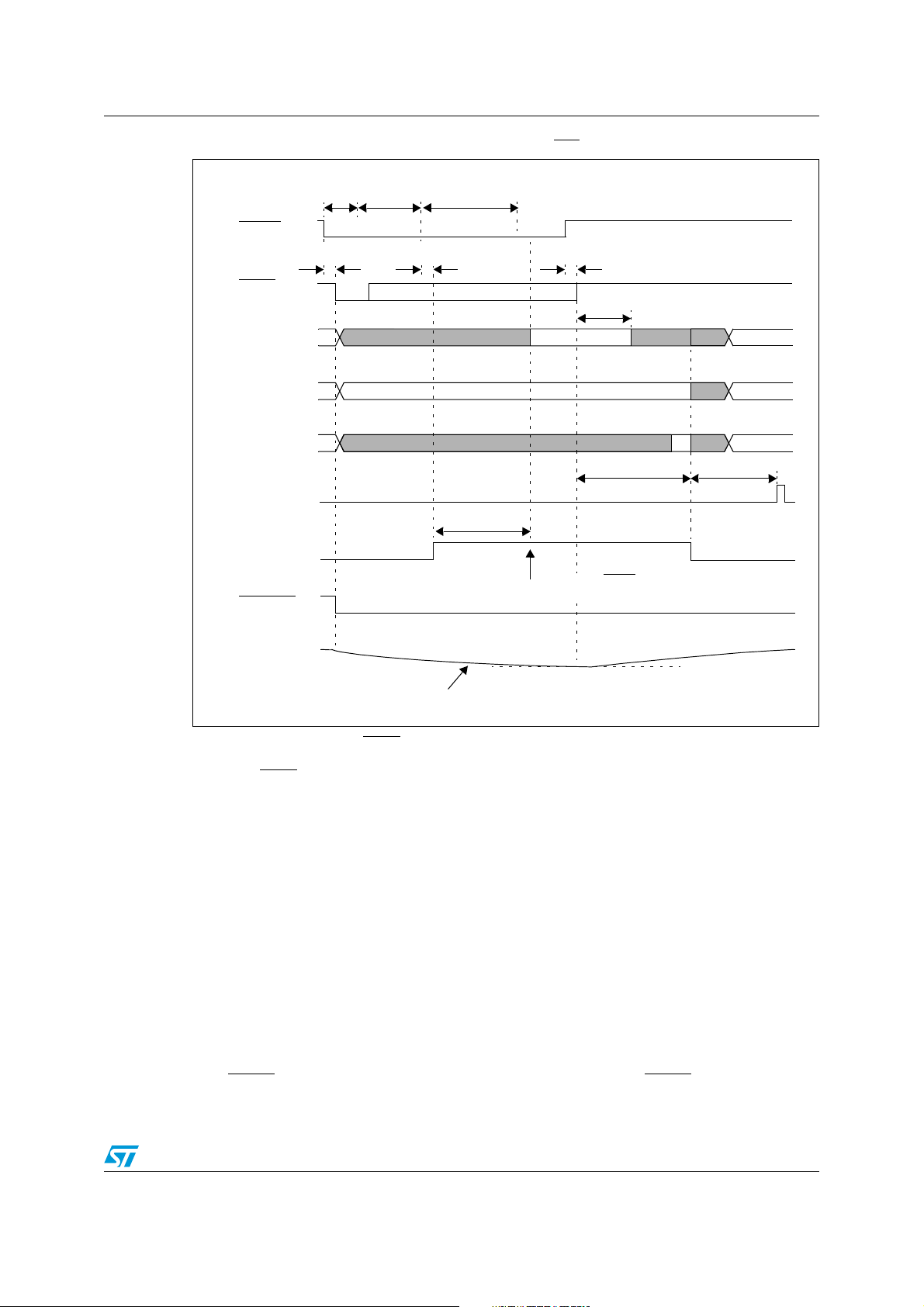

Figure 22. Synchronous long hardware RESET (EA = 0)

1024+8 TCL4 TCL2)12 TCL

RSTIN

≥ 50 ns

≤ 500 ns

3..4 TCL

RSTF (After Filter)

≥ 50 ns

≤ 500 ns

≥ 50 ns ≤ 500 ns

P0[15:13] not transparent

P0[12:2]

P0[1:0]

transparent

not transparent

3..8 TCL

not t.transparent

not t.

8 TCL

ALE

1024+8 TCL

RST

At this time RSTF is sampled LOW

RSTOUT

so it is LONG reset

RPD

200µA Discharge

1) If during the reset condition (RSTIN low), RPD voltage drops below the threshold voltage (about 2.5V for 5V

operation), the asynchronous reset is then immediately entered.

2) Minimu m RST I N

the internal filter (refer to Section 21.1).

3) 3 to 8 TCL depending on clock source selection.

low pulse duration shall also be longer than 500ns to guarantee the pulse is not masked by

> 2.5V Asynchronous reset not entered

RPD

20.4 Software reset

A software reset sequence can be triggered at any time by the protected SRST (software reset) instruction. This instruction can be deliberately executed within a program, e.g. to leave bootstrap loader mode, or on a hardware trap that reveals system failure.

On execution of the SRST instruction, the internal reset sequence is started. The microcontroller behavior is the same as for a synchronous short reset, except that only bits P0.12...P0.8 are latched at the end of the reset sequence, while previously latched, bits P0.7...P0.2 are cleared (that is written at ‘1’).

A Software reset is always taken as synchronous: there is no influence on Software Reset behavior with RPD status. In case Bidirectional Reset is selected, a Software Reset event pulls RSTIN low even though Bidirectional Reset is selected.

pin low: this occurs only if RPD is high; if RPD is low, RSTIN pin is not pulled

91/179

System reset ST10F273E

Refer t o ne xt F igure s 23 and 24 for unidirectional SW reset timing, and to Figures 25, 26 and

for bidirectional.

20.5 Watchdog timer reset

When the watchdog timer is not disabled during the initialization, or serviced regularly during program execution, it will overflow and trigger the reset sequence.

Unlike hardware and software resets, the watchdog reset completes a running external bus cycle if this bus cycle either does not use READY the programmed wait states.

, or if READY is sampled active (low) after

When READY

is sampled inactive (high) after the programmed wait states the running

external bus cycle is aborted. Then the internal reset sequence is started. Bit P0.12...P0.8 are latched at the end of the reset sequence and bit P0.7...P0.2 are cleared

(that is written at ‘1’). A Watchdog reset is always taken as synchronous: there is no influence on Watchdog Reset

behavior with RPD status. In case Bidirectional Reset is selected, a Watchdog Reset event pulls RSTIN

pin low: this occurs only if RPD is high; if RPD is low, RSTIN pin is not pulled

low even though Bidirectional Reset is selected. Refer t o ne xt F igure s

for bidirectional.

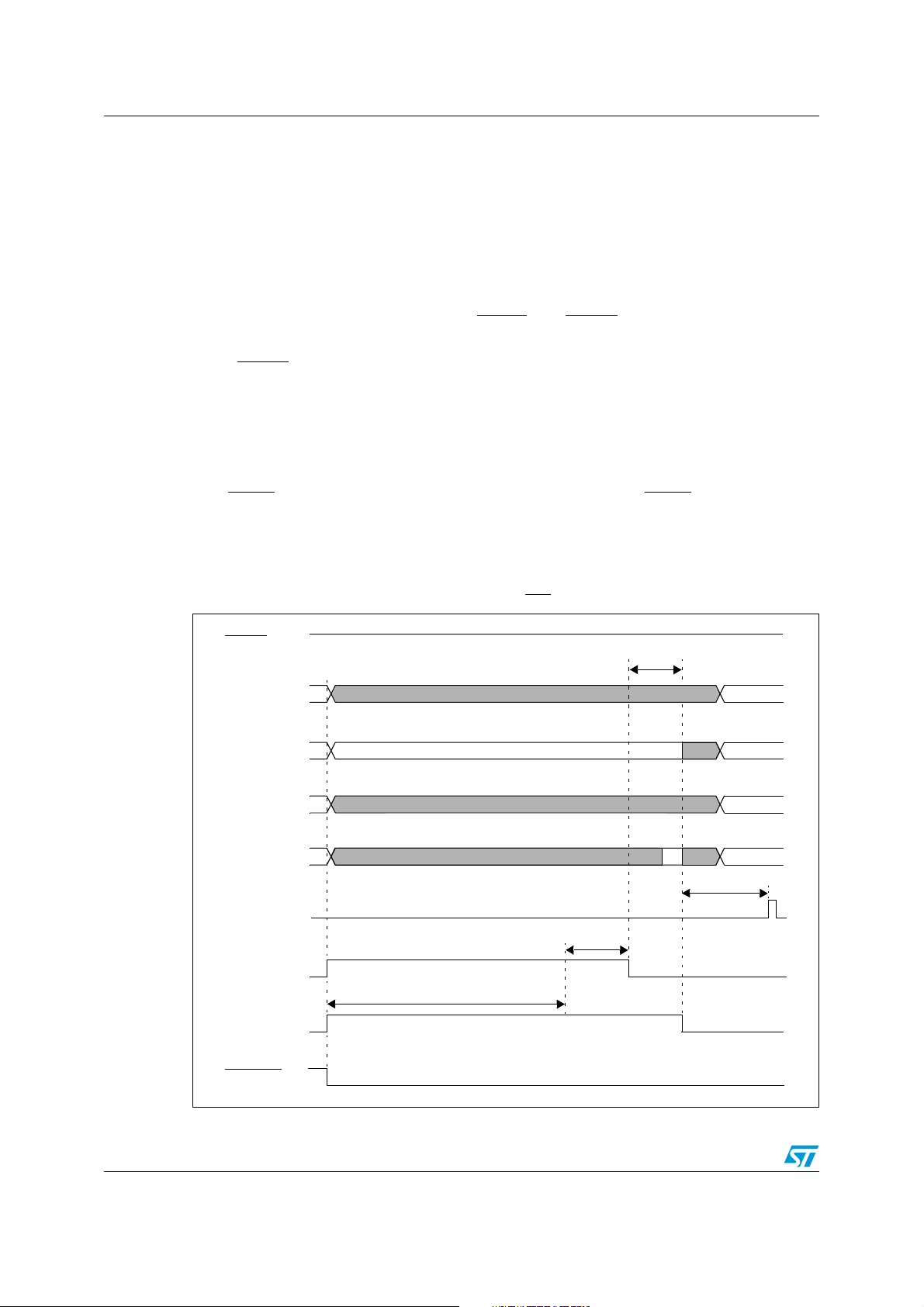

Figure 23. SW / WDT unidirectional RESET (EA

RSTIN

P0[15:13] not transparent

P0[12:8]

P0[7:2] not transparent

and 24 for unidirectional SW reset timing, and to Figures 25, 26 and

= 1)

≤ 2 TCL

transparent

not t.

P0[1:0]

IBUS-CS

(Internal)

FLARST

1024 TCL

RST

RSTOUT

92/179

not transparent

not t.

7 TCL

≤ 1 ms

ST10F273E System reset

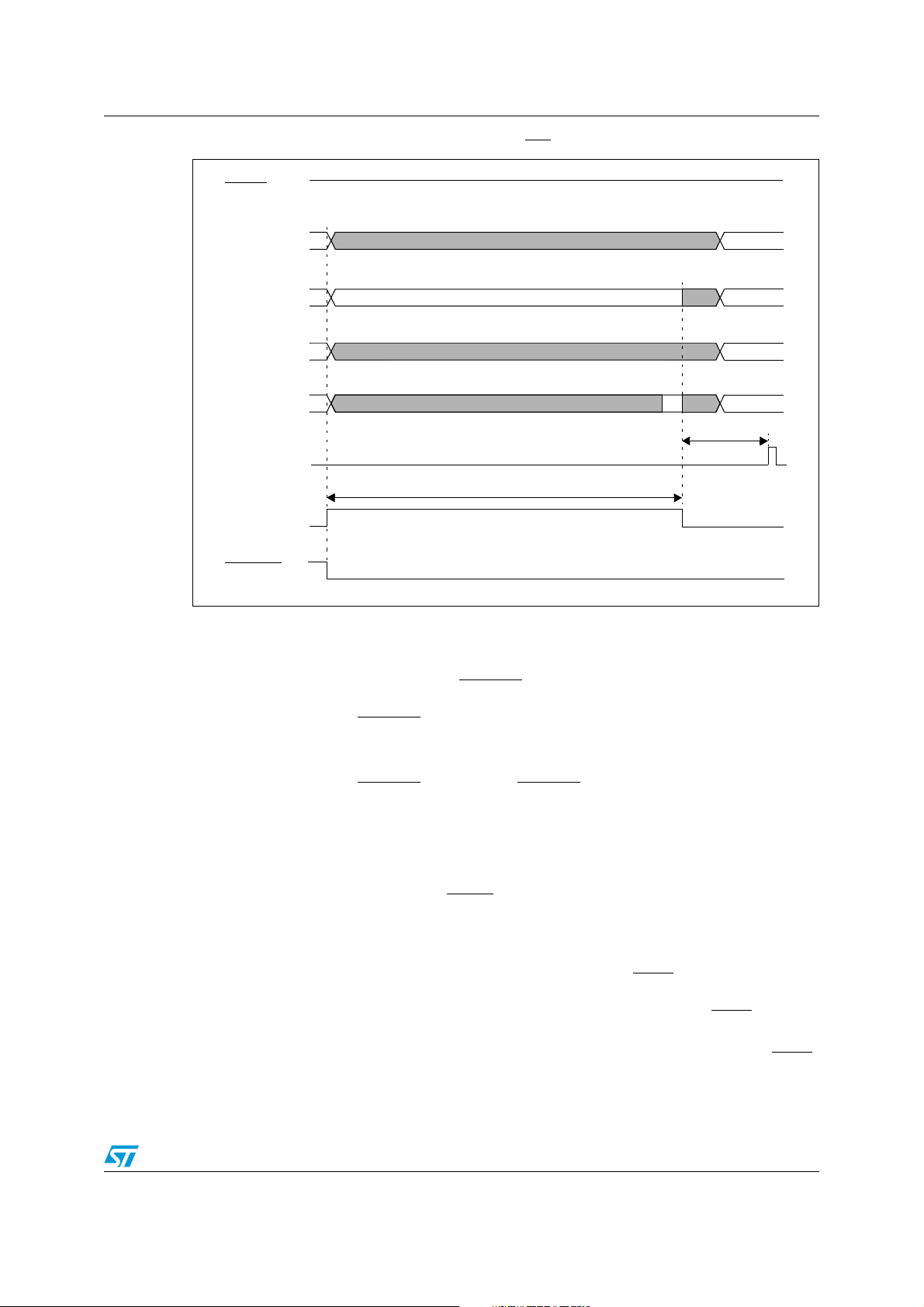

Figure 24. SW / WDT unidirectional RESET (EA = 0)

RSTIN

P0[15:13] not transparent

P0[12:8]

P0[7:2]

P0[1:0]

ALE

RST

RSTOUT

20.6 Bidirectional reset

As shown in the previous sections, the RSTOUT pin is driven active (low level) at the beginning of any reset sequence (synchronous/asynchronous hardware, software and watchdog timer resets). RSTOUT routine, until the protected EINIT instruction (End of Initialization) is completed.

transparent

not transparent

1024 TCL

not t.

8 TCL

pin stays active low beyond the end of the initialization

The Bidirectional Reset function is useful when external devices require a reset signal but cannot be connected to RSTOUT

pin, because RSTOUT signal lasts during initialization. It is, for instance, the case of external memory running initialization routine before the execution of EINIT instruction.

Bidirectional reset function is enabled by setting bit 3 (BDRSTEN) in SYSCON register. It only can be enabled during the initialization routine, before EINIT instruction is completed.

When enabled, the open drain of the RSTIN

pin is activated, pulling down the reset signal, for the duration of the internal reset sequence (synchronous/asynchronous hardware, synchronous software and synchronous watchdog timer resets). At the end of the internal reset sequence the pull down is released and:

● After a Short Synchronous Bidirectional Hardware Reset, if RSTF is sampled low 8

TCL periods after the internal reset sequence completion (refer to

Figure 20

), the Short Reset becomes a Long Reset. On the contrary, if RSTF is

Figure 19

and

sampled high the device simply exits reset state.

● After a Software or Watchdog Bidirectional Reset, the device exits from reset. If RSTF

remains still low for at least 4 TCL periods (minimum time to recognize a Short Hardware reset) after the reset exiting (refer to

93/179

Figure 25

and

Figure 26

), the Software

System reset ST10F273E

or Watchdog Reset become a Short Hardware Reset. On the contrary, if RSTF remains low for less than 4 TCL, the device simply exits reset state.

The Bidirectional reset is not effective in case RPD is held low, when a Software or Watchdog reset event occurs. On the contrary, if a Software or Watchdog Bidirectional reset event is active and RPD becomes low, the RSTIN internal reset sequence is completed regardless of RPD status change (1024 TCL).

pin is immediately released, while the

Note: The bidirectional reset function is disabled by any reset sequence (bit BDRSTEN of

SYSCON is cleared). To be activated again it must be enabled during the initialization routine.

WDTCON flags

Similarly to what already highlighted in the previous section when discussing about Short reset and the degeneration into Long reset, similar situations may occur when Bidirectional reset is enabled. The presence of the internal filter on RSTIN RSTIN

is released, the internal signal after the filter (see RSTF in the drawings) is delayed, so it remains still active (low) for a while. It means that depending on the internal clock speed, a short reset may be recognized as a long reset: the WDTCON flags are set accordingly.

Besides, when either Software or Watchdog bidirectional reset events occur, again when the RSTIN

pin is released (at the end of the internal reset sequence), the RSTF internal signal (after the filter) remains low for a while, and depending on the clock frequency it is recognized high or low: 8TCL after the completion of the internal sequence, the level of RSTF

signal is sampled, and if recognized still low a Hardware reset sequence starts, and WDTCON will flag this last event, masking the previous one (Software or Watchdog reset). Typically, a Short Hardware reset is recognized, unless the RSTIN internal signal RSTF Hardware reset. After this occurrence, the initialization routine is not able to recognize a Software or Watchdog bidirectional reset event, since a different source is flagged inside WDTCON register. This phenomenon does not occur when internal FLASH is selected during reset (EA duration well beyond the filter delay.

) is sufficiently held low by the external hardware to inject a Long

= 1), since the initialization of the FLASH itself extend the internal reset

pin introduces a delay: when

pin (and consequently

Next Figures Bidirectional reset events: In particular reset.

94/179

25, 26

and 27 summarize the timing for Software and Watchdog Timer

Figure 27

shows the degeneration into Hardware

ST10F273E System reset

Figure 25. SW / WDT bidirectional RESET (EA=1)

RSTIN

≥

RSTF (After Filter)

50 ns

≤

500 ns

≥

50 ns

≤

500 ns

P0[15:13]

P0[12:8]

P0[7:2]

P0[1:0]

IBUS-CS

(Internal)

FLARST

RST

RSTOUT

1024 TCL

not transparent

transparent

not transparent

≤

1 ms

≤

2 TCL

not t.

7 TCL

95/179

System reset ST10F273E

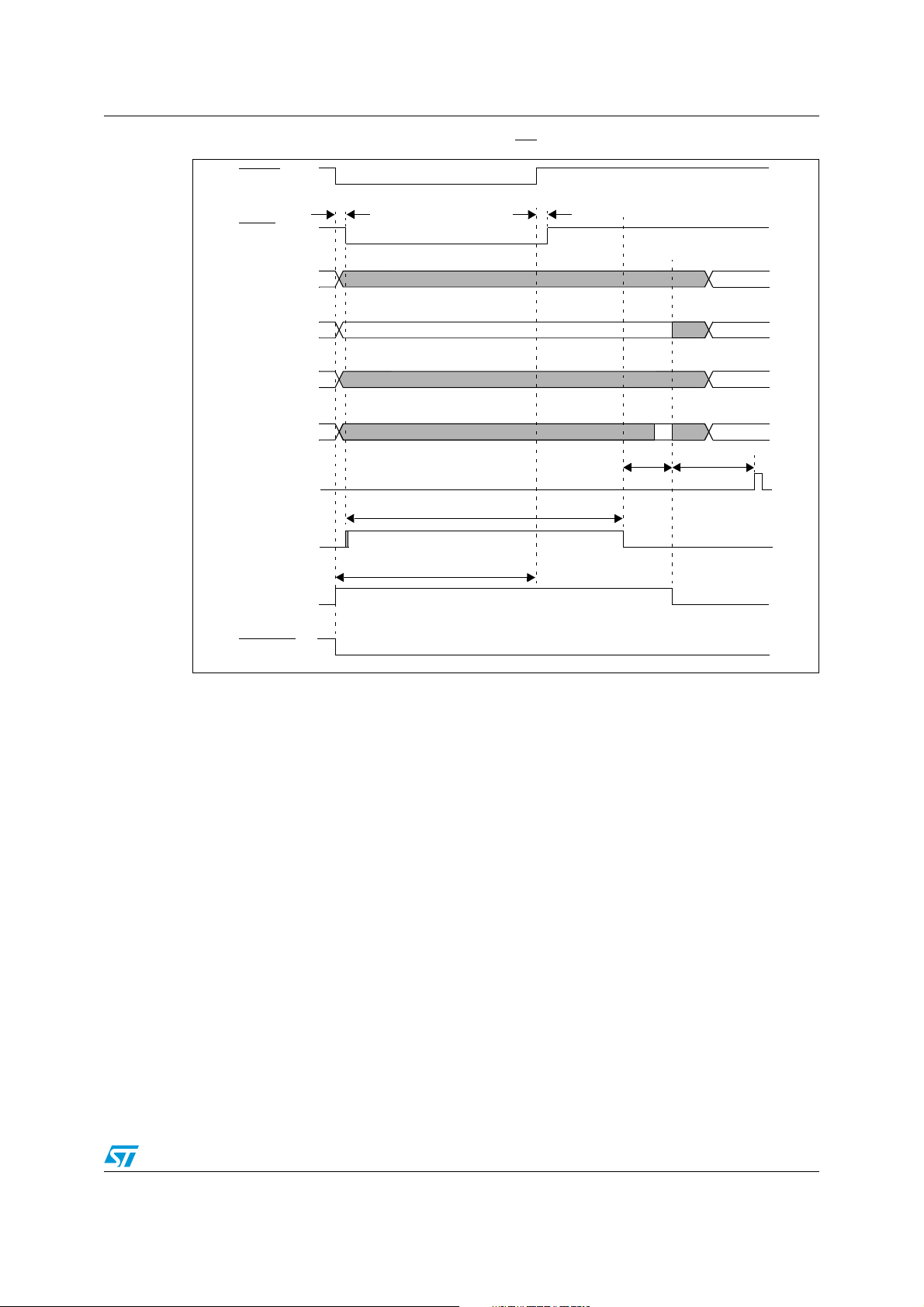

Figure 26. SW / WDT bidirectional RESET (EA = 0)

RSTIN

≥ 50 ns

≤ 500 ns

RSTF (After Filter)

P0[15:13] not transparent

≥ 50 ns

≤ 500 ns

P0[12:8]

P0[7:2]

P0[1:0]

ALE

RST

RSTOUT

transparent

not transparent

1024 TCL

not t.

8 TCL

At this time RSTF is sampled HIGH so SW or WDT Reset is flagged in WDTCON

96/179

ST10F273E System reset

Figure 27. SW / WDT bidirectional RESET (EA=0) followed by a HW RESET

RSTIN

≥ 50 ns

≤ 500 ns

RSTF (After Filter)

P0[15:13] not transparent

≥ 50 ns ≤ 500 ns

P0[12:8]

P0[7:2] not transparent

P0[1:0]

ALE

RST

RSTOUT

20.7 Reset circuitry

Internal reset circuitry is described in resistor of 50kΩ to 250kΩ (The minimum reset time must be calculated using the lowest value).

It also provides a programmable (BDRSTEN bit of SYSCON register) pull-down to output internal reset state signal (synchronous reset, watchdog timer reset or software reset).

transparent

not transparent

1024 TCL

Figure 30

. The

not t.

8 TCL

At this time R STF is sampled LOW so HW Reset is entered

RSTIN

pin provides an internal pull-up

This bidirectional reset function is useful in applications where external devices require a reset signal but cannot be connected to

RSTOUT

pin.

This is the case of an external memory running codes before EINIT (end of initialization) instruction is executed.

RSTOUT

pin is pulled high only when EINIT is executed.

The RPD pin provides an internal weak pull-down resistor which discharges external capacitor at a typical rate of 200µA. If bit PWDCFG of SYSCON register is set, an internal pull-up resistor is activated at the end of the reset sequence. This pull-up will charge any capacitor connected on RPD pin.

The simplest way to reset the ST10F273E is to insert a capacitor C1 between and V RPD pin and V

, and a capacitor between RPD pin and VSS (C0) with a pull-up resistor R0 between

. The input

RSTIN

provides an internal pull-up device equalling a resistor of

RSTIN

50kΩ to 250kΩ (the minimum rese t ti me m us t b e de termin ed b y the lo w est value). Select C1 that produce a sufficient discharge time to permit the internal or external oscillator and / or internal PLL and the on-chip voltage regulator to stabilize.

97/179

System reset ST10F273E

To ensure correct power-up reset with controlled supply current consumption, specially if clock signal requires a long period of time to stabilize, an asynchronous hardware reset is required during power-up. For this reason, it is recommended to connect the external R0-C0 circuit shown in Figure 28 to the RPD pin. On power-up, the logical low level on RPD pin forces an asynchronous hardware reset when

RSTIN

is asserted low. The external pull-up R0 will then charge the capacitor C0. Note that an internal pull-down device on RPD pin is turned on when

RSTIN

pin is low, and causes the external capacitor (C0) to begin discharging at a typical rate of 100-200µA. With this mechanism, after power-up reset, short low pulses applied on

RSTIN

produce synchronous hardware reset. If

RSTIN

is asserted longer than the time needed for C0 to be discharged by the internal pull-down device, then the device is forced in an asynchronous reset. This mechanism insures recovery from very catastrophic failure.

Figure 28. Minimum external reset circuitry

RSTOUT

RSTIN

RPD

External hardware

a) Hardware reset

b) For power-up reset (and interruptible power down mode)

ST10F273

The minimum reset circuit of

Figure 28

is not adequate when the

RSTIN

pin is driven from the ST10F273E itself during software or watchdog triggered resets, because of the capacitor C1 that will keep the voltage on

RSTIN

pin above VIL after the end of the internal

reset sequence, and thus will trigger an asynchronous reset sequence. Figure 29 shows an example of a reset circuit. In this example, R1-C1 external circuit is only

used to generate power-up or manual reset, and R0-C0 circuit on RPD is used for power-up reset and to exit from Power down mode. Diode D1 creates a wired-OR gate connection to the reset pin and may be replaced by open-collector Schmitt trigger buffer. Diode D2 provides a faster cycle time for repetitive power-on resets.

R2 is an optional pull-up for faster recovery and correct biasing of TTL Open Collector drivers.

98/179

ST10F273E System reset

Figure 29. System reset circuit

External hardware

RSTIN

RPD

o.d.

Open drai n inverter

ST10F273

Figure 30. Internal (simplified) reset circuitry

EINIT Instruction

Clr

Set

Reset state

machine

clock

Internal reset signal

Trigger

Clr

Reset Sequence (512 CPU clock cycles)

SRST instruction watchdog overflow

External reset source

BDRSTEN

RSTOUT

RSTIN

Asynchronous Reset

RPD

From/to exit power down circuit

Weak pull down (~200µA)

99/179

System reset ST10F273E

20.8 Reset application examples

Next two timing diagrams (

Figure 31

and

Figure 32

) provides additional examples of bidirectional internal reset events (Software and Watchdog) including in particular the external capacitances charge and discharge transients (refer al so to

Figure 29

for the

external circuit scheme).

Figure 31. Example of software or watchdog bidirectional reset (EA

EINIT

3..8 TCL

< 500 ns

Tfilter RST

00h

not transparent

Latching point

1Ch

< 4 TCL

transparent

= 1)

not transpar en t

transparent

not transparent

Latching point

transparent

1 ms (C1 charge)

< 500 ns

Tfilter RST

1024 TCL (12.8 us)

RSTOUT

VIL

VIH

RSTIN

VIL

RSTF

ideal

RPD

RST

0Ch

4 TCL

04h

not transparent

not transpar en t

WDTCON

[5:0]

P0[15:13]

P0[12:8]

not transpar en t

P0[7:2]

not transparent

P0[1:0]

100/179

ST ST10F273E User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

1 Introduction

2 Pin data

3 Functional description

4 Memory organization

5 Internal Flash memory

5.1 Overview

5.2 Functional description

5.2.1 Structure

5.2.2 Modules structure

5.2.3 Low power mode

5.3 Write operation

5.4 Registers description

5.4.1 Flash control register 0 low

5.4.2 Flash control register 0 high

5.4.3 Flash control register 1 low

5.4.4 Flash control register 1 high

5.4.5 Flash data register 0 low

5.4.6 Flash data register 0 high

5.4.7 Flash data register 1 low

5.4.8 Flash data register 1 high

5.4.9 Flash address register low

5.4.10 Flash address register high

5.4.11 Flash error register

5.5 Protection strategy

5.5.1 Protection registers

5.5.2 Flash non volatile write protection I register low

5.5.3 Flash non volatile write protection I register high

5.5.4 Flash non volatile access protection register 0

5.5.5 Flash non volatile access protection register 1 low

5.5.6 Flash non volatile access protection register 1 high

5.5.7 Access protection

5.5.8 Write protection

5.5.9 Temporary unprotection

5.6 Write operation examples

5.7 Write operation summary

6 Bootstrap loader

6.1 Selection among user-code, standard or selective bootstrap

6.2 Standard bootstrap loader

6.3 Alternate and selective boot mode (ABM & SBM)

6.3.1 Activation of the ABM and SBM

6.3.2 User mode signature integrity check

6.3.3 Selective boot mode

7 Central processing unit (CPU)

7.1 Multiplier-accumulator unit (MAC)

7.2 Instruction set summary

7.3 MAC coprocessor specific instructions

8 External bus controller

9 Interrupt system

9.1 X-Peripheral interrupt

9.2 Exception and error traps list

10 Capture / compare (CAPCOM) units

11 General purpose timer unit

11.1 GPT1

11.2 GPT2

12 PWM modules

13 Parallel ports

13.1 Introduction

13.2 I/O’s special features

13.2.1 Open drain mode

13.2.2 Input threshold control

13.3 Alternate port functions

14 A/D converter

15 Serial channels

15.1 Asynchronous / synchronous serial interfaces

15.2 ASCx in asynchronous mode

15.3 ASCx in synchronous mode

15.4 High speed synchronous serial interfaces

16 I2C interface

17 CAN modules

17.1 Configuration support

17.2 CAN bus configurations

18 Real time clock

19 Watchdog timer

20 System reset

20.1 Input filter

20.2 Asynchronous reset
