M74HC257
QUAD 2 CHANNEL MULTIPLEXER (3-STATE)
■HIGH SPEED :
tPD = 11 ns (TYP.) at VCC = 6V
■LOW POWER DISSIPATION: ICC =4μA(MAX.) at TA=25°C
■HIGH NOISE IMMUNITY: VNIH = VNIL = 28 % VCC (MIN.)
■SYMMETRICAL OUTPUT IMPEDANCE: |IOH| = IOL = 6mA (MIN)
■BALANCED PROPAGATION DELAYS: tPLH tPHL
■WIDE OPERATING VOLTAGE RANGE: VCC (OPR) = 2V to 6V
■PIN AND FUNCTION COMPATIBLE WITH 74 SERIES 257
DIP |
SOP |
TSSOP |
|
|
|
||
ORDER CODES |
|
||
PACKAGE |
|
TUBE |
T & R |
|
|
|
|
DIP |
|
M74HC257B1R |
|
|
|
|
|
SOP |
|
M74HC257M1R |
M74HC257RM13TR |
|
|
|
|
TSSOP |
|
|
M74HC257TTR |
|
|
|
|
DESCRIPTION
The M74HC257 is an high speed CMOS QUAD 2 CHANNEL MULTIPLEXER (3-STATE) fabricated with silicon gate C2MOS technology.
This IC is composed of an independent 2-channel multiplexer with common SELECT and ENABLE (OE) input.
The M74HC257 is a non-inverting multiplexer.
When the ENABLE input is held "High", outputs of the IC become in a High-Impedance state. If SELECT input is held low, "A" data is selected, when SELECT is high , "B" data is chosen.
All inputs are equipped with protection circuits against static discharge and transient excess voltage.

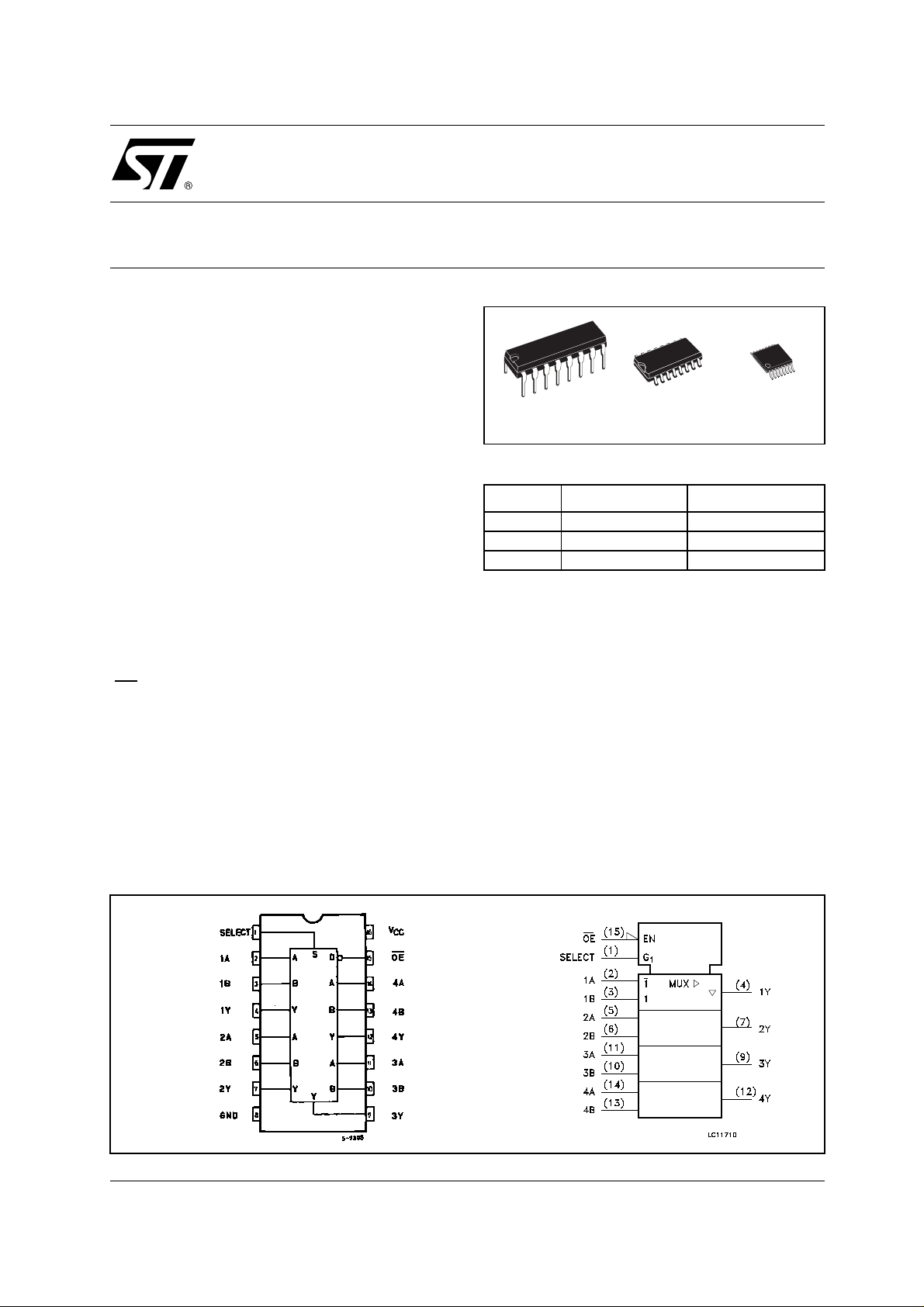

PIN CONNECTION AND IEC LOGIC SYMBOLS
August 2001 |
1/11 |
M74HC257
INPUT AND OUTPUT EQUIVALENT CIRCUIT |
PIN DESCRIPTION |
|
|
|
PIN No |
SYMBOL |
NAME AND FUNCTION |
|
1 |
SELECT |
Common Data Select |
|
Input |
||
|
|
|
|
|
2, 5, 14, 11 |
1A to 4A |
Data Input From Source A |
|
3, 6, 13, 10 |
1B to 4B |
Data Input From Source B |
|
4, 7, 12, 9 |
1Y to 4Y |
3 State Multiplexer |
|
Outputs |
||
|
|
|
|
|
15 |
OE |
3 State Output Enable |
|
Inputs (Active Low) |
||
|
|
|
|
|
8 |
GND |
Ground (0V) |
|
16 |
Vcc |
Positive Supply Voltage |
TRUTH TABLE
|
|
|
|
INPUTS |
|
OUTPUT |
|
|
|
|
|
|
|
|
|
|
OE |
|
SELECT |
|
A |
B |
Y |
|
|
|
|
|
|
|
|
|
H |
|
X |
|
X |
X |
Z |
|
L |
|
L |
|
L |
X |
L |
|
|
|
|
|
|
|
|
|
L |
|
L |
|
H |
X |
H |
|
|
|
|
|
|
|
|
|
L |
|
H |
|
X |
L |
L |
|
L |
|
H |
|
X |
H |
H |
|
|
|
|
|
|
|
|
X : Don’t Care
Z : High Impedance
LOGIC DIAGRAM
This logic diagram has not be used to estimate propagation delays
2/11
|
|
|
M74HC257 |
|
ABSOLUTE MAXIMUM RATINGS |
|
|
|
|
|
|
|
|
|
Symbol |
Parameter |
Value |
|
Unit |
|
|
|
|
|
VCC |
Supply Voltage |
-0.5 to +7 |
|
V |
VI |
DC Input Voltage |
-0.5 to VCC + 0.5 |
|
V |
VO |
DC Output Voltage |
-0.5 to VCC + 0.5 |
|
V |
IIK |
DC Input Diode Current |
± 20 |
|
mA |
IOK |
DC Output Diode Current |
± 20 |
|
mA |
IO |
DC Output Current |
± 35 |
|
mA |
ICC or IGND |
DC VCC or Ground Current |
± 70 |
|
mA |
PD |
Power Dissipation |
500(*) |
|
mW |
Tstg |
Storage Temperature |
-65 to +150 |
|
°C |
TL |
Lead Temperature (10 sec) |
300 |
|
°C |
Absolute Maximum Ratings are those values beyond which damage to the device may occur. Functional operation under these conditions is not implied
(*) 500mW at 65 °C; derate to 300mW by 10mW/°C from 65°C to 85°C
RECOMMENDED OPERATING CONDITIONS
Symbol |
|
Parameter |
Value |
Unit |
|
|
|
|
|
|
|
VCC |
Supply Voltage |
|
|
2 to 6 |
V |
VI |
Input Voltage |
|
|
0 to VCC |
V |
VO |
Output Voltage |
|
|
0 to VCC |
V |
Top |
Operating Temperature |
|
|
-55 to 125 |
°C |
|
Input Rise and Fall Time |
|
VCC = 2.0V |
0 to 1000 |
ns |
tr, tf |
|
|
VCC = 4.5V |
0 to 500 |
ns |
|
|
|
VCC = 6.0V |
0 to 400 |
ns |
3/11
M74HC257
DC SPECIFICATIONS
|
|
|
Test Condition |
|
|
|
|
Value |
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Symbol |
Parameter |
VCC |
|
|
|
TA = 25°C |
-40 to 85°C |
-55 to 125°C |
Unit |
||||
|
|
(V) |
|
|
Min. |
Typ. |
Max. |
Min. |
Max. |
Min. |
Max. |
|
|
|
|
|
|
|
|
||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
VIH |
High Level Input |
2.0 |
|
|
1.5 |
|
|
|
1.5 |
|
1.5 |
|
|
|
Voltage |
4.5 |
|
|
3.15 |
|
|
|
3.15 |
|
3.15 |
|
V |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
6.0 |
|
|
4.2 |
|
|
|
4.2 |
|
4.2 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
VIL |
Low Level Input |
2.0 |
|
|
|
|
|
0.5 |
|
0.5 |
|
0.5 |
|
|
Voltage |
4.5 |
|
|
|
|
|
1.35 |
|
1.35 |
|
1.35 |
V |
|
|
|
|
|
|
|
|
|
|||||
|
|
6.0 |
|
|
|
|
|
1.8 |
|
1.8 |
|
1.8 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
VOH |
High Level Output |
2.0 |
|
IO=-20 μA |
1.9 |
|
2.0 |
|
1.9 |
|
1.9 |
|
|
|
Voltage |
|
|
|
|
|
|
|
|
|
|
|
|
|
4.5 |
|
IO=-20 μA |
4.4 |
|
4.5 |
|
4.4 |
|
4.4 |
|
|
|
|
|
|
|
|
|
|
|
||||||
|
|
6.0 |
|
IO=-20 μA |
5.9 |
|
6.0 |
|
5.9 |
|
5.9 |
|
V |
|
|
4.5 |
|
IO=-6.0 mA |
4.18 |
|
4.31 |
|
4.13 |
|
4.10 |
|
|
|
|
6.0 |
|
IO=-7.8 mA |
5.68 |
|
5.8 |
|
5.63 |
|
5.60 |
|
|
VOL |
Low Level Output |
2.0 |
|
IO=20 μA |
|
|
0.0 |
0.1 |
|
0.1 |
|
0.1 |
|
|
Voltage |
|
|
|
|
|
|
|
|
|
|
|
|
|
4.5 |
|
IO=20 μA |
|
|
0.0 |
0.1 |
|
0.1 |
|
0.1 |
|
|
|
|
|
|
|
|
|
|
||||||
|
|
6.0 |
|
IO=20 μA |
|
|
0.0 |
0.1 |
|
0.1 |
|
0.1 |
V |
|
|
4.5 |
|
IO=6.0 mA |
|
|
0.17 |
0.26 |
|
0.33 |
|
0.40 |
|
|
|
6.0 |
|
IO=7.8 mA |
|
|
0.18 |
0.26 |
|
0.33 |
|
0.40 |
|
II |
Input Leakage |
6.0 |
|
VI = VCC or GND |
|
|
|
± 0.1 |
|
± 1 |
|
± 1 |
μA |
|
Current |
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
IOZ |
High Impedance |
|
|
VI = VIH or VIL |
|
|
|
± 0.5 |
|
± 5 |
|
± 10 |
μA |
|
Output Leakage |
6.0 |
|
VO = VCC or GND |
|
|
|
|
|
||||
|
Current |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
ICC |
Quiescent Supply |
6.0 |
|
VI = VCC or GND |
|
|
|
4 |
|
40 |
|
80 |
μA |
|
Current |
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
4/11
