ST LIS3DH User Manual

Download

LIS3DH

MEMS digital output motion sensor

ultra low-power high performance 3-axes “nano” accelerometer

Features

■ Wide supply voltage, 1.71 V to 3.6 V

■ Independent IOs supply (1.8 V) and supply

voltage compatible

■ Ultra low-power mode consumption

down to 2 µA

■ ±2g/±4g/±8g/±16g dynamically selectable full-

scale

■ I

C/SPI digital output interface

■ 16 bit data output

■ 2 independent programmable interrupt

generators for free-fall and motion detection

■ 6D/4D orientation detection

■ Free-fall detection

■ Motion detection

■ Embedded temperature sensor

■ Embedded self-test

■ Embedded 96 levels of 16 bit data output FIFO

■ 10000 g high shock survivability

■ ECOPACK

RoHS and “Green” compliant

Applications

■ Motion activated functions

■ Free-fall detection

■ Click/double click recognition

■ Intelligent power saving for handheld devices

■ Pedometer

■ Display orientation

■ Gaming and virtual reality input devices

■ Impact recognition and logging

■ Vibration monitoring and compensation

belonging to the “nano” family, with digital I serial interface standard output. The device features ultra low-power operational modes that allow advanced power saving and smart embedded functions.

The LIS3DH has dynamically user selectable full scales of ±2g/±4g/±8g/±16g and it is capable of measuring accelerations with output data rates from 1 Hz to 5 kHz. The self-test capability allows the user to check the functioning of the sensor in the final application. The device may be configured to generate interrupt signals by two independent inertial wake-up/free-fall events as well as by the position of the device itself. Thresholds and timing of interrupt generators are programmable by the end user on the fly. The LIS3DH has an integrated 32-level first in, first out (FIFO) buffer allowing the user to store data for host processor intervention reduction. The LIS3DH is available in small thin plastic land grid array package (LGA) and it is guaranteed to operate over an extended temperature range from

-40 °C to +85 °C.

Table 1. Device summary

Order codes

LIS3DH -40 to +85 LGA-16 Tray

LIS3DHTR -40 to +85 LGA-16 Tape and reel

LGA-16

range [°C]

(3x3x1 mm)

Tem p.

Package Packaging

C/SPI

Description

The LIS3DH is an ultra low-power high performance three axes linear accelerometer

May 2010 Doc ID 17530 Rev 1 1/42

www.st.com

Contents LIS3DH

Contents

1 Block diagram and pin description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

1.1 Block diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

1.2 Pin description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

2 Mechanical and electrical specifications . . . . . . . . . . . . . . . . . . . . . . . 10

2.1 Mechanical characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

2.2 Temperature sensor characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

2.3 Electrical characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

2.4 Communication interface characteristics . . . . . . . . . . . . . . . . . . . . . . . . . 12

2.4.1 SPI - serial peripheral interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

2.4.2 I2C - Inter IC control interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

2.5 Absolute maximum ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

3 Terminology and functionality . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

3.1 Terminology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

3.1.1 Sensitivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

3.1.2 Zero-g level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

3.2 Functionality . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

3.2.1 Normal mode, low power mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

3.2.2 Self-test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

3.2.3 6D / 4D orientation detection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

3.3 Sensing element . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

3.4 IC interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

3.5 Factory calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

3.6 FIFO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

3.7 Auxiliary ADC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

4 Application hints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

4.1 Soldering information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

5 Digital main blocks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

5.1 FIFO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

5.1.1 Bypass mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

2/42 Doc ID 17530 Rev 1

LIS3DH Contents

5.1.2 FIFO mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

5.1.3 Stream mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

5.1.4 Stream-to-FIFO mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

5.1.5 Retrieve data from FIFO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

6 Digital interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

6.1 I2C serial interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

6.1.1 I2C operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

6.2 SPI bus interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

6.2.1 SPI read . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

6.2.2 SPI write . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

6.2.3 SPI read in 3-wires mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

7 Register mapping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

8 Registers description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

8.1 STATUS_AUX (07h) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

8.2 OUT_1_L (08h), OUT_1_H (09h) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

8.3 OUT_2_L (0Ah), OUT_2_H (0Bh) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

8.4 OUT_3_L (0Ch), OUT_3_H (0Dh) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

8.5 INT_COUNTER (0Eh) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

8.6 WHO_AM_I (0Fh) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

8.7 TEMP_CFG_REG (1Fh) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

8.8 CTRL_REG1 (20h) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

8.9 CTRL_REG2 (21h) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

8.10 CTRL_REG3 (22h) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

8.11 CTRL_REG4 (23h) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

8.12 CTRL_REG5 (24h) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

8.13 CTRL_REG6 (25h) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

8.14 REFERENCE/DATACAPTURE (26h) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

8.15 STATUS_REG (27h) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

8.16 OUT_X_L (28h), OUT_X_H (29h) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

8.17 OUT_Y_L (2Ah), OUT_Y_H (2Bh) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

8.18 OUT_Z_L (2Ch), OUT_Z_H (2Dh) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

8.19 FIFO_CTRL_REG (2Eh) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Doc ID 17530 Rev 1 3/42

Contents LIS3DH

8.20 FIFO_SRC_REG (2Fh) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

8.21 INT1_CFG (30h) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

8.22 INT1_SRC (31h) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

8.23 INT1_THS (32h) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

8.24 INT1_DURATION (33h) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

8.25 CLICK_CFG (38h) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

8.26 CLICK_SRC (39h) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

8.27 CLICK_THS (3Ah) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

8.28 TIME_LIMIT (3Bh) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

8.29 TIME_LATENCY (3Ch) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

8.30 TIME WINDOW(3Dh) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

9 Package information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

10 Revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

4/42 Doc ID 17530 Rev 1

LIS3DH List of figures

List of figures

Figure 1. Block diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Figure 2. Pin connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Figure 3. SPI slave timing diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Figure 4. I2C Slave timing diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Figure 5. LIS3DH electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Figure 6. Read and write protocol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Figure 7. SPI read protocol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Figure 8. Multiple bytes SPI read protocol (2 bytes example) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Figure 9. SPI write protocol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Figure 10. Multiple bytes SPI write protocol (2 bytes example) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Figure 11. SPI read protocol in 3-wires mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Figure 12. LGA-16: Mechanical data and package dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Doc ID 17530 Rev 1 5/42

List of tables LIS3DH

List of tables

Table 1. Device summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Table 2. Pin description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Table 3. Mechanical characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Table 4. Temperature sensor characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Table 5. Electrical characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Table 6. SPI slave timing values. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Table 7. I2C slave timing values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Table 8. Absolute maximum ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Table 9. Operating mode selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Table 10. Serial interface pin description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Table 11. Serial interface pin description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Table 12. SAD+Read/Write patterns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Table 13. Transfer when master is writing one byte to slave . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Table 14. Transfer when master is writing multiple bytes to slave:. . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Table 15. Transfer when master is receiving (reading) one byte of data from slave: . . . . . . . . . . . . . 22

Table 16. Transfer when master is receiving (reading) multiple bytes of data from slave . . . . . . . . . 22

Table 17. Register address map. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Table 18. STATUS_REG_AUX register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Table 19. STATUS_REG_AUX description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Table 20. INT_COUNTER register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Table 21. WHO_AM_I register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Table 22. TEMP_CFG_REG register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Table 23. TEMP_CFG_REG description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Table 24. CTRL_REG1 register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Table 25. CTRL_REG1 description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Table 26. Data rate configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Table 27. CTRL_REG2 register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Table 28. CTRL_REG2 description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Table 29. High pass filter mode configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Table 30. CTRL_REG3 register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Table 31. CTRL_REG3 description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Table 32. CTRL_REG4 register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Table 33. CTRL_REG4 description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Table 34. Self test mode configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Table 35. CTRL_REG5 register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Table 36. CTRL_REG5 description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Table 37. CTRL_REG6 register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Table 38. REFERENCE register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Table 39. REFERENCE register description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Table 40. STATUS register. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Table 41. STATUS register description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Table 42. REFERENCE register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Table 43. REFERENCE register description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Table 44. FIFO mode configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Table 45. FIFO_SRC register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Table 46. INT1_CFG register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Table 47. INT1_CFG description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Table 48. Interrupt mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

6/42 Doc ID 17530 Rev 1

LIS3DH List of tables

Table 49. INT1_SRC register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Table 50. INT1_SRC description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Table 51. INT1_THS register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Table 52. INT1_THS description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Table 53. INT1_DURATION register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Table 54. INT1_DURATION description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Table 55. CLICK_CFG register. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Table 56. CLICK_CFG description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Table 57. CLICK_SRC register. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Table 58. CLICK_SRC description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Table 59. CLICK_THS register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Table 60. CLICK_SRC description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Table 61. TIME_LIMIT register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Table 62. TIME_LIMIT description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Table 63. TIME_LATENCY register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Table 64. TIME_LATENCY description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Table 65. TIME_WINDOW register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Table 66. TIME_WINDOW description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Table 67. LGA-16: Mechanical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Table 68. Document revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Doc ID 17530 Rev 1 7/42

Block diagram and pin description LIS3DH

1 Block diagram and pin description

1.1 Block diagram

Figure 1. Block diagram

X+

ADC1 - ADC Input1

ADC2 - ADC Input2

ADC3 - ADC Input3

Y+

Z+

Z-

Y-

X-

TEMPERATURE

SENSOR

MUX

CHARGE

AMPLIFIER

A/D

CONVERTER 1

A/D

CONVERTER 2

CONTROL

LOGIC

I2C

SPI

SCL/SPC

SDA/SDO/SDI

SDO/SA0

REFERENCESELF TEST

1.2 Pin description

Figure 2. Pin connection

(TOP VIEW)

DIRECTION OF THE DETECTABLE ACCELERATIONS

TRIMMING

CIRCUITS

CLOCK

96 Level

FIFO

CONTROL LOGIC

INTERRUPT GEN.

INT 1

INT 2

Pin 1 indicator

ADC1

Vdd

ADC2

ADC3

GND

INT1

RES

INT2

SDO/SA0

Vdd_IO

L/SPC

GND

SDA/SDI/SDO

(BOTTOM VIEW)

8/42 Doc ID 17530 Rev 1

LIS3DH Block diagram and pin description

Table 2. Pin description

Pin# Name Function

1 Vdd_IO Power supply for I/O pins

2 NC Not connected

3 NC Not connected

SCL SPC

I2C serial clock (SCL) SPI serial port clock (SPC)

5 GND 0V supply

SDA

SDI

SDO

SA0

8CS

C serial data (SDA) SPI serial data input (SDI) 3-wire interface serial data output (SDO)

SPI serial data output (SDO) I2C less significant bit of the device address (SA0)

SPI enable I2C/SPI mode selection (1: I2C mode; 0: SPI enabled)

9 INT2 Inertial interrupt 2

10 RES Connect to GND

11 INT1 Inertial interrupt 1

12 GND 0 V supply

13 ADC3 Analog to digital converter input 3

14 Vdd Power supply

15 ADC2 Analog to digital converter input 2

16 ADC1 Analog to digital converter input 1

Doc ID 17530 Rev 1 9/42

Mechanical and electrical specifications LIS3DH

2 Mechanical and electrical specifications

2.1 Mechanical characteristics

Vdd = 2.5 V, T = 25 °C unless otherwise noted

Table 3. Mechanical characteristics

Symbol Parameter Test conditions Min. Typ.

FS bit set to 00 ±2.0

FS bit set to 01 ±4.0

FS Measurement range

So Sensitivity

TCSo

TyOff

TCOff

Vst

To p

1. Typical specifications are not guaranteed.

2. Verified by wafer level test and measurement of initial offset and sensitivity.

3. Typical zero-g level offset value after MSL3 preconditioning.

4. Offset can be eliminated by enabling the built-in high pass filter.

5. The sign of “Self-test output change” is defined by CTRL_REG4 STsign bit, for all axes.

Self-test output changes with the power supply. “Self-test output change” is defined as

6. OUTPUT[LSb]

7. Output data reach 99% of final value after 1 ms when enabling self-test mode, due to device filtering.

Sensitivity change vs temperature

Typical zerooffset accuracy

Zerovs temperature

Acceleration noise

density

Self-test output change

Operating temperature range

(CTRL_REG4 ST bit=1)

g level

g level change

(2)

(3),(4)

(5),(6),(7)

FS bit set to 10 ±8.0

FS bit set to 11 ±16.0

FS bit set to 00 1 mg/digit

FS bit set to 01 2 mg/digit

FS bit set to 10 4 mg/digit

FS bit set to 11 12 mg/digit

FS bit set to 00 0.01 %/°C

FS bit set to 00 ±40 mg

Max delta from 25 °C ±0.5 m

FS bit set to 00, Normal Mode (Ta bl e 9 ), ODR = 100Hz

FS bit set to 00 X axis

FS bit set to 00 Y axis

FS bit set to 00 Z axis

- OUTPUT[LSb]

(CTRL_REG4 ST bit=0)

(a)

220

276 LSb

984 LSb

-40 +85 °C

. 1LSb=1mg, ±2 g Full-scale.

(1)

Max. Unit

g/°C

ug/sqrt(H

a. The product is factory calibrated at 2.5 V. The operational power supply range is from 1.71V to 3.6 V.

10/42 Doc ID 17530 Rev 1

LIS3DH Mechanical and electrical specifications

2.2 Temperature sensor characteristics

Vdd =2.5 V, T=25 °C unless otherwise noted

Table 4. Temperature sensor characteristics

Symbol Parameter Test condition Min. Typ.

(b)

(1)

Max. Unit

TSDr

Temperature sensor output change vs temperature

1digit/°C

TODR Temperature refresh rate ODR Hz

Top Operating temperature range -40 +85 °C

1. Typical specifications are not guaranteed.

2. 8-bit resolution.

2.3 Electrical characteristics

Vdd = 2.5 V, T = 25 °C unless otherwise noted

Table 5. Electrical characteristics

Symbol Parameter Test conditions Min. Typ.

Vdd Supply voltage 1.71 2.5 3.6 V

Vdd_IO I/O pins supply voltage

Idd Current consumption in normal mode 50 Hz ODR 11 µA

Idd Current consumption in normal mode 1 Hz ODR 2 µA

IddLP Current consumption in low-power mode 50 Hz ODR 6 µA

IddPdn

VIH Digital high level input voltage 0.8*Vdd_IO V

VIL Digital low level input voltage 0.2*Vdd_IO V

(2)

Current consumption in power-down mode

(c)

(1)

1.71 Vdd+0.1 V

0.5 µA

Max. Unit

(2)

VOH High level output voltage 0.9*Vdd_IO V

VOL Low level output voltage 0.1*Vdd_IO V

BW System bandwidth

Ton Turn-on time

(4)

(3)

ODR = 100 Hz 1 ms

ODR/2 Hz

Top Operating temperature range -40 +85

1. Typical specification are not guaranteed.

2. It is possible to remove Vdd maintaining Vdd_IO without blocking the communication busses, in this condition the measurement chain is powered off.

3. Referred to Table 25 for the ODR value and configuration.

4. Time to obtain valid data after exiting power-down mode.

b. The product is factory calibrated at 2.5 V.

c. The product is factory calibrated at 2.5 V. The operational power supply range is from 1.71 V to 3.6 V.

Doc ID 17530 Rev 1 11/42

°C

Mechanical and electrical specifications LIS3DH

2.4 Communication interface characteristics

2.4.1 SPI - serial peripheral interface

Subject to general operating conditions for Vdd and Top.

Table 6. SPI slave timing values

(1)

Val u e

Symbol Parameter

Unit

Min Max

tc(SPC) SPI clock cycle 100 ns

fc(SPC) SPI clock frequency 10 MHz

tsu(CS) CS setup time 6

th(CS) CS hold time 8

tsu(SI) SDI input setup time 5

th(SI) SDI input hold time 15

tv(SO) SDO valid output time 50

th(SO) SDO output hold time 9

tdis(SO) SDO output disable time 50

h(SI)

MSB OUT

(3)

c(SPC)

v(SO)

h(SO)

h(CS)

LSB IN

LSB OUT

(3)

dis(SO)

(3)

Figure 3. SPI slave timing diagram

(3)

su(CS)

SPC

(3)

su(SI)

SDI

SDO

(3)

MSB IN

Note: 1 Values are guaranteed at 10 MHz clock frequency for SPI with both 4 and 3 wires, based on

characterization results, not tested in production.

2 Measurement points are done at 0.2·Vdd_IO and 0.8·Vdd_IO, for both Input and output port.

3 When no communication is on-going, data on CS, SPC, SDI and SDO are driven by internal

pull-up resistors.

12/42 Doc ID 17530 Rev 1

LIS3DH Mechanical and electrical specifications

2.4.2 I2C - Inter IC control interface

Subject to general operating conditions for Vdd and top.

Table 7. I

Symbol Parameter

C slave timing values

I2C standard mode

(1)

I2C fast mode

Min Max Min Max

(1)

Unit

(SCL)

w(SCLL)

w(SCLH)

su(SDA)

h(SDA)

r(SDA) tr(SCL)

f(SDA) tf(SCL)

h(ST)

su(SR)

su(SP)

w(SP:SR)

SCL clock frequency 0 100 0 400 kHz

SCL clock low time 4.7 1.3

SCL clock high time 4.0 0.6

SDA setup time 250 100 ns

SDA data hold time 0.01 3.45 0.01 0.9 µs

SDA and SCL rise time 1000

SDA and SCL fall time 300

START condition hold time 4 0.6

Repeated START condition setup time

4.7 0.6

STOP condition setup time 4 0.6

Bus free time between STOP and START condition

4.7 1.3

1. Data based on standard I2C protocol requirement, not tested in production.

2. Cb = total capacitance of one bus line, in pF.

Figure 4. I

C Slave timing diagram

20 + 0.1C

µs

(2)

(

300

µs

START

su(SR)

su(SP)

w(SP:SR)

SDA

SCL

f(SDA)

h(ST)

r(SDA)

w(SCLL)

w(SCLH)

su(SDA)

r(SCL)tf(SCL)

h(SDA)

Note: Measurement points are done at 0.2·Vdd_IO and 0.8·Vdd_IO, for both port.

Doc ID 17530 Rev 1 13/42

REPEATED

START

STOP

Mechanical and electrical specifications LIS3DH

2.5 Absolute maximum ratings

Stresses above those listed as “absolute maximum ratings” may cause permanent damage to the device. This is a stress rating only and functional operation of the device under these conditions is not implied. Exposure to maximum rating conditions for extended periods may affect device reliability.

Table 8. Absolute maximum ratings

Symbol Ratings Maximum value Unit

Vdd Supply voltage -0.3 to 4.8 V

Vdd_IO I/O pins Supply voltage -0.3 to 4.8 V

Vin

POW

UNP

STG

ESD Electrostatic discharge protection 2 (HBM) kV

Input voltage on any control pin (CS, SCL/SPC, SDA/SDI/SDO, SDO/SA0)

Acceleration (any axis, powered, Vdd = 2.5 V)

Acceleration (any axis, unpowered)

Operating temperature range -40 to +85 °C

Storage temperature range -40 to +125 °C

-0.3 to Vdd_IO +0.3 V

3000 for 0.5 ms g

10000 for 0.1 ms g

3000 for 0.5 ms g

10000 for 0.1 ms g

Note: Supply voltage on any pin should never exceed 4.8 V

This is a mechanical shock sensitive device, improper handling can cause permanent damages to the part.

This is an ESD sensitive device, improper handling can cause permanent damages to the part.

14/42 Doc ID 17530 Rev 1

LIS3DH Terminology and functionality

3 Terminology and functionality

3.1 Terminology

3.1.1 Sensitivity

Sensitivity describes the gain of the sensor and can be determined e.g. by applying 1 g acceleration to it. As the sensor can measure DC accelerations this can be done easily by pointing the axis of interest towards the center of the earth, noting the output value, rotating the sensor by 180 degrees (pointing to the sky) and noting the output value again. By doing so, ±1 g acceleration is applied to the sensor. Subtracting the larger output value from the smaller one, and dividing the result by 2, leads to the actual sensitivity of the sensor. This value changes very little over temperature and also time. The sensitivity tolerance describes the range of Sensitivities of a large population of sensors.

3.1.2 Zero-g level

Zero-g level offset (TyOff) describes the deviation of an actual output signal from the ideal output signal if no acceleration is present. A sensor in a steady state on a horizontal surface measure 0 g in X axis and 0 g in Y axis whereas the Z axis measure 1 g. The output is ideally in the middle of the dynamic range of the sensor (content of OUT registers 00h, data expressed as 2’s complement number). A deviation from ideal value in this case is called Zero-g offset. Offset is to some extent a result of stress to MEMS sensor and therefore the offset can slightly change after mounting the sensor onto a printed circuit board or exposing it to extensive mechanical stress. Offset changes little over temperature, see “Zero-g level change vs. temperature”. The Zero-g level tolerance (TyOff) describes the standard deviation of the range of Zero-g levels of a population of sensors.

3.2 Functionality

3.2.1 Normal mode, low power mode

LIS3DH provides two different operating modes respectively reported as normal mode and low power mode. While normal mode guarantees high resolution, low power mode reduces

further the current consumption.

The table below reported summarizes how to select the operating mode.

Table 9. Operating mode selection

CTRL_REG1[3]

(LPen bit)

1 0 Low power mode

0 1 Normal mode

CTRL_REG4[3]

(HR bit)

Doc ID 17530 Rev 1 15/42

Operating mode

Terminology and functionality LIS3DH

3.2.2 Self-test

Self-test allows to check the sensor functionality without moving it. The self-test function is off when the self-test bit (ST) is programmed to ‘0‘. When the self-test bit is programmed to ‘1‘ an actuation force is applied to the sensor, simulating a definite input acceleration. In this case the sensor outputs exhibit a change in their DC levels which are related to the selected full scale through the device sensitivity. When self-test is activated, the device output level is given by the algebraic sum of the signals produced by the acceleration acting on the sensor and by the electrostatic test-force. If the output signals change within the amplitude specified inside Ta bl e 3 , then the sensor is working properly and the parameters of the interface chip are within the defined specifications.

3.2.3 6D / 4D orientation detection

The LIS3DH include 6D / 4D orientation detection.

6D / 4D orientation recognition: In this configuration the interrupt is generated when the device is stable in a known direction. In 4D configuration Z axis position detection is disable.

3.3 Sensing element

A proprietary process is used to create a surface micro-machined accelerometer. The technology allows carrying out suspended silicon structures which are attached to the substrate in a few points called anchors and are free to move in the direction of the sensed acceleration. To be compatible with the traditional packaging techniques a cap is placed on top of the sensing element to avoid blocking the moving parts during the moulding phase of the plastic encapsulation.

When an acceleration is applied to the sensor the proof mass displaces from its nominal position, causing an imbalance in the capacitive half-bridge. This imbalance is measured using charge integration in response to a voltage pulse applied to the capacitor.

At steady state the nominal value of the capacitors are few pF and when an acceleration is applied the maximum variation of the capacitive load is in the fF range.

3.4 IC interface

The complete measurement chain is composed by a low-noise capacitive amplifier which converts the capacitive unbalancing of the MEMS sensor into an analog voltage that is finally available to the user by an analog-to-digital converter.

The acceleration data may be accessed through an I device particularly suitable for direct interfacing with a microcontroller.

The LIS3DH features a Data-Ready signal (RDY) which indicates when a new set of measured acceleration data is available thus simplifying data synchronization in the digital system that uses the device.

The LIS3DH may also be configured to generate an inertial Wake-Up and Free-Fall interrupt signal accordingly to a programmed acceleration event along the enabled axes. Both FreeFall and Wake-Up can be available simultaneously on two different pins.

C/SPI interface thus making the

16/42 Doc ID 17530 Rev 1

LIS3DH Terminology and functionality

3.5 Factory calibration

The IC interface is factory calibrated for sensitivity (So) and Zero-g level (TyOff).

The trimming values are stored inside the device in a non volatile memory. Any time the device is turned on, the trimming parameters are downloaded into the registers to be used during the active operation. This allows to use the device without further calibration.

3.6 FIFO

The LIS3DH contains a 10 bit, 32-level FIFO. Buffered output allows 4 operation modes: FIFO, stream, trigger and FIFO ByPass. Where FIFO bypass mode is activated FIFO is not operating and remains empty. In FIFO mode, data from acceleration detection on x, y, and zaxes measurements are stored in FIFO.

3.7 Auxiliary ADC

The LIS3DH contains an auxiliary 10 bit ADC with 3 separate dedicated inputs.

Doc ID 17530 Rev 1 17/42

Application hints LIS3DH

4 Application hints

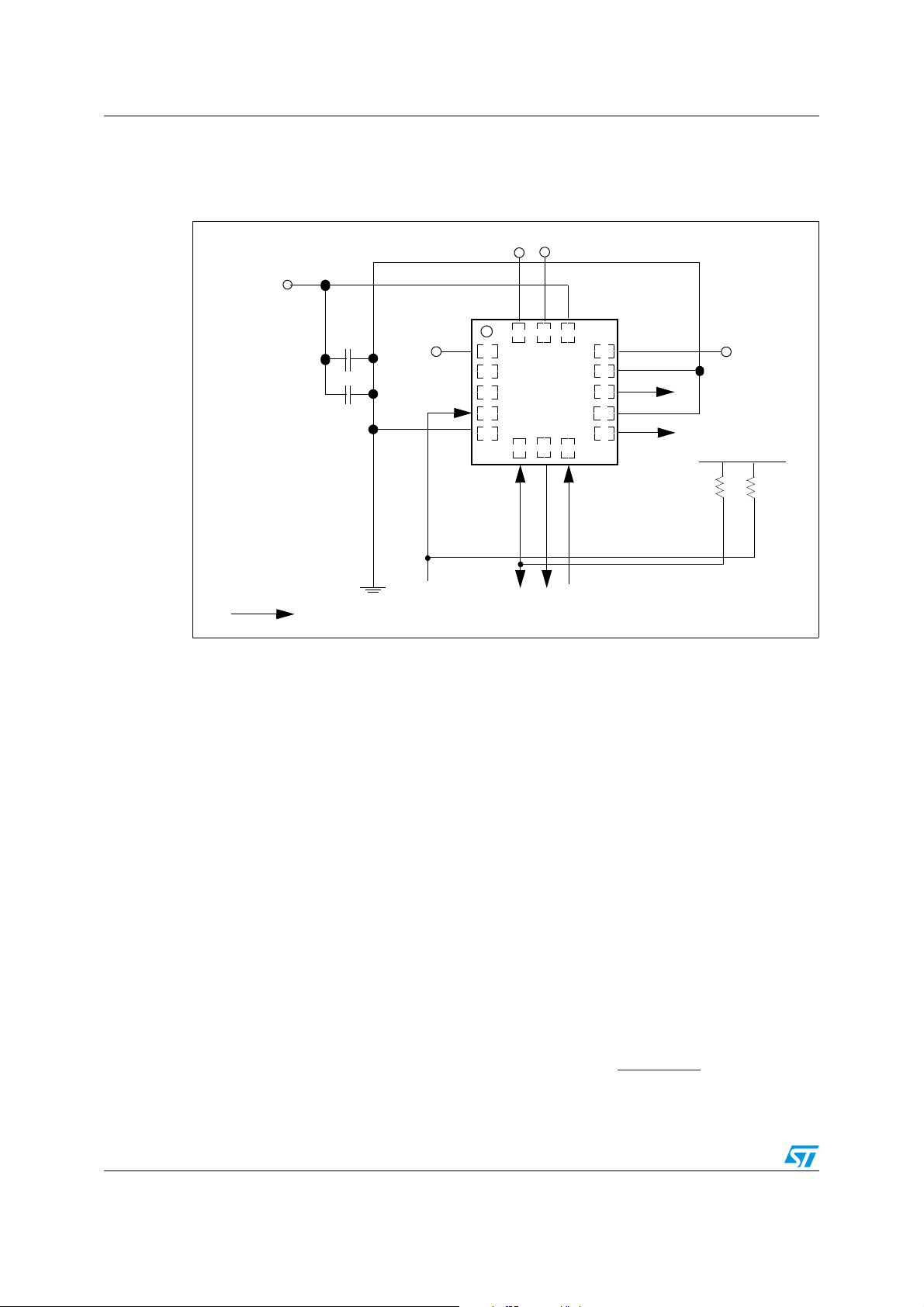

Figure 5. LIS3DH electrical connection

ADC2ADC1

Vdd

TOP VIEW

SDA/SDI/SDO

1416

SDO/SA0

ADC3

INT1

INT2

Pull-up to be added

when I2C interface is used

Vdd_IO

Rpu

10µF

100nF

GND

Digital signal from/to signal controller.Signal’s levels are defined by proper selection of Vdd_IO

Vdd_IO

SCL/SPC

The device core is supplied through Vdd line while the I/O pads are supplied through Vdd_IO line. Power supply decoupling capacitors (100 nF ceramic, 10 µF aluminum) should be placed as near as possible to the pin 14 of the device (common design practice).

All the voltage and ground supplies must be present at the same time to have proper behavior of the IC (refer to Figure 5). It is possible to remove Vdd maintaining Vdd_IO without blocking the communication bus, in this condition the measurement chain is powered off.

The functionality of the device and the measured acceleration data is selectable and accessible through the I

C or SPI interfaces.When using the I2C, CS must be tied high.

The ADC1, ADC2 & ADC3 if not used can be left floating or keep connected to Vdd or GND.

The functions, the threshold and the timing of the two interrupt pins (INT1 and INT2) can be completely programmed by the user through the I

4.1 Soldering information

The LGA package is compliant with the ECOPACK®, RoHS and “Green” standard. It is qualified for soldering heat resistance according to JEDEC J-STD-020.

Leave “Pin 1 Indicator” unconnected during soldering.

Land pattern and soldering recommendations are available at www.st.com

18/42 Doc ID 17530 Rev 1

C/SPI interface.

LIS3DH Digital main blocks

5 Digital main blocks

5.1 FIFO

LIS3DH embeds a 32-slot of 10bit data FIFO for each of the three output channels, X, Y and Z. This allows a consistent power saving for the system, since the host processor does not need to continuously poll data from the sensor, but it can wakeup only when needed and burst the significant data out from the FIFO. This buffer can work accordingly to four different modes: Bypass mode, FIFO mode, Stream mode and Stream-to-FIFO mode. Each mode is selected by the FIFO_MODE bits into the FIFO_CTRL_REG (2E). Programmable Watermark level, FIFO_empty or FIFO_Full events can be enabled to generate dedicated interrupts on INT1/2 pin (configuration through FIFO_CFG_REG).

5.1.1 Bypass mode

In Bypass mode, the FIFO is not operational and for this reason it remains empty. As described in the next figure, for each channel only the first address is used. The remaining FIFO slots are empty.

5.1.2 FIFO mode

In FIFO mode, data from X, Y and Z channels are stored into the FIFO. A watermark interrupt can be enabled (FIFO_WTMK_EN bit into FIFO_CTRL_REG in order to be raised when the FIFO is filled to the level specified into the FIFO_WTMK_LEVEL bits of FIFO_CTRL_REG. The FIFO continues filling until it is full (32 slots of 10data for X, Y and Z). When full, the FIFO stops collecting data from the input channels.

5.1.3 Stream mode

In the stream mode, data from X, Y and Z measurement are stored into the FIFO. A watermark interrupt can be enabled and set as in the FIFO mode.The FIFO continues filling until it’s full (32 slots of 10data for X, Y and Z). When full, the FIFO discards the older data as the new arrive.

5.1.4 Stream-to-FIFO mode

In Stream-to_FIFO mode, data from X, Y and Z measurement are stored into the FIFO. A watermark interrupt can be enabled (FIFO_WTMK_EN bit into FIFO_CTRL_REG) in order to be raised when the FIFO is filled to the level specified into the FIFO_WTMK_LEVEL bits of FIFO_CTRL_REG. The FIFO continues filling until it’s full (32 slots of 10 data for X, Y and Z). When full, the FIFO discards the older data as the new arrive. Once trigger event occurs, the FIFO starts operating in FIFO mode.

5.1.5 Retrieve data from FIFO

FIFO data is read through OUT_X (Addr reg 28h,29h), OUT_Y (Addr reg 2Ah,2Bh) and OUT_Z (Addr reg 2Ch,2Dh). When the FIFO is in stream, Trigger or FIFO mode, a read operation to the OUT_X, OUT_Y or OUT_Z registers provides the data stored into the FIFO. Each time data is read from the FIFO, the oldest X, Y and Z data are placed into the OUT_X, OUT_Y and OUT_Z registers and both single read and read_burst operations can be used.

Doc ID 17530 Rev 1 19/42

Digital interfaces LIS3DH

6 Digital interfaces

The registers embedded inside the LIS3DH may be accessed through both the I2C and SPI serial interfaces. The latter may be SW configured to operate either in 3-wire or 4-wire interface mode.

The serial interfaces are mapped onto the same pads. To select/exploit the I line must be tied high (i.e. connected to Vdd_IO).

Table 10. Serial interface pin description

Pin name Pin description

C interface, CS

SCL SPC

SDA

SDI

SDO

SA0

SDO

SPI enable I2C/SPI mode selection (1: I2C mode; 0: SPI enabled)

C serial clock (SCL)

I SPI serial port clock (SPC)

C serial data (SDA)

I SPI serial data input (SDI) 3-wire interface serial data output (SDO)

C less significant bit of the device address (SA0)

I SPI serial data output (SDO)

6.1 I2C serial interface

The LIS3DH I2C is a bus slave. The I2C is employed to write data into registers whose content can also be read back.

The relevant I

Table 11. Serial interface pin description

Transmitter The device which sends data to the bus

Receiver The device which receives data from the bus

C terminology is given in the table below.

Term Description

Master

Slave The device addressed by the master

The device which initiates a transfer, generates clock signals and terminates a transfer

There are two signals associated with the I2C bus: the serial clock line (SCL) and the Serial DAta line (SDA). The latter is a bidirectional line used for sending and receiving the data to/from the interface. Both the lines must be connected to Vdd_IO through external pull-up resistor. When the bus is free both the lines are high.

The I

C interface is compliant with fast mode (400 kHz) I2C standards as well as with the

normal mode.

20/42 Doc ID 17530 Rev 1

LIS3DH Digital interfaces

6.1.1 I2C operation

The transaction on the bus is started through a START (ST) signal. A START condition is defined as a HIGH to LOW transition on the data line while the SCL line is held HIGH. After this has been transmitted by the Master, the bus is considered busy. The next byte of data transmitted after the start condition contains the address of the slave in the first 7 bits and the eighth bit tells whether the Master is receiving data from the slave or transmitting data to the slave. When an address is sent, each device in the system compares the first seven bits after a start condition with its address. If they match, the device considers itself addressed by the Master.

The Slave ADdress (SAD) associated to the LIS3DH is 001100xb. SDO/SA0 pad can be used to modify less significant bit of the device address. If SA0 pad is connected to voltage supply, LSb is ‘1’ (address 0011001b) else if SA0 pad is connected to ground, LSb value is ‘0’ (address 0011000b). This solution permits to connect and address two different accelerometers to the same I

Data transfer with acknowledge is mandatory. The transmitter must release the SDA line during the acknowledge pulse. The receiver must then pull the data line LOW so that it remains stable low during the HIGH period of the acknowledge clock pulse. A receiver which has been addressed is obliged to generate an acknowledge after each byte of data received.

The I

C embedded inside the LIS3DH behaves like a slave device and the following protocol must be adhered to. After the start condition (ST) a slave address is sent, once a slave acknowledge (SAK) has been returned, a 8-bit sub-address (SUB) is transmitted: the 7 LSb represent the actual register address while the MSB enables address auto increment. If the MSb of the SUB field is ‘1’, the SUB (register address) is automatically increased to allow multiple data read/write.

C lines.

The slave address is completed with a Read/Write bit. If the bit was ‘1’ (Read), a repeated START (SR) condition must be issued after the two sub-address bytes; if the bit is ‘0’ (Write) the Master transmit to the slave with direction unchanged. Ta bl e 1 2 explains how the SAD+Read/Write bit pattern is composed, listing all the possible configurations.

Table 12. SAD+Read/Write patterns

Command SAD[6:1] SAD[0] = SA0 R/W SAD+R/W

Read 001100 0 1 00110001 (31h)

Write 001100 0 0 00110000 (30h)

Read 001100 1 1 00110011 (33h)

Write 001100 1 0 00110010 (32h)

Table 13. Transfer when master is writing one byte to slave

Master ST SAD + W SUB DATA SP

Slave SAK SAK SAK

Table 14. Transfer when master is writing multiple bytes to slave:

Master ST SAD + W SUB DATA DATA SP

Slave SAK SAK SAK SAK

Doc ID 17530 Rev 1 21/42

Digital interfaces LIS3DH

Table 15. Transfer when master is receiving (reading) one byte of data from slave:

Master ST SAD + W SUB SR SAD + R NMAK SP

Slave SAK SAK SAK DATA

Table 16. Transfer when master is receiving (reading) multiple bytes of data from slave

Master ST SAD+W SUB SR SAD+R MAK MAK NMAK SP

Slave SAK SAK SAK DATA DATA DATA

Data are transmitted in byte format (DATA). Each data transfer contains 8 bits. The number of bytes transferred per transfer is unlimited. Data is transferred with the Most Significant bit (MSb) first. If a receiver can’t receive another complete byte of data until it has performed some other function, it can hold the clock line, SCL LOW to force the transmitter into a wait state. Data transfer only continues when the receiver is ready for another byte and releases the data line. If a slave receiver doesn’t acknowledge the slave address (i.e. it is not able to receive because it is performing some real time function) the data line must be left HIGH by the slave. The Master can then abort the transfer. A LOW to HIGH transition on the SDA line while the SCL line is HIGH is defined as a STOP condition. Each data transfer must be terminated by the generation of a STOP (SP) condition.

In order to read multiple bytes, it is necessary to assert the most significant bit of the subaddress field. In other words, SUB(7) must be equal to 1 while SUB(6-0) represents the address of first register to be read.

In the presented communication format MAK is Master acknowledge and NMAK is No Master Acknowledge.

6.2 SPI bus interface

The LIS3DH SPI is a bus slave. The SPI allows to write and read the registers of the device.

The Serial Interface interacts with the outside world with 4 wires: CS, SPC, SDI and SDO.

Figure 6. Read and write protocol

SPC

SDI

SDO

AD5 AD4 AD3 AD2 AD1 AD0

DI7 DI6 DI5 DI4 DI3 DI2 DI1 DI0

DO7 DO6 DO5 DO4 DO3 DO2 DO1 DO0

CS is the serial port enable and it is controlled by the SPI master. It goes low at the start of the transmission and goes back high at the end. SPC is the serial port clock and it is controlled by the SPI master. It is stopped high when CS is high (no transmission). SDI and

22/42 Doc ID 17530 Rev 1

LIS3DH Digital interfaces

SDO are respectively the serial port data input and output. Those lines are driven at the

falling edge of SPC and should be captured at the rising edge of SPC.

Both the read register and write register commands are completed in 16 clock pulses or in multiple of 8 in case of multiple bytes read/write. Bit duration is the time between two falling edges of SPC. The first bit (bit 0) starts at the first falling edge of SPC after the falling edge of CS while the last bit (bit 15, bit 23, ...) starts at the last falling edge of SPC just before the rising edge of CS.

bit 0: RW from the device is read. In latter case, the chip drives SDO at the start of bit 8.

bit 1: MS When 1, the address is auto incremented in multiple read/write commands.

bit 2-7: address AD(5:0). This is the address field of the indexed register.

bit 8-15: data DI(7:0) (write mode). This is the data that is written into the device (MSb first).

bit 8-15: data DO(7:0) (read mode). This is the data that is read from the device (MSb first).

In multiple read/write commands further blocks of 8 clock periods is added. When MS ‘0’ the address used to read/write data remains the same for every block. When MS the address used to read/write data is increased at every block.

The function and the behavior of SDI and SDO remain unchanged.

6.2.1 SPI read

Figure 7. SPI read protocol

bit. When 0, the data DI(7:0) is written into the device. When 1, the data DO(7:0)

bit. When 0, the address remains unchanged in multiple read/write commands.

bit is

bit is ‘1’

SPC

SDI

AD5 AD4 AD3 AD2 AD1 AD0

SDO

DO7 DO6DO5 DO4DO3 DO2 DO1 DO0

The SPI Read command is performed with 16 clock pulses. Multiple byte read command is performed adding blocks of 8 clock pulses at the previous one.

bit 0: READ bit. The value is 1.

bit 1: MS

bit. When 0 do not increment address, when 1 increment address in multiple

reading.

bit 2-7: address AD(5:0). This is the address field of the indexed register.

bit 8-15: data DO(7:0) (read mode). This is the data that is read from the device (MSb first).

bit 16-... : data DO(...-8). Further data in multiple byte reading.

Doc ID 17530 Rev 1 23/42

Digital interfaces LIS3DH

Figure 8. Multiple bytes SPI read protocol (2 bytes example)

SPC

SDI

AD5 AD4 AD3 AD2 AD1 AD0

SDO

DO7 DO6 DO5 DO4 DO3 DO2 DO1 DO0

DO15 DO14 DO13 DO12 DO11 DO10 DO9 DO8

6.2.2 SPI write

Figure 9. SPI write protocol

SPC

SDI

AD5 AD4 AD3 AD2 AD1 AD0MS

DI7 DI6 DI5 DI4 DI3 DI2 DI1 DI0

The SPI Write command is performed with 16 clock pulses. Multiple byte write command is performed adding blocks of 8 clock pulses at the previous one.

bit 0: WRITE bit. The value is 0.

bit 1: MS

bit. When 0 do not increment address, when 1 increment address in multiple

writing.

bit 2 -7: address AD(5:0). This is the address field of the indexed register.

bit 8-15: data DI(7:0) (write mode). This is the data that is written inside the device (MSb

first).

bit 16-... : data DI(...-8). Further data in multiple byte writing.

Figure 10. Multiple bytes SPI write protocol (2 bytes example)

SPC

SDI

AD5 AD4 AD3 AD2 AD1 AD0

DI7 DI6 DI5 DI4 DI3 DI2 DI1 DI0 DI15 DI14 DI13 DI12 DI11 DI10 DI9 DI8

24/42 Doc ID 17530 Rev 1

LIS3DH Digital interfaces

6.2.3 SPI read in 3-wires mode

3-wires mode is entered by setting to ‘1’ bit SIM (SPI serial interface mode selection) in CTRL_REG4.

Figure 11. SPI read protocol in 3-wires mode

SPC

SDI/O

AD5 AD4 AD3 AD2 AD1 AD0

The SPI read command is performed with 16 clock pulses:

bit 0: READ bit. The value is 1.

DO7 DO6 DO5 DO4 DO3 DO2 DO1 DO0

bit 1: MS

bit. When 0 do not increment address, when 1 increment address in multiple

reading.

bit 2-7: address AD(5:0). This is the address field of the indexed register.

bit 8-15: data DO(7:0) (read mode). This is the data that is read from the device (MSb first).

Multiple read command is also available in 3-wires mode.

Doc ID 17530 Rev 1 25/42

7 Register mapping

The table given below provides a listing of the 8 bit registers embedded in the device and the related addresses:

Table 17. Register address map

Name Type

Hex Binary

Reserved (do not modify) 00 - 06 Reserved

STATUS_REG_AUX r 07 000 0111

OUT_ADC1_L r 08 000 1000 output

OUT_ADC1_H r 09 000 1001 output

OUT_ADC2_L r 0A 000 1010 output

OUT_ADC2_H r 0B 000 1011 output

OUT_ADC3_L r 0C 000 1100 output

OUT_ADC3_H r 0D 000 1101 output

INT_COUNTER_REG r 0E 000 1110

WHO_AM_I r 0F 000 1111 00110011 Dummy register

Default Comment

Reserved (do not modify) 10 - 1E Reserved

TEMP_CFG_REG rw 1F 001 1111

CTRL_REG1 rw 20 010 0000 00000111

CTRL_REG2 rw 21 010 0001 00000000

CTRL_REG3 rw 22 010 0010 00000000

CTRL_REG4 rw 23 010 0011 00000000

CTRL_REG5 rw 24 010 0100 00000000

CTRL_REG6 rw 25 010 0101 00000000

REFERENCE rw 26 010 0110 00000000

STATUS_REG2 r 27 010 0111 00000000

OUT_X_L r 28 010 1000 output

OUT_X_H r 29 010 1001 output

OUT_Y_L r 2A 010 1010 output

OUT_Y_H r 2B 010 1011 output

OUT_Z_L r 2C 010 1100 output

OUT_Z_H r 2D 010 1101 output

FIFO_CTRL_REG rw 2E 010 1110 00000000

FIFO_SRC_REG r 2F 010 1111

INT1_CFG rw 30 011 0000 00000000

26/42 Doc ID 17530 Rev 1

LIS3DH Register mapping

Table 17. Register address map

Name Type

Hex Binary

INT1_SOURCE r 31 011 0001 00000000

INT1_THS rw 32 011 0010 00000000

INT1_DURATION rw 33 011 0011 00000000

Reserved rw 34-37 00000000

CLICK_CFG rw 38 011 1000 00000000

CLICK_SRC r 39 011 1001 00000000

CLICK_THS rw 3A 011 1010 00000000

TIME_LIMIT rw 3B 011 1011 00000000

TIME_LATENCY rw 3C 011 1100 00000000

TIME_WINDOW rw 3D 011 1101 00000000

Default Comment

Registers marked as Reserved must not be changed. The writing to those registers may cause permanent damages to the device.

The content of the registers that are loaded at boot should not be changed. They contain the factory calibration values. Their content is automatically restored when the device is powered-up.

Doc ID 17530 Rev 1 27/42

Registers description LIS3DH

8 Registers description

8.1 STATUS_AUX (07h)

Table 18. STATUS_REG_AUX register

321OR 3OR 2OR 1OR 321DA 3DA 2DA 1DA

Table 19. STATUS_REG_AUX description

321OR

3OR

2OR

1OR

321DA 1, 2 and 3 axis new data available. Default value: 0

3DA 3 axis new data available. Default value: 0

2DA 2 axis new data available. Default value: 0

1DA 1 axis new data available. Default value: 0

1, 2 and 3 axis data overrun. Default value: 0

(0: no overrun has occurred; 1: a new set of data has overwritten the previous ones)

3 axis data overrun. Default value: 0 (0: no overrun has occurred;

1: a new data for the 3-axis has overwritten the previous one)

2 axis data overrun. Default value: 0 (0: no overrun has occurred;

1: a new data for the 4-axis has overwritten the previous one)

1 axis data overrun. Default value: 0 (0: no overrun has occurred;

1: a new data for the 1-axis has overwritten the previous one)

(0: a new set of data is not yet available; 1: a new set of data is available)

(0: a new data for the 3-axis is not yet available;

1: a new data for the 3-axis is available)

(0: a new data for the 2-axis is not yet available; 1: a new data for the 2-axis is available)

(0: a new data for the 1-axis is not yet available; 1: a new data for the 1-axis is available)

8.2 OUT_1_L (08h), OUT_1_H (09h)

1-axis acceleration data. The value is expressed in two’s complement.

8.3 OUT_2_L (0Ah), OUT_2_H (0Bh)

2-axis acceleration data. The value is expressed in two’s complement.

8.4 OUT_3_L (0Ch), OUT_3_H (0Dh)

3-axis acceleration data. The value is expressed in two’s complement.

28/42 Doc ID 17530 Rev 1

LIS3DH Registers description

8.5 INT_COUNTER (0Eh)

Table 20. INT_COUNTER register

IC7IC6IC5IC4IC3IC2IC1IC0

8.6 WHO_AM_I (0Fh)

Table 21. WHO_AM_I register

00110011

Device identification register.

8.7 TEMP_CFG_REG (1Fh)

Table 22. TEMP_CFG_REG register

ADC_PDTEMP_EN000000

Table 23. TEMP_CFG_REG description

ADC_PD

TEMP_EN

ADC enable. Default value: 0 (0: ADC disabled; 1: ADC enabled)

Temperature sensor (T) enable. Default value: 0 (0: T disabled; 1: T enabled)

8.8 CTRL_REG1 (20h)

Table 24. CTRL_REG1 register

ODR3 ODR2 ODR1 ODR0 LPen Zen Yen Xen

Table 25. CTRL_REG1 description

ODR3-0

LPen

Zen

Ye n

Xen

Data rate selection. Default value: 00 (0000:50 Hz; Others: Refer to Ta bl e 2 5 , “Data rate configuration”)

Low power mode enable. Default value: 0 (0: normal mode, 1: low power mode)

Z axis enable. Default value: 1 (0: Z axis disabled; 1: Z axis enabled)

Y axis enable. Default value: 1 (0: Y axis disabled; 1: Y axis enabled)

X axis enable. Default value: 1 (0: X axis disabled; 1: X axis enabled)

Doc ID 17530 Rev 1 29/42

Registers description LIS3DH

ODR<3:0> is used to set power mode and ODR selection. In the following table are reported

all frequency resulting in combination of ODR<3:0>

Table 26. Data rate configuration

ODR3 ODR2 ODR1 ODR0 Power mode selection

0 0 0 0 Power down mode

0 0 0 1 Normal / low power mode (1 Hz)

0 0 1 0 Normal / low power mode (10 Hz)

0 0 1 1 Normal / low power mode (25 Hz)

0 1 0 0 Normal / low power mode (50 Hz)

0 1 0 1 Normal / low power mode (100 Hz)

0 1 1 0 Normal / low power mode (200 Hz)

0 1 1 1 Normal / low power mode (400 Hz)

1 0 0 0 Low power mode (1.6 KHz)

1 0 0 1 Normal (1.25 kHz) / low power mode (5 KHz)

8.9 CTRL_REG2 (21h)

Table 27. CTRL_REG2 register

HPM1 HPM0 HPCF2 HPCF1 FDS HPCLICK HPIS2 HPIS1

Table 28. CTRL_REG2 description

HPM1 -HPM0 High pass filter mode selection. Default value: 00

Refer to Table 29, "High pass filter mode configuration"

HPCF2 HPCF1

FDS

HPCLICK

HPIS2 High pass filter enabled for AOI function on interrupt 2,

HPIS1 High pass filter enabled for AOI function on interrupt 1,

High pass filter cut off frequency selection

Filtered data selection. Default value: 0 (0: internal filter bypassed; 1: data from internal filter sent to output register and FIFO)

High pass filter enabled for CLICK function. (0: filter bypassed; 1: filter enabled)

(0: filter bypassed; 1: filter enabled)

30/42 Doc ID 17530 Rev 1

LIS3DH Registers description

Table 29. High pass filter mode configuration

HPM1 HPM0 High pass filter mode

0 0 Normal mode (reset reading HP_RESET_FILTER)

0 1 Reference signal for filtering

1 0 Normal mode

1 1 Autoreset on interrupt event

8.10 CTRL_REG3 (22h)

Table 30. CTRL_REG3 register

I1_CLICK I1_AOI1 I1_AOI2 I1_DRDY1 I1_DRDY2 I1_WTM I1_OVERRUN --

Table 31. CTRL_REG3 description

I1_CLICK CLICK interrupt on INT1. Default value 0.

(0: Disable; 1: Enable)

I1_AOI1 AOI1 interrupt on INT1. Default value 0.

(0: Disable; 1: Enable)

I1_AOI2 AOI2 interrupt on INT1. Default value 0.

(0: Disable; 1: Enable)

I1_DRDY1 DRDY1 interrupt on INT1. Default value 0.

(0: Disable; 1: Enable)

I1_DRDY2 DRDY2 interrupt on INT1. Default value 0.

(0: Disable; 1: Enable)

I1_WTM FIFO Watermark interrupt on INT1. Default value 0.

(0: Disable; 1: Enable)

I1_OVERRUN FIFO Overrun interrupt on INT1. Default value 0.

(0: Disable; 1: Enable)

8.11 CTRL_REG4 (23h)

Table 32. CTRL_REG4 register

BDU BLE FS1 FS0 HR ST1 ST0 SIM

Table 33. CTRL_REG4 description

BDU Block data update. Default value: 0

(0: continuos update; 1: output registers not updated until MSB and LSB reading)

BLE Big/little endian data selection. Default value 0.

(0: Data LSB @ lower address; 1: Data MSB @ lower address)

FS1-FS0 Full scale selection. default value: 00

(00: +/- 2G; 01: +/- 4G; 10: +/- 8G; 11: +/- 16G)

Doc ID 17530 Rev 1 31/42

Registers description LIS3DH

Table 33. CTRL_REG4 description (continued)

HR High resolution output mode: Default value: 0

(0: High resolution disable; 1: High resolution Enable)

ST1-ST0 Self test enable. Default value: 00

(00: Self test disabled; Other: See Ta bl e 3 4 )

SIM SPI serial interface mode selection. Default value: 0

(0: 4-wire interface; 1: 3-wire interface).

Table 34. Self test mode configuration

ST1 ST0 Self test mode

0 0 Normal mode

01Self test 0

10Self test 1

11--

8.12 CTRL_REG5 (24h)

Table 35. CTRL_REG5 register

BOOT FIFO_EN -- -- LIR_INT1 D4D_INT1 0 0

Table 36. CTRL_REG5 description

BOOT Reboot memory content. Default value: 0

(0: normal mode; 1: reboot memory content)

FIFO_EN FIFO enable. Default value: 0

(0: FIFO disable; 1: FIFO Enable)

LIR_INT1 Latch interrupt request on INT1_SRC register, with INT1_SRC register

cleared by reading INT1_SRC itself. Default value: 0. (0: interrupt request not latched; 1: interrupt request latched)

D4D_INT1 4D enable: 4D detection is enabled on INT1 when 6D bit on INT1_CFG is set

to 1.

8.13 CTRL_REG6 (25h)

Table 37. CTRL_REG6 register

I2_CLICKen I2_INT1 0 BOOT_I1 0 - - H_LACTIVE -

8.14 REFERENCE/DATACAPTURE (26h)

Table 38. REFERENCE register

Ref7 Ref6 Ref5 Ref4 Ref3 Ref2 Ref1 Ref0

32/42 Doc ID 17530 Rev 1

LIS3DH Registers description

Table 39. REFERENCE register description

Ref 7-Ref0 Reference value for Interrupt generation. Default value: 0

8.15 STATUS_REG (27h)

Table 40. STATUS register

ZYXOR ZOR YOR XOR ZYXDA ZDA YDA XDA

Table 41. STATUS register description

ZYXOR X, Y and Z axis data overrun. Default value: 0

(0: no overrun has occurred; 1: a new set of data has overwritten the previous ones)

ZOR Z axis data overrun. Default value: 0

(0: no overrun has occurred; 1: a new data for the Z-axis has overwritten the previous one)

YOR Y axis data overrun. Default value: 0

(0: no overrun has occurred; 1: a new data for the Y-axis has overwritten the previous one)

XOR X axis data overrun. Default value: 0

(0: no overrun has occurred; 1: a new data for the X-axis has overwritten the previous one)

ZYXDA X, Y and Z axis new data available. Default value: 0

(0: a new set of data is not yet available; 1: a new set of data is available)

ZDA Z axis new data available. Default value: 0

(0: a new data for the Z-axis is not yet available; 1: a new data for the Z-axis is available)

YDA Y axis new data available. Default value: 0

(0: a new data for the Y-axis is not yet available; 1: a new data for the Y-axis is available)

8.16 OUT_X_L (28h), OUT_X_H (29h)

X-axis acceleration data. The value is expressed in two’s complement.

8.17 OUT_Y_L (2Ah), OUT_Y_H (2Bh)

Y-axis acceleration data. The value is expressed in two’s complement.

8.18 OUT_Z_L (2Ch), OUT_Z_H (2Dh)

Z-axis acceleration data. The value is expressed in two’s complement.

Doc ID 17530 Rev 1 33/42

Registers description LIS3DH

8.19 FIFO_CTRL_REG (2Eh)

Table 42. REFERENCE register

FM1 FM0 TR FTH4 FTH3 FTH2 FTH1 FTH0

Table 43. REFERENCE register description

FM1-FM0

TR Trigger selection. Default value: 0

FTH4:0 Default value: 0

Table 44. FIFO mode configuration

0 0 Bypass mode

0 1 FIFO mode

1 0 Stream mode

1 1 Trigger mode

FIFO mode selection. Default value: 00 (see

0: Trigger event liked to trigger signal on INT1 1: Trigger event liked to trigger signal on INT2

FM1 FM0 Self test mode

Ta bl e 4 4 )

8.20 FIFO_SRC_REG (2Fh)

Table 45. FIFO_SRC register

WTM OVRN_FIFO EMPTY FSS4 FSS3 FSS2 FSS1 FSS0

8.21 INT1_CFG (30h)

Table 46. INT1_CFG register

AOI 6D ZHIE/

ZUPE

Table 47. INT1_CFG description

AOI And/Or combination of Interrupt events. Default value: 0. Refer to Table 48, "Inter-

rupt mode"

6D 6 direction detection function enabled. Default value: 0. Refer to Table 48, "Interrupt

mode"

ZHIE/ ZUPE

Enable interrupt generation on Z high event or on Direction recognition. Default value: 0 (0: disable interrupt request;1: enable interrupt request)

ZLIE/

ZDOWNE

YHIE/

YUPE

YLIE/

YDOWNE

XHIE/

XUPE

XLIE/

XDOWNE

34/42 Doc ID 17530 Rev 1

LIS3DH Registers description

Table 47. INT1_CFG description

ZLIE/ ZDOWNE

YHIE/ YUPE

Enable interrupt generation on Z low event or on Direction recognition. Default value: 0 (0: disable interrupt request;1: enable interrupt request)

Enable interrupt generation on Y high event or on Direction recognition. Default value: 0 (0: disable interrupt request; 1: enable interrupt request.)

YLIE/ YDOWNE

XHIE/ XUPE

XLIE/XDOWNE Enable interrupt generation on X low event or on Direction recognition. Default

Enable interrupt generation on Y low event or on Direction recognition. Default value: 0 (0: disable interrupt request; 1: enable interrupt request.)

Enable interrupt generation on X high event or on Direction recognition. Default value: 0 (0: disable interrupt request; 1: enable interrupt request.)

value: 0 (0: disable interrupt request; 1: enable interrupt request.)

Content of this register is loaded at boot.

Write operation at this address is possible only after system boot.

Table 48. Interrupt mode

AOI 6D Interrupt mode

0 0 OR combination of interrupt events

0 1 6 direction movement recognition

1 0 AND combination of interrupt events

1 1 6 direction position recognition

Difference between AOI-6D = ‘01’ and AOI-6D = ‘11’.

AOI-6D = ‘01’ is movement recognition. An interrupt is generate when orientation move from unknown zone to known zone. The interrupt signal stay for a duration ODR.

AOI-6D = ‘11’ is direction recognition. An interrupt is generate when orientation is inside a known zone. The interrupt signal stay until orientation is inside the zone.

8.22 INT1_SRC (31h)

Table 49. INT1_SRC register

0 IA ZHZLYHYLXHXL

Table 50. INT1_SRC description

Interrupt active. Default value: 0

(0: no interrupt has been generated; 1: one or more interrupts have been generated)

Z high. Default value: 0

(0: no interrupt, 1: Z High event has occurred)

Z low. Default value: 0

(0: no interrupt; 1: Z Low event has occurred)

Y high. Default value: 0

(0: no interrupt, 1: Y High event has occurred)

Doc ID 17530 Rev 1 35/42

Registers description LIS3DH

Table 50. INT1_SRC description

Y low. Default value: 0

(0: no interrupt, 1: Y Low event has occurred)

X high. Default value: 0

(0: no interrupt, 1: X High event has occurred)

X low. Default value: 0

(0: no interrupt, 1: X Low event has occurred)

Interrupt 1 source register. Read only register.

Reading at this address clears INT1_SRC IA bit (and the interrupt signal on INT 1 pin) and allows the refreshment of data in the INT1_SRC register if the latched option was chosen.

8.23 INT1_THS (32h)

Table 51. INT1_THS register

0 THS6 THS5 THS4 THS3 THS2 THS1 THS0

Table 52. INT1_THS description

THS6 - THS0 Interrupt 1 threshold. Default value: 000 0000

8.24 INT1_DURATION (33h)

Table 53. INT1_DURATION register

0 D6D5D4D3D2D1D0

Table 54. INT1_DURATION description

D6 - D0 Duration value. Default value: 000 0000

D6 - D0 bits set the minimum duration of the Interrupt 1 event to be recognized. Duration steps and maximum values depend on the ODR chosen.

8.25 CLICK_CFG (38h)

Table 55. CLICK_CFG register

-- -- ZD ZS YD YS XD XS

36/42 Doc ID 17530 Rev 1
