ST L6563H User Manual

L6563H

High voltage start-up transition-mode PFC

Features

■On-board 700 V start-up source

■Tracking boost function

■Fast “bidirectional” input voltage feedforward (1/V2 correction)

■Interface for cascaded converter's PWM controller

■Remote ON/OFF control

■Accurate adjustable output overvoltage protection

■Protection against feedback loop disconnection (latched shutdown)

■Inductor saturation protection

■Low (≤ 100 µA) start-up current

■6 mA max. operating bias current

■1% (@ TJ = 25 °C) internal reference voltage

■-600/+800 mA totem pole gate driver with active pull-down during UVLO

Figure 1. Block diagram

SO16

SO-16

Applications

■PFC pre-regulators for:

–Hi-end AC-DC adapter/charger

–IEC61000-3-2 or JEITA-MITI compliant SMPS, in excess of 400 W

■SMPS for LED luminaires

				3:0B6723		=&'				+96						9FF
581			21 2)) &RQWURO										,FKDUJH
						=HUR &XUUHQW
	9
						'HWHFWRU			9ROWDJH
	9										92/7$*(
	9			'LVDEOH				UHIHUHQFHV					89/2
	9					9				5(*8/$725
3)&B2.						9
								,QWHUQDO 6XSSO\ %XV
	9												89/2
				293	/B293
	9																*'
										6	4
						75$&.,1*
	9
						%2267				5
										67$57(5
						&855(17						6WDUWHU
						0,5525						2))
7%2													',6$%/(
							IURP
						%8))(5
						9	9))
&203											'LVDEOH			4	6	/B293
,19								4	/(%			293
										21 2)) &RQWURO					5	89/2
													9ELDV
	9			(UURU$PSOLILHU
08/7												/B293					3:0B
																	/$7&+
						9	08/7,3/,(5										&6
*1'	,GHDO UHFWLILHU													'LVDEOH
												9
										0$,16 '523
										'(7(&725
						9))

!-V

December 2010

Doc ID 16047 Rev 3

1/49

www.st.com

Contents	L6563H

Contents

1	Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .		. 6
2	Maximum ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .		7
	2.1	Absolute maximum ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	7
	2.2	Thermal data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	7
3	Pin connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .		8
4	Electrical characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .		11
5	Typical electrical performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .		15
6	Application information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .		24
	6.1	Overvoltage protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	24
	6.2	Feedback failure protection (FFP) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	25
	6.3	Voltage feedforward . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	25

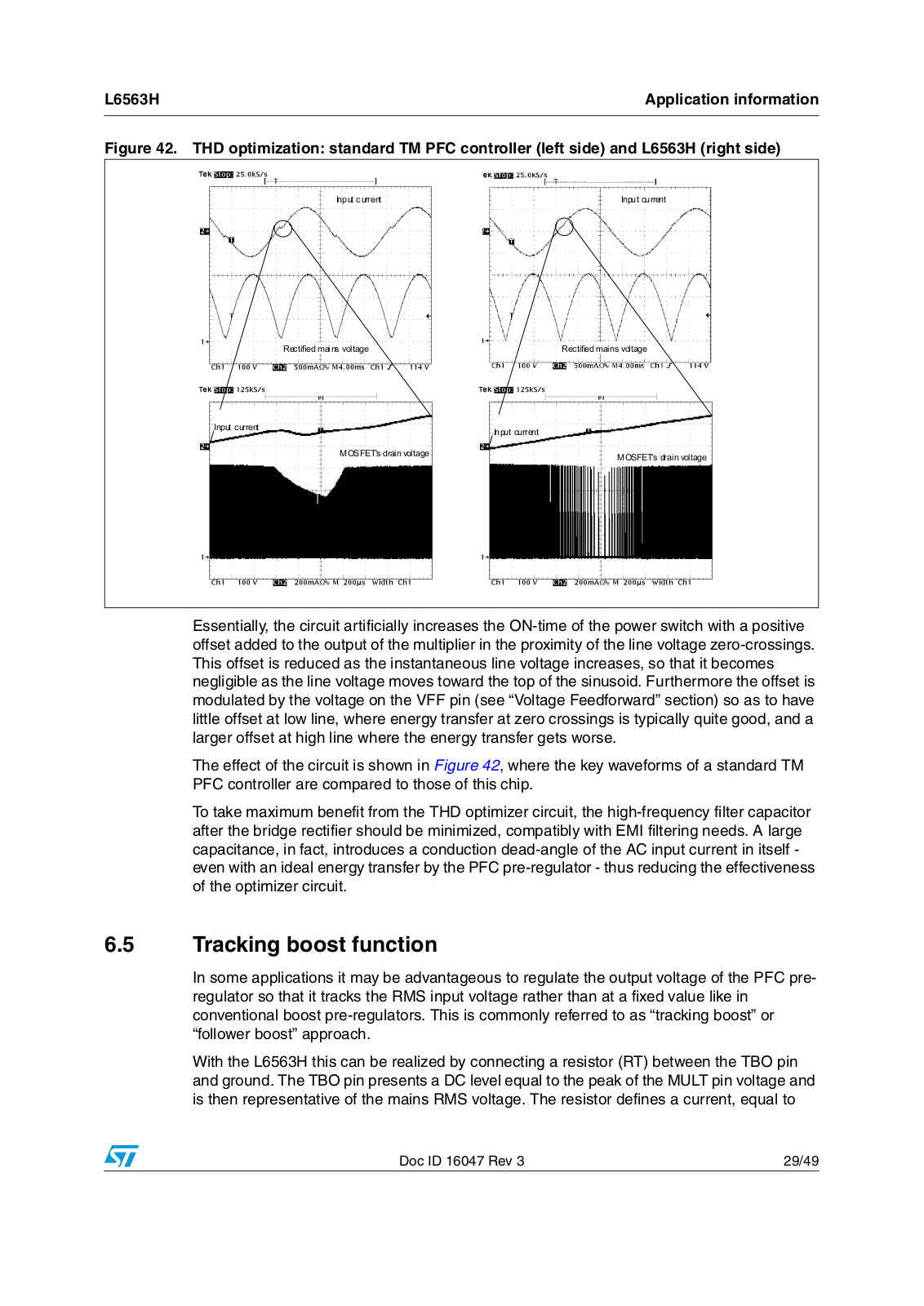

	6.4	THD optimizer circuit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	28
	6.5	Tracking boost function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	29
	6.6	Inductor saturation detection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	31
	6.7	Power management/housekeeping functions . . . . . . . . . . . . . . . . . . . . . .	32
	6.8	High-voltage start-up generator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	35
7	Application examples and ideas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .		39
8	Package mechanical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .		45
9	Ordering codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .		47
10	Revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .		48

2/49	Doc ID 16047 Rev 3

L6563H	List of table

List of table

Table 1. Absolute maximum ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Table 2. Thermal data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Table 3. Pin description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Table 4. Electrical characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Table 5. Summary of L6563H idle states . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38 Table 6. SO16 mechanical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45 Table 7. Ordering information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47 Table 8. Document revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Doc ID 16047 Rev 3

3/49

List of figure	L6563H

List of figure

Figure 1. Block diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Figure 2. Pin connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Figure 3. Typical system block diagram. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Figure 4. IC consumption vs VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Figure 5. IC consumption vs TJ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Figure 6. Vcc Zener voltage vs TJ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Figure 7. Start-up and UVLO vs TJ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Figure 8. Feedback reference vs TJ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Figure 9. E/A output clamp levels vs TJ. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Figure 10. UVLO saturation vs TJ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Figure 11. OVP levels vs TJ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Figure 12. Inductor saturation threshold vs TJ. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Figure 13. Vcs clamp vs TJ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Figure 14. ZCD sink/source capability vs TJ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Figure 15. ZCD clamp level vs TJ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Figure 16. TBO clamp vs TJ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Figure 17. VVFF - VTBO dropout vs TJ. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Figure 18. IINV - ITBO current mismatch vs TJ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Figure 19. IINV - ITBO mismatch vs ITBO current. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Figure 20. R discharge vs TJ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Figure 21. Line drop detection threshold vs TJ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Figure 22. VMULTpk - VVFF dropout vs TJ. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Figure 23. PFC_OK threshold vs TJ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Figure 24. PFC_OK FFD threshold vs TJ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Figure 25. PWM_LATCH high saturation vs TJ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Figure 26. RUN threshold vs TJ. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Figure 27. PWM_STOP low saturation vs TJ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Figure 28. Multiplier characteristics @ VFF = 1 V . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Figure 29. Multiplier characteristics @ VFF = 3 V . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Figure 30. Multiplier gain vs TJ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Figure 31. Gate drive clamp vs TJ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Figure 32. Gate drive output saturation vs TJ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 Figure 33. Delay to output vs TJ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 Figure 34. Start-up timer period vs TJ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 Figure 35. HV start voltage vs TJ. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 Figure 36. VCC restart voltage vs TJ. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 Figure 37. HV breakdown voltage vs TJ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 Figure 38. Output voltage setting, OVP and FFP functions: internal block diagram . . . . . . . . . . . . . . 24 Figure 39. Voltage feedforward: squarer-divider (1/V2) block diagram and transfer characteristic . . 26 Figure 40. RFF·CFF as a function of 3rd harmonic distortion introduced in the input current . . . . . . . 27 Figure 41. THD optimizer circuit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 Figure 42. THD optimization: standard TM PFC controller (left side) and L6563H (right side) . . . . . . 29 Figure 43. Tracking boost block. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 Figure 44. Tracking output voltage vs Input voltage characteristic with TBO . . . . . . . . . . . . . . . . . . . 31 Figure 45. Effect of boost inductor saturation on the MOSFET current and detection method . . . . . . 32 Figure 46. Interface circuits that let dc-dc converter's controller IC drive L6563H in burst mode . . . . 33 Figure 47. Interface circuits that let the L6563H switch on or off a PWM controller. . . . . . . . . . . . . . . 33 Figure 48. Interface circuits for power up sequencing when dc-dc has the SS function . . . . . . . . . . . 34

4/49	Doc ID 16047 Rev 3

L6563H	List of figure
Figure 49.	Interface circuits for actual power-up sequencing (master PFC) . . . . . . . . . . . . . . . . . . . .	34
Figure 50.	Brownout protection (master PFC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	35
Figure 51.	High-voltage start-up generator: internal schematic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	35

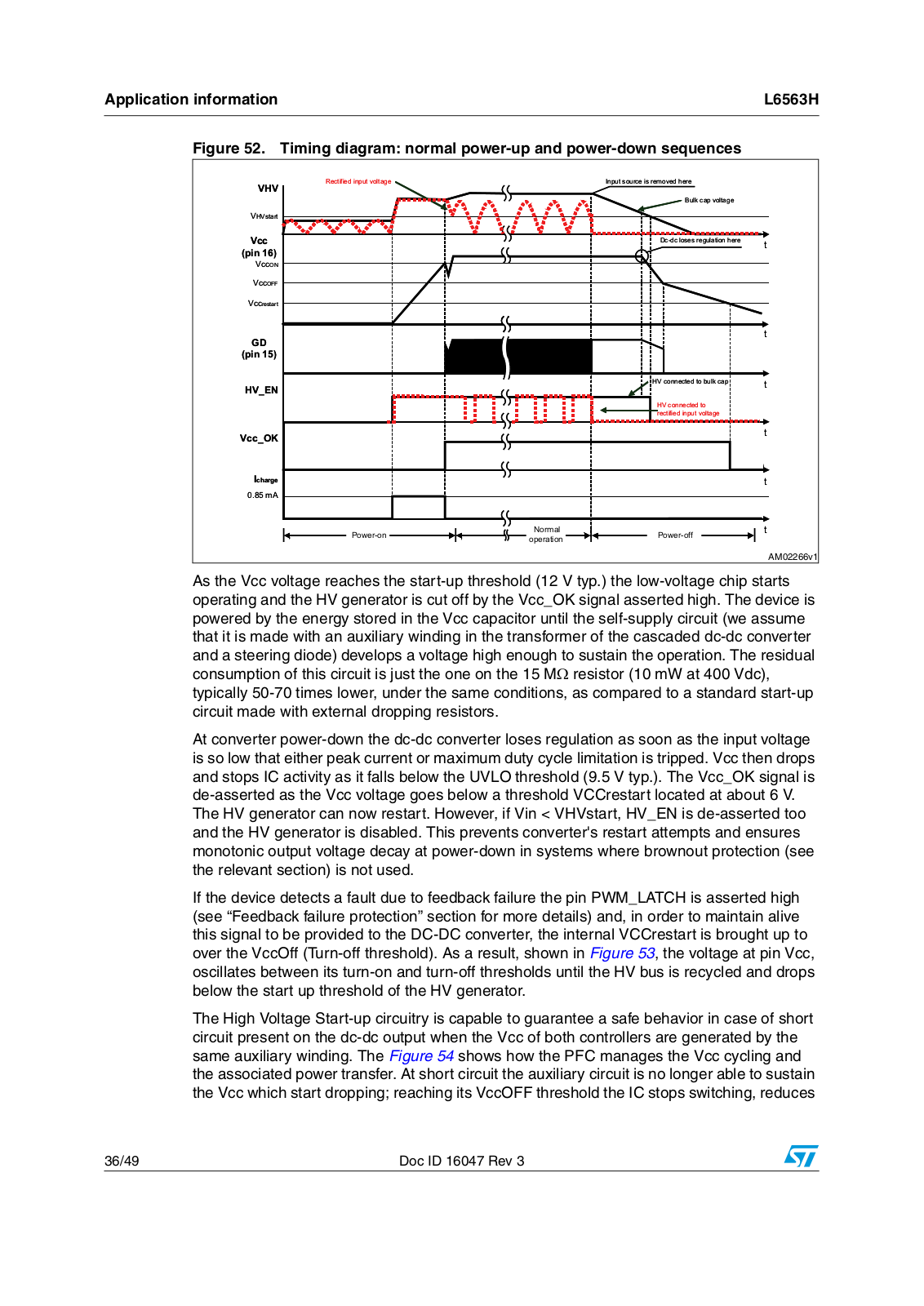

Figure 52.	Timing diagram: normal power-up and power-down sequences . . . . . . . . . . . . . . . . . . . .	36
Figure 53.	High-voltage start-up behaviour during latch-off protection . . . . . . . . . . . . . . . . . . . . . . . .	37
Figure 54.	High-voltage start-up managing the dc-dc output short-circuit . . . . . . . . . . . . . . . . . . . . . .	37
Figure 55.	Demonstration board EVL6563H-100W, wide-range mains: electrical schematic . . . . . . .	39

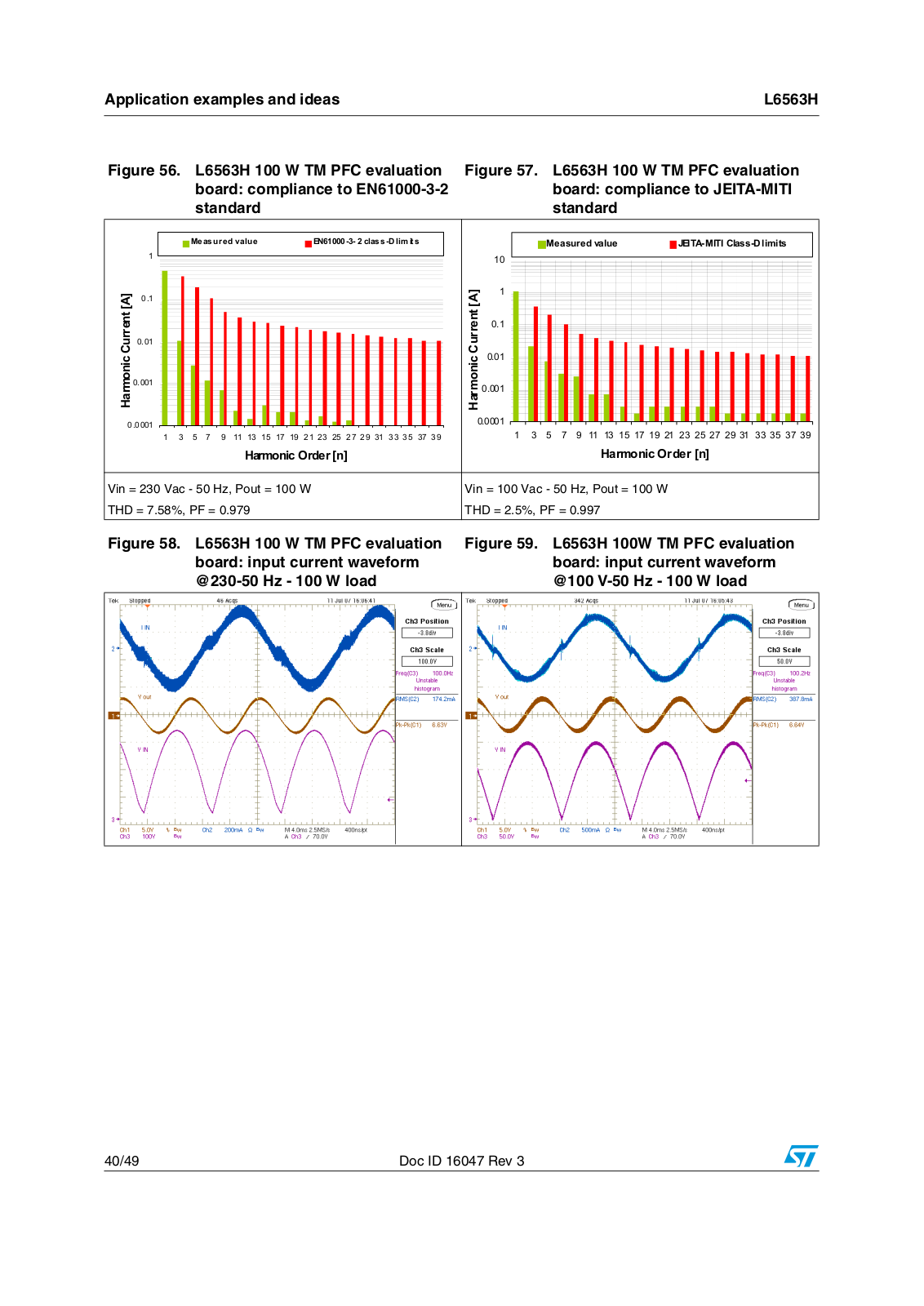

Figure 56.	L6563H 100 W TM PFC evaluation board: compliance to EN61000-3-2 standard . . . . . .	40
Figure 57.	L6563H 100 W TM PFC evaluation board: compliance to JEITA-MITI standard . . . . . . . .	40
Figure 58. L6563H 100 W TM PFC evaluation board: input current waveform @230-50 Hz - 100 W load
	. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	40
Figure 59. L6563H 100W TM PFC evaluation board: input current waveform @100 V-50 Hz - 100 W .
load	. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	40
Figure 60.	EVL90WADP-LLCSR 90W adapter with SRK2000 demonstration board: electrical schematic
	. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	41
Figure 61. EV150WAIO-LLCSR 150W-12V Adapter with L6563H, L6599A, SRK2000: electrical sche-
matic	. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	42
Figure 62.	EVL6563H -250W TM PFC demonstration board : electrical schematic . . . . . . . . . . . . . .	43
Figure 63.	EVL6599A-90WADP 90W Adapter demonstration board: electrical schematic . . . . . . . . .	44
Figure 64.	SO16 mechanical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	46

Doc ID 16047 Rev 3

5/49

Description	L6563H

1 Description

The L6563H is a current-mode PFC controller operating in transition mode (TM) which embeds the same features existing in the L6563S with the addition of a high voltage start-up source. These functions make the IC especially suitable for applications that have to be compliant with energy saving regulations and where the PFC pre-regulator works as the master stage.

The highly linear multiplier, along with a special correction circuit that reduces crossover distortion of the mains current, allows wide-range-mains operation with an extremely low THD even over a large load range.

The output voltage is controlled by means of a voltage-mode error amplifier and an accurate (1% @Tj = 25 °C) internal voltage reference. Loop's stability is optimized by the voltage feedforward function (1/V2 correction), which in this IC uses a proprietary technique that considerably improves line transient response as well in case of mains both drops and surges (“bidirectional”).

Additionally, the IC provides the option for tracking boost operation, i.e. the output voltage is changed tracking the mains voltage.

The device includes disable functions suitable for remote ON/OFF control too.

In addition to an over voltage protection able to keep the output voltage under control during transient conditions, the IC is provided also with a protection against feedback loop failures or erroneous settings. Other on-board protection functions allow that brownout conditions and boost inductor saturation can be safely handled.

An interface with the PWM controller of the DC-DC converter supplied by the PFC preregulator is provided: the purpose is to stop the operation of the converter in case of anomalous conditions for the PFC stage (feedback loop failure, boost inductor's core saturation, etc.) and to handle the PFC stage in case of light load for the DC-DC converter, to make it easier to comply with energy saving regulations (Blue Angel, EnergyStar, Energy2000, etc.).

The totem-pole output stage, capable of 600 mA source and 800 mA sink current, is suitable for big MOSFET or IGBT drive. This, combined with the other features and the possibility to operate with ST's proprietary fixed-off-time control, makes the device an excellent solution for SMPS up to 400 W that need to be compliant with EN61000-3-2 and JEITA-MITI standards.

6/49	Doc ID 16047 Rev 3

L6563H	Maximum ratings

2 Maximum ratings

2.1Absolute maximum ratings

	Table 1.	Absolute maximum ratings
	Symbol	Pin	Parameter	Value	Unit
	VHVS	9	Voltage range (referred to ground)	-0.3 to 700	V
	IHVS	9	Output current	Self-limited	IHVS
	Vcc	16	IC supply voltage (Icc = 20 mA)	self-limited	V
	---	1, 3, 7	Max. pin voltage (Ipin =1 mA)	Self-limited	V
	---	2, 4 to 6, 8, 11, 12	Analog inputs and outputs	-0.3 to 8	V
	IPWM_STOP	11	Max. sink current	3	mA
	IZCD	13	Zero current detector max. current	-10 (source)	mA
				10 (sink)

2.2Thermal data

Table 2.	Thermal data
Symbol	Parameter	Value	Unit
RthJA	Max. thermal resistance, junction-to-ambient	120	°C/W
Ptot	Power dissipation @TA = 50 °C	0.75	W
TJ	Junction temperature operating range	-40 to 150	°C
Tstg	Storage temperature	-55 to 150	°C

Doc ID 16047 Rev 3

7/49

Pin connection	L6563H

3 Pin connection

Figure 2. Pin connection

).6					6CC
#/-0
					'$
-5,4
					'.$
#3
					:#$
6&&
					25.
4"/
					07-?34/0
0?/+
					. #
07-?,!4#(
					(63
					!-V

	Table 3.		Pin description
	n°	Name		Function
				Inverting input of the error amplifier. The information on the output voltage of the PFC pre-
				regulator is fed into the pin through a resistor divider.
	1		INV	The pin normally features high impedance but, if the tracking boost function is used, an internal
				current generator programmed by TBO (pin 6) is activated. It sinks current from the pin to
				change the output voltage so that it tracks the mains voltage.
				Output of the error amplifier. A compensation network is placed between this pin and INV (pin
	2	COMP		1) to achieve stability of the voltage control loop and ensure high power factor and low THD.
				To avoid uncontrolled rise of the output voltage at zero load, when the voltage on the pin falls
				below 2.4 V the gate driver output is inhibited (burst-mode operation).
				Mains input to the multiplier. This pin is connected to the rectified mains voltage via a resistor
	3	MULT		divider and provides the sinusoidal reference to the current loop. The voltage on this pin is used
				also to derive the information on the RMS mains voltage.
				Input to the PWM comparator. The current flowing in the MOSFET is sensed through a resistor,
				the resulting voltage is applied to this pin and compared with an internal reference to determine
	4		CS	MOSFET’s turn-off.
				A second comparison level at 1.7 V detects abnormal currents (e.g. due to boost inductor
				saturation) and, on this occurrence, activates a safety procedure that temporarily stops the
				converter and limits the stress of the power components.
				Second input to the multiplier for 1/V2 function. A capacitor and a parallel resistor must be
				connected from the pin to GND. They complete the internal peak-holding circuit that derives the
	5		VFF	information on the RMS mains voltage. The voltage at this pin, a dc level equal to the peak
				voltage on pin MULT (3), compensates the control loop gain dependence on the mains voltage.
				Never connect the pin directly to GND but with a resistor ranging from 100 kΩ (minimum) to 2 M
				Ω (maximum).
				Tracking boost function. This pin provides a buffered VFF voltage. A resistor connected
	6		TBO	between this pin and GND defines a current that is sunk from pin INV (1). In this way, the output
				voltage is changed proportionally to the mains voltage (tracking boost). If this function is not
				used leave this pin open.

8/49	Doc ID 16047 Rev 3

L6563H			Pin connection
Table 3.		Pin description (continued)
n°	Name		Function
			PFC pre-regulator output voltage monitoring/disable function. This pin senses the output
			voltage of the PFC pre-regulator through a resistor divider and is used for protection purposes.
			If the voltage on the pin exceeds 2.5 V the IC stops switching and restarts as the voltage on the
			pin falls below 2.4 V. However, if at the same time the voltage of the INV pin falls below 1.66V, a
7	PFC_OK		feedback failure is assumed. In this case the device is latched off and the PWM_LATCH (8) pin
			is asserted high. Normal operation can be resumed only by cycling Vcc bringing its value lower
			than 6V before to move up to Turn on threshold.
			If the voltage on this pin is brought below 0.23 V the IC is shut down. To restart the IC the
			voltage on the pin must go above 0.27 V. This can be used as a remote on/off control input.
			Output pin for fault signaling. During normal operation this pin features high impedance. If a
8	PWM_LATCH		feedback failure is detected (PFC_OK > 2.5 V & INV < 1.66V) the pin is asserted high.
			Normally, this pin is used to stop the operation of the dc-dc converter supplied by the PFC pre-
			regulator by invoking a latched disable of its PWM controller. If not used, the pin is left floating.
			High-voltage start-up. The pin, able to withstand 700 V, is to be tied directly to the rectified
			mains voltage. A 1 mA internal current source charges the capacitor connected between pin
			Vcc (16) and pin GND (14) until the voltage on the pin Vcc reaches the start-up threshold, then
9		HVS	it is shut down. Normally, the generator is re-enabled when the Vcc voltage falls below 6 V to
			ensure a low power throughput during short circuit. Otherwise, when a latched protection is
			tripped the generator is re-enabled as Vcc reaches the UVLO threshold to keep the latch
			supplied.
10		N.C.	Not internally connected. Provision for clearance on the PCB to meet safety requirements.
			Output pin for fault signaling. During normal operation this pin features high impedance. If the
			IC is disabled by a voltage below 0.8 V on pin RUN (12) the voltage on the pin is pulled to
11	PWM_STOP		ground. Normally, this pin is used to temporarily stop the operation of the dc-dc converter
			supplied by the PFC pre-regulator by disabling its PWM controller. A typical usage of this
			function is brownout protection in systems where the PFC pre-regulator is the master stage. If
			not used, the pin is left floating.
			Remote ON/OFF control. A voltage below 0.8 V shuts down (not latched) the IC and brings its
12		RUN	consumption to a considerably lower level. PWM_STOP is asserted low. The IC restarts as the
			voltage at the pin goes above 0.88V. Connect this pin to pin VFF (5) either directly or through a
			resistor divider to use this function as brownout (AC mains undervoltage) protection.
13		ZCD	Boost inductor’s demagnetization sensing input for transition-mode operation. A negative-going
			edge triggers MOSFET’s turn-on.
14		GND	Ground. Current return for both the signal part of the IC and the gate driver.
			Gate driver output. The totem pole output stage is able to drive power MOSFET’s and IGBT’s
15		GD	with a peak current of 600 mA source and 800 mA sink. The high-level voltage of this pin is
			clamped at about 12 V to avoid excessive gate voltages.
			Supply voltage of both the signal part of the IC and the gate driver. Sometimes a small bypass
16		Vcc	capacitor (0.1 µF typ.) to GND might be useful to get a clean bias voltage for the signal part of
			the IC.

Doc ID 16047 Rev 3

9/49

Pin connection	L6563H
Figure 3. Typical system block diagram
0&02% 2%'5,!4/2	$# $# #/.6%24%2
6INAC	6OUTDC

07IS TURNEDDOFF IN CASE OF 0gS ANOMALOUS OPERATION FOR SAFETY

07OR , ( 2ESONANT

#/.42/,,%2

0 CAN BE TURNED OFF ATTLIGHT

LOAD TO EASE COMPLIANCECWITH

ENERGY SAVING REGULATIONS

!-V

10/49

Doc ID 16047 Rev 3

L6563H	Electrical characteristics

4 Electrical characteristics

TJ = -25 to 125 °C, VCC = 12 V, CO = 1 nF between pin GD and GND, CFF = 1 µF and RFF = 1 MΩ between pin VFF and GND; unless otherwise specified

	Table 4.	Electrical characteristics
	Symbol	Parameter	Test condition	Min.	Typ.	Max.	Unit
	Supply voltage
	Vcc	Operating range	After turn-on	10.3		22.5	V
	VccOn	Turn-on threshold	(1)	11	12	13	V
	VccOff	Turn-off threshold	(1)	8.7	9.5	10.3	V
	Vccrestart	Vcc for resuming from latch	OVP latched	5	6	7	V
	Hys	Hysteresis		2.3		2.7	V
	VZ	Zener voltage	Icc = 20 mA	22.5	25	28	V
	Supply current
	Istart-up	Start-up current	Before turn-on, Vcc = 10 V		90	150	µA
	Iq	Quiescent current	After turn-on, VMULT = 1 V		4	5	mA
	ICC	Operating supply current	@ 70 kHz		5	6.0	mA
			VPFC_OK > VPFC_OK_S AND		180	280	µA
	Iqdis	Idle state quiescent current	VINV < VPFC_OK – VFFD
			VPFC_OK < VPFC_OK_D OR		1.5	2.2	mA
			VRUN < VDIS
	Iq	Quiescent current	VPFC_OK > VPFC_OK_S OR		2.2	3	mA
			VCOMP < 2.3 V
	High-voltage start-up generator
	VHV	Breakdown voltage	IHV < 100 µA	700			V
	VHVstart	Start voltage	IVcc < 100 µA	65	80	100	V
	Icharge	Vcc charge current	VHV > VHvstart, Vcc > 3 V	0.55	0.85	1	mA
	IHV, ON	ON-state current	VHV > VHvstart, Vcc > 3 V			1.6	mA
			VHV > VHvstart, Vcc = 0			0.8
	IHV, OFF	OFF-state leakage current	VHV = 400 V			40	µA
	VCCrestart	Vcc restart voltage	Vcc falling	5	6	7	V
			IC latched off (1)	8.7	9.5	10.3
	Multiplier input
	IMULT	Input bias current	VMULT = 0 to 3 V		-0.2	-1	µA
	VMULT	Linear operation range		0 to 3			V
	VCLAMP	Internal clamp level	IMULT = 1 mA	9	9.5		V

Doc ID 16047 Rev 3

11/49

Electrical characteristics

L6563H

Table 4.

Electrical characteristics

(continued)

Symbol

Parameter

Test condition

Min.

Typ.

Max.

Unit

Vcs

Output max. slope

VMULT =0 to 0.4 V, VVFF = 0.8 V

2.2

2.34

V/V

VMULT

VCOMP = Upper clamp

K

M

Gain (2)

V

MULT

= 1 V, V

COMP

= 4 V

0.375

0.45

0.525

1/V

Error amplifier

VINV

Voltage feedback input threshold

TJ = 25 °C

2.475

2.5

2.525

V

10.3 V < Vcc < 22.5 V (3)

2.455

2.545

Line regulation

Vcc = 10.3 V to 22.5 V

2

5

mV

IINV

Input bias current

TBO open, VINV = 0 to 4 V

-0.2

-1

µA

VINVCLAMP

Internal clamp level

IINV = 1 mA

8

9

V

Gv

Voltage gain

Open loop

60

80

dB

GB

Gain-bandwidth product

1

MHz

ICOMP

Source current

VCOMP = 4 V, VINV = 2.4 V

2

4

mA

Sink current

VCOMP = 4 V, VINV = 2.6 V

2.5

4.5

mA

Upper clamp voltage

ISOURCE = 0.5 mA

5.7

6.2

6.7

VCOMP

Burst-mode voltage

(3)

2.3

2.4

2.5

V

Lower clamp voltage

I

= 0.5 mA (3)

2.1

2.25

2.4

SINK

Current sense comparator

ICS

Input bias current

VCS = 0

1

µA

tLEB

Leading edge blanking

100

150

250

ns

td(H-L)

Delay to output

100

200

300

ns

VCSclamp

Current sense reference clamp

VCOMP = Upper clamp,

1.0

1.08

1.16

V

VMULT =1 V VVFF = 1 V

Vcsofst

Current sense offset

VMULT = 0, VVFF = 3 V

40

70

mV

VMULT = 3 V, VVFF = 3 V

20

Boost inductor saturation detector

VCS_th

Threshold on current sense

(3)

1.6

1.7

1.8

V

IINV

E/A input pull-up current

After VCS > VCS_th, before restarting

7

10

13

µA

PFC_OK functions

IPFC_OK

Input bias current

VPFC_OK = 0 to 2.6 V

-0.1

-1

µA

VPFC_OK_C

Clamp voltage

IPFC_OK = 1 mA

9

9.5

V

VPFC_OK_S

OVP threshold

(1) voltage rising

2.435

2.5

2.565

V

VPFC_OK_R

Restart threshold after OVP

(1) voltage falling

2.34

2.4

2.46

V

VPFC_OK_D

Disable threshold

(1) voltage falling

0.12

0.35

V

VPFC_OK_D

Disable threshold

(1) voltage falling TJ = 25 °C

0.17

0.23

0.29

V

12/49

Doc ID 16047 Rev 3

L6563H				Electrical characteristics
Table 4.	Electrical characteristics	(continued)
Symbol	Parameter		Test condition		Min.	Typ.	Max.	Unit
VPFC_OK_E	Enable threshold		(1) voltage rising		0.15		0.38	V
VPFC_OK_E	Enable threshold		(1) voltage rising Tj = 25 °C		0.21	0.27	0.32	V
VFFD	Feedback failure detection		VPFC_OK = VPFC_OK_S		1.61	1.66	1.71	mV
	threshold (VINV falling)
Zero current detector
VZCDH	Upper clamp voltage		IZCD = 2.5 mA		5.0	5.7		V
VZCDL	Lower clamp voltage		IZCD = - 2.5 mA		-0.3	0	0.3	V
VZCDA	Arming voltage				1.1	1.4	1.9	V
	(positive-going edge)
VZCDT	Triggering voltage				0.5	0.7	0.9	V
	(negative-going edge)
IZCDb	Input bias current		VZCD = 1 to 4.5 V				1	µA
IZCDsrc	Source current capability				-2.5	-4		mA
IZCDsnk	Sink current capability				2.5	5		mA
Tracking boost function
V	Dropout voltage VVFF-VTBO		ITBO = 0.2 mA		-20		20	mV
ITBO	Linear operation				0		0.2	mA
	IINV-ITBO current mismatch		ITBO = 25 µA to 0.2mA		-5.5		1.0	%
	IINV-ITBO current mismatch		ITBO = 25 µA to 0.2mA		-4.0		+0	%
			TJ = 25 °C
VTBOclamp	Clamp voltage		(3) VVFF = 4 V		2.9	3	3.1	V
ITBO_Pull	Pull-up current		VTBO = 1 V				2	μA
			VFF = VMULT = 0 V
PWM_STOP
Ileak	High level leakage current		VPWM_STOP = Vcc				1	µA
VL	Low level		IPWM_STOP = 0.5 mA				1	V
RUN function
IRUN	Input bias current		VRUN = 0 to 3 V				-1	µA
VDIS	Disable threshold		(3) voltage falling		0.745	0.8	0.855	V
VEN	Enable threshold		(3) voltage rising		0.845	0.88	0.915	V
Start-up timer
tSTART_DEL	Start-up delay		First cycle after wake-up		25	50	75	µs
tSTART	Timer period				75	150	300	µs
			Restart after VCS > VCS_th		150	300	600

Doc ID 16047 Rev 3

13/49

Electrical characteristics							L6563H
Table 4.		Electrical characteristics	(continued)
Symbol		Parameter		Test condition	Min.	Typ.	Max.	Unit
Voltage feedforward
VVFF		Linear operation range			0.8		3	V
V		Dropout VMULTpk-VVFF		Vcc < VccOn			800	mV
				Vcc > or = to VccOn			20
VVFF		Line drop detection threshold		Below peak value	40	70	100	mV
VVFF		Line drop detection threshold		Below peak value	50	70	90	mV
				TJ = 25 °C
RDISCH		Internal discharge resistor		TJ = 25 °C	7.5	10	12.5	kΩ
					5		20
VVFF		Linear operation range			0.8		3	V
PWM_LATCH
Ileak		Low level leakage current		VPWM_LATCH = 0			-1	µA
VH		High level		IPWM_LATCH = -0.5 mA	4.5			V
VH		High level		IPWM_LATCH = -0.25 mA	2.5			V
				Vcc = VccOff
VH		High level		IPWM_LATCH = -0.25 mA	2.8			V
				Vcc = VccOff TJ = 25 °C
Gate driver
VOL		Output low voltage		Isink = 100 mA		0.6	1.2	V
VOH		Output high voltage		Isource = 5 mA	9.8	10.3		V
Isrcpk		Peak source current			-0.6			A
Isnkpk		Peak sink current			0.8			A
tf		Voltage fall time				30	60	ns
tr		Voltage rise time				45	110	ns
VOclamp		Output clamp voltage		Isource = 5 mA; Vcc = 20 V	10	12	15	V
		UVLO saturation		Vcc= 0 to VCCon, Isink = 2 mA			1.1	V

1.Parameters tracking each other

2.The multiplier output is given by:

V	= V	+ K		VMULT (VCOMP −2.5)
cs	CS_Ofst		M		V 2
					VFF

3. Parameters tracking each other

14/49

Doc ID 16047 Rev 3

L6563H	Typical electrical performance

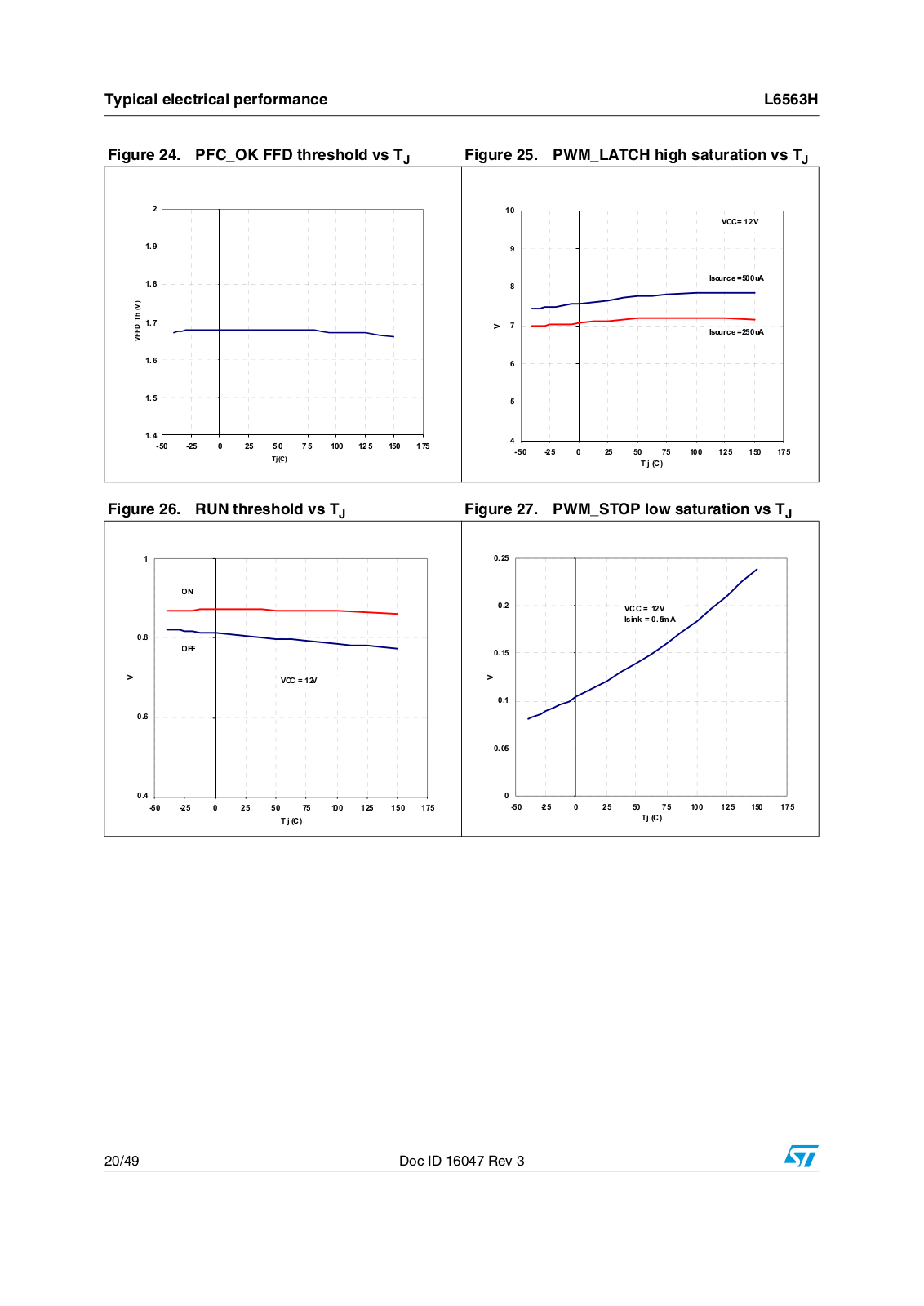

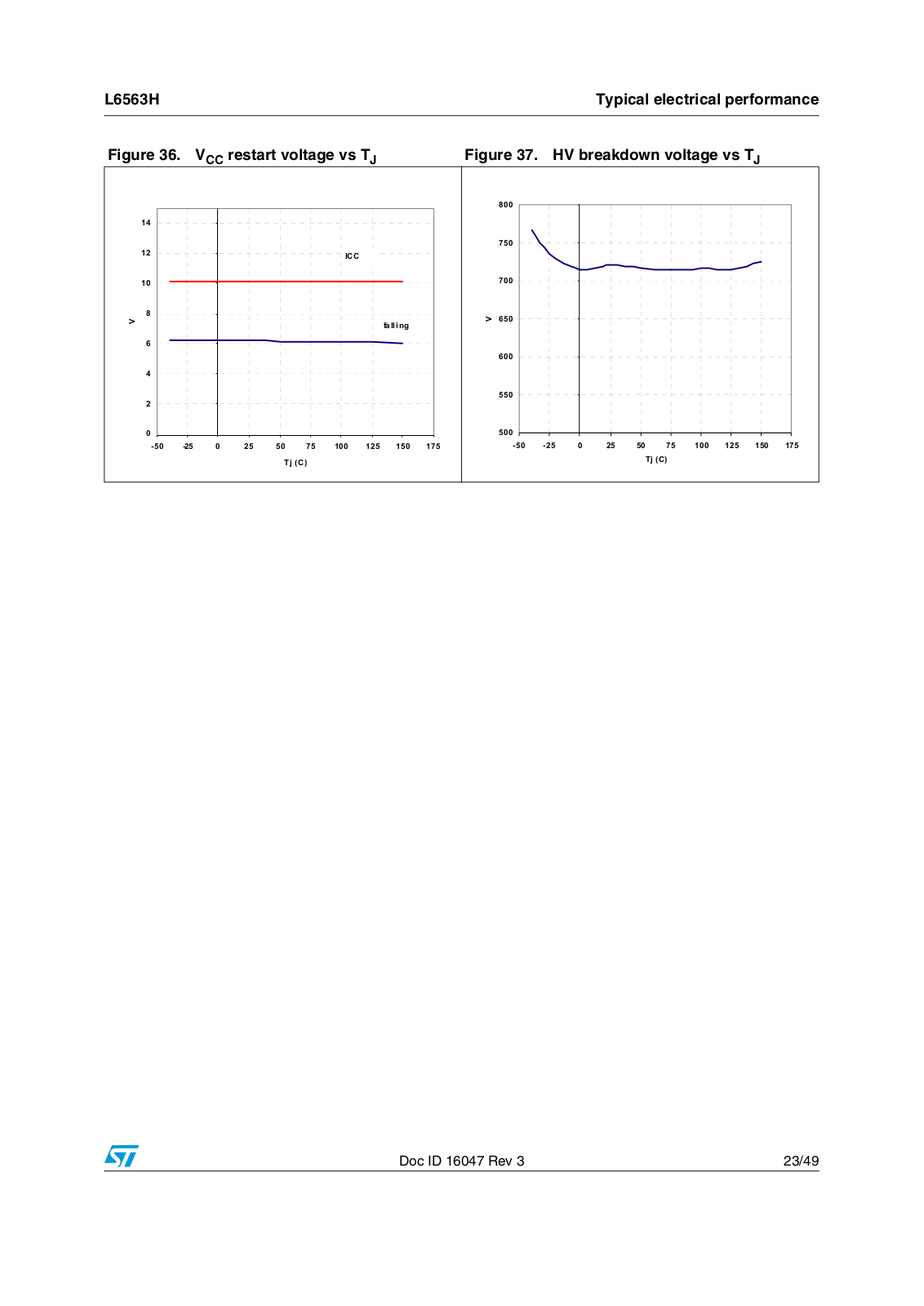

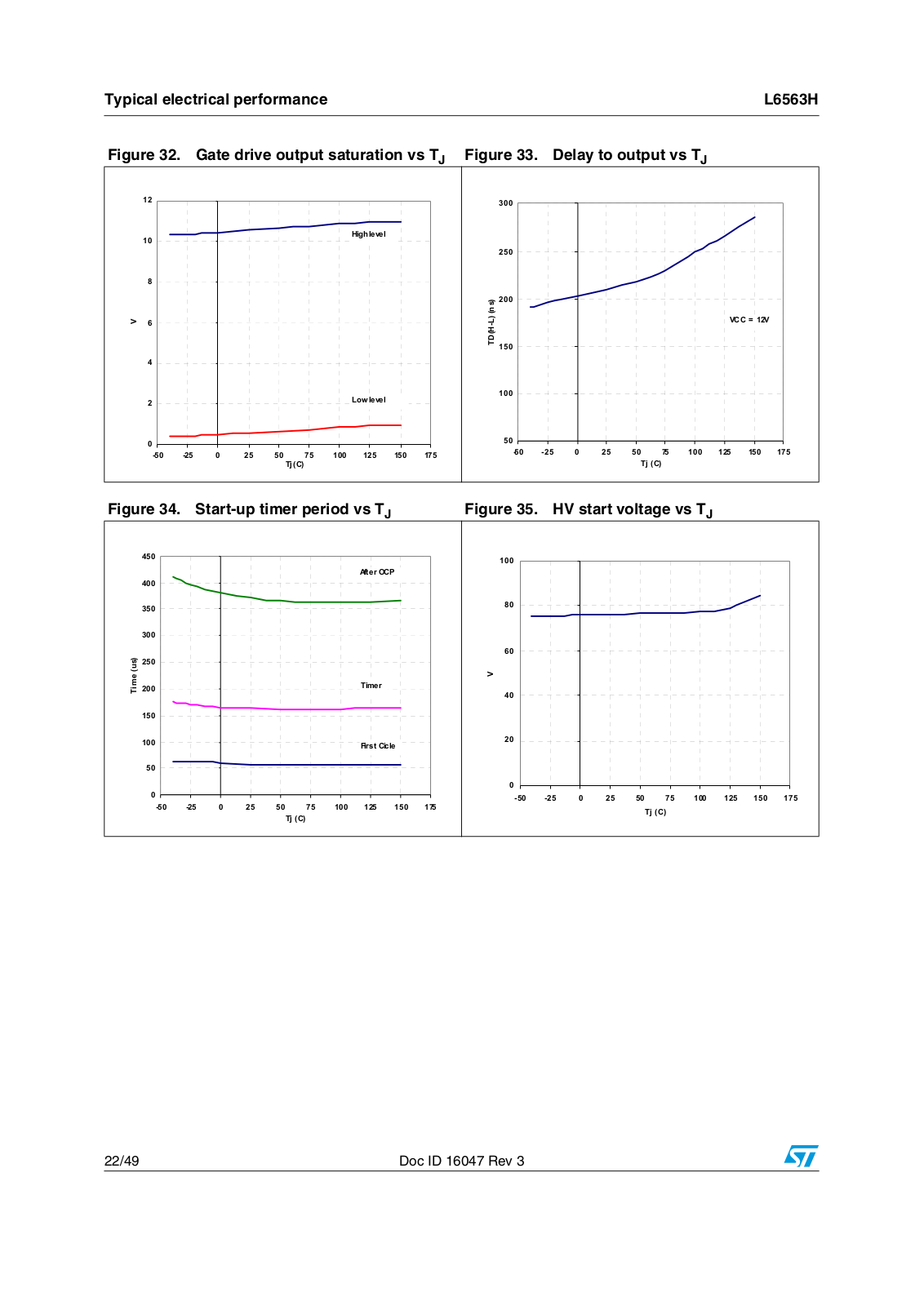

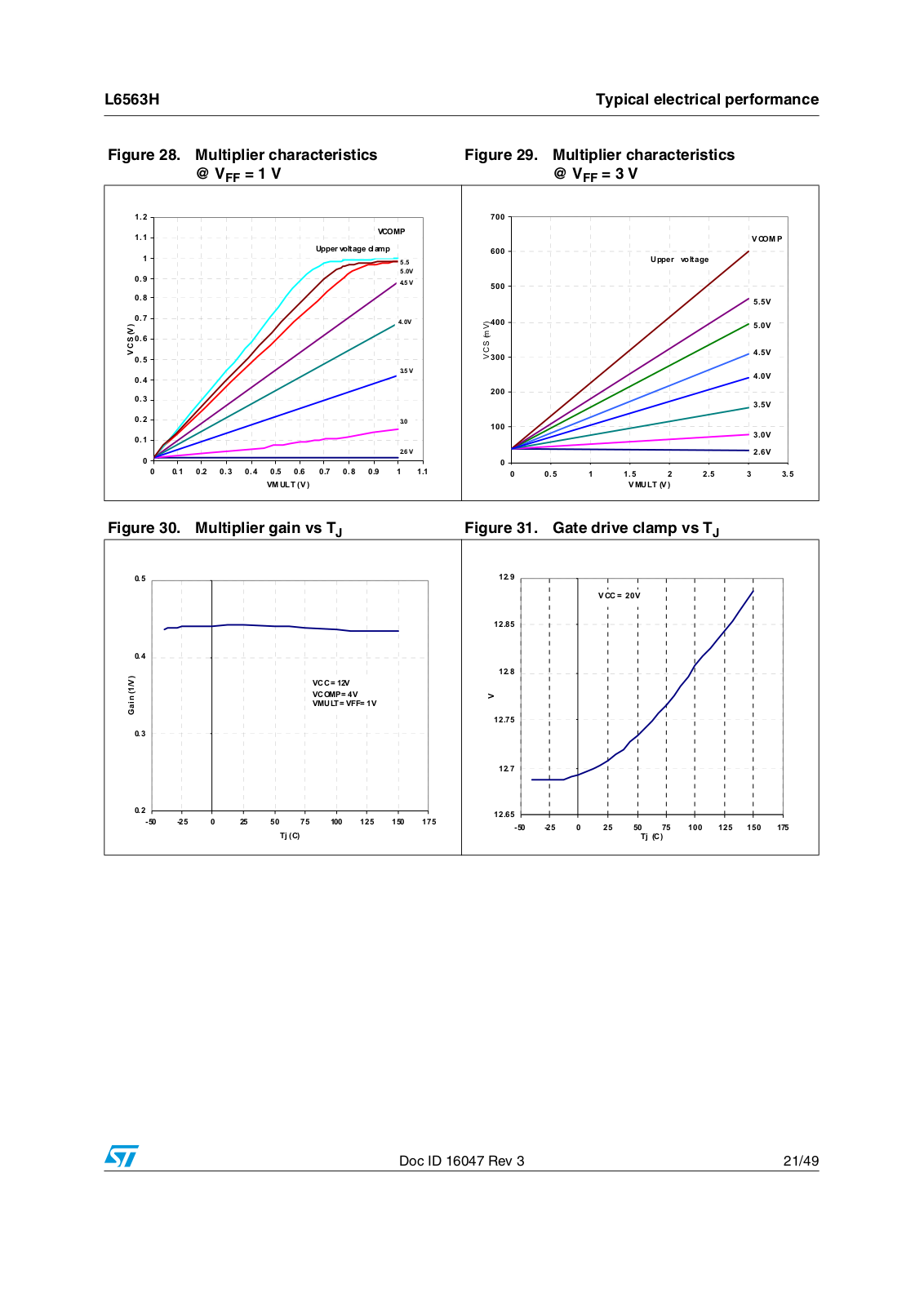

5 Typical electrical performance

Figure 4. IC consumption vs VCC

Figure 5. IC consumption vs TJ

100
10
1
[mA]			Co=1nF
			f =70kHz
Icc			Tj = 25°C
0.1
0.01
					VccOFF
					VccON
0.001
0	5	10	15	20	25	30

Vcc [V]

10
						Operating
						Quiescent
1						Disabled or
		VCC=12V				during OVP
(mA)
		Co = 1nF
		f=70kHz
current
						Latched off
Ic
0.1
						Before Start up
0.01
-50	-25	0	25	50	75	100	125	150	175

Tj (C)

Figure 6. Vcc Zener voltage vs TJ

Figure 7. Start-up and UVLO vs TJ

	28										13
	27										12								VCC-ON
											11
	26
											10								VCC-OFF
V	25										V
											9
	24
											8
	23										7
	22										6
	-50	-25	0	25	50	75	100	125	150	175	-50	-25	0	25	50	75	100	125	150	175
						Tj (C)										Tj (C)

Doc ID 16047 Rev 3

15/49
