L5300GJ
5 V low drop voltage regulator
Features
Max DC supply voltage |
VS |
40 V |
Max output voltage tolerance |
V0 |
+/-2% |
Max dropout voltage |
Vdp |
500 mV |
Output current |
I0 |
300 mA |
Quiescent current |
Iqn |
5 µA(1) |
(2) |
||
|
|
55 µA |
1.Typical value with regulator disabled.
2.Typical value with regulator enabled.
■Operating DC supply voltage range 5.6 V to 40 V
■Low dropout voltage
■300 mA current capability
■Low quiescent current
■Very low consumption mode
■Precision output voltage 5 V +/- 2%
■Reset circuit sensing the output voltage
■Programmable reset pulse delay with external capacitor
■Early warning
■Very wide stability range with low value output capacitor
■Thermal shutdown and short circuit protection
■Wide temperature range (Tj = -40 °C to 150 °C)
■Enable input for enabling / disabling the voltage regulator
PowerSSO-12
Description
L5300GJ is a low dropout linear regulator with microprocessor control functions such as power on reset, low voltage reset, early warning, ON/OFF control. Typical quiescent current is 55 µA in very low output current mode and enabled regulator. It drops to 5 µA with not enabled regulator.
On-chip trimming results in high output voltage accuracy (2%). Accuracy is kept over wide temperature range, line and load variation. Early warning circuit monitors the input voltage and compares it with an internal voltage reference.
The maximum input voltage is 40 V. The maximum output current is internally limited.
Internal temperature protection disables the voltage regulator output. In addition, only low value ceramic capacitor on output is required for stability (equal or above 220 nF).
Table 1. |
Device summary |
|
|
|
|
Package |
|
Order codes |
|
|
|
|
|
|
|
Tube |
|
Tape and reel |
|
|
|
|
||
|
|
|
|
|
|
PowerSSO-12 |
L5300GJ |
|
L5300GJTR |
|
|
|
|
|
February 2012 |
Doc ID 15480 Rev 6 |
1/27 |
www.st.com
Contents |
L5300GJ |
|
|
Contents
1 |
Block diagram and pins description . . . . . . . . . . . . . . . . . . . . . . . . . . . |
. 5 |
|
2 |
Electrical specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
. 7 |
|
|
2.1 |
Absolute maximum ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
7 |
|
2.2 |
Thermal data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
7 |
|
2.3 |
Electrical characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
8 |
|
2.4 |
Electrical characteristics curves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
11 |
3 |
Application information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
15 |
|
|
3.1 |
Voltage regulator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
15 |
|
3.2 |
Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
17 |
|
3.3 |
Early warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
17 |
|
3.4 |
Enable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
18 |
4 |
Package and PCB thermal data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
19 |
|
5 |
Package and packing information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
22 |
|
|
5.1 |
ECOPACK® . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
22 |
|
5.2 |
PowerSSO-12 mechanical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
22 |
|
5.3 |
PowerSSO-12 packing information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
24 |
6 |
Revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
25 |
2/27 |
Doc ID 15480 Rev 6 |
L5300GJ |
List of tables |
|
|
List of tables
Table 1. Device summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Table 2. Pins description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Table 3. Absolute maximum ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Table 4. Thermal data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Table 5. General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Table 6. Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Table 7. Early warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Table 8. Enable. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Table 9. PowerSSO-12 thermal parameter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Table 10. PowerSSO-12 mechanical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 Table 11. Document revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Doc ID 15480 Rev 6 |
3/27 |
List of figures |
L5300GJ |
|
|
List of figures
Figure 1. |
Block diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
. 5 |
Figure 2. |
Configuration diagram (top view) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
. 6 |
Figure 3. |
Output voltage vs Tj. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
. 11 |
Figure 4. |
Output voltage vs VS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
11 |
Figure 5. |
Output voltage vs VEn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
11 |
Figure 6. |
Drop voltage vs. output current. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
11 |
Figure 7. |
Current consumption vs. output current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
11 |
Figure 8. |
Current consumption vs. output current (at light load condition). . . . . . . . . . . . . . . . . . . . . |
11 |
Figure 9. |
Current consumption vs input voltage (Io = 0.1 mA) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
12 |
Figure 10. |
Current consumption vs input voltage (Io = 100 mA) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
12 |
Figure 11. |
Current limitation vs Tj . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
12 |
Figure 12. |
Current limitation vs input voltage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
12 |
Figure 13. |
Short-circuit current vs Tj . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
12 |
Figure 14. |
Short-circuit current vs input voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
12 |
Figure 15. |
VEn_high vs Tj . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
13 |
Figure 16. |
VEn_low vs Tj . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
13 |
Figure 17. |
VRhth vs Tj . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
13 |
Figure 18. |
VRlth vs Tj. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
13 |
Figure 19. |
VEWi_thh vs Tj . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
13 |
Figure 20. |
VEWi_thl vs Tj. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
13 |
Figure 21. |
Icr vs Tj . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
14 |
Figure 22. |
Idr vs Tj . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
14 |
Figure 23. |

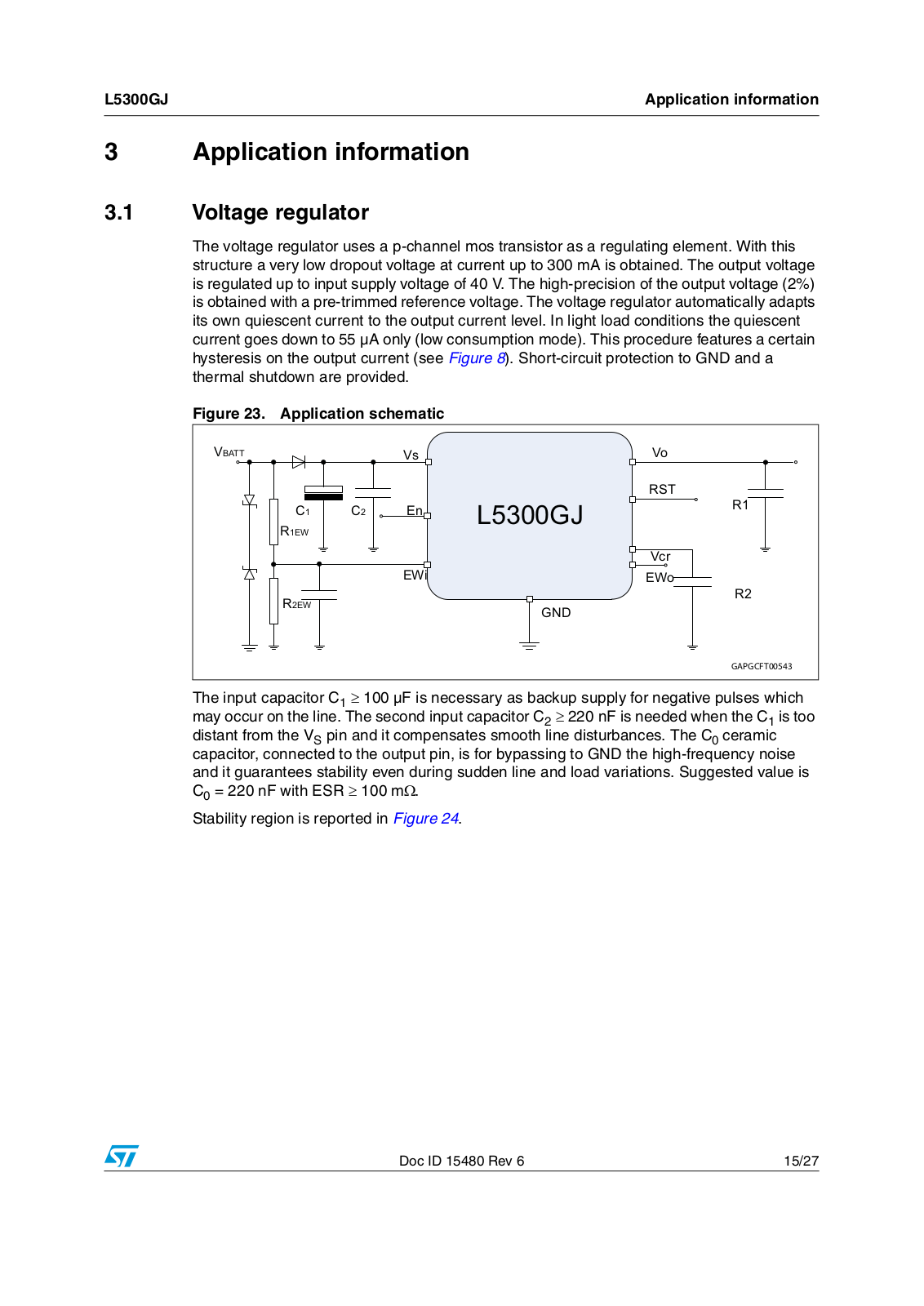

Application schematic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
15 |
Figure 24. |
Stability region . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
16 |
Figure 25. |
Maximum load variation response . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
16 |
Figure 26. |
Reset time diagram. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
17 |
Figure 27. |
Early warning time diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
18 |
Figure 28. |
PowerSSO-12 PC board(1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
19 |
Figure 29. |
Rthj-amb Vs. PCB copper area in open box free air condition . . . . . . . . . . . . . . . . . . . . . |
19 |
Figure 30. |
PowerSSO-12 thermal impedance junction ambient single pulse . . . . . . . . . . . . . . . . . . . |
20 |
Figure 31. |
Thermal fitting model of Vreg in in PowerSSO-12 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
20 |
Figure 32. |
PowerSSO-12 package dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
22 |
Figure 33. |
PowerSSO-12 tube shipment (no suffix) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
24 |
Figure 34. |
PowerSSO-12 tape and reel shipment (suffix “TR”) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
24 |
4/27 |
Doc ID 15480 Rev 6 |
L5300GJ |
Block diagram and pins description |
|
|
Vs |
|
Vo |
START - UP |
|
|
|
Power |
Vos |
|
|
|
VOLTAGE |
Driver |
|
|
|
|
En |
|
|
REFERENCE |
|
|
|
Thermal |
Current |
|
Shutdown |
limiter |
|
|
Res |
Vcr |
|
Low Voltage |
|
Reset |
|
|
|
EWo |
EWi |
|
|
|
|
GND |
Doc ID 15480 Rev 6 |
5/27 |
Block diagram and pins description |
L5300GJ |
|
|
Figure 2. Configuration diagram (top view) |
|
TAB = Substrate
NC 1 |
|
|
|
|
|
|
|
|
|
|
12 |
EWo |
|||
|
|||||||||||||||
|
|
|
|
|
|||||||||||
Res |
2 |
|
|
|
|
|
|
|
|
|
|
|
11 |
NC |
|
|
|
|
|
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
||||||
Vcr |
3 |
|
|
|
|
|
|
|
|
|
|
|
|
10 |
EWi |
|
|
|
|
|
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|||||
GND |
4 |
|
|
|
|
|
|
|
|
|
|
|
|
9 |
En |
|
|
|
|
|
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|||||
Vos |
5 |
|
|
|
|
|
|
|
|
|
|
|
|
8 |
NC |
|
|
|
|
|
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|||||
Vo |
6 |
|
|
|
|
|
|
|
|
|
|
|
|
7 |
VS |
|
|||||||||||||||
|
Table 2. |
Pins description |
|
|
N° |
|
Name |
Function |
|
|
|
|
1 |
|
NC |
Not connected |
|
|
|
|
2 |
|
Res |
Reset output. Internally connected to Vo through a 20 KΩ pull up |
|
resistor. This pin is pulled low when Vo < Vo_th. Keep open if not |
||
|
|
|
needed |
|
|
|
|
3 |
|
Vcr |
Reset delay. Connect an external capacitor between Vcr pin and |
|
ground to adjust the reset delay time. Keep open if not needed |
||
4 |
|
GND |
Ground reference |
|
|
|
|
5 |
|
Vos |
Regulator output voltage sensing (connect to Vo) |
6 |
|
Vo |
5 V regulated output. Block to GND with a ceramic capacitor |
|
(Co ≥ 220 nF for regulator stability) |
||
|
|
|
|
7 |
|
VS |
Supply voltage, block directly to GND on the IC with a capacitor |
|
|
|
|
8 |
|
NC |
Not connected |
|
|
|
|
9 |
|
En |
Enable input. A high signal switches the regulator ON. Connect to |
|
VS if not needed |
||
|
|
|
|
10 |
|
EWi |
Early warning input. This pin monitors the VS voltage level through |
|
a resistor divider. Connect to VS if not needed |
||
|
|
|
|
11 |
|
NC |
Not connected |
|
|
|
|
|
|
|
Early warning output. Internally connected to Vo through 20 KΩ |
12 |
|
EWo |
pull up resistor. This pin is pulled low when EWi is below bandgap |
|
|
|
reference voltage. Keep open if not needed |
|
|
|
|
- |
|
TAB |
TAB is connected to the substrate of the chip: connect to GND or |
|
leave open (see Figure 2). |
||
|
|
|
|
|
|
|
|
6/27 |
Doc ID 15480 Rev 6 |
L5300GJ |
Electrical specifications |
|
|
2.1Absolute maximum ratings
Stressing the device above the rating listed in the Table 3: Absolute maximum ratings may cause permanent damage to the device. These are stress ratings only and operation of the device at these or any other conditions above those indicated in the operating sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.
Table 3. |
Absolute maximum ratings |
|
|
|
Symbol |
|
Parameter |
Value |
Unit |
|
|
|
|
|
Vsdc |
|
DC supply voltage |
-0.3 to 40 |
V |
IVsdc |
|
Input current |
Internally limited |
|
Vodc |
|
DC output voltage |
-0.3 to 6 |
V |
IVodc |
|
DC output current |
Internally limited |
|
Vod Res |
|
Open drain output voltage Res |
-0.3 to Vodc + 0.3 |
V |
Iod Res |
|
Open drain output current Res |
Internally limited |
|
Vod EWo |
|
Open drain output voltage EWo |
-0.3 to Vodc + 0.3 |
V |
Iod EWo |
|
Open drain output current EWo |
Internally limited |
|
Vcr |
|
Vcr voltage |
-0.3 to Vo + 0.3 |
V |
VEWi |
|
Early warning input voltage |
-0.3 to 40 |
V |
VEn |
|
Enable input |
-0.3 to 40 |
V |
Tj |
|
Junction temperature |
-40 to 150 |
°C |
VESD HBM |
|
ESD HBM voltage level (HBM-MIL STD 883C) |
+/- 2 |
kV |
VESD CDM |
|
ESD CDM voltage level (CDM AEC-Q100-011) |
+/- 750 |
V |
m |
Thermal data (1) |
|
|
|
Table 4. |
|
|
||
Symbol |
|
Parameter |
Value |
Unit |
|
|
|
|
|
Rthj-case |
|
Thermal resistance junction to case: PowerSSO-12 |
8 |
°K/W |
Rthj-amb |
|
Thermal resistance junction to ambient: PowerSSO-12 |
48 |
°K/W |
1.The values quoted are for PCB 77mm x 86 mm x 1.6mm, FR4, double layer with thermal vias (one copper heatsink layer, thickness 0.070 mm, area 8 cm2).
Doc ID 15480 Rev 6 |
7/27 |
Electrical specifications |
L5300GJ |
|
|
Values specified in this section are for VS = 5.6 V to 31 V, Tj = -40°C to 150°C unless otherwise stated.
Table 5. |
|
General |
|
|
|
|
|
||||
Pin |
|
|
Symbol |
Parameter |
Test condition |
Min. |
Typ. |
Max. |
Unit |
||
|
|
|
|
|
|
|
|
|
|
|
|
|
Vo |
|
|
Vo_ref |
Output voltage |
VS = 8 V to 18 V; |
4.9 |
5.0 |
5.1 |
V |
|
|
|
|
Io = 8 mA to 300 mA |
||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
Vo |
|
|
Vo_ref |
Output voltage |
VS = 5.6 V to 31V; |
4.85 |
5.0 |
5.15 |
V |
|
|
|
|
Io = 8 mA to 300 mA |
||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
Vo |
|
|
Vo_ref |
Output voltage |
VS = 5.6 V to 31 V; |
4.75 |
5.0 |
5.25 |
V |
|
|
|
|
Io = 0.1 mA to 8 mA |
||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
Vo |
|
|
Ishort |
Short circuit current |
VS = 13.5 V |
0.8 |
1.8 |
2.6 |
A |
|
|
Vo |
|
|
Ilim |
Output current capability(1) |
VS = 13.5 V |
0.6 |
1.6 |
2.5 |
A |
|
VS, Vo |
|
Vline |
Line regulation voltage |
VS = 6 V to 28 V; |
|
|
40 |
mV |
|||
|
Io = 60 mA |
|
|
||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
VS = 13.5 V; |
|
|
|
|
|
|
|
|
|
|
|
Io = 8 mA to 300 mA; |
|
|
40 |
|
|
Vo |
|
|
Vload |
Load regulation voltage |
Tj = 25 °C |
|
|
|
mV |
|
|
|
|
|
|
|
|
VS = 8 V to 18 V; |
|
|
55 |
|
|
|
|
|
|
|
|
Io = 8 mA to 300 mA |
|
|
|
|
V |
, V |
|
V |
dp |
Drop voltage (2) |
I = 300 mA |
|
|
500 |
mV |
|
|
S |
o |
|
|
|
o |
|
|
|
|
|
V |
, V |
|
SVR |
Ripple rejection |
f = 100 Hz (3) |
|
60 |
|
dB |
||
|
S |
o |
|
|
|
|
r |
|
|
|
|
|
Vo |
|
|
Ioth_H |
Normal consumption mode |
|
8 |
|
|
mA |
|
|
|
|
output current |
|
|
|
|||||
|
Vo |
|
|
Ioth_L |
Very low consumption |
|
|
|
1.1 |
mA |
|
|
|
|
mode output current |
|
|
|
|||||
|
Vo |
|
|
Ioth_Hyst |
Output current switching |
VS = 13.5 V; Tj = 25 °C |
|
0.8 |
|
mA |
|
|
|
|
threshold hysteresis |
|
|
||||||
|
|
|
|
|
|
Current consumption with |
|
|
|
|
|
VS, Vo |
|
Iqs |
regulator disabled |
VS = 13.5 V; En = low |
|
5 |
10 |
µA |
|||
|
|
|
|
|
|
Iqs = IVs – Io |
|
|
|
|
|
VS, Vo |
|
|
|
Current consumption with |
VS = 13.5 V; |
|
|
|
|
||
|
Iqn_1 |
regulator enabled |
Io = 0.1 mA to 1mA; |
|
55 |
80 |
µA |
||||
|
|
|
|
|
|
Iqn_1 = IVs – Io |
En = high |
|
|
|
|
|
|
|
|
|
|
Current consumption with |
VS = 13.5 V; |
|
|
|
|
VS, Vo |
|
Iqn_300 |
regulator enabled |
|
3 |
4.2 |
mA |
||||
|
Io = 300 mA; En = high |
|
|||||||||
|
|
|
|
|
|
Iqn_300 = IVs – Io |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Tw |
Thermal protection |
|
150 |
|
190 |
°C |
|
|
|
|
|
temperature |
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Tw_hy |
Thermal protection |
|
|
10 |
|
°C |
|
|
|
|
|
temperature hysteresis |
|
|
|
1.Measured output current when the output voltage has dropped 100 mV from its nominal value obtained at 13.5 V and Io = 75 mA.
8/27 |
Doc ID 15480 Rev 6 |
L5300GJ |
Electrical specifications |
|
|
2.VS - Vo measured dropout when the output voltage has dropped 100 mV from its nominal value obtained at 13.5V and Io = 75 mA.
3.Guaranteed by design.
Table 6. |
Reset |
|
|
|
|
|
|
|
||
Pin |
Symbol |
Parameter |
|
Test condition |
Min. |
Typ. |
Max. |
Unit |
||
|
|
|
|
|
|
|
|
|||
Res |
VRes_l |
Reset output low voltage |
Rext = 5 kΩ; Vo > 1 V |
|
|
0.4 |
V |
|||
R |
IRes_lkg |
Reset output high leakage |
V |
|
= V |
|
|
1 |
µA |
|
es |
|
|
current |
|
Res |
out |
|
|
|
|
|
|
|
|
|
|
|
|
|
||
Res |
|
Rres |
Pull-up internal resistance |
Versus Vo |
10 |
20 |
40 |
kΩ |
||
Res |
|
Vo_th |
Vo out of regulation |
Vo decreasing |
6 |
8 |
10 |
%below |
||
|
threshold |
Vo_ref |
||||||||
|
|
|
|
|
|
|
|
|
||
Vcr |
|
VRlth |
Reset timing low threshold |
VS = 13.5 V |
15 |
18 |
22 |
% Vo_ref |
||
Vcr |
VRhth |
Reset timing high |
VS = 13.5 V |
47 |
50 |
53 |
% Vo_ref |
|||
threshold |
||||||||||
Vcr |
|
Icr |
Charge current |
VS = 13.5 V |
10 |
20 |
30 |
µA |
||
Vcr |
|
Idr |
Discharge current |
VS = 13.5 V |
10 |
20 |
30 |
µA |
||
Res |
|
Trr |
Reset reaction time |
|
|
|
|
|
2 |
µs |
Res |
|
Trd |
Reset delay time |
VS = 13.5 V; Ctr = 1 nF |
2 |
4 |
6 |
ms |
Table 7. |
Early warning |
|
|
|
|
|
||
Pin |
|
Symbol |
Parameter |
Test condition |
Min. |
Typ. |
Max. |
Unit |
|
|
|
|
|
|
|
|
|
EWi |
|
Ewi_th_low |
EW input low threshold |
|
2.35 |
2.50 |
2.65 |
V |
|
voltage |
|
||||||
EWi |
|
Ewi_th_high |
EW input high threshold |
|
2.42 |
2.57 |
2.72 |
V |
|
voltage |
|
||||||
EWi |
|
Ewi_th_hyst |
EW input threshold |
|
|
70 |
|
mV |
|
hysteresis |
|
|
|
||||
EWi |
|
IEWi_lkg |
EW input leakage current |
VEWi = 0 V; VS > 3 V |
-1 |
|
1 |
µA |
EWo |
|
REWo |
Pull-up internal |
Versus Vo |
10 |
20 |
40 |
kΩ |
|
resistance |
|||||||
EWo |
|
EWo_lv |
EW output low voltage |
VEWi < 2.35 V; |
|
|
400 |
mV |
|
(with external pull up) |
VS > 4 V; Rext = 5 kΩ |
|
|
||||
|
|
|
|
|
|
|
||
EWo |
|
IWo |
EW output leakage |
VEWo = 5 V |
|
|
1 |
µA |
Table 8. |
Enable |
|
|
|
|
|
|
Pin |
Symbol |
Parameter |
Test condition |
Min. |
Typ. |
Max. |
Unit |
|
|
|
|
|
|
|
|
En |
VEn_low |
En input low voltage |
|
|
|
1 |
V |
En |
VEn_high |
En input high voltage |
|
3 |
|
|
V |
Doc ID 15480 Rev 6 |
9/27 |
