STEVAL-IFV002V1 IPCAM extension board
Features
■ The IPCAM extension board, based on
STM32, includes the following:
– STEVAL-IFV002V1 board
– CAMERA pepper board
– object files are available for the firmware
■ RoHS compliant
Description
The STEVAL-IFV002V1 demonstration board
implements a camera extension board which is
used to interface a CAMERA board to the
STM3210C-EVAL demonstration board.
This extension board is built around
STMicroelectronic's ARM with a Cortex-M3 corebased STM32F107VC microcontroller in a 100
pin package.
STEVAL-IFV002V1
based on the STM32F107VC
Data brief
STEVAL-IFV002V1
This extension board consists of a camera board
connector, two female headers which fit on CN8
and CN9 of the EVAL demonstration board, and a
power supply unit required for the camera unit.
The application works on the Web server
implemented on the STM3210C-EVAL
demonstration board.
The camera interface library is implemented on
STM32 to capture the image from the camera.
The board is interfaced with a CAMERA pepper
board.
The camera sensor is mounted on this pepper
board. To capture the image, commands are
provided through an I2C interface. An Ethernet
library is ported on the STM3210C-EVAL
demonstration board to transfer the image
through Ethernet.
DHCP client is also supported on the board to
assign the IP address automatically.
September 2010 Doc ID 18012 Rev 1 1/6
For further information contact your local STMicroelectronics sales office.
www.st.com
6
Schematic circuit STEVAL-IFV002V1
1 Schematic circuit
Figure 1. Base board connector schematics
2/6 Doc ID 18012 Rev 1
!-V
STEVAL-IFV002V1 Schematic circuit

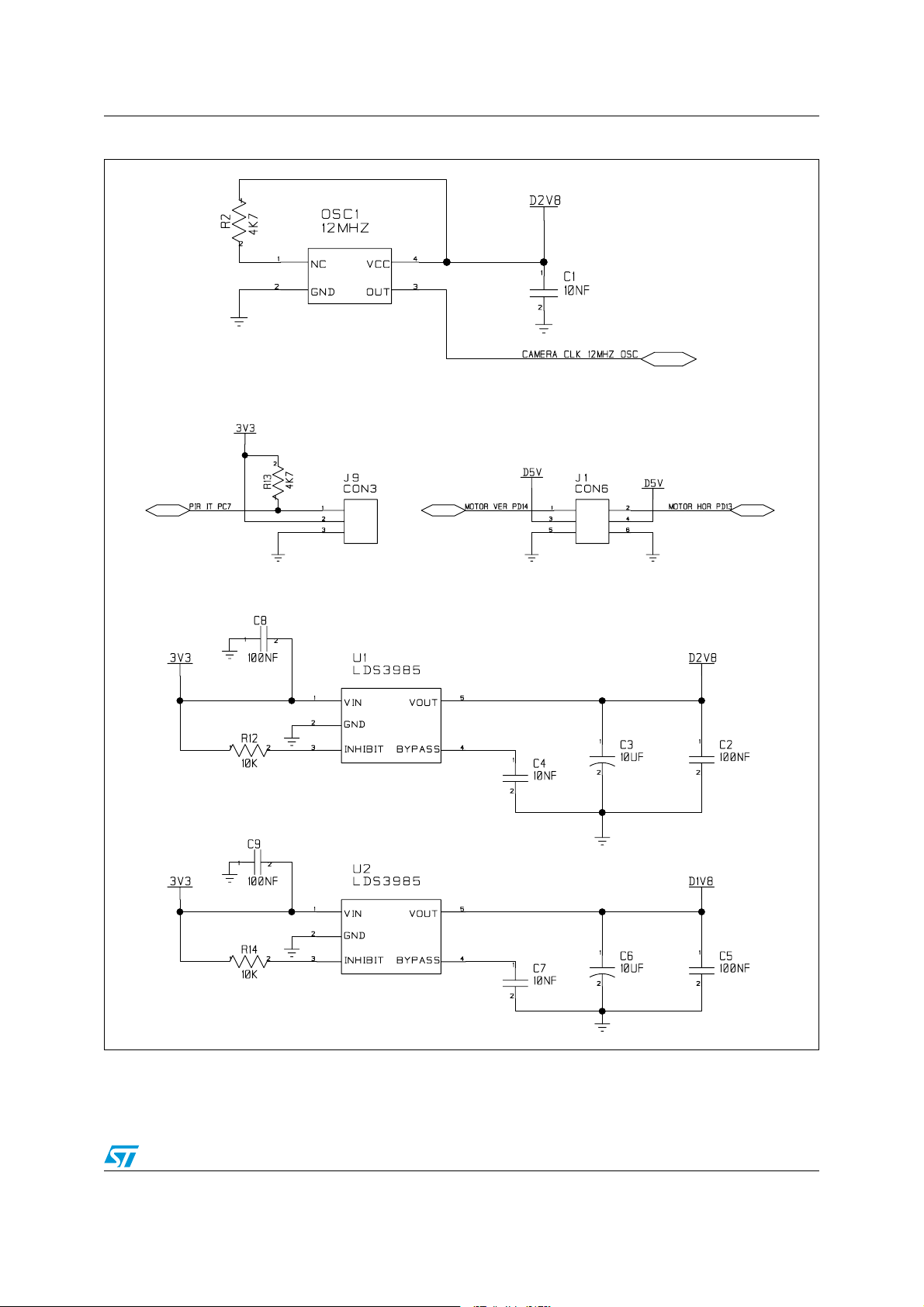

Figure 2. Camera oscillator, motor and pin connection, and power 2.8 V and 1.8 V, schematics
#AMERAOSCILLATOR
-OTORANDPINCONNECTION
0OWER6AND6
!-V
Doc ID 18012 Rev 1 3/6
Schematic circuit STEVAL-IFV002V1
Figure 3. Camera board connector schematics
4/6 Doc ID 18012 Rev 1
!-V
STEVAL-IFV002V1 Revision history
2 Revision history
Table 1. Document revision history
Date Revision Changes
22-Sep-2010 1 Initial release.
