AN3280
Application Note
Displaying variable voltage on a bar of LEDs using STM8S-DISCOVERY
Application overview
This application note provides a short description of how to use the ADC, Timer and GPIO peripherals.
Once the STM8S105C6T6 has been powered-up through a USB cable connected to the host PC, the Timer triggers the ADC according to a user-defined period to convert the analog voltage provided by variable resistor RV1. The resulting average voltage measurement is represented on the LED bar.
Even though the STM8S-DISCOVERY is built around an STM8S105C6T6, it allows evaluation of the main features of all the STM8S MCUs.
Reference documents
■STM8S-DISCOVERY evaluation board user manual (UM0817).
■Developing and debugging your STM8S-DISCOVERY application code user manual (UM0834).
October 2010 |
Doc ID 17983 Rev 1 |
1/13 |
www.st.com
Contents |
AN3280 |
|
|
Contents
1 |
Application description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
5 |
|
|
1.1 |
Hardware requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
5 |
|
1.2 |
Application schematic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
5 |
|
1.3 |
Application principle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
6 |

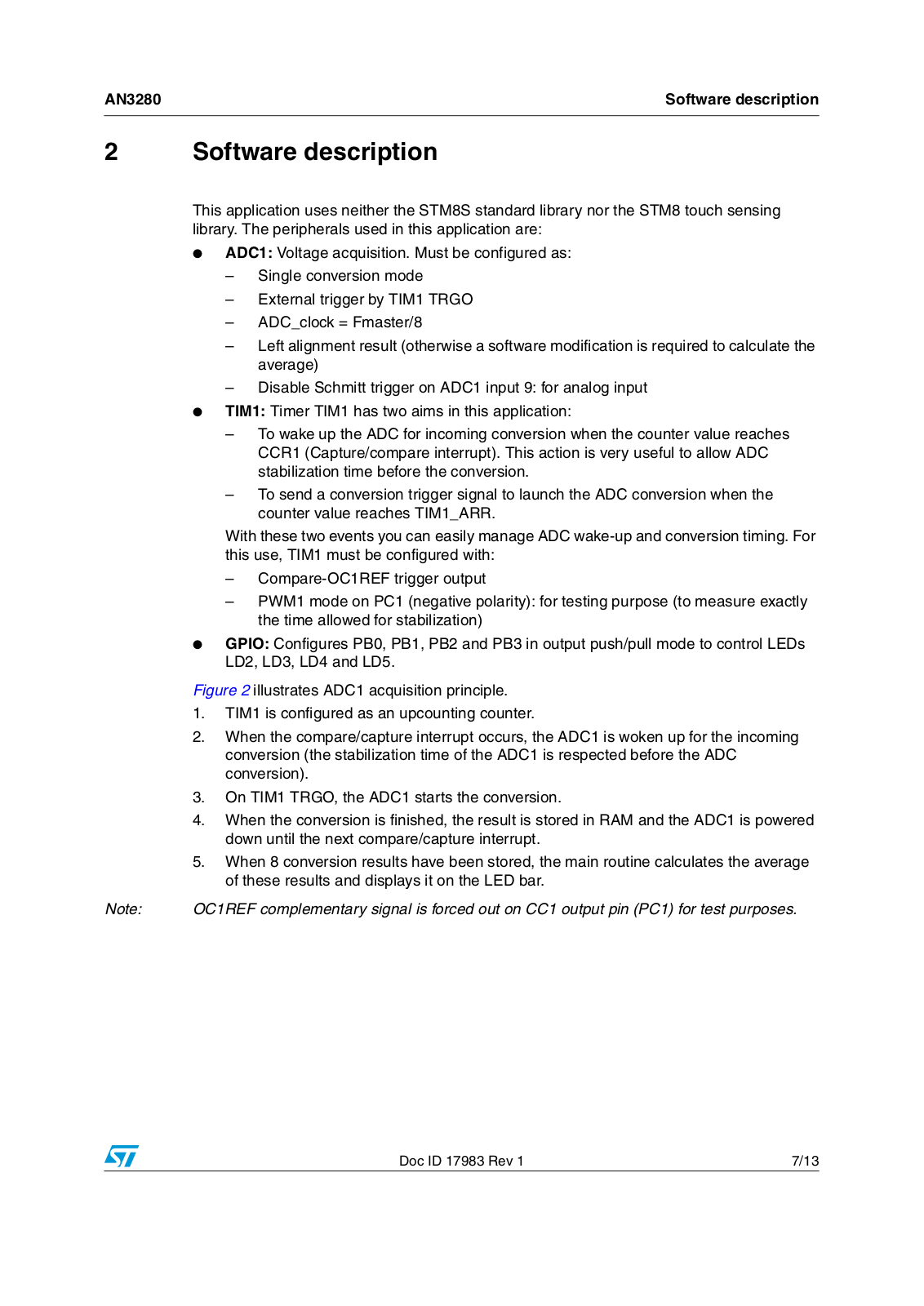

2 |
Software description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
7 |
|
|
2.1 |
Application software flowcharts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
9 |

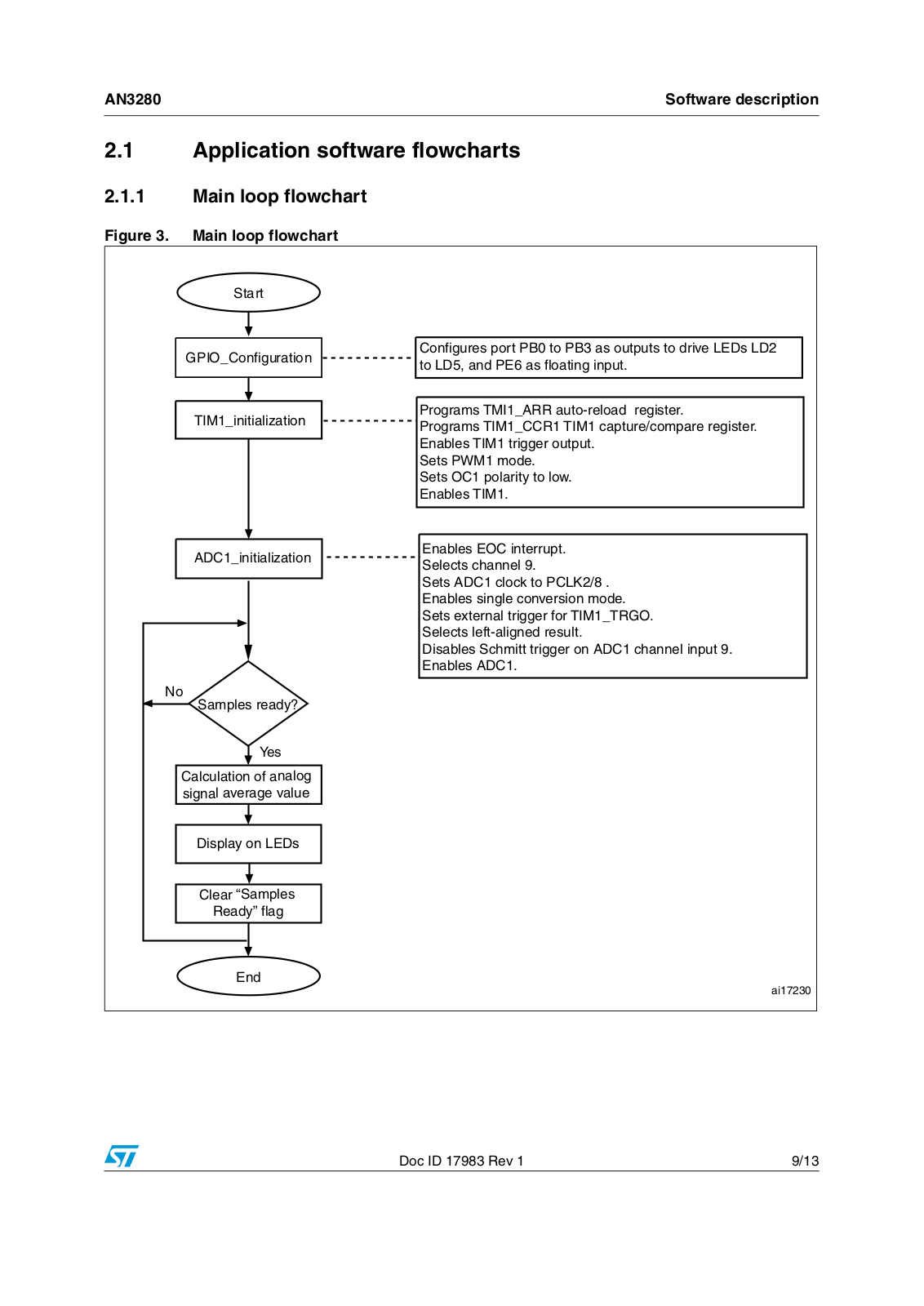

2.1.1 Main loop flowchart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 2.1.2 ADC1 interrupt routine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 2.1.3 TIM1 capture/compare interrupt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
