Handling hardware and software failures with the STM8S-DISCOVERY
Application overview
This application is based on the STM8S-DISCOVERY. It demonstrates how to use the STM8S window watchdog (WWDG) and independent watchdog (IWDG) in conjunction with the clock security system (CSS) to handle software and hardware failures.

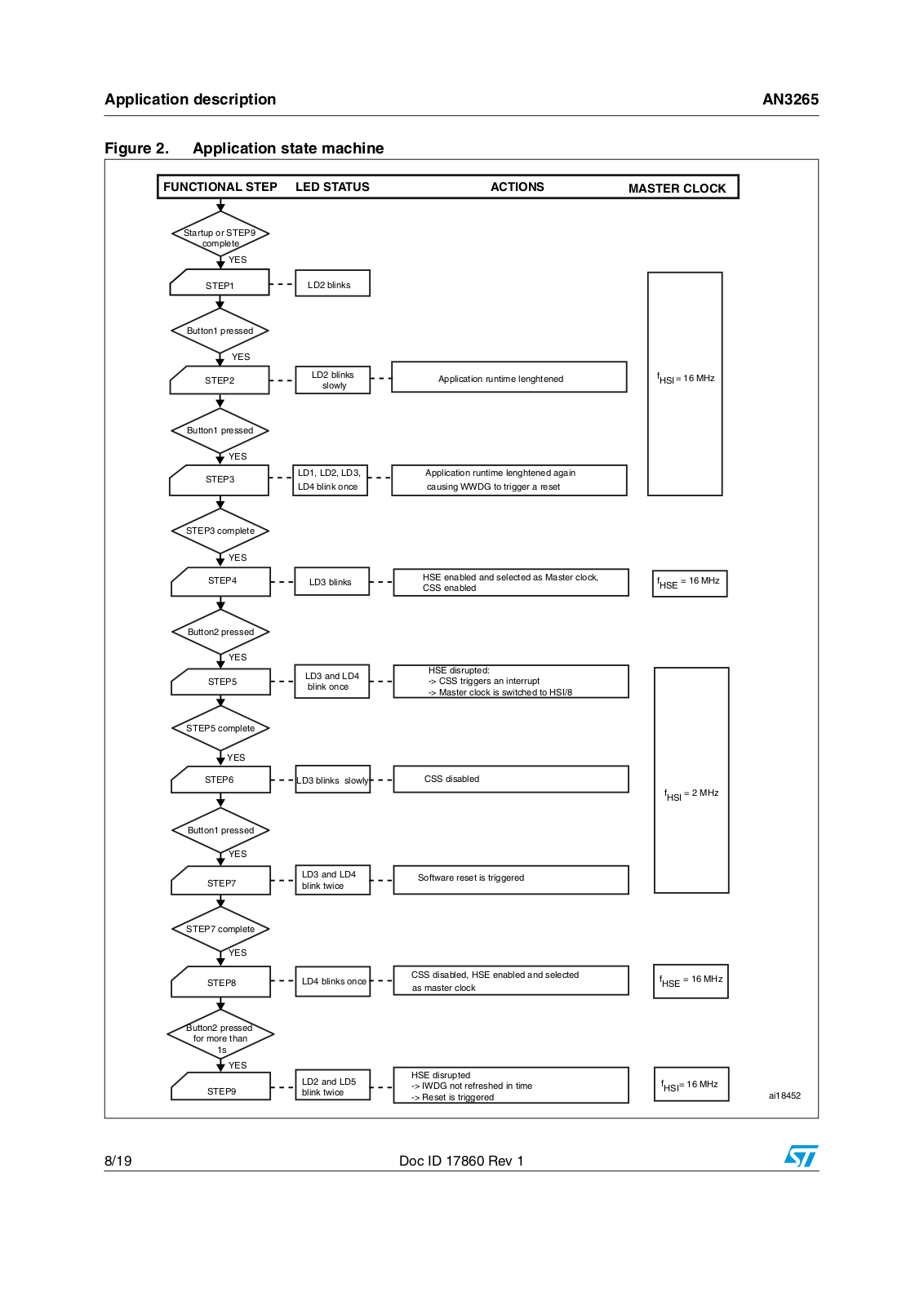

Two external pushbuttons are used to simulate malfunctions while the LEDs monitor the application progress.
