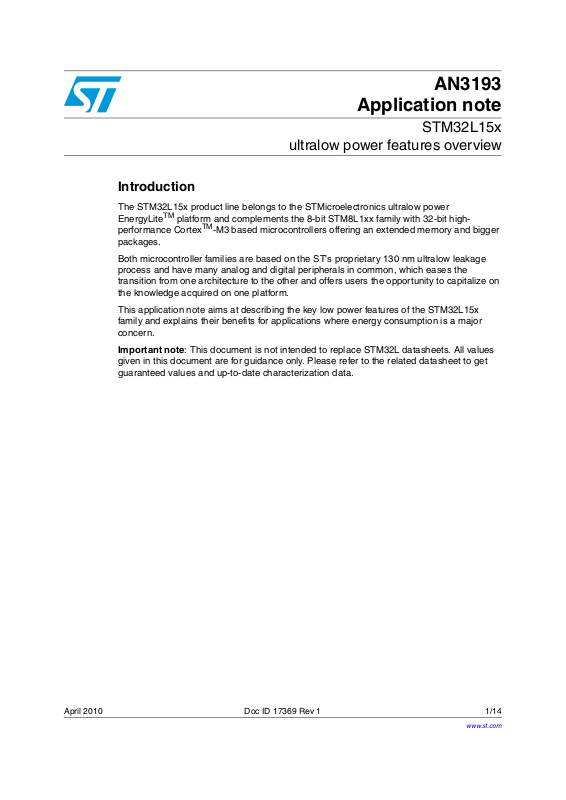

Introduction
AN3193
Application note
STM32L15x
ultralow power features overview
The STM32L15x product line belongs to the STMicroelectronics ultralow power
EnergyLite
performance Cortex
packages.
Both microcontroller families are based on the ST's proprietary 130 nm ultralow leakage
process and have many analog and digital peripherals in common, which eases the
transition from one architecture to the other and offers users the opportunity to capitalize on
the knowledge acquired on one platform.
This application note aims at describing the key low power features of the STM32L15x
family and explains their benefits for applications where energy consumption is a major
concern.
Important note: This document is not intended to replace STM32L datasheets. All values
given in this document are for guidance only. Please refer to the related datasheet to get
guaranteed values and up-to-date characterization data.
TM
platform and complements the 8-bit STM8L1xx family with 32-bit high-
TM
-M3 based microcontrollers offering an extended memory and bigger
April 2010 Doc ID 17369 Rev 1 1/14
www.st.com
Table of contents AN3193
Table of contents
1 STM32L main features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
2 Energy-efficient processing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
3 Numerous low power modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
4 A set of peripherals tailored for low power . . . . . . . . . . . . . . . . . . . . . . . 8
5 A versatile clock management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
6 Ultra-safe supply monitoring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
7 Conclusion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
8 Revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
2/14 Doc ID 17369 Rev 1
AN3193 STM32L main features
1 STM32L main features
Based on the solid foundations of the award-winning STM32F10x family, the STM32L
embeds various innovations which minimize the consumption in different configurations,
while maintaining most of the existing peripherals and a quasi pin-to-pin compatibility.
For a given manufacturing process and die area, the consumption of a microcontroller
largely depends on two factors which can be controlled dynamically: voltage and frequency.
In the STM32L devices, an internal low drop regulator supplies most of the logic circuitry
with a fixed voltage: this guarantees that consumption is kept minimal whatever the supply
voltage, along the lifetime of portable battery-supplied products, down to 1.65 V.
If we consider the clock sources, several cascaded clock prescalers, gating techniques and
peripheral-by-peripheral clock management allow only the necessary logic gates to be
activated, and at the adequate frequency. These are now design practices commonly used
for reducing the consumption in Run mode. For the STM32L, additional efforts have been
done in this direction with the implementation of voltage scaling to reach an even higher
processing efficiency.
However, all ultralow power requirements cannot be met by simply focusing on run time: for
most applications, the challenge is to spend the minimum time and energy in this mode and
find the adequate low power mode.
The improvements do not come only from the deep sleep modes optimized to eliminate
every ten nA of leakage. The system has also been complemented with seven low power
modes and a set of peripherals tuned for low power (such as the calendar real-time clock
and glass LCD controller). These items are described in more details herafter.
Doc ID 17369 Rev 1 3/14
Energy-efficient processing AN3193
2 Energy-efficient processing
The STM32L is built around the Cortex-M3, an industry standard 32-bit core, which has
been designed, among other criteria, for low power applications. The Cortex-M3 offers a
class-leading performance and code density. Although performance is not naturally linked
with low current consumption, it is a key benefit for most of the low power applications which
have to wake up periodically to execute software tasks. In this case, the Cortex-M3 spends
less time in Run mode due to its processing performance, thus maximizing the time in deep
sleep mode. If we consider only the processing consumption, expressed in mA/DMIPS
(DMIPS standing for Dhrystone MIPS measured using the public benchmark Rev 2.0), the
performance of the Cortex M3 is significantly better than that of the other architectures, in
particular 16-bit microcontrollers.
The performance in DMIPS/MHz being given by the core and its memory interface, the
processing consumption in mA/DMIPS can be maximized using voltage scaling. This
method, also called undervolting, consists of adapting dynamically the supply voltage of the
internal logic with the operating frequency. The STM32L offers three dynamically selectable
voltage ranges, as summarized in the following figure, from 1.8 V (range 1) down to 1.2 V
(range 3), which offers a gain of more than 25 % in terms of consumption.
4/14 Doc ID 17369 Rev 1
AN3193 Energy-efficient processing
1
-(Z
-(Z
-(Z
-(Z
6
6
6
6
#/2%
6 6
66
&
#05
-(Z
7 3
-(Z
-(Z
-(Z
73
2ANGE
2ANGE
2ANGE
AI
6
$$
&
#05
-(Z
73
73
&
#05
-(Z
73
73
!-(Z
!-(Z
!-(Z
Figure 1. STM32L15xxx performance versus VDD and V
CORE
range
A typical example is portable healthcare equipment with USB device capability. As long as it
works in standalone mode, 4 MHz are sufficient to acquire and process the data from the
analog front-end. In this case, the internal logic can be supplied with 1.2 V only. However,
executing a USB software stack when the system is connected to the USB interface of a PC
requires more processing power: in this case, the device can be placed in "highperformance mode", where the internal voltage is 1.8 V. It can then execute code at 32 MHz
while the USB peripheral is supplied by a 48-MHz clock. Voltage scaling is used to deal with
the contradictory requirements of these two operating modes without having to compromise
on the dynamic current consumption.
Doc ID 17369 Rev 1 5/14
Numerous low power modes AN3193
3 Numerous low power modes
At a higher architectural level, the power consumption of the STM32L can be modulated by
entering one of seven low power modes. The power consumption can be reduced by
progressively disabling the frequency-independent current sources (the clock sources, the
non-volatile memory and the regulator) up to the point where most of the chip is powered
down.
The following table summarizes the features available for each mode and provides an
indication of the current consumption.
Table 1. STM32L low power mode overview
Low power
mode
Consumption CPU
100 µA/MHz
(Range 1)
Flash
/ EEPROM
RAM
DMA &
Periph.
Clock LCD RTC
Sleep
Low power
run
Low power
sleep
Stop
with RTC
Stop 500 nA No OFF ON Frozen
Standby
with RTC
Standby 270 nA OFF OFF OFF OFF
82 µA / MHz
(Range 2)
65 µA/MHz
(Range 3)
10.4 µA
(Flash OFF,
32 kHz)
5.1 µA
(periph. OFF)
6.1 µA
(1 timer ON)
1.3 µA (1.8 V)
1.6 µA (3 V)
1.3 µA (3 V)
1 µA (1.8 V)
No ON ON Active Any Available
Yes ON or OFF ON Active MSI Available
No OFF ON Active MSI Available
No OFF ON Frozen
OFF OFF OFF OFF
LSE,
LSI
LSE,
LSI
LSE,
LSI
LSE,
LSI
Available
OFF OFF
OFF ON
OFF OFF
Two new modes have been implemented on the STM32L in addition to the STM32F modes:
the Low power run and Low power sleep modes. They offer the Run and Sleep mode
functionalities for applications with extremely low current consumptions where some
peripherals cannot be switched off (for instance communication peripherals or timers), or
6/14 Doc ID 17369 Rev 1
AN3193 Numerous low power modes
where the CPU is processing continuously at low speed to minimize current variations.
Several functional blocks can be used to reach a very low current:
● The voltage regulator is in low power (LP) mode to reduce its quiescent current
● The non-volatile memory can be switched off, processing being done from the
16-Kbyte RAM
● The master clock source comes from the MSI internal RC oscillator, which can be
reduced down to 1.5 µA.
The maximum current that the regulator can deliver in LP mode only limits the operating
frequency and the number of peripherals that can be activated.
Doc ID 17369 Rev 1 7/14
A set of peripherals tailored for low power AN3193
4 A set of peripherals tailored for low power
Several peripherals require special attention, either because of their intrinsic high
consumption or because they are always powered up.
The STM32L embeds a 12-bit / 1 MSps ADC. This very fast but accurate converter can
jeopardize the battery lifetime if left powered-up continuously, with a 1.45 mA typical
consumption. With its calibration-free architecture, fast power-up time of 3.5 µs and a
conversion time of 1 µs, 6 conversions can be achieved within less than 10 µs, and the ADC
can be shut down immediately afterwards. If this is done at a 1-kHz rate, it represents not
more than 10.5 µA of the ADC related average consumption.
The time required to switch on and off a peripheral is negligible at high speed, but can
become significant for a low operating frequency: at 1 MHz, each instruction lasts as long as
the ADC conversion itself. When the ADC operates at such a low frequency, the conversion
time is also significantly increased without benefits for the end application. To reduce the
consumption and allow the most efficient use of this fast converter, the ADC digital interface
has been designed to operate in a completely independent manner, at its maximum speed,
whatever the CPU operating frequency (which can range from “sub-kHz” up to 32 MHz),
using an internal 16 MHz clock source. It also includes auto shut-down modes to reduce the
software overhead and to cope with a very low CPU frequency. At 32 kHz, each instruction
lasts 30 µs: a burst of conversion can be launched between two cycles, with the ADC
powered-off automatically, so that the ADC extra consumption can be limited to the
necessary time only (for single conversions, during 4.5 µs out of the 30 µs CPU period).
Three peripherals have been developed to operate continuously even in Stop mode, where
the system clock is stopped, with the main oscillator and memory powered down.
● A pair of ultralow comparators is available to monitor analog voltages with a current
down to 3 µA. These comparators can wake up the MCU as soon as the external
voltage reaches the selected threshold and they can be combined together to provide a
window comparator. One of these comparators has a rail-to-rail input capability and its
ouput can be redirected to a timer for a general purpose use.
● An RTC peripheral provides a clock/calendar with two alarms, includes a periodic
wakeup unit and several application specific functions (timestamp, tamper detection
…). It can remain enabled in the lowest power mode (standby) where most of the chip
is powered down, and wake up the full MCU circuitry in case of an alarm or tamper
detection for instance. It also contains 80 bytes of backup registers to store contextual
information when exiting from standby mode. This peripheral has been designed using
asynchronous design techniques to minimize its consumption (below 1 µA).
● The glass LCD is one of the most common displays in low power applications, because
of its inherently low current consumption, low price and customization easiness. The
STM32L includes a versatile LCD controller, which can drive displays with up to 8
common lines and 40 segments, with the capability of selecting individually the I/O
ports assigned to the LCD for an optimal use of the chip alternate functions. It also
controls an optional internal step-up converter to maintain the LCD contrast on a wide
range of V
values with consumptions as low as 5 µA (LCD consumption not
DD
included).
8/14 Doc ID 17369 Rev 1
AN3193 A versatile clock management
5 A versatile clock management
A reset and clock controller (RCC) peripheral manages the five possible clock sources of the
STM32L.
Two external oscillators can be used for applications requiring a high precision:
● The HSE clock (4-24 MHz high speed external clock), typically used to feed the PLL
and to generate a CPU clock frequency of up to 32 MHz and a 48-MHz frequency for
the USB controller.
● The LSE (typically 32.768 kHz low speed external clock) usually used to provide a low
power clock source to the real time clock but which can also be used as LCD clock.
Three internal oscillators can be selected for various tasks:
● The LSI clock (37 kHz low speed internal clock) is a low accuracy ultralow power
source that can feed the real time clock (with a limited accuracy), the LCD controller
and the independent watchdog.
● The HSI clock (16 MHz high speed internal clock) is a high speed voltage-
compensated oscillator.
● The MSI clock (64 kHz to 4 MHz multi speed internal clock) is a medium accuracy
oscillator with adjustable frequency and low current consumption. It is designed to
operate with a current proportional to the frequency, so as to minimize the internal
oscillator consumption overhead for the low CPU frequencies. The following table
summarizes the characteristics and uses of the various oscillators.
Table 2. STM32L clock source characteristics (preliminary data
(1)
)
Clock
source
HSE
LSE RTC and LCD
HSI Master clock 16 MHz 100 µA 1% typical Yes Yes
MSI Master clock
LSI
1. Based on preliminary caracterization or design simulations. Refer to product datasheet for detailed
electrical characteristics
2. -10% to +4% drift after initial measurement
Use Frequency
Master clock
(+ RTC & LCD)
RTC, LCD &
ind. WDG
1-24 MHz 0.5 to 0.7 mA
32.768 kHz
(typical)
64 kHz
128 kHz
256 kHz
512 kHz
1.02 MHz
2.1 MHz
4.1 MHz
38 kHz 0.4 µA (3 V) -30% to +50%
Consumption
(typical)
0.45 µA
(1.8 V)
0.6 µA (3 V)
0.6 µA
0.9 µA
1.4 µA
2.2 µA
4 µA
7 µA
12 µA
(2)
Factory
trimming
No
Accuracy
Crystal
dependent, down
to tens of ppm
Crystal
dependent, down
to a few ppm
TBD Yes Yes
User
trimmable
Not applicable
No, but f
can be
measured
LSI
Doc ID 17369 Rev 1 9/14
A versatile clock management AN3193
The price of a crystal oscillator may not be neglected in cost sensitive applications. For this
reason, the STM32L offers several options to measure the internal oscillators.
Although HSI and MSI are factory trimmed, they can be further trimmed by 0.5% steps
during run time to compensate for frequency deviations due to temperature and voltage
changes. Similarly, manufacturing process deviations of the LSI can be evaluated and
compensated using a higher accuracy clock reference, either internally (HSI) or externally
(LSE or HSE).
As an example, in an application where a 32.768 kHz crystal is used for the RTC, it is
interesting to use the low power MSI oscillator which can provide a clock frequency of up to
4 MHz for the CPU with a typical consumption of 20 µA. Taking advantage of the high
precision of the LSE crystals (typically a few tens of ppm), it is possible to determine the MSI
frequency with the same resolution, and then to trim it on-the-fly.
10/14 Doc ID 17369 Rev 1
AN3193 Ultra-safe supply monitoring
6 Ultra-safe supply monitoring
The STM32L includes a sophisticated supply supervisor module with several programmable
options. This module is active during both power-on/down and run-time phases.
The power-up is a critical phase where the various parts of the internal circuitry must be
sequentially started and critical parameters (such as factory trimming values or options)
retrieved from the non-volatile memory to perform MCU initialization, even before the user's
reset phase. This is also during this period that V
from the battery insertion or because of a weak power source.
can be altered with glitches coming
DD
The ultra safe power-on reset circuitry guarantees that the reset is released only if the V
is above 1.8 V, whatever the slope of the V
ramp-up phase, so that the circuit is within its
DD
DD
guaranteed operating conditions when the program execution starts.
Once the power-up phase is completed, the user can choose to activate or not the brownout reset (BOR) detector for a continuous battery monitoring, and select one of 5 thresholds.
This is an option stored in the non-volatile memory to make this power supervision
completely software independent. It is completed by a 7-level programmable voltage
detector (PVD) that can be enabled by software to generate an early interrupt in case of a
voltage drop.
The consumption of both the BOR and PVD modules is below 3 µA, when continuously
powered, but it can remain significant in the deep sleep modes. If needed, the power
supervision module can be programmed to have the BOR and the PVD disabled during the
deep sleep phase and enabled again automatically on wakeup events. This minimizes the
current consumption when the application is in idle mode (with usually a slightly higher and
very stable supply due to an extremely light load). However, this does not jeopardize the
safety when the execution starts again.
The STM32L is one of the few standard MCUs on the market with an operating range down
to 1.65 V and only very few limitations (USB, ADC and DAC cannot be used but all other
features are functional). A dedicated STM32L device with permanently disabled BOR is
available and can be used in applications with a voltage tolerance of 1.8 V ± 8% .
In this case, a "zero current" Power-on / Power-down reset (POR/PDR) module remains
active and releases the reset after a hard-coded temporization. It is then up to the user to
guarantee that the V
slope during the start-up is steep enough to reach at least 1.65 V
DD
when the reset vector is fetched.
Doc ID 17369 Rev 1 11/14
Conclusion AN3193
7 Conclusion
The main features of the STM32L devices are presented in this application note. They show
the benefits offered by this microcontroller family to reduce the MCU's current consumption
in embedded systems.
The STM32L family extends the ST's EnergyLite
additional memory sizes and bigger packages. It complements the STM32 portfolio keeping
compatibility with other STM32 devices.
With its Cortex-M3 core and its energy-efficient architecture system, this microcontroller
family supports low power modes without compromizing the processing performance.
Its rich set of peripherals can cover a wide range of applications, while numerous low power
modes give a full flexibility to adjust on-the-fly the consumption to any task.
This results in an extended operating lifetime for today's and tomorrow's always greener
applications.
TM
platform for applications requiring
12/14 Doc ID 17369 Rev 1
AN3193 Revision history
8 Revision history
Table 3. Document revision history
Date Revision Changes
16-Apr-2010 1 Initial release.
Doc ID 17369 Rev 1 13/14
AN3193
Please Read Carefully:
Information in this document is provided solely in connection with ST products. STMicroelectronics NV and its subsidiaries (“ST”) reserve the
right to make changes, corrections, modifications or improvements, to this document, and the products and services described herein at any
time, without notice.
All ST products are sold pursuant to ST’s terms and conditions of sale.
Purchasers are solely responsible for the choice, selection and use of the ST products and services described herein, and ST assumes no
liability whatsoever relating to the choice, selection or use of the ST products and services described herein.
No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted under this document. If any part of this
document refers to any third party products or services it shall not be deemed a license grant by ST for the use of such third party products
or services, or any intellectual property contained therein or considered as a warranty covering the use in any manner whatsoever of such
third party products or services or any intellectual property contained therein.
UNLESS OTHERWISE SET FORTH IN ST’S TERMS AND CONDITIONS OF SALE ST DISCLAIMS ANY EXPRESS OR IMPLIED
WARRANTY WITH RESPECT TO THE USE AND/OR SALE OF ST PRODUCTS INCLUDING WITHOUT LIMITATION IMPLIED
WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE (AND THEIR EQUIVALENTS UNDER THE LAWS
OF ANY JURISDICTION), OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT.
UNLESS EXPRESSLY APPROVED IN WRITING BY AN AUTHORIZED ST REPRESENTATIVE, ST PRODUCTS ARE NOT
RECOMMENDED, AUTHORIZED OR WARRANTED FOR USE IN MILITARY, AIR CRAFT, SPACE, LIFE SAVING, OR LIFE SUSTAINING
APPLICATIONS, NOR IN PRODUCTS OR SYSTEMS WHERE FAILURE OR MALFUNCTION MAY RESULT IN PERSONAL INJURY,
DEATH, OR SEVERE PROPERTY OR ENVIRONMENTAL DAMAGE. ST PRODUCTS WHICH ARE NOT SPECIFIED AS "AUTOMOTIVE
GRADE" MAY ONLY BE USED IN AUTOMOTIVE APPLICATIONS AT USER’S OWN RISK.
Resale of ST products with provisions different from the statements and/or technical features set forth in this document shall immediately void
any warranty granted by ST for the ST product or service described herein and shall not create or extend in any manner whatsoever, any
liability of ST.
ST and the ST logo are trademarks or registered trademarks of ST in various countries.
Information in this document supersedes and replaces all information previously supplied.
The ST logo is a registered trademark of STMicroelectronics. All other names are the property of their respective owners.
© 2010 STMicroelectronics - All rights reserved
STMicroelectronics group of companies
Australia - Belgium - Brazil - Canada - China - Czech Republic - Finland - France - Germany - Hong Kong - India - Israel - Italy - Japan -
Malaysia - Malta - Morocco - Philippines - Singapore - Spain - Sweden - Switzerland - United Kingdom - United States of America
www.st.com
14/14 Doc ID 17369 Rev 1
Loading...
