AN3171
Application note
Comparing the M24C64-R, M24C64-F and M24C64-W devices to the M24LR64-R dual interface EEPROM
Introduction
The purpose of this application note is to explain the differences between the M24LR64-R dual interface EEPROM when controlled from the I²C bus, and the standard M24C64-F, M24C64-R, M24C64-W EEPROMs.
For simplification purposes, the M24C64-F, M24C64-R, M24C64-W will be referred to as M24C64 in the rest of the document.
For additional information, please refer to the M24LR64-R and M24C64 datasheets.
March 2010 |
Doc ID 17229 Rev 1 |
1/14 |
www.st.com
Contents |
AN3171 |
|
|
Contents
1 |
Hardware considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
5 |
||
|
1.1 |
Pinout comparison . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
5 |
|
|
1.2 |
Two ways of accessing the M24LR64-R: RF and I²C . . . . . . . . . . . . . . . . . |
6 |
|
2 |
Software considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
7 |
||
3 |
M24LR64-R memory organization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
8 |
||
|
3.1 |
User memory seen from the I²C bus (E2=0) . . . . . . . . . . . . . . . . . . . . . . . |
8 |
|
|
|
3.1.1 |
Sectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
8 |
|
|
3.1.2 |
Page Write . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
8 |
|
|
3.1.3 |
Read . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
9 |
|
|
3.1.4 |
I²C Present Password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
9 |
|
|
3.1.5 |
I²C Write Password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
9 |
3.2 System memory seen from the I²C bus (E2=1) . . . . . . . . . . . . . . . . . . . . 10
3.2.1 M24LR64-R’s RF block security status . . . . . . . . . . . . . . . . . . . . . . . . . 10 3.2.2 I²C_Write_Lock bits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 3.2.3 System parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
4 |
Revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
13 |
2/14 |
Doc ID 17229 Rev 1 |
AN3171 |
List of tables |
|
|
List of tables

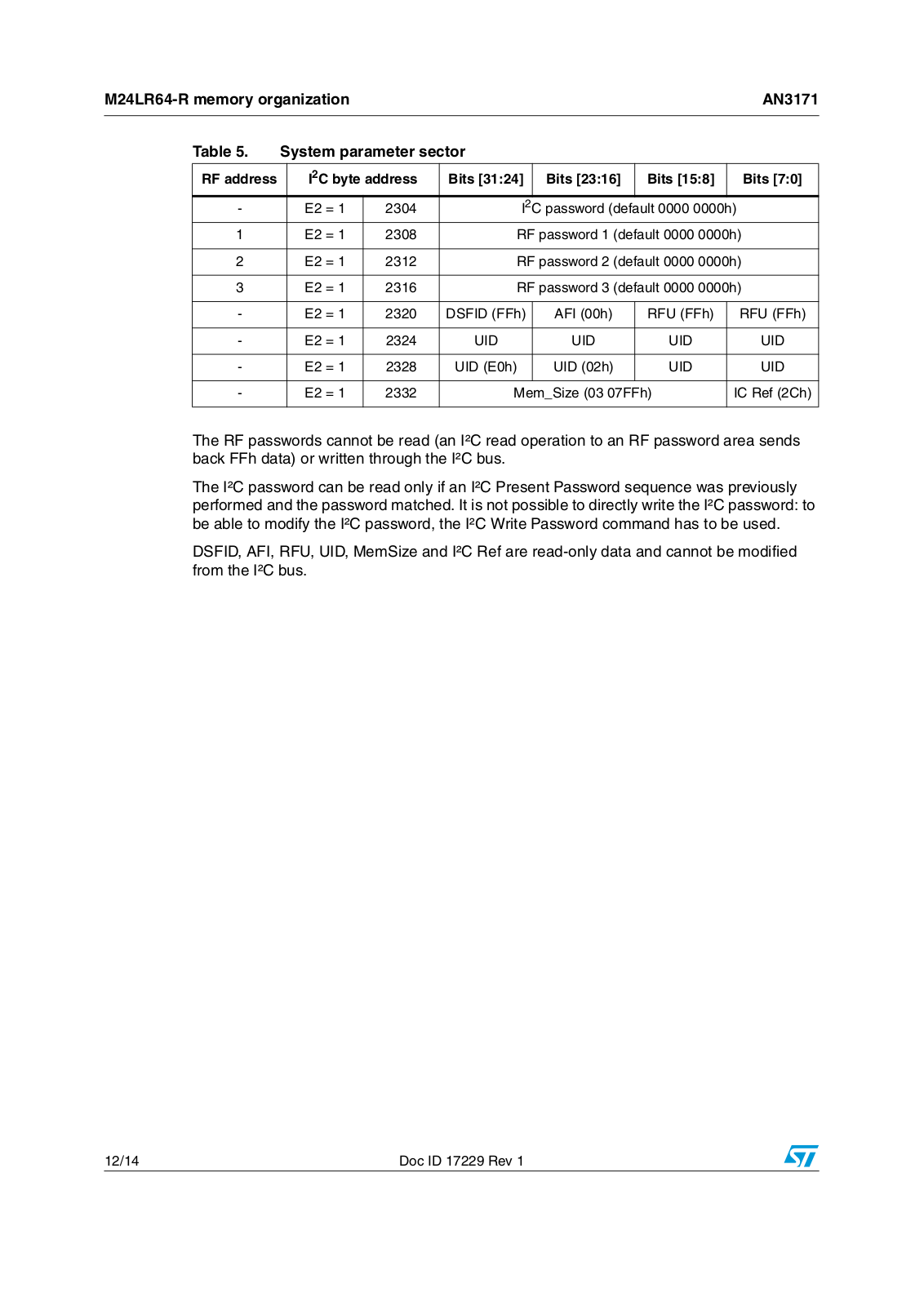

Table 1. M24LR64-R device select code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Table 2. M24C64 device select code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Table 3. RF block security status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Table 4. I2C_Write_Lock bits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Table 5. System parameter sector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Table 6. Document revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Doc ID 17229 Rev 1 |
3/14 |
List of figures |
AN3171 |
|
|
List of figures
Figure 1. M24LR64-R and M24C64 logic diagrams. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Figure 2. M24LR64-R and M24C64 pinouts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Figure 3. M24LR64-R block diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Figure 4. M24LR64-R’s user and system memories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Figure 5. I2C Present Password command . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Figure 6. I2C Write Password command . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
4/14 |
Doc ID 17229 Rev 1 |
AN3171 |
Hardware considerations |
|
|
Figure 1 and Figure 2 show the logic diagrams and the pinouts of the M24LR64-R and M24C64 devices, respectively.
6## |
6## |
|
|
|
% % |
3$! |
|
|
!# |
|
3#, |
- ,2 2 |
|
!# |
||
|
|
|
% % |
3$! |
3#, |
- # |
|
|
7# |
|
633 |
633 |
!) |
M24LR64-R AC0/AC1 pins: due to its RF capability, the M24LR64-R dual interface EEPROM features two inputs (AC0 and AC1) to connect the RF antenna.
Consequently, two inputs present in the M24C64 are not offered in the M24LR64-R: these are E2 and Write Control (WC).
Practically, this means that you will be able to use up to four M24LR64-R devices (defined by E0, E1) on the same I²C bus, compared to eight devices (defined by E0, E1, E2) for the M24C64.
The Write Control input (WC) is used to write-protect the M24C64. The M24LR64-R can also be protected but in a different way, using the I2C_Write_Lock bits.
|
% |
|
|
|
|
6## |
|
% |
|
|
|
|
|
|
|
6## |
|||||
|
|
|
|
|
|
|
|
|
|||||||||||||
!# |
|
|
|
|
% |
% |
|
|
|
|
|
7# |
|
||||||||
|
|
|
|
|
|
||||||||||||||||
!# |
|
|
|
|
|
|
|
3#, |
% |
|
|
|
|
|
|
|
3#, |
||||
|
|
|
|
|
|
|
|
|
|
||||||||||||
633 |
|
|
|
|
|
3$! |
633 |
|
|
|
3$! |
||||||||||
|
|
|
|
|
|||||||||||||||||
|
|
||||||||||||||||||||
|
|
|
|
|
|
||||||||||||||||
|
|
|
|
|
-,2 2 |
|
|
|
|
|
|
|
|
-# |
|
|
|
|
AI |
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Figure 2 shows that the four mandatory pins for the I²C bus (VSS, VCC, SCL, SDA) are positioned likewise in the two devices.
AC0 and AC1 are connected to pin 2 and pin 3, respectively. They have to be next to each other for RF capability requirements. As a result, E1 was moved to pin 7 in the M24LR64-R, whereas it is connected to pin 2 in the M24C64.
