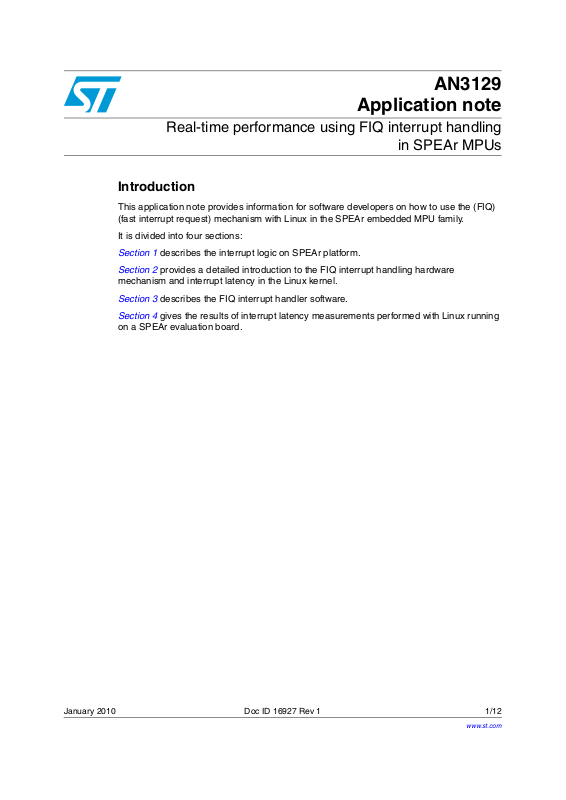

AN3129

Application note

Real-time performance using FIQ interrupt handling

in SPEAr MPUs

Introduction

This application note provides information for software developers on how to use the (FIQ)
(fast interrupt request) mechanism with Linux in the SPEAr embedded MPU family.

It is divided into four sections:

Section 1 describes the interrupt logic on SPEAr platform.

Section 2 provides a detailed introduction to the FIQ interrupt handling hardware

mechanism and interrupt latency in the Linux kernel.

Section 3 describes the FIQ interrupt handler software.

Section 4 gives the results of interrupt latency measurements performed with Linux running

on a SPEAr evaluation board.

January 2010 Doc ID 16927 Rev 1 1/12

www.st.com

SPEAr interrupt logic AN3129

Interrupt logic

Interrupt sources

Vectored

interrupt

controller

ARM

FIQ

IRQ

1 SPEAr interrupt logic

SPEAr is a family of embedded MPUs based on the ARM core. The embedded MPU uses
the PL190 vectored interrupt controller (VIC) IP. Together they provide facilities to use fast
interrupts as highest priority interrupts. Fast interrupt features are supported by both the
ARM core and the VIC. This VIC IP can be configured to select any hardware source to
interrupt ARM core as either IRQ or FIQ.

Figure 1. SPEAr platform interrupt logic

The order of priority for hardware interrupts (from higher to lower) is as follows:

1. Fast interrupt request (FIQ) interrupts

2. Vectored IRQ interrupts

3. Non-vectored IRQ interrupts.

FIQs are intended for fast, low-latency interrupt handling. In FIQ mode, the ARM core uses
seven 32-bit banked registers, which enable the VIC to process interrupts as quickly as
possible.

Multiple interrupts can be handled as FIQs, but in this case the IRQ vector needs to be
loaded in the program counter (PC). In order to reduce interrupt latency, it is advised to use
a single FIQ source, because the ISR can be directly executed without determining the
source of the interrupt.

As the Linux kernel never disables FIQs they have ultimate priority over anything else in the
system. When using an FIQ, the FIQ latency will be the time it takes the CPU to enter your
FIQ function. Moreover an FIQ can preempt Linux kernel code and IRQ handlers and it can
also be used for faster response to interrupts.

Note: The use of an FIQ in place of an IRQ does not require any hardware (wiring) modifications

on the SPEAr board. The VIC has a 32-bit register (VICINTSELECT) which can toggle an
IRQ source to raise an FIQ instead of the default mechanism of IRQ.

2/12 Doc ID 16927 Rev 1

AN3129 Linux kernel IRQ handling latency

Interrupt IRQ handler

Interrupt

latency

Interrupt disabling in Kernel

OR

other interrupt handler

Interrupt

handler

duration

2 Linux kernel IRQ handling latency

In a Linux kernel based system, interrupt latency may occur in the following cases:

● Interrupt latency for top half,

● Various sections where IRQs are disabled

Figure 2. IRQ handling latency in Linux Kernel

An FIQ is a highest priority interrupt and preempts both of these sources of latency. It can
preempt IRQ top half handlers as well as Linux kernel code sections where IRQs are
disabled. Further to this, the FIQ handler can not be preempted by other IRQs. This ensures
that the platform has predictable worst case timings for FIQ handler latency making FIQ
suitable for real-time systems.

The FIQ handler can not permit tasks that require other IRQs to be active, including the
timer. This also makes it suitable for real-time systems but imposes the following limitations:

● Kernel mode APIs and device driver framework can not be used inside the FIQ handler.

These APIs available for Linux driver development may internally rely upon timers,
schedulers, spinlocks, etc. for functioning. Linux code also needs to guard against
multiple access to objects by spinlocks or other relevant mechanisms. FIQ ISRs can
come in the middle of anything and have to get out quickly again too. So unless it is a
simple macro, you can not use any Linux APIs in the FIQ ISR.

● Page faults have to be avoided inside the handler (the memory used in the handler

should be already allocated and initialized). In case that a page fault occurs inside the
FIQ handler, it can not be recovered by the kernel and it would lead to a kernel crash.

Doc ID 16927 Rev 1 3/12

FIQ handler environment AN3129

3 FIQ handler environment

The FIQ registration, the ISR function and the runtime environment of a FIQ handler are
different from a standard IRQ handler. A working example of an FIQ handler can be found in
latency measurement module in Section 4: IRQ latency measurement.

3.1 FIQ registration

For FIQ registration ‘set_fiq_handler’ API is used.

The two arguments of this API are:

● Function pointer

● Size of handler function in bytes

This handler function is copied to the FIQ vector reserved area. The FIQ vector area is last
in the memory area reserved for interrupt vectors. About five hundred (500) bytes are
available in this area for copying the ISR.

In the SPEAr Linux Support Package (LSP), the following API must be used to select the
configuration of the IRQ source:

● vic_unmask_irq(int number) – enables interrupt source on VIC as IRQ

● vic_select_fiq(int number) – selects interrupt source on VIC as FIQ instead of IRQ

3.2 FIQ mode registers setup

When the FIQ handler runs, it utilizes FIQ mode-specific registers (r8-r14) and general
mode registers (r0-r7). This set of FIQ mode registers is exclusive to FIQ mode and not
available to other handlers.

To pass any information to the FIQ handler, the FIQ mode registers have to be set using the
call: ‘set_fiq_regs’.

3.3 Return from FIQ mode

To return from FIQ mode on completion of the code, use the following assembly instruction:

subs pc, lr, #4;

This command restores the instruction pointer to the original location it was before FIQ
arrived.

3.4 FIQ ISR in C

Writing the FIQ handler function in ARM assembly language can be cumbersome, so it is
highly recommended to use C language instead. This is especially true for large functions
when the handler function is larger than the maximum size available for FIQ vector (500
bytes). In such cases branching to the C function can be possible. This involves saving of
the register context (r0-r12 general mode registers) and initialization of the function frame
pointer.
