AN3103
Application note
Fully integrated microstepping motor driver using the L6470
Introduction
This application note describes the demonstration board for the fully integrated microstepping motor driver L6470.
The board is designed to be used with IBU universal interface (IBU-UI) or universal USB-to- serial communication interface (UUSCI) board and the dSPIN Evaluation tool software.
March 2010 |
Doc ID 16760 Rev 1 |
1/18 |
www.st.com
Contents |
AN3103 |
|
|
Contents
1 |
Board description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
. 5 |
|
2 |

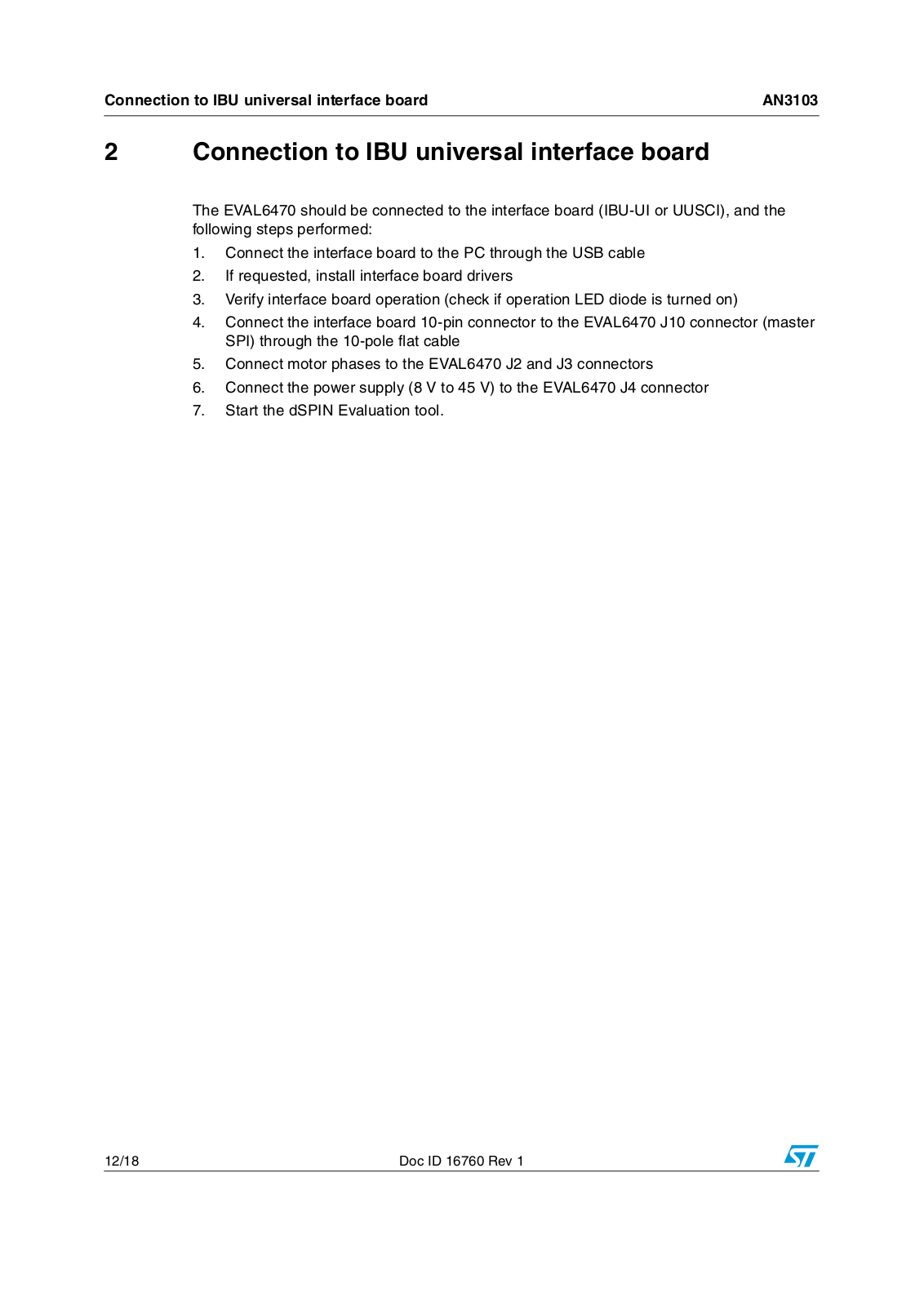

Connection to IBU universal interface board . . . . . . . . . . . . . . . . . . . . |
12 |
|
3 |
dSPIN Evaluation tool . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
13 |
|
|
3.1 |
Software installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
13 |
|
3.2 |
Main form . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
13 |
3.2.1 Menu and toolbars . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 3.2.2 Positioning commands tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 3.2.3 Speed command tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 3.2.4 HardStop, SoftStop, HardHiZ and SoftHiZ buttons . . . . . . . . . . . . . . . . 14 3.2.5 Device status panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
3.3 Register map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 3.4 Device configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
4 |
Revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
17 |
2/18 |
Doc ID 16760 Rev 1 |
AN3103 |
List of tables |
|
|
List of tables
Table 1. EVAL6470: jumper and connector description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Table 2. EVAL6470: master SPI connector pinout (J10) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Table 3. EVAL6470: slave SPI connector pinout (J11). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Table 4. EVAL6470: electrical specification (recommended values) . . . . . . . . . . . . . . . . . . . . . . . . . 7 Table 5. EVAL6470: component list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Table 6. Document revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Doc ID 16760 Rev 1 |
3/18 |
List of figures |
AN3103 |
|
|
List of figures
Figure 1. EVAL6470 demonstration board. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Figure 2. EVAL6470 demonstration board jumper and connector locations . . . . . . . . . . . . . . . . . . . . 5 Figure 3. EVAL6470 schematic - part 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Figure 4. EVAL6470 schematic - part 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Figure 5. EVAL6470 layout (top layer) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Figure 6. EVAL6470 layout (bottom layer). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Figure 7. dSPIN Evaluation tool main form . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Figure 8. dSPIN Evaluation tool Register Map form . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Figure 9. dSPIN Evaluation tool device configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
4/18 |
Doc ID 16760 Rev 1 |
AN3103 |
Board description |
|
|
|
Table 1. |
EVAL6470: jumper and connector description |
|
||
|
|
Name |
Type |
Function |
|
|
|
|
|
|
|
|
|
J4 |
Power supply |
Board power supply |
|
|
|
|
|
|
|
|
|
J2 |
Power outputs |
Bridge A outputs |
|
|
|
|
|
|
|
|
|
J3 |
Power outputs |
Bridge B outputs |
|
|
|
|
|
|
|
|
|
J10 |
SPI connector |
Master SPI connector |
|
|
|
|
|
|
|
|
|
J11 |
SPI connector |
Slave SPI connector |
|
|
|
|
|
|
|
|
|
SW |
NM test point |
External switch connector |
|
|
|
|
|
|
|
|
|
VS |
Test point |
Motor supply voltage |
|
|
|
|
|
|
|
|
|
VREG |
Test point |
Internal 3 V regulator output |
|
|
|
VDD |
Test point |
Logic interface voltage |
|
|
|
GND |
Test point |
Ground |
|
|
|
|
|
|
|
|
|
JP7 |
Jumper |
Selects SPI connector PWM2 GPIO functionality |
|
|
|
|
|
|
|
|
|
|
Doc ID 16760 Rev 1 |
5/18 |
|
|
|
|
|
|
|
Board description |
|
|
AN3103 |
|
|
|
|
|
|
|
Table 1. |
EVAL6470: jumper and connector description (continued) |
||
|
|
|
|
|
|
|
Name |
Type |
Function |
|
|
|
|
|
|
|
JP2 |
Jumper |
Daisy chain termination |
|
|
|
|
|
|
|
JP5 |
Jumper |
EXT_VDD (SPI connector) to VDD connection |
|
|
JP3 |
Jumper |
VDD to VREG connection |
|
|
JP4 |
Jumper |
Selects ADCIN source |
|
|
|
|
|
Table 2. |
EVAL6470: master SPI connector pinout (J10) |
|
Pin number |
Description |
|
|
|
|
|
1 |
L6470 BUSY open drain output |
|
|
|
|
2 |
L6470 FLAG open drain output |
|
|
|
|
3 |
Ground |
|
|
|
|
4 |
EXT_VDD (can be used as external logic power supply) |
|
|
|
|
5 |
SPI master in, slave out signal (connected to L6470 SDO output through |
|
daisy chain termination jumper JP2) |
|
|
|
|
|
|
|
|
6 |
SPI serial clock signal (connected to L6470 CK input) |
|
|
|
|
7 |
SPI master out, slave in signal (connected to L6470 SDI input) |
|
|
|
|
8 |
SPI slave select signal (connected to L6470 CS input) |
|
|
|
|
9 |
PWM1 input |
|
|
|
|
10 |
PWM2 input |
|
|
|
Table 3. |
EVAL6470: slave SPI connector pinout (J11) |
|
Pin number |
Description |
|
|
|
|
|
1 |
L6470 BUSY open drain output |
|
|
|
|
2 |
L6470 FLAG open drain output |
|
|
|
|
3 |
Ground |
|
|
|
|
4 |
EXT_VDD (can be used as external logic power supply) |
|
|
|
|
5 |
SPI master in, slave out signal (connected to pin 5 of J10) |
|
|
|
|
6 |
SPI serial clock signal (connected to L6470 CK input) |
|
|
|
|
7 |
SPI master out, slave in signal (connected to L6470 SDO output) |
|
|
|
|
8 |
SPI slave select signal (connected to L6470 CS input) |
|
|
|
|
9 |
PWM1 input |
|
|
|
|
10 |
PWM2 input |
|
|
|
6/18 |
Doc ID 16760 Rev 1 |
