AN3001
Application note
Demonstration board user guidelines for the
TS4657 single supply stereo digital audio line driver
Introduction
This application note focuses on the TS4657 demonstration board, designed to evaluate
STMicroelectronics’ TS4657 device.
This document provides:
■ a brief description of the TS4657 device.
■ a description of the demonstration board and all of its components.
■ the layout of the demonstration board.
Figure 1. TS4657 demonstration board
July 2009 Doc ID 15911 Rev 1 1/12
www.st.com
About the TS4657 AN3001
1 About the TS4657
The TS4657 is a stereo digital-to analog-converter (DAC) that integrates a highperformance audio line driver capable of generating a 2.2 Vrms output level from a single
3.0 to 5.5 V supply.
One single supply is sufficient for the digital and analog parts of the circuit, thus eliminating
the need for external regulators.
The TS4657 is a low-power consumption device. It features only 22 mW power dissipation
at a 3.0 V power supply in full operation.
A 16-bit multi-bit sigma delta DAC is used, operating at 256xFs with oversampling digital
interpolation filters. The digital audio data can be 16- to 24-bit long and sample rates from
32 to 48 kHz are supported.
The output stage signal is ground-referenced by using an internal self-generated negative
power supply, and as such external bulky output coupling capacitors are not necessary.
The TS4657 features the following.
● Power supply range: 3.0 V to 5.5 V.
● Audio line output: 2.2 Vrms for all V
● 16- to 24-bit audio data format stereo DAC, 32 to 48 kHz sample rate.
● I²S, right- or left-justified compatible digital audio interface.
● 95 dB SNR A-weighted at 48 kHz, V
● Low current consumption of 7.4 mA at V
● Internal negative power supply to ensure ground-referenced, capless outputs.
● No necessity for an external capacitor for negative power supply generation.
● Integrated structure to suppress pop and click noise
● Standby mode active low.
● QFN20 package, 4mmx4mm,500µm pitch.
range.
CC
CC
=5V.
= 3.0 V, full operation.
CC
Refer to the datasheet entitled "Single supply stereo digital audio line driver with 2.2 Vrms
capless outputs" for complete information on the TS4657.
2/12 Doc ID 15911 Rev 1
AN3001 Description of the demonstration board
2 Description of the demonstration board
The TS4657 demonstration board has been designed for evaluation purposes. The TS4657
device is soldered on a two-layer PCB.
Some key features of the TS4657 can be directly controlled through connectors or jumpers
on the demonstration board (Tab l e 1 ).
Table 1. Demonstration board connectors
Connector Description
J1 MCLK: master clock input
J2 BCLK: bit clock input
J3 SDAT: serial data input
J4 LRCLK: left right clock input (channel selector input)
J5
Power supply connector (V
3.0 to 5.5 V.
J6 Left audio output
J7 Right audio output
Allows selection of level on Format1 pin. Format1 and Format2 pins select the digital
input format (see section 4.1.2 Digital audio input format in the TS4657 datasheet).
JP1
If the jumper is removed, it is possible to control the Format1 by an external logic
signal (see section 3.3 DAC and output stage performances in the TS4657
datasheet).
and GND). Power supply voltage of the TS4657 from
CC
Allows selection of level on Format2 pin. Format1 and Format2 pins select the digital
input format (see section 4.1.2 Digital audio input format in the TS4657 datasheet).
JP2
If the jumper is removed, it is possible to control the Format2 by an external logic
signal (see section 3.3 DAC and output stage performances in the TS4657
datasheet).
Controls the chip standby (JP1:1-2 = circuit activated, 2-3 = circuit in standby mode).
JP3
If the jumper is removed, it is possible to control the standby by an external logic
signal (see section 3.3 DAC and output stage performances in the TS4657
datasheet).
JP4
JP5
JP6
JP7
Caution: When you apply the power supply through J5, do not invert the polarity as doing so will
Allows connection of the C6 capacitor (used for the left output filter;
see Section 3.3: Output filters on page 6).
Allows short-circuiting of the R5 resistor (used for the left output filter; see
Section 3.3: Output filters on page 6).
Allows connection of the C7 capacitor (used for the right output filter; see
Section 3.3: Output filters on page 6).
Allows short-circuiting of the R7 resistor (used for the right output filter; see
Section 3.3: Output filters on page 6).
damage the chip.
Doc ID 15911 Rev 1 3/12
Description of the demonstration board AN3001
Figure 2. Schematic diagram
VCCA
Digital
input
SDAT
MCLK
LRCLK
BCLK
VCCD
C2
2
Control
interface
1uF
nc20nc
Digital
audio
interface
3v to 5V5
VCC
GND
J5
J4
J3
J2
J1
VCCDVCCA
10 uF/6V3
C1
R1
100KR2100KR3100KR4100K
3
LRCLK
4
SDAT
5
BCLK
6
MCLK
19
VCCD
13
Digital
filters
and
DACs
C3
1uF
VCCA
18
TS4657
C4
1uF
VREGD
C5
1uF
14
VREGA
VOUTL
VOUTR
IC1
820
820
R5
R7
12
11
C6
2nF2
JP4
R6
nc
JP5
JP7
R8
JP6
nc
C7
2nF2
J6
SIP2
OUT L
OUT R
J7
SIL2
VCCD
123
JP1
FORMAT18FORMAT2
/STDBY
9
7
123
123
JP2
JP3
Format2Format1 /Stdby
GNDD
1
GNDD
17
GNDA
10
GNDA15GNDA
16
Epad
User control
Table 2. Component list for the demonstration board
Name Quantity Description
C1 1 10 µF/6.3 V +/-20 %, SMD electrochemical capacitor
C2, C3, C4, C5 4 1 µF/10 V X5R, +/-10 %, SMD ceramic capacitors 0603
C6,C7 2 2.2 nF/50 V X7R, +/-10 %, SMD ceramic capacitors 0603
R1, R2, R3, R4 4 100 K/1 %, 0.063 W, SMD resistors, 0603
R5, R7 2 820 ohms/1 %, 0.063 W, SMD resistors, 0603
R6, R8 2 Not connected (see Section 3.4: Optional measurement loads on page 7)
J1, J2, J3, J4, J5,
J6, J7,
11 2-pin header 2.54 mm pitch
JP4, JP5, JP6, JP7
Output filters
AM04525
JP1, JP2, JP3 3 3-pin header 2.54 mm pitch
IC1 1 TS4657IQT
4/12 Doc ID 15911 Rev 1
AN3001 Configuring the demonstration board
3 Configuring the demonstration board
3.1 Serial data input configuration
The TS4657 receives serial digital audio data through a 3-wire interface. SDAT is the serial
audio data input. The data is entered MSB first and is a two’s complement. The data can be
2
I
S, right- or left-justified. The data format is chosen with the control pins FORMAT1 and
FORMAT2 as detailed in Ta bl e 3 .
The level on both of these pins should be fixed before waking-up the chip.
Table 3. Digital audio data formats supported by the TS4657
FORMAT2 FORMAT1 Data Format
00
01
10
11
BCLK/LRCLK ratio
Min Max
Right-justified, 16-bit data
Data valid on rising edge of BCLK
Right-justified, 24-bit data
Data valid on rising edge of BCLK
Left-Justified, 16-bit up to 24-bit data
Data valid on rising edge of BCLK
I²S, 16-bit up to 24-bit data
Data valid on rising edge of BCLK
2 x number of bits of data 256
2 x number of bits of data 256
32 256
48 256
3.2 Sample rate capability
Three external clock signals are applied to the TS4657. The MCLK is the external master
clock applied by the audio data processor. The LRCLK is the channel frequency, also called
LEFT/RIGHT clock, at which the digital words for each channel are input to the device. The
LRCLK clock is the sample rate of the audio data. The ratio MCLK/LRCLK must be an
integer, as shown in Ta bl e 4 .
The BCLK is the bit clock and represents the clock at which the audio data is serially shifted
into the audio port. BCLK is linked to LRCLK. The minimum required BCLK frequency is
twice the audio sample rate multiplied by the number of bits in each audio word. Refer to
Ta bl e 3 for the BCLK/LRCLK ratio. MCLK, LRCLK and BCLK must be synchronous clock
signals.
Table 4. Audio data sampling rates
LRCLK (kHz)
32 8.192
44.1 11.2896
48 12.288
MCLK (MHz)
256x
Doc ID 15911 Rev 1 5/12
Configuring the demonstration board AN3001
3.3 Output filters
The output filter embedded on the demonstration board is a low-pass filter made up of a
resistor and a capacitor. In this configuration, the -3 dB cut-off frequency in Hz is:
1
----------------------------- -
2π RC××
with R = R5=R7 in ohms, C in farads and C = C6=C7.
Figure 3 and Figure 4 show the jumper settings to use depending on whether or not the
output filters are necessary. If the output filters are not necessary, JP5 and JP7 are shorted
and JP4 and JP6 are opened. If the output filters are required, JP4 and JP6 are shorted and
JP5 and JP7 are opened.
Figure 3. Output stage without output filters Figure 4. Output stage with output filters
6/12 Doc ID 15911 Rev 1
AN3001 Configuring the demonstration board
3.4 Optional measurement loads
As shown in Figure 2 on page 4, there are two resistors (R6 and R8) that are not connected
on the demonstration board. These resistors are used to measure the performances of the
TS4657 with different loads. After the test, it is best to remove them and load the TS4657
with the application only.
The load on both outputs should be higher or equal to 5 k. Generally, the standard load for
the audio line is 10 k (10 K/1 %, 0.063 W, SMD resistors, 0603).
3.5 Specific considerations
The TS4657 utilizes a power management unit to supply its internal structures.
A self-generated negative supply allows the drivers to be powered from positive and
negative supplies, thus increasing the output signal amplitude. This internal negative supply
switches at a higher frequency than traditional architectures, derived from the master clock
MCLK. This structure uses an original design that allows suppressing the flying or floating
capacitors. Therefore, only four small 1 µF decoupling capacitors are necessary for
VCCA/VCCD and VREGA/VREGD.
Furthermore, the self-generated negative supply allows the amplifier outputs to be centered
around zero, thus the bulky output coupling capacitors can be removed.
As mentioned previously, the MCLK is used internally to supply some blocks. It is therefore
not recommended to switch off the MCLK during normal operation.
To properly power-down the device, MCLK, BCLK and LRCLK should be switched off after
the STDBY signal.
The power-down time is very short and can be considered as zero.
Doc ID 15911 Rev 1 7/12
Demonstration board layout AN3001

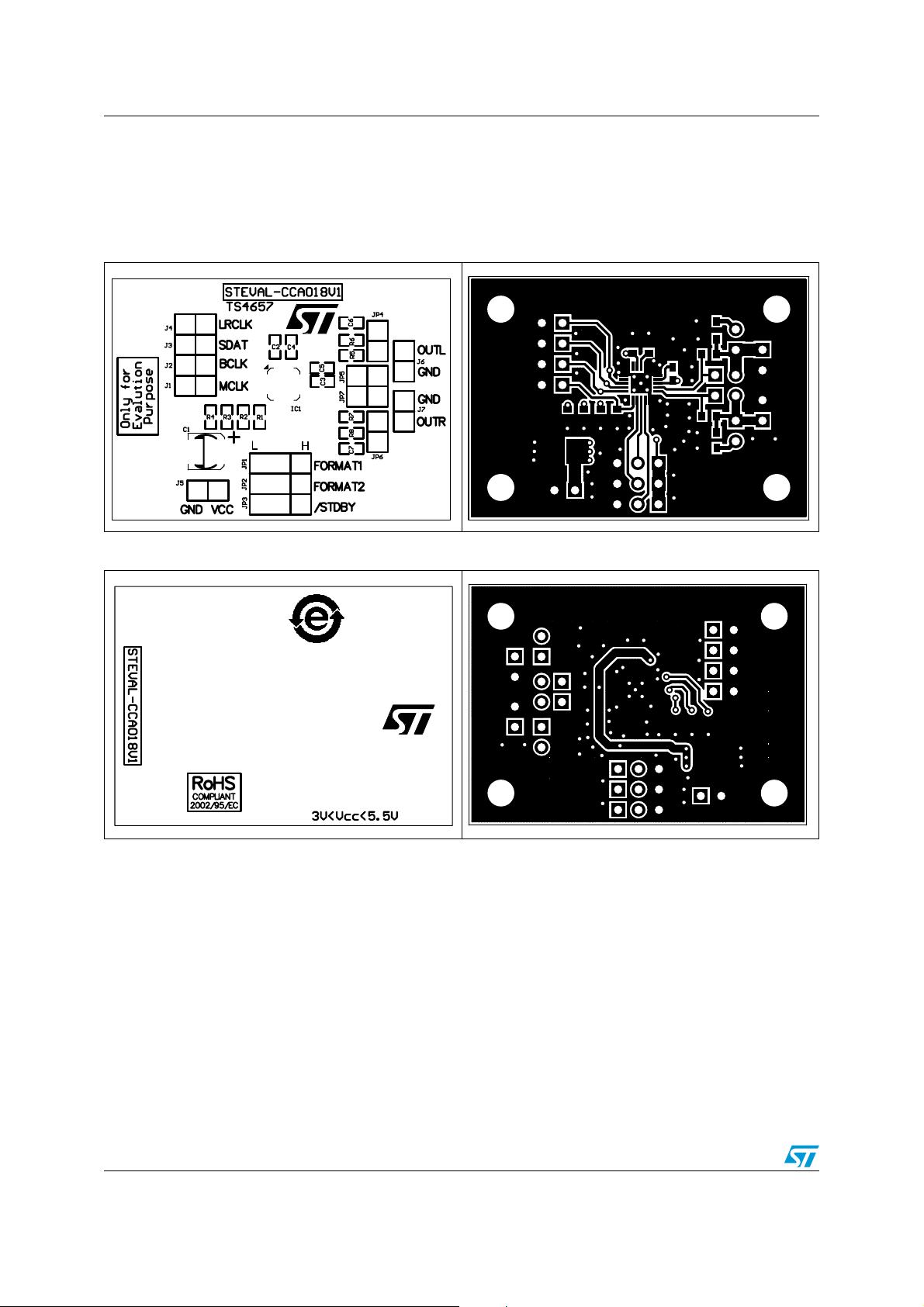

4 Demonstration board layout
The following figures show the layers and top and bottom views of the demonstration board.
Figure 5. PCB top overlay Figure 6. PCB top layer
Figure 7. PCB bottom overlay Figure 8. PCB bottom layer
8/12 Doc ID 15911 Rev 1
AN3001 Demonstration board layout
Figure 9. Top view of the demonstration board
Figure 10. Bottom view of the demonstration board
Doc ID 15911 Rev 1 9/12
Conclusion AN3001
5 Conclusion
To order the board online, go to http://www.st.com/stonline/domains/buy/buy_dev.htm, and
use the order code STEVAL-CCA018V1.
10/12 Doc ID 15911 Rev 1
AN3001 Revision history
6 Revision history
Table 5. Document revision history
Date Revision Changes
03-Jul-2009 1 Initial release.
Doc ID 15911 Rev 1 11/12
AN3001
Please Read Carefully:
Information in this document is provided solely in connection with ST products. STMicroelectronics NV and its subsidiaries (“ST”) reserve the
right to make changes, corrections, modifications or improvements, to this document, and the products and services described herein at any
time, without notice.
All ST products are sold pursuant to ST’s terms and conditions of sale.
Purchasers are solely responsible for the choice, selection and use of the ST products and services described herein, and ST assumes no
liability whatsoever relating to the choice, selection or use of the ST products and services described herein.
No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted under this document. If any part of this
document refers to any third party products or services it shall not be deemed a license grant by ST for the use of such third party products
or services, or any intellectual property contained therein or considered as a warranty covering the use in any manner whatsoever of such
third party products or services or any intellectual property contained therein.
UNLESS OTHERWISE SET FORTH IN ST’S TERMS AND CONDITIONS OF SALE ST DISCLAIMS ANY EXPRESS OR IMPLIED
WARRANTY WITH RESPECT TO THE USE AND/OR SALE OF ST PRODUCTS INCLUDING WITHOUT LIMITATION IMPLIED
WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE (AND THEIR EQUIVALENTS UNDER THE LAWS
OF ANY JURISDICTION), OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT.
UNLESS EXPRESSLY APPROVED IN WRITING BY AN AUTHORIZED ST REPRESENTATIVE, ST PRODUCTS ARE NOT
RECOMMENDED, AUTHORIZED OR WARRANTED FOR USE IN MILITARY, AIR CRAFT, SPACE, LIFE SAVING, OR LIFE SUSTAINING
APPLICATIONS, NOR IN PRODUCTS OR SYSTEMS WHERE FAILURE OR MALFUNCTION MAY RESULT IN PERSONAL INJURY,
DEATH, OR SEVERE PROPERTY OR ENVIRONMENTAL DAMAGE. ST PRODUCTS WHICH ARE NOT SPECIFIED AS "AUTOMOTIVE
GRADE" MAY ONLY BE USED IN AUTOMOTIVE APPLICATIONS AT USER’S OWN RISK.
Resale of ST products with provisions different from the statements and/or technical features set forth in this document shall immediately void
any warranty granted by ST for the ST product or service described herein and shall not create or extend in any manner whatsoever, any
liability of ST.
ST and the ST logo are trademarks or registered trademarks of ST in various countries.
Information in this document supersedes and replaces all information previously supplied.
The ST logo is a registered trademark of STMicroelectronics. All other names are the property of their respective owners.
© 2009 STMicroelectronics - All rights reserved
STMicroelectronics group of companies
Australia - Belgium - Brazil - Canada - China - Czech Republic - Finland - France - Germany - Hong Kong - India - Israel - Italy - Japan -
Malaysia - Malta - Morocco - Philippines - Singapore - Spain - Sweden - Switzerland - United Kingdom - United States of America
www.st.com
12/12 Doc ID 15911 Rev 1
Loading...
