AN2961
Application note
STEVAL-ILL026V1 non-isolated 3 W offline
LED driver based on the VIPER22A-E
Introduction
This application note describes the functioning of the STEVAL-ILL026V1 non-isolated 3 W offline LED driver power supply designed using the VIPER22A-E low power offline SMPS primary switcher from STMicroelectronics. The circuit regulates the load current to 350 mA and generates about 10 V. The load is composed of three high-brightness (HB) LEDs, connected in series.
The project does not provide safety isolation between the input and output.
This document provides the power supply specification, circuit diagrams, the complete bill of materials, and reports the results of circuit testing.
!-V
November 2009 |
Doc ID 15559 Rev 1 |
1/14 |
www.st.com
Contents |
AN2961 |
|
|
|
|
Contents
1 |
Specification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
. 4 |
2 |
Bill of material . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
5 |
3 |
Electrical schematic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
6 |
4 |
Circuit description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
7 |
5 |
Test results . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
8 |
6 |
Conducted emission tests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
11 |
7 |

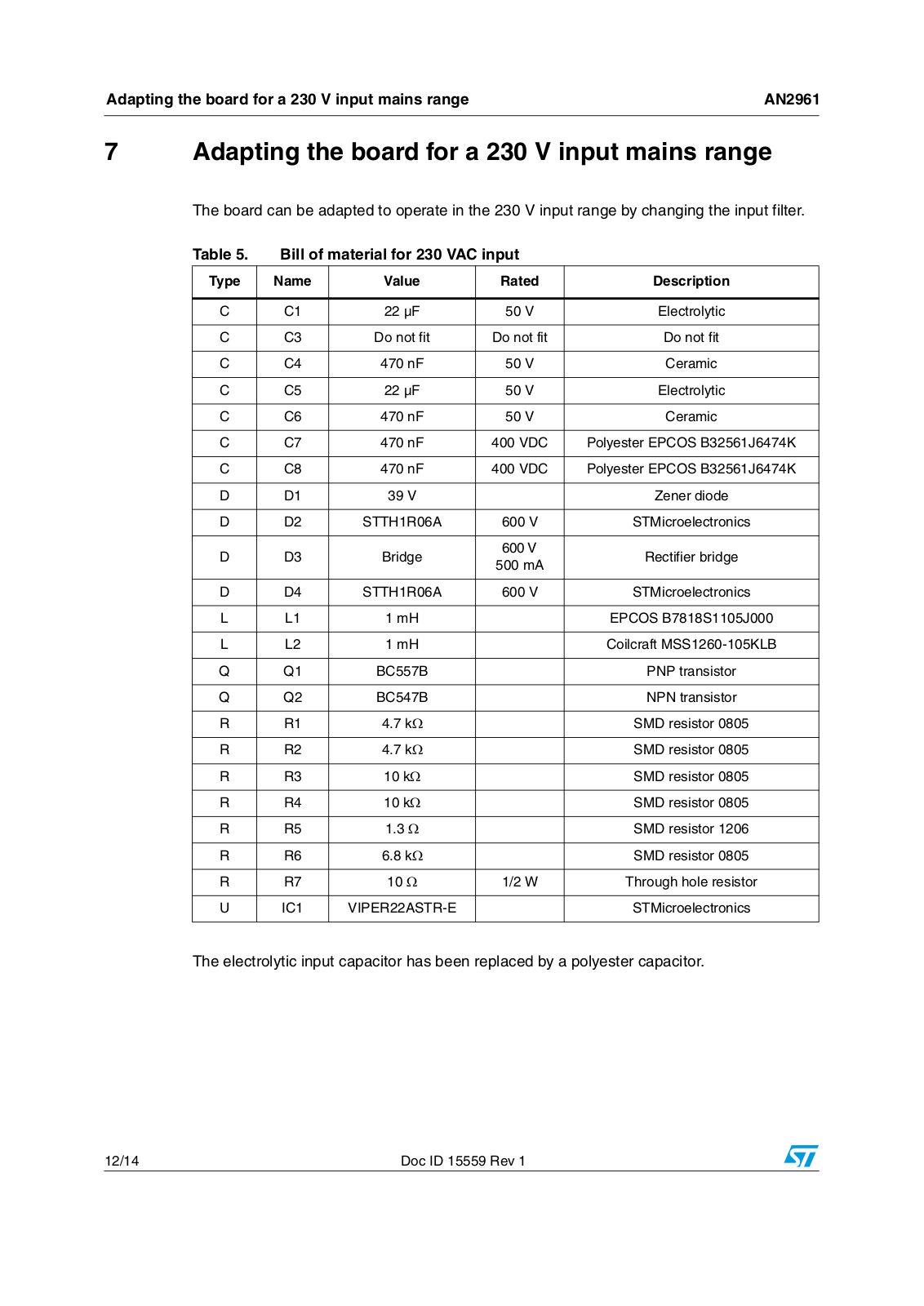

Adapting the board for a 230 V input mains range . . . . . . . . . . . . . . . |
12 |
8 |
Revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
13 |
2/14 |
Doc ID 15559 Rev 1 |
AN2961 |
List of figures |
|
|
List of figures
Figure 1. STEVAL-ILL026V1 board photographs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Figure 2. STEVAL-ILL026V1 schematic diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Figure 3. VIPER22A-E startup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Figure 4. 110 V steady state operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Figure 5. LED current regulation vs. input voltage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Figure 6. Board efficiency vs. input voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Figure 7. Conducted emissions at 230 VAC 50 Hz - line 1 peak detector . . . . . . . . . . . . . . . . . . . . . 11 Figure 8. Conducted emissions at 230 VAC 50 Hz - line 2 peak detector . . . . . . . . . . . . . . . . . . . . . 11
Doc ID 15559 Rev 1 |
3/14 |
Specification |
AN2961 |
|
|
|
|
The electronic lamp ballast electrical specifications are given in the table below.
Table 1. |
Specification |
|
|
|
|
|
Input parameters |
|
|
|
|
|
|
|
|
VIN |
Input voltage range |
|
90 to 265 VRMS |
|
fline |
Line frequency |
|
50/60 Hz |
|
|
HB LEDs |
|
|
|
|
|
|
|
|
Number |
|
3 |
|
|
|
|
|
|
|
Power / current |
|
3 W / 350 mA |
|
|
|
|
|
|
4/14 |
Doc ID 15559 Rev 1 |
AN2961 |
Bill of material |
|
|
Table 2. |
STEVAL-ILL026V1 bill of material |
|
|||
Type |
Name |
Value |
Rated |
Description |
|
|
|
|
|
|
|
C |
C1 |
22 µF |
50 V |
Electrolytic |
|
|
|
|
|
|
|
C |
C3 |
2.2 µF |
450 V |
Electrolytic |
|
|
|
|
|
|
|
C |
C4 |
470 nF |
50 V |
Ceramic |
|
|
|
|
|
|
|
C |
C5 |
22 µF |
50 V |
Electrolytic |
|
|
|
|
|
|
|
C |
C6 |
470 nF |
50 V |
Ceramic |
|
|
|
|
|
|
|
C |
C7 |
470 nF |
400 VDC |
Polyester EPCOS |
|
B32561J6474K |
|||||
|
|
|
|
||
|
|
|
|
|
|
C |
C8 |
Do not fit |
Do not fit |
Do not fit |
|
|
|
|
|
|
|
D |
D1 |
39 V |
|
Zener diode |
|
|
|
|
|
|
|
D |
D2 |
STTH1R06A |
600 V |
STMicroelectronics |
|
|
|
|
|
|
|
D |
D3 |
Bridge |
600 V 500 mA |
Rectifier bridge |
|
|
|
|
|
|
|
D |
D4 |
STTH1R06A |
600 V |
STMicroelectronics |
|
|
|
|
|
|
|
L |
L1 |
1 mH |
|
EPCOS B7818S1105J000 |
|
|
|
|
|
|
|
L |
L2 |
1 mH |
|
Coilcraft MSS1260-105KLB |
|
|
|
|
|
|
|
Q |
Q1 |
BC557B |
|
PNP transistor |
|
|
|
|
|
|
|
Q |
Q2 |
BC547B |
|
NPN transistor |
|
|
|
|
|
|
|
R |
R1 |
4.7 kΩ |
|
SMD resistor 0805 |
|
|
|
|
|
|
|
R |
R2 |
4.7 kΩ |
|
SMD resistor 0805 |
|
|
|
|
|
|
|
R |
R3 |
10 kΩ |
|
SMD resistor 0805 |
|
|
|
|
|
|
|
R |
R4 |
10 kΩ |
|
SMD resistor 0805 |
|
|
|
|
|
|
|
R |
R5 |
1.3 Ω |
|
SMD resistor 1206 |
|
|
|
|
|
|
|
R |
R6 |
6.8 kΩ |
|
SMD resistor 0805 |
|
|
|
|
|
|
|
R |
R7 |
10 Ω |
1/2 W |
Through hole resistor |
|
|
|
|
|
|
|
U |
IC1 |
VIPER22A-E |
|
STMicroelectronics |
|
|
|
|
|
|
Doc ID 15559 Rev 1 |
5/14 |
