AN2809
Application note
6-row / 30-mA LED driver with boost converter for the backlight of LCD panels
Introduction
The LED7706 consists of a high-efficiency monolithic boost converter and six controlled current generators (rows) specifically designed to supply the LED arrays used in the backlights of LCD panels. The device can manage an output voltage of up to 36 V (ten white LEDs per row).
The generators can be externally-programmed to sink up to 30 mA and can be dimmed via a PWM signal (a 1% dimming duty-cycle at 20 kHz can be managed). The device detects and manages the open and shorted LED faults and leaves unused rows floating. Basic protections (output over-voltage, internal MOSFET over-current and thermal shutdown) are provided.
February 2009 |
Rev 2 |
1/22 |
www.st.com
Contents |
AN2809 |
|
|
Contents
1 |
LED7706 main features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
. 5 |
|
|
1.1 |
Boost section . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
5 |
|
1.2 |
Backlight driver section . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
5 |
2 |
LED7706 demonstration board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
6 |
|
3 |
Component list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
7 |
|
4 |
Components assembly and layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
8 |
|
5 |
I/O interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
9 |
|
6 |
Recomended equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
10 |
|
7 |
Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
10 |
7.1 SW1 fixed or adjustable switching frequency (FSW pin) . . . . . . . . . . . . . 10 7.2 SW2 fault management mode (MODE pin) . . . . . . . . . . . . . . . . . . . . . . . 11 7.3 SW3 enable function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
8 |
Test setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
12 |
|
9 |
Getting started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
13 |
|
|
9.1 |
Quick startup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
13 |
|
9.2 |
Open and shorted WLEDs fault testing . . . . . . . . . . . . . . . . . . . . . . . . . . |
14 |
|
9.3 |
Device synchronization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
14 |
|
9.4 |
Efficiency measurements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
15 |
10 |
WLEDs test board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
18 |
|
11 |
Revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
21 |
2/22
AN2809 |
List of figures |
|
|
List of figures
Figure 1. LED7706 demonstration board. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Figure 2. LED7706 board schematic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Figure 3. Top side component placement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Figure 4. Bottom side test points . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Figure 5. SW1 (FSW) setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Figure 6. SW2 (MODE) setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

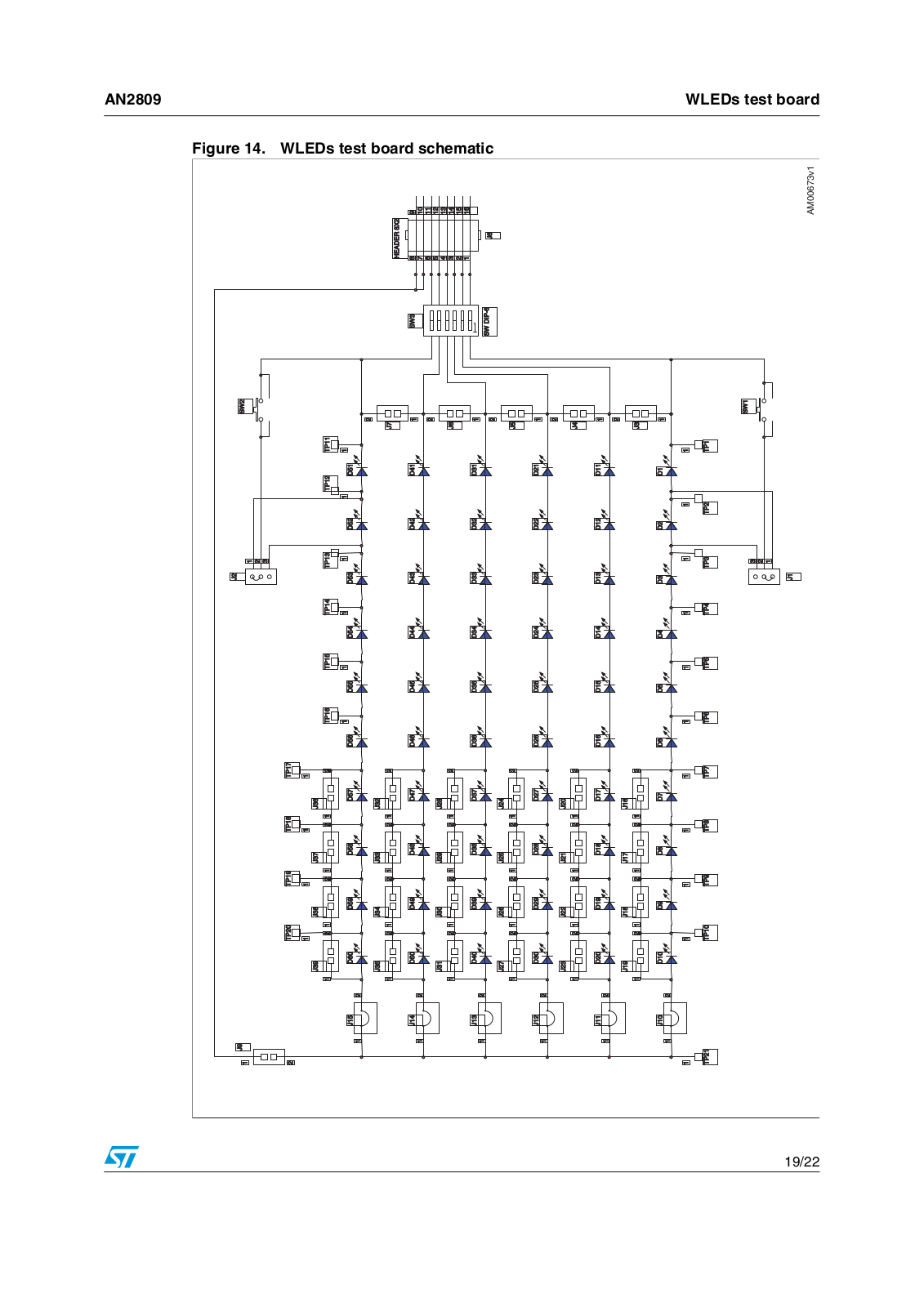

Figure 7. LED7706 demonstration board and white LEDs test board assembly . . . . . . . . . . . . . . . . 12 Figure 8. LED7706 board test setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Figure 9. LED7706 synchronization setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Figure 10. Efficiency measurements setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Figure 11. Efficiency vs DIM duty cycle, VIN=12V, 10 white LEDs in series, IOUT = 120mA . . . . . . . . 17 Figure 12. Efficiency vs DIM duty cycle, VIN=24V, 10 white LEDs in series, IOUT = 120mA . . . . . . . . 17 Figure 13. WLEDs test board. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Figure 14. WLEDs test board schematic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
3/22
List of tables |
AN2809 |
|
|
List of tables
Table 1. LED7706 performance summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Table 2. LED7706 component list. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Table 3. LED7706 demonstration board test points description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Table 4. Faults management summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Table 5. Test board jumpers function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Table 6. Test boards switches functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Table 7. Test board test-points function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Table 8. Document revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
4/22
AN2809 |
LED7706 - main features |
|
|
●4.5- to 36-V input voltage range
●Internal power MOSFET
●Internal +5 V LDO for device supply
●Up to 36-V output voltage
●Constant frequency peak current-mode control
●200-kHz to 1-MHz adjustable switching frequency
●External sync for multi-device application
●Pulse-skip power-saving mode at light loads
●Programmable soft-start
●Programmable OVP protection
●Single ceramic output capacitor
●Non-latched thermal shutdown
●Six rows with 30 mA maximum current capability (adjustable)
●Up to 10 white LEDs per row
●Row disabling option
●Less than 500 ns minimum dimming time (1% minimum dimming duty-cycle at 20 kHz dimming frequency)
●±2.0% current matching between rows
●LED failure (open and short circuit) detection
5/22
LED7706 demonstration board |
AN2809 |
|
|
The LED7706 demonstration board has been designed to manage six strings of 8 to 10 white LEDs each.
Table 1 summarizes the board features and Figure 2 shows the schematic of the LED7706 demonstration board. The input voltage range is limited to 32 V because of the 35 V rated input capacitor. Extended operating input voltage ranges (up to 36 V) can be achieved by using a 50-V rated MLCC.
Table 1. |
LED7706 performance summary |
|
||
|
Parameter |
Conditions |
Value |
|
|
|
|
||
Minimum input voltage |
|
4.5 V |
||
|
|
|
||
Maximum input voltage |
|
32 V |
||
|
|
|
|
|
|
Output voltage |
|
VIN<VBOOST<36 V |
|
Output OVP threshold |
R1 = 510 kΩ, R2 = 16 kΩ |
38 V |
||
|
|
|
||
Internal MOSFET OCP |
R7 = 180 kΩ |
3.3 A |
||
|
|
|
|
|
Boost section switching frequency |
FSW pin to AVCC |
660 kHz |
||
|
|
|||
FSW pin to R5 = 330 kΩ |
825 kHz |
|||
|
|
|||
|
|
|
||
Minimum dimming on-time |
400 Hz < FDIM < 20 kHz |
500 ns |
||
|
|
|
||
Output current (each row) |
R6=51 kΩ |
19.6 mA |
||
|
|
|
||
Output current accuracy |
±2.0% |
|||
|
||||
|
|
|
|
|
|
Efficiency |
VIN = 12 V, VBOOST = 34 V, |
91% |
|
|
FSW = 660 kHz |
|||
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
$ |
|
|
|
|
|
|
6). |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
, U |
3403 , - |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
# |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
U |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
6). |
|
2 |
|
2 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
K |
|
K |
|
|
|
39.# |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
* |
!6## |
|
|
!6## |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
3,/0% |
# |
# |
# |
|
|
|
2 |
K |
|
|
|
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
U |
U |
. - |
||
|
|
|
|
|
|
|
!6## |
|
|
|
|
|
|
2 |
# |
|
|||
|
|
|
|
|
|
|
5 |
|
|
|
|
|
|
|
|
||||
|
|
|
,%$?%. |
|
|
|
|
|
|
|
|
/63%, |
K |
P |
|
|
|
|
|
|
|
$ |
2 |
|
|
|
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
# |
N |
|
|
39.# |
6). |
,8 |
|
|
|
|
|
|
|
||
|
|
|
|
K |
|
|
|
|
|
|
|
|
|
6"//34 |
|||||
|
|
2%$ M! |
|
|
|
!6## |
|
|
|
|
|
||||||||
|
|
|
|
|
|
|
|
|
|
/63%, |
|
|
|
|
|
|
|
||
&!5,4 |
|
|
|
|
|
|
2 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
2 |
|
|
|
|
3,/0% |
|
|
|
|
|
|
||
|
|
|
|
|
|
# |
U |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
,$/ |
|
|
0'.$ |
|
|
|
|
|
|
'.$ |
|
%. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
&!5,4 |
,%$ |
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
%. |
|
|
|
2/7 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
$)- |
|
|
|
|
|
|
|
|
|
|
|
2/7 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
$)- |
|
|
2/7 |
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
2/7 |
|
|
|
|
|
|
|
|
|
!6## |
|
|
|
|
|
-/$% |
|
|
2/7 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
#/-0 |
|
|
|
|
2/7 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
#/-0 |
|
|
4(0$ |
|
|
|
|
|
|
* |
|
|
|
|
|
|
|
|
|
33 |
&37 |
2),)- |
"),)- |
3'.$ |
|
|
|
|
|
|
(%!$%2 |
|
# |
37 |
37 |
2 |
|
|
33 |
|
|
|
|
|
|
|
|
||||
2 |
K |
|
|
|
|
|
|
|
|
|
|
|
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||
K |
N |
%. |
|
|
# |
!6## |
|
|
|
|
|
|
2/7 |
2/7 |
2/7 |
2/7 |
2/7 |
2/7 |
|
|
|
|
|
|
N |
|
&37 |
|
2),)- |
"),)- |
|
|
|
|
|
|
|
||
|
|
|
# |
# |
|
|
|
|
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
. - |
N |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
2 |
37 |
|
2 |
|
2 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
K |
|
|
K |
|
K |
|
|
|
|
|
|
|
|
6). |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
!-V |
