ST AN2744 Application note

AN2744

Application note

ST7538Q power line FSK transceiver

dual channel reference design for AMR

Introduction

The ST7538Q dual channel reference design is a practical tool to start the activity of
designing an automatic meter reading (AMR) node based on the ST7538Q power line FSK
transceiver.

With this reference design, it is possible to evaluate the features of the ST7538Q and its
transmitting and receiving performances in an actual communication on the power line
network.

The ST7538Q reference design can be considered as composed of three main sections:

■ power supply section, specifically designed to coexist with power line communication and

to operate from a wide-range input mains voltage

■ modem and crystal oscillator section

■ dual channel line coupling interface section

The dual channel line coupling interface allows the ST7538Q FSK transceiver to transmit
and receive on the mains using two different carrier frequencies: 72 kHz and 86 kHz, both
within the frequency band A specified by the European CENELEC EN50065 standard for
AMR applications.

Figure 1. ST7538Q dual channel reference design board with outline dimensions

56mm

98mm

As it can be seen from the picture above, a special effort has been made to develop a
compact reference design board, oriented to practical applications.

Note: The information provided in this application note refers to the EVALST7538DUAL reference

design board.

April 2008 Rev 1 1/56

www.st.com

56

Contents AN2744

Contents

1 Electrical characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

2 Safety precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

3 ST7538Q FSK power line transceiver description . . . . . . . . . . . . . . . . 10

4 Evaluation tools description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

5 Board description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

5.1 Line coupling interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

5.1.1 Dual channel selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

5.1.2 Dual channel Tx passive filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

5.1.3 Dual channel Rx passive filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

5.1.4 Dual channel Rx active filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

5.1.5 Input impedance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

5.2 Conducted disturbances . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

5.2.1 Conducted emissions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

5.2.2 Noise immunity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

5.3 Thermal design . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

5.4 Oscillator section . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

5.5 Surge and burst protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

5.6 50-pin connector for communication board . . . . . . . . . . . . . . . . . . . . . . . 40

5.7 Power supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

6 Performance and ping tests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

7 Application ideas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

7.1 Three-phase architecture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

7.2 Received signal strength indication (RSSI) . . . . . . . . . . . . . . . . . . . . . . . 47

7.3 110-132.5 kHz dual channel coupling circuit . . . . . . . . . . . . . . . . . . . . . . 49

8 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

9 List of normative references . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

2/56

AN2744 Contents

Appendix A Board layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

10 Revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

3/56

List of figures AN2744

List of figures

Figure 1. ST7538Q dual channel reference design board with outline dimensions . . . . . . . . . . . . . . . 1

Figure 2. Typical curve for output current limit vs. RCL value . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Figure 3. ST7538Q transceiver block diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Figure 4. Complete evaluation system including a PC, an EVALCOMMBOARD and the

EVALST7538DUAL board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Figure 5. Power line modem demonstration kit with transmission session window . . . . . . . . . . . . . . 13

Figure 6. Scheme of the various sections of the board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Figure 7. Modem and coupling interface schematic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Figure 8. Power supply schematic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Figure 9. Schematic of Rx and Tx filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Figure 10. Measured frequency response of the Tx passive filter for 72 kHz channel (typical). . . . . . 22

Figure 11. Measured frequency response of the Tx passive filter for 86 kHz channel (typical). . . . . . 23

Figure 12. Simulated frequency response of the Tx passive filter for 72 kHz channel with tolerance

effect . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Figure 13. Simulated frequency response of the Tx passive filter for 86 kHz channel with tolerance

effect . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Figure 14. Measured frequency response of the Rx passive filter for 72 kHz channel (typical) . . . . . 25

Figure 15. Measured frequency response of the Rx passive filter for 86 kHz channel (typical) . . . . . 26

Figure 16. Simulated frequency response of the Rx passive filter for 72 kHz channel with tolerance

effect . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Figure 17. Simulated frequency response of the Rx passive filter for 86 kHz channel with tolerance

effect . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Figure 18. Measured frequency response of the Rx active filter for 72 kHz channel (typical) . . . . . . . 27

Figure 19. Measured frequency response of the Rx active filter for 86 kHz channel (typical) . . . . . . . 28

Figure 20. Simulated frequency response of the Rx active filter for 72 kHz channel with tolerance

effect . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Figure 21. Simulated frequency response of the Rx active filter for 86 kHz channel with tolerance

effect . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

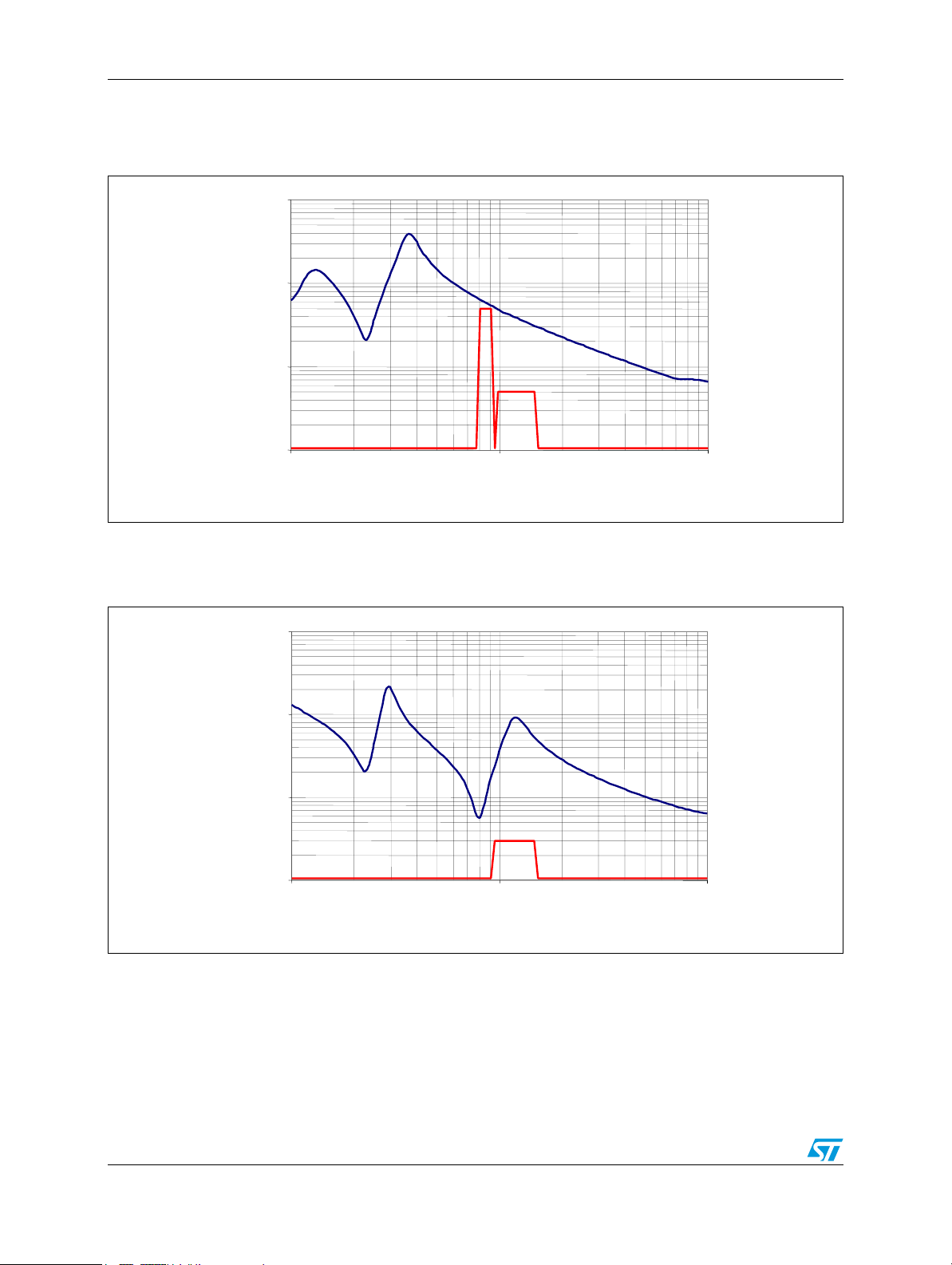

Figure 22. Measured input impedance magnitude of the coupling interface in Rx mode for the 72 kHz

channel (typical curve) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Figure 23. Measured input impedance magnitude of the coupling interface in Rx mode for the 86 kHz

channel (typical curve) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Figure 24. Measured input impedance magnitude of the coupling interface in Tx mode for the 72 kHz

channel (typical curve) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Figure 25. Measured input impedance magnitude of the coupling interface in Tx mode for the 86 kHz

channel (typical curve) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Figure 26. Conducted disturbance test setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Figure 27. Output spectrum (typical) at 72 kHz channel, mains 220 VAC, fixed transmitted

tone = "1" . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Figure 28. Output spectrum (typical) at 86 kHz channel, mains 220 VAC, fixed transmitted

tone = "1" . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Figure 29. Narrowband conducted interference test setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Figure 30. Measured BER vs. SNR curve (typical), white noise . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Figure 31. Measured SNR vs. frequency curves (typical) at BER=10-3 - 72 kHz channel . . . . . . . . . 35

Figure 32. Measured SNR vs. frequency curves (typical) at BER=10-3 - 86 kHz channel . . . . . . . . . 35

Figure 33. PCB copper dissipating area for the ST7538Q dual channel reference design . . . . . . . . . 36

Figure 34. Packet-fragmented transmission . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Figure 35. Thermal impedance typical curve for the ST7538Q mounted on the reference design

board. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Figure 36. A recommended oscillator section layout for noise shielding . . . . . . . . . . . . . . . . . . . . . . . 38

4/56

AN2744 List of figures

Figure 37. Common mode disturbances protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Figure 38. Differential mode disturbances protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Figure 39. Scheme of the communication board connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Figure 40. Typical waveforms at 230 VAC: open load. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Figure 41. Typical waveforms at 230 VAC: full load . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Figure 42. Typical waveforms at 265 VAC: short-circuit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Figure 43. Typical waveforms at 265 VAC: startup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Figure 44. Load regulation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Figure 45. SMPS efficiency curve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Figure 46. Demonstration software window for the master board . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Figure 47. Scheme of principle for three-phase architecture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Figure 48. Peak detector electrical schematic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Figure 49. Measured DC_OUT vs. AC_IN peak detector performance . . . . . . . . . . . . . . . . . . . . . . . . 48

Figure 50. PCB layout - top view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Figure 51. PCB layout - bottom view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

5/56

List of tables AN2744

List of tables

Table 1. Electrical characteristics of the ST7538Q dual channel reference design . . . . . . . . . . . . . . 7

Table 2. Output signal level setting through V

Table 3. Bill of materials . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Table 4. ST parts on the ST7538Q dual channel reference design board . . . . . . . . . . . . . . . . . . . . 19

Table 5. Line coupling transformer specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Table 6. Noise immunity test settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Table 7. 50-pin connector digital signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Table 8. 50-pin connector control signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Table 9. 50-pin connector power connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Table 10. SMPS specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Table 11. SMPS transformer specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Table 12. List of components to be modified for the 110-132.5 kHz dual channel coupling. . . . . . . . 49

Table 13. Document revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

partitioning - typical values . . . . . . . . . . . . . . . . 8

SENSE

6/56

AN2744 Electrical characteristics

1 Electrical characteristics

Table 1. Electrical characteristics of the ST7538Q dual channel reference design

Parameter Value Notes

Min. Typ. Max.

Operating condition

Ambient operating
temperature

85 °C

Transceiver section

Selectable channel frequencies: 72 kHz (CH1), 86 kHz (CH2)

Transmitting specifications (Tx Mode)

Transmitting output voltage
level

Transmitting output current
limit

2 V

RMS

325 mA

RMS

2.25 V

RMS

Second harmonic distortion -55 dB

Third harmonic distortion -61 dB

50 Hz attenuation 100 dB

Receiving specifications (Rx Mode)

Minimum detectable Rx signal 53 dB/µV

RMS

Auxiliary supply

5 V linear regulator (VDC)
output voltage

5 V linear regulator (VDC)
current capability

-5% 5.05 V +5% ST7538Q internally generated

100 mA

If junction temperature
exceeds 180 °C the device
shuts down

R20 = 3.9 kΩ, R22=2.2 kΩ
– see Ta bl e 2

R19 = 2 kΩ – see Figure 2

Loaded with CISPR 16-1
network

Loaded with CISPR 16-1
network

BER<10-3, negligible noise

Power supply section

AC mains voltage range 85 V 265 V

Mains frequency 50-60 Hz

Output voltage -10% 10 V +10% Green LED ON

Output voltage ripple 1%

I

= 600 mA, VIN=85 V

OUT

Output current 600 mA

Output power 5.6 W

Efficiency at P

Nominal transformer
isolation

(1)

Number of holdup cycles

= 3.5 W 70%

OUT

4 kV

0

Primary to secondary/
secondary to auxiliary

AC

7/56

Electrical characteristics AN2744

Table 1. Electrical characteristics of the ST7538Q dual channel reference design (continued)

Parameter Value Notes

Input power 100 mW

Switching frequency -10% 60 kHz +10% Transceiver section in Tx mode

1. ST does not guarantee transformer isolation. ST assumes no responsibility for the consequences that may result from that

risk.

Table 2. Output signal level setting through V

V

[V

OUT

]V

RMS

OUT

[dBuV

](R

RMS

+ R8) / R

7

partitioning - typical values

SENSE

8

R7 [kΩ]R

[kΩ]

8

1.000 120 1.25 0.910 2.2

1.125 121 1.4 1.3 2.2

1.250 122 1.6 2.2 2.2

1.500 124 2.0 2.7 2.2

1.800 125 2.25 3.3 2.2

2.000 126 2.5 3.9 2.2

2.250 (Note 1) 127 2.8 4.7 2.2

2.500 (Note 1) 128 3.15 6.8 2.2

3.000 (Note 1) 130 4.0 7.5 2.2

Note: 1 EN50065-1 normative compliance is not guaranteed with a signal level at mains output

greater than 2 V

Figure 2. Typical curve for output current limit vs. RCL value

400

400

RMS

8/56

350

350

300

300

250

250

Irms (mA)

Irms (mA)

200

200

150

150

100

100

1.75 2 2.25 2.5 2.75 3 3.25 3.5 3.75 4 4.25 4.5 4.75 5

1.75 2 2.25 2.5 2.75 3 3.25 3.5 3.75 4 4.25 4.5 4.75 5

Rcl (kOhm )

Rcl (kOhm )

AN2744 Safety precautions

2 Safety precautions

The board must be used only by expert technicians. Due to the high voltage (220 V ac)

present on the parts which are not isolated, special care should be taken with regard to

people's safety.

There is no protection against high voltage accidental human contact.

After disconnection of the board from the mains, none of the live parts should be touched

immediately because of the energized capacitors.

It is mandatory to use a mains insulation transformer to perform any tests on the high

voltage sections (see circuit sections highlighted in Figure 7 and Figure 8) in which test

instruments like spectrum analyzers or oscilloscopes are used.

Do not connect any oscilloscope probes to high voltage sections in order to avoid damaging

instruments and demonstration tools.

Warning: ST assumes no responsibility for any consequences which

may result from the improper use of this tool.

9/56

ST7538Q FSK power line transceiver description AN2744

3 ST7538Q FSK power line transceiver description

The ST7538Q transceiver performs a half-duplex communication over the power line

network using frequency shift keying (FSK) modulation. It operates from a 7.5 to 12.5 V

single supply voltage (PAV

stage and two linear regulators providing 5 V (VDC) and 3.3 V (DV

Figure 3. ST7538Q transceiver block diagram

) and integrates a differential-output power line interface (PLI)

CC

DD

).

10/56

The ST7538Q can be programmed to communicate using eight different frequency

channels (60, 66, 72, 76, 82.05, 86, 110 and 132.5 kHz), four baud rates (600, 1200, 2400

and 4800 symbols per second) and two frequency deviations (1 and 0.5).

Many auxiliary functions are integrated. The transmission section includes automatic control

on PLI output voltage and current, programmable time-out function and thermal shutdown.

The reception section includes automatic input level control, carrier/preamble detection and

band-in-use signaling.

Additional features are included, such as watchdog timer, zero-crossing detector, internal

oscillator and a general purpose op-amp.

The serial interface (configurable as UART or SPI) allows interfacing to a host

microcontroller, intended to manage the communication protocol. A reset output (RSTO)

and a programmable 4-8-16 MHz clock (MCLK) can be provided to the microcontroller to

simplify the application.

Communication on the power line can be either synchronous or asynchronous with the data

clock (CLR/T) provided by the transceiver at the programmed baud rate.

When in transmission mode (i.e. RxTx line at low level), the ST7538Q transceiver samples

the data on the TxD line, generating an FSK modulated signal on the ATO pin. The same

AN2744 ST7538Q FSK power line transceiver description

signal is fed into the differential power amplifier to get four times the voltage swing and a

current capability up to 370 mA rms.

When in reception mode (i.e. RxTx line at high level), an incoming signal at the RAI line is

demodulated and converted to a digital bit stream on the RxD pin.

The internal control register, which contains the operating parameters of the ST7538Q

transceiver, can be programmed only using the SPI interface. The control register settings

include the header recognition and frame length count functions, which can be used to apply

byte and frame synchronization to the received messages.

11/56

Evaluation tools description AN2744

4 Evaluation tools description

The complete evaluation environment for the ST7538Q power line communication consists

of:

– 1 PC using the "ST7538 power line modem demonstration kit" software tool
– 1 EVALCOMMBOARD hosting an ST7 microcontroller
– 1 ST7538Q dual channel reference design board (EVALST7538DUAL)

The correct procedure for connecting the EVALST7538DUAL and the EVALCOMMBOARD

is as follows:

1. Connect the EVALST7538DUAL and the EVALCOMMBOARD together

2. Connect the ac cable to the EVALST7538DUAL and the USB cable to the
EVALCOMMBOARD

3. Connect the EVALST7538DUAL to the mains supply

4. Connect the EVALCOMMBOARD to the PC via USB cable

Warning: Follow the connection procedure to avoid damaging the

boards!

Figure 4. Complete evaluation system including a PC, an EVALCOMMBOARD and the

EVALST7538DUAL board

USB/RS232USB/RS232

12/56

AN2744 Evaluation tools description

Figure 5. Power line modem demonstration kit with transmission session window

This complete communication node, controlled by the ST7538Q power line modem
demonstration kit, implements real communication at bit level, simply sending or receiving a
user-defined bit stream.

It is possible to establish a half-duplex communication between two of these communication
nodes connected to each other. For better evaluating communication performances, the
ST7538Q power line modem demo kit software tool has some particular features, including:

● Frame synchronization: a frame synchronization header can be added to the

transmitted data to set up a simple protocol, intended to test the capability of the
system to correctly receive the exact bit sequence as it has been transmitted. This
feature can be enabled in the Rx panel of the ST7538Q power line modem
demonstration kit. A bit synchronization can be introduced as a simpler feature by
enabling the preamble detection method in the control register panel and then inserting
at least one "0101" or "1010" sequence at the beginning of the bit stream to be
transmitted.

● Ping session: a master-slave communication with automatic statistics calculation can

be useful to test a point-to-point or a point-to-multipoint power line communication
network, thus providing a method to evaluate reachability of each node in the network.

For further details about the ST7538Q power line modem demonstration kit tool, please
refer to user manual UM0241 "ST7538 power line modem demonstration kit graphical user
interface”.

13/56

Board description AN2744

5 Board description

The ST7538Q dual channel reference design is composed of the following sections:

– power supply section, based on ST’s VIPer12A-E IC
– ST7538Q modem and crystal oscillator section
– line coupling interface section, with three subsections:

– dual channel transmission passive filter

– dual channel reception passive filter

– dual channel reception active filter

The board has also two connectors, which allow the user to plug the mains supply on one
side of the board and the IBU communication board on the other side.

Figure 6. Scheme of the various sections of the board

Dual Channel

Dual Channel

Dual Channel

Dual Channel

Dual Channel

Dual Channel

RX Active Filter

RX Active Filter

RX Active Filter

RX Active Filter

RX Active Filter

RX Active Filter

Power Supply

Power Supply

Power Supply

Power Supply

Power Supply

Power Supply

(with ST Viper 12A)

(with ST Viper 12A)

(with ST Viper 12A)

(with ST Viper 12A)

(with ST Viper 12A)

(with ST Viper 12A)

Dual Channel

Dual Channel

Dual Channel

Dual Channel

Dual Channel

Dual Channel

TX Passive

TX Passive

TX Passive

TX Passive

TX Passive

TX Passive

Mains Supply

Mains Supply

Mains Supply

Mains Supply

Connection to

Connection to

Connection to

Connection to

The schematics of the whole reference design are given in the following pages. Figure 7
shows the modem and coupling interface circuits, while Figure 8 represents the power
supply circuit. In both schematics, high voltage regions are highlighted.

Filter

Filter

Filter

Filter

Filter

Filter

ST7538Q

ST7538Q

ST7538Q

ST7538Q

ST7538Q

ST7538Q

Modem

Modem

Modem

Modem

Modem

Modem

Section

Section

Section

Section

Section

Section

Dual Channel

Dual Channel

Dual Channel

Dual Channel

Dual Channel

Dual Channel

RX Passive Filter

RX Passive Filter

RX Passive Filter

RX Passive Filter

RX Passive Filter

RX Passive Filter

Connection to

Connection to

Connection to

Connection to

µ

µ

µ

µ

C Board

C Board

C Board

C Board

14/56

Ta bl e 3 lists the components used to develop the reference design board. All parts have

been selected to give optimal performances.

The layout of the printed circuit is shown in Appendix A - Figure 50 and Figure 51.

AN2744 Board description

Figure 7. Modem and coupling interface schematic

15/56

Board description AN2744

Figure 8. Power supply schematic

16/56

HIGH

VO LTAGE

SECTION

AN2744 Board description

Table 3. Bill of materials

Item Q.ty Reference Value Description

ATOP1, ATOP2, P5 V, 10 V,

116

VADJ, TX, RXTX, RXFO, RX,
RAI, GND, CLRT, CL, CD/PD,

Test point

BU, ATO

2 1 CN1 CON50A 50-pin female connector

3 1 CN2 Header 2 Mains supply connector

4 1 C1 470 pF 630 V EVOX-RIFA PFR5-471J630L4

5 1 C2 47 nF X2 Epcos B32921-A2473K

61 C3

470 µF 16 V

electrolytic

Rubycon YK / Yageo SE-K / Nichicon VK

7 1 C4 100 µF 16 V TDK CKG57DX7R-1C107M

82 C5,C10

10 µF 400 V

electrolytic

Yageo SE-K / Nichicon VK

9 1 C6 2.2 nF Y2 TDK CD12E2GA222MYNS

10 1 C8 47 nF

11 3 C9,C17,C21 10 µF TDK C3216X7R-1C106M

12 2 C11,C12 270 pF

13 5 C13,C15,C18,C19,C24 100 nF

14 2 C14,C26 10 nF

15 1 C16 4.7 nF

16 1 C20 10 nF

17 1 C22 18 pF

18 1 C23 47 pF

19 1 C25 100 pF

20 1 C27 56 nF 50 V

21 1 C28 100 nF X2 10% Epcos B32922-A2104K

22 1 C29 150 nF

23 1 C30 220 pF

24 1 D1 DF06S 600 V - 1.5 A bridge rectifier

25 1 D2 Green LED

26 1 D3 STPS1H100

27 1 D4 STTH1L06A

28 1 D5 BAS16 2L BAS21 also suitable

29 1 D6 SM6T6V8CA 6.8 V bidirectional Transil™ diode

30 1 D7 ESDA6V1L 6.1 V ESD Transil™ diode

31 1 D9 BZX84C8V2 8.2 V Zener diode

32 1 F1 FUSE 2 A time-lag (T)

17/56

Board description AN2744

Table 3. Bill of materials (continued)

Item Qty Reference Value Description

33 1 JP1 Jumper Leave open

34 2 JP2, JP3 Jumper Close 2-3

35 1 L1 33 µH Epcos B82462-A4333K

36 1 L2 2x10 mH - 0.3 A Radiohm 42V15-0307

37 1 L3 470 µH Epcos B82442-A1474K

38 1 L4 1 mH Epcos B82442-H1105K

39 1 L5 100 µH 10% Würth 744-775-210K / Epcos B82464-A4104K

40 1 L6 68 µH 10% Würth 744-775-168K / Epcos B82464-A4683K

41 1 L7 330 µH 10% Würth 744-774-233K

42 1 L8 10 µH Epcos B82432-T1103K

43 2 Q2, Q4 2N7002

44 1 Q3 BC857BL

45 1 R1 220 kΩ

46 1 R2 1K5

47 1 R3 10R 1 W Metal oxide - radial

48 1 R6 560

49 2 R8, R18 330

50 1 R9 1K2

51 1 R10 100 kΩ

52 1 R11 4K7

53 1 R12 680

54 3 R13, R14, R15 5K1

55 2 R16, R17 1M

56 1 R19 2 kΩ

57 1 R20 3K9

58 1 R21 3R3

59 1 R22 2K2

60 1 R23 10 kΩ

61 1 T1 SMPS transformer TDK SRW12.6ES-ExxH013 / Würth S06-100-057

62 1 T2 Line transformer VAC T60403-K5024-X044 / Radiohm 69H14-2101

63 1 U1 SFH610-A Optoswitch

64 1 U2 LCA710 Optoswitch - 3750 V isolation

65 1 U3 ST7538Q Power line transceiver

66 1 U6 VIPer12AS-E SMPS controller / switch

67 1 X1 16 Mhz Jauch Q 16.0-SS2-16-30/50-FU

18/56

AN2744 Board description

Table 4. ST parts on the ST7538Q dual channel reference design board

Value Description

ST7538Q Power line transceiver

VIPer12AS-E SMPS controller / switch

STTH1L06A Ultrafast diode

STPS1H100 Schottky diode

SM6T6V8CA 6.8 V bidirectional Transil™ diode

ESDA6V1L 6.1 V ESD Transil™ diode

19/56

Board description AN2744

A

A

A

5.1 Line coupling interface

The line coupling interface is composed of three different filters: the dual channel Tx passive
filter, the dual channel Rx passive filter and the dual channel Rx active filter. The coupling
interface structure is represented in Figure 9.

Figure 9. Schematic of Rx and Tx filters

C29

C29
150 nF

ATOP1

ATOP1

ATOP1

ATOP2

ATOP2

ATOP2

RAI

RAI

RAI

D7

D7

3

3

ESDA6V1L

ESDA6V1L

1

1

2

2

ACT_IN

ACT_IN

ACT_IN

150 nF

JP2

JP2

JP2

CLOSE 2-3

CLOSE 2-3

CLOSE 2-3

C14

C14
10 nF

10 nF

2

2

31

31

JP3

JP3
CLOSE 2-3

CLOSE 2-3

2

2

2

C20

C20

3 1

3 1

3 1

10nF

10nF

Q4

Q4

2N7002

2N7002

JP1

JP1

JP1

3

3

3

2

2

2

C16

C16

4.7nF

4.7nF

R18

R18
330

330

L7

L7
330uH

330uH

1

1

1

Rx

Rx
PASSIVE

PASSIVE
FILTER

FILTER

T2

T2

4 5

4 5

1 8

1 8

LINE TRANSFORMER C28

LINE TRANSFORMER C28

L5

L5

L5
100 uH

100 uH

100 uH

NEG_CH2

NEG_CH2

NEG_CH2

CH2

CH2

CH2

R8

R8

R8
330

330

330

Tx PASSIVE FI LTER

Tx PASSIVE FI LTER

D6

D6
SM6T6V8CA

SM6T6V8CA

L6

L6
68 uH

68 uH

6

6

6

1

1

1

2

2

2

4

4

4

U2

U2

U2

LCA710

LCA710

LCA710

C27

C27
56 nF

56 nF

R21

R21

3.3

3.3

100nF X2

100nF X2

R16

R16
1M

1M

R17

R17

R17
1M

1M

1M

N

N

N

P

P

P

5V

5V

CT_IN

CT_IN

CT_IN

CH2

CH2

CH2

R13

R13

R13
5K1

5K1

5K1

Q2

Q2

Q2

2N7002

2N7002

2N7002

100nF

100nF

100nF

1

1

1

C15

C15

C15

R9

R9

R9
1K2

1K2

1K2

5V

R15

R15

R15
5K1

5K1

5K1

R14

R14

R14
5K1

5K1

5K1

C11

C11

C11
270pF

270pF

270pF

R12

R12

R12

3

3

3

680

680

680

2

2

2

CPLUS

CPLUS

CPLUS

CMINUS

CMINUS

CMINUS

LEAVE OPENED

LEAVE OPENED

LEAVE OPENED

COUT

COUT

COUT

R10

R10

R10
100K

100K

100K

C12

C12

C12
270pF

270pF

270pF

Rx ACTIVE FILTER

Rx ACTIVE FILTER

All three filters are described in Section 5.1.2, Section 5.1.3 and Section 5.1.3. For each
filter, calculations and measured frequency responses are given.

The filters are quite sensitive to the components' value tolerance. Actual components used
in the ST7538Q dual channel reference design have the following tolerances:

● +/- 10% for coils and for the X2 capacitor

● +/- 1% for SMD resistors

● +/- 5% for SMD ceramic capacitors

To evaluate sensitivity to the tolerances indicated above, the following sections include
simulated responses of the filters with Montecarlo statistical analysis. Statistical simulation
helps to understand the relationship between tolerance of components' value and variations

20/56

AN2744 Board description

on frequency response of the filters. In simulation curves, the ideal response is drawn in
blue, while red curves indicate statistical variations generated through simulation.

5.1.1 Dual channel selection

To obtain a dual channel interface, each filter is tunable via software command. The
ST7538Q dual channel reference design has two available channel frequencies, 72 and
86 kHz.

The channel can be simply changed by including or excluding one passive component per
each filter: an inductor for the Tx filter, a capacitor for the Rx passive filter and a resistor for
the Rx active filter.

5.1.2 Dual channel Tx passive filter

The dual channel Tx passive filter is made of the following parts: DC-decoupling capacitor
C29, line transformer T2, inductors L5 and L6 and X2 safety capacitor C28, plus a shunt
branch made of R21 and C27.

The center frequency for the series resonance is calculated with good approximation as:

Equation 1

f

=

C

1

CL2

⋅⋅π

PP

where C

= C29(C27+C28)/(C27+C28+C29) and LP is equal to: L6 for 72 kHz channel, L6 //

P

L5 for 86 kHz channel. To guarantee adequate filtering action on signal harmonics, it is
required to set the center frequency at a value lower than the one of the channel frequency.
See Figure 10 and Figure 11 to check the resulting measured frequency response.

L5 and L6 have been accurately chosen to have high saturation current (> 1 A) and low
equivalent series resistance (< 0.5 Ω), to limit distortion and insertion losses.

R21 is intended to damp resonance, to better control filtering action and getting desired
rejection on transmitted signal harmonics.

Resonance shape is also affected by the ratio between the two capacitors C27 and C28.
C27 must be smaller than C28 (in this case, about half the value of C28) to get lower
insertion losses when the line impedance is very low.

To optimize the coupling efficiency, particular attention must be paid to the line transformer.
The required characteristics are listed in Tab l e 5 .

In order to have a good power transfer and to minimize the insertion losses, it's
recommended to choose a transformer with a primary (magnetizing) inductance greater
than 1mH and a series resistance lower than 0.5 Ω.

Another important parameter is the leakage inductance. If it has a relevant value (10 to 50
µH), this can be used to design the coupling filter without adding series inductance (L5, L6).
The drawback is that this parameter is usually affected by poor accuracy which can lead to a
drift on the filter response and then to bad coupling.

Consequently, a low leakage inductance value (<1 µH) has been chosen. The series
inductance is fixed through discrete components, resulting in a greater accuracy.

The last parameter specified in the table, the 4 kV insulation voltage requirement, is
described and codified by the EN50065-4-2 CENELEC document.

21/56

Board description AN2744

Table 5. Line coupling transformer specifications

Parameter Value

Turn Ratio 1:1

Magnetizing Inductance > 1 mH

Leakage Inductance < 1 µH

DC total resistance < 0.5 Ω

DC saturation current > 2 mA

Interwinding capacitance < 50 pF

Withstanding Voltage 4 kV

Figure 10 and Figure 11 show the measured response of the filter for both channels, loaded

with the CISPR reference network and with 5 Ω impedance. When loaded with the CISPR
network, the Tx passive filter gives an almost flat gain of nearly 3.5 dB around the
transmission carrier frequency. Applying a heavier load makes the frequency response
sharper and the gain at carrier frequency lower. This effect leads to a loss of about 7-8 dB
with a 5 Ω load for both channels.

Figure 10. Measured frequency response of the Tx passive filter for 72 kHz channel (typical)

10

10

CISPR

5

5

0

0

-5

-5

-10

-10

-15

-15

-20

-20

Gain (dB)

Gain (dB)

-25

-25

-30

-30

-35

-35

-40

-40
1E+04 1E+05 1E+06

1E+04 1E+05 1E+06

Freq (Hz)

Freq (Hz)

CISPR
5Ω load

5Ω load

22/56

AN2744 Board description

Figure 11. Measured frequency response of the Tx passive filter for 86 kHz channel (typical)

10

10

5

5

0

0

-5

-5

-10

-10

-15

-15

-20

-20

Gain (dB)

Gain (dB)

-25

-25

-30

-30

-35

-35

-40

-40
1E+04 1E+05 1E+06

1E+04 1E+05 1E+06

Freq (Hz)

Freq (Hz)

CISPR

CISPR
5 Ω load

5 Ω load

Simulations of the filter for both frequency channels, given in Figure 12 and Figure 13, show
limited effect by the components' tolerance.

Figure 12. Simulated frequency response of the Tx passive filter for 72 kHz channel with

tolerance effect

10

5

0

-5

-10

-15

-20

-25

-30

-35

-40

1E51E4 1E6

23/56

Board description AN2744

T

Figure 13. Simulated frequency response of the Tx passive filter for 86 kHz channel with

tolerance effect

10

5

0

-5

-10

-15

-20

-25

-30

-35

-40

5.1.3 Dual channel Rx passive filter

The dual channel Rx passive filter is made of a resistor in series with a parallel L-C resonant
circuit. The transfer function of the filter can be written as:

Equation 2

)s(R

=

2

s

+

where RL is the dc series resistance of the inductor L7 (in the worst case, 2 Ω) and CP is the
equivalent capacitance for the two channels: C16 + C20 for 72 kHz, only C20 for 86 kHz.

The center frequency and the quality factor of the filter can be expressed as:

Equation 3

1

fc

=

2

=ω⋅

C

π

1E51E4 1E6

RLs

+⋅

L7

CLR

⋅⋅

P718

LCRR

+⋅⋅

7PL18

s

CLR

⋅⋅

P718

1

2

π

+⋅

RR

+

L18

≅

CLR

⋅⋅

P718

RR

+

L18

CLR

⋅⋅

P718

1

CL2

⋅π

P7

The simplification done in Equation 3 is possible because R18 >> RL. It's evident that the
quality factor, and then the filter selectivity, depends not only on the value of R
R

. A higher RL means a lower steepness of the resonance, while a higher R18 gives a

L

24/56

, but also on

18

AN2744 Board description

higher selectivity. The values of the actual components give a Q of about 2.2 for the 72 kHz
channel and 1.8 for the 86 kHz channel.

The value of R
between R
f = f

can be used:

c

impacts more obviously on insertion losses. To evaluate the relationship

L

and the losses on received signal, the following simplified expression of |R

L

Equation 4

L

⋅ω

Q)f2j(R

C

7C

⋅≅π⋅

=

R

18

1

C

RR1

P

⋅⋅+

18L

L

7

With the chosen components, this formula gives a loss always lower than 1 dB. The same
calculation gives unitary transfer if R

is set to zero.

L

Looking at the first way to express the module of the transfer function, it can be noticed that
a higher Q can help to keep the losses small. A high Q would bring to a higher sensitivity of
the filter to tolerance of the components.

Figure 14 and Figure 15 show the measured frequency response of the Rx passive filter for

the two channels. The filter has an attenuation of about 5 dB at center frequency. This loss
is mostly due to the Tx filter topology, in particular to the R21-C27 branch that is in parallel to
the Rx path.

Figure 14. Measured frequency response of the Rx passive filter for 72 kHz channel (typical)

-2

-2

-3

-3

-4

-4

-5

-5

-6

-6

-7

-7

-8

-8

-9

-9

-10

-10

-11

-11

-12

-12

Gain (dB)

Gain (dB)

-13

-13

-14

-14

-15

-15

-16

-16

-17

-17

-18

-18
1E+04 1E+05 1E+06

1E+04 1E+05 1E+06

Freq (Hz)

Freq (Hz)

(s)

| at

25/56

Board description AN2744

Figure 15. Measured frequency response of the Rx passive filter for 86 kHz channel (typical)

-2

-2

-3

-3

-4

-4

-5

-5

-6

-6

-7

-7

-8

-8

-9

-9

-10

-10

-11

-11

-12

-12

Gain (dB)

Gain (dB)

-13

-13

-14

-14

-15

-15

-16

-16

-17

-17

-18

-18
1E+04 1E+05 1E+06

1E+04 1E+05 1E+06

Freq (Hz)

Freq (Hz)

It can be observed from the simulation curves of Figure 16 and Figure 17 a maximum loss
at center frequency of 1 dB due to the spread of the components' value.

Figure 16. Simulated frequency response of the Rx passive filter for 72 kHz channel with

tolerance effect

0

0

-1

-1

-2

-2

-3

-3

-4

-4

-5

-5

-6

-6

-7

-7

-8

-8

-9

-9

-10

-10

-11

-11

-12

-12

-13

-13

-14

-14

-15

-15

-16

-16

-17

-17

-18

-18

1 dB

1 dB

1E51E4 1E6

1E51E4 1E6

26/56

AN2744 Board description

Figure 17. Simulated frequency response of the Rx passive filter for 86 kHz channel with

tolerance effect

0

0

-1

-1

-2

-2

-3

-3

-4

-4

-5

-5

-6

-6

-7

-7

-8

-8

-9

-9

-10

-10

-11

-11

-12

-12

-13

-13

-14

-14

-15

-15

-16

-16

-17

-17

-18

-18

1 dB

1 dB

1E51E4 1E6

1E51E4 1E6

5.1.4 Dual channel Rx active filter

An active filtering is suitable for receiving a highly attenuated signal. Without the gain of an
active filter, it could be impossible to detect a signal lower than the ST7538Q receiving
sensitivity even filtering the noise around it. Therefore, the choice of the Rx filter depends
mostly on the attenuation introduced by the network and then on the point of insertion of the
power line communication node.

It is possible to choose the received signal path on the board by configuring the three
jumpers shown in

Figure 9 (JP1, JP2 and JP3) in different ways. The Rx path can include

only the passive filter, only the active filter, both of them or even none (no filtering).

Figure 18 and Figure 19 show the measured transfer function of the Rx active filter for both

channels. The curves show a 10 dB gain at center frequency and a -3 dB bandwidth of
about 20 kHz.

Figure 18. Measured frequency response of the Rx active filter for 72 kHz channel (typical)

12

12

10

10

8

8

6

6

4

4

2

2

0

0

Gain (dB)

Gain (dB)

-2

-2

-4

-4

-6

-6

-8

-8

1.0E+04 1.0E+05 1.0E+06

1.0E+04 1.0E+05 1.0E+06

Freq (Hz)

Freq (Hz)

27/56

Board description AN2744

Figure 19. Measured frequency response of the Rx active filter for 86 kHz channel (typical)

12

12

10

10

8

8

6

6

4

4

2

2

0

0

Gain (dB)

Gain (dB)

-2

-2

-4

-4

-6

-6

-8

-8

1.0E+04 1.0E+05 1.0E+06

1.0E+04 1.0E+05 1.0E+06

Freq (Hz)

Freq (Hz)

Figure 20 and Figure 21 show the simulation results with Montecarlo analysis. The gain

variation at center frequency is less than 2 dB.

Figure 20. Simulated frequency response of the Rx active filter for 72 kHz channel with tolerance

effect

12

12

11

11

10

10

9

9

8

8

7

7

6

6

5

5

4

4

3

3

2

2

1

1

0

0

-1

-1

-2

-2

-3

-3

-4

-4

-5

-5

-6

-6

-7

-7

-8

-8

1.5 dB

1.5 dB

4E4 5E4 6E4 7E4 8E4 9E4 1E5 2E53E4 3E5

4E4 5E4 6E4 7E4 8E4 9E4 1E5 2E53E4 3E5

28/56

AN2744 Board description

Figure 21. Simulated frequency response of the Rx active filter for 86 kHz channel with tolerance

effect

12

12

11

11

10

10

9

9

8

8

7

7

6

6

5

5

4

4

3

3

2

2

1

1

0

0

-1

-1

-2

-2

-3

-3

-4

-4

-5

-5

-6

-6

-7

-7

-8

-8

2 dB

2 dB

4E4 5E4 6E4 7E4 8E4 9E4 1E5 2E53E4 3E5

4E4 5E4 6E4 7E4 8E4 9E4 1E5 2E53E4 3E5

5.1.5 Input impedance

The input impedance of a power line communication node is another critical point. Figure 22
through
mode for the two channels.

The impedance magnitude values prove that the ST7538Q dual channel reference design
board is compliant with EN50065-7 normative, which sets the following minimum impedance
constraints for this kind of equipment:

Figure 22. Measured input impedance magnitude of the coupling interface in Rx mode for the 72

kHz channel (typical curve)

25 show the curves of input impedance magnitude vs. frequency in both Tx and Rx

– Tx mode: free in the range 3 to 95 kHz, 3 Ω from 95 to 148.5 kHz
– Rx mode: 10 Ω from 3 to 9 kHz, 50 Ω between 9 and 95 kHz only inside signal 20 dB-

bandwidth (free for frequencies outside signal bandwidth), 5 Ω from 95 to 148.5 kHz

1000

1000

1000

100

100

100

10

10

10

Impedance modulus (Ω)

Impedance modulus (Ω)

Impedance modulus (Ω)

EN50065--77

EN50065--77

EN50065

EN50065

1

1

1

1E+04 1E+05 1E+06

1E+04 1E+05 1E+06

1E+04 1E+05 1E+06

Freq (Hz)

Freq (Hz)

Freq (Hz)

29/56

Board description AN2744

Figure 23. Measured input impedance magnitude of the coupling interface in Rx mode for the 86

kHz channel (typical curve)

1000

1000

100

100

10

10

EN50065--77

EN50065--77

EN50065

EN50065

Impedance modulus (Ω)

Impedance modulus (Ω)

1

1

1E+04 1E+05 1E+06

1E+04 1E+05 1E+06

Freq (Hz)

Freq (Hz)

Figure 24. Measured input impedance magnitude of the coupling interface in Tx mode for the 72

kHz channel (typical curve)

1000

1000

100

100

10

10

EN50065--77

EN50065--77

EN50065

EN50065

Impedance modulus (Ω)

Impedance modulus (Ω)

1

1

1E+04 1E+05 1E+06

1E+04 1E+05 1E+06

Freq (Hz)

Freq (Hz)

30/56

AN2744 Board description

Figure 25. Measured input impedance magnitude of the coupling interface in Tx mode for the

86 kHz channel (typical curve)

1000

1000

100

100

10

10

EN50065--77

EN50065--77

EN50065

EN50065

Impedance modulus (Ω)

Impedance modulus (Ω)

1

1

1E+04 1E+05 1E+06

1E+04 1E+05 1E+06

Freq (Hz)

Freq (Hz)

5.2 Conducted disturbances

5.2.1 Conducted emissions

The EN50065-1 standard describes test setup and procedures for this kind of test.

The measures have been done with 220 VAC mains voltage. The test pattern consists of a
continuous transmission of a fixed tone at a frequency of 70.8 kHz (72 kHz center frequency
minus half the FSK frequency deviation, in this case 2400 Hz) which corresponds to a
symbol "1".

The output signal measured at the artificial network has a value of 120 dBµV rms, which
means a 2 V rms signal on the mains output of the board.

The spectrum analyzer performs a peak measure instead of a quasi-peak measure. For
continuous sinusoidal signals, the two types of measurement give the same result.

31/56

Board description AN2744

Figure 26. Conducted disturbance test setup

Figure 27 and Figure 28 show the results for the output spectrum measurement. The

EN50065-1 disturbance limits mask is traced in red. It may be compared with the typical
output spectrum of the ST7538Q dual channel reference design board for each channel.

Figure 27. Output spectrum (typical) at 72 kHz channel, mains 220 VAC, fixed transmitted tone =

"1"

130.0

130.0

120.0

120.0

110.0

110.0

100.0

100.0

90.0

90.0

80.0

80.0

70.0

70.0

60.0

60.0

Output Level (dBuV)

Output Level (dBuV)

50.0

50.0

40.0

40.0

30.0

30.0

1.0E+04 1.0E+05 1.0E+06 1.0E+07 1.0E+08

1.0E+04 1.0E+05 1.0E+06 1.0E+07 1.0E+08

fC=70.8 kHz

fC=70.8 kHz
S=120.1 dBµV

S=120.1 dBµV

2fC =141.6 kHz

2fC =141.6 kHz
S=55.3 dBµV

S=55.3 dBµV

Frequency (Hz)

Frequency (Hz)

3fC =212.4 kHz

3fC =212.4 kHz
S=58.1 dBµV

S=58.1 dBµV

EN50065--11

EN50065--11

EN50065

EN50065

32/56

AN2744 Board description

Figure 28. Output spectrum (typical) at 86 kHz channel, mains 220 VAC, fixed transmitted tone =

"1"

130.0

130.0

120.0

120.0

110.0

110.0

100.0

100.0

90.0

90.0

80.0

80.0

70.0

70.0

60.0

60.0

Output Level (dBµV)

Output Level (dBµV)

50.0

50.0

40.0

40.0

30.0

30.0

1.0E+04 1.0E+05 1.0E+06 1.0E+07 1.0E+08

1.0E+04 1.0E+05 1.0E+06 1.0E+07 1.0E+08

fC=84.8 kHz

fC=84.8 kHz
S=120.1 dBµV

S=120.1 dBµV

2fC=169.6 kHz

2fC=169.6 kHz
S=58.6 dBµV

S=58.6 dBµV

3fC=254.4 kHz

3fC=254.4 kHz

S=50.3 dBµV

S=50.3 dBµV

Frequency (Hz)

Frequency (Hz)

EN50065-1

EN50065-1

5.2.2 Noise immunity

The tests on immunity against white noise and narrowband conducted interferences are
based on two ST7540 reference design boards performing a simplex (unidirectional)
communication. The first board transmits a given bit sequence, while the receiving board
passes the received bit stream to a PC bit error rate (BER) tester software, which evaluates
the percentage of correctly received bits.

The noise (white noise or sinusoidal interferer) is produced by a waveform generator and
injected into the artificial network through an AC-coupling circuit.
test environment used for noise immunity tests.

Figure 29. Narrowband conducted interference test setup

Figure 29 illustrates the

33/56

Board description AN2744

Ta bl e 6 gives the parameters for setting the test conditions.

The received signal and noise level are measured with a spectrum analyzer at both the
ST7538Q RAI pin and the measurement port of the CISPR artificial network. To obtain the
right value, the noise level is measured in absence of the transmitted signal. The 3 kHz
resolution bandwidth of the spectrum analyzer has been chosen to fit the spectrum of the
transmitted FSK signal at 2400 baud.

Table 6. Noise immunity test settings

Parameter Value

Received signal at RAI pin 78 dBµV rms

Frequency 72 kHz

Baud rate 2400

Deviation 1

Detection method Carrier with conditioning

Detection time 3 ms

Sensitivity High

Input filter Off

Transmitted sequence AACC h

S.A. resolution BW 3 kHz

Figure 30 represents the measured BER vs. SNR curve at both RAI pin and measurement

port of the CISPR network in presence of white noise. It may be noted that a BER of 10
corresponds to a value of SNR which is a little higher than 12 dB, as it can be expected for a
non-ideal FSK demodulator. The curve of

Figure 30 is valid for both 72 and 86 kHz

channels.

Figure 30. Measured BER vs. SNR curve (typical), white noise

1.0E-01

1.0E-01

1.0E-02

1.0E-02

1.0E-03

1.0E-03

BER

BER

1.0E-04

1.0E-04

1.0E-05

1.0E-05

RAI

RAI

CISPR

CISPR

-3

34/56

1.0E-06

1.0E-06
6 7 8 9 10 11 12 13 14 15 16 17 18

6 7 8 9 10 11 12 13 14 15 16 17 18

SNR (dB)

SNR (dB)

AN2744 Board description

For narrowband interference tests, two types of interfering noise have been used: a pure
sinusoidal tone and an amplitude-modulated signal, (modulating signal 1 kHz, modulation
depth 80%). In these tests, the amplitude of the noise tone (or the carrier, in case of

-3

modulated interferer) is varied until the measured BER reaches 10

(one error every 1000

transmitted bits).

Figure 31 shows the measured SNR vs. frequency curves for both pure sinusoidal tone and

-3

AM modulated interferer, with a fixed BER of 10

Figure 31. Measured SNR vs. frequency curves (typical) at BER=10-3 - 72 kHz channel

10.0

10.0

5.0

5.0

0.0

0.0

-5.0

-5.0

-10.0

-10.0

-15.0

-15.0

-20.0

-20.0

SNR (dB)

SNR (dB)

-25.0

-25.0

-30.0

-30.0

-35.0

-35.0

-40.0

-40.0

-45.0

-45.0

30 40 50 60 70 80 90 100

30 40 50 60 70 80 90 100

Freq (kHz)

Freq (kHz)

.

Pure tone

Pure tone

AM 1kHz 80%

AM 1kHz 80%

Figure 32. Measured SNR vs. frequency curves (typical) at BER=10-3 - 86 kHz channel

10.0

10.0

5.0

5.0

0.0

0.0

-5.0

-5.0

-10.0

-10.0

-15.0

-15.0

-20.0

-20.0

SNR (dB)

SNR (dB)

-25.0

-25.0

-30.0

-30.0

-35.0

-35.0

-40.0

-40.0

-45.0

-45.0

50 60 70 80 90 100 110 120

50 60 70 80 90 100 110 120

Freq (kHz)

Freq (kHz)

Pure tone

Pure tone

AM 1kHz 80%

AM 1kHz 80%

35/56

Board description AN2744

5.3 Thermal design

All heat dissipation is based on the heat exchange between the ST7538Q IC, the PCB and
the environment.

A large PCB copper area under the device is recommended in order to achieve a better heat
transfer from the IC to the environment, see

The metallic slug under the ST7538Q (the exposed pad of the PwTQFP44 package) must
be properly soldered to the ground copper area on the PCB top side, as recommended in
the datasheet. For the ST7538Q dual channel reference design, the dissipating area is
nearly 1.5 cm².

The larger ground layer on the bottom side should be connected to the top side area through
multiple via holes.

Figure 33. PCB copper dissipating area for the ST7538Q dual channel reference design

Figure 33.

Bottom LayerTop Layer

Bottom LayerTop Layer

36/56

Copper Area Soldering Area

Copper Area Soldering Area

Multiple Via

Multiple Via

Holes

Holes

Large GND

Large GND

layer

layer

Even if the ST7538Q has an integrated thermal shutdown circuitry, turning off the power
stage if the die temperature (T

) surpasses 170 °C, it is recommended that TJ does not

J

exceed 125 °C to guarantee a safe condition for IC operation.

The relationship between the junction temperature T

and the power dissipation during

J

transmission PD is described by the following formula:

, d) = TA - PD·θJA(tTX, d)

T

J(tTX

where T

is the ambient temperature (from -45 to +85 °C) and θJA is the junction-to-ambient

A

thermal impedance of the ST7538Q IC.

The value of the thermal impedance depends on the length of the transmission (t
the duty cycle d = t
depicted in

Figure 34.

PKT

/(t

PKT+tIDLE

), assuming a packet-fragmented transmission as

) and on

TX

AN2744 Board description

Figure 34. Packet-fragmented transmission

Transmission

Transmission

in progress

in progress

Idle

Idle

state

state

t

t

PKT

PKT

t

t

IDLE

IDLE

t

t

TX

TX

When soldered to a proper copper area on the PCB, according to the suggestions
previously given, the IC is characterized by a steady-state thermal impedance of about 35
°C/W. Nevertheless, as shown in

Figure 35, the steady-state value is reached after a

transient whose duration depends on the duty cycle (d) of the transmission. In other words,
a higher P

can be sustained if the transmission time is less than the transient completion

D

time and if the duty cycle of the transmission is lower than 100%.

Figure 35. Thermal impedance typical curve for the ST7538Q mounted on the reference design

board

40

40

35

35

30

30

25

25

20

20

ja (ºC/W)

ja (ºC/W)

15

15

θ

θ

10

10

d=1

d=1

d=0.75

d=0.75

d=0.5

d=0.5

d=0.25

d=0.25

5

5

0

0

1.0E-02 1.0E-01 1.0E+00 1.0E+01 1.0E+02 1.0E+03

1.0E-02 1.0E-01 1.0E+00 1.0E+01 1.0E+02 1.0E+03

time (s)

time (s)

Actual dissipated power P

= PIN - P

P

D

OUT

where PIN = VCC x ICC and P

The value of V

can be inferred from the ICC value according to the load regulation curve of

CC

the power supply, shown in

can be calculated as:

D

OUT

= V

OUTrms

x I

OUTrms

.

Figure 44 on page 45 in Section 5.7. Considering the power

consumption by receiving circuitry and linear regulators negligible for thermal analysis
purposes, the current absorption from the power supply (I
PLI output current to the load (I

= (VCC - V

P

D

OUTrms

) x I

OUTrms

), so PD can be expressed as:

OUTrms

) results are nearly equal to the

CC

37/56

Board description AN2744

Therefore, once the output voltage is fixed by the V
be calculated as a function of the load current (I
compared with the dissipation limit imposed by the θ
cycle, to keep the junction temperature below the 125 °C limit.

5.4 Oscillator section

The ST7538Q crystal oscillator circuitry is based on a MOS amplifier working in inverter
configuration. This circuitry requires a crystal having a maximum load capacitance of 16 pF
and a maximum ESR of 40 Ω.

It is very important to keep the crystal oscillator and the load capacitors as close as possible
to the device.

The resonant circuit must be far away from noise sources such as:

● power supply circuitry

● burst and surge protections

● mains coupling circuits

● any PCB track or via carrying a signal

To properly shield and separate the oscillator section from the rest of the board, it is
recommended to use a ground plane, on both sides of the PCB, filling all the area below the
crystal oscillator and its load capacitors. No tracks or via holes, except for the crystal
connections, should cross the ground plane.

SENSE

OUTrms

JA

partitioning, the required PD can
). The resulting value can be
value, as a function of tTX and duty

It is also recommended to use a large clearance on the oscillator-related tracks, to minimize
humidity problems, see

Figure 36.

Connecting the case to ground is also a good practice to reduce the effect of radiated
signals on the oscillator.

Figure 36. A recommended oscillator section layout for noise shielding

ST7538Q

ST7538Q

25

25

SGND26XOUT27XIN

SGND26XOUT27XIN

TOP Layer BOTTOM LayerClearance

TOP Layer BOTTOM LayerClearance

38/56

AN2744 Board description

5.5 Surge and burst protection

The specific structure of the coupling interface circuit of the application is a weak point
against high voltage disturbances that can come from the external environment. In fact an
efficient coupling circuit with low insertion losses realizes consequently a very low
impedance path from the mains to the power line interface of the device.

For this reason it's recommended to add some specific protections on the mains coupling
path, in order to prevent high energy disturbances coming from the mains from damaging
the internal power circuitry of the ST7538Q.

The possible environments for this kind of application can be both indoor and outdoor:
residential, commercial and light-industrial locations. To verify the immunity of the system to
environmental electrical phenomena, a series of immunity specification standards and tests
must be applied to the power line application.

The requirements for ac-connected ports include EN610000-4-4 (electric fast transients),
EN610000-4-5 (surges), EN610000-4-6 (RF out-of-band disturbances), EN610000-4-11
(voltage dips). All these tests are listed in the EN50065-2-3 document (part 7, immunity
specifications).

In particular, surge tests are specified as both common and differential mode at level +/- 4
kV, with pulse shape 1.2 x 50 µs. Fast transient burst tests are specified at level +/- 2 kV,
with pulse shape 5 x 50 ns and pulse frequency 5 kHz.

Figure 37 and Figure 38 illustrate the protection criteria implemented in the ST7538Q

reference design.

Figure 37 shows the protection against common mode disturbances. The ESD Transil™

protection diodes are able to absorb quickly fast transient disturbances starting from their

6.1 V threshold voltage.

Figure 38 describes the protection intervention in case of differential mode disturbances. A

differential voltage higher than 6.8 V is shorted by the bidirectional power Transil™, which is
the most robust protection and also the one that is able to absorb most of the energy of any
incoming disturbance.

Figure 37. Common mode disturbances protection

ATOP1

ATOP1

1

1

3

3

2 1 8

2 1 8

4 5

4 5

N

N

ATOP2

ATOP2

P

P

39/56

Board description AN2744

Figure 38. Differential mode disturbances protection

ATOP1

ATOP1

4 5

4 5

1 8

1 8

ATOP2

ATOP2

1

1

3

3

2

2

5.6 50-pin connector for communication board

The ST7538Q transceiver requires external digital control to perform communication. This is
done through an ST7 microcontroller which is accommodated on the IBU communication
board (see

The communication with the ST7 microcontroller involves several signals, which can be
gathered into 3 groups: digital signals, analog signals and power connections. The signals
for each group are listed in

Section 4).

Ta bl e 7 , Ta bl e 8 and Ta bl e 9 .

N

N

P

P

40/56

Beside the ST7538Q input and output signals, the link to the IBU communication board
includes:

– A 2-bit (B_ID_PLM_1 and B_ID_PLM_0) Board Identification Code, which identifies

the hosted power line transceiver. The "00" HW binary configuration makes the
microcontroller able to recognize the ST7538Q reference design board.

– A VDDF_FORCE signal that forces the microcontroller to refer digital interface levels

to VDDF (VDD) supply voltage provided by the ST7538Q reference design board.
This way both the modem and the microcontroller communicate on the same digital
levels.

AN2744 Board description

Figure 39. Scheme of the communication board connector

MCL K
VDDF_FORCE

REG_OK

CD/PD
REG_DATA
RxD
RxTx
ZCOUT
CLRT
TOU T
TxD

CN1

1 2
3 4
5 6
7 8

9 10
11 12
13 14
15 16
17 18
19 20
21 22
23 24
25 26
27 28
29 30
31 32
33 34
35 36
37 38
39 40
41 42
43 44
45 46
47 48
49 50

CON50A

PLM_10V
VDD
VDDF
RESET

NEG_CH2

CH2
B_ID_PLM_1B_I D_PLM_1
GND

B_ID_PLM_0B_I D_PLM_0

GND

WD
BU
PG

P10V

Table 7. 50-pin connector digital signals

Pin n° Signal name Description Generated by

3 MCLK Oscillator output (programmable) ST7538Q

8 RESET Reset Out for microcontroller ST7538Q

11 REGOK Register OK signal ST7538Q

14 NEG_CH2 Secondary channel select (active low) µC

18 CH2 Secondary channel select (active high) µC

35 CD/PD Carrier or preamble detected signal ST7538Q

37 REG/DATA Register or Data access µC

39 RxD Serial Data Out ST7538Q

41 RxTx Reception or Transmission select signal µC

43 ZCOUT Zero-crossing detection output ST7538Q

45 CLR/T Serial Data Clock ST7538Q

46 WD Watchdog counter reset µC

47 TOUT Timeout / Thermal Protection event signal ST7538Q

48 BU Band in Use detection signal ST7538Q

49 TxD Serial Data Input µC

50 PG Power good signal ST7538Q

41/56

Board description AN2744

Table 8. 50-pin connector control signals

Pin n° Signal name Description Generated by

20 B_ID_PLM_1 Board ID for PLM Applications (MSB) PLC Board

28 B_ID_PLM_0 Board ID for PLM Applications (LSB) PLC Board

5 VDDF_FORCE Force µC digital level to VDDF PLC Board

Table 9. 50-pin connector power connections

Pin n° Signal name Description Generated by

2 PLM_10V 10V power supply PLC Board

4 VDD 3.3V/5V power supply ST7538Q

6 VDDF Digital power supply ST7538Q

22,34 GND Ground -

5.7 Power supply

The ST7538Q dual channel reference design includes a specifically designed switching
mode power supply circuit, based on ST’s VIPer12AS-E device.

VIPer12AS-E is a smart power device with current mode PWM controller, startup circuit and
protections integrated in a monolithic chip using VIPower M0 technology. It includes a 27 Ω
Mosfet with 730 V breakdown voltage and a 400 mA peak drain current limitation. The
switching frequency is internally fixed to 60 kHz, in order to provide a good compromise
between EMI performances and magnetic parts dimensioning.

The internal control circuit offers the following benefits:

- large input voltage range on VDD pin accommodates changes in supply voltage

- automatic burst mode in low load condition

- overload and short circuit protection in hiccup mode

The power supply is designed in isolated flyback configuration with secondary regulation by
means of an optocoupler and a Zener diode, considering the requested output tolerance for
the specified application.

The main specifications are listed in

Table 10. SMPS specifications

Parameter Value

Input voltage range, V

Output voltage, V

Peak output current, I

OUT

OUT(MAX)

In the input stage, an EMI filter is implemented (C2, L2, C10, L3, C5) for both differential and
common mode noise, in order to fit the requested standard.

42/56

Ta bl e 1 0

IN

85-265 V

10V±10%

600 mA

AC

AN2744 Board description

The blocking diode D4 and the clamping network (R1-C1) clamp the peak of the leakage
inductance voltage spike, assuring reliable operation of the VIPer12AS-E. D4 must be not
only very fast-recovery but also very fast turn-on type to avoid additional drain overvoltage.
The clamp capacitor C1 must be low-loss type (with polypropylene or polystyrene film
dielectric) to reduce power dissipation and prevent overheating, since it is charged with high
peak currents by the energy stored in the leakage inductance.

Also a leading edge blanking (LEB) circuit for leakage inductance spikes filtering has been
implemented (Q3 - C30 - R23). It blanks the spike appearing at the leading edges of the
voltage generated by the self-supply winding, greatly improving the behavior in short-circuit.

The output rectifiers have been selected considering the maximum reverse voltage and the
RMS secondary current. A STPS1H100 Power Schottky rectifier has been chosen for this
purpose.

A LC filter has been added on the output (made of L1 and C4) in order to filter the high
frequency ripple without increasing the output capacitors size or quality.

The transformer used for this application has three windings, since one of them is needed to
supply the VIPer12AS-E. The primary inductance has been chosen at 2.7 mH and the
reflected voltage has been set to 80 V.

A layer type has been chosen, with EF12.6 or E13/7/4 core. The characteristics are listed in

Ta bl e 1 1 .

Table 11. SMPS transformer specifications

Parameter Value

Core Geometry SRW12.6ES or E13/7/4

Primary Inductance 2.7 mH±10%

Leakage Inductance 180 µH max

N

P

N

AUX

N

SEC

Withstanding Voltage 4 kV

In the following pictures some significant waveforms are represented.

Figure 41 show typical waveforms in both open load and full load conditions.

An important behavior in any SMPS is the protection against output short circuit. All tests
have been done by shorting the SMPS output at maximum input voltage. The results are
shown in

Figure 42.

The main parameters are the drain-source voltage (V
supply voltage (V

DD

).

The output current is an important parameter to be checked during shorts. Although the
output current peaks are quite high, the mean value is very low, thus preventing component
melting for excessive dissipation. In this way, the output rectifier, transformer windings and
PCB traces won't be overstressed. This assures system reliability against long-term shorts.

224 turns – 0.1mm

39 turns – 0.1mm

31 turns – 0.2mm (TEX-E wire)

RMS

Figure 40 and

), the output current (I

DS

OUT

) and the

Besides, in case of device overheating, the integrated thermal protection stops the device
operation until the device temperature falls.

43/56

Board description AN2744

The startup phase could also be critical for the SMPS as output overshoot occurs if the
circuit is not properly designed. Care must be taken in designing a proper clamp network in
order to prevent voltage spikes due to leakage inductance from exceeding the breakdown
voltage of the device (730 V minimum value).

The startup transient is shown in

Figure 43. Note that the maximum drain-source voltage

doesn't exceed the minimum breakdown voltage BVDSS, with a reasonable safety margin.

Finally, load regulation is presented in
The voltage ranges from 10 V to 9.3 V, within the requested tolerance.

Figure 40. Typical waveforms at 230 VAC: open

Ch1 Freq - 9.62kHz; Ch2 Mean - 9.90V

load

V

V

DS

DS

V

V

DD

DD

I

I

OUT

OUT

Figure 42 and Figure 43 for different load conditions.

Figure 41. Typical waveforms at 230 VAC: full

Ch1 Freq - 57.71kHz; Ch2 Mean - 13.79V; Ch4 Max -

503mA

load

V

V

V

V

DD

DD

I

I

OUT

OUT

DS

DS

Figure 42. Typical waveforms at 265 VAC:

Ch2 Freq - 23.50Hz; Ch4 Max - 2.08A; Ch4 Mean - 383mA

44/56

short-circuit

V

V

DD

DD

V

V

DS

DS

I

I

OUT

OUT

Figure 43. Typical waveforms at 265 VAC:

Ch1 Max - 702V; Ch2 Mean - 19.72V; Ch4 Max - 500mA

startup

V

V

V

V

DD

DD

I

I

OUT

OUT

DS

DS

AN2744 Board description

Figure 44. Load regulation

10.5

10.5

10.4

10.4

10.3

[V]

[V]

OUT

OUT

V

V

10.3

10.2

10.2

10.1

10.1
10

10

9.9

9.9

9.8

9.8

9.7

9.7

9.6

9.6

9.5

9.5

9.4

9.4

9.3

9.3

9.2

9.2

9.1

9.1
9

9

8.9

8.9

0 100 200 300 400 500 600

0 100 200 300 400 500 600

[mA]

[mA]

I

I

OUT

OUT

185 V ac

185 V ac

230 V ac

230 V ac

265 V ac

265 V ac

Figure 44 shows the efficiency vs. output current curve. Minimum efficiency occurs at low

load condition, as expected from any SMPS. This is not an issue for our application, since
low efficiency corresponds also to low power consumption and thus to low dissipation.

On the other hand, at full load condition the efficiency is reduced because of the losses due
to R1 (series input resistor limiting in-rush current) and to the filtering on both primary and
secondary side. Filtering is more important than efficiency because a power line
communication appliance has very restrictive electromagnetic disturbance limits and it's
also highly sensitive to noise coming from the power supply.

Figure 45. SMPS efficiency curve

0.73

0.73

0.71

0.71

0.69

0.69

0.67

0.67

η

η

0.65

0.65

0.63

0.63

0.61

0.61

0.59

0.59

0.57

0.57

50 100 150 200 250 300 350 400 450 500 550 600

50 100 150 200 250 300 350 400 450 500 550 600

I

I

OUT

OUT

[mA]

[mA]

45/56

Performance and ping tests AN2744

6 Performance and ping tests

Our evaluation environment includes a ping test embedded into the demonstration software
and the communication board firmware. This feature allows to perform in-field
communication tests and to evaluate reachability of PLC network nodes.

A ping session is based on a master board sending to one or more slave boards a sequence
of messages. If the messages are correctly received by the slave boards, they are resent
one by one to the master.

The PC.connected to the master keeps statistics of the messages sent and correctly
received by the slave boards, making it possible to get a numerical evaluation of the
reachability of each node corresponding to a slave.

Figure 46 represents the ping window of the demonstration software tool for the master

node. The main characteristics of this tool are indicated in red.

Figure 46. Demonstration software window for the master board

Number of

Number of

Number of

Slaves

Slaves

(up to 255)

(up to 255)

Number of
Messages

Messages

Repetition

Repetition

Control

Control

Medium

Medium

Access

Access
Control

Control

Last

Last

Message

Message

Status

Status

Graphical

Graphical
Statistics

Statistics

Numerical

Numerical
Statistics

Statistics

Special controls are included in the ping test:

– Repetition control: repetition can be used to improve reliability of the communication.

When enabled, if a message is not responded by a slave, it will be re-sent up to three
times before sending a new message.

– Medium access control: defines what type of medium access has to be used. Choices

are "none", "BU" or "PD". In the last two cases, messages are sent to slave only if BU
or CD/PD lines of the ST7538Q modem are not active. If PD setting is selected,
content of the ST7538Q internal control register is changed to select "Preamble" as
the detection method.

For further details about the ST7538Q demonstration software tool, please refer to UM0241
"ST7538 Power Line Modem DEMO KIT GUI - User Guide".

46/56

AN2744 Application ideas

7 Application ideas

7.1 Three-phase architecture

The ST7538Q modem can be used to communicate on a three-phase network. A
microcontroller should switch communication between the three phases, since the modem
can transmit/receive over only one phase at a time.

In the example scheme of

Figure 47, the microcontroller uses three output lines as enable

signals for three switches (typically opto-switches), one for each phase line. For the modem,
there is no difference with respect to single-phase communication.

Figure 47. Scheme of principle for three-phase architecture

µController

µController

T

RAI

RAI

ATOP1

ATOP1

ATOP2

ATOP2

T

R

R

Rx and TX

Rx and TX

Filters

Filters

Enable

Enable
Ph1

Ph1
Enable

Enable
Ph2

Ph2
Enable

Enable
Ph3

Ph3

ST7538

ST7538

Ph1

Ph1

Ph2

Ph2

Ph3

Ph3

Neutral

Neutral

7.2 Received signal strength indication (RSSI)

In many application fields, measuring the strength of the incoming signal is useful to:

1. evaluate the SNR (signal-to-noise ratio) at the node

2. choose the best routing through the network (if repeaters are allowed)

A possible received signal strength indicator (RSSI) implementation is the one depicted in

Figure 48, where a peak detector is used to measure the amplitude of the incoming signal.

47/56

Application ideas AN2744

Figure 48. Peak detector electrical schematic

5V

5V

R4

R4

4.7k

4.7k

R3

R3

82k

82k

D1

D1

1N4148

1N4148

C1

C1
100n

100n

DC_OUT

DC_OUT

Rx_IN

Rx_IN

R1

R1
100k

100k

R2

R2
18k

18k

8

8

U1A

3

3

2

2

U1A

+

+

-

-

4

4

1

1

LM393

LM393

The schematic above is based on a simple diode-capacitor (D1-C1) circuit improved with an
LM393 comparator so that:

● The comparator eliminates the diode reverse voltage

● The feedback network (R3/R2) introduces a gain of 4 to improve the performance

against low amplitude signals

In the end this circuit gives on DC_OUT line a DC voltage proportional to the AC peak to
peak level at the input.

Figure 49 shows the measured behavior of this circuit with a given

pure sinusoidal waveform at the input. The DC_OUT signal shall be converted by the
application microcontroller through an integrated A/D converter.

Figure 49. Measured DC_OUT vs. AC_IN peak detector performance

3000

3000

2500

2500

2000

2000

1500

1500

DC_OUT [mV]

DC_OUT [mV]

1000

1000

500

500

48/56

0

0

0 200 400 600 800 1000 1200

0 200 400 600 800 1000 1200

AC_IN [mVpp]

AC_IN [mVpp]

AN2744 Application ideas

7.3 110-132.5 kHz dual channel coupling circuit

In this paragraph the dual channel application circuit for CENELEC band B and C is
suggested. The 110 and 132.5 kHz channel frequencies of the ST7538Q transceiver are
suitable for home automation applications and in general for applications not subject to the
European AMR regulations.

Ta bl e 1 2 gives the values for changing a few components to obtain a dual channel line

coupling interface at 110 kHz (CH1) and 132.5 kHz (CH2)

Table 12. List of components to be modified for the 110-132.5 kHz dual channel coupling

Reference Value

L5 47 µH

L6 22 µH

L7 220 µH

C16 2.2 nF

C20 6.8 nF

C27 82 nF

C29 220 nF

R18 390 Ω

R21 6.8 Ω

49/56

Troubleshooting AN2744

8 Troubleshooting

In this section the most frequently asked questions are described.

1.

PROBLEM: the ST7538Q reference design board doesn't work at all.

What to check:

a) Check that the AC mains supply cable is well connected to CN2.

b) Check if the green LED D2 is on.

c) Check voltage on the 10 V test point near the ST7538Q. The value must be 9 to 11

V.

2.

PROBLEM: the ST7538Q reference design board is not responding.

What to check:

a) Check the VDC 5 V voltage output. Spurious voltage spikes can cause dips on the

VDC line. This could force a shutdown of the Tx circuitry if the VDC voltage goes
below 1.5 V. The solution is to force a power-off by mains disconnection.

b) Verify if MCLK selected frequency is present to check whether the ST7538Q is

working.

c) Verify the connection between the reference design board and the communication

board and between the communication board and the PC.

PROBLEM: the ST7538Q reference design board does not transmit.

3.

What to check:

a) Check the voltage on ATOP1 and ATOP2 test points with the oscilloscope ground

probe connected to the AVSS signal ground. Programmed carrier frequency must
be present on both lines.

b) Check that programmed board channel (CH1/CH2) is matching the carrier

frequency selected through the control register panel of the reference design
software window.

c) Check that there is no short-circuit impedance on the mains at the selected

transmitting channel.

d) Check CL voltage. CL voltage fixes the current limiting threshold. It has to be lower

than 1.9 V, otherwise the IC is put in current limit mode.

If current limit mode is forced on the transceiver, check the value of R19 feedback resistor
and if there are any short circuits in the transmission path on the board.

PROBLEM: the ST7538Q reference design board transmits only for a short while.

4.

What to check:

a) Check transmission time-out setting. It has to be disabled for continuous

transmission.

b) Check if continuous or single sequence transmission is selected in the Tx panel of

the reference design software window. Select continuous mode to be able to force
a lasting transmission.

c) Check if zero-crossing function is enabled. If yes, verify the ZCOUT

synchronization bit.

d) Check that there is no short-circuit impedance on the mains at the selected

transmitting channel.

PROBLEM: the ST7538Q reference design board does not receive.

5.

50/56

AN2744 Troubleshooting

What to check:

a) Check if JP2 and JP3 are closed. Please refer to

Section 5.1 for receiving path

configuration.

b) Check if carrier frequency is present on RAI pin voltage with the oscilloscope

ground probe connected to the AVSS signal ground pin.

c) Check that programmed board channel (CH1/CH2) is matching the carrier

frequency selected through the control register panel of the reference design
software window.

d) Check preamble detection setting on the control register panel of the reference

design software window.

e) Check if data are present on RxD pin.

PROBLEM: During a ping test or a transmission test, the ST7538Q reference design

6.
board shows a high bit error rate.

Note: This point refers to a half-duplex communication involving two ST7538Q reference design

boards communicating with each other.

What to check

:

a) Check that both reference design boards are programmed to transmit/receive on

the same carrier frequency.

b) Check on both reference design boards that programmed board channel

(CH1/CH2) is matching the carrier frequency selected through the control register
panel of the reference design software window.

c) Check preamble detection setting on the control register panel of the reference

design software window.

d) Check if data are present on RxD pin.

51/56

List of normative references AN2744

9 List of normative references

EN50065: Signaling on low voltage electrical installations in the frequency range 3 kHz to

148.5 kHz

–Part 1

– Part 2-1

– Part 4-2

–Part 7

: General requirements, frequency bands and electromagnetic disturbances

: Immunity requirements

: Low voltage decoupling filters - Safety requirements

: Equipment impedance

52/56

AN2744 Board layout

Appendix A Board layout

Figure 50. PCB layout - top view

53/56

Board layout AN2744

Figure 51. PCB layout - bottom view

54/56

AN2744 Revision history

10 Revision history

Table 13. Document revision history

Date Revision Changes

30-Apr-2008 1 Initial release.

55/56

AN2744

Please Read Carefully:

Information in this document is provided solely in connection with ST products. STMicroelectronics NV and its subsidiaries (“ST”) reserve the
right to make changes, corrections, modifications or improvements, to this document, and the products and services described herein at any
time, without notice.

All ST products are sold pursuant to ST’s terms and conditions of sale.

Purchasers are solely responsible for the choice, selection and use of the ST products and services described herein, and ST assumes no
liability whatsoever relating to the choice, selection or use of the ST products and services described herein.

No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted under this document. If any part of this
document refers to any third party products or services it shall not be deemed a license grant by ST for the use of such third party products
or services, or any intellectual property contained therein or considered as a warranty covering the use in any manner whatsoever of such
third party products or services or any intellectual property contained therein.

UNLESS OTHERWISE SET FORTH IN ST’S TERMS AND CONDITIONS OF SALE ST DISCLAIMS ANY EXPRESS OR IMPLIED
WARRANTY WITH RESPECT TO THE USE AND/OR SALE OF ST PRODUCTS INCLUDING WITHOUT LIMITATION IMPLIED
WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE (AND THEIR EQUIVALENTS UNDER THE LAWS
OF ANY JURISDICTION), OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT.

UNLESS EXPRESSLY APPROVED IN WRITING BY AN AUTHORIZED ST REPRESENTATIVE, ST PRODUCTS ARE NOT
RECOMMENDED, AUTHORIZED OR WARRANTED FOR USE IN MILITARY, AIR CRAFT, SPACE, LIFE SAVING, OR LIFE SUSTAINING
APPLICATIONS, NOR IN PRODUCTS OR SYSTEMS WHERE FAILURE OR MALFUNCTION MAY RESULT IN PERSONAL INJURY,
DEATH, OR SEVERE PROPERTY OR ENVIRONMENTAL DAMAGE. ST PRODUCTS WHICH ARE NOT SPECIFIED AS "AUTOMOTIVE
GRADE" MAY ONLY BE USED IN AUTOMOTIVE APPLICATIONS AT USER’S OWN RISK.

Resale of ST products with provisions different from the statements and/or technical features set forth in this document shall immediately void
any warranty granted by ST for the ST product or service described herein and shall not create or extend in any manner whatsoever, any
liability of ST.

ST and the ST logo are trademarks or registered trademarks of ST in various countries.

Information in this document supersedes and replaces all information previously supplied.

The ST logo is a registered trademark of STMicroelectronics. All other names are the property of their respective owners.

© 2008 STMicroelectronics - All rights reserved

STMicroelectronics group of companies

Australia - Belgium - Brazil - Canada - China - Czech Republic - Finland - France - Germany - Hong Kong - India - Israel - Italy - Japan -

Malaysia - Malta - Morocco - Singapore - Spain - Sweden - Switzerland - United Kingdom - United States of America

www.st.com

56/56
