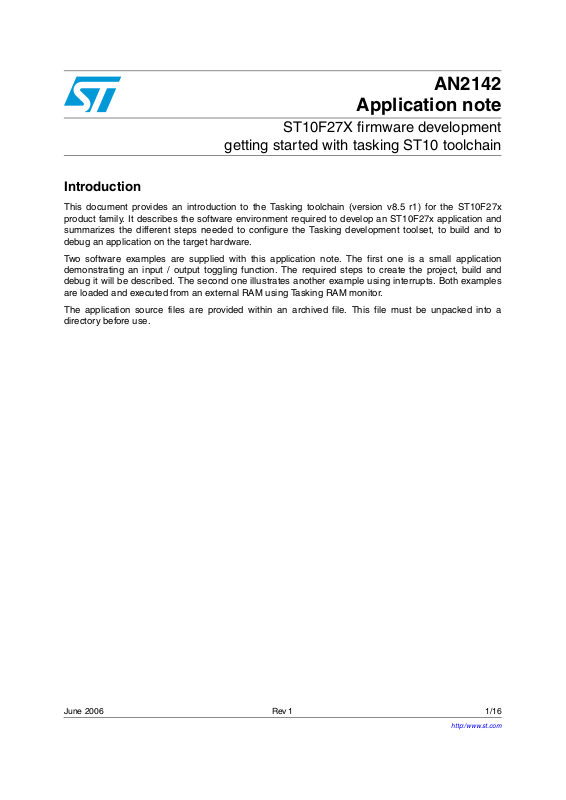

ST AN2142 APPLICATION NOTE

AN2142

Application note

ST10F27X firmware development

getting started with tasking ST10 toolchain

Introduction

This document provides an introduction to the Tasking toolchain (version v8.5 r1) for the ST10F27x
product family. It describes the software environment required to develop an ST10F27x application and
summarizes the different steps needed to configure the Tasking development toolset, to build and to
debug an application on the target hardware.

Two software examples are supplied with this application note. The first one is a small application
demonstrating an input / output toggling function. The required steps to create the project, build and
debug it will be described. The second one illustrates another example using interrupts. Both examples
are loaded and executed from an external RAM using Tasking RAM monitor.

The application source files are provided within an archived file. This file must be unpacked into a
directory before use.

June 2006 Rev 1 1/16

http:/www.st.com

16

AN2142

Contents

1 Tasking ST10 toolchain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

1.1 Starting Tasking development environment (EDE) . . . . . . . . . . . . . . . . . . . . . 3

1.2 Creating a new project . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

1.3 Adding files to the project . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

1.3.1 Adding existing files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

1.3.2 Adding new files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

1.4 Setting build options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

1.5 Building the application . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

1.6 Using the RAM Monitor to debug the application with Cross View debugger 12

2 Application example: interrupt handling . . . . . . . . . . . . . . . . . . . . . . . . . . 14

3 Revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

2/16

AN2142 Tasking ST10 toolchain

1 Tasking ST10 toolchain

The TASKING Embedded Development Environment EDE can be divided into three main parts:

● Edit / Project management: In this part, projects are created and maintained, project

source files are edited etc.

● Build: Here, a makefile (created by the Edit part) is used to invoke the needed toolchain

components, resulting in an absolute object file(*.abs).

● Debug: In this part, the absolute file is used to debug the project.

The figure below shows how these parts interface with each other and enumerates the most
imporant generated files.

(Motorola S record format)

*.sre

Project managemen

Tool options

*.C

*.asm

makefile

*.src

*.obj

*.out
*.map
etc...

*.abs

Debugger

t

EDIT part

BUILD part

*HEX

DEBUG part

Neither the toolset installation nor the license management are described in this application
note. This section assumes that Tasking is already installed on the development host.

For more details on Tasking installation and license management, refer to Tasking
documentation.

This section describes the steps required for creating, building and debugging an ST10F27x
application using the tasking toolchain.

1.1 Starting Tasking development environment (EDE)

Getting started with EDE:

● Select Start -> Programs ->Tasking C166-ST10 from the Windows Start menu.

● Select C166-ST10 EDE from the menu

3/16

Tasking ST10 toolchain AN2142

Tasking starts and the following window appears:

Files Window

Project Window

Output Window

The files window is used to edit source files. The project window contains several tabs for
viewing information about projects and other files. Finally, the output window contains several
tabs to display results of EDE operations such as compiles and builds.

For further information about the window’s contents, refer to the Tasking documentation.

1.2 Creating a new project

When you use EDE, you need to setup a project space and add a project to it. A project space
stores a set of projects. It allows multiple projects to be displayed at a time and allows the user
to organize projects.

A project space file has the extension ‘*.psp’. A project file has the extension ‘*.pjt’.

The following steps describe how to create a new project:

● Select New project space from the File menu. A Create a New Project Space dialog box

is displayed (see the figure below)

● Use the Browse button to select a working directory.

● Enter ’Getting Started Examples’ as the project space name in the Filename field.

● Click OK to confirm your entries and close the Create a New Project Space window.

4/16

AN2142 Tasking ST10 toolchain

The following window appears:

● Click on ’Getting Started Examples’ and choose Add New Project

● An Add New Project to Project Space dialog box is displayed (see the figure below)

● Use the Browse button to select a working directory.

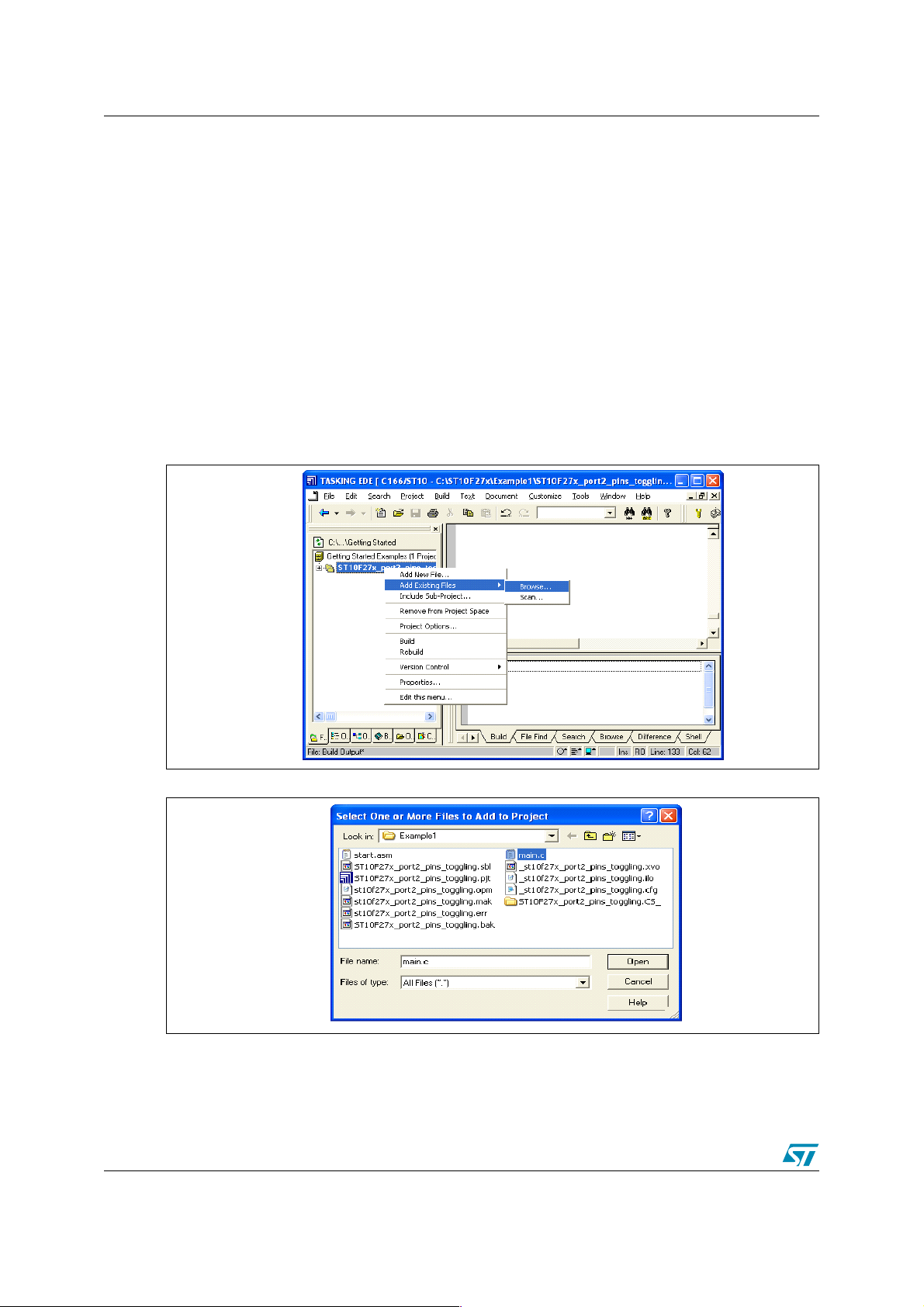

5/16
