4 Seat RZR XP1000 & 2015+ RZR900
2 speaker add-on
WARRANTY INFORMATION:
All SSV Works enclosures are covered by a limited lifetime warranty against defects in
material or workmanship. All SSV Works Electronics are covered by a limited 1 year warranty
against defects in material or workmanship. All SSV Works Speakers are covered by a
limited 1 year warranty against defects in material or workmanship. Labor for replacement
of defective components is not covered. Contact SSV Works for further warranty information.
TOOLS NEEDED FOR INSTALLATION
- #3 Phillips Screwdriver - Wire Cutters
PARTS LIST
1. WP-RZF3O+2F x 1
2. M6 x 1.0 Screws x 8
3. M6 Washers x 8
PARTS LIST IMAGES
!
Please read and understand these
instructions completely before
installation to avoid possible injury, or
damage to the accessory or vehicle.
4. Mounting Brackets x 2
5. Zip Ties
1. WP-RZF3O+2F x 1 2. M6 x 1.0 Screws x 8
INSTALLATION NOTES
It is recommended to have another person assist with this installation. The use of a thread locker is recommended on all screws to prevent
loosening due to vibration.
5. Zip Ties3. M6 Washers x 8 4. Mounting Brackets x 2
INSTALLATION INSTRUCTIONS
A B

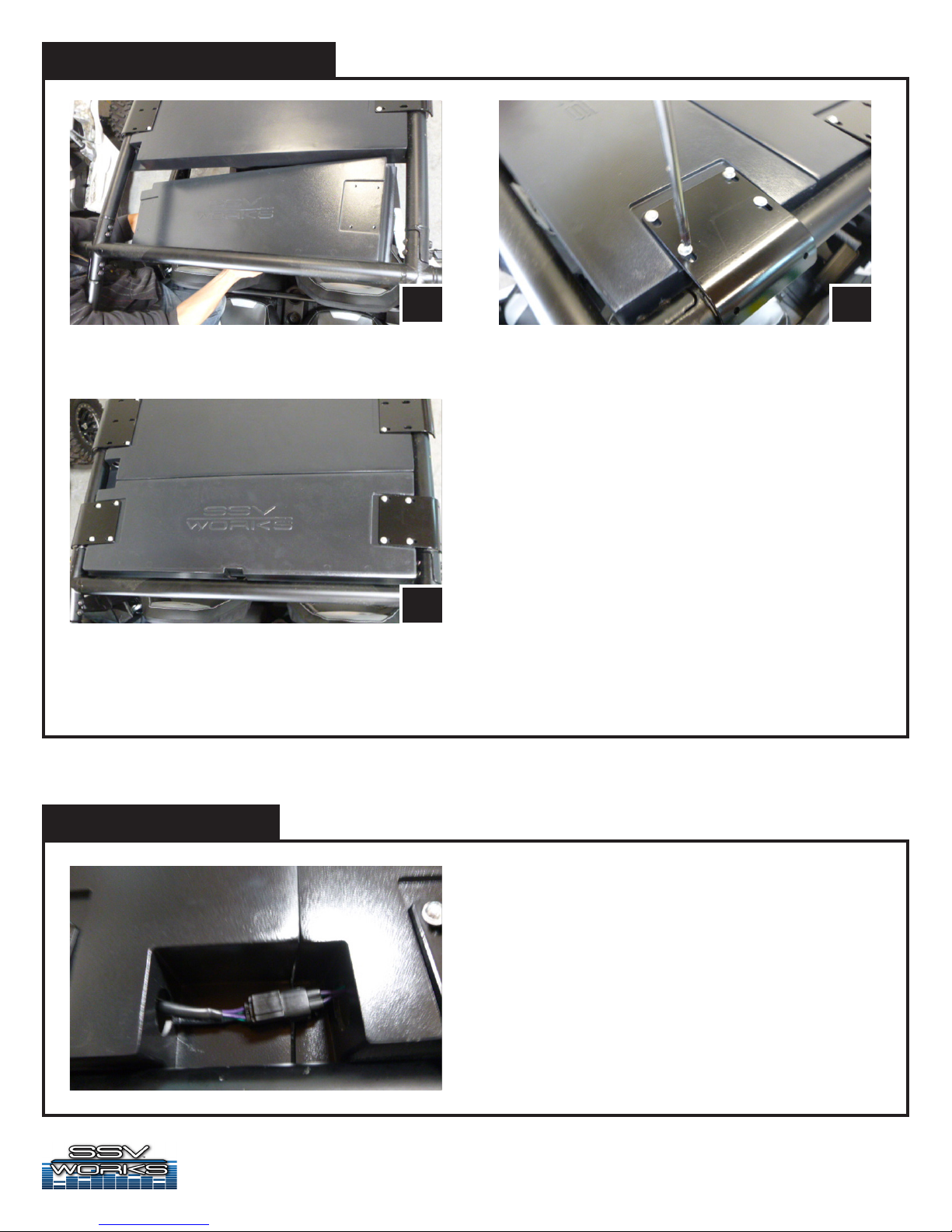

A. With one person on either side of the vehicle place the WP-
RZF3O+2F into location from the underside of the cage.
C
C. Once the enclosure is centered side to side, press the bracket
toward the center of the vehicle and tighten the brackets using
the #3 screwdriver. NOTE: After all brackets are tightened,
it may be necessary to go back and re-adjust the brackets to
ensure the enclosure is properly secured.
B. While holding the enclosure securely toward the main WP-RZF3O4,
loosely install the 2 brackets using the screws provided.
WIRING INSTRUCTIONS
WP-RZF3O+2F
Plug in the 4 pin speaker output from the main unit WP-RZF3O4 into the 4 pin
speaker input on the WP-RZF3O+2F, and then secure to the cage using the
zip ties provided.
NOTE: Increase your sound even more! Add SSV Works #WP-RZF3O+2R for a
total of 8 speakers
© 2016 SSV Works, Oxnard, CA 93030 WP-RZF3O+2F Rev. A 4-12-16
