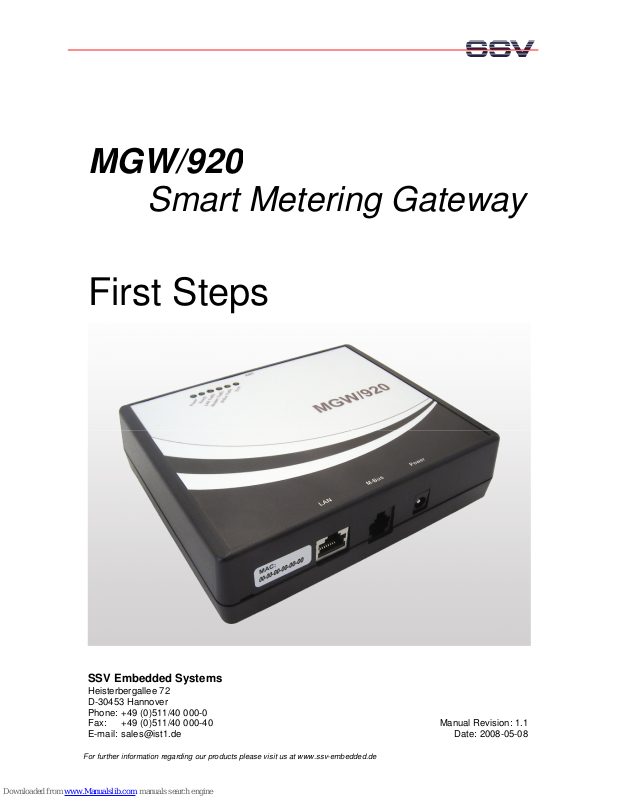

SSV Embedded Systems MGW/920 First Steps

M
920
Smart Metering Gateway
First Steps
SSV Embedded Systems
Heisterbergallee 72 D-30453 Hannover Phone: +49 (0)511/40 000-0 Fax: +49 (0)511/40 000-40 E-mail: sales@ist1.de
Manual Revision: 1.1
Date: 2008-05-08
For further information regarding our products please visit us at www.ssv-embedded.de
MGW/920 Smart Metering Gateway- First Steps
2
Manua l R e vision 1. 1
CONTENT
1 INTRODUCTION...............................................................................................................3
1.1 Safety Guidelines...................................................................................................................3
1.2 Conventions...........................................................................................................................3
1.3 Application Environment.......................................................................................................4
1.4 Features and Technical Data..................................................................................................5
2 OVERVIEW.......................................................................................................................6
3 GETTING STARTED.........................................................................................................7
3.1 Ethernet Link between MGW/920 and PC.................................................................................7
3.2 Connecting Power Supply and Power-up the MGW/920.............................................................8
3.3 Checking IP Address of PC ...................................................................................................9
3.4 Checking Ethernet-based TCP/IP Communication .............................................................10
3.5 Changing Ex Factory IP Address (IPbyNet) .......................................................................11
4 MECHANICAL DIMENSIONS .........................................................................................13
5 PINOUTS ........................................................................................................................14
5.1 Ethernet Interface (RJ45).....................................................................................................14
5.2 M-Bus Master Interface (RJ12)...........................................................................................14
6 HELPFUL LITERATURE.................................................................................................15
CONTACT..............................................................................................................................15
DOCUMENT HISTORY .........................................................................................................15
MGW/920 Smart Metering Gateway- First Steps
Manua l R e vision 1. 1
3
1 INTRODUCTION
The default configuration of an MGW/920 Smart Metering Gateway contains one 10/100 Mbps Ethernet LAN interface and one M-Bus master interface for up to ten external M-Bus meters.
For using the MGW/920 you need an Ethernet link to your PC or to an Internet router. This link needs a standard Ethernet patch or cross-over cable.
1.1 Safety Guidelines
Please read the following safety guidelines carefully! In case of property or personal damage by not paying attention to this document and/or by incorrect handling, we do not assume liability. In such cases any warranty claim expires.
ATTENTION: Observe precautions for handling – electrostatic sensitive device!
Discharge yourself before you work with the device, e.g. by touching a heater of
metal, to avoid damages.
Stay grounded while working with the device to avoid damage through electrostatic
discharge.
1.2 Conventions
Convention Usage
bold
Important terms
italic
Filenames, user inputs
monospace
Pathnames, program code, command lines
Table 1: Conventions used in this Document
MGW/920 Smart Metering Gateway- First Steps
4
Manua l R e vision 1. 1
1.3 Application Environment
Figure 1 shows the typical application environment for the MGW/920 Smart Metering Gateway. One side is connected over the M-Bus (metering Bus) to gas, electricity, water or other types of consumption meters. The other side offers an IP-based Internet link via wired xDSL (Ethernet) or wireless GPRS (GSM/GPRS modem).
The application environment allows the transfer of energy consumption data over the Inter­net as an IP-based network to IT-hosted monitoring, billing or management applications in real time.
Fig. 1: Application Environment for the MGW/920
MGW/920 Smart Metering Gateway- First Steps
Manua l R e vision 1. 1
5
1.4 Features and Technical Data
MGW/920 with DIL/NetPC DNP/9200 @ 180 MHz
1x Real Time Clock (RTC) with battery backup
1x M-Bus master interface (RJ12)
1x 10/100 Mbps Ethernet LAN interface (RJ45)
6x status LED
Modem socket for GSM/GPRS modem expansion
The MGW/920 M-Bus master interface supports up to ten external M-Bus meters and a max. distance of 10 km. The M-Bus communication speed can range from 300 to 19.200 bps.
MGW/920 Smart Metering Gateway- First Steps
6
Manua l R e vision 1. 1
2 OVERVIEW
Fig. 2: Overview MGW/920
MGW/920 Smart Metering Gateway- First Steps
Manua l R e vision 1. 1
7
3 GETTING STARTED
3.1 Ethernet Link between MGW/920 and PC
Setup the Ethernet link between the Ethernet connector of the MGW/920 and your PC. Use an Ethernet cross-over cable or a router-based infrastructure for the Ethernet connec­tion.
Fig. 3: Ethernet link between MGW/920 and PC
Please note: The MGW/920 comes with the default IP address 192.168.0.126.
Please make sure that your PC can work with the IP address range 192.168.0.x.
Fig. 4: Router-based Ethernet link between MGW/920 and PC
MGW/920 Smart Metering Gateway- First Steps
8
Manua l R e vision 1. 1
3.2 Connecting Power Supply and Power-up the MGW/920
Connect the 12 VDC power supply with the 5.5 mm x 2.5 mm barrel plug to the MGW/920.
Fig. 5: Power supply for the MGW/920
CAUTION: Providing the MGW/920 with a voltage higher than the regular 12 VDC
±10 % could resolve in damaged board components!
Please pay attention to the polarity of the power connector: the + pole is in the center!
Fig. 6: Polarity of the power connector
MGW/920 Smart Metering Gateway- First Steps
Manua l R e vision 1. 1
9
3.3 Checking IP Address of PC
Make sure that your PC is using the right IP address for the Ethernet-based TCP/IP com­munication with the MGW/920. Use 192.168.0.1 or 192.168.0.254 for your PC and
192.168.0.126 for the MGW/920.
Fig. 7: Windows-PC IP address check with ipconfig
Talk to your network administrator if you have problems with the IP address understand­ing.
MGW/920 Smart Metering Gateway- First Steps
10
Manua l R e vision 1. 1
3.4 Checking Ethernet-based TCP/IP Communication
Check the Ethernet-based TCP/IP communication between the MGW/920 and the PC with a simple ping command.
Fig. 8: Windows-PC TCP/IP communication check with ping
First check the cable connections and then the IP addresses if your ping does not work. Then check the TCP/IP setup of your PC.
MGW/920 Smart Metering Gateway- First Steps
Manua l R e vision 1. 1
11
3.5 Changing Ex Factory IP Address (IPbyNet)
The ex factory value for the default IP address is 192.168.0.126. The network mask for this address is 255.255.255.0. You can change the IP address and the network mask over an Ethernet link with the MGW/920 IPbyNET feature.
Fig. 9: Environment for IP address change with IPbyNet
IPbyNET is a MGW/920 firmware component, which checks directly after each boot process the presence of ICMP echo request packets with the MAC address of the MGW/920 Ethernet interface. If an ICMP packet is available, the IPbyNET firmware ex­tracts the destination IP address from the ICMP echo request packet and sets the MGW/920 Ethernet interface with this IP address.
Fig. 10: Changing the IP address with IPbyNet
Please see the label with the MAC address on the front of your MGW/920 to find the MAC address for your MGW/920. Then run a Windows command prompt and enter the following two command lines:
arp –s 192.168.0.10 02-80-AD-20-D3-7F ping –t –w 300 192.168.0.10
MGW/920 Smart Metering Gateway- First Steps
12
Manua l R e vision 1. 1
The first command line creates an ARP table entry for the IP address 192.168.0.10 and the MAC address 02-80-AD-20-D3-7F. The second command line sends an ICMP echo request to the device with the MAC address 02-80-AD-20-D3-7F. This request contains the new IP address 192.168.0.10.
Change the IP address and the MAC address of the two command lines. Use the IP ad­dress of your needs and the given MAC address from your MGW/920.
Then reboot the MGW/920. After a few seconds the MGW/920 responds to the ping with the new IP address.
MGW/920 Smart Metering Gateway- First Steps
Manua l R e vision 1. 1
13
4 MECHANICAL DIMENSIONS
All length dimensions have a tolerance of 0.5 mm. The keyhole drillings are suitable for M4 screws.
Fig. 11: Mechanical dimensions of the MGW/920
MGW/920 Smart Metering Gateway- First Steps
14
Manua l R e vision 1. 1
5 PINOUTS
5.1 Ethernet Interface (RJ45)
Pin Name Function
1
TX+ 10/100 Mbps LAN, TX+ Pin
2
TX- 10/100 Mbps LAN, TX- Pin
3
RX+ 10/100 Mbps LAN, RX+ Pin
4
--- Not Connected
5
--- Not Connected
6
RX- 10/100 Mbps LAN, RX- Pin
7
--- Not Connected
8
--- Not Connected
Table 2: Pinout Ethernet interface
5.2 M-Bus Master Interface (RJ12)
Pin Name Function
1
--- Not Connected
2
--- Not Connected
3
MBUS2 M-Bus Signal 2 (+)
4
MBUS1 M-Bus Signal 1 (-)
5
--- Not Connected
6
--- Not Connected
Table 3: Pinout M-Bus master interface
MGW/920 Smart Metering Gateway- First Steps
Manua l R e vision 1. 1
15
6 HELPFUL LITERATURE
DIL/NetPC DNP/9200 hardware reference
MB/920-E2M Base Board hardware reference
CONTACT
SSV Software Systems
Heisterbergallee 72 D-30453 Hannover / Germany Phone: +49 (0)511/40 000-0 Fax: +49 (0)511/40 000-40 E-mail: sales@ist1.de Internet: www.ssv-embedded.de Support: www.ssv-comm.de/forum
For actual information about the MGW/920 visit us at www.ssv-comm.de.
DOCUMENT HISTORY
Revision Date Remarks Name
1.0 2008-04-21 first version WBU
1.1 2008-05-08 product name changed WBU
The content of this document can change any time without an
nouncement. There is taken over no guarantee
for the accuracy of the statements. The user assumes the en
tire risk as to the accuracy and the use of this
document. Information in this docu
ment is provided ‘as is’ without warranty of any kind. Some names within
this document can be trademarks of their respective holders.
© 2008 SSV EMBEDDED SYSTEMS. All rights reserved.
