VM4HD Installation
and User Guide
1
Table of Contents
Overview.................................................................................... 3
Connecting to a display device..................................................3
Connecting an external video source........................................4
Connecting to a network............................................................4
Using flash memory................................................................... 4
Understanding the front panel LED indicators...........................5
Using the setup menu................................................................5
Setting the time and date...........................................................6
Setting the video options........................................................... 6
Setting the network options.......................................................7
Performing a firmware upgrade................................................. 7
Hardware Specifications............................................................7
Important Safety Information
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO
NOT REMOVE COVER. NO USER SERVICEABLE PARTS
INSIDE. REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.

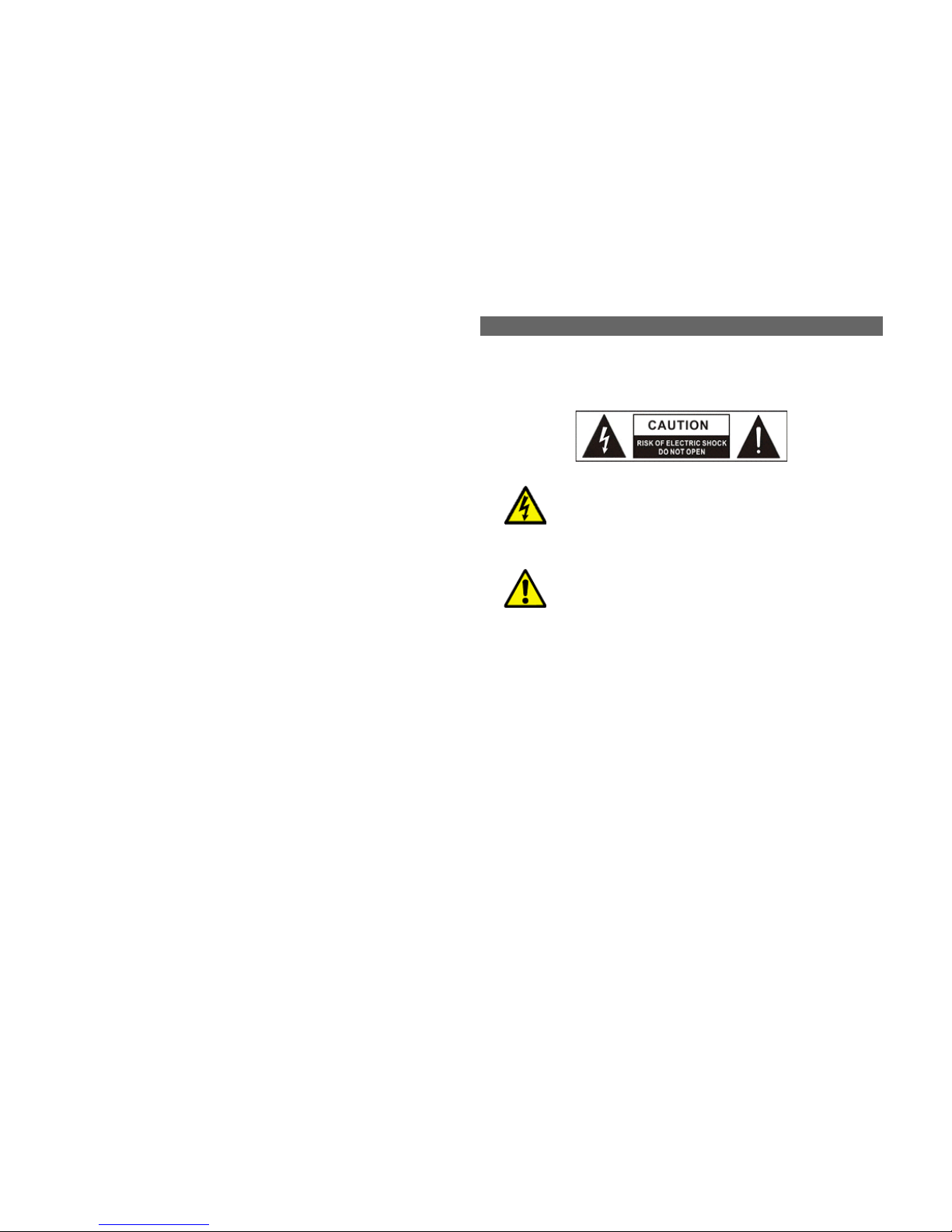

The lightning flash with arrowhead symbol, within an
equilateral triangle, is intended to alert the user to the
presence of insulated “dangerous voltage” within the
product’s enclosure that may be of sufficient magnitude to
constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance instructions in the literature
accompanying the appliance.
CAUTION: Read this guide before you begin installation or
operation.
When using this unit, basic safety precautions should always be
followed to reduce the risk of fire, electrical shock, or personal injury.
• Read and understand all instructions.
• Follow all warnings and instructions marked on this unit.
• Do not use this unit near water, for example near a sink. Do
not install the unit in a wet or damp location.
• Mount the unit securely. Serious damage and/or injury may
result if unit falls.
• Do not cover the unit or cooling slots as it may cause
overheating. Never install unit near heaters, hot device or in
any place where proper ventilation is not provided.
2
• Use only the power source marked on the unit.
• Do not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two blades with
one wider than the other, a grounding type plug has two
blades and a third grounding prong. The wide blade or third
prong are provided for your safety. If the provided plug does
not fit into your outlet, consult an electrician for replacement
of the outdated obsolete outlet.
• For safety purposes this unit is equipped with a grounded
power receptacle and cord. Do not defeat this safety feature
by tampering with the unit or plug.
• Do not place objects on or crush the power cord. Install the
unit where no one can step or trip on the cord.
• Never push any objects through slots in this unit. This may
result in the risk of fire or electrical shock. Never spill any
liquid on the unit.
• To reduce the risk of electrical shock, do not disassemble the
unit. Take the unit to your dealer for service when service is
required. Opening or removing the cover may expose you to
dangerous voltages or other risks. Incorrect reassembly can
cause electrical shock when the unit is subsequently used.
• Unplug the unit and power cord from power outlets and refer
servicing to an authorized dealer when any of the following
occur.
A. When power cord is damaged or frayed.
B. If liquid has been spilled into the unit.
C. If the unit has been exposed to rain or water.
D. If unit does not work properly by following the
operating instructions correctly.
E. If the unit has been dropped or physically
damaged.
F. If the unit exhibits a distinct change in
performance.
SAVE THESE INSTRUCTIONS
CAUTION:
• Only connect power after unit is mounted and all connections
have been made.
WARNING:
• To prevent the risk of fire or electrical shock, do not expose
this product to rain or any type of moisture.
• Unplug the unit from power if it emits smoke, an abnormal
smell or makes unusual noise. These conditions can cause
fire or electrical shock. Confirm that smoke has stopped and
contact an authorized dealer.
For best performance
• Operating temperature: 32° to 95° F (0° to 35° C)
• Non-operating temperature: -4° to 113° F (-20° to 45° C)
• Relative humidity: 5% to 95% non-condensing
• Keep the unit away from electrical noise generating devices,
such as fluorescent lamps and motors.
• The unit should be kept free from dust, high temperature and
vibration.
• The unit should not be operated in direct sunlight.
• Do not place any objects on top of unit.
• The unit should be kept away from heat sources such as
heaters, stoves and heat making electronic devices.
• Do not install in damp basement or near equipment that
creates humidity.
Routine care
• Wipe the outer surface with a soft cloth. Do not use solvents,
thinners or any liquid. Do not use aerosols.
3
Overview
The VM4HD is a network enabled high definition digital signage
device capable of generating dynamic video content based on user
defined presentations. The VM4HD connects to any display device
that accepts standard definition (SD), enhanced definition (ED) or
high definition (HD) video via the onboard video connectors. In
addition to standalone operation, the VM4HD can genlock to
external video sources to allow additional media to be superimposed
onto the display. The VM4HD supports the following video formats:
480i (NTSC), 576i (PAL), 480p, 576p, 720p 50Hz, 720p 60Hz, 1080i
25Hz, 1080i 30Hz.
Connecting to a display device
To connect the VM4HD to a display device, commonly a television or
video distribution system, there are 4 options.
1. HDMI Output
The HDMI output of the VM4HD is capable of sending SD, ED, and
HD video signals along with stereo audio. In order for the HDMI
output to function as expected with SD video signals, set the SD
Output mode as shown on page 7, Setting the video options.
2. Component Output
The component output of the VM4HD is capable of sending SD, ED,
and HD video signals. In order for the component output to function
as expected with SD video signals, set the SD Analog Output mode
as shown on page 7, Setting the video options.
3. S-Video Output
The s-video output of the VM4HD is capable of sending SD video
signals only.
Note – in s-video output mode, the unused Pr connector on the
