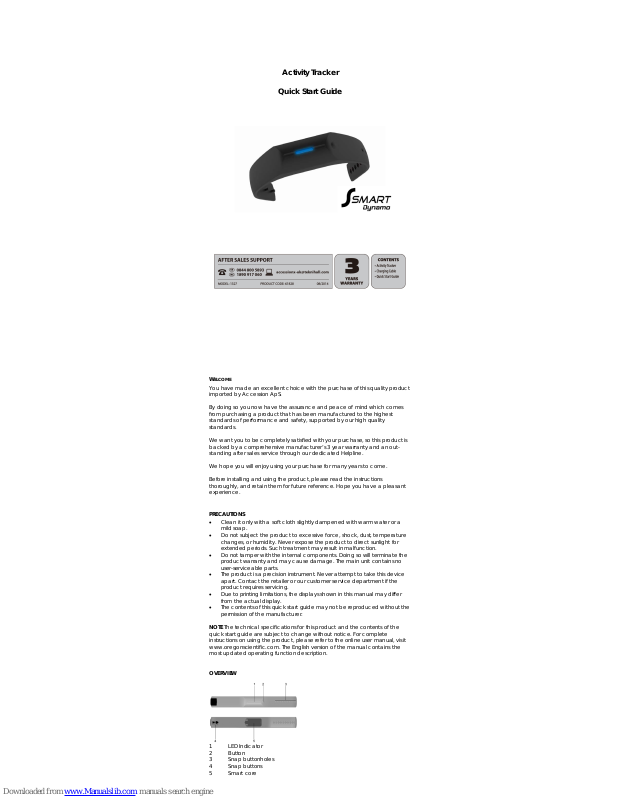

Activity Tracker
Quick Start Guide
WELCOME
You have made an excellent choice with the purchase of this quality product
imported by Accession ApS.
By doing so you now have the assurance and peace of mind which comes
from purchasing a product that has been manufactured to the highest
standards of performance and safety, supported by our high quality
standards.
We want you to be completely satisfied with your purchase, so this product is
backed by a comprehensive manufacturer’s 3 year warranty and an outstanding after sales service through our dedicated Helpline.
We hope you will enjoy using your purchase for many years to come.
Before installing and using the product, please read the instructions
thoroughly, and retain them for future reference. Hope you have a pleasant
experience.
PRECAUTIONS
• Clean it only with a soft cloth slightly dampened with warm water or a
mild soap.
• Do not subject the product to excessive force, shock, dust, temperature
changes, or humidity. Never expose the product to direct sunlight for
extended periods. Such treatment may result in malfunction.
• Do not tamper with the internal components. Doing so will terminate the
product warranty and may cause damage. The main unit contains no
user-serviceable parts.
• The product is a precision instrument. Never attempt to take this device
apart. Contact the retailer or our customer service department if the
product requires servicing.
• Due to printing limitations, the displays shown in this manual may differ
from the actual display.
• The contents of this quick start guide may not be reproduced without the
permission of the manufacturer.
NOTE The technical specifications for this product and the contents of the
quick start guide are subject to change without notice. For complete
instructions on using the product, please refer to the online user manual, visit
www.oregonscientific.com. The English version of the manual contains the
most updated operating function description.
OVERVIEW
1 LED Indicator
2 Button
3 Snap buttonholes
4 Snap buttons
5 Smart core
CHARGING AND INDICATORS
Charge the smart core for at least 1 hour before your first use.
1. Unwire the USB cable from the charger pod.
2. Align the two metal connection points of the charger pod with the pair
on the smart core.
3. Make sure that the magnetic connection points touch each other and
that they are fully connected.
4. Plug the big end of the USB cable into USB port of your PC.
5. Once the smart core is correctly connected with the charger pod, the
indicator turns on.
GETTING STARTED
WEAR
Your activity tracker is adjustable to fit different wrist sizes. Make sure the
activity tracker is not too loose to avoid inaccurate calculations.
APPLICATION
Your activity tracker can help track your activities during the day and your
sleep status at night while transmitting your data with your mobile device.
Download ‘Dynamo’ application (
). It is available in the Apple App Store
and Google Play Store. Visit the official website of your activity tracker for
more information: ssmart.oregonscientific.com/dynamo
Connect to your mobile device
Activate Bluetooth on your smart phone, and start the Dynamo App on your
phone. Press and hold the operation button on the wristband for 5 seconds.
The indicator will flash 3 times in blue.
SETTINGS
Edit your profile at anytime by following the below steps:
1. Tap
icon in the Dynamo app to enter setting screen.
2. You can set different settings, including User, Activity, Wake up time and
Support.
NOTE
1. If you want to use another compatible activity tracker, you need to unpair
the previous activity tracker from the application.
2. The activity tracker will automatically deactivate the sleep mode and then
switch to the activity mode at your set wakeup time to avoid that user
forgets to switch back to the activity mode by pressing the button.
NOTE Interface of the application is subject to change without notice.
ACTIVITY MODE
The activity tracker monitors you to achieve 30 minutes a day or 150 minutes
per week moderate-intensity physical activity volume.
Once you press the operational button, the corresponding LED indicator
turns on for 3 seconds.
To view activity data
Tap
icon in the Dynamo app.
Tap on your desired area, the screen displays corresponding screen, including
graphical view.
Tap the arrow again
/ / / , to go back to the previous screen.
SLEEP MONITORING MODE
Start your sleep
Press and hold the button on the wristband until the LED indicator turns purple.
Indicators
Status
Red is on
Charging
Green is on
Charging completed
Red blinks 3 times when
the button is pressed.
Low battery
Your Activity Achievement
LED color
< = 50%
Red
51-89%
Yellow
90-99%
Green
> =100%
Blue
Batteries, electrical and electronic equipment (EEE) contain
materials, parts and substances, which can be dangerous to the
environment and harmful to human health if waste of electrical and
electronic equipment (WEEE) are not disposed of correctly.
Batteries, electrical and electronic equipment, which are marked
with the WEEE logo (as shown on the left), should not be thrown
away with your household waste. Contact your Local Authority
Waste Disposal Department, as they will be able to provide details
of the recycling options available in your area.
After your sleep
Press and hold the button on the wristband again until the LED indicator blinks
3 times in purple.
To view sleep data
Tap
icon in the Dynamo app after you have synchronized with your
smartphone/tablet to view the sleeping data.
WATERPROOF
The tracker is water-resistant up to 1 ATM / 10m. This means you can use the
tracker for simple water sport activity, but it must not be used for snorkeling
and deep water diving.
SPECIFICATIONS
Type
Description
Dimension
(L x W x H)
38 x 23 x 18 mm
(1.5 x 0.9 x 0.7 inches)
Weight
20.9 g (0.74 oz)
Waterproof
IPX8 certified
Battery Life
10 days
Memory
Stores 14 days of data
Bluetooth
4.0 BLE
DISPOSAL
WARRANTY
We want you to be completely satisfied with your purchase so this product is
backed by a comprehensive manufactur
er’s 3 year warranty and an
outstanding after sales service through our dedicated Helpline.
If you require technical support or in the unlikely event that the purchase you
have made is faulty, please telephone our Helpline for immediate assistance.
Faulty product claims made within the 3 year warranty period will be repaired
or replaced free of charge provided that you have satisfactory proof of
purchase (keep your till receipt safe!). This does not affect your statutory
rights. However, be aware that the warranty will become null and void if the
product is found to have been deliberately damaged, misused or
disassembled.
--------------------------------------------------------------------------------------------------------------
WARRANTY CARD
Activity Tracker - 61828
Please keep your purchase receipt together with your warranty card
Name
Address
Tel.No.
Date of purchase
Location of purchase
Please state detailed description of malfunction:
Supplier:
Accession ApS - Vandmanden 34 - DK-9200 Aalborg SV
www.accessionx.com
