FORCE MOSFET Amplifier User’s Manual - page 1
U S E R ’ S M A N U A L
2 Introduction
2 What is included?
3 Features
3 About 2 Ohm operation
4 General precautions
4 Installation precautions
4 Mounting the amplifier
5 Connecting the amplifier
6 Low level input wiring
8 High level input wiring
10 MonoBlock Power and
Speaker wiring
MonoBlock wiring
11 2CH Power and Speaker wiring
2CH and Bridged Mode
12 2CH Power and Speaker wiring
TriMode
13 4CH Power and Speaker wiring
4CH and Bridged Mode
14 4CH Power and Speaker wiring
TriMode
15 Troubleshooting
16 Specifications
Congratulations on your
purchase of a
Sound Storm Laboratories
FORCE Amplifier.
It has been designed, engineered
and manufactured to bring you
the highest level of performance
and quality, and will afford you
years of listening pleasure.
Thank you for making Sound
Storm Laboratories your choice
for car audio entertainment!
page
F1200M
F2000M
MonoBlock
MOSFET Car Audio
Amplifiers
F2.600
F2.800
F2.1200
F2.1600
F2.2000
F2.2500
Two Channel
MOSFET Car Audio
Amplifiers
F4.800
F4.1200
F4.1600
F4.2000
Four Channel
MOSFET Car Audio
Amplifiers
FORCE MOSFET Amplifier User’s Manual - page 2
Introduction
With the Sound Storm Laboratories
FORCE MOSFET amplifier series, we
are introducing eleven new amplifiers,
all designed in the USA. This new
series includes six 2-channel, four
4-channel amplifier and a two
monoblock amplifiers.
All FORCE models feature variable low
pass crossovers and variable input
gain controls. They also incorporate a
fixed high pass crossover for added
system flexibility, and the F1200M and
F2000M feature an input voltage
sensitivity selector.
For further flexibility in the use of a
subwoofer, Bass Boost control has
been included on all amplifiers:
variable 0-+18dB on the two and fourchannel amplifiers, and selectable
0/+18dB on the F1200M and F2000M.
You can control the subwoofer level
with the remote level control module.
Sound Storm Laboratories
understands that amplifiers are placed
in many different kinds of installations,
so we have also included an input
sensitivity control to help you integrate
the amp into your system regardless
of the nature of your input source.
What is included?
When first unpacking your new
amplifier, please check first that the
package contains all of the items
below. If something is missing, contact
the store where you purchased the
player.
• FORCE amplifier
• Remote subwoofer level control
• Remote subwoofer control cable
•High input cable with connector
• Four (4) mounting screws
FORCE MOSFET Amplifier User’s Manual - page 3
Features About 2 Ohm operation
Your new FORCE amplifier features
the following:
• Class A-B operation
• Bridgeable outputs
(except F1200M and F2000M)
• TriMode capable
(except F1200M and F2000M)
• MOSFET PWM (Pulse Width
Modulated) Power Supply
• 2 Ohm stable stereo operation
with output power increase
• Thermal and speaker short
protection
• Soft turn-on circuit
• Remote turn-on/turn-off circuit
• Variable input gain control
• Input voltage sensitivity selector
on F1200M
• Variable low pass crossover(s)
• Fixed high pass crossover (200Hz)
• Bass Boost control
(variable 0 to +18dB on all 2 channel and 4-channel amps,
selectable 0/+18dB on F1200M
and F2000M)
• Nickel-plated RCA low level and
high level inputs
• LED power and protection
indicators
• Black anodized heatsink
• Remote subwoofer level control
Your FORCE amplifier has been
designed to operate efficiently at loads
down to 2 Ohms. This means that you
can install four 8 Ohm speakers per
channel, when using parallel wiring.
Increasing the number of woofers per
channel at low frequencies (below
100Hz) produces an acoustic coupling
effect. This acoustic coupling effect
increases your power output by about
3dB per speaker, or the equivalent of
an additional 10W per speaker.
When operating at 2 Ohms, the
amplifiers will increase their output
power by approximately 50%. The
current draw will also increase by
about the same amount, so be sure
you have enough current to run the
amplifiers into a 2Ohm load.
If you lack adequate current, your
music reproduction will be distorted.
FORCE MOSFET Amplifier User’s Manual - page 4
General precautions
SHOCK HAZARD! Do not open the case
of this product. There are dangerous
voltages present within the unit. There are
no user-serviceable parts within the unit.
Before making or breaking power
connections in your system,
disconnect the vehicle battery. Confirm
that your head unit or other equipment
is turned off while connecting the input
jacks and speaker terminals.
If you need to replace the power fuse,
replace it only with a fuse identical to
that supplied with the amplifier. Using
a fuse of a different type or rating may
result in damage to your audio system
or your amplifier which is not covered
by the manufacturer's warranty.
Before installing and using your
new Sound Storm Laboratories
amplifier, please become familiar
with all the information contained
in this manual.
Please keep this manual in a safe
place for future reference.
• Do not open or attempt to repair
this unit yourself. Dangerous high
voltages are present which may result
in electric shock. Refer any repairs to
a qualified service technician.
• To avoid risk of electronic shock or
damage to the amplifier, do not permit
any of this equipment to become
damp or wet from water or drinks. If
this does occur, immediately unplug
the power wires and send the amplifier
to your local dealer or service center
as soon as possible.
• If there is smoke or any peculiar
odor present during use or if there is
damage to any of the component
enclosures, immediately unplug the
power wire and send the amplifier to
your local dealer or service center as
soon as possible .
Installation precautions
Before you drill or cut any holes,
investigate your car's layout very
carefully. Take special care when you
work near the gas tank, fuel lines,
hydraulic lines and electrical wiring.
Never operate the amplifier when it is
unmounted. Attach all audio system
components securely to prevent
damage, especially in an accident.
Mounting the amplifier
1. Find a suitable location in the vehicle
in which to mount the amplifier.
2. Make sure there is sufficient air
circulation around the intended
mounting location.
3. Mark the location for the mounting
hole screws by positioning the amplifier
where you wish to install it. Use a
scribe or mounting screw, inserted
through each of the amp's mounting
holes, to mark the mounting surface.
If the mounting surface is carpeted,
measure the hole centers and mark
with a felt tip pen.
4. Drill pilot holes in the mounting
surface for the mounting screws. Place
the amplifier in position, and attach
the amplifier to the mounting surface
securely using screws.
FORCE MOSFET Amplifier User’s Manual - page 5
Before doing any wiring, look through
this manual and identify the diagrams
to follow for power, input and speaker
connections for your particular
installation. Be sure you understand
all the connections before you proceed.
1. Connect the power ground terminal
to the closest point on the chassis of
the car. Keep this ground wire to less
than 39" (100 cm) in length. Use 8
gauge (or heavier) wire.
2. Connect the remote terminal to the
remote output of the head unit using
16 gauge (or heavier) wire.
3. Connect an empty fuse holder within
18" (45 cm) of the car battery, and run
8 gauge (or heavier) cable from this
fuse to the amplifier location.
4. Check that the fuse holder is empty.
Then connect the fuse holder to the
"BATT+" connection on the amplifier.
5. If multiple amplifiers are being used
in your system, either:
• Run a separate pair of cables from
the battery and a chassis ground point
to each amplifier. Each (+) cable must
have its own inline fuse.
-or-
• Run a #4 cable from the fuse holder
at the battery to a distribution block
at or near the amplifier's location. Then
run separate cables from the amplifier
to this distribution block and to
independent chassis ground points.
6. Connect all line inputs and outputs
(if used) using high-quality cables.
Connect all speakers, following the
diagrams in this manual. Be sure to
observe proper polarity to avoid audio
phase problems.
Connecting the amplifier
7. Insert fuse(s) into the battery fuse
holder(s).
8. Recheck all connections before
powering up the amplifier.
9. Set all level controls to minimum
position, and set all crossover
controls/switches to the desired
frequency points.
10. Power up the head unit and the
amplifier. Then set the volume control
on the head unit to about 3/4 volume,
and adjust the amplifier’s input level
control(s) to just below the level of
distortion.
11. Further fine tuning of the various
controls may be necessary to obtain best
results.
Do not mistake the input level control
for a volume control! It is designed
ONLY to match the output level of
your audio source to the input level
of your amplifier.
Do not adjust this input level to
maximum unless your input level
requires it.
Ignoring these instructions will result
in an input overload to the amplifier,
and excessive audio distortion. It
can also cause the protection circuit
to engage.
Don't misuse the
level control!
0
CROSS OVER
PROTEC TIONPOWER
M O N O B L O C K M O S F E T P O W E R A M P L I F I E R
R
L
INPUTS
BASS BO OST
+18dB 150Hz40Hz
FREQ
FULL
RANGE
MODE
LOW
PASS MAXMIN
LEVEL
2V-8V
INPUT SE NSITIVI TY
100mV-2V
+ -
GND
- +
R L
HIGH LEV EL
INPUTS
INPUTS
R
PROTEC TION
POWER
L
CROSS OVER
0
2 C H A N N E L M O S F E T P O W E R A M P L I F I E R
+ -
GND
- +
R L
HIGH LEVEL
INPUTSBASS B OOST
+18dB 150Hz40Hz
FREQU ENCY
HIGH
PASS
MODE
FULL
RANGEMAXMIN
LEVEL
LOW
PASS
FORCE MOSFET Amplifier User’s Manual - page 6 FORCE MOSFET Amplifier User’s Manual - page 9

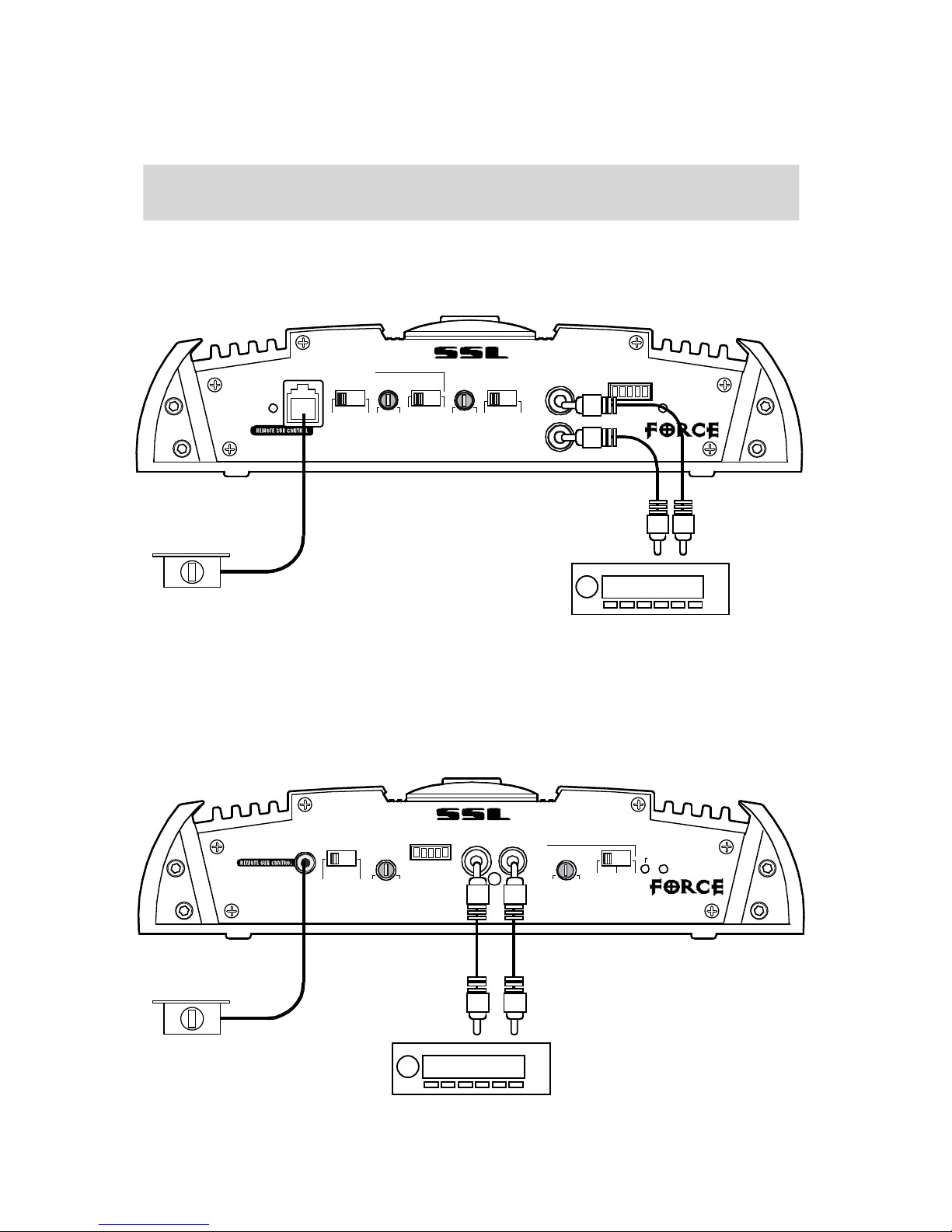

Low Level Input Wiring
Low-level (RCA) input wiring is preferred for best audio performance. Always use
a high-quality RCA cable for best audio performance.
NOTE: Do not connect BOTH the high level and low level inputs from your
receiver to your amplifier at the same time!
MonoBlock Amplifier
F1200M and F2000M
To Audio Outputs
of head unit or
signal processor
To Audio Outputs
of head unit or
signal processor
2-Channel Amplifiers
F2.600, F2.800, F2.1200, F2.1600, F2.2000, and F2.2500
To FRONT Audio Outputs
Remote
Subwoofer Level Control
Remote
Subwoofer Level Control
+ -
GND
- +
CH1 CH2
CH
1
PROTEC TION
CHANNEL 1/2
CHANNEL 3/4
0
CH
2
CH
3
CH
4
+ -
GND
- +
CH3 CH4
CROSSO VER
POWER
0
4 C H A N N E L M O S F E T P O W E R A M P L I F I E R
MAXMIN
BASS BO OST
+18dB
LEVEL
HIGH LE VEL INPUT S
INPUTS
MAXMIN
BASS BO OST
+18dB
LEVEL
HIGH LE VEL INPUT S
INPUTS
150Hz40Hz
FREQ
LOW
PASS
HIGH
PASS
MODE
FULL RAN GE
CROSSO VER
150Hz40Hz
FREQ
LOW
PASS
HIGH
PASS
MODE
FULL RAN GE
FORCE MOSFET Amplifier User’s Manual - page 7
Low Level Input Wiring, cont.
F4.800, F4.1200, F4.1600 and F4.2000
4-Channel Amplifiers
To REAR Audio Outputs of
head unit or
signal processor
To FRONT Audio Outputs
of head unit or
signal processor
Remote
Subwoofer Level Control
0
CROSS OVER
PROTEC TIONPOWER
M O N O B L O C K M O S F E T P O W E R A M P L I F I E R
R
L
INPUTS
BASS BO OST
+18dB 150Hz40Hz
FREQ
FULL
RANGE
MODE
LOW
PASS MAXMIN
LEVEL
2V-8V
INPUT SE NSITIVI TY
100mV-2V
+ -
GND
- +
R L
HIGH LEV EL
INPUTS
INPUTS
R
PROTEC TION
POWER
L
CROSS OVER
0
2 C H A N N E L M O S F E T P O W E R A M P L I F I E R
+ -
GND
- +
R L
HIGH LEVEL
INPUTSBASS B OOST
+18dB 150Hz40Hz
FREQU ENCY
HIGH
PASS
MODE
FULL
RANGEMAXMIN
LEVEL
LOW
PASS
FORCE MOSFET Amplifier User’s Manual - page 8
High Level Input Wiring
The high level input(s) should only be used when your head unit lacks RCA outputs.
If the RCA outputs are not present, connect the speaker outputs from the receiver
to the high level input connector of the amplifier. Be sure to observe polarity to
avoid audio phase problems.
NOTE: Do not connect BOTH the high level and low level inputs from your
receiver to your amplifier at the same time!
To Speaker Terminals
of head unit
MonoBlock Amplifier
F1200M and F2000M
2-Channel Amplifiers
F2.600, F2.800, F2.1200, F2.1600, F2.2000, and F2.2500
R+ R- L- L+
Remote
Subwoofer Level Control
To Speaker Terminals
of head unit
R+ R- L- L+
+ -
GND
- +
CH1 CH2
CH
1
PROTEC TION
CHANNEL 1/2
CHANNEL 3/4
0
CH
2
CH
3
CH
4
+ -
GND
- +
CH3 CH4
CROSSO VER
POWER
0
4 C H A N N E L M O S F E T P O W E R A M P L I F I E R
MAXMIN
BASS BO OST
+18dB
LEVEL
HIGH LE VEL INPUT S
INPUTS
MAXMIN
BASS BO OST
+18dB
LEVEL
HIGH LE VEL INPUT S
INPUTS
150Hz40Hz
FREQ
LOW
PASS
HIGH
PASS
MODE
FULL RAN GE
CROSSO VER
150Hz40Hz
FREQ
LOW
PASS
HIGH
PASS
MODE
FULL RAN GE
High Level Input Wiring, cont.
F4.800, F4.1200, F4.1600 and F4.2000
4-Channel Amplifiers
To Speaker
Terminals
of head unit
To Speaker
Terminals
of head unit
Remote
Subwoofer Level Control
CH
3-
CH
4+
CH
4-
CH
3+
CH
1-
CH
2+
CH
2-
CH
1+
FUSE
SPEAK ER
CONNEC TIONS
POWER
CONNEC TIONS
GND REM B ATT+
M O N O B L O C K M O S F E T P O W E R A M P L I F I E R
MINIMUM IMPEDANCE 2 OHMS
FORCE MOSFET Amplifier User’s Manual - page 10
Power and Speaker Wiring
MonoBlock Mode
F1200M and F2000M
MonoBlock Amplifier
SUBWOOFER
Speaker
SPEAKER
IMPEDANCE
2-8 OHMS
Two
Channel
Mode
Bridged
Mode
to REMOTE TURN-ON
terminal of head unit
Chassis ground point
Battery
FUSE
POWER
CONNEC TIONS
GND REM B ATT+
FUSES SPEAK ER
CONNEC TIONS
L R
L R
2 C H A N N E L M O S F E T P O W E R A M P L I F I E R
POWER
CONNEC TIONS
GND REM B ATT+
FUSES SPEAK ER
CONNEC TIONS
L R
L R
2 C H A N N E L M O S F E T P O W E R A M P L I F I E R
FORCE MOSFET Amplifier User’s Manual - page 11
Power and Speaker Wiring
2 Channel and Bridged Modes
F2.600, F2.800, F2.1200, F2.1600,
F2.2000, and F2.2500
2-Channel Amplifiers
Two
Channel
Mode
Bridged
Mode
SPEAKER
IMPEDANCE
2-8 OHMS
SPEAKER
IMPEDANCE
4-8 OHMS
Connect the Negative (-) terminal of the
subwoofer to the R (-) amplifier terminal.
Connect the Postive (+) terminal of the
subwoofer to the L (+) amplifier terminal.
RIGHT
Speaker
LEFT
Speaker
Subwoofer
to REMOTE TURN-ON
terminal of head unit
Chassis ground point
Battery
FUSE
to REMOTE TURN-ON
terminal of head unit
Chassis ground point
Battery
FUSE
POWER
CONNEC TIONS
GND REM B ATT+
FUSES SP EAKER
CONNEC TIONS
L R
L R
2 C H A N N E L M O S F E T P O W E R A M P L I F I E R
FORCE MOSFET Amplifier User’s Manual - page 12
Power and Speaker Wiring
Tri-Mode
F2.600, F2.800, F2.1200, F2.1600,
F2.2000, and F2.2500
2-Channel Amplifiers
Tri-Mode
Tri-mode operation allows you to connect this amplifier to a pair of main speakers plus
a subwoofer on one pair of output channels. The main speakers will operate in STEREO
while the subwoofer simultaneously operates in MONO.
To set up the amplifier to run in this mode, put the crossover switches in the FULL position.
Insert high pass filter capacitors and a low pass filter inductor into the wiring as shown
below. Be sure to check the table at the bottom of this page to determine the correct
capacitor and inductor values for the crossover frequency you wish to achieve.
RIGHT
Speaker
LEFT
Speaker
Component values for
6dB Passive Crossover
FREQUENCY INDUCTOR CAPACITOR
80 Hz
100 Hz
120 Hz
150 Hz
7.5mH
6.5mH
5.5mH
4mH
470uF
330uF
330uF
220uF
SPEAKER
IMPEDANCE
8 OHMS
Subwoofer
High pass filter
crossover
Low pass
filter inductor
High pass filter
crossover
MINIMUM
SPEAKER
IMPEDANCE
4 OHMS
Battery
FUSE
to REMOTE TURN-ON
terminal of head unit
Chassis
ground
point
FORCE MOSFET Amplifier User’s Manual - page 13
Power and Speaker Wiring
4 Channel and Bridged Modes
F4.800, F4.1200, F4.1600 and F4.2000
4-Channel Amplifiers

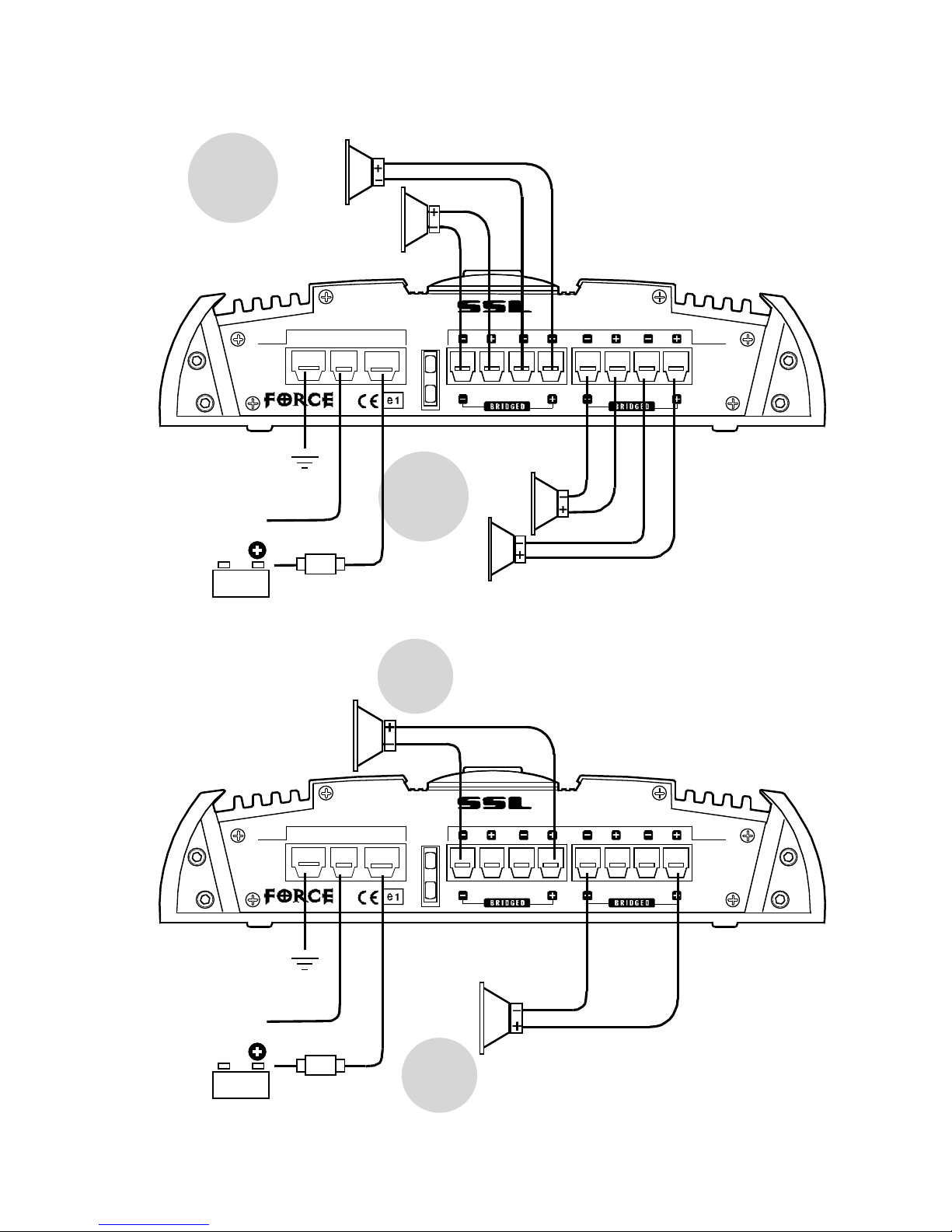

Four
Channel
Mode
Bridged
Mode
SPEAKER
IMPEDANCE
2-8 OHMS

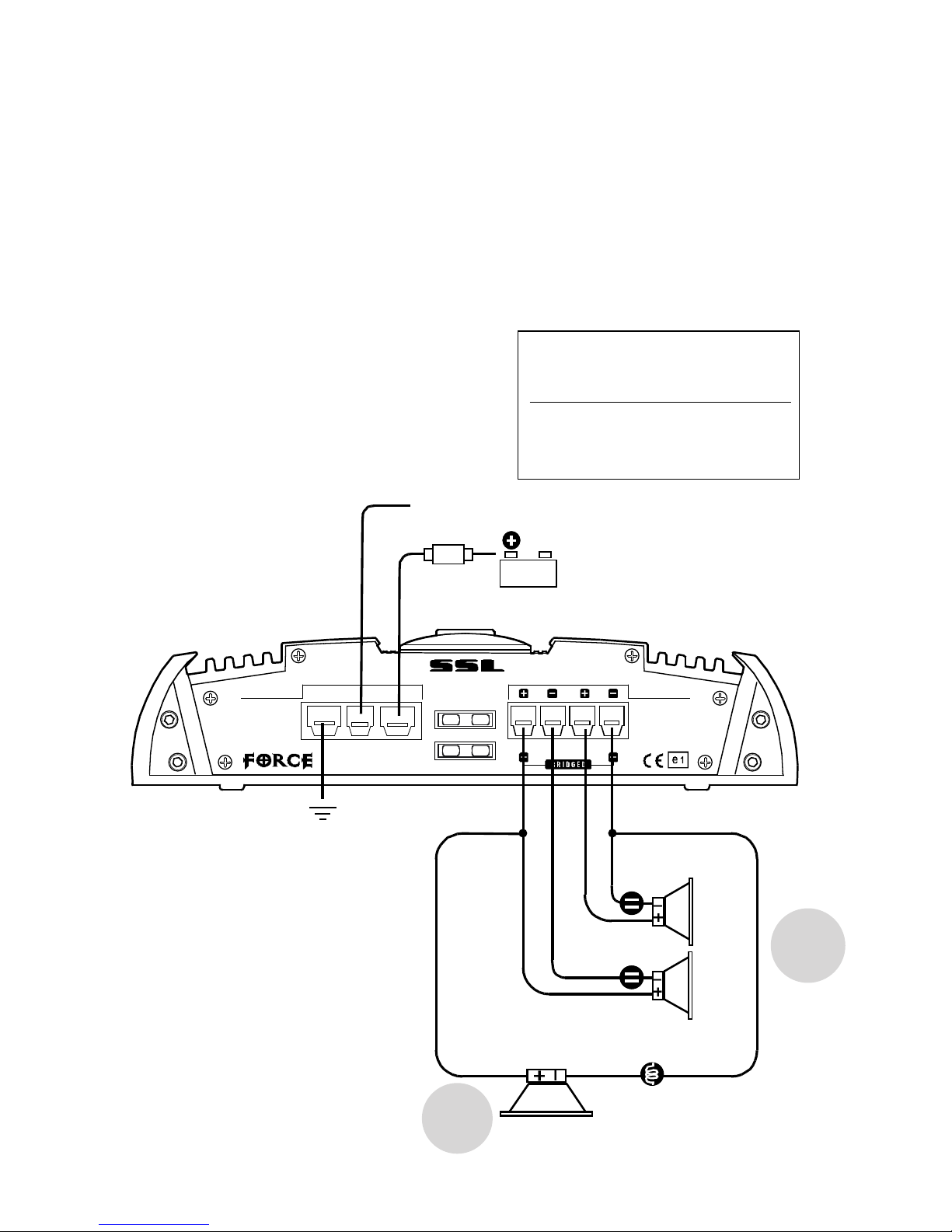

Connect the Negative (-) terminal of the RIGHT
subwoofer to the CH4(-) amplifier terminal.
Connect the Postive (+) terminal of the RIGHT
subwoofer to the CH3(+) amplifier terminal.
Connect the Negative (-) terminal of the LEFT
subwoofer to the CH2(-) amplifier terminal.
Connect the Postive (+) terminal of the LEFT
subwoofer to the CH1(+) amplifier terminal.
SPEAKER
IMPEDANCE
2-8 OHMS
SPEAKER
IMPEDANCE
4-8 OHMS
SPEAKER
IMPEDANCE
4-8 OHMS
POWER
CONNECT IONS
GND REM B ATT+
SPEAKE R
CONNECT IONS
CH
1
CH
2
CH
3
CH
4
FUSE
4 C H A N N E L M O S F E T P O W E R A M P L I F I E R
POWER
CONNECT IONS
GND REM B ATT+
SPEAKE R
CONNECT IONS
CH
1
CH
2
CH
3
CH
4
FUSE
4 C H A N N E L M O S F E T P O W E R A M P L I F I E R
to REMOTE TURN-ON
terminal of head unit
Chassis
ground
point
Battery
FUSE
CH1
Speaker
CH2
Speaker
CH3
Speaker
CH4
Speaker
LEFT
Subwoofer
to REMOTE TURN-ON
terminal of head unit
Chassis
ground
point
Battery
FUSE
RIGHT
Subwoofer
FORCE MOSFET Amplifier User’s Manual - page 14
Power and Speaker Wiring
Tri-Mode
F4.800, F4.1200, F4.1600 and F4.2000
4-Channel Amplifiers
Tri-Mode
Tri-mode operation allows you to connect this amplifier to a pair of main speakers
plus a subwoofer on one pair of output channels. The main speakers will operate
in STEREO while the subwoofer simultaneously operates in MONO.
To set up the amplifier to run in this mode, put the crossover switches in the FULL
position. Insert high pass filter capacitors and a low pass filter inductor into the
wiring as shown below. Be sure to check the table at the bottom of this page to
determine the correct capacitor and inductor values for the crossover frequency
you wish to achieve.
CH1
Speaker
CH2
Speaker
Component values for
6dB Passive Crossover
FREQUENCY INDUCTOR CAPACITOR
80 Hz
100 Hz
120 Hz
150 Hz
7.5mH
6.5mH
5.5mH
4mH
470uF
330uF
330uF
220uF
SPEAKER
IMPEDANCE
8 OHMS
POWER
CONNE CTIONS
GND REM BATT+
SPEAKE R
CONNE CTIONS
CH
1
CH
2
CH
3
CH
4
FUSE
4 C H A N N E L M O S F E T P O W E R A M P L I F I E R
CH4
Speaker
RIGHT
Subwoofer
SPEAKER
IMPEDANCE
8 OHMS
MINIMUM
SPEAKER
IMPEDANCE
4 OHMS
Low pass
filter inductor
High pass filter
crossover
High pass
filter crossover
CH3
Speaker
LEFT
Subwoofer
+
–
+
–
High pass filter
crossover
Low pass
filter inductor
High pass filter
crossover
MINIMUM
SPEAKER
IMPEDANCE
4 OHMS
to REMOTE TURN-ON
terminal of head unit
Chassis
ground
point
Battery
FUSE
Troubleshooting
FORCE MOSFET Amplifier User’s Manual - page 15
If you experience operation or performance problems with this product, compare your
installation with the electrical wiring diagram on the previous pages. If problems persist,
read the following troubleshooting tips which may help eliminate the problems.
Amplifier will not
power up.
Check to make sure you have a good ground connection.
Check that the Remote Input (Turn-On) has at least 3VDC.
Check that there is battery power on the (+) terminal.
Check that there is at least 12v.
Check all fuses, replace if necessary.
Make sure that the Protection LED is not illuminated. If it is lit, shut off
the amplifier briefly, and then repower it.
Protection LED
comes on when
amplifier is
powered up.
Check for short circuits on speaker leads.
Turn down the volume control on the head unit to prevent overdriving.
Remove speaker leads, and reset the amplifier. If the Protection LED still
comes on, then the amplifier is faulty and needs servicing.
No output.
Check that all fuses are OK.
Check that amplifier is properly grounded.
Check that the Remote Input (Turn-On) has at least 3VDC.
Check that the RCA audio cables are plugged into the proper inputs.
Check all speaker wiring.
Low output.
Reset the Level Control.
Check the Crossover Control settings.
Audio present in
only one channel.
Check the RCA interconnect cables.
Check all speaker wiring.
High hiss in the
speakers.
Disconnect all RCA inputs to the amplifiers. If the hiss disappears, then
plug in the component driving the amplifier and unplug its inputs. If the
hiss disappears at this point, go on until the faulty/noisy component is
found.
It is best to set the amplifier's input level control as low as possible. The
best subjective signal-to-noise ratio is achieved in this manner. Try to set
the head unit as high as possible (without distortion) and the amp input
level as low as possible.
Squealing noise
from speakers.
Check for improperly grounded RCA interconnects.
Distorted sound.
Check that the Input Level Control is set to match the signal level of the
head unit. Always try to set the Input Level as low as possible.
Check that all crossover frequencies are properly set.
Check for short circuits on the speaker leads.
Amplifier gets
very hot.
Check that the minimum speaker impedance for the amp model is correct.
Check that there is good air circulation around the amp. In some
applications, it may be necessary to add and external cooling fan.
Engine noise
(static type)
This is usually caused by poor quality RCA cables,which can pick up
radiated noise. Use only the best quality cables, and route them away
from power cables.
Engine noise
(alternator
whine)
Check that speaker leads are not shorted to the vehicle chassis.
Check that the RCA grounds are not shorted to the vehicle chassis.
Check that the head unit is properly grounded.
SYMPTOM POSSIBLE REMEDY
Specifications
FORCE MOSFET Amplifier User’s Manual - page 16
500W x 1
2000W X 1
- n/a -
2 Ohm Stereo
4 Ohm Mono Bridged
0.01%
9Hz-50kHz
103dB
90dB
125+
40Hz-150Hz
n/a
Variable 0 - +18dB
25A x 2
15-1/2"
All specifications subject to change without notice.
RMS POWER
into 4 Ohms
MAX POWER
into 2 Ohms
BRIDGED POWER
into 4 Ohms
Min. speaker
impedance
THD
Frequency response
Signal-to-noise ratio
Channel separation
Damping factor
Crossover range
low pass
high pass
Bass boost
Fuse rating
Dimensions:
(10" x 2
-7/16
" x ...)
MODEL F4.800
Four Chann el MOSFE T Car Au dio A mp li fier s
110W x 4
300W X 4
600W x 2
2 Ohm Stereo
4 Ohm Mono Bridged
0.01%
9Hz-50kHz
103dB
90dB
125+
35Hz-160Hz
200Hz (fixed)
Variable 0 - +18dB
20A x 2
13-1/16"
F4.1200
160W x 4
400W X 4
800W x 2
2 Ohm Stereo
4 Ohm Mono Bridged
0.01%
9Hz-50kHz
103dB
90dB
125+
35Hz-160Hz
200Hz (fixed)
Variable 0 - +18dB
25A x 2
15"
F4.1600
220W x 4
500W X 4
1000W x 2
2 Ohm Stereo
4 Ohm Mono Bridged
0.01%
9Hz-50kHz
103dB
90dB
125+
35Hz-160Hz
200Hz (fixed)
Variable 0 - +18dB
40A x 2
18-3/16"
F4.2000 F1200M
MonoBloc k
MOSF ET Car Aud io Amp lifi ers
RMS POWER
into 4 Ohms
MAX POWER
into 2 Ohms
BRIDGED POWER
into 4 Ohms
Min. speaker
impedance
THD
Frequency response
Signal-to-noise ratio
Channel separation
Damping factor
Crossover range
low pass
high pass
Bass boost
Fuse rating
Dimensions:
(10" x 2
-7/16
" x ...)
MODEL F2.600
Two Ch anne l MOS FET Car Audi o Ampl ifiers
160W x 2
400W X 2
800W x 1
2 Ohm Stereo
4 Ohm Mono Bridged
0.01%
9Hz-50kHz
103dB
90dB
125+
35Hz-160Hz
200Hz (fixed)
Variable 0 - +18dB
25A x 1
9-1/8"
F2.800
200W x 2
600W X 2
1200W x 1
2 Ohm Stereo
4 Ohm Mono Bridged
0.01%
9Hz-50kHz
103dB
90dB
125+
35Hz-160Hz
200Hz (fixed)
Variable 0 - +18dB
25A x 1
10-5/16"
F2.1200
300W x 2
800W X 2
1600W x 1
2 Ohm Stereo
4 Ohm Mono Bridged
0.01%
9Hz-50kHz
103dB
90dB
125+
35Hz-160Hz
200Hz (fixed)
Variable 0 - +18dB
20A x 2
11-7/8"
F2.1600
350W x 2
1000W X 2
2000W x 1
2 Ohm Stereo
4 Ohm Mono Bridged
0.01%
9Hz-50kHz
103dB
90dB
125+
35Hz-160Hz
200Hz (fixed)
Variable 0 - +18dB
25A x 2
16-1/4"
F2.2000
400W x 2
1250W X 2
2500W x 1
2 Ohm Stereo
4 Ohm Mono Bridged
0.01%
9Hz-50kHz
103dB
90dB
125+
35Hz-160Hz
200Hz (fixed)
Variable 0 - +18dB
30A x 2
19-3/8
F2.2500
F2000M
120W x 2
300W X 2
600W X 1
2 Ohm Stereo
4 Ohm Mono Bridged
0.01%
9Hz-50kHz
103dB
90dB
125+
40Hz-150Hz
200Hz (fixed)
Variable 0 - +18dB
20A x 1
6-3/4"
85W x 4
200W X 4
400W X 2
2 Ohm Stereo
4 Ohm Mono Bridged
0.01%
9Hz-50kHz
103dB
90dB
125+
40Hz-150Hz
200Hz (fixed)
Variable 0 - +18dB
30A x 1
11-1/8"
500W x 1
1200W X 1
- n/a -
2 Ohm Stereo
4 Ohm Mono Bridged
0.01%
9Hz-50kHz
103dB
90dB
125+
40Hz-150Hz
n/a
Variable 0 - +18dB
25A x 1
9-1/8"
Loading...
