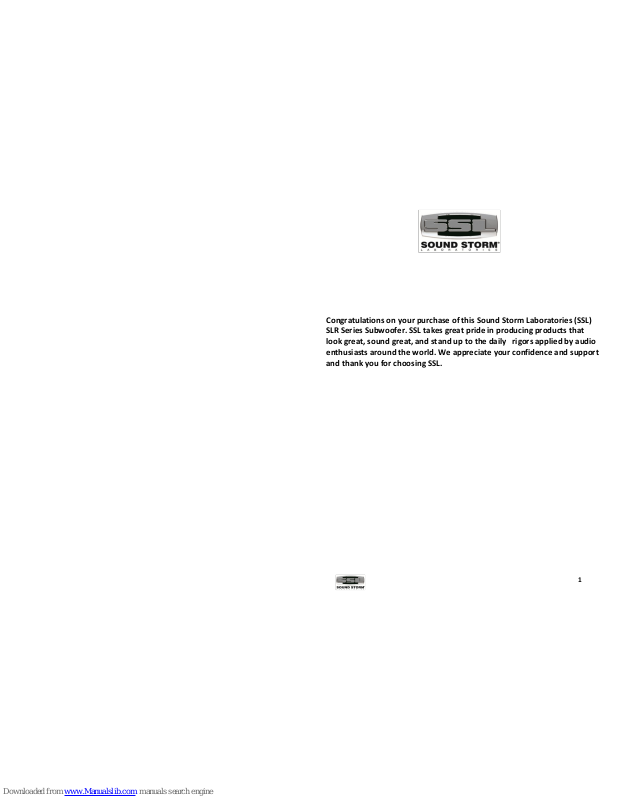

Congratulations on your purchase of this Sound Storm Laboratories (SSL)
SLR Series Subwoofer. SSL takes great pride in producing products that
look great, sound great, and stand up to the daily rigors applied by audio
enthusiasts around the world. We appreciate your confidence and support
and thank you for choosing SSL.
Page 2
SLR10DVC 10” (25 cm) Subwoofer
Dual 4 Ω Voice Coils
2000 W Peak Power Handling
High Efficiency Polypropylene Cone
Butyl Rubber Surround
2
Page 3
6
Technical Support
If you need technical support with your SSL product or have
questions about its use, please contact us:
805.751.4855
*Due to ongoing product development the content is subject to change without notice
SLR10DVC_0314
3
Product Specifications
Impedance Dual 4 Ω
Fs 35.3 Hz
Qts 0.680
Qms 4.037
Qes 0.818
Vas 1.091 ft³ (30.9 liters)
Xmax 10 mm
Sensitivity (1 W/ 1 m) 84 dB
Peak Power Handling 2000 W
Mounting Depth 5-7/16” (138 mm)
Cutout Diameter 9-1/8” (232mm)
Page 4
4

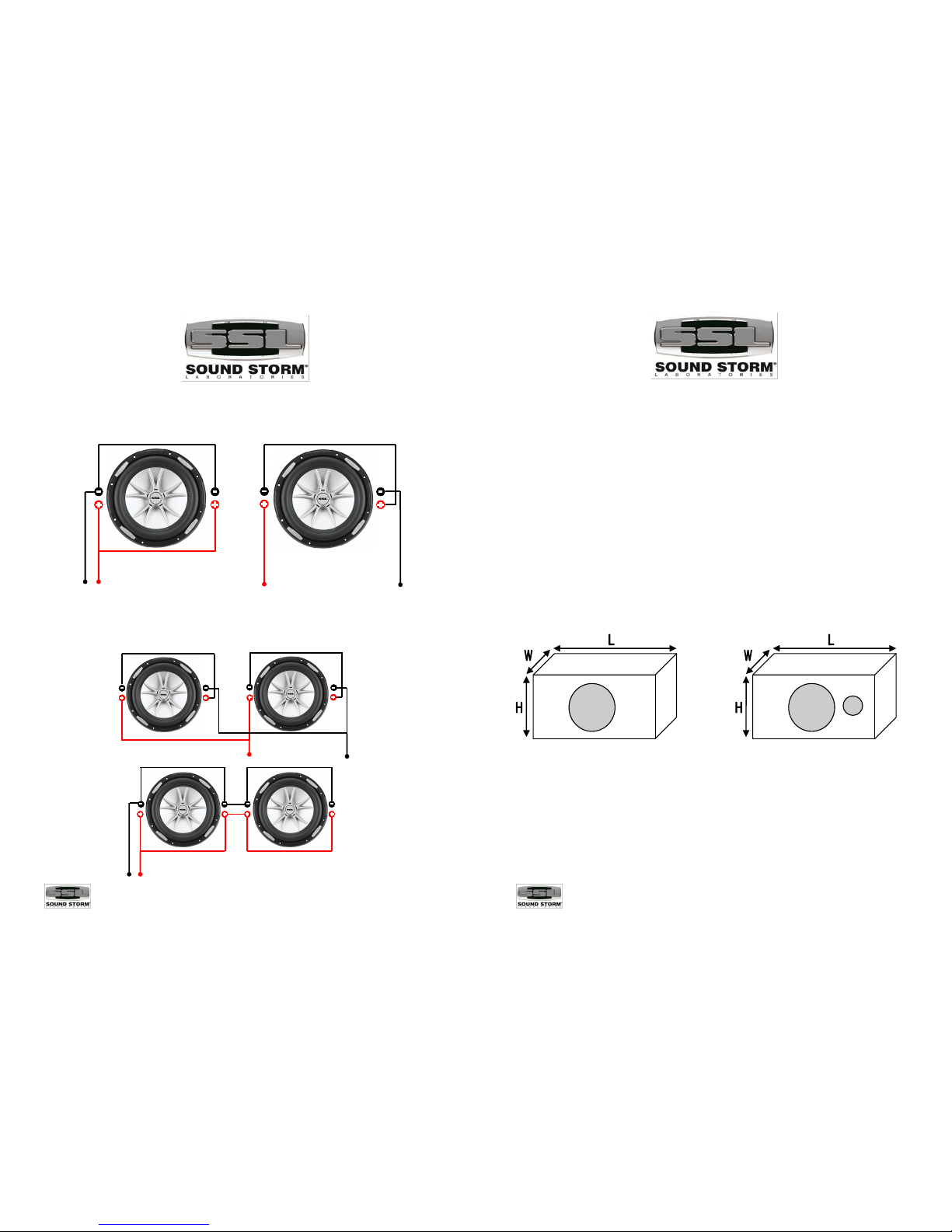

Multiple Subwoofers
8 Ω 2 Ω
Wiring your Subwoofer
Parallel Series
4 Ω
1 Ω
5
Enclosures
The SLR10DVC is designed to work in a compact sealed enclosure, of
0.60ft³. Since the woofer has pole-vent, it needs a minimum clearance
from the rear wall of the enclosure of 0.75” (19 mm). Below you will find
the dimensions to make the enclosure to suit the subwoofer, it has been
designed for maximum output while retaining great sound quality.
A ported enclosure may also be used, and will yield a 3-6dB boost in output. Below you will find the dimensions of the enclosure, please note the
tuning frequency with a recommended 12dB/Oct. crossover.
The dimensions have already accounted for the volume displacement of
the subwoofer, and using 3/4” (19mm) MDF. All dimensions are external.
Sealed Dimensions:
Length (L) : 17” (432 mm)
Width (W) : 9” (229 mm)
Height (H) : 11” (279 mm)
Cutout Diameter: 9-1/8” (232 mm)
Int. Volume: 0.60 ft³
Enclosure Dimensions
Ported Dimensions:
Length (L) : 17” (432mm)
Width (W) : 12” (305 mm)
Height (H) : 12” (305 mm)
Cutout Diameter: 9-1/8” (232 mm)
Port Dimensions: 3”x 9” (76 x 229 mm)
Tuning Freq: 45 Hz
Int. Volume: 0.95ft³
