To ensure safety while driving
and to comply with laws,
drivers should not watch video or
operate the video device while driving.
Page 3
-1-
Content
Precaution......................................
Safety Information.........................
Disc Note.......................................
Installation ....................................
Electric Connection ......................
Remote Control ............................
Basic Operation ............................

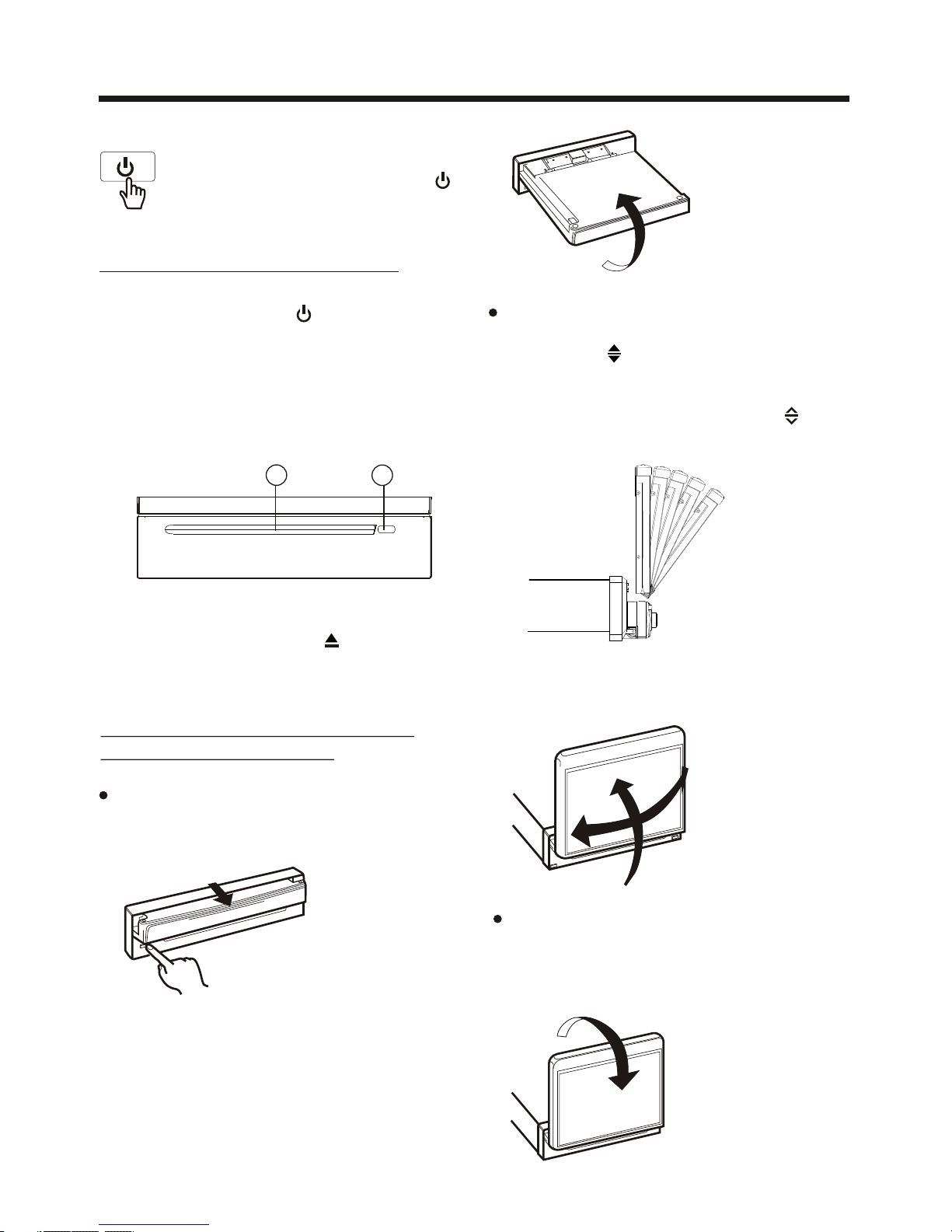

Loading/Ejecting a DISC .................
Open/Close Monitor and Angle
Adjustment......................... ........
Main Menu Operation......................
Setting animation...........................
Setting disc....................................
Setting radio...................................
Setting bluetooth............................
Setting wallpaper............ ................
Version about..................................

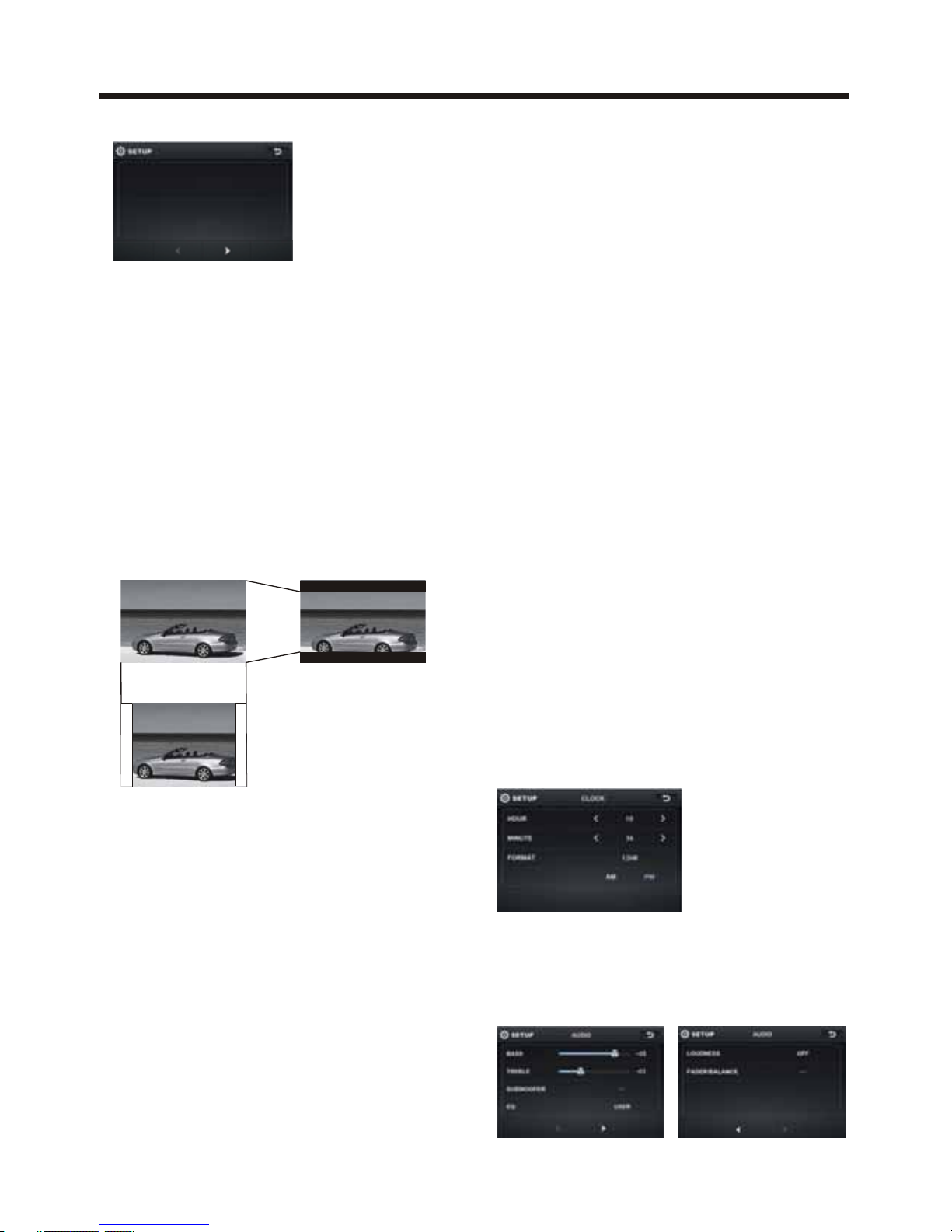

Setting time.......... .........................
Setting audio mode.........................
Setting video mode.........................
Setting OSD language....................
Setting
illumination color.................
TFT display calibration. ..................
Rear View Camera ........................
Control Panel ................................
Unit keys ........................................
Radio Operation............................

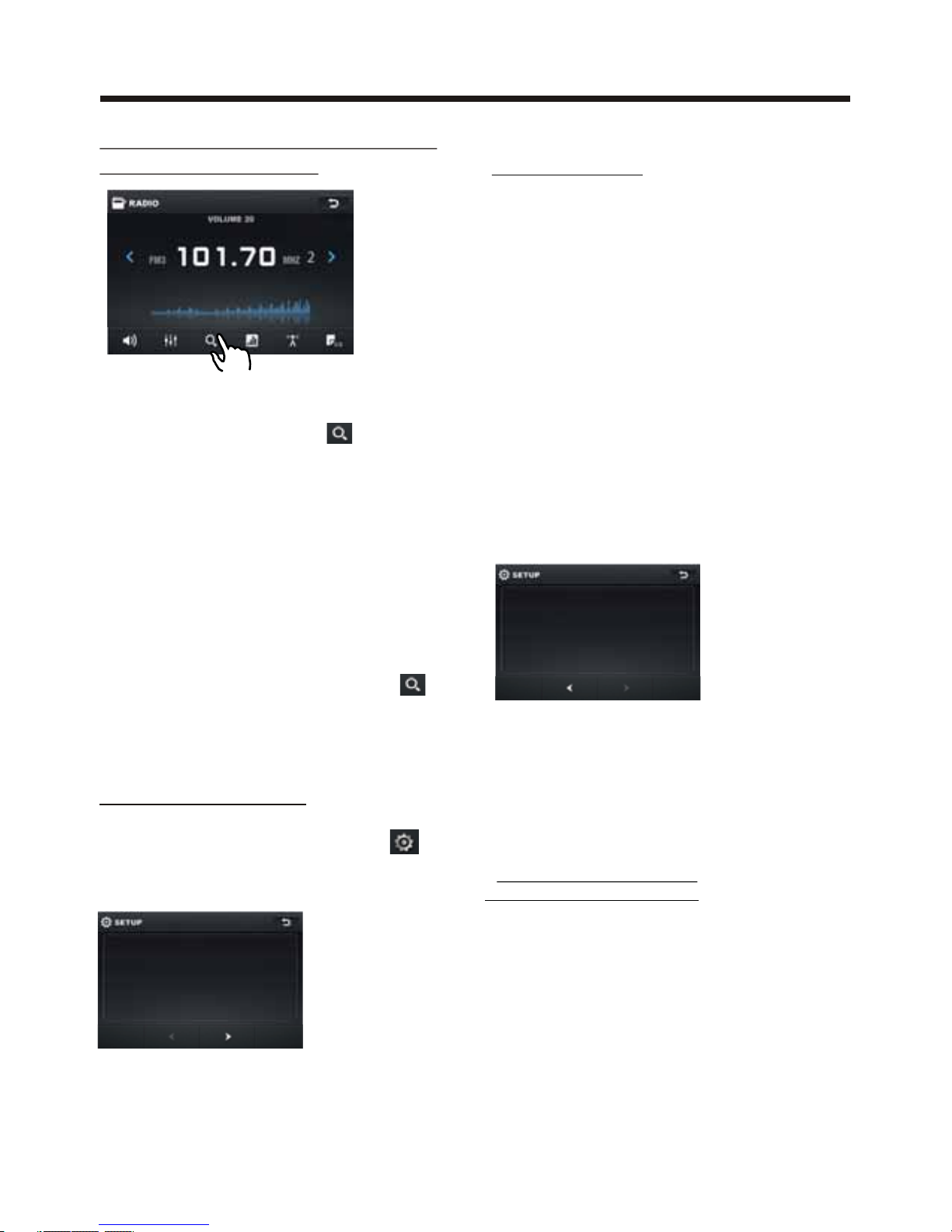

Listening to the radio ......................
Storing and Listening to a memory
station ........................................
21
21
23
24
24
25
27
27
27
27
27
28
31
32
33
33
34
35
36
37
38
2
3
4
5
9
10
13
13
13
14
14
15
15
15
15
15
15
15
16
16
16
16
16
17
17
20
20
20
Automatic Memory Storing &
Program Scanning.......................
RDS function..................................
Media Operation.............................
Basic Operation ..............................
Selecting Play Mode ........................
On-Screen Display Function .............
Digital Video Special Function........
Multi-Subtitle Language function.......
Multi-audio language Function..........
Multi-angle
Function........................
Tit le menu function ..........................
BT Operation................................

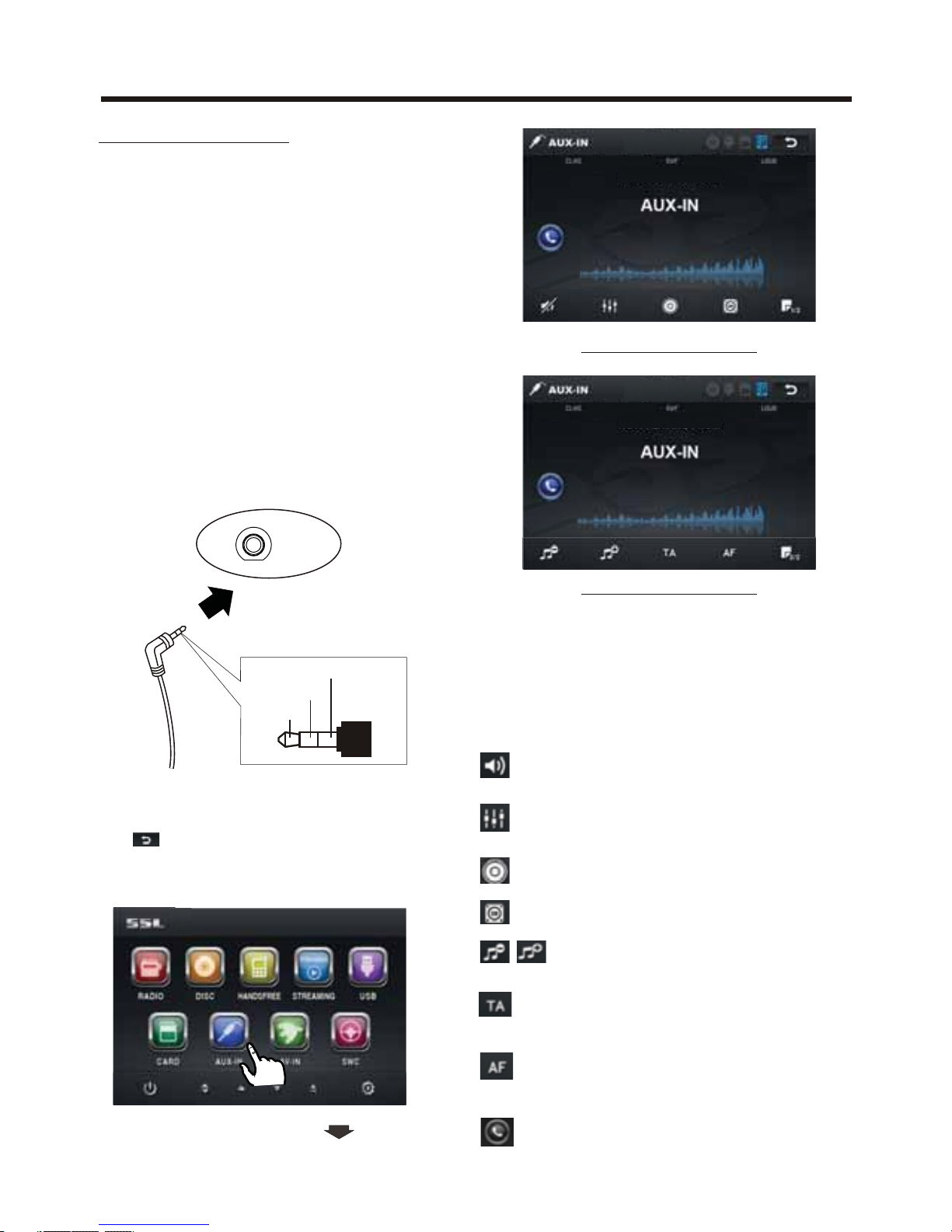

AUX Operation ...............................

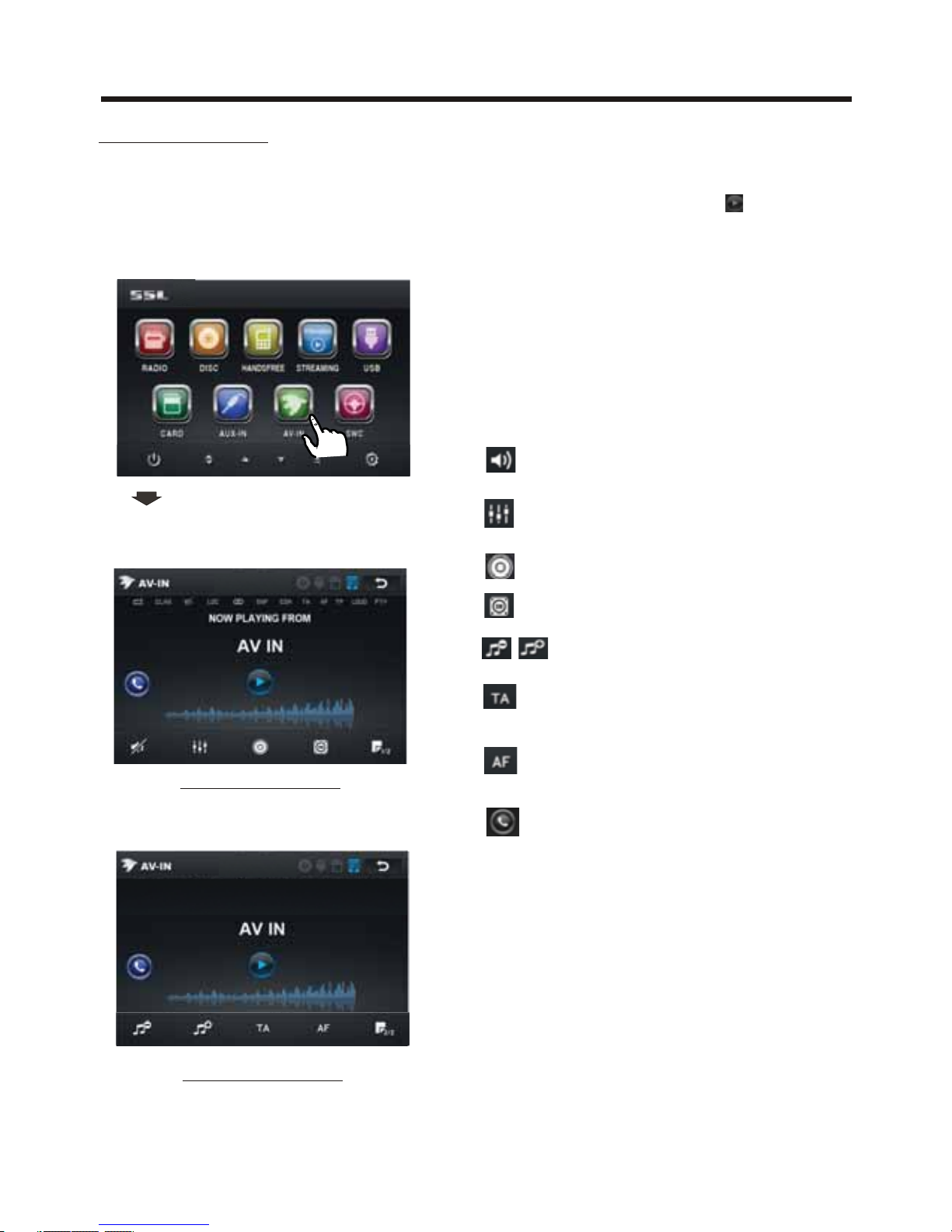

AV Operation..................................

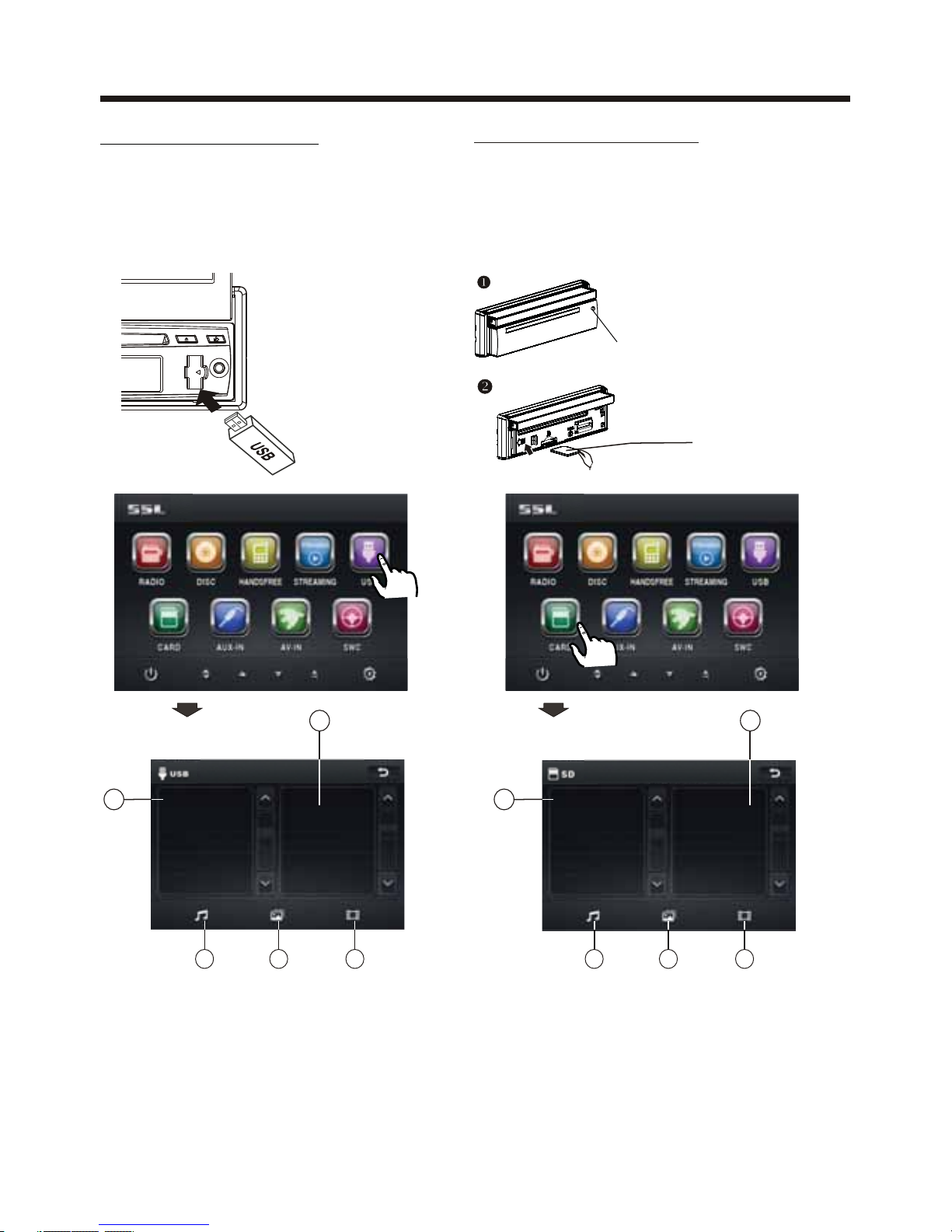

USB Operation ...............................
Card Operation ..............................
SWC Operation..............................
Parental Control............................
Region Code..................................
Specification .................................
Troubleshooting.............................
Page 4
-2-
Precaution
THANK YOU FOR PURCHASING PLAYER .
Before operating the unit, read this manual thoroughly and keep it handy
for future reference .
To avoid injury or accident , read the following precautions before
installing and operating the unit .
A SOUNDSTORM MULTIMEDIA
ABOUT THE LIQUID CRYSTAL DISPLAY (LCD) PANEL
Do not press on the LCD panel on the unit as doing so can distort the
picture or cause a malfunction . The picture may become unclear , or the
LCD panel may be damaged .
NOTES ON CLEANING
-Clean the LCD panel with a slightly damp soft cloth.
-Do not use solvents such as benzine, thinner, commercially available
cleaners or antistatic spray .
- Do not use alcohol to clean the screen .
If your car was parked in a cold or hot place, the picture may not be clear .
The monitor is not damaged . The picture will become clear the temper ature in your car becomes normal .
DO NOT install any receiver in locations where;
- it may obstruct the steering wheel and gearshift lever operations, as this
may result in a traffic accident.
- it may obstruct the operation of safety devices such as air bags, as this
may result in a fatal accident.
- it may obstruct visibility.
DO NOT operate any receiver while manipulating the steering wheel, as
this may result in a traffic accident.
The driver must not watch the monitor while driving.
IF THE DRIVER watches the monitor while driving, it may lead to
carelessness and cause an accident.
IF YOU NEED to operate the receive while driving, be sure to look ahead
carefully or you may be involved in a traffic accident.
IF THE PARKING BRAKE is not engaged.“ ParkingBrake” flashes on the
monitor, and no playback picture will be shown.
- This warning appears only when the parking brake wire is connected to
the parking brake system built in the car ( refer to the electric connection)
ON INSTALLATION
Page 5
-3-
Safety Information
CAUTION:
THIS DIGITAL VIDEO PLAYER IS A CLASS I LASER PRODUCT. HOWEVER
THIS DIGITAL VIDEO PLAYER USES A VISIBLE/INVISIBLE LASER BEAM
WHICH COULD CAUSE .
HAZARDOUS RADIATION EXPOSURE IF DIRECTED. BE SURE TO OPERATE
THE DIGITAL VIDEO PLAYER CORRECTLY AS INSTRUCTED.
USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF
PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN
HAZARDOUS RADIATION EXPOSURE.DO NOT OPEN COVERS AND DO NOT
REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.
WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS
EQUIPMENT TO RAIN OR MOISTURE.
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, AND ANNOYING
INTERFERENCE, USE ONLY THE RECOMMENDED ACCESSORIES.
THIS DEVICE
IS INTENDED FOR CONTINUOUS OPERATION.
This product incorporates copyright protection technology that is protected
by method claims of certain U.S. Patents and other intellectual property rights
owned by Macrovision Corporation and other rights owners.Use of this
copyright protection technology must be authorized by
Macro vision Corporation,
and is intended for home and other limited viewing uses only unless
otherwise authorized by Macrovision Corporation. Reverse engineering or
disassembly is prohibited.
REGION MANAGEMENT INFORMATION:
This Digital Video Player is designed and manufactured to respond to the Region
Management Information that is recorded on a Digital Vid eo disc. If the Region
number described on the Digital Vi de o disc does not correspond to the Region
number of this
Digital Video Player, this Digital Video Player cannot play this disc.
Page 6
-4-

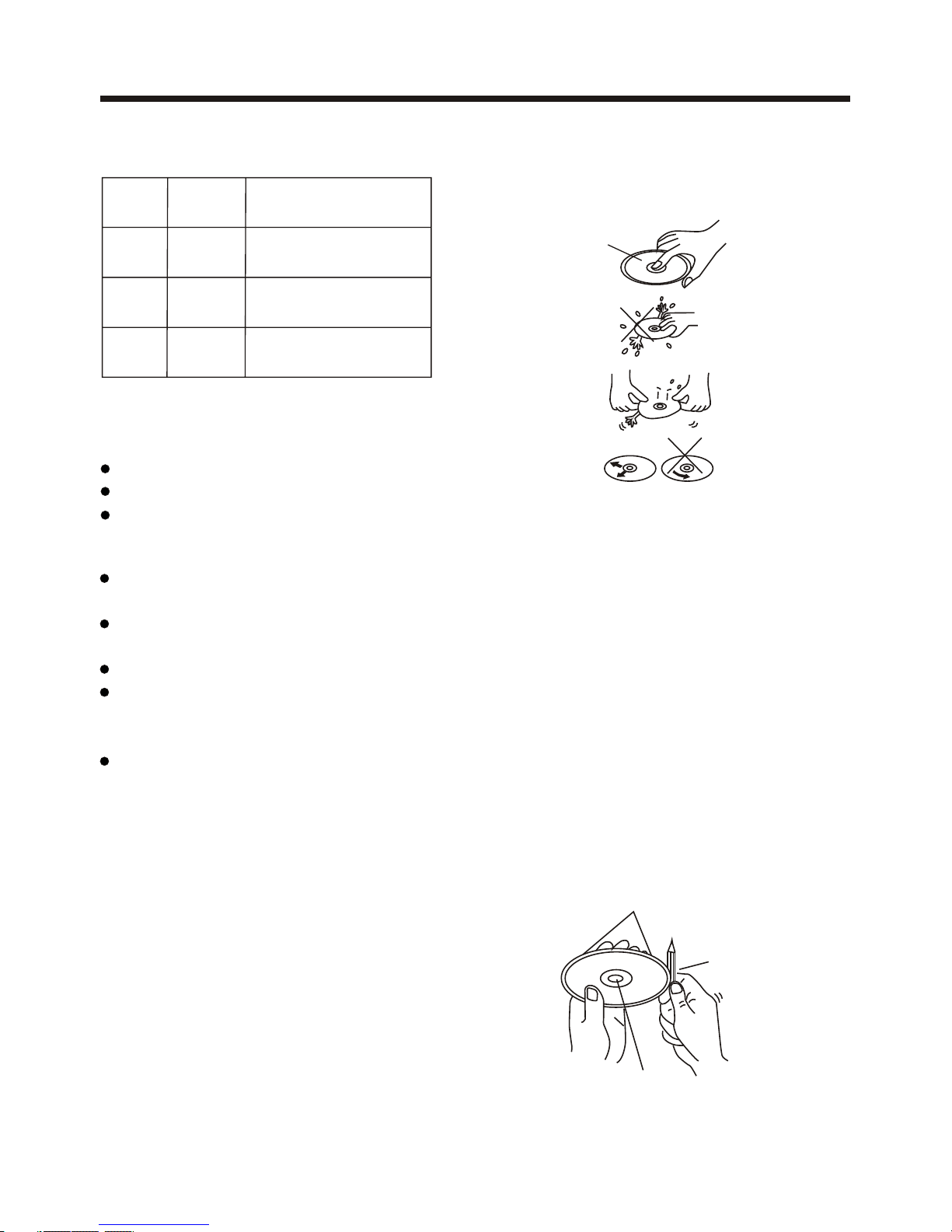

Disc Note
Preparing New Discs with Rough
Spots
A new disc may have rough edges on
its inside and outside edges. If a disc
with rough edges is used, the proper
setting will not be performed and the
player will not play the disc. Therefore,
remove the rough edges in advance
by using a ball point pen or pencil
as
shown on the right. To remove the
rough edges, press the side of the pen
or pencil against the inside and outside
edges of the disc.
Rough spots
on
outside edge
Ball point pen
or pencil
Rough spots
on inside
edge
Do not touch
the
underside
of the disc
Do not
bend
Wipe the disc from
center
toward the outside
edge
Label side
up
Disc Cleaning
Use a dry soft cloth to wipe the surface.
If the disc is quite dirty, use a soft cloth
slightly moistured with isopropyl (rubbing)
alcohol. Never use solvents such as
benzine, thinner or conventional record
cleaners as they may mar the surface of
the disc.
Handling and Cleaning
Dirt, dust, scratches and warping disc
will cause misoperation.
Do not place stickers or make
scratches on discs.
Do not warp discs.
A disc should always be kept in its
case when not in use to prevent from
damaging.
Do
not place discs in the following
places:
1.Direct sunlight
2.Dirty, dusty and damp areas
3.Near car heaters
4.On the seats or dashboard
Discs which cannot be played
with this player
Digital Video-RAM
CDV
CDG
Note:
A disc may become somewhat scratched
(although not enough to make it
unusable) depending on your handle it
and conditions in the usage environment.
Note these scratches are not an
indication of any problem with the player.
Disc formats supported by this
player
Digital
Video
VCD
CD
MP3
Audio and Vide o
Disc size 12 cm
Audio and Vide o
Disc size 12 cm
Audio
Disc size 12 cm
Audio
Disc size 12 cm
Digital
Vide o
VCD
CD
MP3
Page 7
NOTES:
Choose the mounting location where the unit will not interfere with the normal
driving function of the driver.
Before finally installing the unit, connect the wiring temporarily and make sure
it is all connected up properly and the unit and the
system work properly.
Use only the parts included with the unit to ensure proper installation. The use
of unauthorized parts can cause malfunctions.
Consult with your nearest dealer if installation requires the drilling of holes or
other modifications of
the vehicle.
Install the unit where it does not get in the driver s way and cannot injure the
passenger if there is a sudden stop, like an emergency stop.

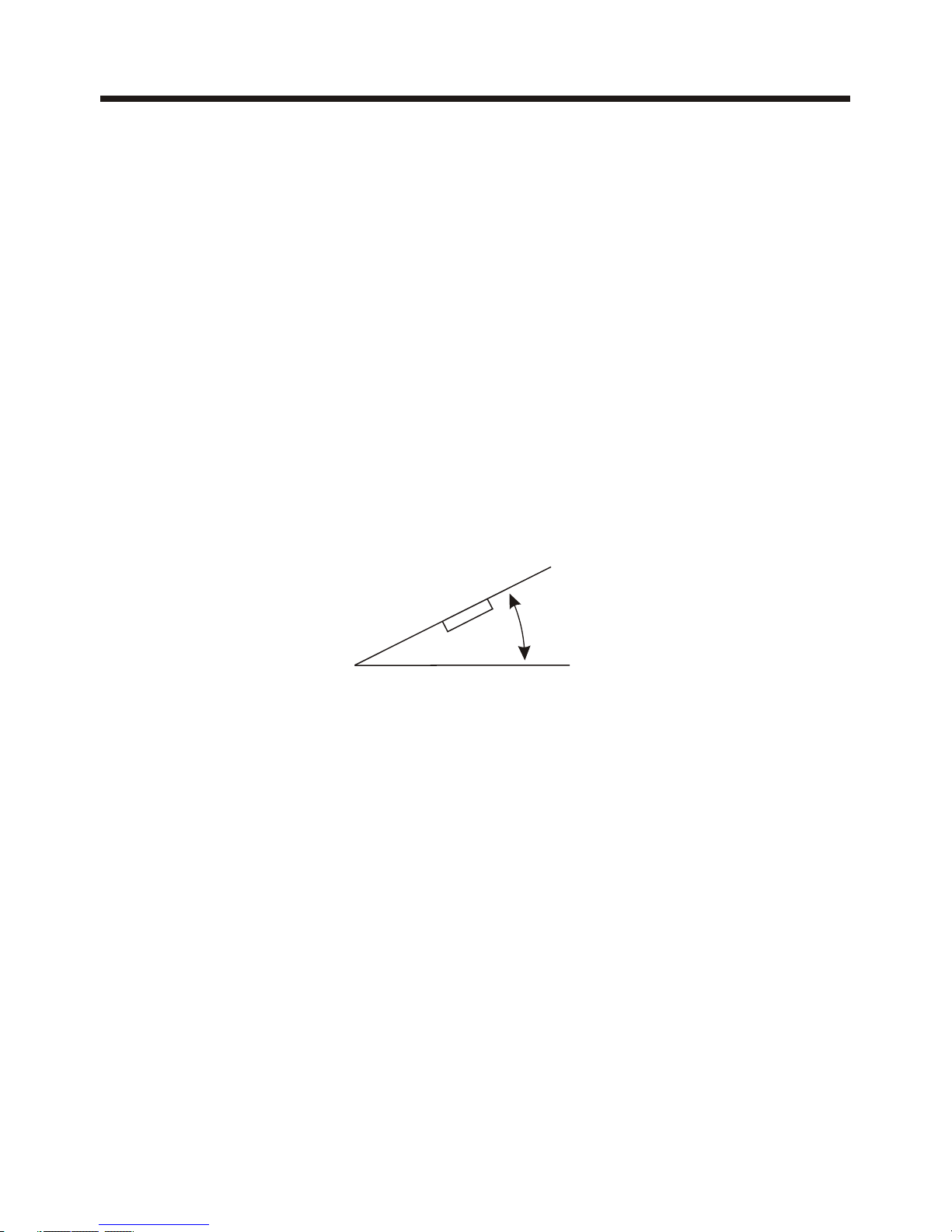

If installation angle exceeds 30 from horizontal, the unit might not give
its
optimum performance.
Avoid installing the unit where it would be subject to high temperature, such
as from direct sunlight, or from hot air, from the heater, or where it would be
subject to dust, dirt
or excessive vibration.
DIN FRONT/REAR-MOUNT
This unit can be properly installed either from "Front"(conventional DIN
Front-mount) or "Rear"(DIN Rear-mount installation, utilizing threaded
screw holes at the sides of the unit chassis). For details, refer to the following
illustrated installation methods.
'
Installation
-5-
30
Page 8
Installation
-6-

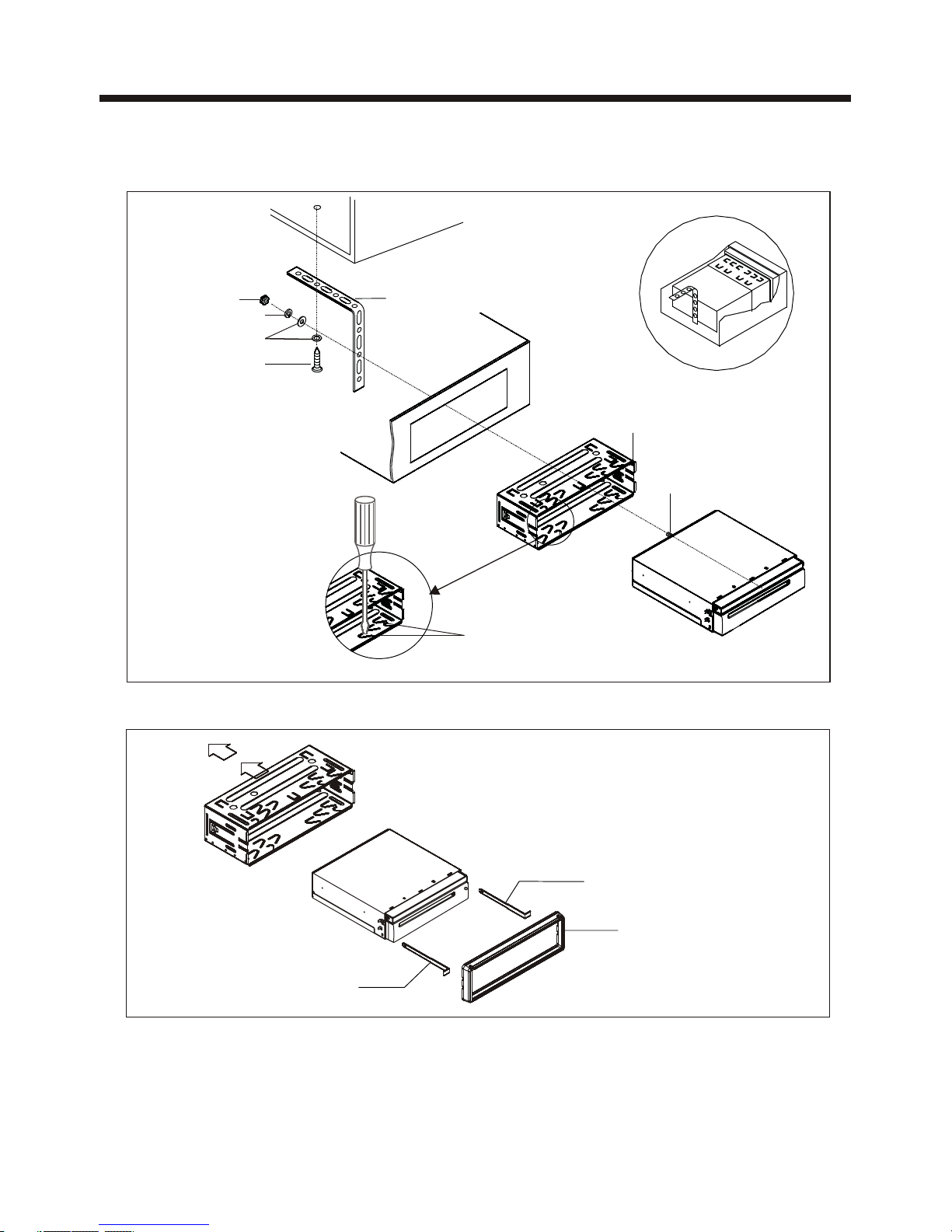

Installing the unit
DASH BOARD
METAL MOUNTING
STRAP
HEX NUT
SPRING WASHER
PLAIN WASHER
TAPPING SCREW
CONSOLE
SLIDE BRACKET
HOUSING
HEX BOLT
SCREWDRIVER
TAB S
KEY PLATE
PLASTIC FRAME
KEY PLATE
If you want to take the CHASSIS out of the SLIDE BRACKET HOUSING, first
remove the PLASTIC COVER on both sides , then insert the two KEY PLATES
into the left and the right sides of the chassis as illustrated above.
Page 9
-7-
Installation
REL button
2). Put the control panel in the protective case for safe keeping.
protective case
1
2
1
2
First pull up the control panel as the direction indicated by the arrow (See )
and then remove the control panel as the direction indicated by the arrow (See ).

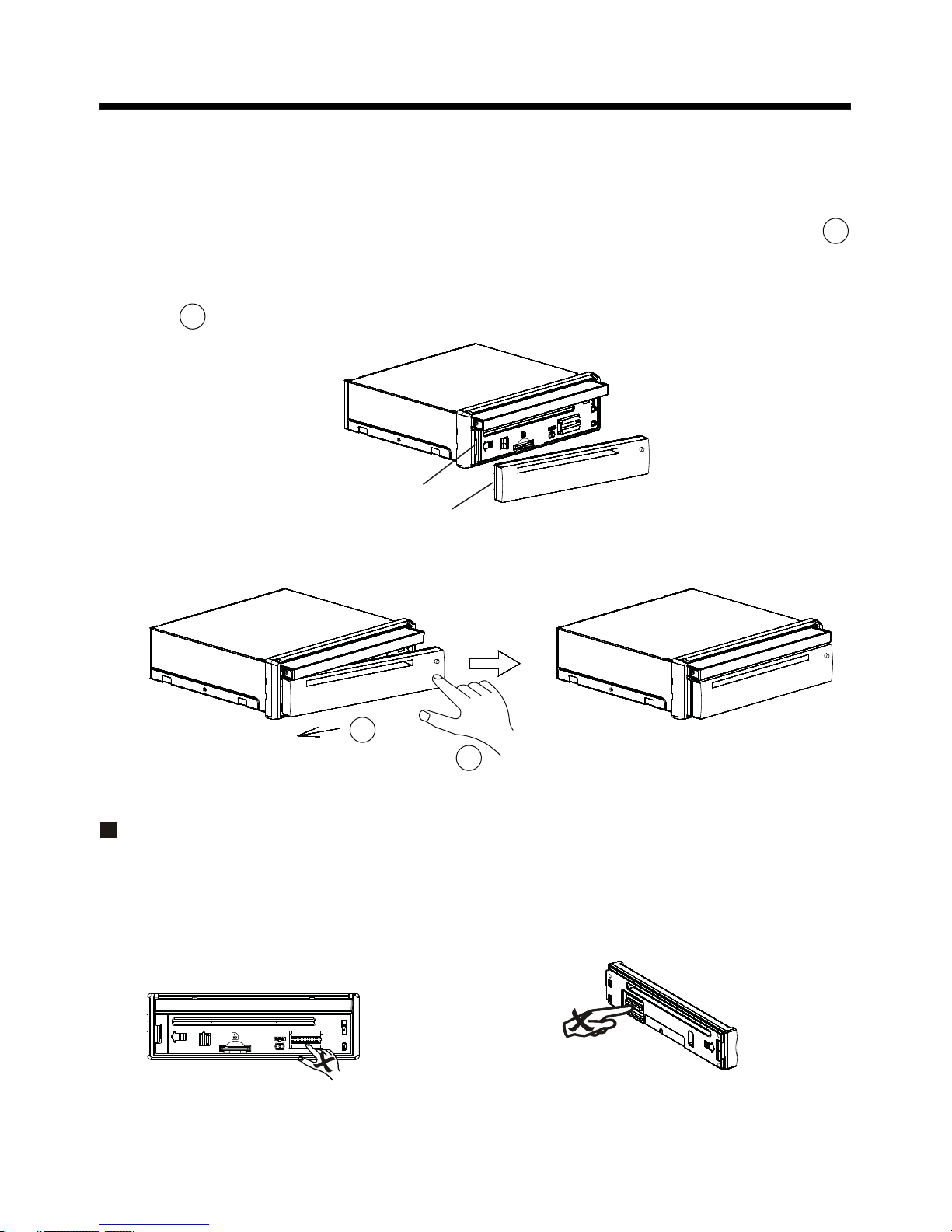

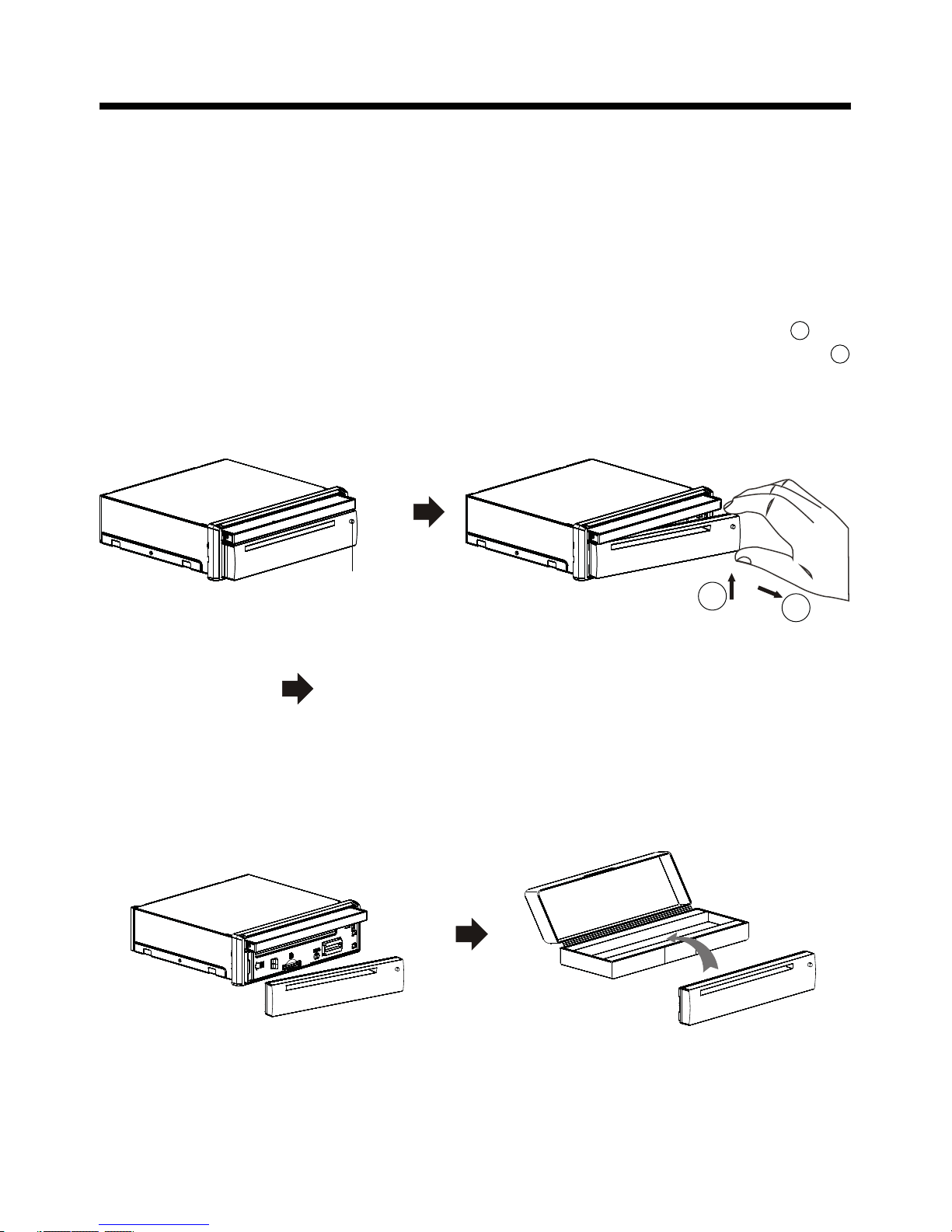

How To Remove And Install The Control Panel
When detaching or attaching the control panel, be careful not to damage the
connectors on the back of the control panel and on the panel holder.
Detaching the Control Panel
Before detaching the control panel, be sure to turn off the power.
1). Press the release button and the right hand side of the control panel will release.
Page 10
Installation
-8-
Attaching the Control Panel
1). First insert the left hand side of the control panel into the bulge of the unit(see ) .
(NOTE : the “hollow” point on the control panel must be attached into the bulge
point of the unit .)
2). Gently push the
right-down hand side of the control panel until you feel a “ Click” .
(See )
Hollow
Bulge
Precaution
Do not touch the contacts on the back and base of the control panel , since this
may result in poor electrical contact. If dirt or dust accumulates on the contacts ,
wipe them with a clean, dry cloth .
1
2
1
2
Page 11
Electric Connection
-9-

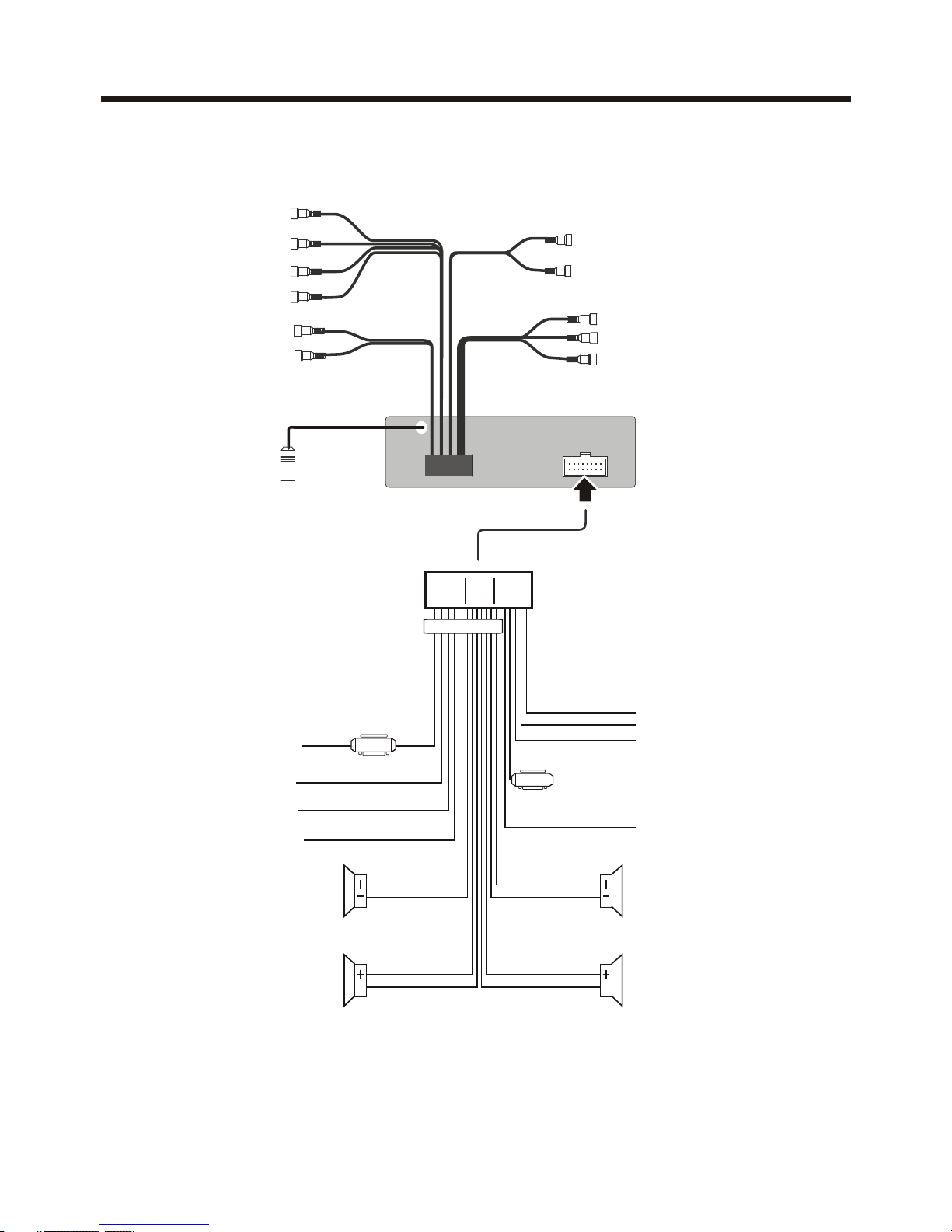

WIRING CONNECTION
Note:
the ground connection cable (parking brake B-) must be connected in order for
pictures to be played back to the monitor. If the cable has not been correctly
connected, the message “PARKING BRAKE” appears on the monitor.
SUBWOOFER GREY
RCH RED
LCH WHITE
REAR OUTPUT CABLE
FRONT RCA WHITE L
FRONT RCA RED R
VIDEO OUT
YELLOW
FRONT RCA OUTPUT
CABLE
REAR CAMERA INPUT YELLOW
RADIO ANTENNA JACK
RCH IN RED
LCH IN WHITE
VIDEO OUT(2) YELLOW
AUX 2 VIDEO IN YELLOW
AUX2
ORANGE
(B+)12V
REAR CAMERA SWITCH
(B-)PARKING BRAKE
GREY
GREY/BLACK
FRONT
RCH SPK.
VIOLET
VIOLET/BLACK
WHITE
WHITE/BLACK
GREEN
GREEN/BLACK
REAR
LCH SPK.
AUTO ANTENNA
BLUE
GROUND(B-)
MEMORY BACK-UP(B+)
IGNITION SWITCH(B+)
RED
YELLOW
BLACK
REAR
RCH SPK.
FRONT
LCH SPK.
LIGHT GREEN
FUSE
FUSE
KEY GROUND(BLACK)
KEY 1(BROWN)
KEY 2(WHITE)
ISO CONNECTOR
Page 12
-10-
Remote Control
6
5
Button
Ref #
Function
1
2
CLOCK
Press it briefly to view the clock time , Press again to return to
normal display mode .
3
STOP
Press once to pause playback. Press PLAY/PAUSE to resume
playback. Please note: if you press STOP twice, playback will
start at the beginning of the disc.
SETUP
4
Press this button to open the SETUP menu.
MO/ST
In Radio mode, press this button to change between Mono and
Stereo reception modes (when a station is weak, sometimes
switching to Mono will improve sound quality).
LOCAL/
DISTANT
In Radio mode, press this button to change the radio reception
sensitivity in stations are near or far.
7
8
GOTO
Press it button to begin playback at a moment in the program you
designate. Use number buttons to enter the data that is needed.
In Bluetooth menu, it serves as the asterisk button on your mobile
handset.
Press it to use the Bluetooth function , refer to bluetooth operation
Press it to use the Bluetooth function , refer to bluetooth operation
3
16
5
20
1
21
27
9
12
26
23
25
15
17
19
13
14
7
2
6
24
11
18
10
4
8
22
PAIR /
Redial/
Page 13
-11-
Remote Control
EQ
LOUD
21
Press repeatedly to cycle through the different equalizer curve
presets you may wish to use for enhanced listening;
Press to switch the LOUDNESS function ON and OFF .
22
In Disc Playback mode, press to start forward rapidly .
Button
Ref #
Function
8
9
GOTO
Press it button to begin playback at a moment in the program you
designate. Use number buttons to enter the data that is needed.
/
10
SEL
Press these buttons to skip ahead or back one track.
11
VOL+/-
Use these controls to adjust the volume level.
12
Press this button briefly to display the root level directory of a
Digital Video. Press and hold this button to turn on or off the
SUBWOOFER output.
Menu
SubWoofer
13
14
BAND
(OSD)
In Radio mode, press this button repeatedly to switch between
the five radio bands: FM1 > FM2 > FM3 > AM1 > AM2.
In Disc Playback modes, Press this button to see information
about the disc currently in play.
POWER15
Press this button to turn the unit ON , press it again to turn the
unit OFF.
PLAY/
PAUS E
16
In Disc Playback mode, press to pause playback. Press again to
start where playback stopped.
MUTE
17
Press this button to turn off the audio. Press again to restore the
sound to its
prior volume level.
TITLE/
PBC(A/P)
18
Display the TITLE menu that is stored in Digital Video changing
between PBC ON and PBC OFF on the VCD disc. In Radio mode,
press and hold this button to start the Auto-Program mode, during
which the tuner will scan for all strong stations and assign them
to
the radio preset buttons.
Press this button to Open/Close the operate monitor .Long press
it to adjust the angle of monitor Upward/Downward
19
ZOOM/
ANGLE
20
For Digital Video which have alternate viewing angles encoded,
when you see the "angle mark" symbol advising you that these
angles are available, Longer press this button to see them.
Shortly press it to increase the picture in size .
BASS, TRE, BAL, FADE, COLOR, BRIGHT,
CONTR, TINT ,
, ANIMATION.
To switch between
BT, REG(in radio mode), PI(in radio mode),
TA(in radio mode), AF(in radio mode), LOUD,SWF, EQ,
TIME 12H/24H, CLOCK, BUZZ,EUR/USA FREQ
After switching on the desired mode above, rotate VOL knob or
press VOL+/VOL- buttons to set it.
Press to navigate the various menus present in the product.
///
Page 14
-12-

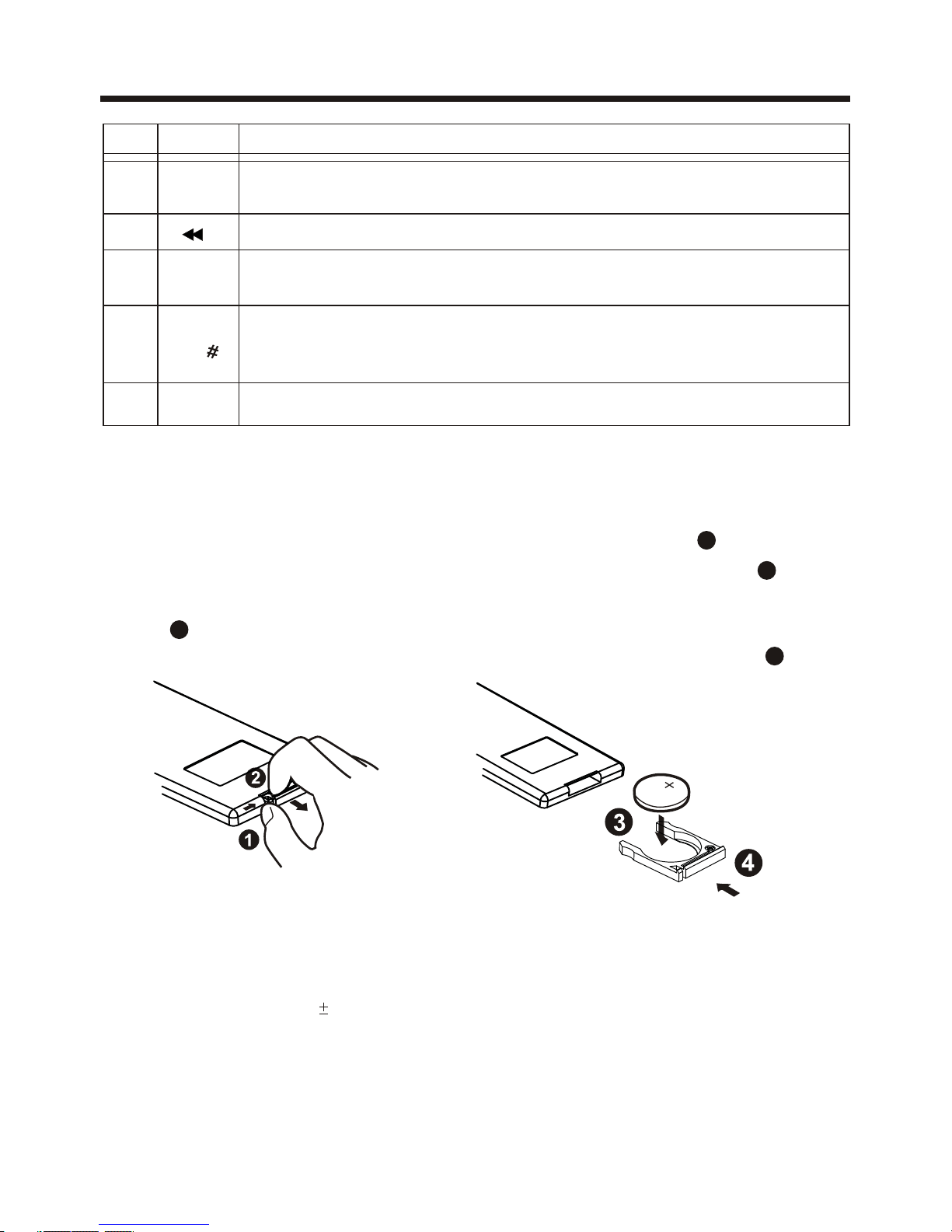

Remote Control
Using the Remote Control
Face the remote control towards the player front face IR mark (remote control signal
receiver).
Operation angle: About 30 degree in each the direction of the front of the IR mark.
Preparing the Remote Control
1.First push to inside as the direction indicated by the arrow (See )And then
Remove the battery holder as the direction indicated by the arrow (See ).
2.Replace the battery Set a new battery property with (+)side up as illustrated
(See ).
3.Insert the battery holder. Push in the holder to the original position(See ).
1
2
3
4
Inserting the Battery
Note :
The lithium cell in the battery compartment of remote control has been secured for
transport with a plastic . Before initial use please remove this plastic so that the
remote control is ready for operation .
Button
Ref #
Function
0-9
Use to input numerical values during programming, with the GOTO
button, or to directly select a track to play .
25
26
1-6
27
Six numbered preset buttons store and recall stations for each band
23
ENTER
This button is used to confirm selections and settings within
many of the menus in the OSD system.
24
In DISC mode, press it to reverse rapidly
+10/
This button is used with the other number buttons for use with
two-digit number entries. In Bluetooth menu, it serves as the hash
button on your mobile handset.
Page 15

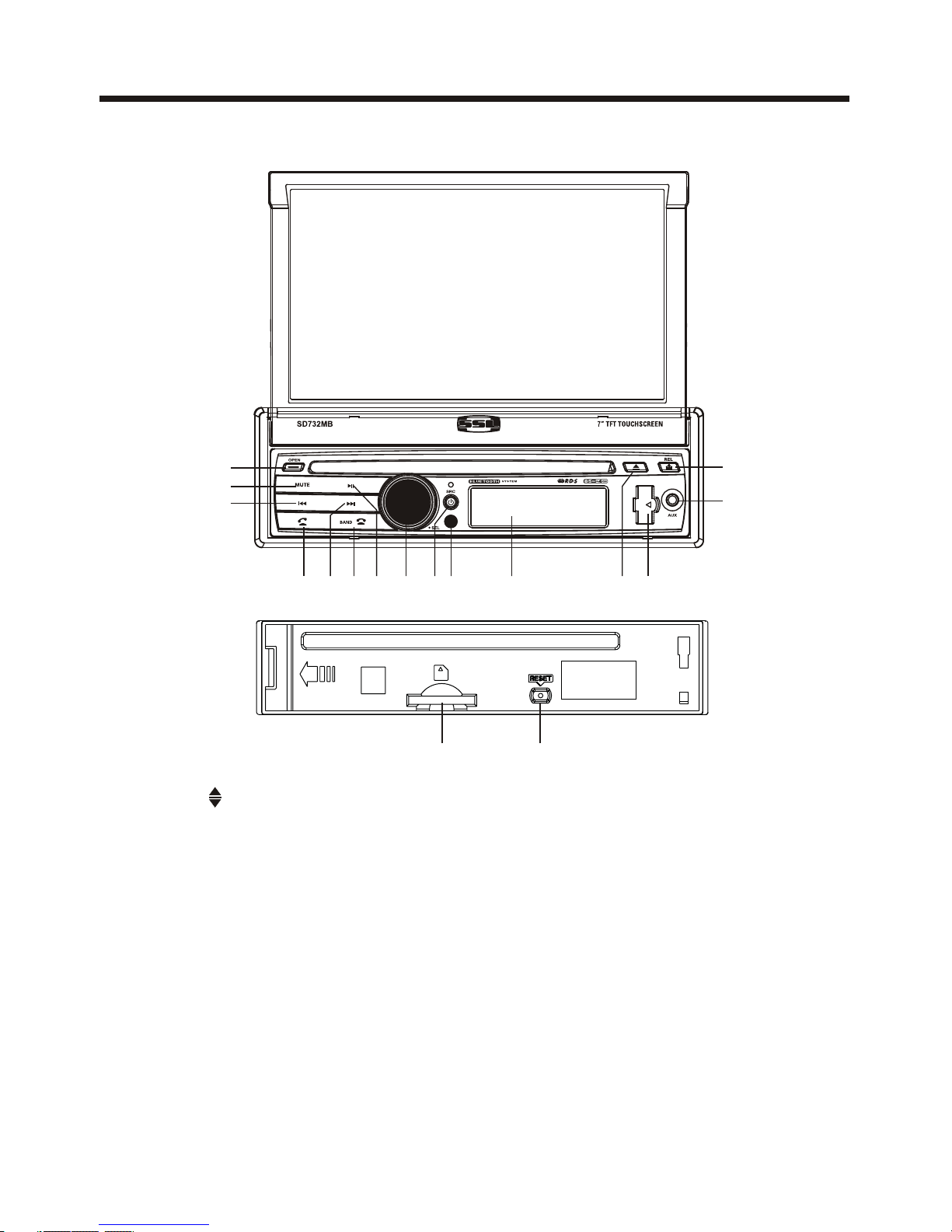

Basic Operation
-13-
POWER ON/OFF
LOADING/EJECTING A DISC
Ejecting a Disc
In disc mode, Press the (2) button on
the front panel to eject the disc .
Loading a Disc
3. The player starts playback the disc
automatically .
2. Insert the disc with printed side facing
up into the disc slot (1) .
1
2
1. Press the POWER ( ) button on the
front panel to turn the device on .
Touch the “OFF” ICON on screen
to turn the unit off . Press the“ ”
onthe front panel to turn It on,
press it again to turn off .
OPEN/CLOSE MONITOR AND
ANGLE ADJUSTMENT
Press OPEN button on front panel, the
monitor will draw out automatically .
OPEN/CLOSE button
FIG.1
When the monitor draws out to a certain
location, it will turn upward automatically and stop at vertical position .
FIG.2
FIG.3
Do not rotate the monitor forcibly to
avoid mechanical damage .
FIG.4
Return the monitor to the central
viewing position, then press OPEN
button on the front panel , the monitor
will turn downward automatically .
FIG.5
Adjusting the viewing angle .
When the monitor does not move, you
long press button on the panel to
turn the monitor upward or downward
at fine steps to get a desired viewing
angle ; short press that button ( ) on
remote is screen move back
or out.
Page 16
Basic Operation
-14-
When the monitor turns downward to
a certain angle, it will draw in .
FIG.6

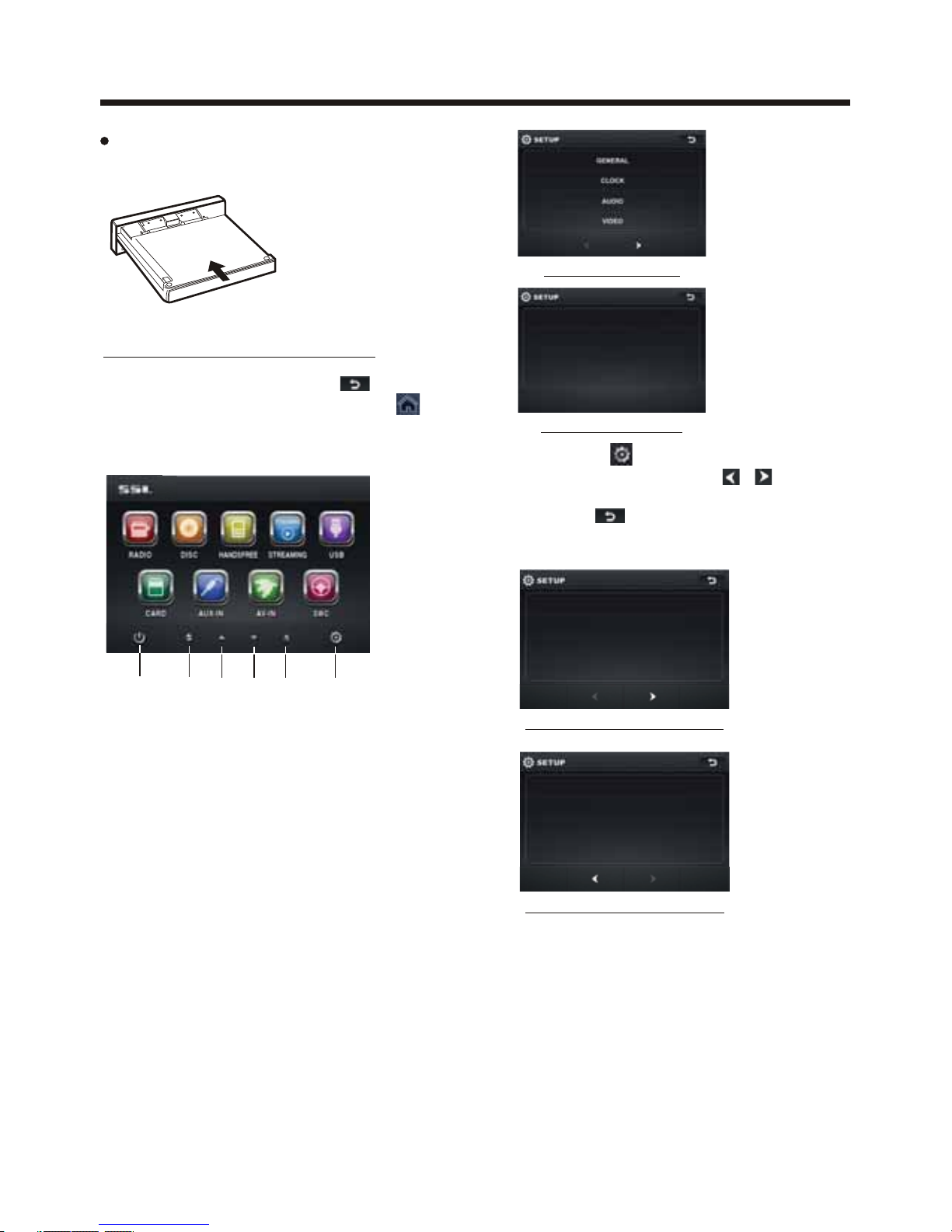

Main Menu Operation
In many modes, touch the icon
or In DVD/VCD mode , touch the
range to enter the main menu,
the message like following as below.
1. POWER icon
In any modes, touch
the POWER icon
to switch the unit off . The monitor will
draw in automatically .
2. UP icon
Touch this icon to adjust the angle of
the monitor upward until your desired
angle .
3. CLOSE icon
Touch this icon to Close the monitor .
4. DOWN icon
Touch this icon to adjust the angle of
monitor downward until your desired
angle .
5. EJECT icon
Touch to allow for inserting or ejecting
disc.
6. SETUP icon
Touch to enter the SETTING mode,
the message will display as follow :
ADJUSTABLE ITEMS:
ANIMATION
In RADIO mode, you can change the
playing time of animation among of
“OFF, 10S, 30S, 1M,90S, 2M, 3M and 4M ”.
Note:
Please set the playing time of the
animation to “ 10S ” for the first, when
you turn the unit on .
KEY BEEP : ON or OFF.
Tou c h the “ ” section on the
setting menu, touch the “ / ” ranges
to select the adjustment item,
Touch the “ ” icon to return to
the
previous playback .
Setup interface 1
GENERAL
ANIMATION 2 MINUTE
KEY BEEP ON
DISC .. .DISC .. .
RADIO ...
General setup interface1
General setup interface2
GENERAL
WALLPAPER ...
BLUETOOTH ON
ABOUT
...
Setup interface 2
ILLUMINATION COLOR
LANGUAGE
CALIBRATION
ILLUMINATION COLOR
(3)
(1)
(5) (6)(2) (4)
10:00AM
Page 17
-15-
Basic Operation
Disc setup as follow:
FORMAT
TV TYPE
This is to select the appropriate TV
aspect (4:3 or 16:9) according to the
connected TV set.
Normal/PS (For 4:3 TV)
Played back in the PAN & SCAN style.
(If connected to wide-screen TV, the
left and right edges are cut off.)
Normal/LB (For 4:3 TV)
Played
back in LETTER BOX style.
(If connected to wide-screen TV, black
bands appear at top and bottom of the
screen.)
Wide (For 16:9 TV)
Select when a wide-screen TV set is
connected.
RATING
Select to turn Parental Control on or off.
This player is capable of playing discs
recorded in either PAL or
NTSC formats.
Make the selection based on whether
you are connecting the unit to a PAL TV
or an NTSC TV. You can also set the unit
to AUTO (auto select). The disadvantage
to autoselect is that each time you turn
the unit on it checks to see what kind of
monitor is connected, which causes a
small delay and some flickering of the
display image which you may find
unpleasant.
The factory default password is 0000.
(The password must be used to make
16:9
4:3 Letter Box
4:3 Pa n Scan
DISC
FORMAT NTSC
TV TYPE 4:3PS
RATING ADULT
audio setup interface2audio setup interface1
DISC
FORMAT NTSC
TV TYPE 4:3PS
RATING ADULT
changes to the Parental Control
menu below .)
Key in “0000” and then turn to rating
then you can setting as follow:
KID SAFE -> G -> PG -> PG-13
-> PG R -> R ->NC-17 -> ADULT
RADIO
DUAL: touch to select stereo or mono.
LOCAL: touch to select
local or distant.
REGION: touch to select radio frequency
as USA or EUROPE.
BLUETOOTH
Touch to select BT function on or off.
WA LLPAPER
Touch to select wallpaper .
ABOUT
Tou c h to show the version information.
CLOCK SETUP
Tou c h the CLOCK to adjust the time and
time format.
clock setup interface
AUDIO SETUP
Touch the audio to turn to audio quality
adjustment.
Page 18
-16-
Basic Operation

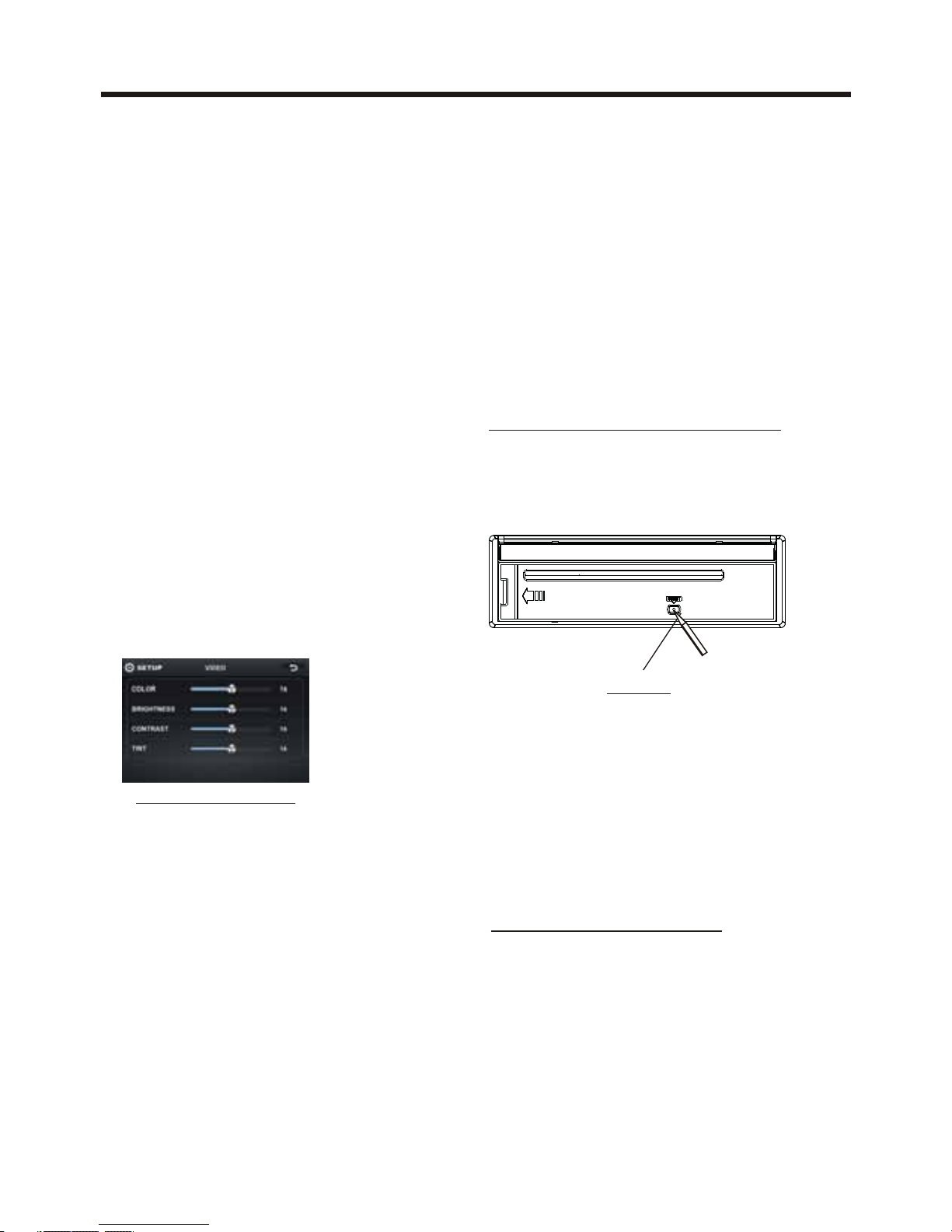

The RESET button is to be activated for
the following reasons:
A. Initial installation of the unit when
all wiring is completed.
B. All the function buttons do not operate.
C. Error symbol on the display.
Rear Vie w Camera
When connecting the rear view camera
the mirror image of the rear view is automatically displayed on the monitor
when you change the gear to the back
position.
(Note: additional monitor can not display
the image.)
Reset Factory Settings
RESET button is placed on the housing
and must be activated with either a
ballpoint pen or thin metal object.
RESET
TREBLE: -7 to +7
Adjust treble level .
BASS: -7 to +7
Adjust bass level .
SUBWOOFER: touch to adjust subwoofer
volume and frequency.
EQ: touch to select audio mode as follow:
USER -> JAZZ -> CLASSIC -> POP -> ROCK
LOUDNESS: touch to select loudness
effect as :OFF -> LOW -> MID -> HIGH
FADER/BALANCE:
BALANCE: R 0-10 to L 0-10
Adjust sound balance between left
and right speakers .
FA DE: F 0-10 to R 0-10
Adjust sound balance between front
and rear speakers .
VIDEO SETUP
COLOR: 0 to 32
Adjust the color for
the picture-lighter
or darker.
BRIGHTNESS: 0 to 32
Adjust if the picture is too bright or
too dark.
CONTRAST: 0 to 32
Adjust the contrast of the bright and
dark portion.
TINT: 0 to 32
Adjust the tint if the human skin color
is unnatural.
-Adjustable when “NTSC “ is selected
for “NTSC/PAL
“ .
LANGUAGE
Touch to select OSD language.
ILLUMINATION COLOR
Tou c h to select the backlight for all
buttons. Tap auto icon the backlight
change automatically.
CALIBRATION
Tou c h the arrow as show to calibration
the display.
Video setup interface
Page 19
-17-
UNIT KEYS
Control Panel
16 17
2 3 4 5
6
7
9
1
11
10
8
12
13
14
15
1. OPEN/ BUTTON
SEL BUTTON
In normal mode, knob is used to increase or decrease the volume.
To slide the monitor out and stand it up or into the monitor slot, press this button;
To adjust the angle of the monitor, long press this button .
switch between
BASS,TREBLE,
BALANCE, FADE,COLOR, BRIGHTNESS, CONTRAST, TINT ,BT, REG
(in radio mode), PI(in radio mode), TA(in radio mode), AF(in radio mode), LOUD,
SWF, EQ, TIME 12H/24H, CLOCK, BUZZ,EUR/USA FREQ, ANIMATION.
After switching on the desired mode above, rotate VOL
knob or press VOL+/
VOL- buttons to set it.
2. and VOL KNOB
the VOL
Press the SEL(except radio mode) to
In radio mode, press the SEL to select MANUAL/AUTO mode, in radio manual
mode to scan the frequency by rotate the VOL knob, select radio auto mode to
cancel the scan function.
Page 20
Control Panel
-18-
4 BUTTON
In Disc Playback Mode, press this button to pause playback, press it again to
resume playback.
long pressing |<< or >>| button can automatically search down
or up for an available station beginning from the current frequency; Briefly
pressing |<< or >>| button can manually search down or up for a your desired
station beginning from the current frequency.
In media mode, pressing |<< or >>| button can play the previous or next track;
continuously and long pressing |<< or
>>| button can fast backwards or
forwards at the following multiple of normal speed: x2, x4, x8, x20.
* In BT MUSIC mode, the function of the fast forwards or backwards is disabled.
7. MUTE/PTY BUTTON
Press it button to switch of the loudspeakers for a short period. The word MUTE
flashes in the display. Press it again to cancel the mute function. This function
can also be cancelled by rotating the VOL multifunction button.
In
BT mode, for the function to reject a call, please refer to the part of the
BT Operation.
9. REL BUTTON
Press it to detachable the front panel.
m
5/6. >>| and |<< BUTTONS
In radio mode,
In Radio Mode, press this button and hold for a bout 2 seconds to select the PYT
of the grogram type (examples of such types of program are : NEWS, POP.....)
8
. BND/ BUTTON
In Radio mode, press it repeatedly to select the desired radio band: FM1, FM2,
FM3, AM1(MW1), AM2(MW2) .
10. Button
In BT ode, for the function to receive a call, please refer to the part of the
BT Operation.
3. /SRC BUTTON
Press it to turn on the unit, to switch the device off.
In playback mode, Press it repeatedly to select RADIO, DISC, USB, CARD, AUX,
A
V and BT MUSIC mode.
Press and hold for two seconds
Page 21
Control Panel
-19-
12. IR sensor
11 (EJECT) BUTTON
Insert the disc, label side facing up, until the mechanism senses its presence
and draws the disc in. Press it to eject the disc.
13. USB PORT
For information about connecting a USB device, please see USB operation.
14. AUXILIARY INPUT JACK
Insert an external device to this AUX jack in order to have audio output of the
device through the unit.
15. LCD Display window
16. SD CARD SLOT
17. RESET BUTTON
Press this button to return to factory settings.
Page 22

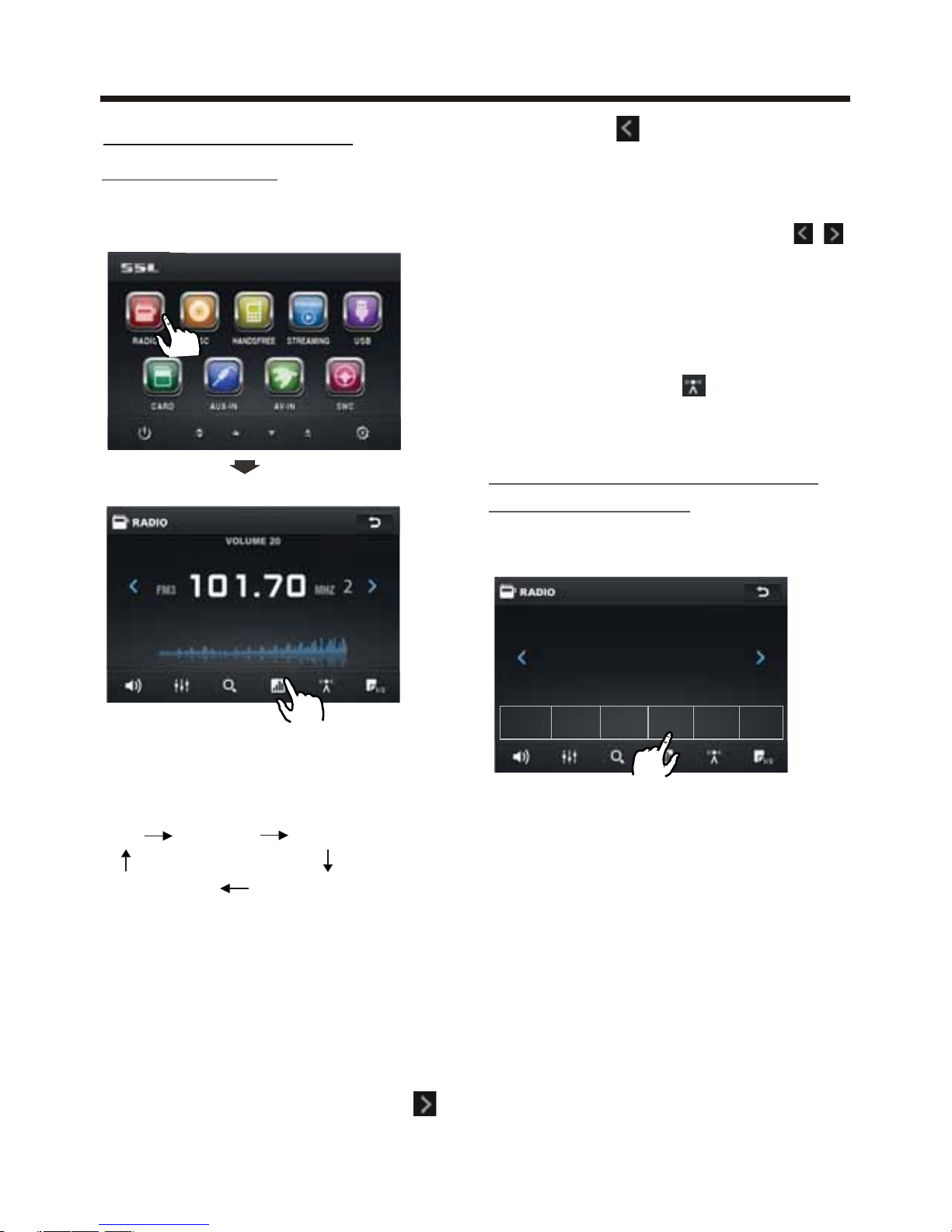

Touch Screen Operation
-20-
Selecting The Frequency Band
Touch the screen of “ BAND ” section
repeatedly to select the band , the
message will show in turn :
When an FM stereo broadcast
is hard to receive
Press ST/MO button on the remote
control to select the MONO or STEREO
mode .
Start Searching For a Station
Manual Search
During Radio mode, briefly touch “ ”
to increase frequency by one step of
channel spacing.
FM1 FM2 FM3
AM2(MW2)
AM1(MW1)
RADIO OPERATION
Touch the RADIO ICON in home menu
to enter the RADIO mode:
Briefly touch “ ” to decrease frequency
by one step of channel spacing.
Automatic Search
During Radio mode, touch and hold
(for more than 2 seconds ) either “ / ”
ICONS to start search for a radio station
automatically.
To tune in strong-signal FM
Station only (LO/DX function)
Press button on the
remote control to select
mode of Local and
Long-distance traffic news.
Storing and Listening to a
Memory Station
Setting Memory
With this system, a total of 30 stations
can be stored in the memory of six
buttons. Each band stores up to six
preset stations. The stations might be
FM1, FM2, FM3, AM1(MW1), and
AM2(MW2) band.
The operation is as below :
- Store in Memory
>Select the frequency band
> Select the station
>Press and the station until it show
the frequency band your select.
- Retrieve a preset station
To u ch the 1-6 ranges briefly to retrieve
a station which had been stored in the
memory in advance the chose number
is shown on display
.
In radio mode, LOC
or tap icon
select LOC/DX
Listening to Radio
10:00AM
10:00 AM
10:00 AM
FM1 87.50 MHz 4
87.50 90.10 98.10
107.9 100.8
87.50
10:00 AM
10:00 AM
Page 23
-21-
Touch Screen Operation
RADIO
RDS PI MUTE
RDS TA
OFF
RDS AF OFF
10:00 AM
10:00 AM
Automatic Memory Storing &
Program Scanning
3
RDS FUNCTION
ADJUSTABLE ITEMS:
Automatic Preset Setup
In Radio Mode, touch and keep (for more
than 2 ’ S) the screen of “ ” range to
active automatic station storage.
The radio searches within the current
frequency band, e.g. FM , for the
stronger signal level until the search
cycle has finished . The six strongest
stations are then allocated to the
corresponding storage locations .
Then the station of the first storage
location is set .
Scan Function
In Radio mode, briefly touch the “ ”
section on the touch screen , the radio
briefly plays all the preset stations of the
frequency band .
In home menu, then touch the “ ”
ICON to enter the set mode,
the
message in the display :
REG FUNCTION
at certain times some stations divide up
their programs into regional programs
with varying content .
REG ON : the message “REG ON” will
appears in the display for a few seconds .
Note :
- the display
capacity is limited . It is
possible that in the double display mode
some segments of the display are deleted .
- the function REG ON prevents the
radio from switching to alternative
frequency which have a different regional
program content .
REG OFF : the program identification(PI)
of the regional program is ignored during
the search for an alternative frequency
(AF) or a program identification (PI) .
Select RDS REGIONAL to turn RDS
function on or off.
PI MUTE / PI
SOUND
(only for radio operation)
f you are in an area where two program
identifications (PI) overlap, you can
select the option PI SOUND and
PI MUTE for playback of the sound.
Alternate switching of the program
identification should be avoided .
PI SOUND :
f switching nevertheless occurs the
sound of another station is heard for
less than one second .
PI SET
Touc h to change between PI MUTE and
PI SOUND .
I
I
ST/MONO STEREO
LOCAL DX
REGION
EU ROPE
RDS REGIONAL ON
RADIO
REGION SET
Touch to switch the REGION function
ON and OFF.
Page 24
TA Traffic Announcement
(Priority For Traffic Information)
When the TA function is activated, the
TA symbol appears in the display .
During radio operation in one FM
frequency band the search for a traffic
announcement station is started
automatically (TA SEEK) .
If an FM station is being received which
transmits the latest traffic announcements
from time to time, the TP display
lights up.
When the TA function is switched on ,
the FM traffic automatically interrupt
CD operation (the word TRAFFIC
appears in the display).
The volume level is increased to the
minimum value for the transmission of
traffic announcements.
After the traffic announcements has
finished,
the program that was
previously running is resumed.
Interruption of the TA Function:
If you would like to interrupt the current
traffic announcement, touch the TA
section on screen briefly . This does
switch off the TA mode .
AF FUNCTION
(Alternative Frequencies)
AF is a function that works with the help
of RDS (Radio Data System) and can
only be used with FM stations. The radio
searches in the background for the best
frequency reception of the station that
has been tuned into .
PI MUTE :
the sound of another station
is
suppressed .
In Radio mode, touch the cursor button
to switch the TA function ON and OFF .
In Radio mode, touch the cursor button
to switch the AF function ON and OFF .
To u ch the AF section on touch screen or
swing and keep the SEL knob in the
TA/ AF direction for about 2 seconds ,
the AF function is activated. The AF
symbol appears in the display .
When the AF function has been switched
on, the radio continuously tests
the
signal strength of the AF frequency .
The test interval for each AF frequency
depends on the signal strength of the
current station and varies from a few
minutes in the case of weak signals.
Whenever the new AF frequency is
stronger than the station that is
currently
tuned in , the radio switched to this
frequency for a short time for a short
time and the message
“NEW FREQUENCY “ is displayed for
one or two seconds.
PTY FUNCTION
In Radio mode, touch screen of “PTY”
range to select the Program type .
PTY Selection of the program type
besides the stations name, some FM
stations also transmit information on the
type of program. This information can
be displayed by your car radio .
Examples of such types
of program are :
SPORT NEWS POP WEATHER ......
With PTY function you can specifically
select stations transmitting a particular
type of program. To u ch the PTY on screen
repeatedly to call up the PTY selection
menu. The message “PTY SEEK” then
appears briefly in the
display .
When PTY has been selected the radio
start searching for corresponding PTY
information and stops when the PTY
information has been found, “NO PTY”
appears in the display. If the PTY
information being searched for no longer
exists, the PTY function automatically
switches to normal mode .
Touch Screen Operation
-22-
Page 25
-23-

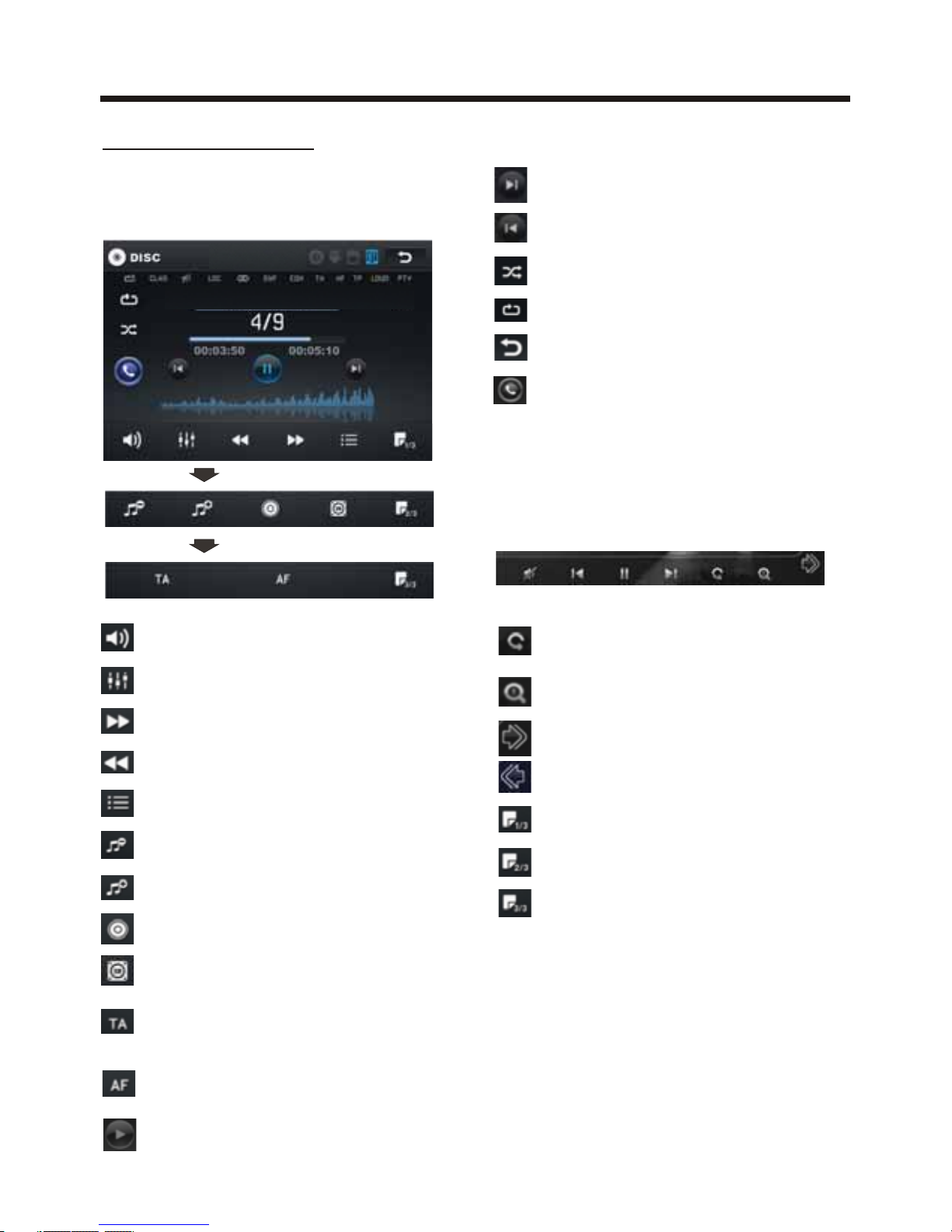

Media Operation
In audio play mode, the message will
display as below :
(When Parking Brake is applied .)
Touch Screen Operation
To skip the next track
To skip the previous track
Repeat Function
Random Function
Previous menu
Tap to turn to BT PHONE mode.
(after pairing and connecting a
mobile phone with bluetooth function).

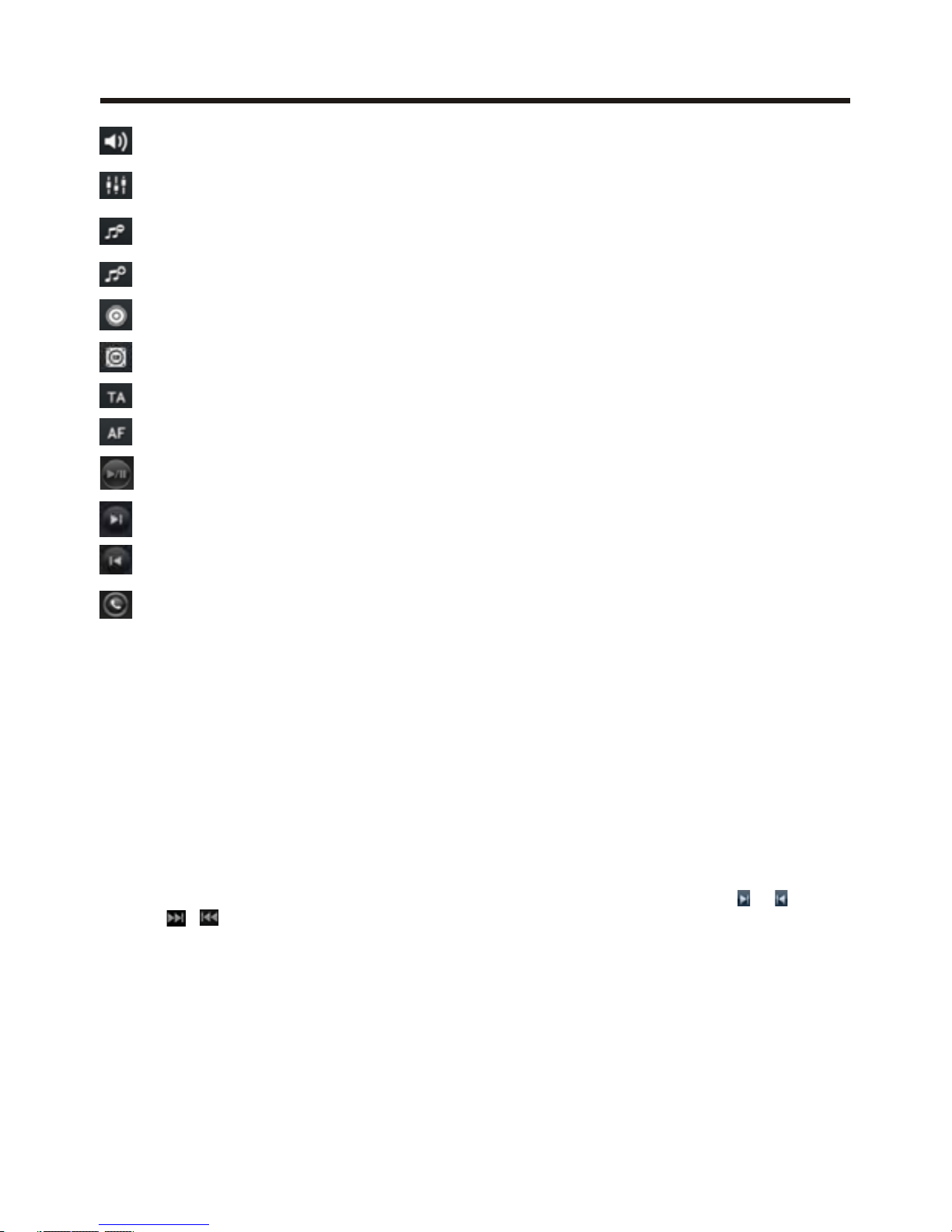

The icons for other mode
(The same icon have the same function
in each mode)
In PHOTO playing ,tap to change
the photo direction.
ZOOM IN and OUT.
For page turning.
For page turning.
For page turning.
For page turning.
For page turning.
Mute function
To select the Equalizer mode
Fast forward
Fast backward
Intro Function
To decrease the volume level
To increase the volume level
Loudness Function
Subwoofer Function
Turning pre-switching for traffic
announcements on and off
Switching on and off an
Alternative frequency
Play/Pause the playing
10:00AM10:00AM
Page 26
Touch Screen Operation
-24-
FOR Digital Video :
Tap the icon or press the RPT button
on the remote control to select REPEAT
mode as follows :
REPEAT ALL
CHAPTER REPEAT ON TI TL E REPEAT ON
REPEAT OFF
Note:
when the JPEG disc playback, in normal
mode, you can use the cursor buttons to
rotate the picture .
Press UP to invert an image .
Press DOWN to mirror an image .
Press LEFT to rotate an image to left .
Press RIGHT to rotate an image to right .
FOR
VCD/CD :
Tap the icon or press the RPT button
on the remote control to select REPEAT
mode as follows :
FOR MP3 :
Tap the icon or press the RPT button
on the remote control) to select REPEAT
mode as follows :
FOR
CD :
Tap the icon or press the INT button
on the remote control to play the previous
10 seconds part of each track/chapter
on disc.
(Touch it again to cancel this mode)
REPEAT OFF
REPEAT ONE REPEAT ALL
REPEAT ALL
REPEAT ONE REPEAT FO LD ER(or DIR)
REPEAT OFF
SELECTING PLAY MODES
During the Disc playback, select the
“RPT, RDM, INT ” to select your favour
play mode.
1). REPEAT FUNCTION
2). INTRO FUNCTION
Note :
For some VCD2.0 disc (PBC-playback
control), above these buttons may be
unavailable .

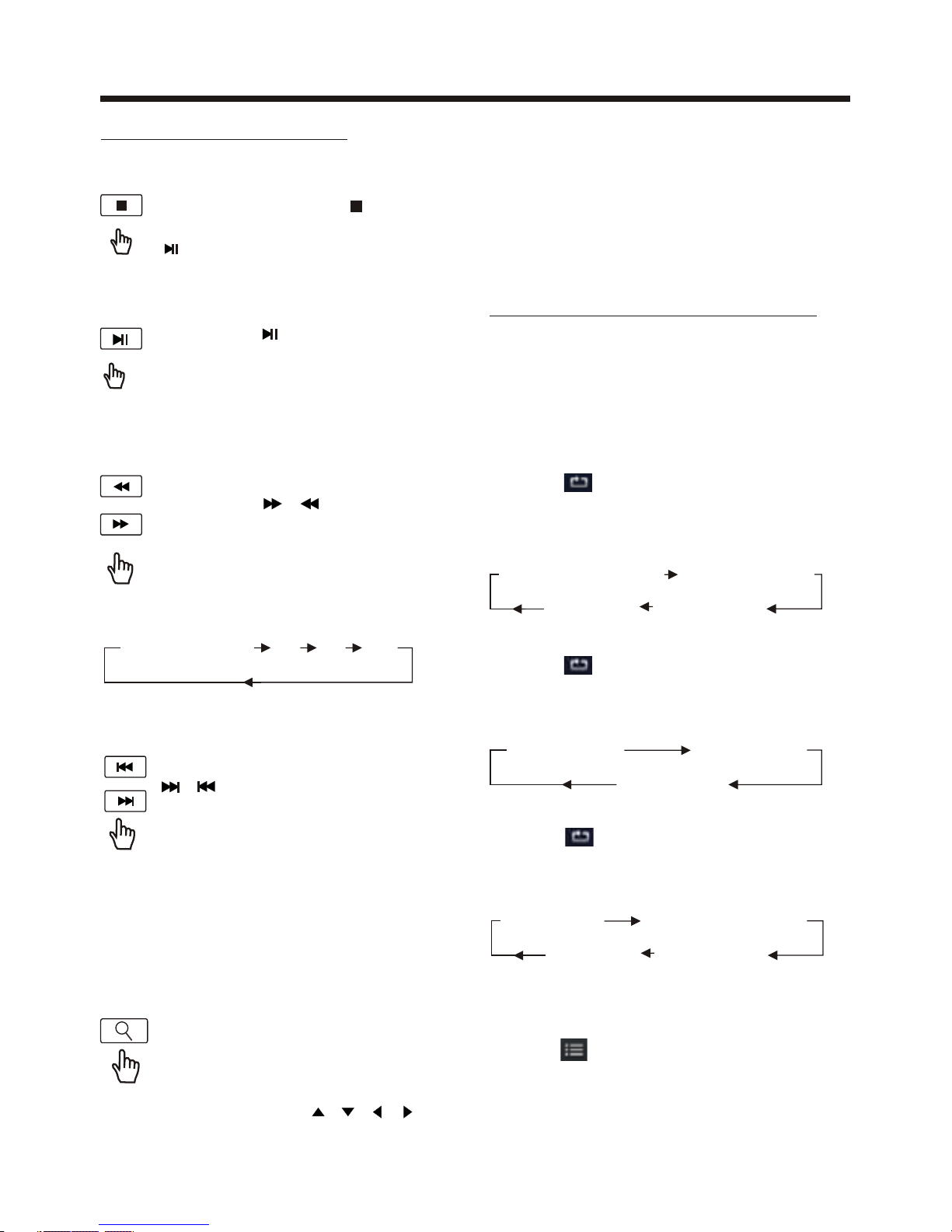

Skipping Track
During DISC playback, Touc h the
/ section on the touch screen
to skip to next/back one track.
Digital Video/VCD/CD/MP3:
Normal Playback 2x 4x 8x 20x
Rapid Forward/Rapid Reverse
During DISC playback, touch the
screen of “ / ” range the
speed of rapid forward/reverse
changes according to the disc as
follow:
Use the direction keys ( / / / on
remote control to move the enlarged
picture .
Zoom Function
Touch the button repeatedly,
the displayshow as “
zoom 2,
zoom 3, zoom 4 , zoom ½,
zoom 1/3, zoom 1/4 , zoom off
. ”
Stopping Play
Touch the screen the range to
stop the unit playback. touch the
range to start play.
Pause (still picture)
Touch the “ ” section on touch
screen during playback will stop
play temporary, touch it again to
return the normal playback .
BASIC OPERATION
Page 27
Touch Screen Operation
-25-
Note: when select the INTRO Mode,
this player to start to play the previous
15 seconds part of each track/chapter
on disc. (Touch it again to cancel
this mode .)
3). RDM(RANDOM) FUNCTION
During DISC playback, touch screen
of “ ” section ( press the
RDM button on the remote control to
play in random. Each play mode the
order is different . (Depend on the
disc used for VCD).
Touch it again to cancel this function .
FOR VCD :
Press the INT button on the remote
control. It display will following
menu as below :
FOR Digital Video/MP3 :
For Digital Video/MP3 , press the INT
button is not available .
SEQ PLAY INTR O 1
OSD

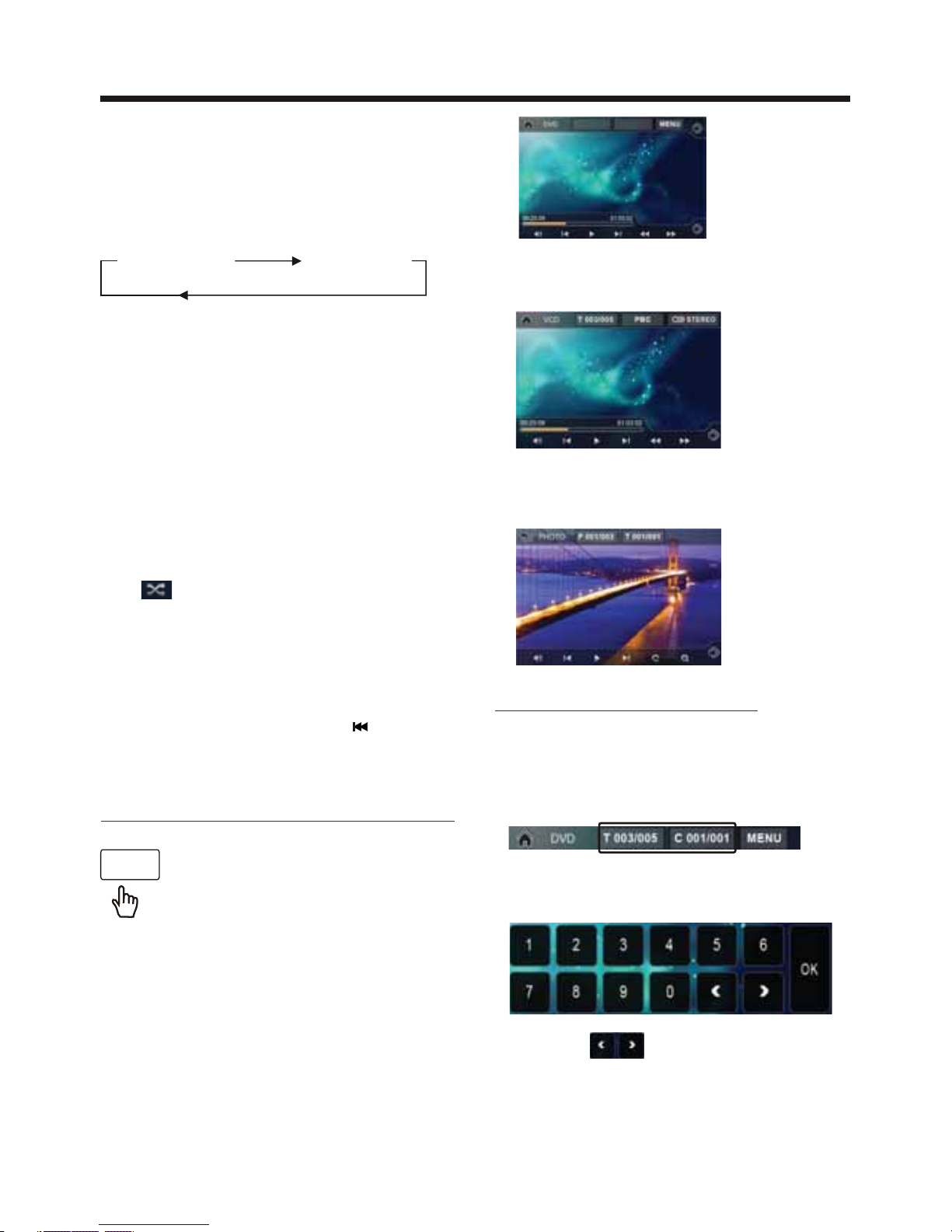

2. Example for VCD/SVCD, when it is on,
it will display the information such as:
3. Example for Movie or PHOTO .
When it is on, it will display the
information such as:
DISC Search (GOTO)
FOR Digital Video :
Tou c h the screen as show or press the
GOTO button on remote control;
the screen will display the following
message :
Touch the to select the your
adjustment item, then select the item
your favour by touching the numberic
buttons , then touch
the OK button
to confirm .
T 001/004
C 001 /001
Note : in random mode, the button
is not available .
During playback, touch the
screen or press the OSD on the
remote control, it will display
the following as below :
Note: touch the screen or press the OSD
on the remote control again to cancel
the OSD information.
1. Digital Video , when it is on, it will
display the information such as:
ON-SCREEN DISPLAY FUNCTION
Page 28
-26-
Touch Screen Operation
the screen will display the following
message :
Touch the to select the your
adjustment item, then select the item
your favour by touching the numberic
buttons , then touch the OK button
to confirm .

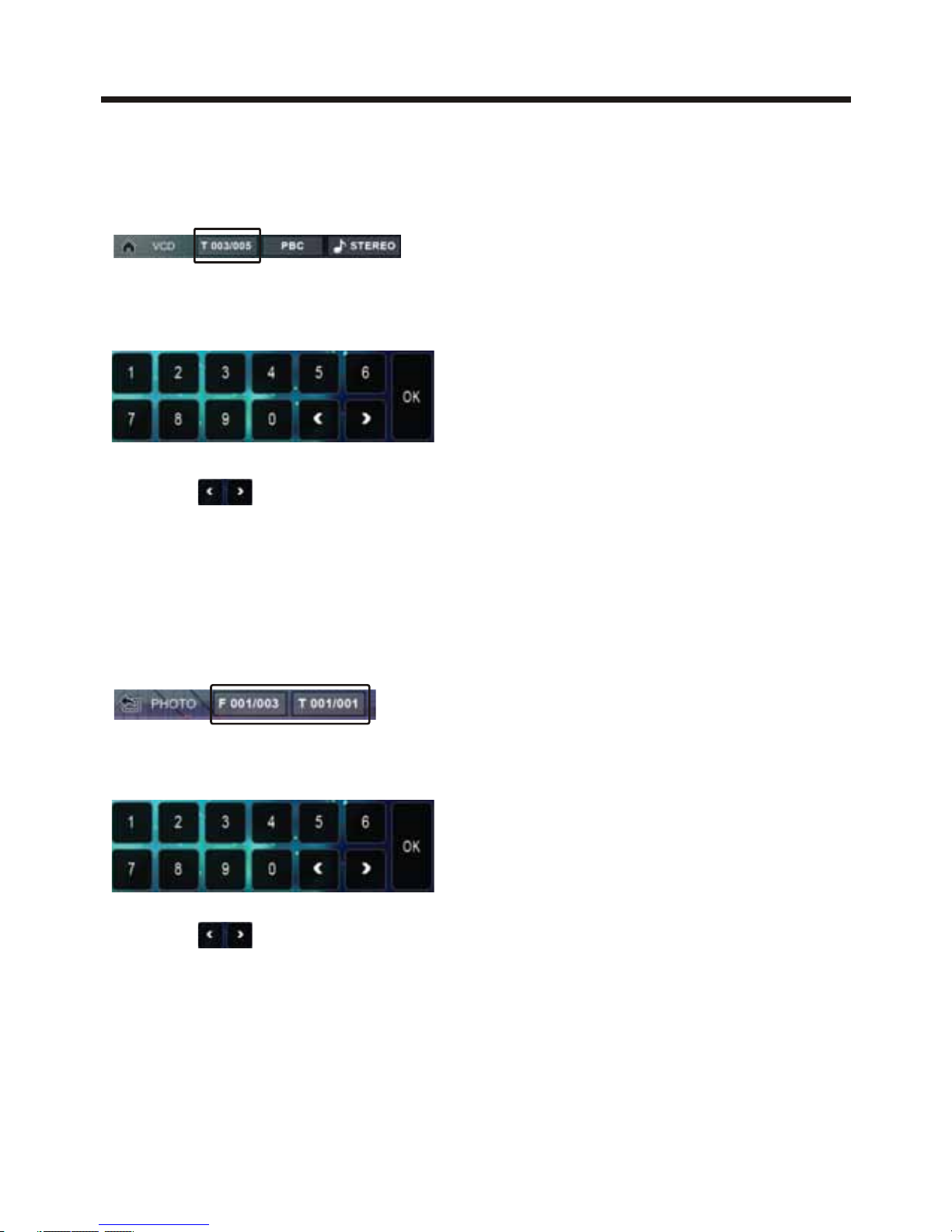

For Movie/Photo:
Touch the screen as show or press the
GOTO
button on remote control;
the screen will display the following
message :
Touch the to select the your
adjustment item, then select the item
your favour by touching the numberic
buttons , then touch the OK button
to confirm .
FOR VCD (With PBC OFF) :
Touch the screen as show or press the
GOTO button on remote control;
Page 29
-27-
Touch Screen Operation
Digital Video Special Function
4. Tit le Menu Function
For Digital Video :
If the Digital Video has multiple titles
recorded on the disc. It can select
preferred title from the title menu to start
playback.
- During Digital Vid eo playback, press
TITLE button on the remote .The title
menu is display.
- Select preferred title by the
cursor
button and confirmed by press the
ENTER button .
For VCD:
Press TITLE/PBC button on the remote
control while the disc is playing, you can
switch between "PBC ON"and "PBC off"
mode.
MONO LEFT MONO RIGHT
STEREO
MIX-MONO
For VCD/CD:
during playback, touch the AUDIO
section of the touch screen or Press
AUDIO on the remote . It is possible to
switch the sound between monaural
and stereo sound.
2. Multi-Audio Language Function
For Digital Video:
During Digital Video playback ,
touch the icon on touch
screen (or press the LANG
on the remote .) Each time the button is
pressed or touch , number of the audio
soundtrack language changes on
sequential order.
Notes:
- The language number
is different
according to the disc.
- Some disc only contain one language
soundtrack
- When no different language soundtra ck are recorded will be
display at screen left top corner.
“ INVALID KEY ”
Notes:
- The language number is different
according to the disc.
- Some discs only contain one subtitle
language.
- When no different subtitle language
are recorded, “ INVALID KEY ” will be
displayed at screen left top corner.
During Digital
Video playback.
Touch the icon on touch
screen(or press the SUBT on
the remote) .
1. Multi-subtitle Language
Function (for Digital Vi de o Only)
Each time the button is pressed or touch,
number of the subtitle language changes
in sequential order.
During Digital Video playback, touch the
icon on the touch screen .
Each time the button is pressed , the
number of the angel changes in sequential order .
Notes:
- The angle number is different
according to the disc.
- The function only work for disc having
scenes recorded at different angles.
- When no different angle are recorded,
will be displayed at
screen left top corner.
“ INVALID KEY ”
3. Multi-Angle Function
(for Digital Video Only)
Page 30
-28-
Touch Screen Operation
Bluetooth Operation
1. Pairing and Connecting
Prior to using the bluetooth device named SSL as a hands-free system for a
bluetooth-enabled mobile phone for the first time, you must
as follows:
Press the bluetooth hands-free icon or
press the pair button on
the remote
control to turn to bluetooth standby mode
as right:
* Prior to pairing and connecting, when displaying No Video interface of radio, CD,
AUX IN or bluetooth music, the logo BT flashes in the touch screen.
* During the use of
the bluetooth device named SSL” as a hands-free system for a
bluetooth- enabled mobile phone;
Switch on the bluetooth mode of your mobile phone; then s
bluetooth device and enter it; device car
, select it and enter it; then it will show
an
interface that asks you to input a password, input 8888 and enter it; then i
with the bluetooth device SSL of the car A/V system, Confirm it,
then the frame of the BT logo will light all the time.
* finishing pairing and
ing
or the mobile phone
plays music

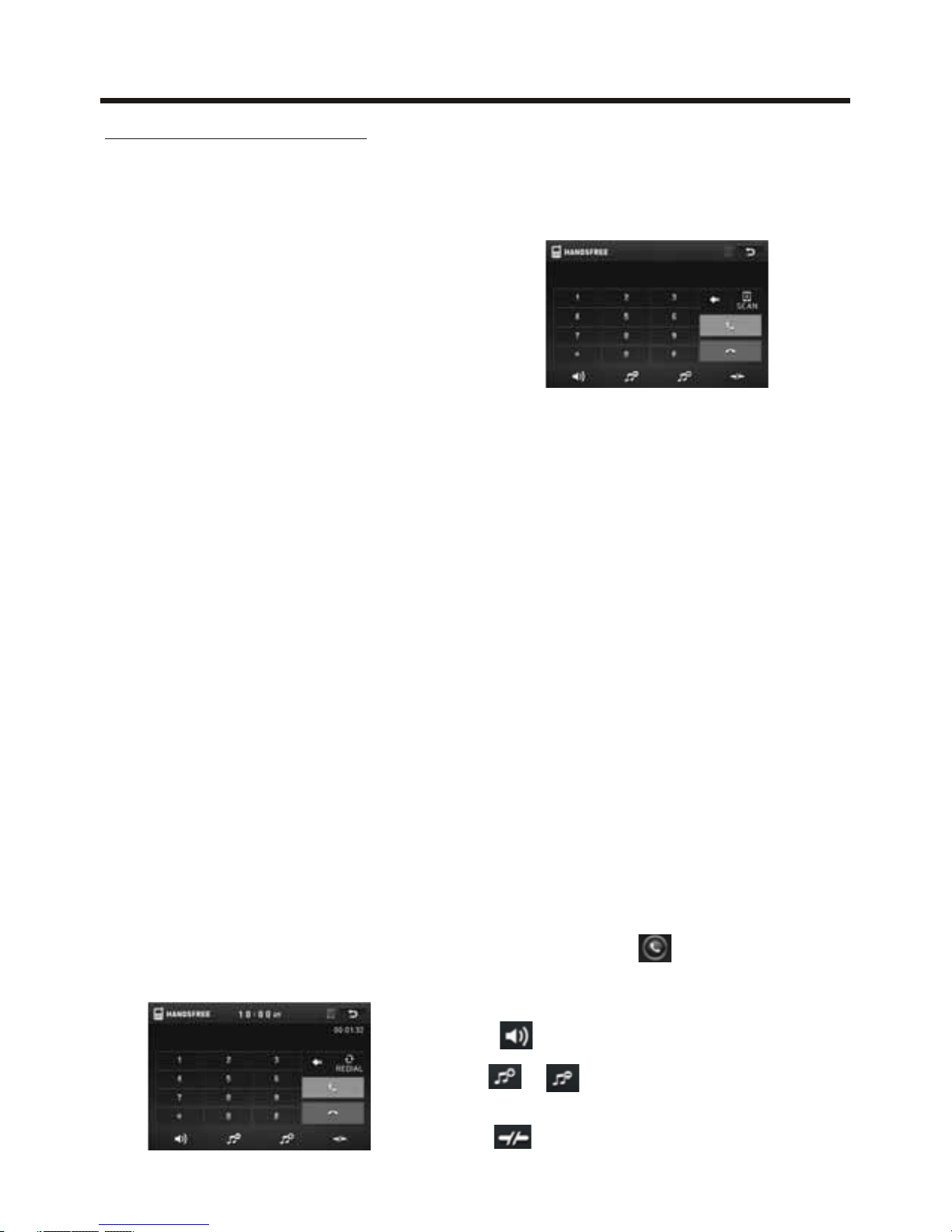

2. BLUETOOTH PHONE
1) Make a call
(1) Dial with mobile phone directly;
(2)
a. Touch the HAMDS-FREE icon in home menu or touch the icon during playing
to turn to BT PHONE
interface as follows:
pair and connect
them
"
elect the item to find a
When it finds the bluetooth of the A/V
system, the name SSL will be displayed
t will
pair and connect
When connect , the audio of the mobile phone transfers
to the car audio system whenever a call is made or received
.
Dial with BT Phone, remote control, or on touch screen;
: Same as MUTE button.
& : Same as VOL+ and VOL- or
VOL knob.
: Ta p to do disconnection.
Page 31
-29-
Touch Screen Operation

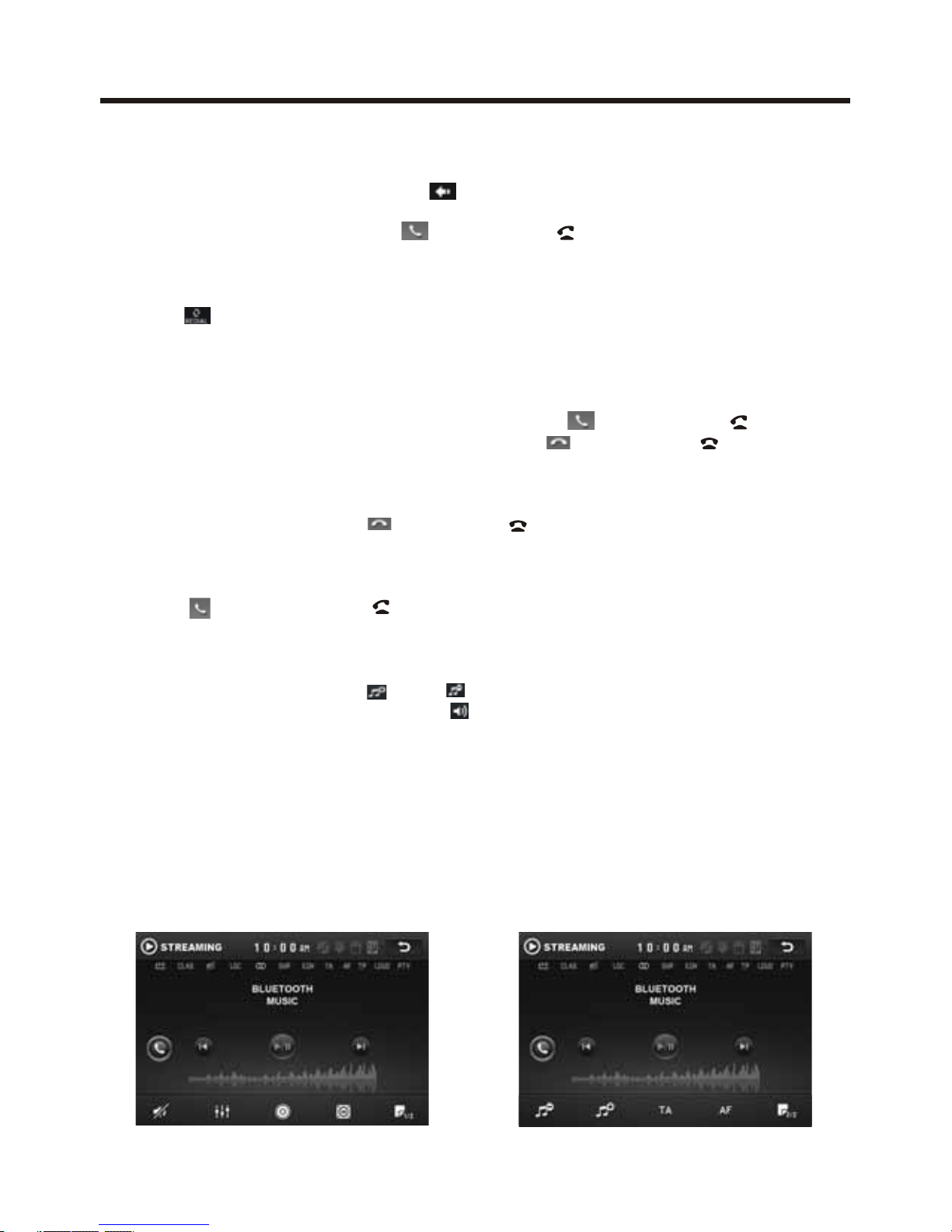

USER SWF
USER SWF
BT
MUSIC
BT
MUSIC
b. Use the number icons or buttons to input your desired phone number;
* When inputting a wrong digit, use icon or < button to delete it.
c. After finishing inputting, touch icon or press button on control panel
to dial out.
2) Redial last dialed phone number
Touch icon or long press redial button on remote control to dial out the last
dialed phone number.
3) Answer a call
During an incoming call, the
incoming telephone number displays in the the BT
PHONE interface. If you want to receive it, touch icon or press button
on remote control; if you want to reject it, touch icon or press
button
on remote control.
4) Ending a call
When ending a call, touch icon or use button.
5) Switch the audio between the unit and your device
During phone bluetooth hands-free system of the car A/V
system,
touch icon or press button on remote control to switch the audio
between the unit and your device.
6)
During phone + and - icon or
; use
icon or MUTE button to mute sound
* * / # icons and buttons
they perform as * / # buttons on mobile phone.
3 BLUETOOTH MUSIC
1 Touch STREAMING in home menu or pressing SOURCE button can pop up BT
MUSIC interface
as follows:
talking using the
Adjusting the volume during a call
talking, use VOL knob or VOL+ and VOL-
buttons to adjust volume level .
.
)
Page 32
) using your mobile phone with bluetooth function to audio/video
if it the audio of the mobile phone will change
into .
The SSL supports A2DP, which enables the user to stream audio from their device.
) T the car A/V system so these
icons on
the BT Music interface except BT Music and their buttons on control
panel or on remote control are available for audio/video playback of your mobile
phone during playback. But n for / icon
and / buttons, and the function of resume playback after pausing or stopping
is available only for some mobile phone
to display BT, to
BLUETOOTH
2 When the play ,
is paired and connected to the unit,
the car A/V system
3he bluetooth
device of supports AV RCP ,
corresponding
o fast forward/backward functions
.
* If you don’t want to use the bluetooth function of the car A/V system , long press
SEL button then use VOL knob or VOL+ and VOL- buttons switch
off .
Mute function
To select the Equalizer mode
To decrease the volume level
To increase the volume level
Loudness Function
Subwoofer Function
Turning pre-switching for traffic announcements on and off
Switching on and off an Alternative frequency
Play/Pause the playing
To skip the next track
To skip the previous track
Ta p to turn to BT
PHONE mode.(after pairing and connecting a mobile phone
with bluetooth function).
Touch Screen Operation
-30-
Page 33
-31-
Touch Screen Operation
AUX Operation
On the front panel of this unit, there is an
AUX IN jack, follow the diagram below to
connect analogue replay devices(only
for the Audio connect, if you want to
connect the Video, please plug the RCA
<Video input > on the back of the unit .) .
Use this jack to
replay sound of other
replay equipment such as Digital Video
players, computers, etc. Via the loudspeakers.
1). Please connect the external device
with stereo jack (3.5mm)plug the Aux in
socket .
AUX IN JACK FRONT PANEL
AUX IN
Ground
Right
Left
AUX IN
2). In radio mode, touch the screen
of “ ” ICON to enter the main menu,
touch the “ AUX ” ICON to enter the
AUX IN mode .
10:00AM
AUX INTERFACE 1
10:00AM
3). You now hear the sound from the
external device played back through
the loudspeakers .
The function of the icons as follow:
Tap to mute the sound.
Tap to select EQ as the same on the
remote control.
Tap to turn LOUD on or off.
Tap to select subwoofer frequency.
Ta p to adjust audio volume.
Turning pre-switching for traffic
announcements on and off
Switching on and off an
Alternative frequency
Ta p to turn to BT PHONE mode.
(after pairing and connecting a mobile
phone with bluetooth function).
AUX INTERFACE 2
10:00AM
Page 34
Touch Screen Operation
-32-
10:00AM
AV Operation
Please plug the RCA <Video input >
on the back of the unit .
Touch the AV IN icon to enter the AV IN
mode.
AV INTERFACE 1
The function of the icons as follow:
Tap to mute the sound.
Tap to select EQ as the same on the
remote control.
Tap to turn LOUD on
or off.
Tap to select subwoofer frequency.
Ta p to adjust audio volume.
Turning pre-switching for traffic
announcements on and off
Switching on and off an
Alternative frequency
Tap to turn to BT PHONE mode.
(after pairing and connecting a mobile
phone with bluetooth function).
Note: To ensure safety while driving and
to comply with lows, drivers should
not watch video or operate the
video device while driving.
10:00AM
AV INTERFACE 2
10:00AM
As the interface show, here is only the
audio output, now tap the icon,
the picture of the auxiliary input video
show on the display and tap the display
again to turn to audio mode.
Now you can watch the video from your
External video equipment such as
Digital
Video players, computers, etc.
Page 35
-33-
Touch Screen Operation
Following the diagram below, connect
your USB device to the front panel
USB port . If it is properly connected,
the device will be mounted and start
playing automatically.
USB OPERATION
1 Current type (highlighted bar) .
2 Audio play mode select.
3 Picture play mode select.
4 Movie play mode select,
5 Current play track .
1 Current type (highlighted bar) .
2 Audio play
mode select.
3 Picture play mode select.
4 Movie play mode select,
5 Current play track .
Card OPERATION
The unit can support playback MP3/WMA/
JPEG/MP4 and Divx format which are
stored on SD memory cards .
Please read the following instructions
before you start using a memory card .
Inserting the card as follow:
Press REL button to
detachable the panel
Label side
facing upward
1
WEDDING MOV03247.MPG
CIMG3080.MOV
10:00AM
10:00AM 10:00AM
1
SONG
001
002002
003
004
005
10:00AM
2 3 4
5
2 3 4
5
Page 36
Touch Screen Operation
STEERING WHEEL CONTROL
Touch the SWC icon as follow to turn to
steering wheel control .
During setting, touch the icon to
turn to home menu.
There are 2 KEY for total 12 buttons to
save, first, tap Assign to open function
save, then select button 1 in KEY 1 on
steering
wheel and tap the icon, the
icon show in button 1 position then touch
Confirm, final turn the unit on again,
the function will save in button 1 of
KEY 1.
The function of the icons as follow:
Touch to begin function save.
After selection touch to confirm
operation.
Touch this icon to cancel the
input and resume load.
When electric resistance is too
low, touch this icon to increase.
When electric resistance is too
high, touch this icon to reduce.
-34-
10:00AM
Page 37
Parental Control
-35-
* Parental Control
Q: After inserting a Digital Vi deo disc into the disc slot,
?
A: The playing disc is locked by a rating level of parental control. If the current
rating level of parental control of the Digital Vi deo
player is lower than the one
of current disc, you must input the correct password of parental control to
unlock the parental control and enter a rating level one
* For factory preset password of parental control of Digital
Vi deo player,
part of Media Setup Menu
Appendix: Parental Control
Parental Control function of a Digital Video player can control playback of
movie ratings on a disc. You can set the Digital Video player to be a certain
rating level of parental control using the Media Setup Menu. If the rating level
of parental control of a disc is higher than the one of the Digital Video player,
the Digital Vi deo player cannot play the disc.
The Digital Vi deo movie can be designed so that the Digital Video player can
play different versions of content of a particular movie according to the different
rating levels of parental control. Depending on igital Vi deo , the
scenes
that are not suitable for children will be cleared or replaced by suitable
scenes automatically.
The rating levels of Parental Control are as follows:
Unlock
1 Kid Safe
2 G
3 PG
4 PG 13
5 PG R
6 R
7 NC 17
8 Adult
if a dialogue box pops up
and asks you to input a password, what should you do
equal to or higher than
of the current disc in order to play the disc.
the D features
please
see the .
Page 38
Region Code for DVD
-36-
* Region Code
Appendix: Region code of D
Motion Picture Association of America (MPAA) divided the world into 6 regions, and
gave every region a region code for locking and unlocking D playback.
Please
Region codes and the countries or areas represented by region codes are as follows:
Region 1: America, Canada, East-Pacific Inlands;
Region 2: Japan, We st Europe, North Europe, Egypt, South Africa, Middle East;
Region 3: Taiwan, Hong Kong, South Korea,
Thailand, indonesia, etc.;
Region 4: Australia, New Zealand, Central South America, South Pacific Inlands;
Region 5: Russia, Mongolia, Indian Peninsula, Middle Asia, East Europe, North
Korea, North Africa, North-west Asia etc.;
Region 6: China mainland.
If you insert a disc into the disc slot and REGION ERROR is displayed, the car
multi-media system can not play the disc. The reason is that the region codes
of the car multi-media system and the used disc do not match each other.
igital Video
igital Video
igital Video
as the code of the igital Vi de o
igital Video igital Video
impose this restriction. igital
Video igital Video -
has motivated the
igital Video igital Video
-
Basically, a coded D player can play only the discs if its region code is the
same D player. Otherwise, it cannot play the disc.
note that only the D discs and D players produced by
the 8 biggest film-making companies of America The D
discs and D players not
produced by the 8 biggest film making
companies of America are not restricted by the rule of region code. Generally, they
are called Free Region Code or Full Region Code.
The problems caused by area code inconsistency production of
unlocked version D players and recodable
D players .
South-east Asian countries include
The 8 biggest film making companies of America are as follows:
1. WarnerBros;
2. Columbia;
3. 20thCenturyFOX;
4. Paramount;
5. Universal;
6. UA(UnitedArtist);
7. MGM(MetroDogwynMayer);
8. WaltDisney
Page 39
Specification
-37-
TFT Monitor:
Monitor Screen Size: 7 Inch Wide
Color System: NTSC/PAL
NOTE:
Specifications and design are subject to modification, without notice, due to
improvements in technology.
RADIO Section:
For 2 Bands For
2 Bands
(Europe) (U.S.A.)
FM FM
Frequency Coverage: 87.5 to108 MHz
87.5 to107.9 Mhz
IF: 10.7 MHz 10.7
MHz
Sensitivity (S/N = 30 dB): 15 dBu 15d Bu
MW AM
Frequency Coverage: 522 to1620 KHz 530 to1710 KHz
IF:
45 0 KHz 450 KHz
Sensitivity (S/N = 20 dB): 40 dBu
40 dBu
Audio Signal Output: 2ch&4ch line out
Characteristics: (1)Frequency Response 20 Hz - 20 KHz
(2)S/N Ratio
90 dB (JIS)
(3)Wow and Flutter Below measurable limits
General :
Supply Voltage: 12V DC (11V-15V)
Current Consumption: Less than10 A
Signal System: Compositive video 1.0Vp-p 75
Discs Played:
(1)DIGITAL-VIDEO Disc
5"( 12 cm) single-sided, single-layer
5"(12 cm) single-sided, double-layer
(2)Compact Disc (CD-DA, VIDEO CD)
5"(12cm) disc
BLUETOOTH:
Bluetooth specification: V1.2 Class 2
Bluetooth profile supported: Headset, Handsfree and A2DP & AVRCP profiles
Range of frequency: 2.4GHz Spectrum
Page 40
-38-
Before going through the check list, check wiring connection. If any of the problems
persist after check list has been made, consult your nearest service dealer.
Troubleshooting
Inserting the disc in reverse
direction
Press the RESET button.
Front panel is not properly fixed
into its place
The car ignition switch is
not on
If the power supply is properly
connected to the car accessory
terminal,switch the ignition key
to "ACC"
The fuse is blown
Replace the fuse
Presence of disc inside the
player.
Remove the
disc in the player,
then put a new one
Insert the compact disc with
the label facing upward
The disc is extremely dirty
or defective
Clean the disc or try to play a
new one
Temperature inside the car
is too high
Cool off or until the ambient
temperature return to normal
The built-in microcomputer
is
not operating properly
due to noise
The antenna cable is not
connected
Insert the antenna cable firmly
The signals are too weak
Select a station manually
SYMPTOM CAUSE SOLUTION
Video/image
appears
black-white
The color system is
set incorrectly
Please switch to correct color
system from menu
No video/image
appears
The unit is not connected
to the parking brake
detection switch
Make proper connection
according to wire connection
“”
The parking brake is not
engaged
For safety reasons no video/
images are displayed while the
vehicle is moving.
Engaging the parking brake will
cause images to be displayed.
The operation keys
do not work
The radio does not
work
Disc can not be
loaded or ejected
No power
No color in picture
The disc format is not
according to the TV-set
used (PAL/NTSC)
Please choose a proper color
system.
JPEG disc can
not be played
back
No JPEG files are recorded
on the disc.
JPEG files are not recorded
in a compliant formant
Change the disc Record JPEG
files using a compliant
application
Change the disc
Made in China 88-J8305-06
Loading...
