PRECAUTIONS
Use cautions
Be sure to lower the volume before switching off the unit or the ignition key.
Some MP3/WMA files may not be playable.
INSTALLATION
Installation Procedures
Installation Opening
First complete the electrical connections and then check for correctness.
This unit can be installed in any dashboard
Having an opening as shown above .
Insert mounting collar into the dashboard and bend
the mounting tabs out with a screwdriver.
Make sure that lock lever is flush with the mounting
collar( not projecting outward).
Secure the rear of the unit.
After fixing mounting bolt and power connector, fix the rear of the
unit to the car body by bubber cushion.
2.05 inch
7.20 inch
MOUNTING SLEEVE
INSTALLATION(CONT.)
- Only use speakers with 4 ohms impedance.
- Do not attach the control panel to the chassis before wiring is complete.
- The maximum current of the auto antenna is 200mA.
Wiring Connections
!
Uninstall the Main Unit
1. Remove the metal strap from the main unit.
2. Remove the plastic trim out from the main unit.
3. Insert a bracket key into the left and right side of the main unit and draw the unit out of
the mounting sleeve.
WIRING
DIAGRAM
CAUTION
+12V DC
NEGATIVE
GROUND
5
White:Front Left PRE-AMP Output
White: Rear Left PRE-AMP Output
Red: Front Right PRE-AMP Output
Red: Rear Right PRE-AMP Output
Radio Antenna
15A
Purple +
Rear Left Speaker
Front Left Speaker
White +
Green +
Green/Black -
White/Black -Gray/Black -
Gray +
Front Right Speaker
Purple/Black -
Rear Right Speaker
ACC + (Red)
GND - (Black)
ANT + (Blue)
Power B + (Yellow)
CONTROL PANEL BUTTON LOCATIONS
OPERATION
REMOVE PANEL
SD card inside the unit).
1.POWER
2.MODE
3-8.
flash drive or SD Card, their respective logos will illuminate on the display.
Press the power ( ) button to turn the unit on or off.
Press the MODE button to switch between RADIO, USB, CARD, AUX IN modes. (if there are USB and
radio and Aux in. When the user insert a USB
RESET
OPERATION
9. CLK
10. SD CARD SLOT
Press the CLK button once to display the real time, With time appearing on the display.Press and hold
CLK button for more than 2 seconds until the hour flashes. You can adjust the HOUR by pressing the
button and button. Then press the CLK button briefly, the minute will flash, you can adjust the
MINUTE by pressing the button and button.
Finally press the CLK button to confirm the time adjustments.
12.FF( ) &13.FB( )
In the radio mode:
Long press the or button for more than 2 seconds, the unit will switch to manual tuning
mode, briefly press the or button to search the next or previous frequency step by step.
Short press the or button, the automatic search will start, it will search upward or downward
for the strong signal radio station within the cuttent band. The auto searching will stop until find a
station.
T
At the radio status,press and hold the VOL button to enter switch state of the US(USA) and EU
(EUROPE) frequency,then rotate the VOL knob to select US frequency or EU frequency,after
selecting US or EU frequency,the system will switch to the selected frequency 3 seconds later.
In the radio mode, rotate the volume knob to increase or decrese the volume level of the sound
detach
detach

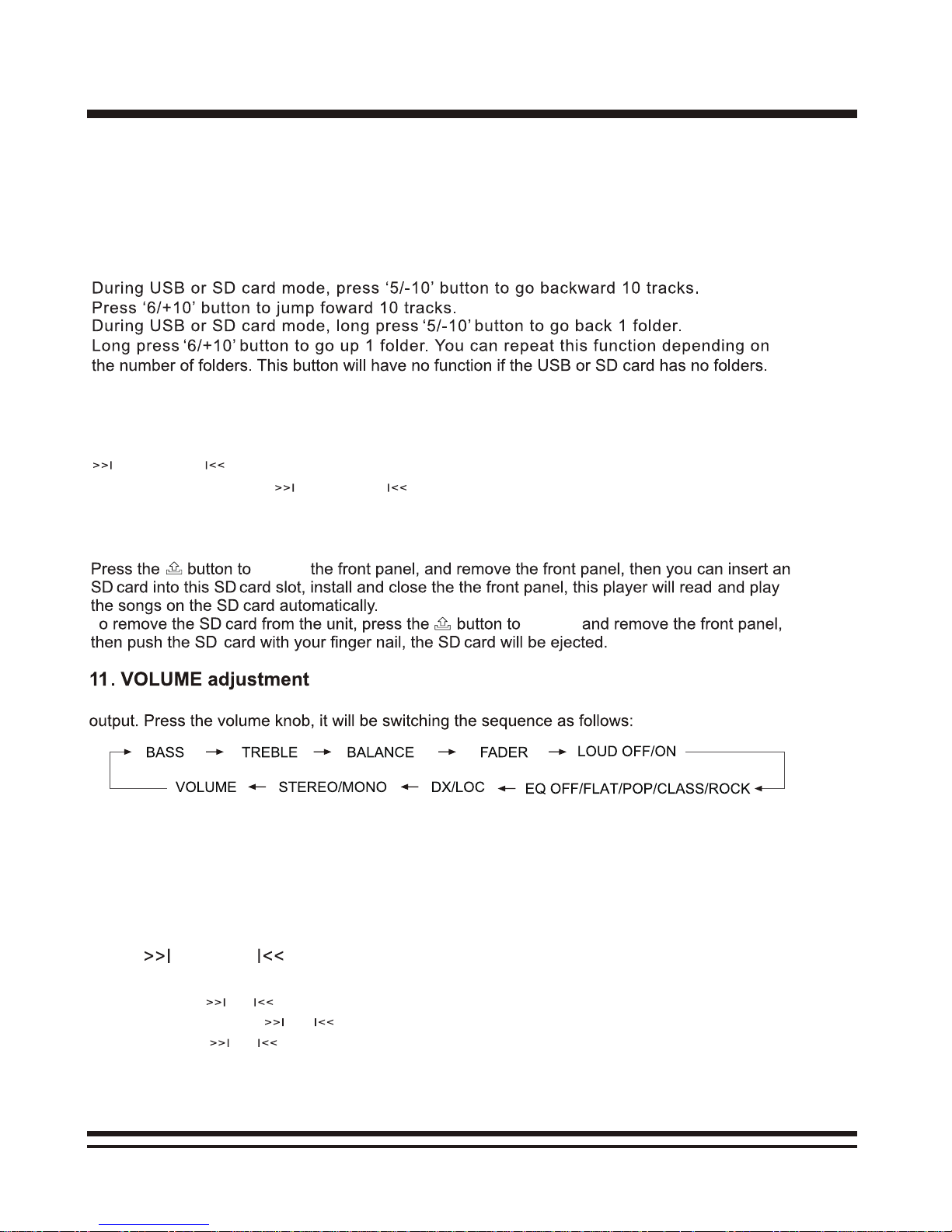

During USB or SD card mode, press the ‘1/>||’ button to pause or resume music playback.
Press the ‘2/INT’ button to play the first 10 seconds of each track, press again to stop the introduction
scan, and play the current track.
Press the ‘3/RPT’ button to repeat the current track, press again to stop repeat plaback and resume
normal playback.
Press the ‘4/RDM’ button to play all tracks in random order, press again to cancel random playback.
VOLRotate the knob on the front panel or press the button on the remote contol to
to adjust the selected item.
VOL+/-
OPERATION
20.
16. MUTE
17. EQ
18. USB PORT
19. AUX IN JACK
21. RESET
To reset all parameters to factory default values. Press the button to detach the control panel form
the head unit and remove the control panel,then use a subject with a sharp point end to thrush the RESET
hole.
flash on the LCD
o
detach
14.BAND
15.AMS
In radio mode,short press the BAND button repeatedly to select the one of the radio band : FM 1,
FM 2,FM 3, AM1,AM2 in a cycle sequence. When you select a band, the word F1、F2、F3 for FM band,
and A1, A2 for AM band will be shown on the LCD display.
control to scan each preset station in each band.
AMS button on the remote
Press the AMS
Press the EQ button to choose a desired preset equlizer mode: OFF, FLAT, POP, CLASS, ROCK.
check
During USB or SD playback, short press the AMS button to enter track search mode, then rotate
the VOL knob to select the number of your favorite track with high speed, then press the SEL button to
confirm and play the selected track. If no any operation in 5 seconds,it will play the current track.
When the 6 strongest stations will be stored into
In the USB or SD card mode:
Briefly press the or button to play the the next or previou track.
Press and hold the or button to fast forward or fast backward.
TROUBLESHOOTING
Connect the battery cable to the terminal that is always live.
.
A lot of static in
broadcast
SPECIFICATIONS
General
Power supply Requirement : DC 12V
Maximum power output : 50W X 4CH
Speaker impedance : 4 - 8 Ohm
Unit Dimensions(WxHxD) : 7.0 X 2.0 X 3.8 inch
Weight : 1.54 Lb (0.7 kg)
Fuse : 5 A
FM
Frequency Range USA / EUROPE: 87.5 MHz - 107.9 MHz / 87.5 MHz - 108.0MHz
Channel step: 200 KHz / 50 KHz
AM
Frequency Range USA / EUROPE: 530 KHz - 1710 KHz / 522-1620 KHz
Channel step: 10 KHz / 9 KHz
USB/Card
RADIO
Usable Audio Formats
.........................................................................................
MP3/WMA
Pre-amp Output
..................................................................................................
Front and Rear
Frequency Response
.........................................................................................
20 Hz - 20 KHz
S/N Ratio
............................................................................................................................
60dB
