CONTENTS
U S E R ’ S M A N U A L
2 Introduction
2 Features
3 What is included?
3 General precautions
3 Installation precautions
3 Mounting the amplifier
4 Connecting the amplifier
5 Important system considerations
5 Tips for a safe system
6 Low level input wiring
6 Speaker wiring
7 Power connections
Normal and with Stiffening Capacitor
9 Bridging two F2600D or
F3600D Amplifiers
11 Bridging two F5000D
Amplifiers
13 Troubleshooting
14 Specifications
Congratulations on your
purchase of a Sound Storm
Laboratories FORCE Amplifier.
It has been designed, engineered
and manufactured to bring you
the highest level of performance
and quality, and will afford you
years of listening pleasure.
Thank you for making Sound
Storm Laboratories your choice
for car audio entertainment!
page
F2600D
F3600D
F5000D
CLASS D MonoBlock
Car Audio Amplifiers
F2600D • F3600D • F5000D Amplifier User’s Manual - page 1
F2600D • F3600D • F5000D Amplifier User’s Manual - page 2
Introduction
With the Sound Storm Laboratories
FORCE F2600D, F3600D and F5000D
models, we are introducing three new
CLASS D amplifiers, all designed in
the USA.
These FORCE models feature variable
low pass and subsonic filters and a
variable input gain control. All three
models also incorporate a phase
selector switch to help compensate
for time delays in subwoofer
applications.
For further flexibility in the use of a
subwoofer, a variable 0-+18dB Bass
Boost control has been included.You
can control the subwoofer level with
the remote level control module.
Sound Storm Laboratories
understands that amplifiers are placed
in many different kinds of installations,
so we have also included an input
sensitivity control to help you integrate
the amp into your system regardless
of the nature of your input source.
A special feature on this Class D amp
is DataLink circuitry, which allows you
to “strap” together two F2600D’s, two
F3600D’s or two F5000D models for
an astounding total maximum output
power of 5200, 7200 or 10000 watts,
respectively.
Features
Your new FORCE amplifier features
the following:
• Class D operation
• MOSFET PWM (Pulse Width
Modulated) Power Supply
• One Ohm stable mono operation
• Thermal, overload and speaker
short protection
• Soft turn-on circuit
• Remote turn-on/turn-off circuit
• Variable input gain control
• Input voltage sensitivity selector
• Variable subsonic filter: 15-40 Hz,
24/dB/octave
• Variable low pass filter: 50-150 Hz,
24/dB/octave
• Variable 0-+18dB Bass Boost
• 0/180º Phase Shift selector
• Nickel-plated RCA low level inputs
• Nickel-plated speaker and power
terminals
• LED power and protection
indicators
• Black anodized heatsink
• Remote subwoofer level control
F2600D • F3600D • F5000D Amplifier User’s Manual - page 3
Installation precautions
Before you drill or cut any holes,
investigate your car's layout very
carefully. Take special care when you
work near the gas tank, fuel lines,
hydraulic lines and electrical wiring.
Never operate the amplifier when it is
unmounted. Attach all audio system
components securely to prevent
damage, especially in an accident.
Before making or breaking power
connections in your system, disconnect
the vehicle battery. Confirm that your
head unit or other equipment is turned
off while connecting the input jacks and
speaker terminals.
If you need to replace the power fuse,
replace it only with a fuse identical to
that supplied with the amplifier. Using
a fuse of a different type or rating may
result in damage to your audio system
or your amplifier which is not covered
by the manufacturer's warranty.
Mounting the amplifier
1. Find a suitable location in the vehicle
in which to mount the amplifier.
2. Make sure there is sufficient air
circulation around the intended
mounting location.
General precautions
Before installing and using your new
Sound Storm Laboratories amplifier,
please become familiar with all the
information contained in this manual.
Please keep this manual in a safe
place for future reference.
• Do not open or attempt to repair this
unit yourself. Dangerous high voltages
are present which may result in electric
shock. Refer any repairs to a qualified
service technician.
• To avoid risk of electronic shock or
damage to the amplifier, do not permit
any of this equipment to become damp
or wet from water or drinks. If this does
occur, immediately unplug the power
wires and send the amplifier to your
local dealer or service center as soon
as possible.
• If there is smoke or any peculiar odor
present during use or if there is damage
to any of the component enclosures,
immediately unplug the power cord
and send the amplifier to your local
dealer or service center as soon as
possible .
What is included?
When first unpacking your new
amplifier, please check first that the
package contains all of the items
below. If something is missing, contact
the store where you purchased the
player.
• Class D amplifier
• Remote subwoofer level control
• Remote subwoofer control cable
• DataLink cable (for strapping two
identical Force Class D amps
together)
• Four (4) mounting screws
F2600D • F3600D • F5000D Amplifier User’s Manual - page 4
3. Mark the location for the mounting
hole screws by positioning the amplifier
where you wish to install it. Use a scribe
or mounting screw, inserted through
each of the amp's mounting holes, to
mark the mounting surface. If the
mounting surface is carpeted, measure
the hole centers and mark with a felt
tip pen.
4. Drill pilot holes in the mounting
surface for the mounting screws. Place
the amplifier in position, and attach
the amplifier to the mounting surface
securely using screws.
Before doing any wiring, look through
this manual and identify the diagrams
to follow for power, input and speaker
connections for your particular
installation. Be sure you understand
all the connections before you proceed.

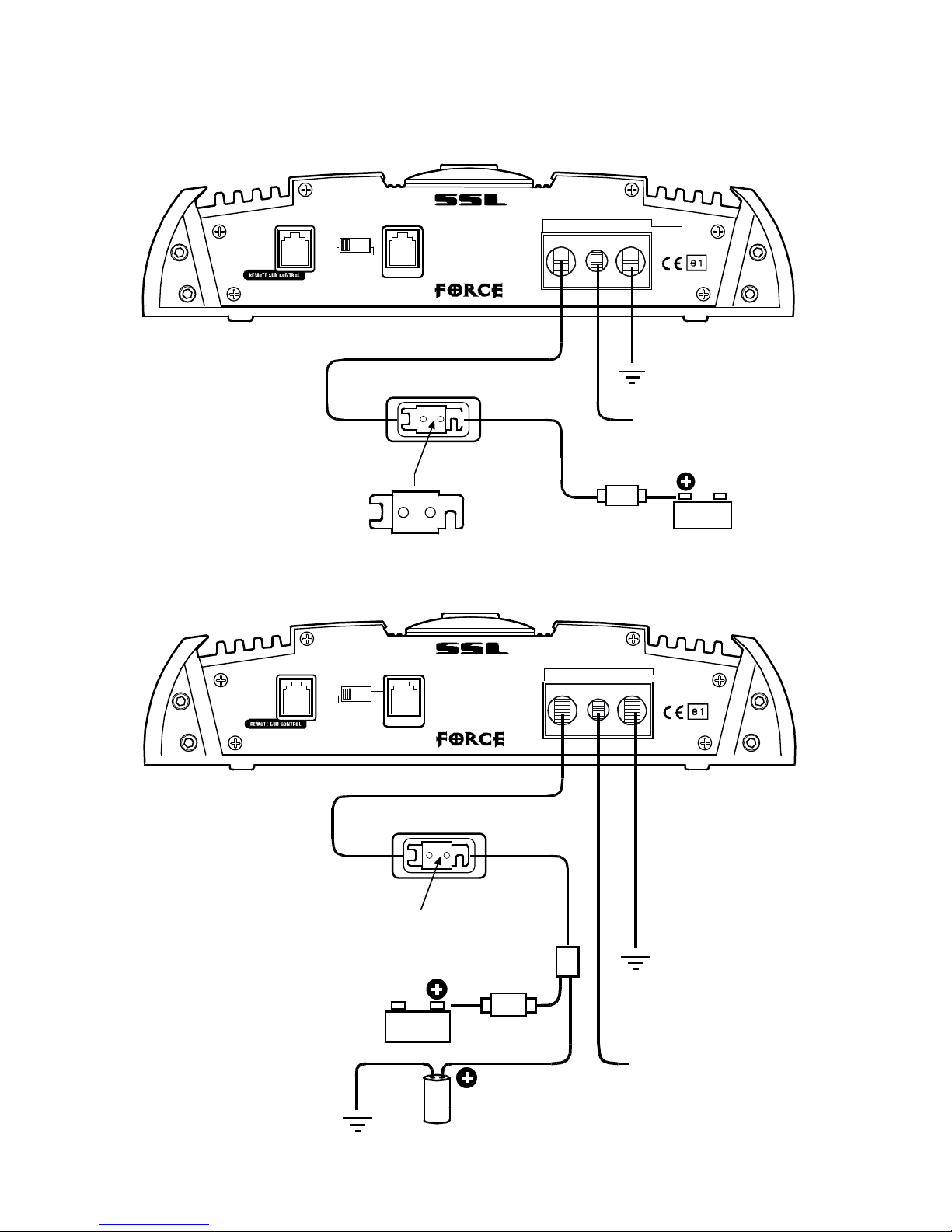

1. Connect the amplifier’s power
ground terminal to the closest point
on the chassis of the car. Keep this
ground wire to less than 39" (100 cm)
in length. Use 4 gauge (or heavier)
wire.
2. Connect the remote terminal to the
remote output of the head unit using
16 gauge (or heavier) wire.
3. Connect an empty fuse holder within
18" (45 cm) of the car battery, and run
4 gauge (or heavier) cable from this
fuse to the amplifier location.
The purpose of placing a fuse in this
location is to protect your vehicle’s
battery in the event that this wire
accidentally touches the chassis
ground on its run to the amplifier.
Connecting the amplifier
4. Check that the fuse holder is empty.
Then connect the fuse holder to the
"BATT+" connection on the amplifier.
5. If multiple amplifiers are being used
in your system, either:
• Run a separate pair of cables from
the battery and a chassis ground point
to each amplifier. Each (+) cable must
have its own inline fuse.
-or-
• Run a #4 cable from the fuse holder
at the battery to a distribution block
at or near the amplifier's location. Then
run separate cables from the amplifier
to this distribution block and to
independent chassis ground points.

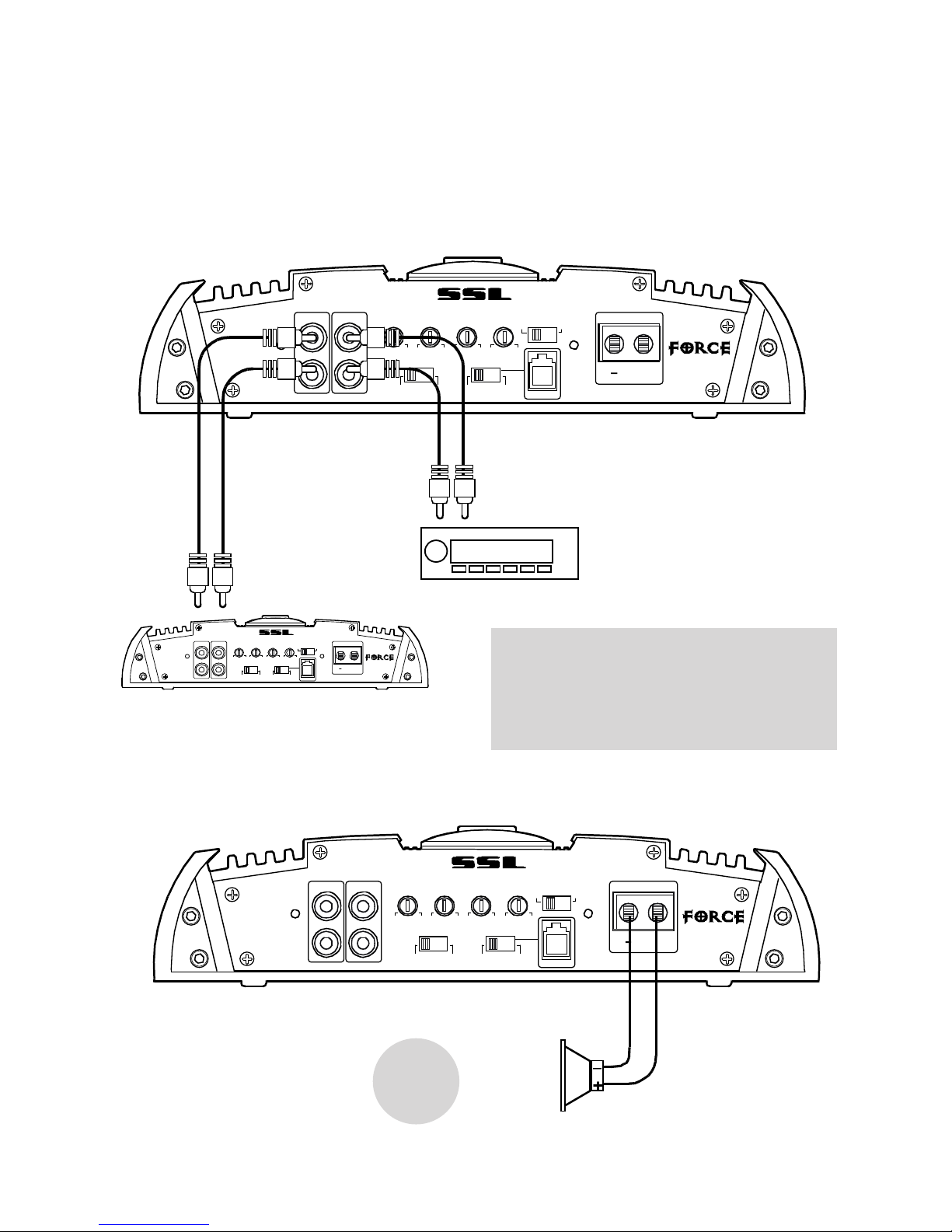

6. Connect all line inputs and outputs
(if used) using high-quality cables.
Connect all speakers, following the
diagrams in this manual. Be sure to
observe proper polarity to avoid audio
phase problems.
7. Insert fuse(s) into the battery fuse
holder(s).
8. Recheck all connections before
powering up the amplifier.
9. Set all level controls to minimum
position, and set all crossover
controls/switches to the desired
frequency points.
10. Power up the head unit and the
amplifier. Then set the volume control
on the head unit to about 3/4 volume,
and adjust the amplifier’s input level
control(s) to just below the level of
distortion.
11. Further fine tuning of the various
controls may be necessary to obtain
best results.
F2600D • F3600D • F5000D Amplifier User’s Manual - page 5
Important installation
considerations for using
this amplifier.
SHOCK HAZARD! Do not open the case
of this product. There are dangerous
voltages present within the unit. There are
no user-serviceable parts within the unit.
The fuse rating for the amp is 50A
(using two 25A fuses) for the F2600D
and 90A (using three 30A fuses) for
the F3600D. The F5000D’s fuse rating
is 175A (using a single inline ANL type
fuse – fuse and holder are included).
Although sufficient for normal working
conditions, overloading the amp may
result in blown fuses. Please try to
avoid overloading the amp in this
manner.
Your Force Class D amplifier
is designed to run with a minimum load of 1 Ohm.
Operating the F2600D, F3600D
or F5000D with a speaker impedance load below 1 Ohm
may result in poor sound quality and damage to the amplifier
circuitry. Such damage is not
covered under the warranty
for this product.
When making electrical connections
to the amplifier, please observe the
following:
• Always use 4GA or heavier wire for
power and ground connections.
• Wire the amplifier directly to the car
battery. Make sure there is circuit
protection (such as a fuse) on the
positive power lead within 18” of the
battery.
• When making a ground connection,
always use the shortest possible wire
to a good chassis ground point.
• Wire the remote turn-on connection
to the remote turn-on lead of your EQ
or head unit. In some cases, this may
be the power antenna lead of the head
unit.
• Fuses protect BOTH the amplifier
and the electrical system of your
vehicle from faulty conditions. If you
must replace a fuse on the amplifier,
you must use a fuse of exactly the
same type and rating. A different type
of fuse or rating may result in damage
or cause a fire.
Tips for making your system
as save as possible
Do not mistake the input level control
for a volume control! It is designed
ONLY to match the output level of
your audio source to the input level
of your amplifier.
Do not adjust this input level to
maximum unless your input level
requires it.
Ignoring these instructions will result
in an input overload to the amplifier,
and excessive audio distortion. It
can also cause the protection circuit
to engage.
Don't misuse the
level control!
PROTECTION
POWER
C L A S S D M O N O B L O C K P O W E R A M P L I F I E R
150Hz40Hz
SUBSONIC
FILTER
MAXMIN
INPUT
LEVEL
+18dB0
BASS
BOOST
150Hz50Hz
LOW PASS
FILTER
SLAVE
AMPLIF IER MODE
MASTER2V-8V
INPUT S ENSITIVITY
100mV-2V
0
PHASE
SHIFT
180º
DATALINK
SPEAKER CONNECTIONS
+
MINIMUM IMPEDANCE 2 OHMS
LINE O UT INPUTS
RR
LL
PROTECTION
POWER
CL A S S D M O N O B L O C K P O W E R A M P L I F I E R
150Hz40Hz
SUBSONIC
FILTER
MAXMIN
INPUT
LEVEL
+18dB0
BASS
BOOST
150Hz50Hz
LOW PASS
FILTER
SLAVE
AMPLIFIER MODE
MASTER2V-8V
INPUT SENSITIVIT Y
100mV-2V
0
PHASE
SHIFT
180º
DATALINK
SPEAKER CONNECT IONS
+
MINIMUM IMPEDANCE 2 OHMS
LINE OUT INPUTS
RR
LL
PROTECTION
POWER
C L A S S D M O N O B L O C K P O W E R A M P L I F I E R
150Hz40Hz
SUBSONIC
FILTER
MAXMIN
INPUT
LEVEL
+18dB0
BASS
BOOST
150Hz5 0Hz
LOW PASS
FILTER
SLAVE
AMPLIF IER MODE
MASTER2V-8V
INPUT S ENSITIVITY
100mV-2V
0
PHASE
SHIFT
180º
DATALINK
SPEAKER CONNECTIONS
+
MINIMUM IMPEDANCE 2 OHMS
LINE O UT INPUTS
RR
LL
F2600D • F3600D * F5000D Amplifier User’s Manual - page 6
Low Level Input Wiring
Low-level (RCA) input wiring is preferred for best audio performance. Always use
a high-quality RCA cable for best audio performance.
Power Connections
Without Stiffening Capacitor
With Stiffening
Capacitor
Speaker Connections
PLEASE NOTE:
Front panel of F5000D varies from model
shown in diagram. However, input and
speaker connections are identical to those
shown on this page.
SPEAKER
IMPEDANCE
1-8 OHMS
To Audio Outputs of head unit
or Subwoofer outputs of a signal
processor
To Audio Inputs of
satellite amplifier
(if present)
SUBWOOFER
Speaker
FUSE S
POWER
CONNEC TIONS
GNDREMBATT +
C L A S S D M O N O B L O C K P O W E R A M P L I F I E R
FUSE S
POWER
CONNEC TIONS
GNDREMBATT +
C L A S S D M O N O B L O C K P O W E R A M P L I F I E R
F2600D • F3600D • F5000D Amplifier User’s Manual - page 7
Power Connections
Without Stiffening Capacitor
With Stiffening
Capacitor
F2600D and F3600D
to REMOTE TURN-ON
terminal of head unit
Chassis
ground
point
Battery
FUSE
Remote
Subwoofer Level Control
to REMOTE TURN-ON
terminal of head unit
Chassis
ground
point
Battery
FUSE
Distribution
Block
Chassis
ground
point
Stiffening
Capacitor
Remote
Subwoofer Level Control
F5000D Amplifier User’s Manual - page 8
Power Connections
F5000D
Without Stiffening Capacitor
With Stiffening
Capacitor
POWER
CONNECTI ONS
GNDREMBATT+
C L A S S D M O N O B L O C K P O W E R A M P L I F I E R
SLAVE
AMPLIFIER
MODE
MASTER
DATALINK
POWER
CONNECTI ONS
GNDREMBATT+
C L A S S D M O N O B L O C K P O W E R A M P L I F I E R
SLAVE
AMPLIFIER
MODE
MASTER
DATALINK
to REMOTE TURN-ON
terminal of head unit
Chassis ground point
to REMOTE TURN-ON
terminal of head unit
Battery
FUSE
Distribution
Block
Chassis
ground point
Stiffening
Capacitor
Chassis
ground
point
175A
ANL FUSE
(PROVIDED)
ANL FUSE HOLDER (PROVIDED)
175A ANL FUSE
(PROVIDED)
Battery
FUSE
PROTECTION
POWER
C L A S S D M O N O B L O C K P O W E R A M P L I F I E R
150Hz40Hz
SUBSONIC
FILTER
MAXMIN
INPUT
LEVEL
+18dB0
BASS
BOOST
150Hz5 0Hz
LOW PASS
FILTER
SLAVE
AMPLIF IER MODE
MASTER2V-8V
INPUT S ENSITIVITY
100mV-2V
0
PHASE
SHIFT
180º
DATALINK
SPEAKER CONNECTIONS
+
MINIMUM IMPEDANCE 2 OHMS
LINE O UT INPUTS
RR
LL
SLAVEMASTER
PROTECTION
POWER
C L A S S D M O N O B L O C K P O W E R A M P L I F I E R
150Hz40Hz
SUBSONIC
FILTER
MAXMIN
INPUT
LEVEL
+18dB0
BASS
BOOST
150Hz5 0Hz
LOW PASS
FILTER
SLAVE
AMPLIF IER MODE
MASTER2V-8V
INPUT S ENSITIVITY
100mV-2V
0
PHASE
SHIFT
180º
DATALINK
SPEAKER CONNECTIONS
+
MINIMUM IMPEDANCE 2 OHMS
LINE O UT INPUTS
RR
LL
F2600D • F3600D • F5000D Amplifier User’s Manual - page 9
F2600D • F3600D • F5000D Amplifier User’s Manual - page 10
Bridging Two F2600D or F3600D amplifiers
SUBWOOFER
Speaker
MASTER
AMPLIFIER
SLAVE
AMPLIFIER
Bridging Two F2600D or F3600D amplifiers
SLAVE
AMPLIFIER
INPUT, SPEAKER AND DATALINK CONNECTIONS
(SEE NEXT PAGE FOR POWER CONNECTIONS)
POWER CONNECTIONS
(SEE PREVIOUS PAGE FOR INPUT, SPEAKER AND DATALINK CONNECTIONS)
MASTER
AMPLIFIER
SPEAKER
IMPEDANCE
2-8 OHMS
BRIDGED MODE
SWITCH IN SLAVE
POSITION
To Audio Outputs of head unit
or Subwoofer outputs of a
signal processor
+
–
AMPLIFIE R MODE
SLAVEMASTER
BRIDGED MODE
SWITCH IN MASTER
POSITION
PLEASE NOTE:
In this MASTER AMP/SLAVE AMP configuration, the Slave amp
receives its audio signal from the Master Amp. Therefore, DO NOT
USE THE INPUTS ON THE SLAVE AMP!)
MAXMIN
INPUT
LEVEL
INPUT S ENSITIVITY
R
L
AMPLIFIE R MODE
SLAVEMASTER
FUSE S
POWER
CONNEC TIONS
GNDREMBATT +
C L A S S D M O N O B L O C K P O W E R A M P L I F I E R
FUSE S
POWER
CONNEC TIONS
GNDREMBATT +
C L A S S D M O N O B L O C K P O W E R A M P L I F I E R
F2600D • F3600D • F5000D Amplifier User’s Manual - page 10
Bridging Two F2600D or F3600D amplifiers
to REMOTE TURN-ON
terminal of head unit
SLAVE
AMPLIFIER
POWER CONNECTIONS
(SEE PREVIOUS PAGE FOR INPUT, SPEAKER AND DATALINK CONNECTIONS)
MASTER
AMPLIFIER
Chassis
ground
point
Battery
FUSE
Distribution
Block
Chassis
ground
point
Stiffening
Capacitor
Chassis
ground
point
Remote
Subwoofer Level Control
PLEASE NOTE:

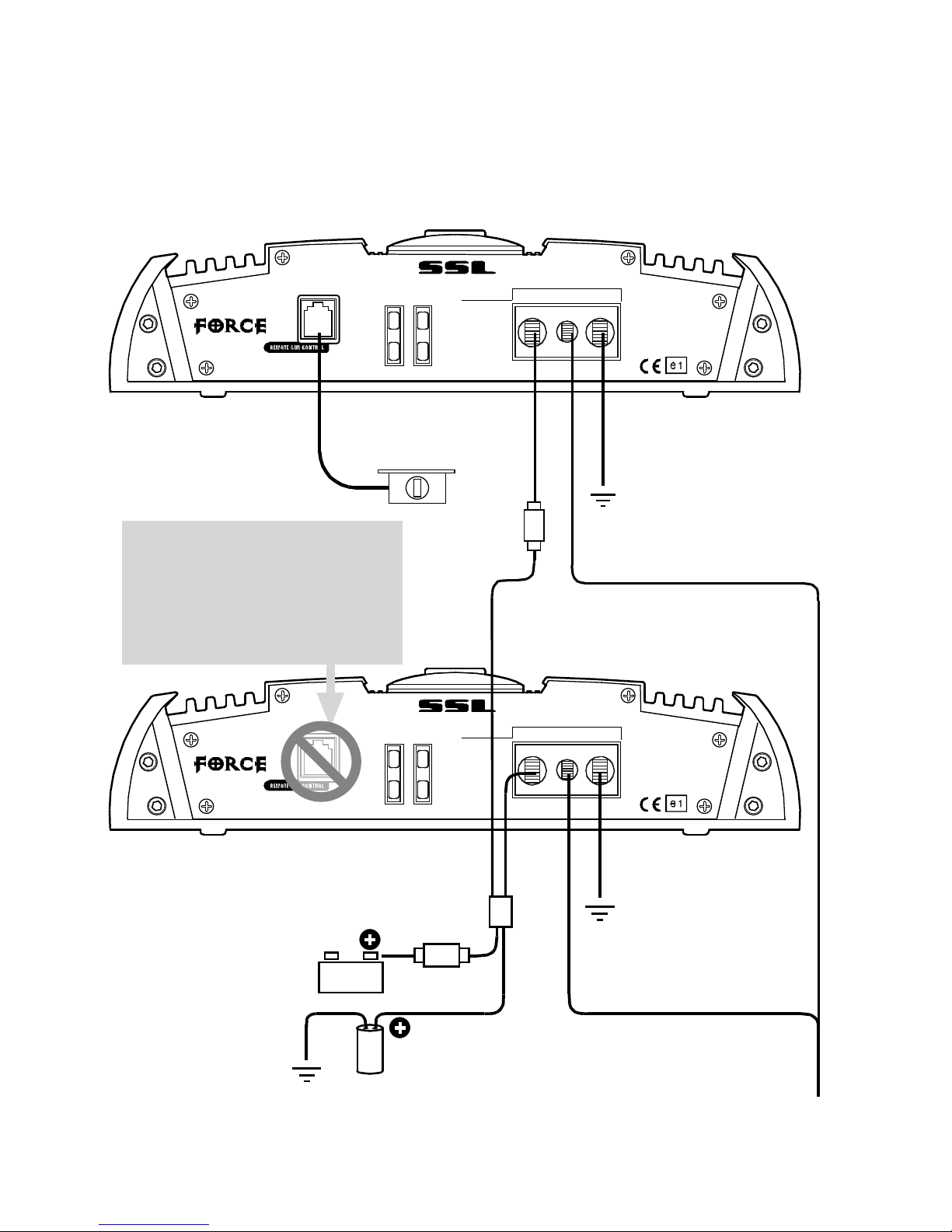

In this MASTER AMP/SLAVE AMP
configuration, the Slave amp receives its
audio signal from the Master Amp. Therefore,
DO NOT USE THE REMOTE
SUBWOOFER LEVEL CONTROL ON
THE SLAVE AMP!)
F2600D • F3600D • F5000D Amplifier User’s Manual - page 11 F2600D • F3600D • F5000D Amplifier User’s Manual - page 12
Bridging Two F5000D amplifiers
SUBWOOFER
Speaker
MASTER
AMPLIFIER
SLAVE
AMPLIFIER
INPUT, SPEAKER AND DATALINK CONNECTIONS
(SEE NEXT PAGE FOR POWER CONNECTIONS)
SPEAKER
IMPEDANCE
2-8 OHMS
PROTECT ION
POWER
C L A S S D M O N O B L O C K P O W E R A M P L I F I E R
150Hz40Hz
SUBSONIC
FILTER
MAXMIN
INPUT
LEVEL
+18dB0
BASS
BOOST
150Hz50Hz
LOW PAS S
FILTER
2V-8V
INPUT
SENSITIVITY
100mV-2V 0
PHASE
SHIFT
180º
MINIMU M
IMPEDANCE
2 OHMS
LINE O UT INPUTS
R
L
SPEAKER CO NNECTIONS
+
PROTECT ION
POWER
C L A S S D M O N O B L O C K P O W E R A M P L I F I E R
150Hz40Hz
SUBSONIC
FILTER
MAXMIN
INPUT
LEVEL
+18dB0
BASS
BOOST
150Hz50Hz
LOW PAS S
FILTER
2V-8V
INPUT
SENSITIVITY
100mV-2V 0
PHASE
SHIFT
180º
MINIMU M
IMPEDANCE
2 OHMS
LINE O UT INPUTS
R
L
SPEAKER CO NNECTIONS
+
To Audio Outputs of head unit
or Subwoofer outputs of a
signal processor
+
–
PLEASE NOTE:
In this MASTER AMP/SLAVE AMP configuration, the Slave amp
receives its audio signal from the Master Amp. Therefore, DO NOT
USE THE INPUTS ON THE SLAVE AMP!)
INPUT
SENSITIVITY
100mV-2V
R
L
POWER
CONNECTI ONS
GNDREMBATT+
C L A S S D M O N O B L O C K P O W E R A M P L I F I E R
SLAVE
AMPLIFIER
MODE
MASTER
DATALINK
POWER
CONNECTI ONS
GNDREMBATT+
C L A S S D M O N O B L O C K P O W E R A M P L I F I E R
SLAVE
AMPLIFIER
MODE
MASTER
DATALINK
Bridging Two F5000D amplifiers
to REMOTE TURN-ON
terminal of head unit
SLAVE
AMPLIFIER
POWER CONNECTIONS
(SEE PREVIOUS PAGE FOR INPUT, SPEAKER AND DATALINK CONNECTIONS)
MASTER
AMPLIFIER
Chassis
ground
point
Battery
FUSE
Distribution
Block
Chassis
ground
point
Stiffening
Capacitor
AMPLIFIE R MODE
SLAVE MASTER
BRIDGED MODE
SWITCH IN MASTER
POSITION
BRIDGED MODE
SWITCH IN SLAVE
POSITION
AMPLIFIE R MODE
SLAVE MASTER
Chassis
ground
point
Remote
Subwoofer Level Control
PLEASE NOTE:
In this MASTER AMP/SLAVE AMP
configuration, the Slave amp receives its
audio signal from the Master Amp. Therefore,
DO NOT USE THE REMOTE
SUBWOOFER LEVEL CONTROL ON
THE SLAVE AMP!)
175A ANL FUSE
(PROVIDED)
Troubleshooting
F2600D • F3600D * F5000D Amplifier User’s Manual - page 13
If you experience operation or performance problems with this product, compare your
installation with the electrical wiring diagram on the previous pages. If problems persist,
read the following troubleshooting tips which may help eliminate the problems.
Amplifier will not
power up.
Check to make sure you have a good ground connection.
Check that the Remote Input (Turn-On) has at least 3VDC.
Check that there is battery power on the (+) terminal.
Check that there is at least 12v.
Check all fuses, replace if necessary.
Make sure that the Protection LED is not illuminated. If it is lit, shut off
the amplifier briefly, and then repower it.
Protection LED
comes on when
amplifier is
powered up.
Check for short circuits on speaker leads.
Turn down the volume control on the head unit to prevent overdriving.
Remove speaker leads, and reset the amplifier. If the Protection LED still
comes on, then the amplifier is faulty and needs servicing.
No output.
Check that all fuses are OK.
Check that amplifier is properly grounded.
Check that the Remote Input (Turn-On) has at least 3VDC.
Check that the RCA audio cables are plugged into the proper inputs.
Check all speaker wiring.
Low output.
Reset the Level Control.
Check the Crossover Control settings.
Audio present in
only one channel.
Check the RCA interconnect cables.
Check all speaker wiring.
High hiss in the
speakers.
Disconnect all RCA inputs to the amplifiers. If the hiss disappears, then
plug in the component driving the amplifier and unplug its inputs. If the
hiss disappears at this point, go on until the faulty/noisy component is
found.
It is best to set the amplifier's input level control as low as possible. The
best subjective signal-to-noise ratio is achieved in this manner. Try to set
the head unit as high as possible (without distortion) and the amp input
level as low as possible.
Squealing noise
from speakers.
Check for improperly grounded RCA interconnects.
Distorted sound.
Check that the Input Level Control is set to match the signal level of the
head unit. Always try to set the Input Level as low as possible.
Check that all crossover frequencies are properly set.
Check for short circuits on the speaker leads.
Amplifier gets
very hot.
Check that the minimum speaker impedance for the amp model is correct.
Check that there is good air circulation around the amp. In some
applications, it may be necessary to add and external cooling fan.
Engine noise
(static type)
This is usually caused by poor quality RCA cables,which can pick up
radiated noise. Use only the best quality cables, and route them away
from power cables.
Engine noise
(alternator
whine)
Check that speaker leads are not shorted to the vehicle chassis.
Check that the RCA grounds are not shorted to the vehicle chassis.
Check that the head unit is properly grounded.
SYMPTOM POSSIBLE REMEDY
Specifications
F2600D • F3600D • F5000D Amplifier User’s Manual - page 14
1200W x 1
1800W x 1
2200W x 1
3600W x 1
1 Ohm Mono
10k Ohm
Selectable 100mV-2V or 2V-8V
10Hz-200Hz
100dB
50Hz-150Hz
15Hz-40Hz
Variable 0 -+18dB
Selectable 0/180º
30A x 3
11-1/2"
1400W x 1
2200W x 1
3400W x 1
5000W x 1
1 Ohm Mono
10k Ohm
Selectable 100mV-2V or 2V-8V
10Hz-200Hz
100dB
50Hz-150Hz
15Hz-40Hz
Variable 0 -+18dB
Selectable 0/180º
175A x 1
19-1/2"
All specifications subject to
change without notice.
RMS POWER
into 4 Ohms
RMS POWER
into 2 Ohms
MAX POWER
into 2 Ohms
MAX POWER
into 1 Ohm
Min. speaker
impedance
Input
impedance
Input
sensitivity
Frequency response
Signal-to-noise ratio
Crossover/filter range
low pass
subsonic
Bass Boost
Phase Shift
Fuse rating
Dimensions:
(10" x 2
-7/16
" x ...)
750W x 1
1200W x 1
1800W x 1
2600W x 1
1 Ohm Mono
10k Ohm
Selectable 100mV-2V or 2V-8V
10Hz-200Hz
103dB
50Hz-150Hz
15Hz-40Hz
Variable 0 -+18dB
Selectable 0/180º
25A x 2
11-1/8"
F2600DMODEL
CLASS D Mono Block Car Au dio Amplifiers
F3600D F5000D
Notes
Notes
Loading...
