12” (305mm) Subwoofer
(750 Watts RMS Sealed Enclosure)
Wiring
Please take every precaution to wire your DVC woofers
for the correct impedance
12” (305mm) SILVER METALLIC POLY INJECTION CONE
BUTYL RUBBER SURROUND
DUAL 2” (51mm) HIGH TEMPERATURE KAPTON
VOICE COIL
1500 WATTS PEAK/750 WATTS RMS
FREQUENCY RESPONSE: 25 Hz-2 KHz
SENSITIVITY: 95dB (1 WATT/1 METER)
IMPEDANCE: DUAL 4 OHMS
MOUNTING DEPTH: 5-3/4” (146mm)
MOUNTING DIAMETER: 10-15/16” (278mm)
+
+
-
+
-
+
-
2 ohms
8 ohms
Page 3
Box Volume : 2.0 Cu Ft
Port Frequency : 41 Hz
Port Diameter : 4 lnches
Port Length : 4 lnches
Box is given as internal air volume including driver displacement

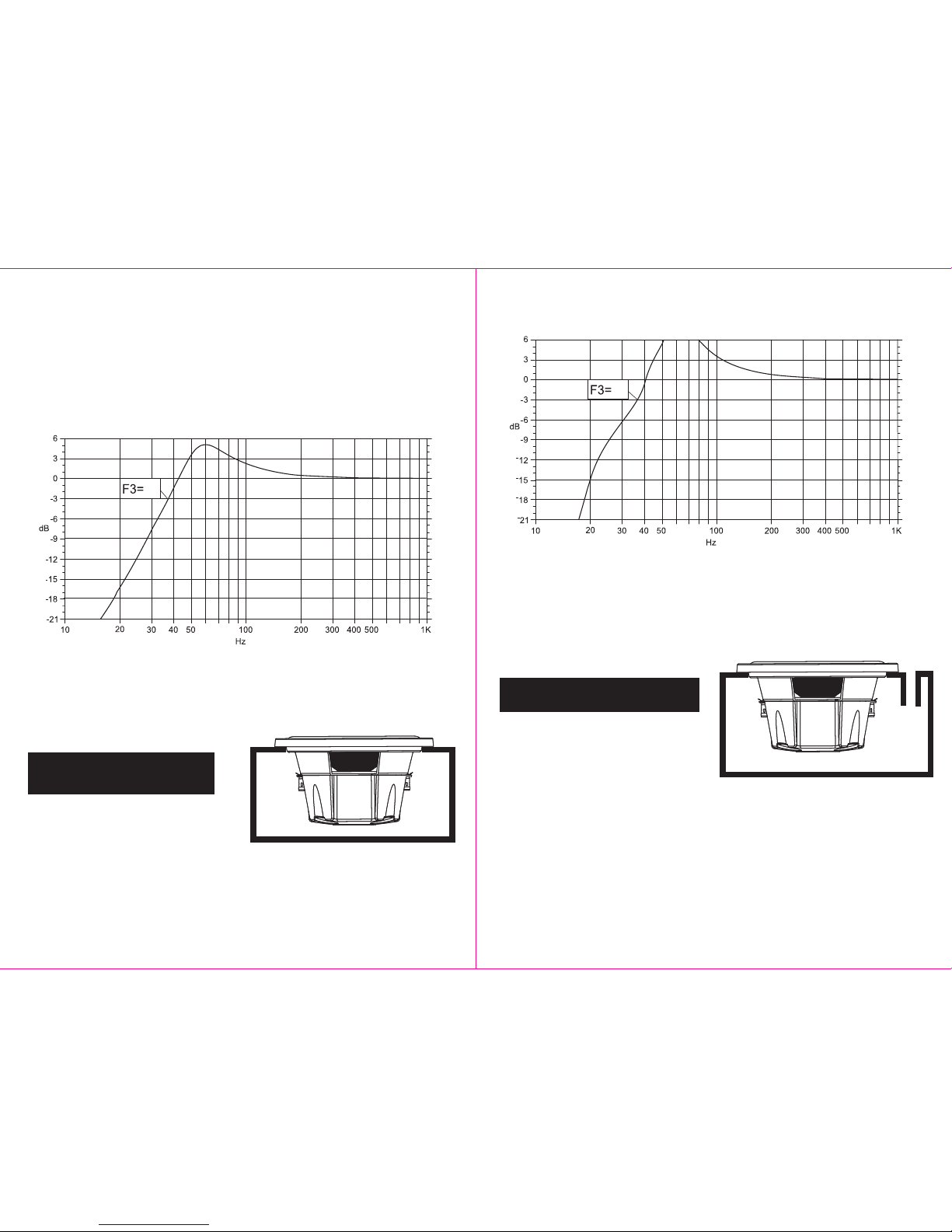

Ported Enclosure
Frequency
E12D Amplitude Response(dB/Hz)
Ported Enclosure
37
Box Volume :
2.0 to FREE AIR
Box is given as internal air volume including driver displacement
SEALED ENCLOSURE
RECOMMENDED
Recommended Enclosures
Frequency
Please note : Our recommended box volumes are given for
internal air requirements.
E12D Amplitude Response(dB/Hz)
Sealed Enclosure
37
