03. 201 2
E10D
E10D
10
10
34
0.903
5.649
1.074
1.583
0.142
1.8
94
600W/1200W
2
34
0.911
5.889
1.078
1.664
0.142
7.2
94
600W/1200W
8

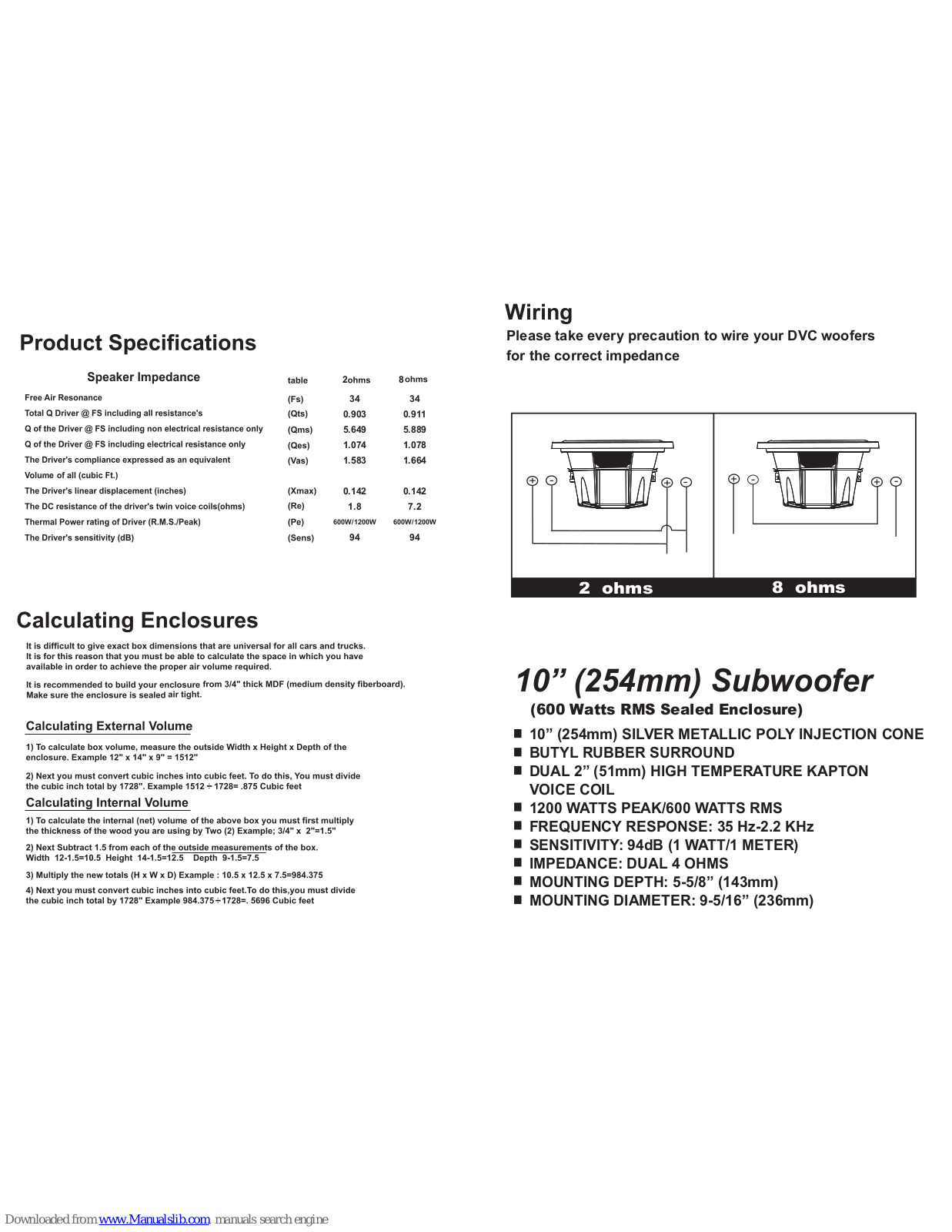

10” (254mm) Subwoofer
(600 Watts RMS Sealed Enclosure)
Wiring
Please take every precaution to wire your DVC woofers
for the correct impedance
+
+
-
+
-
+
-
10” (254mm) SILVER METALLIC POLY INJECTION CONE
BUTYL RUBBER SURROUND
DUAL 2” (51mm) HIGH TEMPERATURE KAPTON
VOICE COIL
1200 WATTS PEAK/600 WATTS RMS
FREQUENCY RESPONSE: 35 Hz-2.2 KHz
SENSITIVITY: 94dB (1 WATT/1 METER)
IMPEDANCE: DUAL 4 OHMS
MOUNTING DEPTH: 5-5/8” (143mm)
MOUNTING DIAMETER: 9-5/16” (236mm)
2 ohms
8 ohms
Box Volume : 1.0 Cu Ft
Port Frequency : 38 Hz
Port Diameter : 3 lnches
Port Length : 8 lnches
Box is given as internal air volume including driver displacement
Ported Enclosure
Frequency
E10D Amplitude Response(dB/Hz)
Ported Enclosure
Box Volume :
1.0 to FREE AIR
Box is given as internal air volume including driver displacement
SEALED ENCLOSURE
RECOMMENDED

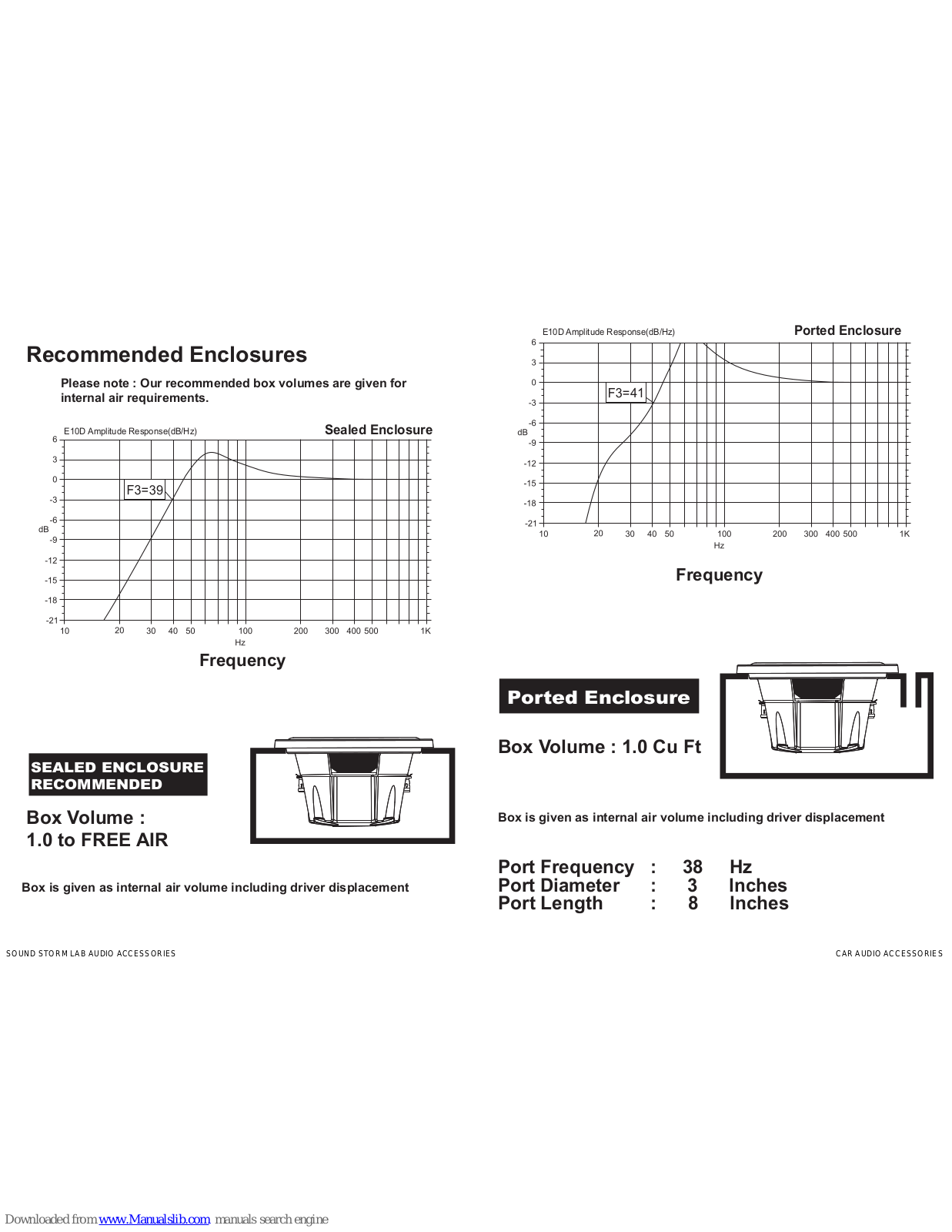

Recommended Enclosures
Frequency
Please note : Our recommended box volumes are given for
internal air requirements.
E10D Amplitude Response(dB/Hz)
Sealed Enclosure
41
CAR AUDIO ACCESSORIES
SOUND STORM LAB AUDIO ACCESSORIES
