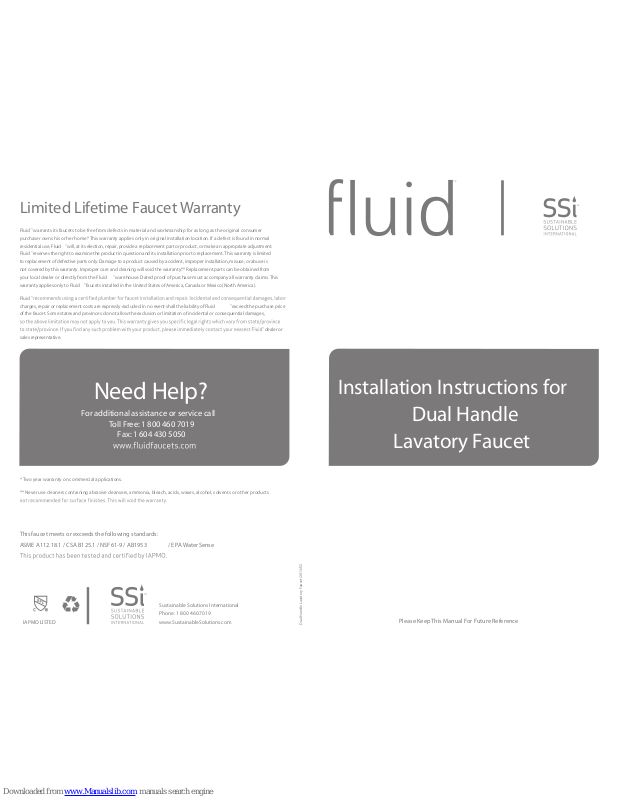

SSI Fluid Installation Instructions Manual

Installation Instructions for

Dual Handle

Lavatory Faucet

Please Keep This Manual For Future Reference

Need Help?

For additional assistance or service call

Toll Free: 1 800 460 7019

Fax: [phone]

Dual Handle Lavatory Faucet/2013/V2

Sustainable Solutions International

Phone: [phone]

www.SustainableSolutions.com

IAPMO LISTED

TM

This faucet meets or exceeds the following standards:

ASME A112.18.1 / CSA B125.1 / NSF61-9 / AB1953 / EPA WaterSense

Limited Lifetime Faucet Warranty

Fluid™ warrants its faucets to be free from defects in material and workmanship for as long as the original consumer

purchaser owns his or her home.* This warranty applies only in original installation location. If a defect is found in normal

residential use, Fluid

™

will, at its election, repair, provide a replacement part or product, or make an appropriate adjustment.

Fluid

™

reserves the right to examine the product in question and its installation prior to replacement. This warranty is limited

to replacement of defective parts only. Damage to a product caused by accident, improper installation, misuse, or abuse is

not covered by this warranty. Improper care and cleaning will void the warranty.** Replacement parts can be obtained from

your local dealer or directly from the Fluid

™

warehouse. Dated proof of purchase must accompany all warranty claims. This

warranty applies only to Fluid

™

faucets installed in the United States of America, Canada or Mexico (North America).

Fluid

™

charges, repair or replacement costs are expressly excluded. In no event shall the liability of Fluid™ exceed the purchase price

of the faucet. Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages,

™

dealer or

sales representative.

* Two year warranty on commercial applications.

** Never use cleaners containing abrasive cleansers, ammonia, bleach, acids, waxes, alcohol, solvents or other products

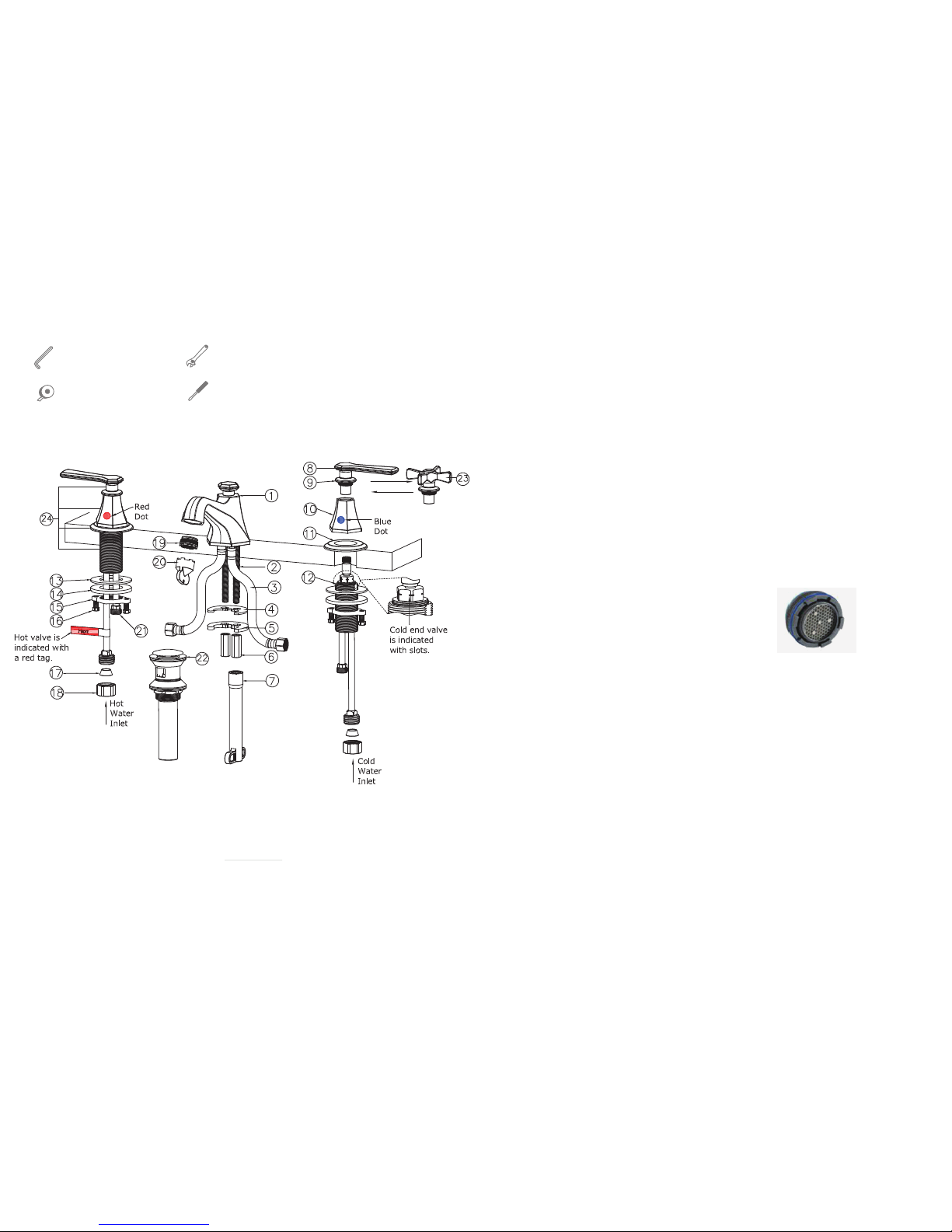

1. Shut off cold and hot water supply.

2. Faucet hole should be minimum 1-1/4”
(32mm) and maximum 1-7/16”(36mm)
in diameter.

3. From above the deck, insert spout (#1)
into the center hole.

NOTE: To adjust or replace handle, unscrew
nut (#9) counter-clockwise by hand. Pull handle
(#8 or #23) up. Rotate lever handle (#8) to point
outwards, away from spout while in OFF position.

Installation Instructions

Care & Maintenance Instructions

Tools Required for Installation

SSI products are designed and engineered under strict quality standards. Regular
and proper care of our products will ensure years of trouble-free service.

For Aerator:

Regularly remove aerator(#19) with enclosed
service key (#20) and wash with clean running
water and ensure that any trapped debris has
been removed.

To clean, use a soft and damp cloth with warm
soapy water followed by rinsing with clean
water and drying with a soft cloth. Do not use
abrasive or harsh cleaners as they may result
in finish damage.

Note: Vandal resistant tilting aerator features
water saving technology (1.5gpm), swivel flow
direction adjustment by simply pushing the inside
of the aerator to direct stream.

Max flow 1.5 gpm or 5.7L/min at 60 psig
Flow pressure 15-72.5 psi
Max pressure 120 psi
Max temperature 176 °F or 80 °C
Inlet connection 1/2” NPT and 3/8” Riser

Specifications:

9. Connect SST flexible hose (#3) to valve outlet (#21).

10. Connect valves (#12) to 1/2” NPT connectors
or 3/8” (12.7mm) OD risers (not included) with
supplied coupling nuts (#18) and washers (#17).
Right hand valve is for cold water and left valve
is for hot water supply.

11.Please follow enclosed instruction for push type
drain (#22) installation, if drain comes with this
package.

7. From underneath the deck, slide gaskets
(#13) and washers (#14) onto handle sets (#24),
then hand tighten nuts (#15). Finally tighten
locking screws (#16) with a screw driver.

Note: Make sure SST flexible hoses (#3) are
free of kinks when they’re connected to valve
outlet (#21).

6. From above the deck, insert pre-assembled
handle sets (#24) into hole and make sure red
or blue dot facing you OR the lever handle
points outward when in OFF position. HOT
valve body tagged with a red label should be
on the left side, and COLD valve body indicated
with slots which can be seen after removing
handle (#8) and base (#10) on the right side.

5. Remove nuts (#15), washers (#14) and
gaskets (#13) from handle sets (#24).

8. Once handle set is properly set in position, care-

-fully peel off red and blue dot off from handle.

To replace with cross handle (#23 not included).
Rotate cross handle (#23) until the letter “C” or “H”
faces you while in OFF position. Finally hand
tighten nut (#9) to secure handle (#8 or #23).
Note: “C” handle is on right and “H” handle on
left side.

4. From underneath the deck, slide gasket
(#4) and plate (#5) over mounting rods (#2).
Screw and tighten mounting nuts (#6) by
using a supplied wrench tool (#7).

For Cartridge:

For Surface Finish:

Remove mounting nut (#15), plate (#14) and
gasket (#13) and pull up handle set (#24).
Loosen nut (#9) by hand and pull handle (#8
or #23) up. Unscrew handle base (#10) from
valve body. Use an adjustable wrench to
loosen cartridge (#12). Ensure cartridge is clean
and free of blockages. Replace it if damaged.

Adjustable Wrench

Allen Wrench

Screw Driver

Teflon Tape
