Assembly and Installation Instructions:

S&S

41⁄8” Bore V-Series Engines

Because every industry has a leader

DISCLAIMER:

S&S parts are designed for high performance, off road, racing applications and are intended for the very experienced rider only. The installation of S&S parts may void or adversely effect your factory warranty. In addition such installation and use may violate certain federal, state, and local laws, rules and ordinances as well as other laws when used on motor vehicles used on public highways, especially in states where pollution laws may apply. Always check federal, state, and local laws before modifying your motorcycle. It is the sole and exclusive responsibility of the user to determine the suitability of the product for his or her use, and the user shall assume all legal, personal injury risk and liability and all other obligations, duties, and risks associated therewith.

The words Harley®, Harley-Davidson®, H-D®, Sportster®, Evolution®, and all H-D part numbers and model designations are used in reference only. S&S Cycle is not associated with Harley-Davidson, Inc.

SAFE INSTALLATION AND OPERATION RULES:

Before installing your new S&S part it is your responsibility to read and follow the installation and maintenance procedures in these instructions and follow the basic rules below for your personal safety.

● Gasoline is extremely flammable and explosive under certain conditions and toxic when inhaled. Do not smoke. Perform installation in a well ventilated area away from open flames or sparks.

● If motorcycle has been running, wait until engine and exhaust pipes have cooled down to avoid getting burned before pe installation steps.

● Before performing any installation steps disconnect battery to eliminate potential sparks and inadvertent engagement of star working on electrical components.

● Read instructions thoroughly and carefully so all pr completely understood before performing any installation steps. Contact S&S with any questions you may have if any steps are unclear or any abnormalities occur during installation or operation of motorcycle with a S&S part on it.

● Consult an appropriate service manual for your motorcycle for correct disassembly and reassembly procedur removed to facilitate installation.

● Use good judgement when performing installation and operating motorcycle. Good judgement begins with a clear head. Don't let alcohol, drugs or fatigue impair your judgement. Start installation when you are fresh.

● Be sure all federal, state and local laws ar installation.

● For optimum performance and safety and to minimize potential damage to carb or other components, use all mounting hardwar is provided and follow all installation instructions.

● Motorcycle exhaust fumes are toxic and poisonous and must not be inhaled. Run motorcycle in a well ventilated area where fumes can dissipate.

es for any parts that need to be

rforming any

ter while

ocedures are

e obeyed with the

e that

IMPORTANT NOTICE:

Statements in this instruction sheet preceded by the following words are of special significance.

WARNING

Means ther

Means there is the possibility of damage to the part or motorcycle.

Other information of particular importance has been placed in italic type.

S&S recommends you take special notice of these items.

e is the possibility of injury to yourself or others.

CAUTION

NOTE

WARRANTY:

All S&S parts are guaranteed to the original purchaser to be free of manufacturing defects in materials and workmanship for a period of twelve (12) months from the date of purchase. Merchandise that fails to conform to these conditions will be repaired or replaced at S&S’s option if the parts are returned to us by the purchaser within the 12 month warranty period or within 10 days thereafter.

In the event warranty service is required, the original purchaser must call or write S&S immediately with the problem. Some problems can be rectified by a telephone call and need no further course of action.

A part that is suspect of being defective must not be replaced by a Dealer without prior authorization from S&S. If it is deemed necessary for S&S to make an evaluation to determine whether the part was defective, a return authorization number must be obtained from S&S. The parts must be packaged properly so as to not cause further damage and be returned prepaid to S&S with a copy of the original invoice of purchase and a detailed letter outlining the nature of the problem, how the part was used and the circumstances at the time of failure. If after an evaluation has been made by S&S and the part was found to be defective, repair, replacement or refund will be granted.

ADDITIONAL WARRANTY PROVISIONS:

(1) S&S shall have no obligation in the event an S&S part is modified by any other person or organization.

(2) S&S shall have no obligation if an S&S part becomes defective in whole or in part as a result of improper installation, improper maintenance, improper use, abnormal operation, or any other misuse or mistreatment of the S&S part.

(3) S&S shall not be liable for any consequential or incidental damages resulting from the failure of an S&S part, the breach of any warranties, the failure to deliver, delay in delivery, delivery in non-conforming condition, or for any other breach of contract or duty between S&S and a customer.

(4) S&S parts are designed exclusively for use in Harley-Davidson®and other American v-twin motorcycles. S&S shall have no warranty or liability obligation if an S&S part is used in any other application.

INTRODUCTION

Pinion Bearing Roller Diameter

41⁄8" bore engine instructions often refer to procedures described

in other S&S

instructions or a Harley-Davidson®Service Manual.

These materials should be cross-referenced as necessary.

⁄8" bore engines are designed for frames that accept 1984-'99

All 4 big twin engines, and will fit stock Harley-Davidson

and similar

frames without modification.

S&S strongly recommends trial-fitting every engine before frame is painted or powder coated.

Because the 4

⁄8" bore crankcase is 1⁄4 inch wider than stock, fit of

exhaust, rear brake master cylinder, and foot controls must be

closely checked when installing the 4

⁄8" bore engine. Some

components may require modification.

WARNING

In some instances, brake master cylinder must be spaced out

om frame to clear crankcase. UNDER NO CIRCUMSTANCES

fr SHOULD MASTER CYLINDER OR BRAKE LINE BE ALLOWED TO CONTACT EXHAUST PIPE IN FINAL INSTALLATION. Heat transferred to brake fluid may expand and cause brakes to seize, resulting in possible fire hazard and loss of control of motorcycle with injury or death to rider and others.

IMPORTANT NOTES

● Lubrication - S&S supplies Torco Engine Assembly Lube with each engine. It should be used as specified in following instructions. While other brands of assembly lube are acceptable, other lubricants are not. In no instance should an aerosol lubricant be substituted for assembly lube.

● Engine tuning - Ignition timing and carburetor jetting are responsibilities of the customer

. If not thoroughly familiar with these procedures, he should contact a professional mechanic.

CAUTION

Incorrect ignition or carburetor tuning can cause extensive engine damage not cover

ed under warranty.

Bearing Color Code Roller Size Total

Green

S&S

H-D

#31-4016

#24628-87A

.2502” .5004”

White

S&S

H-D

#31-4005

#24626-87A

.2503” .5006”

Blue

S&S

H-D

#31-4018

#24643-87A

.2504” .5008”

Red

S&S

H-D

#31-4017

#24628-87A

.2505” .5010”

● Powder coating and polishing - While S&S does manufacture some powdercoated engines, it does not recommend having engine parts powdercoated or otherwise modified elsewhere. Many such procedures leave abrasive residues which are dif

ficult to remove completely. Also, powder coating is cured at high temperatures that can change the strength characteristics of some metals.

CAUTION

Glass bead and polishing residues are abrasive and can be

ficult to remove from recesses and small passages.

dif Abrasive residues can cause oil contamination and extensive engine damage. Engine damage caused by powder coating, polishing, glass bead blasting, or other modification will not be covered under warranty.

ASSEMBLY

NOTE - While S&S has made every effort to insure that parts are correct, it is the engine builder’s responsibility to confirm fit and finish of all parts provided with engines prior to assembly. Parts are deburred at S&S and usually require no further preparation, but must also be inspected by installer. Individual parts should not be removed from protective plastic wrappers until needed. After removal from plastic, it is imperative that parts be thoroughly cleaned and dried, preferably with compressed air. When present, rust preventative must be completely removed. Additionally, gaskets must be closely inspected for particles that could become dislodged and damage engine. If assembly of engine must be interrupted, seal openings and cover engine with plastic to protect from destructive contaminants.

Chart 1

Big Twin Bearing Race

Diameter

Pinion Shaft Bearing Diameter

1.2498 - 1.2500 1.2500 -1.2502

Red

1.7511 to 1.7513

S&S

H-D

#31-4017

#24628-87A

Blue

1.7509 to 1.7511

S&S

H-D

#31-4018

#24643-87A

White

1.7507 to 1.7509

S&S

H-D

#31-4005

#24626-87A

All reference to Harley-Davidson®part numbers is for identification purposes only. We in no way are implying that any of S&S®Cycle’s products are original equipment parts or that they are equivalent to the corresponding Harley-Davidson

S&S®Pinion Shaft Main Bearing Fitting Charts

Bearing Race Diameter

Minus Pinion Shaft

Bearing Diameter

S&S

H-D

S&S

H-D

S&S

H-D

Blue

#31-4018

#24643-87A

White

#31-4005

#24626-87A

Green

#31-4016

#24628-87A

.5005 to .5009

.5007 to .5011

.5009 to .5013

.5011 to .5015

part number shown.

Chart 2

Bearing Color Code

Green S&S®#31-4016

H-D

#24628-87A

White S&S®#31-4005

H-D

#24626-87A

Blue S&S®#31-4018

H-D

#24643-87A

Red S&S®#31-4017

H-D

#24641-87A

Picture 1 Picture 2

CAUTION

Failure to observe the previous instructions may result in

engine damage not covered under warranty.

FLYWHEELS

Confirm pinion shaft main bearing fit. Correct size bearing is supplied with engine, but must be verified by engine builder. Flywheel assembly can then be prepared for installation.

NOTES

● Refer to information tag on crankcases for final honed size of pinion shaft main bearing race.

● S&S

● All measurements must be taken with parts at room

1. Fitment Method A - Use Chart 1.

EXAMPLE - Pinion shaft bearing surface diameter measures

1.2499” and is between 1.2498” and 1.2500” in left “Pinion Shaft

Bearing Diameter” column. Pinion bearing race inside diameter is 1.7510” and falls between 1.7509” and 1.7511” in middle “Bearing Race Diameter” column. Correct bearing color code where two columns intersect is “BLUE”. Selecting color where columns intersect provides proper fit for normal ser fit is desired, select bearing color directly to right of color indicated from selection process. If color indicated from selection process is located in right color column, go to next row directly below and select color in left color column.

2. Fitment Method B - Use Chart 2.

pinion shaft main bearing fitting charts #1 and #2 use

Harley-Davidson

temperature, approximately 70°

bearing color codes.

a. Refer to information tag on crankcases to determine

final honed size of inside diameter of pinion shaft main bearing race.

Measure pinion shaft bearing surface diameter.

c. Cross reference pinion race inside diameter with pinion

shaft bearing surface outside diameter to determine correct color code.

vice. If looser

a. Refer to information tag on crankcases to determine

final honed size of inside diameter of pinion shaft main bearing race.

b. Measure pinion shaft bearing surface diameter.

Subtract pinion shaft bearing surface diameter from

pinion bearing race inside diameter.

d. Select range in left “Bearing Race Diameter minus

Pinion Shaft Bearing Diameter” column where difference best splits high and low parameters of range. Corresponding color bearing set in right “Bearing Color Code” column provides proper fit for regular service.

EXAMPLE - Pinion bearing race inside diameter is 1.7510”. Pinion shaft bearing surface diameter is 1.2499”. 1.7510” minus 1.2499” is .5011”. Dif

ference of .5011” splits .5009” to .5013” range in third row exactly. Corresponding “BLUE” color code in right column should be used. Notice that .5011” fits in several range groups. Try to select group where difference falls closest to middle of range. If you are not sure, select color that corresponds with group closer to top of chart. This will provide slightly looser bearing fit and help prevent bearing seizure. Selecting next color up on chart may also be done if looser fit is desired for competition applications.

CRANKCASES

NOTE - S&S crankcases are sold in matched sets only. Individual case halves are not available.

1. Disassemble crankcases & wash in hot, soapy water. Rinse

case halves and blow dry with compressed air

. Check all internal passages. Coat bearing surfaces with a light oil to prevent rust.

2. Install piston oilers - right-side crankcase. a. Lubricate O-ring with engine oil and install in

piston oiler.

b. Apply Loctite

243 to screws. Install oilers, tighten screws

to 25 in-lbs. See Picture 1.

ALL FLYWHEELS IN CRANKCASE

INST

1. Thoroughly clean parts according to instructions previously mentioned. Apply coat of assembly lube to bearing surface

of sprocket shaft and inner race of T

imken

bearing. Install

bearing on shaft with appropriate tool. See Picture 2.

NOTE - S&S does not recommend using a press to install sprocket shaft bearings, as this can push flywheels out of true. Correct bearing installation tools are available from Harley-Davidson and other sources.

Picture 3

Picture 4

2. Apply coat of assembly lube to Timken®bearing installed in Step 1.

3. Place left side crankcase half on sprocket shaft and bearing, insuring that connecting rods are in correct positions.

See Picture 3.

4. Install included Timken

5. Lubricate rollers of remaining Timken assembly lube. Apply assembly lube to bearing inner race and sprocket shaft bearing surface. Install bearing on shaft with appropriate tool. See Picture 5.

NOTE - Pinion and sprocket shaft bearings should be correct sizes, but it is engine builder’ endplay, connecting rod sideplay, bearing fit, and all clearances in Unassembled engines at time of assembly. It is of particular importance to check flywheel endplay and install different Timken bearing spacer if necessary. The flywheel end-play specification is .001”-.005”.

6. Lubricate pinion bearing and pinion shaft bearing boss with assembly lube. Install bearing and secure with pinion shaft main bearing snap ring. See Picture 6.

NOTE - Snap ring supplied by S&S be used with pinion bearing supplied in Super Sidewinder engine. Ends of snap ring are rounded on one side, sharp on the other. Install snap ring with sharp edge out, away from flywheels.

bearing spacer. See Picture 4.

s responsibility to confirm flywheel

or identical replacement must

bearing with

Plus

ASSEMBLE CRANKCASE HALVES

1. Noting solvent precautions on page 1, wipe down mating surfaces of crankcase halves with lacquer thinner residue with clean, dry cloth, then apply sealant of choice to both crankcase halves. Take care to avoid breather cavity and other areas where sealant might reach inside of engine. See Picture 7. Coat right main bearing race with assembly lube. If applicable, allow sealant to cure according to manufacturer’ crankcase halves.

NOTE - S&S uses Threebond sealant carefully to prevent excess from entering engine and obstructing oil passages or contaminating oil supply.

2. Install crankcase studs and washers according to crankcase instructions.

NOTE - Alignment studs for S&S crankcases are in locations B, E, & G. See Diagram 1. They must be installed before other studs and bolts. Fit is tight, so alignment studs must be lubricated with assembly lube, then tapped through case assembly with plastic mallet.

3. Tighten 5⁄16” case bolts and studs to 18 ft-lbs,1⁄4” center bolt to 120 in-lbs. See Diagram 1 for identification, and tighten fasteners in following sequence: G-B-E-F-H-D-C-A. Install drive sprocket spacer and sprocket shaft oil seal in

4. main bearing race of left case.

s instructions, then join left and right

1104 to seal crankcase. Use any

. Remove

Picture 5

Diagram 1

Picture 6

Picture 7

NOTE - Because of sealed, wet primary in Harley-Davidson Evolution®models drive trains, S&S®installs sprocket shaft seals with spring facing out. See Picture 8.

5. Allow crankcase sealant to cure per mfr.’s instructions, then pour four ounces of motor oil over bearing end of connecting rod assembly and into flywheel cavity

. Rotate flywheels several times to distribute oil over connecting rod bearings. Assembly should turn freely and without binding.

INSTALL OIL PUMP

1. Disassemble, clean and inspect oil pump, leaving supply drive gear, key, and snap ring in place on shaft.

2. Reassemble pump, applying assembly lube to gears and gear cavities in pump body. Remove excess to avoid contaminating gaskets. Rotate gears as preliminary check for bind, and to confirm that drive gear keys are properly installed.

NOTE - If bind occurs, determine whether problem is with supply or return gears by removing idler gear from either side and rotating pump. When binding gear is removed, pump will rotate

. Problem can usually be corrected by rotating gear 180°.

freely

CAUTION

Routing oil supply line to lowest fitting on models with oil tank below transmission could allow air to enter oil pump under certain cir lubrication and engine damage.

3. Apply assembly lube to oil pump driveshaft and driveshaft

bushing in crankcase. See Picture 10. Install oil pump in normal fashion, placing pump drive gear #33-4230 over driveshaft as shaft is passed through crankcase bushing.

cumstances, causing “air lock”, loss of

NOTE - S&S HVHP oil pumps offer more than one location for oil supply fitting. Lowest fitting should not be used on models with oil tank below transmission. S&S recommends stock placement for oil supply fitting in Dyna™ and late FL models. See Picture 9.

Picture 8

Picture 9

Picture 10

Incorrect

correct

Picture 11

NOTE - A dab of Hylomar®or other thin gasket sealer in corners may be used to hold gaskets in place. Otherwise gaskets should be installed dry.

4. Install driveshaft gear key and snap ring.

NOTE - Be sure drive shaft key and snap ring are installed properly correctly, “sprung,” or otherwise damaged, snap ring may come off or allow gear key to come out. See Pictures 11 & 12.

, paying particular attention to snap ring. If not installed

CAUTION

Loss of oil pump drive gear snap ring or key will result in disengagement of oil pump causing loss of oil pr extensive engine damage.

5. Loosely install two (2) each 1⁄4 -20 x 1-1⁄2” top oil pump bolts, followed by pump cover and 4 each 1⁄4 -20 x 2-1⁄2” mounting bolts. Do not tighten at this time. While turning oil pump drive gear to check pump for

6. binding, gradually tighten 4 - 2-1⁄2” bolts in an X-pattern to final specifications of 120 in-lbs. See Picture 13. Carefully tighten short bolts “by feel” with thin box end wrench, or preferably with a torque adapter

7. Prime pump by removing oil pump check valve ball assembly and injecting clean motor oil into pump supply fitting while turning oil pump drive gear. (A large plastic squeeze bottle works well for priming pump.) Replace check ball, spring, and cap after oil fills check valve cavity.

, and tighten to 110 in-lbs.

essure and

Picture 12

INSTALL PINION GEAR, SPACER & NUT

1. With chamfer on oil pump drive gear facing in towards shoulder on pinion shaft (See Picture 14), install oil pump drive gear and key on pinion shaft, followed by drive gear spacer

CAUTION

Installing gear backwards can result in a stress riser and cause shaft to break.

2. Apply red Loctite pinion gear, key and nut on pinion shaft and tighten nut to 50 ft-lbs. See Picture 15.

NOTE - Drive gear spacer will not completely fill space between oil pump drive gear and pinion gear. A gap of up to .125” will exist and is normal. Engine rotation keeps oil pump gear in place during normal operation. Spacer prevents gear and key from becoming disengaged if engine is rotated backwards.

#272 to pinion gear nut threads. Install

CAUTION

Installing pinion gear or nut without Loctite can cause damage to shaft, nut, or other parts.

Picture 13

Picture 14

Picture 15

Picture 16

INSTALL BREATHER GEAR, CAMSHAFT, AND GEAR COVER

1. Thoroughly clean and dry all parts including camshaft lockwasher and thrust washer gear for burrs and remove as necessary. Inspect edges of crankshaft breather “window” for burrs and smoothness. Cam thrust washer and breather gear shims should be correct size, but endplay of camshaft and breather gear must be verified by customer.

a. Breather gear end-play should be between .005” -

.015”. Install breather gear with supplied spacer into the breather bore of the gearcase. With a new, uncrushed gasket installed on the gearcase, use a straight-edge and measure the distance to the spacer. Subtract .006”-.007” for gasket crush, and this will be the breather gear end-play. Select correct thrust washer to achieve proper end-play.

b. Camshaft end-play should be .005” - .015”. Install

camshaft, with lockwasher and thrust washer, into cam bearing. Install gearcase cover with new gasket and tighten all fasteners to 120 in-lbs. Measure camshaft end-play with a feeler gauge or dial indicator at four different positions of crankshaft rotation. Select correct thrust washer to achieve proper end-play.

2. Apply light coat of assembly lube to cam bearing, camshaft lockwasher, thrust washer, breather gear, and to breather gear cavity inside engine, and coat of motor oil to cam lobes.

3. Place camshaft lockwasher in case with ears down and flat edge towards rear of engine. See Picture 16.

. Carefully inspect breather

4. Install thrust washer over end of cam and place assembly in engine. During installation, rotate engine so marks on cam gear and pinion gear align. Second mark on cam gear must be at eight o’clock position. Install breather gear and shim, aligning breather gear timing

5. mark with mark at eight o’clock on cam gear. See Picture 17.

7. Use connecting rods to rotate flywheels and insure gears rotate freely meshing surfaces of gears and remove excess.

8. Apply assembly lube to gear cover bushings.

9. Install gasket and cover and tighten screws to 120 in-lbs.

NOTE - Gear cover should slide smoothly over alignment dowels and must not be forced. Confirm that gasket material does not overlap oil passages in crankcase and gear cover

. Apply assembly lube to ends of shafts and

. See Picture 18.

CAUTION

Having to force gear cover indicates an alignment problem. Problem must be identified and corrected before operating engine. Operating engine with forced gear cover could result in broken pinion shaft or other engine damage.

10. Rotate flywheels to check for binding. If present, cause of bind must be determined and corrected. If assembly rotates

, pour approximately four ounces of oil into gear

freely compartment after allowing crankcase sealant to cure per manufacturer’s instructions.

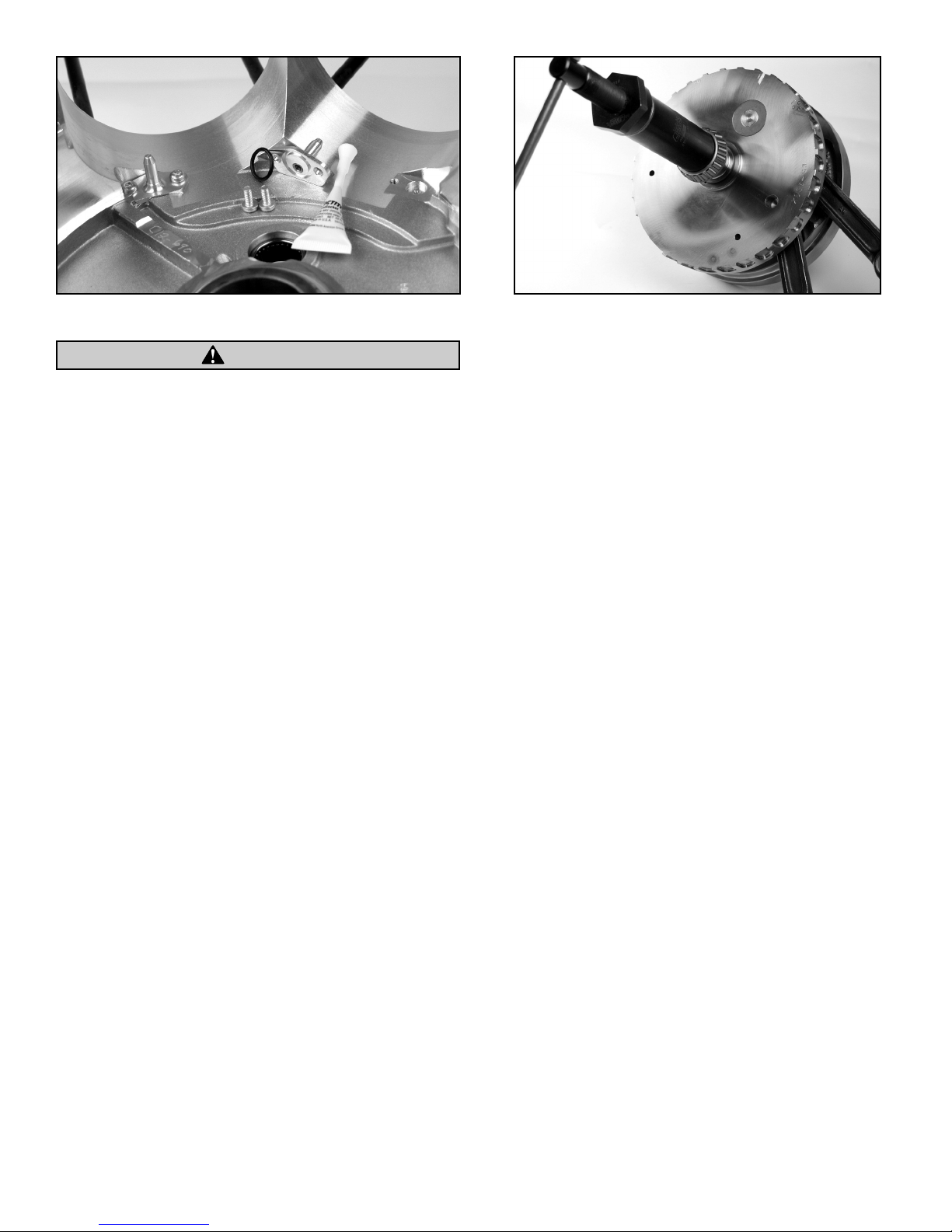

Picture 17

Picture 18

Picture 19

Picture 20

INSTALL LIFTERS AND LIFTER GUIDES

NOTE - S&S® installs HL2T (Hydraulic Lifter Limited Travel) kit in

lifters in assembled and unassembled 4

⁄8" bore engines.

Install lifters and guides as follows:

1. If installed, remove oil pressure sending unit behind rear lifter guide opening. Identify gaskets for front and rear lifter guides. Gaskets are

2. not interchangeable.

3. Coat lifter guide bores with assembly lube and insert lifters. Work lifters back and forth in guides, assuring that they move freely and without binding. Apply engine oil to lifter rollers and remove any excess.

4. Thoroughly clean and dry gasket surfaces of lifter guides and crankcase. Place rear gasket on crankcase, assuring that oil hole in gasket aligns with passage in case.

5. Taking care not to dislodge or contaminate gasket, lower rear guide assembly into place. Fingers can be inserted through front lifter guide opening to support lifters.

6. Insert Harley-Davidson

alignment tool H-D®#33443, or

similar tool from other source, in lifter guide screw hole by oil passage. See Picture 19. Install and tighten guide screws in three remaining holes to 6 ft-lbs. Remove tool, install fourth screw

, and tighten all four screws to 120 in-lbs.

7. Repeat procedure for front lifter-guide assembly. Assembly lube will usually hold lifters in guide during installation. If resistance encountered during installation, check to see if lifter has become dislodged.

8. Apply thread sealant to threads of oil pressure switch and install.

All reference to Harley-Davidson

part numbers is for

identification purposes only. We in no way are implying that any

of S&S are equivalent to the corresponding Harley-Davidson

Cycle’s products are original equipment parts or that they

part

number shown.

INSTALL VENT HARDWARE

1. Install 45° elbow, #31-2022, in vent opening at rear of crankcase. Steel fittings must be coated with anti-seize thread sealant or PTFE plumber's tape before installation in crankcase. See Picture 20.

NOTE - Unused vent hole must be plugged with #51-8330,

⁄4”-18

NPT pipe plug.

2. Install length of hose on above elbow. Check the orientation of the one-way check valve. Install the check valve onto length of hose so that it will allow passage of air out of engine, but not back in.

NOTE - Proper direction can be checked by blowing through valve before installation.

INSTALL PISTONS AND CYLINDERS

1. Identify front and rear pistons. The rear piston will have a notch in the skirt for clearance with the front piston. The rear piston is to be installed with this notch to the center of the engine, or towards the front of the motorcycle.

2. Inspect pistons, especially areas around machined surfaces such as ring grooves and wristpin holes, for burrs. De-burr as necessary

, taking care to remove particles that could become

dislodged inside engine.

3. Measure ring end gaps and adjust as necessary.

a. Compression ring end-gaps should be between

.017” to .025”.

b. Oil ring rail end-gaps should be between .015”

to .035”.

4. Thoroughly clean cylinders, pistons, rings, wristpins, and wristpin retainers in solvent, then hot, soapy water. Take special care to flush oil passages, and pass clean, white cloth back and forth through wristpin bores. Dry all with compressed air and place on clean, dry surface.

5. S&S recommends installing all cylinder base gaskets dry. Be sure holes in gaskets align with cylinder base dowels and oil holes.

6. Install rings on pistons. a. The moly-faced ring is to be installed in the top piston

ring groove, chamfer-side up.

b. The plain cast ring is to be installed in the second piston

ring groove, dot up.

c. Lubricate wristpin, wristpin bushing, and wristpin

bore in piston with assembly lube. Install wristpin through piston and connecting rod, secure with new retaining clips.

NOTE - S&S recommends the use of clip installer, part number

H-D

#42317, available from Kent-Moore, through Harley-

Davidson

, or similar tool, for clip installation.

Picture 21

Rear Head

Front Head

Top View Driveside

Camside

Picture 22

d. Install the oil ring support rail in the lower ring groove

of piston. See picture 21.

e. Install the oil ring separator in the lower ring groove,

then install one oil ring rail on either side of the separator

S&S

recommends covering cylinder studs with 3⁄8” i.d. fuel line

to protect piston and rings until cylinder installed.

7. Install cylinder head alignment dowels in cylinder.

8. Apply very light film of motor oil to piston skirts and cylinder bores and install rear cylinder. Install rear cylinder head, referring to following section as necessary.

NOTE - On 4 front cylinder before installing rear head, rear cylinder should be temporarily secured with head bolt and washers. If cylinder is not secured, piston can lift cylinder and disturb base gasket if flywheels rotated.

9. Repeat piston installation for front cylinder and cylinder head.

INSTALL CYLINDER HEADS

NOTE - If different camshaft, or S&S source are used, engine builder must confirm lift capability of valve springs and collars as well as valve-to-valve clearance. Refer to Installation Information for S&S big twin Camshafts.

⁄8" bore engines, if engine builder chooses to install

heads assembled by other

CAUTION

Failure to establish correct clearances can cause extensive

engine damage not covered under warranty

NOTE - Light coating of oil on head bolt threads minimizes friction so torque values will not be distorted. It cannot be emphasized enough that these steps must be done carefully Maintaining a good head gasket seal depends on it.

CAUTION

Improper torquing sequence and head bolt torque values may cause head gasket failur

3. Bolt heads on cylinders. Follow the stock bolt tightening sequence, and use stock three stage procedur values shown in Figure 1. See Figure 1.

IMPORTANT NOTE - Proper first time engine start-up and breakin is critical to achieve permanent and lasting head gasket seal. Follow “Engine Break-In” procedures at en

e and torque

d of section.

CAUTION

Improper first time engine start-up and br may cause head gasket failure.

PUSHROD PREPARATION

1. Disassemble pushrods and pushrod tube covers. Clean thoroughly and dry with compressed air

2. Blow compressed air through oil passage in each pushrod to confirm that passage is clean and free of debris and obstruction. See Picture 22.

3. Assemble pushrod tube cover assemblies. Lubricate all Orings with a light coat of engine oil.

eak-in procedure

1. Place head gasket on top of cylinder. Locate on dowels installed in cylinder.

NOTE - If Kevlar with engine, they are to be installed dry. If copper head gaskets are supplied with kit, prepare gaskets with Gasgacinch before installation. Refer to manufacturer’s instructions for proper application of sealant, and recommended set-up times.

2. Before installing heads spin each head bolt down on its respective stud to be sure threads are clean and free of contamination. Place a drop or two of oil on threads and under head of each head bolt just prior to final assembly.

reinforced graphite head gaskets are supplied

sealant

Stage 1 8 Ft.-Lbs.

Stage 2 18 Ft.-Lbs. Stage 3 Turn additional 90˚

Figure 1

Picture 23

Picture 24

4. Insert pushrod tube O-ring washers in lifter blocks. See Picture 23.

5. Install O-rings in lifter blocks Install thick pushrod tube O-rings in cylinder heads.

7. Determine pushrod placement by comparing lengths of each pushrod (not including adjuster). Longest pushrod is for front exhaust, next longest for rear exhaust, shortest for rear intake, remaining pushrod for front intake. See Picture 24.

8. Screw pushrod/lifter adjusters in to shortest length. Set pushrods aside.

INSTALL ROCKER COVERS

1. All parts must be clean and dry. To install, place lower rocker cover gaskets on cylinder head. A small amount of Hylomar or other thin gasket sealant may be used in corners to hold gasket in place on head. No other sealant should be used.

2. Place lower rocker cover on gasket and cylinder head. Install two of the 5⁄16-18 x 1” screws in front and rear left (driveside) holes of rocker housing. Tighten screws two turns to hold rocker housing and gasket in place.

3. Install four remaining rocker housing screws. Gradually tighten six screws to 18 ft-lbs. Using sequence illustrated in

Figure 2.

4. Measure clearance between rocker housing and valve spring. See Picture 25. Minimum is .025”. If necessary, loosen screws and reposition housing to increase clearance, then retighten screws. Place O-ring in center of rocker housing.

6. Repeat above procedure for other cylinder head.

CAUTION

Operating engine without sufficient clearance between valve spring and r covered under warranty.

ROCKER ARM / PUSHROD INSTALLATION AND ADJUSTMENT

NOTE - S&S Weaker pushrods may flex under load, resulting in loss of power increased cranking compression, and detonation.

1. Rotate flywheels in direction of normal engine rotation until both lifters for front cylinder at lowest position on camshaft.

Front piston will be at or near TDC on compression stroke when lifters are in correct position. Identify pushrods as explained in previous section. Hold

2. pushrod tube for front intake in place and pass correct pushrod, adjuster end down, through cylinder head and pushrod tube. Repeat for front exhaust.

NOTE - Some engine builders prefer to install and adjust pushrods one at a time, beginning with intake.

3. Lubricate rocker shafts with assembly lube. Place rocker arms in support, and slide shafts through support and rocker arm. Reliefs in shafts must face the center of the cylinder and align with the right (cam-side) bolt holes. See Picture 26.

ocker cover will cause engine damage not

pushrods are designed with emphasis on strength.

Picture 25

Driveside

Front

Camside

Figure 2

ighten lock nut.

c. T

d. Follow the same procedure for all four push rods.

Picture 26

4. Check rocker arm endplay by sliding rocker arm to one side as far as possible and measuring gap between rocker arm and support at opposite end. The specification for endplay is .001”-.012”. If endplay is insufficient, carefully remove material from end of rocker arm to achieve correct endplay. Leave a smooth, non-abrasive surface finish.

5. Apply Loctite 243 to rocker arm support bolts. Insert two

⁄16 -18 x 21⁄4” socket head bolts and washers in left (drive)

side of support and two

⁄16 -18 x 21⁄2” hex head bolts in right

(cam) side of support.

6. Place rocker arm support assembly in rocker housing. Align pushrod ends with sockets in rocker arms and tighten the four support bolts to 18 ft-lbs.

7. Apply Loctite

243 to the 1⁄4 -20 x 1” and 1⁄4 -20 x 2” socket head screws. Install washers on both screws. Insert 1” screw with washer in center left side of support, and 2” screw with washer in center right side of support. Tighten both to 120 in-lbs.

8. The HL

T kit is installed in the lifters, and the pushrods must

be adjusted as follows: a. Extend pushrod until it contacts the hydraulic piston

assembly in the lifter body, then extend pushrod an additional four complete turns, until piston assembly is in contact with HL

T spacer and the valve is lifted off of

it’s seat. If tappets contain oil, as when pushrods are readjusted after engine has been run, or if all oil was not removed during installation, allow at least 10 minutes for piston assembly to bleed down.

b. Loosen pushrod adjustment until pushrod can be

rotated with the fingers with slight drag. Continue loosening (shortening) pushrod one full turn (6 flats).

NOTE - Shortening adjuster an additional six flats or full turn from zero lash often results in quieter pushrod operation. This provides additional travel for the hydraulic piston assembly which can improve the ability of the hydraulic unit to maintain zero lash under normal operating conditions.

CAUTION

Perform this operation on one cylinder at a time. Do not turn engine until pushr

od adjustment is complete.

NOTE - Upon initial start up after modification, HL

lifters may be somewhat noisy for 10-20 miles.

9. Install upper rocker cover, gasket, and O-ring on rocker housing.

0. Install one flat and one rubber washer on each of six

⁄4” rocker cover screws. Tighten screws to 120 in-lbs.

11. Extend pushrod tubes and install pushrod cover retainer clips.

12. Rotate flywheels until rear piston reaches TDC on compression stroke (315 flywheel degrees past front piston TDC) and both rear lifters are in lowest position on cam. Repeat procedure for installing pushrods, rockers, and covers, installing longer remaining pushrod in exhaust.

13. After pushrod adjustment completed per instructions, rotate flywheels several revolutions in direction of normal flywheel travel to confirm that engine turns freely.

NOTE - Do not force engine. If resistance encountered, determine and correct cause before continuing.

CAUTION

Forcing engine against resistance may cause damage not

ed under warranty.

cover

INSTALL INTAKE MANIFOLD

1. Identify front and rear intake manifold flanges. Apply a light coat of silicon lubricant, or Vaseline, to the

2. outside diameter of the manifold, the inside diameter of the flanges, and the two intake seals. Install the flanges in appropriate positions on manifold, smaller diameter towards center of manifold.

3. Install seals onto manifold with the thicker end towards cylinder head.

4. Install manifold assembly onto cylinder heads using the four mounting screws. Snug screws finger-tight.

5. Install breather hose from front cylinder head to vent fitting on top of carburetor intake manifold.

NOTE - Refer to engine installation section of this manual for carburetor installation, throttle cable installation and adjustment, and air cleaner assembly installation.

FINAL INSTALLATION

Finished engine should be installed in frame according to

appropriate Harley-Davidson tanks thoroughly before installing, and be sure all traces of solvent are removed. Old oil lines should be flushed or replaced, and a new oil filter installed. With engine installation complete, carburetor and air cleaner assembly can be installed.

INSTALLATION

Service Manual. Clean gas and oil

T equipped

⁄4 -20 x

CAUTION

Turning engine while valve is held off the seat could result in valve to valve or valve to piston contact and serious valve train damage.

NOTE - The 4

⁄8" bore engine is designed to be installed in a stock 1984-’99 big twin chassis. If this engine is to replace an existing engine, refer to the appropriate service manual regarding engine removal.

S&S®recommends that the primary drive and housing be removed when installing this engine in order to ensure all components are in proper alignment.

NOTE - Install the charging system to the crankcase as per the appropriate service manual according to the specifications for the particular model. Use new stator fasteners if applicable. If necessary required for all models. After installation of flywheel assembly, S&S seal, place S&S spacer #31-4033 (not provided) on sprocket shaft between spacer #31-4011and alternator rotor. See Picture 27. Dimensions of spacer #31-4033 are 1.130” (I.D.) x 1.730” (O.D.) x .325” (thickness).

, install spacer for 45 amp alternator. This step is not

drive sprocket spacer #31-4011 and Timken®main bearing

CAUTION

Failure to use spacer #31-4033 with 45 amp alternator will

otor to bottom against crankcase when sprocket nut is

cause r tightened, causing damage to crankcase, rotor, or both.

WARNING

To insure safe operation of motorcycle, these operations must be performed correctly and in a professional manner.

SOLID-MOUNT CHASSIS

1. Refer to the drive section of the appropriate service manual and loosen the transmission to frame mounting hardware.

2. Place the engine on the mounting pads of the frame. Install and tighten the two rear mounting bolts. Check the relationship of the front engine mount to frame.

Picture 27

WARNING

Loose fasteners inside of primary chaincase may cause the transmission to “lock up”, resulting in possible loss of control of motorcycle with injury or death to riders and others.

6. Refer to the drive section of the appropriate service manual. ighten the transmission to the frame.

7. Tighten the four lower crankcase fasteners to 35 ft-lbs.

8. Install the upper engine mounting bracket. Pay particular

attention to alignment with frame. Shim as needed. Tighten bracket to head to 35 ft-lbs. Refer to specific frame make/model year service manual for torque specification of upper bracket-to-frame fastener.

9. Refer to the drive section of the appropriate service manual

for reassembly of the primary drive and case. Make certain to install new chaincase lubricant if applicable.

RUBBER-MOUNT CHASSIS

NOTE - With the rear crankcase fasteners tightened, there should not be any space between the engine mounting pad and the front crankcase mount. Due to variations with dif frames a gap may exist here. If this situation is found, use the appropriate thickness of shims to eliminate this gap. Failure to correct this may cause the crankcases to be in a “bind” when the front engine mounting fasteners are tightened, resulting in an engine vibration.

3. Install the two front engine mounting bolts.

NOTE - The front two engine mounting fasteners should install easily through the frame and crankcase. If it requires that these bolts be “driven” through the mounting holes, the crankcases may again be in a “bind”, resulting in an engine vibration.

4. Loosen all four lower mounting fasteners.

5. Refer to the drive section of the appropriate service manual. Install the inner primary chaincase to the transmission and engine crankcase. Make certain to use a new engine-toprimary O-ring and lock tabs or safety wire on the inner chaincase fasteners.

ferent

CAUTION

Failure to use new lock tabs or safety wir chaincase mounting hardware may result in the fasteners backing out and possible damage to the primary drive.

e on inner primary

1. Lift and support the transmission case to bring the rear engine mount pad relatively level with the bottom frame tubes.

2. Place engine in position on rear engine mounting pad.

3. Install and hand tighten rear engine mounting fasteners. Install front mount with stabilizer hand tighten.

4. Refer to the drive section of the appropriate service manual. Install the inner primary chaincase to the transmission and engine crankcase. Make certain to use a new engine- toprimary O-ring and lock tabs or safety wire on the inner chaincase fasteners.

, if applicable, and

CAUTION

Failure to use new lock tabs or safety wire on inner primary chaincase mounting har backing out and possible damage to the primary drive.

dware may result in the fasteners

WARNING

Loose fasteners inside of primary chaincase may cause the transmission to “lock up”, resulting in possible loss of control of motorcycle with injury or death to riders and others.

5. Tighten primary housing to engine crankcase and transmission case.

. Torque inner primary housing engine mounting

fasteners to 22 ft-lbs.

Picture 28

Picture 29

b. Refer to the appropriate service manual for the torque

specifications of the inner primary housing transmission mounting fasteners.

6. Tighten the four lower engine mounting fasteners to 35 ft-lbs.

7. Install the upper engine mounting bracket. Tighten bracket to head to 35 ft-lbs. Refer to specific frame make/model year service manual for torque specification of upper engine mounting-to-frame fasteners.

8. Refer to the drive section of the appropriate service manual for reassembly of the primary drive and case. Make certain to install new chaincase lubricant if applicable.

IGNITION SYSTEM

NOTE - If installing the stock ignition from the removed engine, refer to the ignition section of the appropriate service manual for removal and installation.

1. Install the ignition timing sensor as per manufacturer’ instruction, using provided ignition cover standoff screws. Route ignition sensor wire through channel in lower part of engine gearcase cover and secure with provided retainer. If applicable, static time ignition as per manufacturer’s instructions.

2. If applicable, install and connect the V.O.E.S. (Vacuum Operated Electric Switch).

NOTE - V.O.E.S. - S&S selected for use with this 4

Cycle does suggest the ignition system

⁄8" bore engine utilize the V.O.E.S. (Vacuum Operated Electric Switch). Check the switch using a hand vacuum pump with a gauge and set the switch to trip at 6 in. of vacuum-Mercury. See Picture 28.

3. Install the ignition manufacturer’s recommended spark

plugs.

Refer to ignition manufacturer’s suggested spark plug

gap and check spark plugs. Electronic ignitions generally require a plug gap of between .038”-.043”.

b. Apply an anti-seize lubricant to spark plug threads,

install and torque to 11-18 ft-lbs.

4. Install and connect the ignition coil.

COMPRESSION RELEASES

1. Refer to included S&S Instruction Sheet #51-1065 or #51-1115 for wiring/cable routing of compression r

elease mechanism,

if applicable.

EXHAUST SYSTEM

1. Install new woven-metal gasket into exhaust ports of cylinder heads.

2. Inspect the exhaust pipe header flanges and retaining rings. Replace if distorted, warped, or otherwise damaged. Apply a high-temp. anti-seize lubricant to threads of exhaust

3. studs at cylinder heads.

4. Install exhausts to cylinder heads. Hand tighten exhaust stud nuts.

5. Attach exhausts to lower mounting bracket. Shim if necessary. Hand tighten mounting hardware.

6. Tighten exhaust flange nuts at head to 60-80 in-lbs.

7. Refer to specifications for the appropriate model and

tighten the remaining mounting hardware to the recommended torque values.

WARNING

In some instances, brake master cylinder must be spaced out

om frame to clear crankcase. UNDER NO CIRCUMSTANCES

NOTE-Make certain that the exhaust system is not pre-loaded, or in a bind, at the lower mounting points. Make all spacing adjustments prior to final-tightening of the upper exhaust mounting hardware at the cylinder heads. Failur procedure may cause excessive vibration and result in failure of exhaust pipes or mounting hardware.

e to follow this

Picture 30

Picture 31

CARBURETOR

1. Install Carb a.

Check idle mixture and idle speed screw settings.

1. Check setting of idle mixture screw, part #11-2354,

on top of carb body. See Picture 29. Turn screw clockwise to close scre

w, counting number of turns to fully closed position - setting should be 1 Reset by turning screw counterclockwise to 1 open. After engine is started, screw must be reset as explained in “Adjusting Idle Mixture” section of instructions.

NOTE - Turn idle mixture screw in only far enough to contact seat. Do not over tighten.

CAUTION

Over tightening idle mixture scr damage to carburetor body.

2. Check setting of idle speed adjusting screw, part

#50-0038. See Picture 30. Turn screw counterclockwise until it no longer contacts throttle linkage spool, part #11-2385. Next, turn screw clockwise until it just contacts spool. Then turn additional throttle plate.

b. Install throttle cables on carburetor.

1. Locate the correct throttle cable housing bracket in carburetor kit.

NOTE - The carburetor kit is supplied with two different throttle cable brackets. The shorter bracket, part #11-2339, is designed for 1989 & earlier

-style throttle cables. The longer bracket, part #11-2338, is for the throttle cables supplied with 1990 & later motorcycles originally equipped with a “CV” carburetor.

2. Apply drop of Loctite®243 or equivalent to threads of cable bracket screw and install bracket on carburetor.

3. Install opening side throttle cable barrel fitting and throttle cable in throttle linkage and appropriate side of throttle cable housing bracket. Opening side cable housing outside diameter is smaller and measures .190”.

4. Repeat step 2 for closing side throttle cable. Closing side cable has a spring around inner cable wire. See

Picture 31.

ew may cause irreversible

⁄2 turn clockwise to slightly open

⁄2 turns.

⁄2 turns

c. Install carb on manifold

1. Bolt carb and insulator block to intake manifold using two

⁄8 -16 socket cap screws provided in kit. (O-ring side of block faces manifold.) Tighten to 18 ft-lbs.

NOTE - If insulator block is not installed, manifold bolts supplied in kit will be too long and may bottom in holes. Shorter manifold bolts must be used if insulator block is not installed.

CAUTION

If insulator block is not installed, lower manifold bolt may damage carburetor bowl causing possible gasoline leak.

WARNING

Gasoline is extremely flammable and explosive under certain conditions. Do not smoke ar are toxic when inhaled. Any gasoline leak or spill constitutes a health and fire hazard.

d. Adjust throttle cables

NOTE - Throttle grip assembly must be assembled correctly and work freely to prevent possible sticking during operation. Throttle must snap closed when released. Cable routing must be free of tight bends to minimize friction between cable and housing.

1. Turn threaded throttle (pull-open) cable adjuster to remove excessive freeplay open the throttle plate when the throttle grip is twisted completely open.

2. Remove the slack in the idle (pull-close) cable with the cable adjuster and leave approximately freeplay at the throttle grip.

3. Test throttle to insure that it opens and closes freely. Turn handlebars to extreme left and open and close throttle, then turn bars to extreme right and open and close throttle. If throttle binds, loosen idle cable adjuster to put more freeplay in cable. Tighten adjusting screw locknuts after making final adjustments.

NOTE - Throttle must not bind and must snap shut to fully closed position when released.

ound gasoline. Gasoline fumes

. Adjust this cable to fully

⁄16” of

Picture 32

Picture 33

WARNING

If throttle does not return to fully closed position when released, it may inadvertently stick open, causing possible loss of control of motorcycle and personal injury to operator or others.

e. Slip fuel overflow hose onto fitting on carb bowl and

neatly route behind rear cylinder pushrod tubes. Exit end of overflow hose must extend down below engine and away from exhaust pipes. See Picture 32.

WARNING

Overflow hose must not contact hot surface such as exhaust pipe wher

e it could melt and catch fire.

f. Slip hose clamp over end of fuel line with 90º bend.

Apply thin coat of oil to carb fuel inlet fitting and slip end of fuel line with 90º bend on fitting. Position fuel line in such a way as to avoid contact with cylinders and other hot engine parts. Tighten hose clamp. Slip protective fuel line covering over fuel line and position where contact with engine parts could occur. On models equipped with fuel line support guide, use guide if possible. Connect other end of fuel line to gas tank petcock using hose clamp provided.

Verify installation and connection of vent hose from

front cylinder head to vent fitting on top of carburetor intake manifold.

h. Connect vacuum hose from V.O.E.S. and/or fuel petcock

to vent fitting on top of carburetor intake manifold, if applicable.

e. Install and adjust cruise control cable, if applicable. Refer

to the appropriate service manual for proper procedure.

2. AIR CLEANER ASSEMBLY & INSTALLATION

a. Prepare air cleaner backplate.

NOTE - Fast idle lever screws, part #11-2384, must not be over tightened. Loctite used sparingly on threads to prevent screws from vibrating loose.

or other thread locking compound may be

CAUTION

Over tightening fast idle lever screws may damage backplate.

1. Press plug, part #50-8312, into hole on left in air cleaner backplate as shown in Picture 33.

2. Screw vent hose elbow fitting, part #50-8110, into remaining hole at right. See Picture 33.

3. Assemble fast idle mechanism as shown in Figure 3.

b. Install Air Cleaner Backplate

1. Locate crankcase venting valve at rear of crankcases. Connect crankcase venting hose from this valve to installed elbow fitting on the air cleaner backing plate. See Picture 34.

2. Determine which of the provided shims correctly fills the gaps between backplate, thick aluminum

, and cylinder heads.

spacer

3. Install backplate and gasket. Confirm that fast idle lever has properly engaged enrichment plunger. Tighten screws holding backplate to carburetor to 11 ft-lbs.

Picture 34

Figure 3

Picture 35

NOTE - Air cleaner backplate screws supplied with kit have thread locking compound on threads. If screw without thread locking compound is used, a thread locking product such as Loctite

243

must be applied, and screws properly tightened.

CAUTION

Failure to apply thread locking compound or properly tighten screws may cause scr resulting in engine damage not covered

under warranty.

4. Fill gap between backplate mounting ears and cylinder heads with aluminum spacer and correct shims. See Picture 5.

5. Bolt backplate to cylinder head with flat washers, and lockwashers.

NOTE - The manifold flange bolts may need to be loosened to align backplate mounting ears with breather fittings in cylinder heads. A long,

⁄4” ball-end Allen socket will aid in accessibility to the cam-side fasteners of the flanges. Adjust carburetor/air cleaner assembly as necessary for proper alignment with mounting holes in cylinder head. Retighten flange bolts evenly to 16 ft. lbs.

c. Final assembly and checks.

1. Check carb to manifold mounting bolts.

2. Check carb to air cleaner backplate mounting screws.

. Check the air cleaner backplate to head

mounting bolts.

4. Check fuel line connections and routing. Avoid hot surfaces.

5. Check vacuum operated ignition advance connections if applicable.

6. Check crankcase to backplate vent hose connections.

ews to loosen and fall into engine,

⁄16”-18 bolts,

Picture 36

7. Check vent hose connection from front cylinder head to intake manifold.

8. Check fuel overflow hose routing. Avoid hot surfaces.

9. Test throttle to be sure it opens and closes freely. Turn handlebars to extreme left and open and close throttle, then turn bars to extreme right and check throttle. When released, throttle should snap closed in all positions.

10. Install air cleaner element and air cleaner cover using three

⁄4-20 x 1” mounting screws provided. Flat side of pleated filter element #17-0376 goes against air cleaner backplate. Insure that element goes around outside edge of locating tang at 9 o’clock position on backplate. Rounded side of element with S&S

Part # goes toward outside. Correctly installed element will remain in place on backplate without support.

OIL LINE INSTALLATION

1. Refer to service manual. Remove and wash oil tank thoroughly

. Clean or replace oil lines. Reinstall oil tank.

2. Install and connect oil filter mounting bracket to the front of engine crankcases, if applicable. Refer to service manual for oil hose routing and specifications. Install new oil filter.

CAUTION

Improper installation of oil lines or fittings may result in parts damage not cover

ed under warranty.

1- Top Oil Return Hole 3- Lower Oil Return Hole

2- Top Oil Supply Hole 4- Lower Oil Supply Hole

5- Middle Oil Supply Hole

Picture 37

Picture 38

NOTE - S&S®Cycle recommends the use of Harley-Davidson®oil filters, part numbers 63805-80A (black), or 63796-77A (chrome),or equivalent. The use of an oil filter designed for a

Twin Cam 88

All reference to Harley-Davidson

is NOT recommended.

part numbers is for

identification purposes only. We in no way are implying that any

of S&S are equivalent to the corresponding Harley-Davidson

Cycle’s products are original equipment parts or that they

part

number shown.

3. Locate and install oil tank vent hose to fitting above the oil

pump on crankcase. See Picture 36.

4. Verify location of oil pump feed fitting on the pump cover

and install oil supply hose from oil tank. See Picture 37.

5. Fill the oil tank to the proper level.

NOTE - S&S Cycle recommends the use of Mobil

1 V-Twin 20W-50 synthetic oil in our engines. If not using Mobil 1, see the chart below.

Viscosity Ambient Temperature (˚F)

SAE 20W50 Above 20˚ - 100˚

SAE 50 Above 60˚ - 100˚

SAE 60 Above 80˚ - 100˚

FINAL ASSEMBLY

1. Refer to service manual for installation of foot rest

assemblies if removed for engine replacement. Reassemble transmission shift linkage if necessary.

NOTE - On certain models it may be necessary to switch the shift linkage to the outside of the shift lever

. See Picture 38. Make

certain that there is clearance between the shifter rod and the engine crankcases.

3. Reinstall and connect the fuel tank. Refer to appropriate

service manual. Inspect fuel lines and clamps - replace as necessary.

Check fuel line connections and routing. Avoid hot

surfaces. Make certain that the protective cover has been placed over fuel line, and that it is clear from sharp edges and abrasive surfaces.

b. Reassemble components that were removed or

disassembled for installation. Consult authorized Harley-

Davidson

service manual for installation procedure for

stock parts not covered in S&S instructions.

Picture 39

c. Check fuel needle and seat assembly. Fill gas tank with

just enough fuel to test system. Lean motorcycle over towards carburetor side, turn on fuel petcock and wait 20 seconds. If gas runs out end of carb or out overflow hose, turn off petcock and check needle and seat.

d. Check fuel inlet fitting and fuel line connections for

leaks. Hose clamps must be tight.

NOTE - Fuel needle and seat assembly must completely shut off fuel supply to carburetor bowl. Fuel inlet fittings and fuel line connections must not leak.

CAUTION

Gasoline leaking past inlet needle may flood engine causing contamination of oil supply and damage to engine.

WARNING

Any gasoline leak repr

INITIAL START-UP

1. Remove tappet screen plug and screen assembly from

crankcase. See Picture 39.

2. Remove wires from spark plugs. Ground plug wir cylinder head with either a jumper wire or through a test plug.

esents a health and fire hazard.

es to

CAUTION

It is possible to damage certain types of electronic ignitions if the high-tension side of the ignition coil is left open. Always

ound the spark plug-side of ignition coil when turning

gr engine over.

3. Engage manual compression release, if applicable.

urn ignition on and turn the engine over with the starter

4. T motor until you get engine oil at the tappet screen port.

CAUTION

Avoid excessive time of starter engagement. Overheating of starter motor will r continuous starter running, allow 5 minutes for the starter motor to cool.

esult in damage. After 30 seconds of

Picture 40

NOTE - If oil fails to appear at tappet screen port, verify that oil line routing is correct and that the oil tank is full to the proper level. Remove the check-ball spring from under the cap of the shorter tower on the oil pump. Replace cap to avoid losing oil from pump.

5. Once oil is seen at the tappet screen port, reassemble all removed or disconnected components. Start motorcycle. Verify oil pressure.

ENGINE TUNING

1. Carburetor Refer to Instruction Sheet #51-1012, Installation and

Jetting Instructions for S&S “Shorty” Carburetors, for initial set-up and adjustment of the carburetor.

2. Ignition Timing

Picture 41

Super E and G Series

NOTE - Oil pressure indicator lamp should light when ignition is turned on. Lamp will go out after engine is started, and there is oil pressure at the switch in the crankcase.

7. Verify that engine oil is returning to oil tank.

CAUTION

Improper first time engine start-up and break-in procedure may cause head gasket failur

8. Initial start up. Run engine approximately one minute at 1250-1750 rpm. DO NOT crack throttle or subject to any loads during this period as head gaskets are susceptible to failure at this time. During this time, check to see that oil pressure is normal, that oil is retur no leaks exist.

9. Shut off engine and thoroughly check for any leaks or other problems. Let engine cool to the touch.

10. After engine has cooled, start again and allow the motor to build some heat. Engine should be run no longer than three to four minutes. When the cylinders become warm/hot to the touch (approximately 150º) shut the motor down and let it cool to room temp. Follow the same cautions as for the initial start-up, and continue to watch for problems.

11. Repeat this procedure 3 or 4 times. Each successive time it should take slightly longer to warm up and you can increase the temp slightly each time (+10º). You can be more liberal each time with the rpm, gently vary rpm continuously from idle up to 2500 rpm in the final cycle. Don’t be too concerned with final carb settings at this time because idle speed and mixture cannot be correctly set until the engine reaches full operating temperature. The engine should not reach that temperature during these cycles. Do not allow engine temperature to become excessive. After the engine has cooled to room temperature for the final time you are ready to start the 1000 mile engine break-in process.

ning the oil tank, and that

NOTE - S&S recommends using electronic ignition with adjustable

advance curve in 4

⁄8” bore engines. Adjustable curve permits slowing rate of advance to control or eliminate pinging under heavy load or when elevated temperatures or poor quality gasoline encountered. Install ignition according to manufacturer’s instructions. Leave spark plugs out while static timing to ease flywheel rotation. Flywheels in S&S Super Sidewinder Plus engines have three timing marks: (F/30) = Front cylinder firing mark, 30°

degrees before front cylinder piston TDC with vertical line in center of hole. See caution below. (R/30) = Rear cylinder firing mark, 30° before rear cylinder piston TDC with dot in center of hole. (T:F) = Front piston, Top Dead Center with colon (:) in center of hole.

Most fully electronic ignitions are timed at TDC. Points and other ignitions with mechanical advance are timed at front cylinder firing mark. With correct mark centered in timing inspection hole, ignition at full advance will occur 30°

before TDC.

CAUTION

Operating engine with timing too advanced can cause detonation and damage to engine not covered under warranty

Additional minor adjustment of timing may be required due poor quality gasoline, extremely hot climate, etc., but ignition should occur between 28° and engine closely monitored for heat build-up. In general, excessive ignition advance will cause engine to kick back against the starter during start-up and “buck” when ridden at steady speed with partial throttle. An advanced condition can also cause pinging or ignition knock and possible piston damage. These

symptoms may not be noticed if electr advance curve is used. Excessive ignition retard causes sluggish

performance and severe over damage to the engine, and must also be avoided. Immediate or rapid exhaust pipe discoloration is usually a sign of retarded ignition timing.

and 32° BTDC when fully advanced,

onic ignition with “soft”

heating with possible subsequent

CAUTION

Pinging or ignition knock is an early sign of detonation and possible impending engine damage. Should pinging occur, the throttle must be backed off and the cause determined and corrected. Excessive retard is less obvious but equally destructive. For that reason, final timing should be confirmed with a timing light or other accepted procedure.

Remove timing plug from left-side engine crankcase.

See Picture 40.

b. Install timing mark view plug into crankcase. See

e 41.

Pictur

c. Refer to service manual or instructions specific to the

ignition system being used. Find the RPM in which the ignition “fully advances”.

Attach inductive pick-up from timing light to spark

plug wire.

S&S®suggests the following timing specifications:

1. 111”- 32º (Timing mark at the right-side, or towards

the rear

, of the timing hole.)

2. 117”- 30º (Timing mark in the center of the timing

hole.)

3. 124”- 28º (Timing mark at the left-side, or towards

the front, of the timing hole.)

CAUTION

Proper ignition timing is essential to safe engine operation. Timing that’ engine damage. Timing that’s too retarded will result in engine over-heating and engine damage.

NOTE- If S&S determines that engine damage was caused by improper ignition timing, repair will not be cover warranty.

s too advanced will result in detonation and

ed under

NOTE- If the timing light being used requires an external power source, it is advised to use a separate, stand-alone battery Charging system pulsing may cause a fluctuation in the timing light strobe if the motorcycle’s battery is used.

e. Start motorcycle. Run the engine to the “full advance”

RPM of the ignition system and look for the timing mark through the view plug. The front cylinder advance mark on the flywheel (F/30) should be seen through the view plug.

g. Reinstall the crankcase timing plug.

SUGGESTIONS

1. V.O.E.S. - S&S Cycle does suggest the ignition system selected

for use with this 4

⁄8" bore engine utilize the V.O.E.S. (Vacuum Operated Electric Switch). Check the switch using a hand vacuum pump with a gauge and set the switch to trip at 6 in. of vacuum-Mercury. See Picture 28.

2. OIL TEMPERATURE - Operating temperature for engine oil

NOTE- With the front cylinder advance mark centered in the timing hole at the full advance rpm of the ignition system, the timing will be set at 30º.

should be between 180º - 240º F. If engine oil temperature stays above 240º, and correct ignition timing has been verified, S&S Cycle suggests that an oil cooler be installed.

S&S®Recommended Regular Service Intervals

Item Interval

Engine Oil & Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Change at 50, 500, 2,500 miles, every 2,500 miles thereafter.

Air Cleaner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Inspect at 50 and 500 miles, every 2,500 miles thereafter. Replace every 5,000 miles.

Tappet Oil Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Inspect at 50 and 500 miles, every 2,500 miles thereafter.

Petcock, Lines, & Fittings, Vacuum Lines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Inspect at 50 and 500 miles, every 2,500 miles thereafter.

Fuel Tank Filter Screen & In-Line Fuel Filter (If used) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Every 5,000 miles.

Engine Idle Speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Adjust as required.

Operation of Throttle & Enrichment Device Controls . . . . . . . . . .Inspect & lubricate throttle cables at 500 miles and every 2,500 miles

thereafter.

Spark Plugs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Inspect every 5,000 miles. Replace every 10,000 miles or as needed.

Ignition Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Inspect every 5,000 miles.

Engine Mounts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Inspect every 500 miles and every 5,000 miles thereafter.

External Fasteners Except Engine Head Bolts . . . . . . . . . . . . . . . . . . . . . . . . . . . .Re-torque at 500 miles and every 5,000 miles thereafter.

S&S recommends that petroleum-based oil not specifically formulated for air-cooled motorcycles should be changed every 1,000 miles.

Replace more frequently if required or if engine is operated in a dusty environment.

Specifications for 41⁄8” Bore Engines

Displacement Bore Stroke Compression Ratio

111” 41⁄8” 41⁄8” 9.7:1

117” 41⁄8” 43⁄8” 10.2:1

124” 41⁄8” 45⁄8” 10.8:1

Cylinder Heads Specification

Valve Guide in Head (tight) .0015” - .003”

Valve Seat in Head (tight) .005” - .0075”

Valves (Fit in Guide) Specification Service Wear Limit

Intake .0012” - .0015” .0025”

Exhaust .0018” - .0023” .0035”

Seat Width .040” - .062”

Stem Protrusion 2.045” - 2.060” 2.080”

Rocker Arms Specification Service Wear Limit

Shaft Fit in Bushing (Loose) .0007” - .0018” .0035”

Bushing Fit in Rocker

Arm (Tight)

Hydraulic Lifters Specification Service Wear Limit

Lifter Fit in Guide (Loose) .0006” - .0017” .003”

Pistons Specification Service Wear Limit

Fit in cylinder .002” - .0025” .005”

End Gaps: Top Two

Compression

Oil Control Rails .015 - .035” .050”

Gearcase Specification Service Wear Limit

Breather Gear End-play .005” - .015”

Breather Gear Running

Clearance

Camshaft in Bushing .0007 - .002” .003”

Camshaft End-play .005” - .015”

Pinion Shaft in Bushing .001” - .0025”

Bushing Fit in

Gearcase (Tight)

Oil Pump Shaft Clearance .0007” - .0023 .0035”

.002” - .004”

.017” - .025” .028”

.0015” - .0025” .004”

.002” - .004”

Crankcase Specification Service Wear Limit

Timkin®Race in Case (tight) .001” - .003” less than .0025”

Pinion Race in Case (tight) .001” - .003” less than .0025”

Flywheels Specification Service Wear Limit

Runout (Shaft at Flywheel) .0005” - .001” .003”

End Play .001” - .005” exceeds .005”

Pinion Bearing Fitment .0004 - .001” .002”

Connecting Rods Specification Service Wear Limit

Crankpin Bearing

Running Clearance

Piston Pin Fitment in Red .0005” - .001” .002”

Connecting Rod Side-play .015 - .035” .040”

Connecting Rods Specification S&S®Suggestions

Pinion Gear Nut 50 Ft.-Lbs Loctite®272

Rocker Box Hardware 1⁄4” 120 in.-Lbs Loctite®243

Rocker Box Hardware5⁄16” 18 Ft.-Lbs Loctite®243

Tappet Guide Fasteners 120 in.-Lbs Loctite®243

Pushrod Locknuts 120 in.-Lbs

Cylinder Head Bolts See Chart on Page 9

Crankcase Fasteners 1⁄4” 120 in.-Lbs

Crankcase Fasteners 5⁄16” 15 Ft.-Lbs

Gearcover Fasteners 120 in.-Lbs Loctite®243

Intake Manifold-to-Head 16 Ft.-Lbs Loctite®243

Intake Manifold-to-Carb 18 Ft.-Lbs Loctite®243

Exhaust Flange-to-Head 60-80 in.-Lbs Anti-seize

Tappet Screen Plug 120 in.-Lbs

Timing Hole Plug 120 in.-Lbs

Spark Plug 11-18 Ft.-Lbs Anti-seize

Cylinder Studs 10 Ft.-Lbs Loctite®262

.001” - .0012” .002”

S&S Cycle V series Assembly And Installation Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
