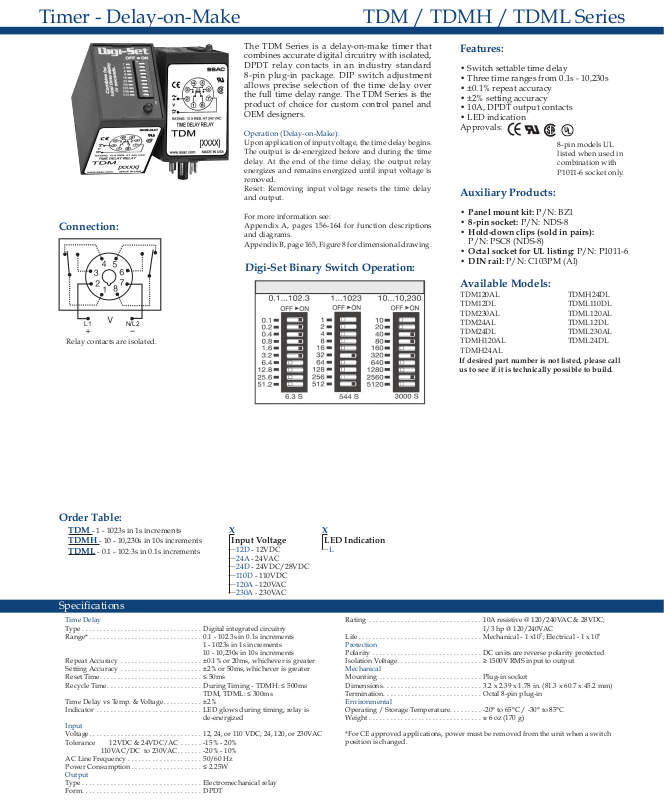

SSAC TDM Series, TDMH Series, TDML Series Data Sheet
TDM / TDMH / TDML SeriesTimer - Delay-on-Make
Connection:
L1 N/L2
Relay contacts are isolated.
The TDM Series is a delay-on-make timer that
combines accurate digital circuitry with isolated,
DPDT relay contacts in an industry standard
8-pin plug-in package. DIP switch adjustment
allows precise selection of the time delay over
the full time delay range. The TDM Series is the
product of choice for custom control panel and
OEM designers.
Operation (Delay-on-Make):
Upon application of input voltage, the time delay begins.
The output is de-energized before and during the time
delay. At the end of the time delay, the output relay
energizes and remains energized until input voltage is
removed.
Reset: Removing input voltage resets the time delay
and output.
For more information see:
Appendix A, pages 156-164 for function descriptions
and diagrams.
Appendix B, page 165, Figure 8 for dimensional drawing.
Digi-Set Binary Switch Operation:
Features:
• Switch settable time delay
• Three time ranges from 0.1s - 10,230s
• ±0.1% repeat accuracy
• ±2% setting accuracy
• 10A, DPDT output contacts
• LED indication
Approvals:
8-pin models UL
listed when used in
combination with
P1011-6 socket only.
Auxiliary Products:
• Panel mount kit: P/N: BZ1
• 8-pin socket: P/N: NDS-8
• Hold-down clips (sold in pairs):
P/N: PSC8 (NDS-8)
• Octal socket for UL listing: P/N: P1011-6
• DIN rail: P/N: C103PM (Al)
Available Models:
TDM120AL
TDM12DL
TDM230AL
TDM24AL
TDM24DL
TDMH120AL
TDMH24AL
If desired part number is not listed, please call
us to see if it is technically possible to build.
TDMH24DL
TDML110DL
TDML120AL
TDML12DL
TDML230AL
TDML24DL
Order Table:
TDM - 1 - 1023s in 1s increments
TDMH - 10 - 10,230s in 10s increments
TDML - 0.1 - 102.3s in 0.1s increments
X
Input Voltage
─12D - 12VDC
─24A - 24VAC
─24D - 24VDC/28VDC
─110D - 110VDC
─120A - 120VAC
─230A - 230VAC
Specications
Time Delay
Type ..................................Digital integrated circuitry
Range* ................................0.1 - 102.3s in 0.1s increments
1 - 1023s in 1s increments
10 - 10,230s in 10s increments
Repeat Accuracy ....................... ±0.1% or 20ms, whichever is greater
Setting Accuracy .......................±2% or 50ms, whichever is greater
Reset Time .............................≤ 50ms
Recycle Time ...........................During Timing - TDMH: ≤ 500ms
TDM, TDML: ≤ 300ms
Time Delay vs Temp. & Voltage ...........±2%
Indicator ..............................LED glows during timing; relay is
de-energized
Input
Voltage ................................ 12, 24, or 110 VDC; 24, 120, or 230VAC
Tolerance 12VDC & 24VDC/AC ...... -15% - 20%
110VAC/DC to 230VAC .......-20% - 10%
AC Line Frequency ..................... 50/60 Hz
Power Consumption .................... ≤ 2.25W
Output
Type ..................................Electromechanical relay
Form .................................. DPDT
X
LED Indication
─L
Rating ................................10A resistive @ 120/240VAC & 28VDC;
1/3 hp @ 120/240VAC
Life ................................... Mechanical - 1 x107; Electrical - 1 x 10
Protection
Polarity ...............................DC units are reverse polarity protected
Isolation Voltage ........................≥ 1500V RMS input to output
Mechanical
Mounting .............................Plug-in socket
Dimensions ............................ 3.2 x 2.39 x 1.78 in. (81.3 x 60.7 x 45.2 mm)
Termination ............................Octal 8-pin plug-in
Environmental
Operating / Storage Temperature ......... -20° to 65°C / -30° to 85°C
Weight ................................≅ 6 oz (170 g)
*For CE approved applications, power must be removed from the unit when a switch
position is changed.
