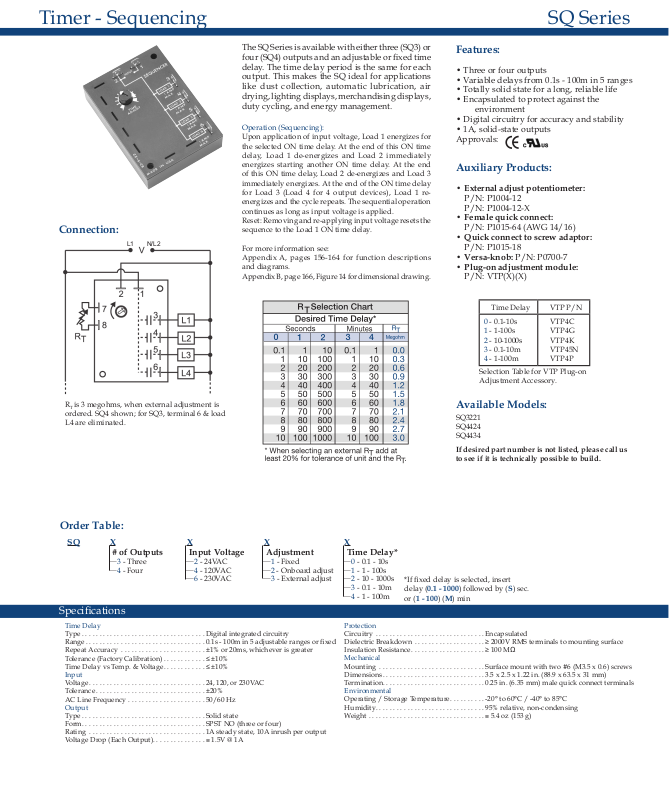

SQ SeriesTimer - Sequencing
Connection:
The SQ Series is available with either three (SQ3) or
four (SQ4) outputs and an adjustable or xed time
delay. The time delay period is the same for each
output. This makes the SQ ideal for applications
like dust collection, automatic lubrication, air
drying, lighting displays, merchandising displays,
duty cycling, and energy management.
Operation (Sequencing):
Upon application of input voltage, Load 1 energizes for
the selected ON time delay. At the end of this ON time
delay, Load 1 de-energizes and Load 2 immediately
energizes starting another ON time delay. At the end
of this ON time delay, Load 2 de-energizes and Load 3
immediately energizes. At the end of the ON time delay
for Load 3 (Load 4 for 4 output devices), Load 1 re-
energizes and the cycle repeats. The sequential operation
continues as long as input voltage is applied.
Reset: Removing and re-applying input voltage resets the
sequence to the Load 1 ON time delay.
L1
N/L2
For more information see:
Appendix A, pages 156-164 for function descriptions
and diagrams.
Appendix B, page 166, Figure 14 for dimensional drawing.
Features:
• Three or four outputs
• Variable delays from 0.1s - 100m in 5 ranges
• Totally solid state for a long, reliable life
• Encapsulated to protect against the
environment
• Digital circuitry for accuracy and stability
• 1A, solid-state outputs
Approvals:
Auxiliary Products:
• External adjust potentiometer:
P / N: P1 00 4- 12
P/N: P1004-12-X
• Female quick connect:
P / N : P1 0 1 5 - 6 4 (A W G 1 4 / 16 )
• Quick connect to screw adaptor:
P/N: P1015-18
• Versa-knob: P/N: P0700-7
• Plug-on adjustment module:
P/N: VTP(X)(X)
Time Delay VTP P/N
0 - 0.1-10s
1 - 1-100s
2 - 10-1000s
3 - 0.1-10m
4 - 1-100m
Selection Table for VTP Plug-on
Adjustment Accessory.
VTP4C
VTP4G
VTP4K
VTP45N
VTP4P
RT is 3 megohms, when external adjustment is
ordered. SQ4 shown; for SQ3, terminal 6 & load
L4 are eliminated.
Order Table:
SQ
X
# of Outputs
─3 - Three
─4 - Four
X
Input Voltage
─2 - 24VAC
─4 - 120VAC
─6 - 230VAC
X
Adjustment
─1 - Fixed
─2 - Onboard adjust
─3 - External adjust
Specications
Time Delay
Type ...................................Digital integrated circuitry
Range ..................................0.1s - 100m in 5 adjustable ranges or xed
Repeat Accuracy ........................±1% or 20ms, whichever is greater
Tolerance (Factory Calibration) ............≤ ±10%
Time Delay vs Temp. & Voltage ............≤ ±10%
Input
Voltage .................................24, 120, or 230VAC
Tolerance ...............................±20%
AC Line Frequency ......................50/60 Hz
Output
Type ...................................Solid state
Form ...................................SPST NO (three or four)
Rating .................................1A steady state, 10A inrush per output
Voltage Drop (Each Output) ...............≅ 1.5V @ 1A
Available Models:
SQ3221
SQ4424
SQ4434
If desired part number is not listed, please call us
to see if it is technically possible to build.
X
Time Delay*
─0 - 0.1 - 10s
─1 - 1 - 100s
─2 - 10 - 1000s
─3 - 0.1 - 10m
─4 - 1 - 100m
Protection
Circuitry ...............................Encapsulated
Dielectric Breakdown ....................≥ 2000V RMS terminals to mounting surface
Insulation Resistance .....................≥ 100 MΩ
Mechanical
Mounting ..............................Surface mount with two #6 (M3.5 x 0.6) screws
Dimensions .............................3.5 x 2.5 x 1.22 in. (88.9 x 63.5 x 31 mm)
Termination .............................0.25 in. (6.35 mm) male quick connect terminals
Environmental
Operating / Storage Temperature ..........-20° to 60°C / -40° to 85°C
Humidity ...............................95% relative, non-condensing
Weight .................................≅ 5.4 oz (153 g)
*If xed delay is selected, insert
delay (0.1 - 1000) followed by (S) sec.
or (1 - 100) (M) min
