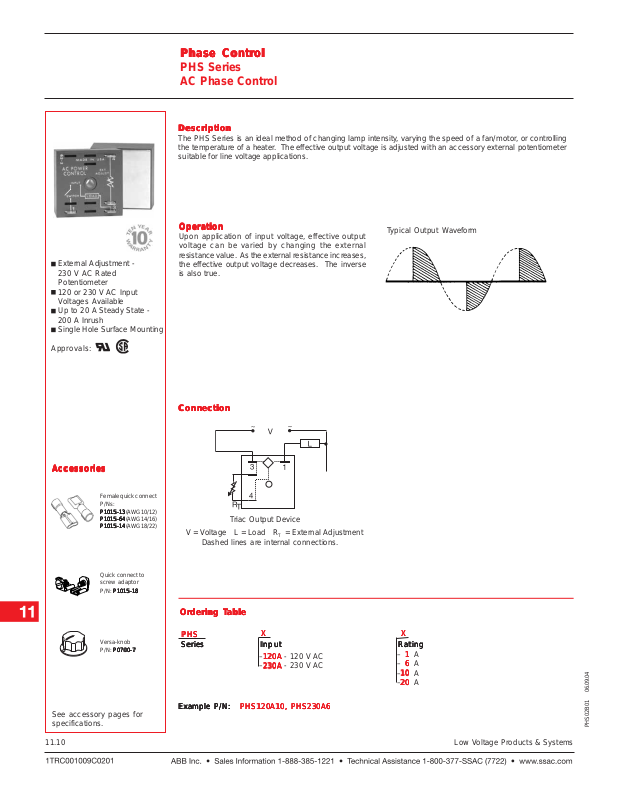

Page 1
External Adjustment 230 V AC Rated
Potentiometer
120 or 230 V AC Input
Voltages Available
Up to 20 A Steady State 200 A Inrush
Single Hole Surface Mounting
Phase ControlPhase Control
Phase Control
Phase ControlPhase Control
PHS Series
AC Phase Control
DescriptionDescription
Description
DescriptionDescription
The PHS Series is an ideal method of changing lamp intensity, varying the speed of a fan/motor, or controlling
the temperature of a heater. The effective output voltage is adjusted with an accessory external potentiometer
suitable for line voltage applications.
OperationOperation
Operation
OperationOperation
Upon application of input voltage, effective output
voltage can be varied by changing the external
resistance value. As the external resistance increases,
the effective output voltage decreases. The inverse
is also true.
Typical Output Waveform
Approvals:
AccessoriesAccessories
Accessories
AccessoriesAccessories
Female quick connect
P/Ns:
P1015-13P1015-13
P1015-13 (AWG 10/12)
P1015-13P1015-13
P1015-64P1015-64
P1015-64 (AWG 14/16)
P1015-64P1015-64
P1015-14P1015-14
P1015-14 (AWG 18/22)
P1015-14P1015-14
Quick connect to
screw adaptor
P1015-18P1015-18
P/N:
P1015-18
P1015-18P1015-18
Versa-knob
P0700-7P0700-7
P/N:
P0700-7
P0700-7P0700-7
ConnectionConnection
Connection
ConnectionConnection
Triac Output Device
V = Voltage L = Load RT = External Adjustment
Dashed lines are internal connections.
OrOr
dering Tdering T
Or
dering T
OrOr
dering Tdering T
PHS PHS
PHS
PHS PHS
SeriesSeries
Series
SeriesSeries
ableable
able
ableable
XX
X
XX
InputInput
Input
InputInput
120A120A
–
120A - 120 V AC
120A120A
230A230A
230A - 230 V AC
–
230A230A
XX
X
XX
RatingRating
Rating
RatingRating
1 1
1 A
–
1 1
6 6
6 A
–
6 6
10 10
10 A
–
10 10
20 20
20 A
–
20 20
See accessory pages for
specifications.
Example P/N:Example P/N:
Example P/N:
Example P/N:Example P/N:
PHS120A10, PHS230A6PHS120A10, PHS230A6
PHS120A10, PHS230A6
PHS120A10, PHS230A6PHS120A10, PHS230A6
PHS02B01 06.09.04
Low Voltage Products & Systems11.10
Page 2
Phase ControlPhase Control
Phase Control
Phase ControlPhase Control
PHS Series
AC Phase Control
Technical Data Technical Data
Technical Data
Technical Data Technical Data
OutputOutput
Output
OutputOutput
Type Variable voltage phase angle control
Rating
Minimum Load Current 100 mA
Voltage Dro p ≅ 2.0 V at rated current
InputInput
Input
InputInput
Voltage 120 or 230 V AC
Tolerance +/-20%
Frequency 50 ... 60 Hz
ProtectionProtection
Protection
ProtectionProtection
Dielectric Breakdown ≥ 2000 V RMS terminals to mounting surface
Insulation Resistance ≥100 MΩ
MechanicalMechanical
Mechanical
MechanicalMechanical
Mounting * Surface mount with one #10 (M5 x 0.8) screw
Termination 0.25 in. (6.35 mm) male quick connect terminals
EnvironmentalEnvironmental
Environmental
EnvironmentalEnvironmental
Operating / Storage Temperature -20°C ... +60°C / -40°C ... +85°C
Humidity 95% relative, non-condensing
Weight 1A: ≅ 2.4 oz (68 g)
External Adjustment PotentiometerExternal Adjustment Potentiometer
External Adjustment Potentiometer
External Adjustment PotentiometerExternal Adjustment Potentiometer
120 V AC 100K Ω rated at 1 W
230 V AC 200K Ω rated at 2 W
Steady StateSteady State
Steady State (at 100% On)
Steady StateSteady State
1 A 10 A
6 A 60 A
10 A 100 A
20 A 200 A
6, 10, & 20A: ≅ 3.9 oz (111 g)
Must have insulation resistance suitable for line voltage applications
Inrush*Inrush*
Inrush*
Inrush*Inrush*
**
*Units rated ≥ 6A must be bolted to a
**
metal surface using the included heat sink
compound. The maximum mounting
surface temperature is 90°C. Inrush:
Non-repetitive for 16 ms.
PotentiometerPotentiometer
Potentiometer
PotentiometerPotentiometer
Part Number Value (Ohms) Wattage
P1004-174 100K 1 W
P1004-175 200K 2 W
A durable conductive plastic potentiometer.
Recommended for use with the PHS Series. It is
designed to withstand high temperature and harsh
environments. The shaft is slotted for screwdriver
adjustment and can be panel mounted.
Resistance values 100K and 200K +/-10%
Rated Wattage at 70°C
Linear taper
PHS02B01 06.09.04
Shaft rotation: 312° +/-3°
(effective rotation 275° +/-5°)
Mechanical View Mechanical View
Mechanical View
Mechanical View Mechanical View
Inches (Millimeters)
Low Voltage Products & Systems 11.11
