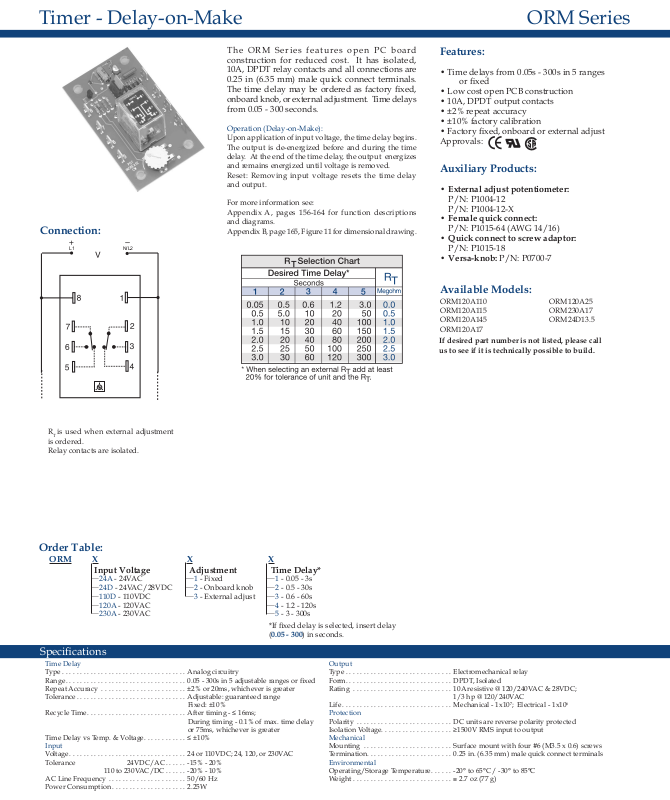

ORM SeriesTimer - Delay-on-Make

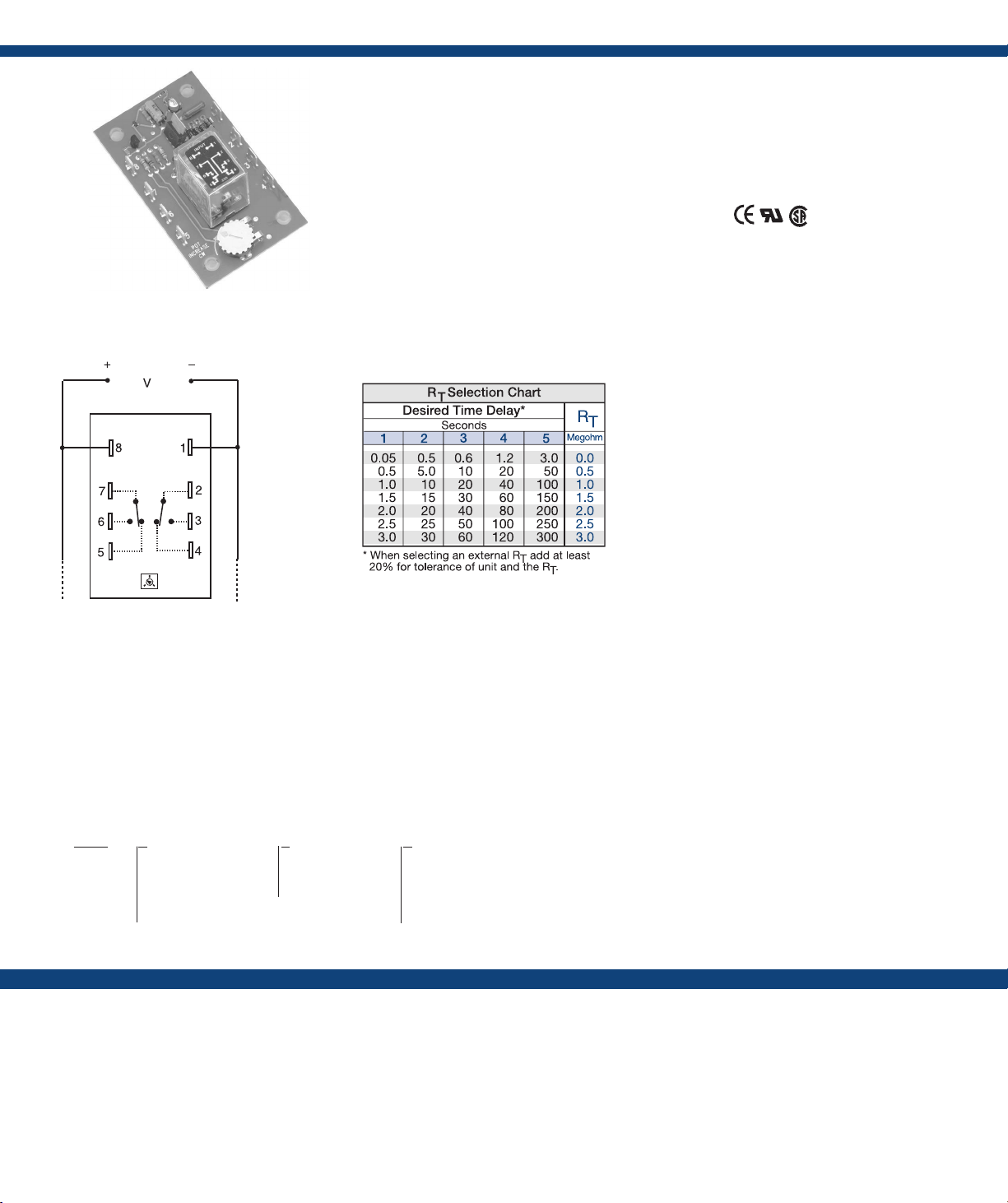

Connection:
L1 N/L2
The ORM Series features open PC board
construction for reduced cost. It has isolated,
10A, DPDT relay contacts and all connections are
0.25 in (6.35 mm) male quick connect terminals.
The time delay may be ordered as factory xed,
onboard knob, or external adjustment. Time delays
from 0.05 - 300 seconds.
Operation (Delay-on-Make):
Upon application of input voltage, the time delay begins.
The output is de-energized before and during the time
delay. At the end of the time delay, the output energizes
and remains energized until voltage is removed.
Reset: Removing input voltage resets the time delay
and output.
For more information see:
Appendix A, pages 156-164 for function descriptions
and diagrams.
Appendix B, page 165, Figure 11 for dimensional drawing.
Features:
• Time delays from 0.05s - 300s in 5 ranges
or xed
• Low cost open PCB construction
• 10A, DPDT output contacts
• ±2% repeat accuracy
• ±10% factory calibration
• Factory xed, onboard or external adjust
Approvals:
Auxiliary Products:
• External adjust potentiometer:
P / N: P 1 00 4 -12
P/N: P1004-12-X
• Female quick connect:
P / N : P 1 0 1 5 -6 4 ( AW G 1 4 / 1 6 )
• Quick connect to screw adaptor:
P/N: P1015-18
• Versa-knob: P/N: P0700-7
Available Models:
ORM120A110
ORM120A115
ORM120A145
ORM120A17
If desired part number is not listed, please call
us to see if it is technically possible to build.
ORM120A25
ORM230A17
ORM24D13.5
RT is used when external adjustment
is ordered.
Relay contacts are isolated.
Order Table:
ORM
X
Input Voltage
─24A - 24VAC
─24D - 24VAC/28VDC
─110D - 110VDC
─120A - 120VAC
─230A - 230VAC
X
Adjustment
─1 - Fixed
─2 - Onboard knob
─3 - External adjust
X
Time Delay*
─1 - 0.05 - 3s
─2 - 0.5 - 30s
─3 - 0.6 - 60s
─4 - 1.2 - 120s
─5 - 3 - 300s
*If xed delay is selected, insert delay
(0.05 - 300) in seconds.
Specications
Time Delay
Type ...................................Analog circuitry
Range ..................................0.05 - 300s in 5 adjustable ranges or xed
Repeat Accuracy ........................±2% or 20ms, whichever is greater
Tolerance ...............................Adjustable: guaranteed range
Fixed: ±10%
Recycle Time ............................After timing - ≤ 16ms;
During timing - 0.1% of max. time delay
or 75ms, whichever is greater
Time Delay vs Temp. & Voltage ............≤ ±10%
Input
Voltage .................................24 or 110VDC; 24, 120, or 230VAC
Tolerance 24VDC/AC ......-15% - 20%
110 to 230VAC/DC ......-20% - 10%
AC Line Frequency ...................... 50/60 Hz
Power Consumption .....................2.25W
Output
Type ..............................Electromechanical relay
Form .............................. DPDT, Isolated
Rating ............................10A resistive @ 120/240VAC & 28VDC;
1/3 hp @ 120/240VAC
Life ............................... Mechanical - 1x107; Electrical - 1x10
Protection
Polarity ...........................DC units are reverse polarity protected
Isolation Voltage ....................≥1500V RMS input to output
Mechanical
Mounting .........................Surface mount with four #6 (M3.5 x 0.6) screws
Termination ........................0.25 in. (6.35 mm) male quick connect terminals
Environmental
Operating/Storage Temperature ...... -20° to 65°C / -30° to 85°C
Weight ............................≅ 2.7 oz (77 g)
