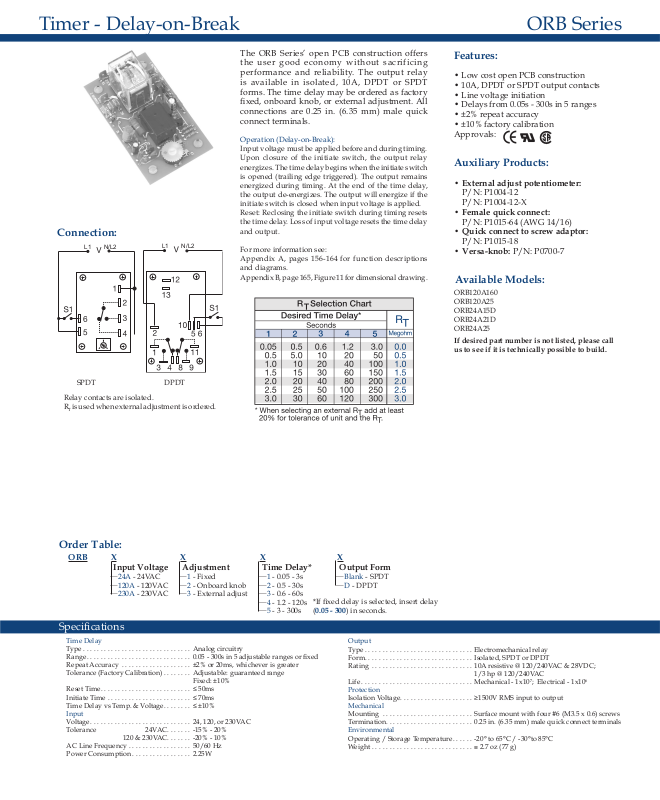

ORB SeriesTimer - Delay-on-Break
L1 N/L2
L1 N/L2
Connection:
The ORB Series’ open PCB construction offers
the user good economy without sacrificing
performance and reliability. The output relay
is available in isolated, 10A, DPDT or SPDT
forms. The time delay may be ordered as factory
xed, onboard knob, or external adjustment. All
connections are 0.25 in. (6.35 mm) male quick
connect terminals.
Operation (Delay-on-Break):
Input voltage must be applied before and during timing.
Upon closure of the initiate switch, the output relay
energizes. The time delay begins when the initiate switch
is opened (trailing edge triggered). The output remains
energized during timing. At the end of the time delay,
the output de-energizes. The output will energize if the
initiate switch is closed when input voltage is applied.
Reset: Reclosing the initiate switch during timing resets
the time delay. Loss of input voltage resets the time delay
and output.
For more information see:
Appendix A, pages 156-164 for function descriptions
and diagrams.
Appendix B, page 165, Figure 11 for dimensional drawing.
Features:
• Low cost open PCB construction
• 10A, DPDT or SPDT output contacts
• Line voltage initiation
• Delays from 0.05s - 300s in 5 ranges
• ±2% repeat accuracy
• ±10% factory calibration
Approvals:
Auxiliary Products:
• External adjust potentiometer:
P / N: P 1 00 4 -12
P/N: P1004-12-X
• Female quick connect:
P/N: P1015-64 (AWG 14/16)
• Quick connect to screw adaptor:
P/N: P1015-18
• Versa-knob: P/N: P0700-7
Available Models:
ORB120A160
ORB120A25
ORB24A15D
ORB24A21D
ORB24A25
If desired part number is not listed, please call
us to see if it is technically possible to build.
SPDT DPDT
Relay contacts are isolated.
RT is used when external adjustment is ordered.
Order Table:
ORB
X
Input Voltage
─24A - 24VAC
─120A - 120VAC
─230A - 230VAC
X
Adjustment
─1 - Fixed
─2 - Onboard knob
─3 - External adjust
X
Time Delay*
─1 - 0.05 - 3s
─2 - 0.5 - 30s
─3 - 0.6 - 60s
─4 - 1.2 - 120s
─5 - 3 - 300s
Specifications
Time Delay
Type ...............................Analog circuitry
Range ..............................0.05 - 300s in 5 adjustable ranges or fixed
Repeat Accuracy ....................±2% or 20ms, whichever is greater
Tolerance (Factory Calibration) ........Adjustable: guaranteed range
Fixed: ±10%
Reset Time ..........................≤ 50ms
Initiate Time ........................≤ 70ms
Time Delay vs Temp. & Voltage ........≤ ±10%
Input
Voltage .............................24, 120, or 230VAC
Tolerance 24VAC .......-15% - 20%
120 & 230VAC .......-20% - 10%
AC Line Frequency .................. 50/60 Hz
Power Consumption .................2.25W
X
Output Form
─Blank - SPDT
─D - DPDT
*If xed delay is selected, insert delay
(0.05 - 300) in seconds.
Output
Type ...............................Electromechanical relay
Form ...............................Isolated, SPDT or DPDT
Rating .............................10A resistive @ 120/240VAC & 28VDC;
1/3 hp @ 120/240VAC
Life ................................Mechanical - 1x107; Electrical - 1x10
Protection
Isolation Voltage .....................≥1500V RMS input to output
Mechanical
Mounting ..........................Surface mount with four #6 (M3.5 x 0.6) screws
Termination .........................0.25 in. (6.35 mm) male quick connect terminals
Environmental
Operating / Storage Temperature ......-20° to 65°C / -30°to 85°C
Weight .............................≅ 2.7 oz (77 g)
